ERDI OEM LASER MODULE

SPD1200N0 0.2–1200 m 905 nm Rangefinder with a Round Sealing-Groove Body

$90 USD / unitBase B2B price; approved quantity tiers are shown below. Shipping included.
Product modelSPD1200N0

SPD1200N0 is a compact 905 nm ranging module with a round sealing-groove housing and a source-table distance span of 0.2–1200 m. The Ø15.7 × 21.3 mm body distinguishes its mechanical option for civilian optical observation and distance-readout equipment.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$90 USDPublished unit price
31–200 pieces$70 USDSave 22%
201–500 pieces$50 USDSave 44%
501+ piecesLowest unit price$35 USDLowest published price · Save 61%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a Quote / Technical Review

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

MODEL OVERVIEW

SPD1200N0 OEM Ranging and Integration

The circular package and approximately 5 g mass provide a concrete distinction from square-body N-series options. UART-TTL, default 115200 bps communication and a 3.3–5 V supply are documented. The source names handheld night-vision, thermal-imaging and telescopic instruments as application directions; compatibility and target performance still need host-specific evaluation.

The separate 1500 m maximum is explicitly a night-time entry, not an all-condition extension of the standard span. The formal frequency row contains both 2–15 Hz and 4–15 Hz adaptive alternatives. Retain that ambiguity until the ordered configuration is confirmed, and do not infer angle, SPAD architecture or other functions from the model prefix.

MODEL-LEVEL DATA

Detailed SPD1200N0 Specifications

Read the values together with their source conditions. Literature and related-model data do not replace these ratings.

ParameterValueSource condition
Laser wavelength905 nm ±5 nmSPD1200N0 controlled source technical table
Beam divergence<4.5 mradSPD1200N0 controlled source technical table
Optical materialAspheric lensSPD1200N0 controlled source technical table
Receiver apertureDiameter 6.5 mmSPD1200N0 controlled source technical table
Ranging distance0.2–1200 m; maximum 1500 m at nightSPD1200N0 controlled source technical table; strong sunlight or low visibility may reduce range
Ranging accuracy±0.3 m (D ≤100 m); ±0.3 m + D × 0.7‰ (100 m < D <1200 m)SPD1200N0 controlled source technical table
Measurement frequency2–15 Hz or 4–15 Hz, adaptiveSPD1200N0 controlled source technical table; both alternatives appear in the same formal source row
Valid measurement rate≥98%SPD1200N0 controlled source technical table
False-alarm rate≤1%SPD1200N0 controlled source technical table
Communication interfaceUART-TTL (customizable)SPD1200N0 controlled source technical table
Baud rate115200 bps (default)SPD1200N0 controlled source technical table
Supply voltage3.3–5 VSPD1200N0 controlled source technical table
Startup time≤200 msSPD1200N0 controlled source technical table
Operating powerAverage ≈0.45 W; maximum ≤0.75 WSPD1200N0 controlled source technical table
Operating temperature-20°C to +60°CSPD1200N0 controlled source technical table
Storage temperature-30°C to +70°CSPD1200N0 controlled source technical table
Protection ratingIP67 inside lens chamberSource-stated classification or rating; not independently certified by this page
Laser safety classIEC Class ISource-stated classification or rating; not independently certified by this page
DimensionsDiameter 15.7 × 21.3 mm (round, with sealing groove)SPD1200N0 controlled source technical table
Weight≈5 gSPD1200N0 controlled source technical table
Shock1000 g/ms (10 times/s along optical axis)SPD1200N0 controlled source technical table; source test wording retained
Vibration5–50–5 Hz, 1 octave/min, 2.5 gSPD1200N0 controlled source technical table
ReliabilityMTBF ≥1500 hSPD1200N0 controlled source technical table

Functional Description

The source lists baud-rate modification as a serial-interface function.

Single ranging measures the target once. For a low-reflectivity target, the source says the module repeats measurements until stable distance data is obtained and reports it through the serial interface.

Repeated-ranging mode performs continuous distance measurement. The functional section states a typical configurable 2 Hz refresh rate and a maximum of 15 Hz; the formal frequency row separately retains both 2–15 Hz and 4–15 Hz alternatives.

Electrical Interface Definition

PinSignalFunction
1GNDPower ground
2VCCPositive supply
3IO (reserved)Reserved for expansion
4TXDSignal output, rangefinder module to host
5RXDSignal input, host to rangefinder module
6SW-SHOTFunction enable; no public default polarity is stated

Check the numbered connector view before wiring. Supply voltage and UART input tolerance are different electrical limits.

Mechanical Dimension Drawing and Electrical Interface Diagram

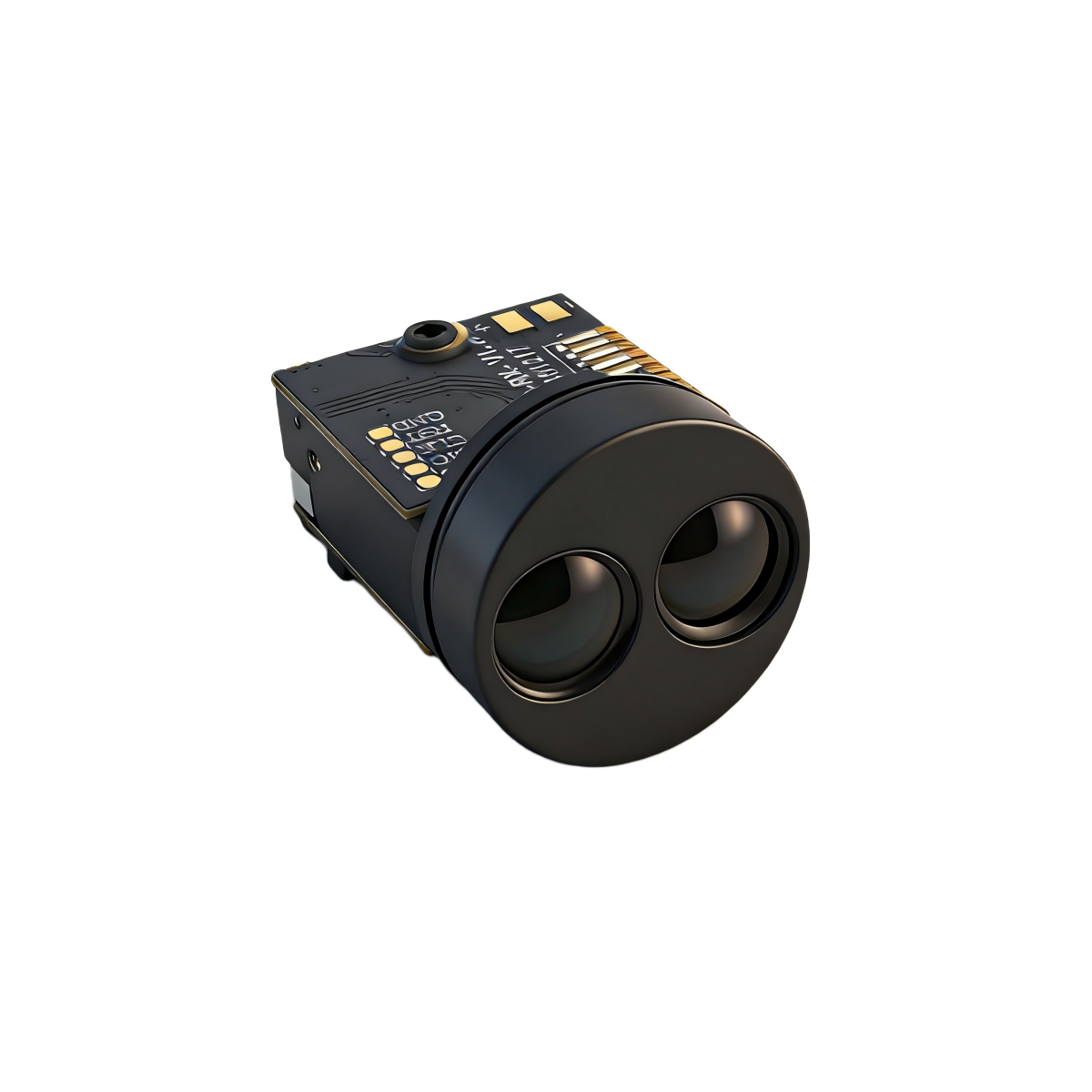

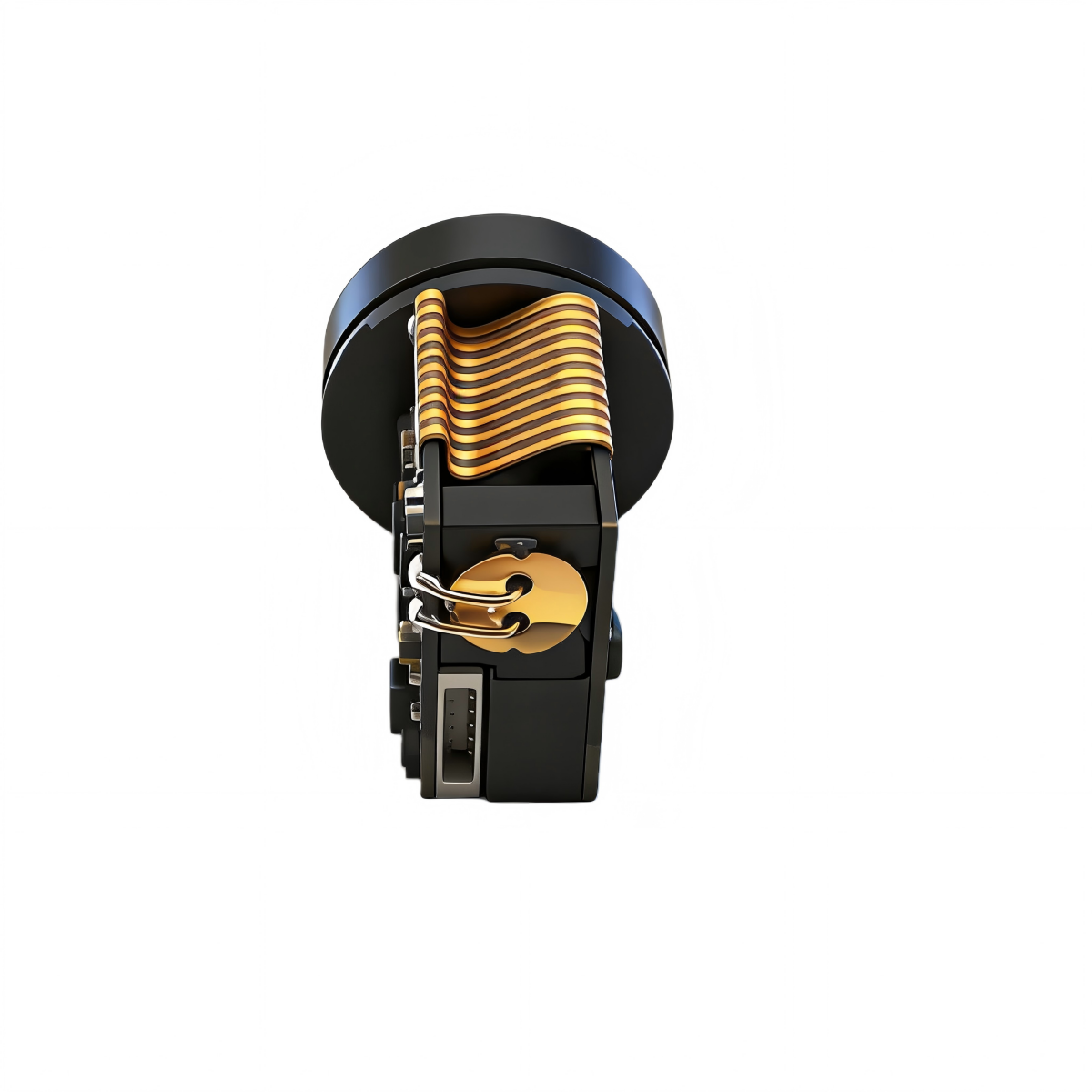

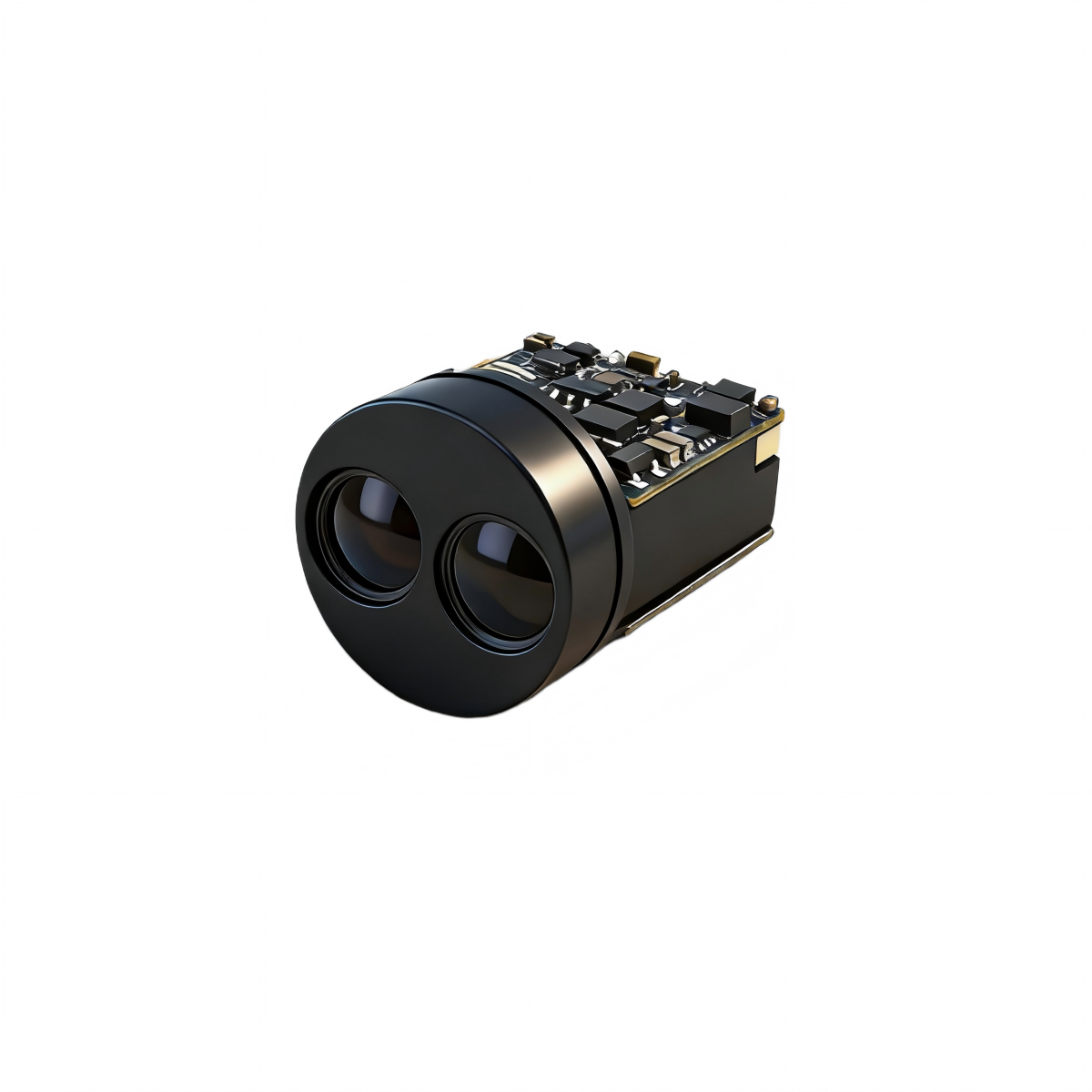

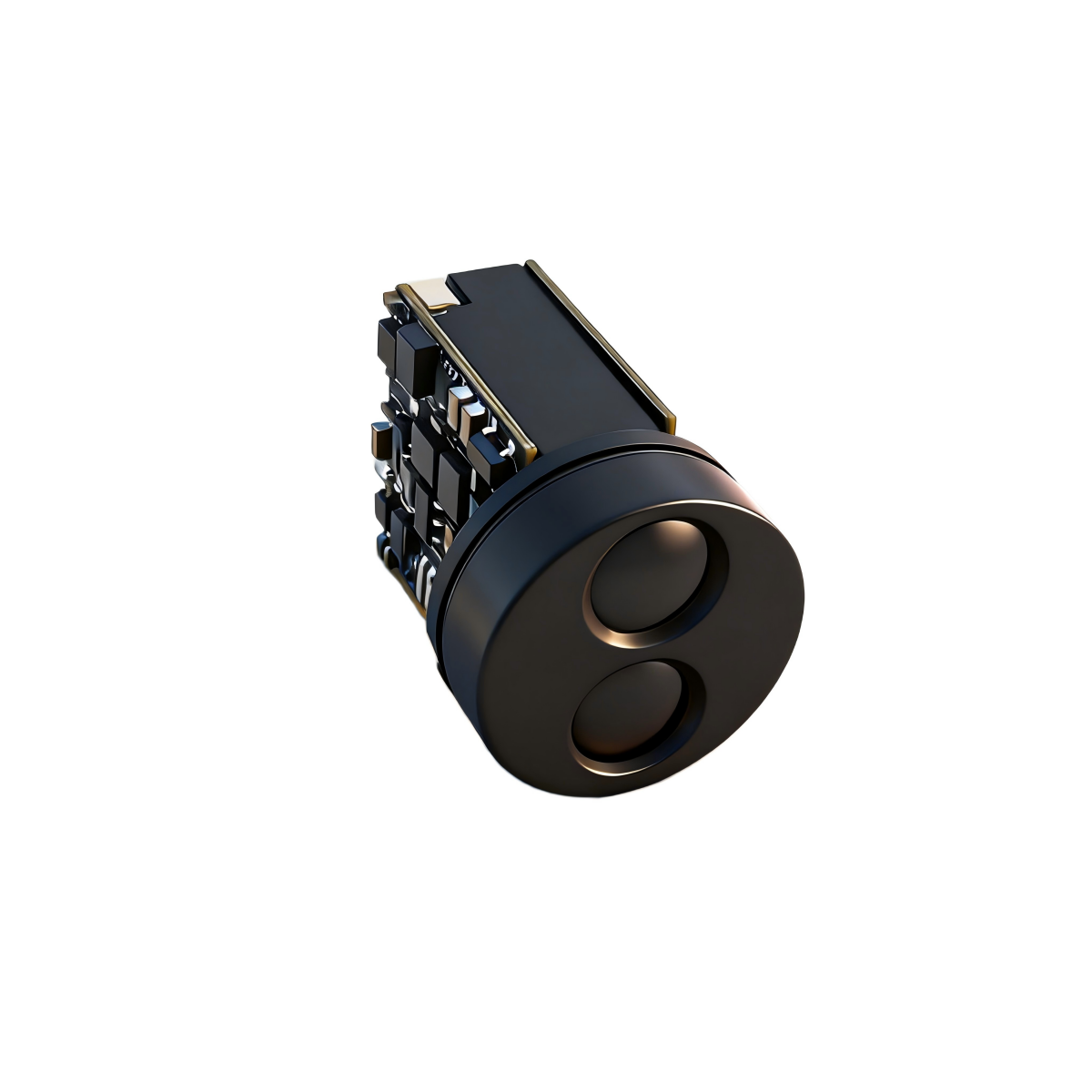

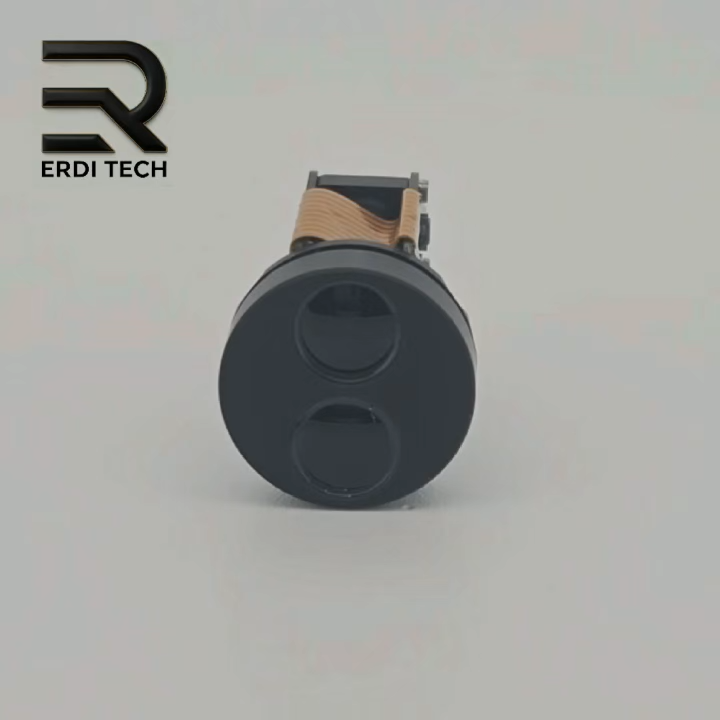

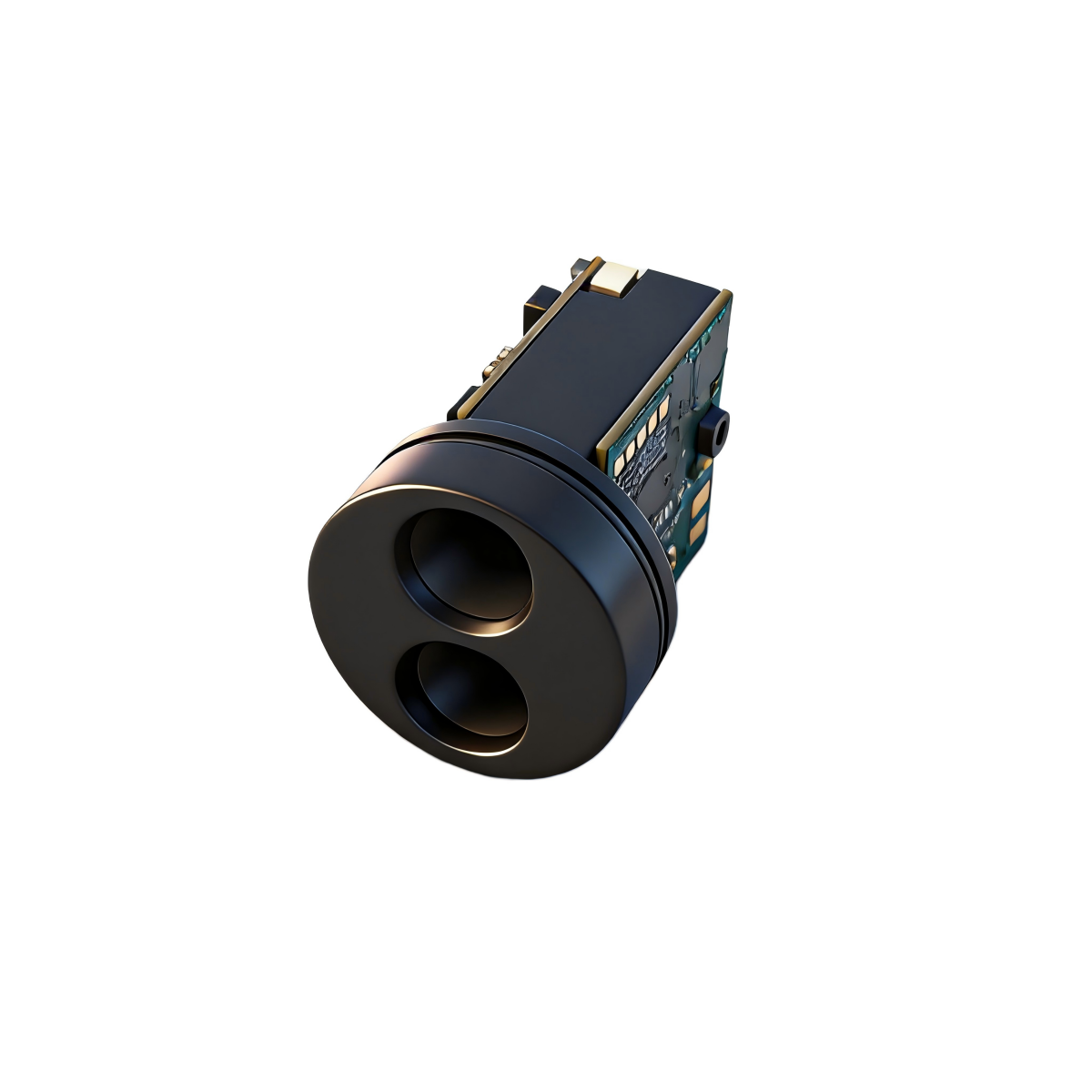

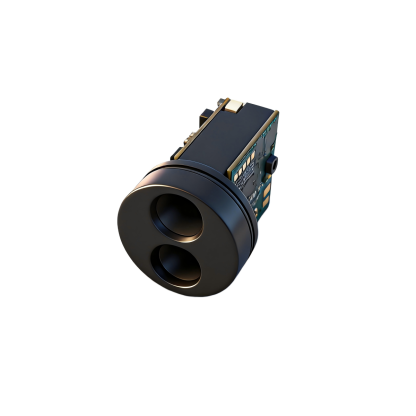

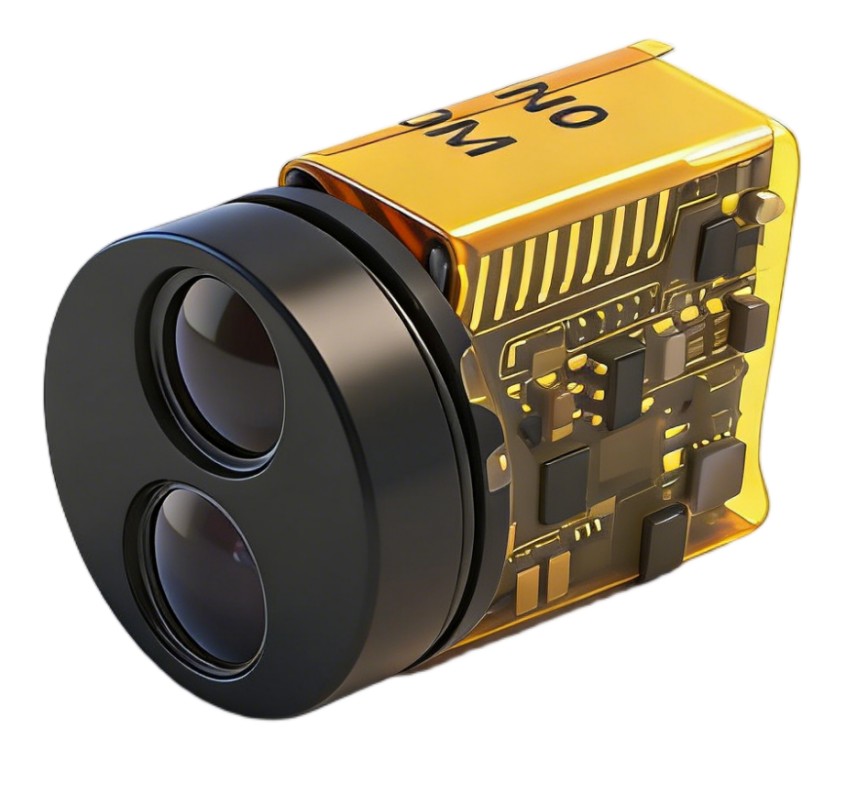

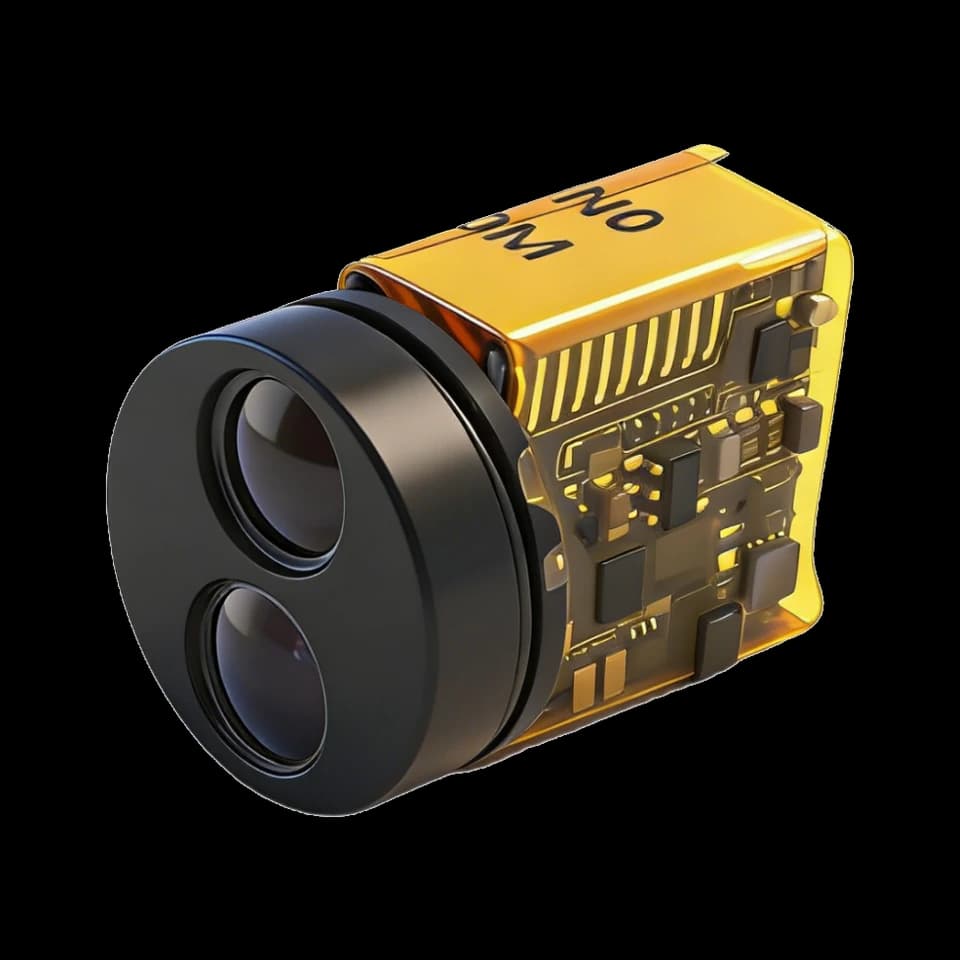

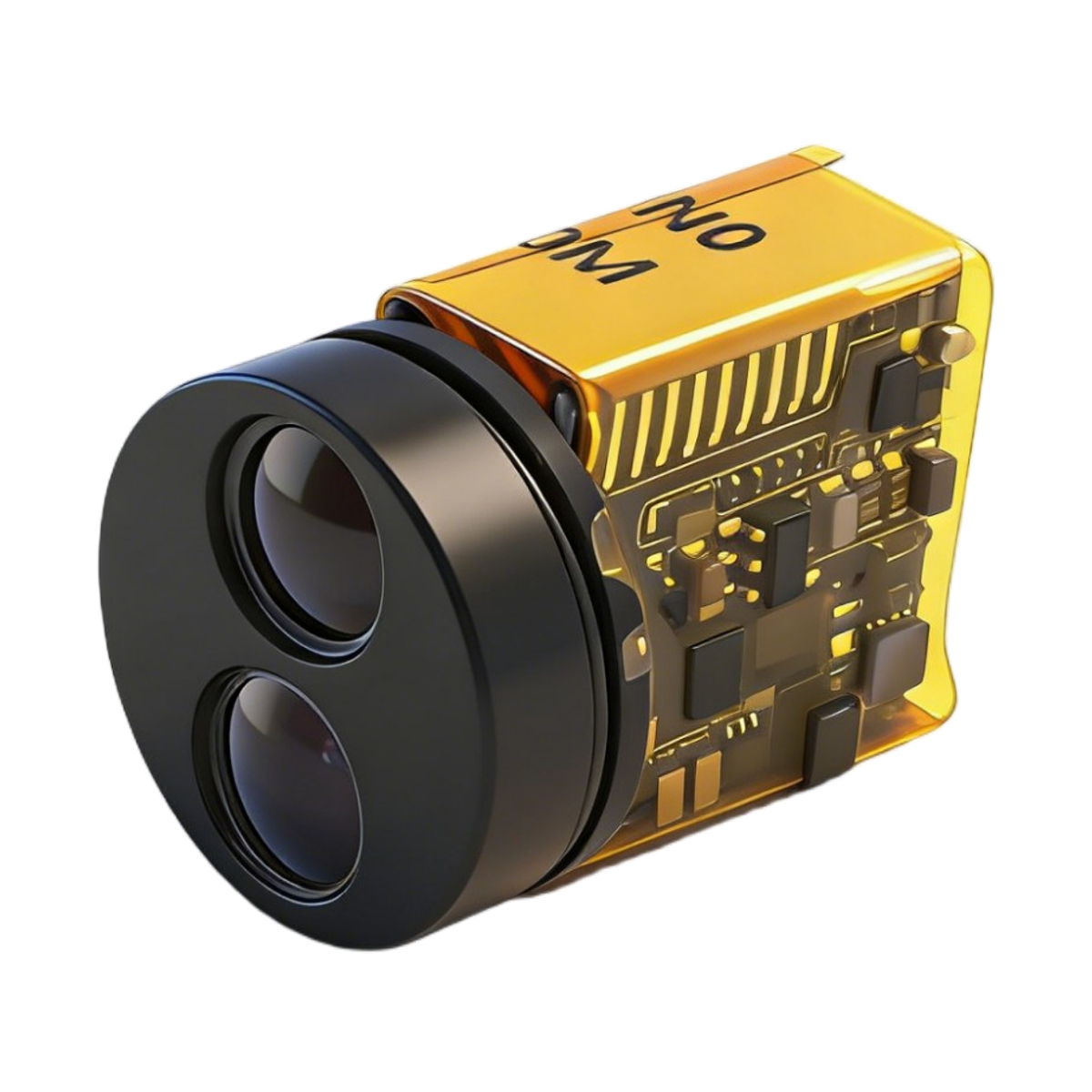

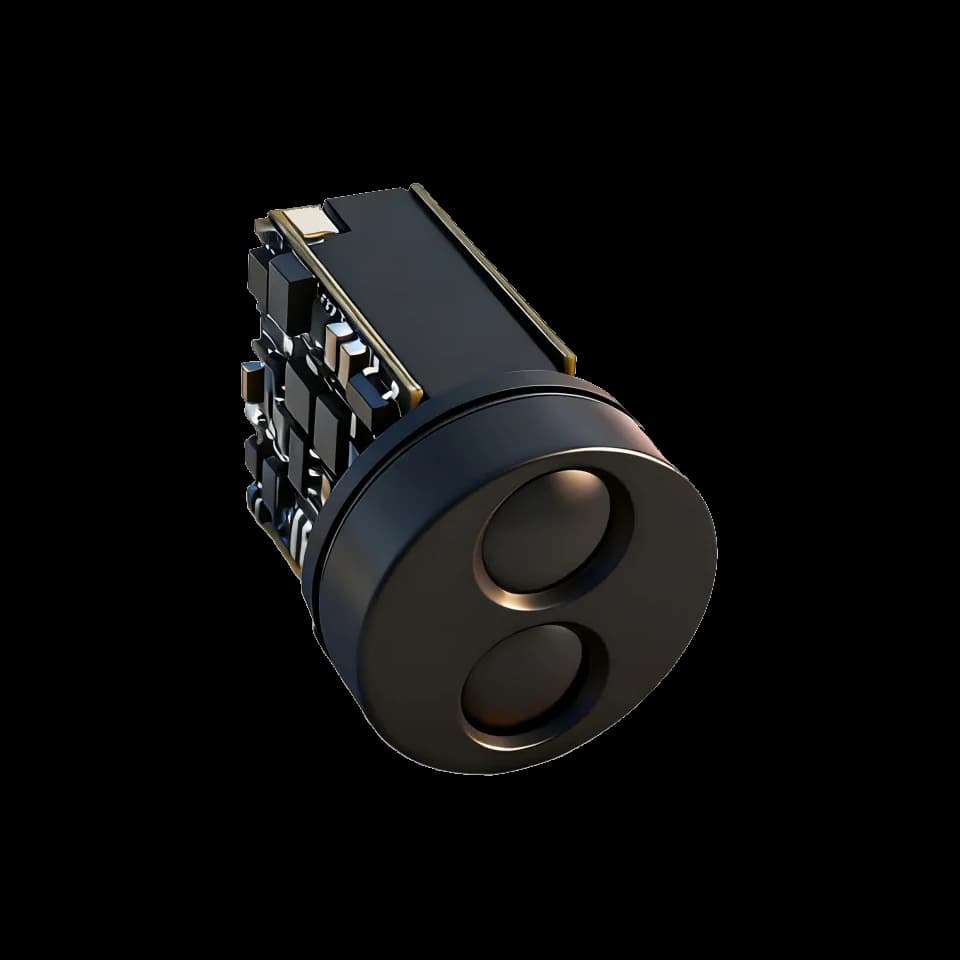

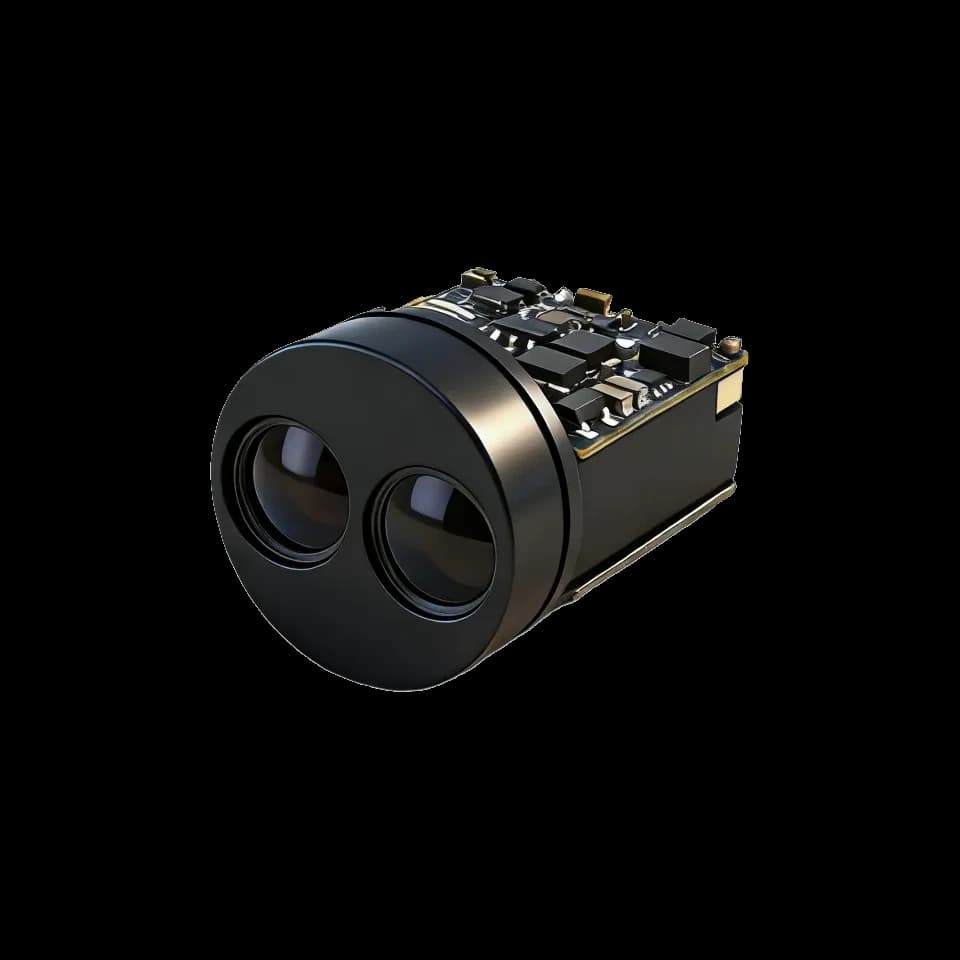

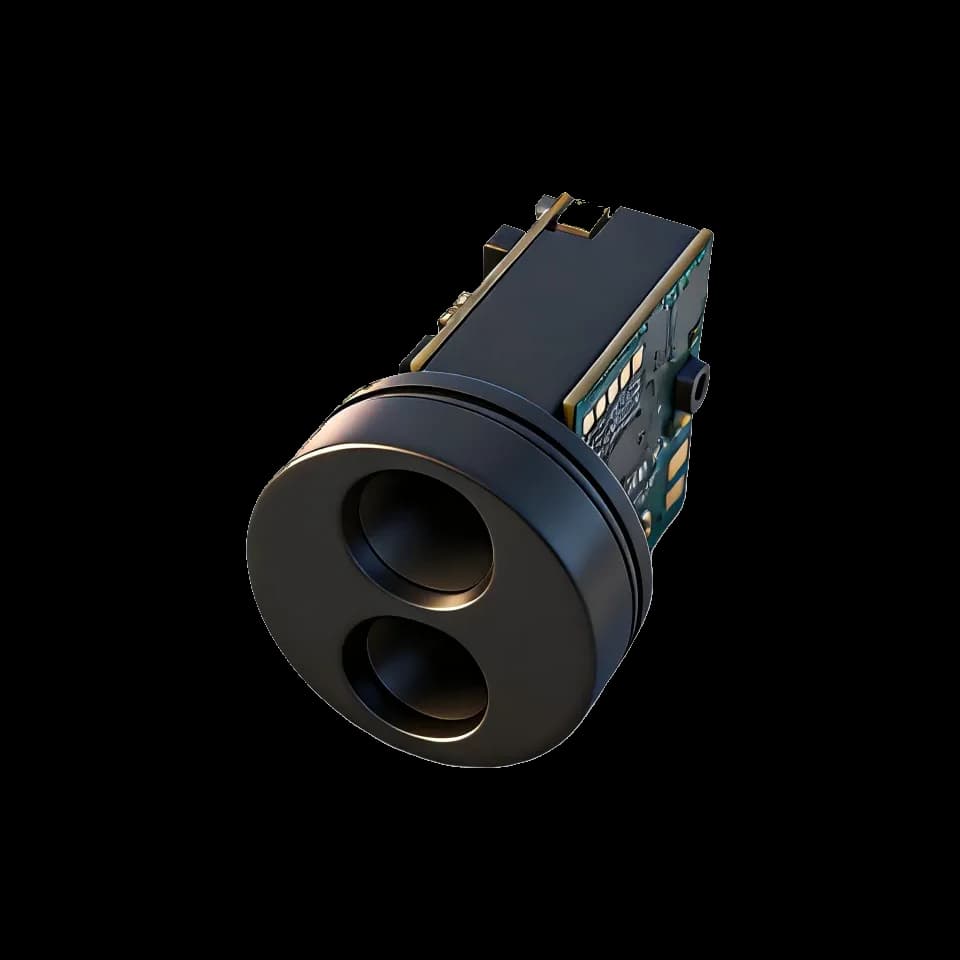

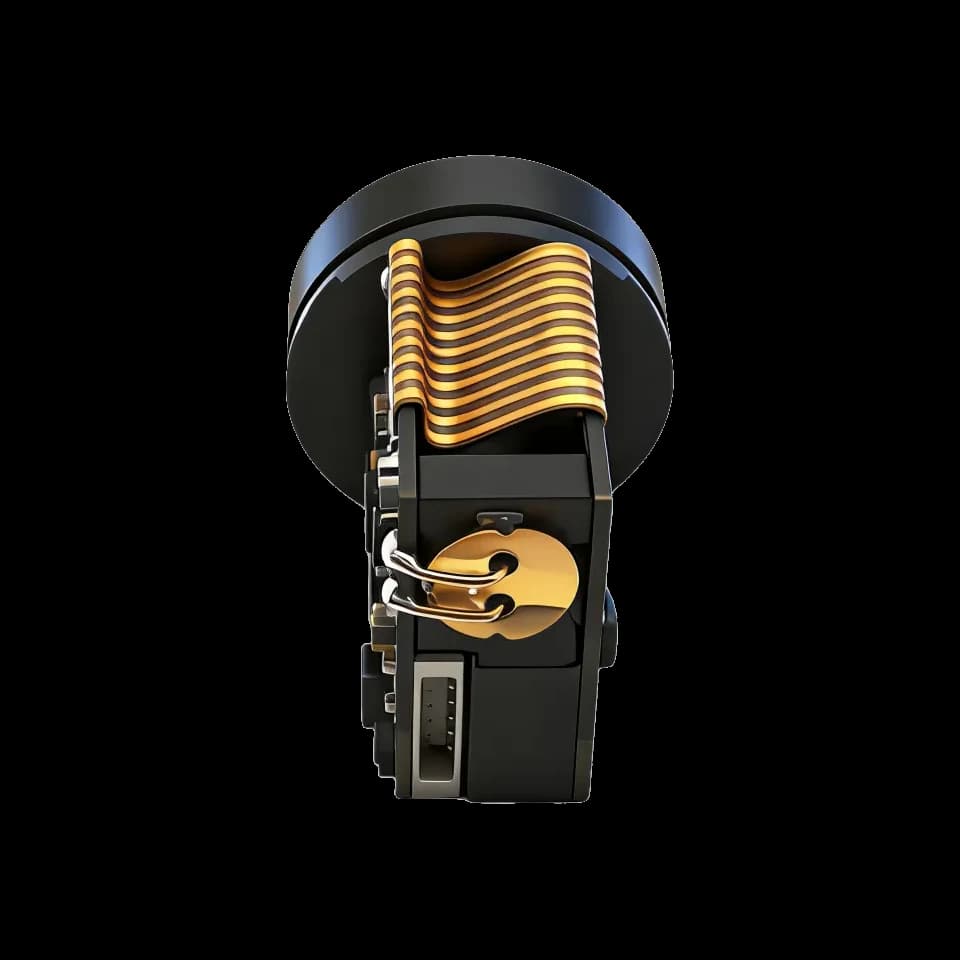

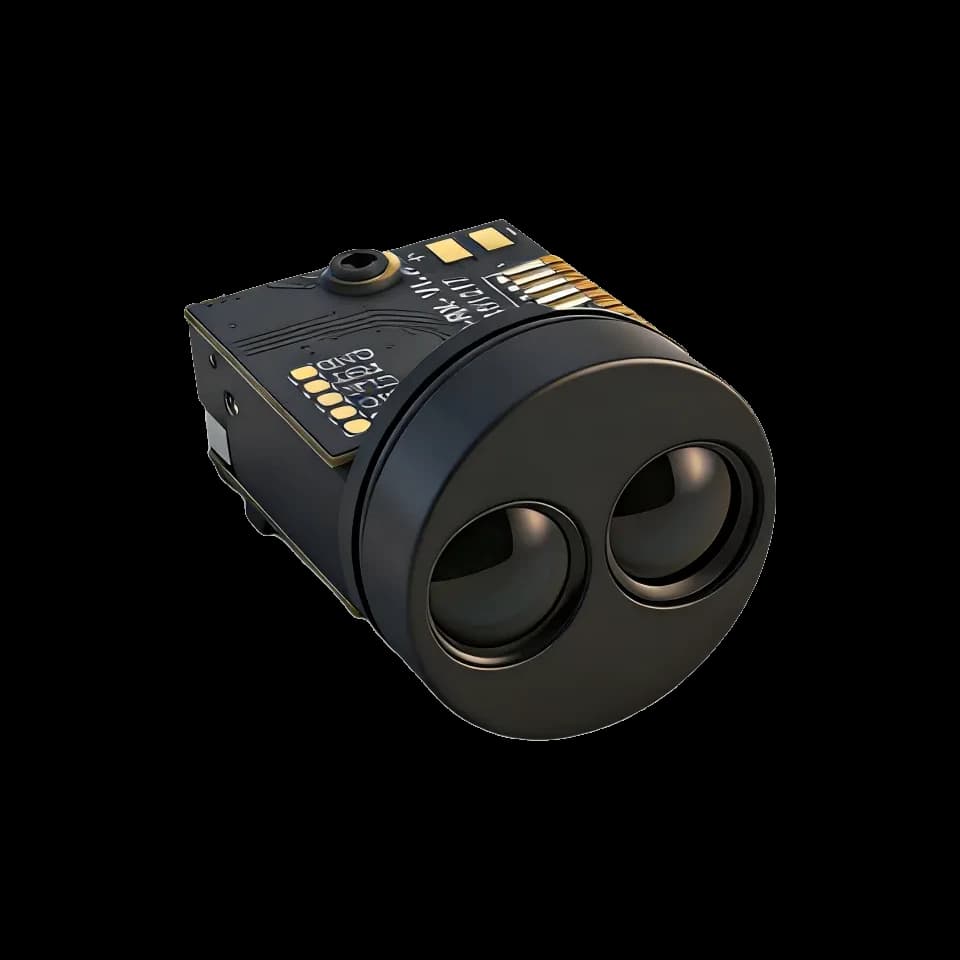

SPD1200N0 model-specific source product view
Source product viewModel-specific product figure extracted directly from the controlled SPD1200N0 PDF without generative editing.

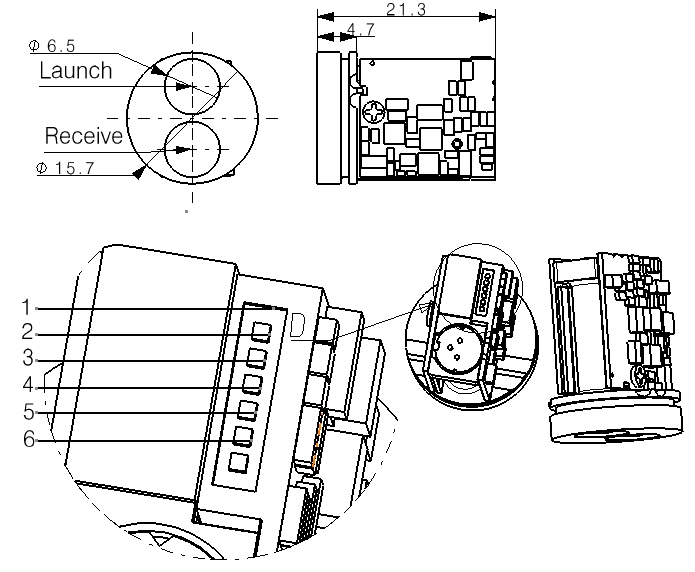

SPD1200N0 source mechanical drawing and six-pin callout
Mechanical dimension and pin-callout drawingModel-specific source drawing with visible dimensions and physical pin callouts 1–6 retained.

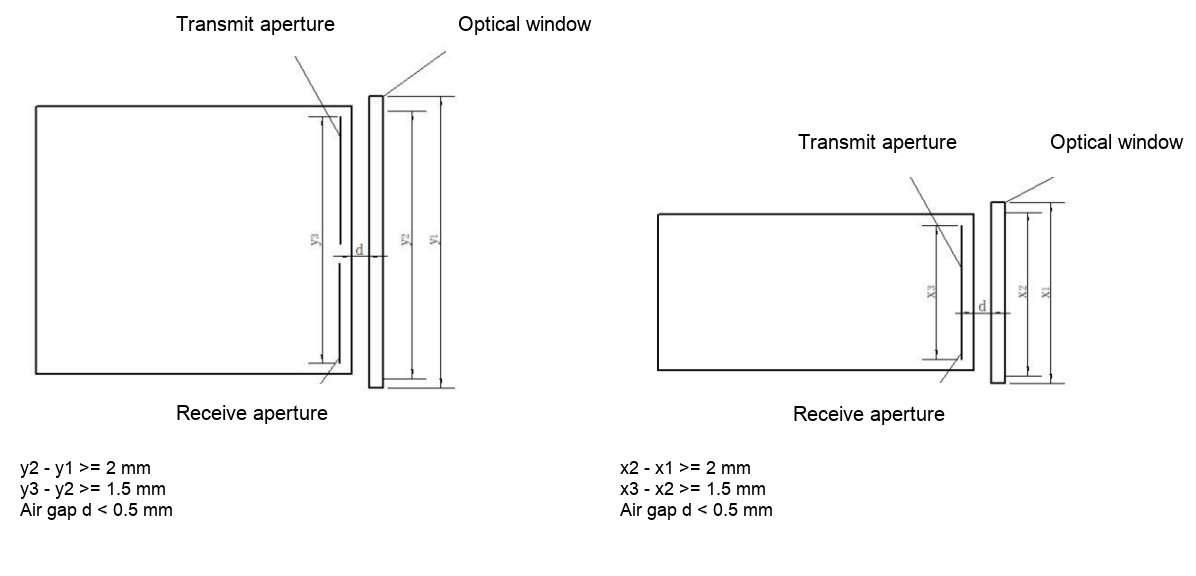

SPD1200N0 source optical-window installation arrangements
Optical-window installation referenceSource optical-window arrangements with source variables and dimensional relationships retained.

The model PDF controls product claims. Independent literature explains general principles and does not qualify this module.

TECHNICAL LITERATURE

Pulsed Laser and Single-Photon Receiver Technology

This is technology background for evaluating SPD1200N0, not a claim that its source documents specify a SPAD, TDC, histogram engine or particular chip. Model-specific architecture requires confirmation.

R = c × Δt / 2One-way distance = propagation speed × round-trip delay ÷ 2
01

Transmit pulse and timing reference

02

Target reflection and receive optics

03

Photon detection and event timing

04

Return estimation and host output

Pulsed Emission and the Timing Reference

Direct time-of-flight ranging measures the delay between a transmitted optical pulse and its return. In the usual propagation approximation, R = cΔt / 2: R is the one-way range, Δt is the round-trip travel time, and c is the propagation speed. Division by two accounts for the outward and return paths. Pulse shape, timing uncertainty, receiver response and target geometry influence the result. [R1]

Avalanche Detection and Recovery

A SPAD operates above avalanche breakdown so that an absorbed photon can initiate a detectable avalanche. Quenching stops that avalanche, followed by recovery. Single-photon sensitivity does not mean every incident photon is detected. Dark counts, afterpulsing and, in detector arrays, neighbor-induced optical crosstalk can also contribute events. [R2]

From Event Timing to a Histogram

Published direct-ToF designs encode arrival time with a time-to-digital converter and accumulate events in histogram bins. A concentration of events can indicate a return delay. Hutchings and colleagues demonstrate this in a research imager; the example does not identify ERDI's internal circuit or algorithm. [R3]

Separating Signal from Ambient Background

Detections do not arrive with labels identifying their origin. Under the statistical model studied by Rapp and Goyal, pulse-related returns cluster in time while steady background contributes broadly distributed events. Separating a return from ambient light is therefore a statistical task, not simply counting every photon as useful signal. [R4]

Dead Time and Pile Up

During recovery, a detector cannot register another photon. In first-event acquisition, early detections can prevent later arrivals from being recorded. At high flux this selection can distort the distribution, a phenomenon called pile-up. More incident light is not automatically better. The effect depends on the acquisition architecture and operating conditions. [R5]

Detector Crosstalk and Window Reflections

Detector-array crosstalk occurs when an avalanche in one detector causes an unwanted event in another. Optical assembly crosstalk is different: emitted light can reflect inside a protective window and reach the receiver without the intended target round trip. ST documents resulting false or shortened readings in its own sensor. Its distances, calibration procedures and immunity claims must not be transferred to ERDI modules. [R2] [R6]

ENGINEERING DECISIONS

Evaluate the Complete Installation

Target and range

Match target size, reflectivity, angle and background light to the model's source-stated measurement conditions.

Power and interface

Verify startup current, signal voltage, common ground, connector orientation and firmware-matched serial packets.

Mechanical envelope

Release mounting and optical apertures against the controlled drawing and tolerances, not a rendered image alone.

Qualification and safety

Test the assembled window and enclosure. Reassess accessible emission, operating modes and labeling in the finished equipment.

Civilian Integration Applications

  • Auxiliary ranging in handheld night-vision devices, thermal imagers, telescopes and laser illuminators
  • Civilian monitoring, aviation, communications, railway, law-enforcement, smart-water-conservancy and outdoor-sports ranging scenarios

Application examples are evaluation contexts, not proof of fitness without system testing.

BEFORE DESIGN RELEASE

Configuration, Window and Safety Review

Confirm the laser operating modes, enclosure, final protective window, firmware protocol, target and installation with ERDI. A related model's indicator or inertial function must not be assumed for SPD1200N0.

TECHNICAL FAQ

Frequently Asked Questions

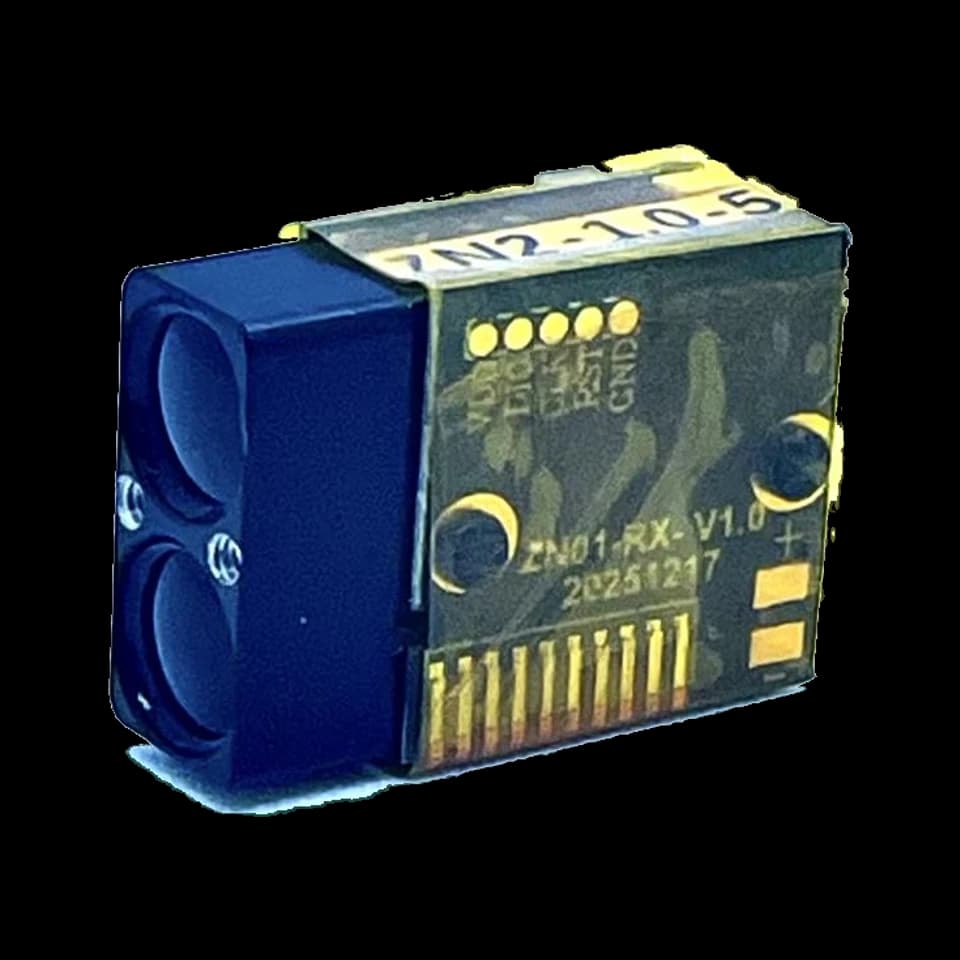

What physically distinguishes SPD1200N0 from SPD1200N2?

N0 has a round body with a source-stated Ø15.7 × 21.3 mm outline and sealing groove. N2 uses a different square-body record. This is a real mechanical distinction; it does not establish different ranging performance or make the two drawings interchangeable.

Can 1500 m be used as the general N0 headline range?

The source lists 0.2–1200 m and separately gives a 1500 m maximum at night. It also warns of reduced range under strong sunlight or low visibility. The night entry must not become an unconditional daylight or small-target range claim.

Which adaptive measurement frequency should be ordered?

The formal source row contains both 2–15 Hz and 4–15 Hz adaptive alternatives, while the functional description gives a typical 2 Hz refresh rate and a maximum of 15 Hz. Confirm the applicable configuration rather than silently selecting one interpretation.

Does the SPD prefix establish a specific receiver architecture?

No. The current N0 source record used here does not publicly state the ranging architecture. General single-photon or time-of-flight literature does not prove a particular internal design for this model. Keep product features tied to its own documented entries.

Does the sealing groove make the whole module IP67?

The source restricts its IP67 statement to the inside of the lens chamber. A sealing groove does not extend that rating to exposed electronics or the complete optical instrument. Use the model drawing and assess the assembled enclosure separately.

References and Evidence Boundaries

  1. [model-reading-1] SPD1200N0 verified product specification

    The named model’s specification, conditions, documented functions and mechanical record.

  2. [R1] Performance Analysis of Next-Generation LADAR for Manufacturing, Construction, and Mobility

    General laser-ranging context and practical target/environmental influences, not an ERDI architecture or rating.

  3. [R2] Statistical Modelling of SPADs for Time-of-Flight LiDAR

    Incoronato, Locatelli and Zappa, Sensors 21(13), 4481 (2021). Sections 2–3 cover avalanche operation, recovery, afterpulsing, array crosstalk and acquisition limitations. They do not identify ERDI's implementation.

  4. [R3] A Reconfigurable 3-D-Stacked SPAD Imager With In-Pixel Histogramming for Flash LIDAR or High-Speed Time-of-Flight Imaging

    Hutchings et al., IEEE JSSC 54(11), 2947–2956 (2019), DOI 10.1109/JSSC.2019.2939083. Sections II–III demonstrate timing, histogramming and range estimation. The research imager's architecture and performance are not ERDI specifications.

  5. [R4] A Few Photons Among Many: Unmixing Signal and Noise for Photon-Efficient Active Imaging

    Rapp and Goyal, IEEE TCI 3(3), 445–459 (2017), DOI 10.1109/TCI.2017.2706028. Sections II–III explain statistical signal/background separation. Neither the algorithm nor experimental results are claimed for ERDI.

  6. [R5] Photon-Flooded Single-Photon 3D Cameras

    Gupta, Ingle, Velten and Gupta, author manuscript v2 (2019), repository DOI 10.48550/arXiv.1903.08347. Sections 1–3 explain first-event pile-up and high-flux tradeoffs. First-event acquisition is architecture-specific; the prototype is not an ERDI test.

  7. [R6] A guide for using the VL53L8CX, low-power, high-performance Time-of-Flight multizone ranging sensor

    STMicroelectronics UM3109, Rev 12 (August 2025), Calibration flow. Manufacturer evidence of protective-window reflections and unwanted range signals in another manufacturer's 940 nm system. Its calibration instructions, dimensions and immunity claims do not apply to ERDI modules.

Independent literature supports the explanations, not module qualification. Use the source-linked model manual and ERDI configuration confirmation for procurement and design release.
