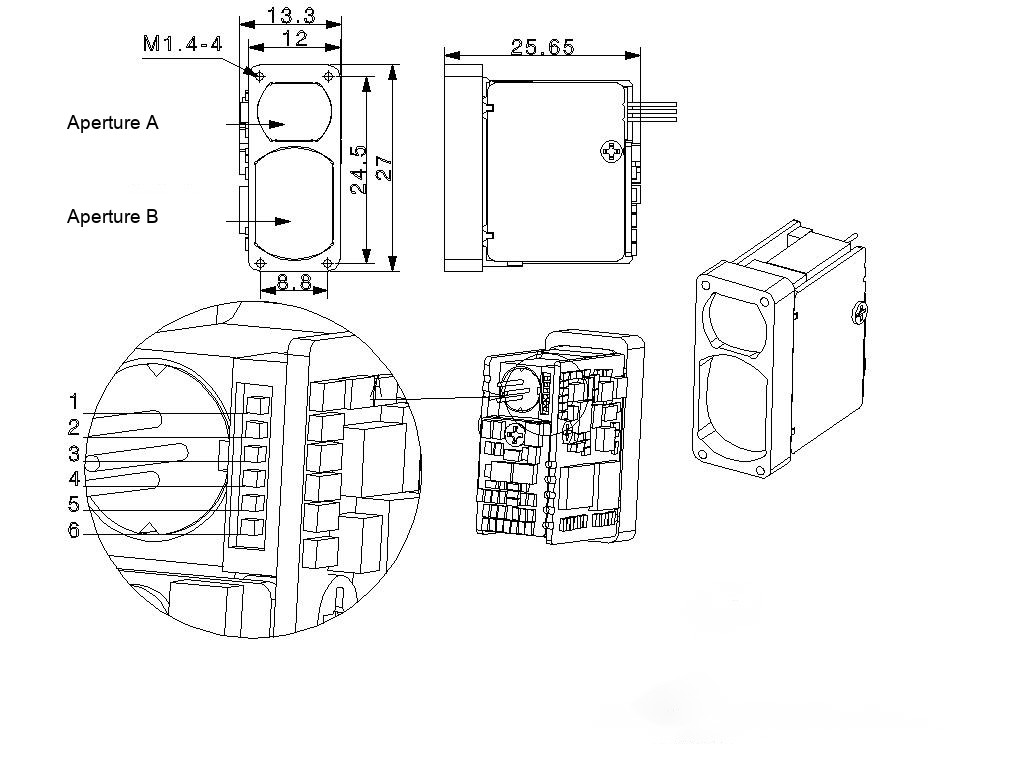

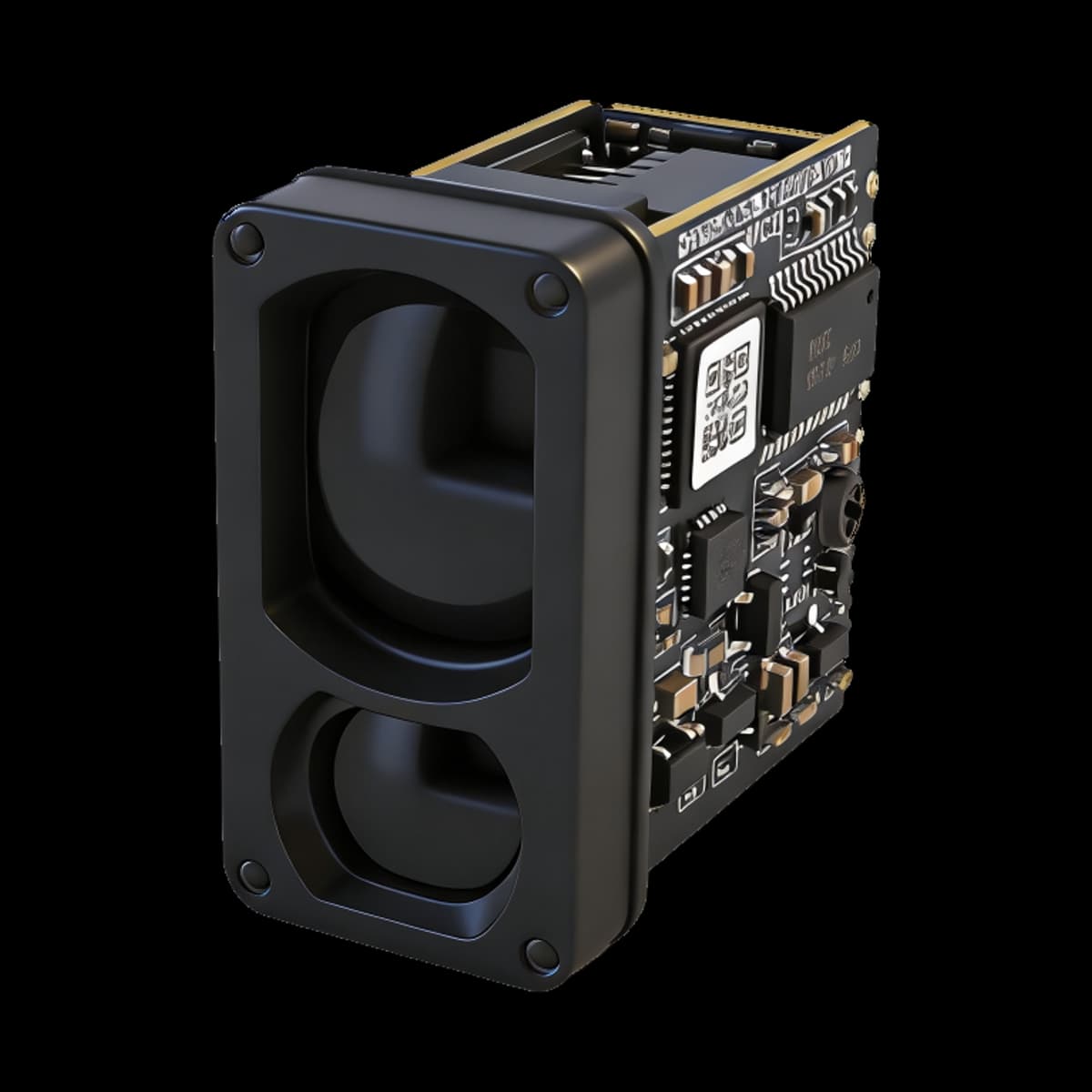

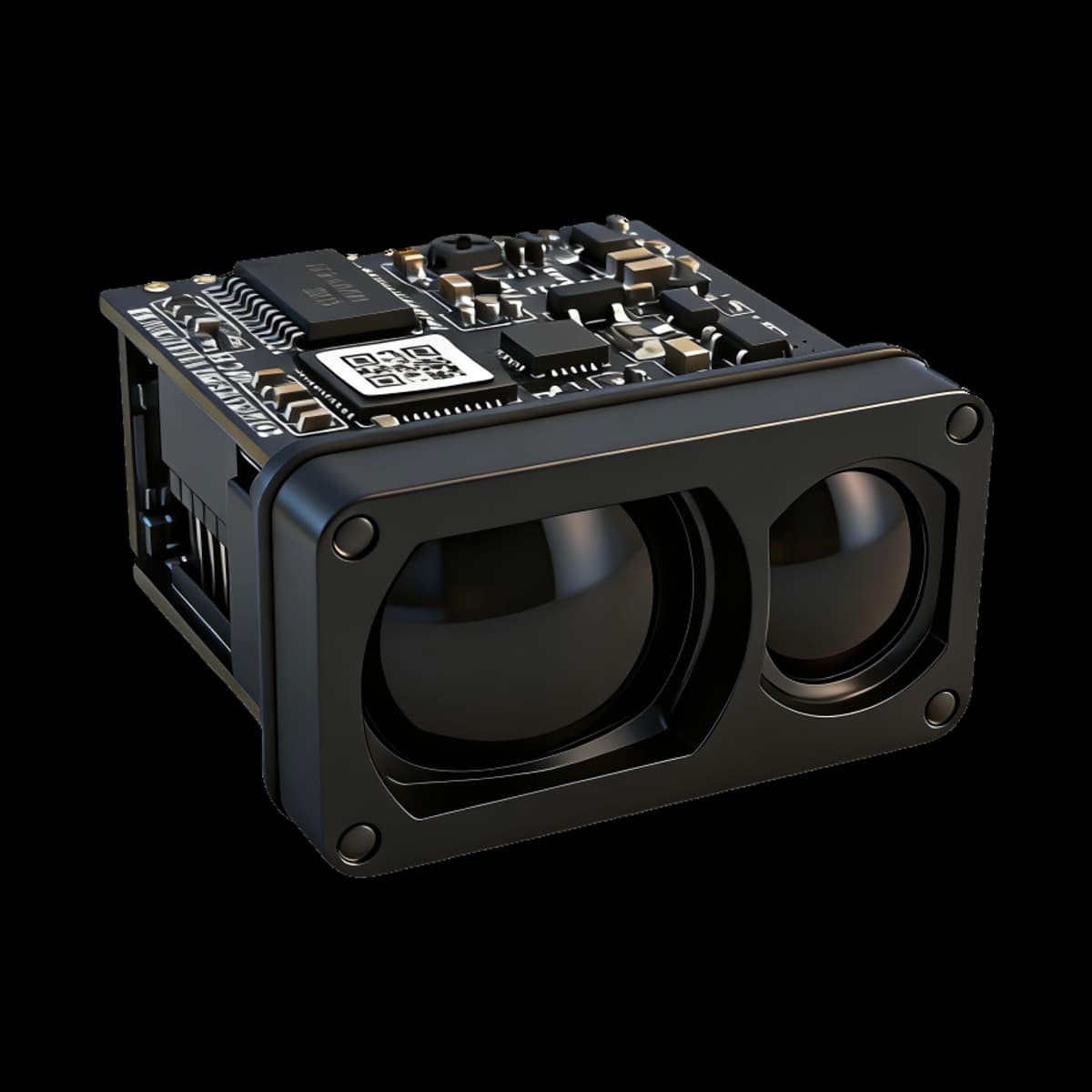

Authentic product views from the ERDI product record. Use the controlled mechanical drawing and connector definition for design release.

ERDI OEM LASER MODULE

LR1000E4 905 nm Laser Ranging Module

Project quotationPublished unit price; additional volume tiers require quotation. Shipping and Incoterm are confirmed in the quotation.
Product modelLR1000E4
ENGINEERING FILES

Technical Downloads

Use the current controlled document revision for design review and confirm the ordered connector and mechanical configuration before release.

FILERequest PDF DatasheetLR1000E4 controlled product specificationFILERequest 3D ModelLR1000E4 controlled mechanical file

LR1000E4 is a compact 905 nm laser ranging module with a 4–1000 m source-table measuring range. It uses a UART-TTL interface for civilian integration evaluation.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details are confirmed in the quotation.

USD / unit
Project pricing is configuration-specific.

Submit the expected quantity, delivery country, target application and required qualification so ERDI can issue a controlled quotation.

Additional volume bands require an approved quotation.ERDI does not publish unverified discounts. Select a planning quantity below and the sales team will confirm configuration, Incoterm, lead time and unit pricing.
Buy nowRequest a quote

Purchase proceeds through an approved quotation or proforma invoice.

LR1000E4 is a compact 905 nm laser ranging module with a 4–1000 m source-table measuring range. It uses a UART-TTL interface for civilian integration evaluation.

Verified Specifications

ParameterValueSource condition
Laser Wavelength905 nm ±5 nmSource technical table
Measuring Range4–1000 mSource technical table; target and ambient conditions not stated
Ranging Accuracy±1 m (≤400 m); ±1 m + D × 0.1% (>400 m)Source table notes cite 90% reflectivity targets and whiteboard accuracy
InterfaceUART-TTLCustomizable per source technical table
Supply Voltage3.3–5 VSource technical table
Technical Review Required

Published values are transcribed from the model-specific source. Final application fit, environmental performance, interface wiring, firmware behavior, and production-label claims must be confirmed with ERDI engineering before design release or purchase.

Download LR1000E4 product PDF
