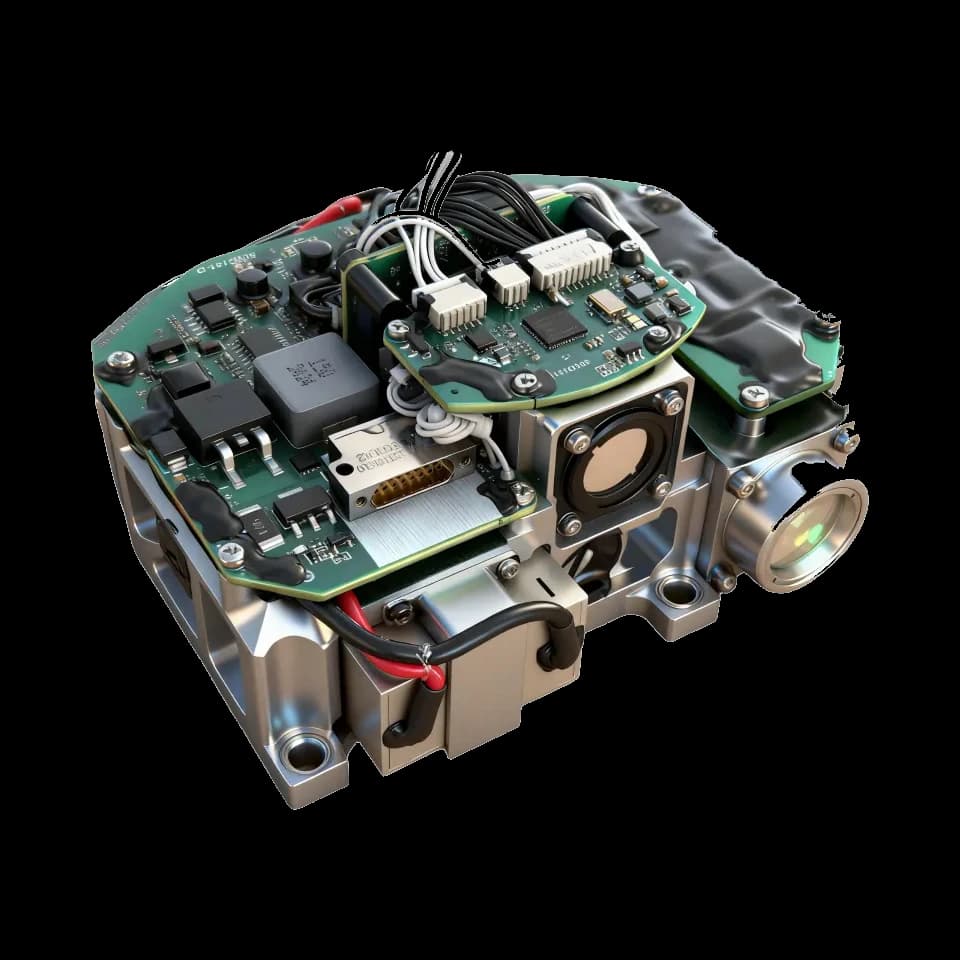

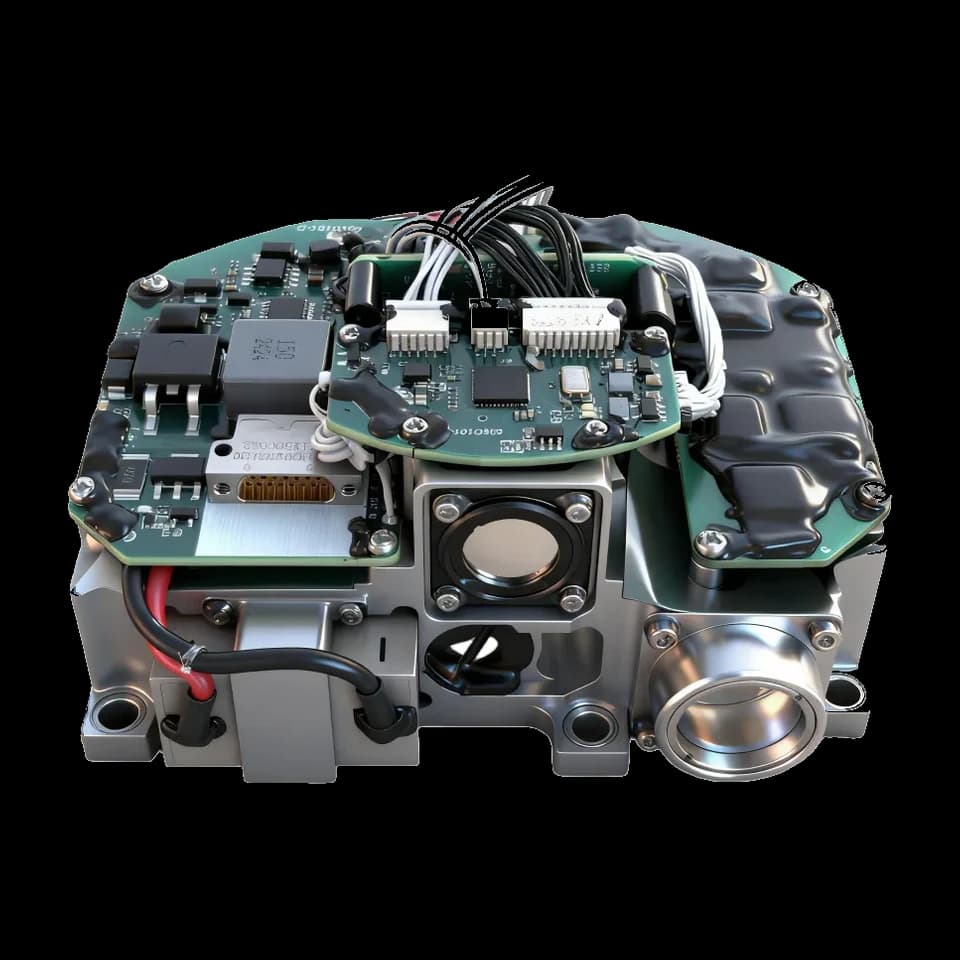

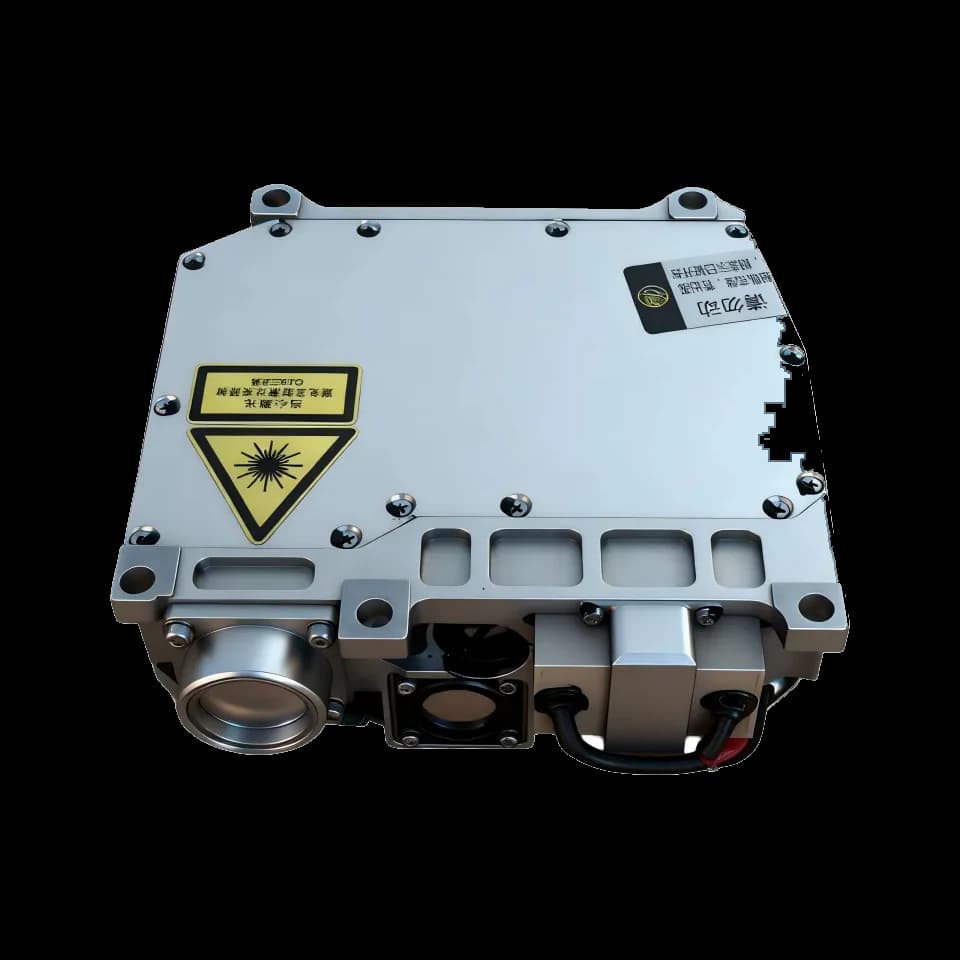

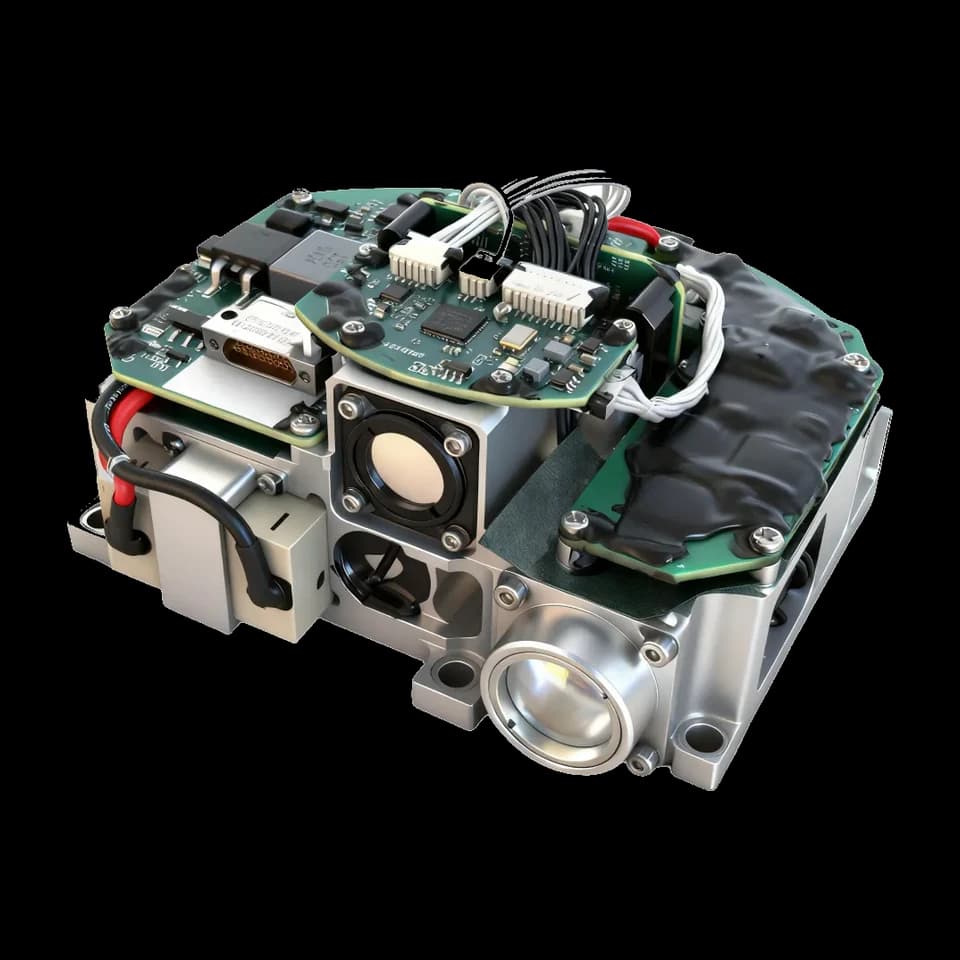

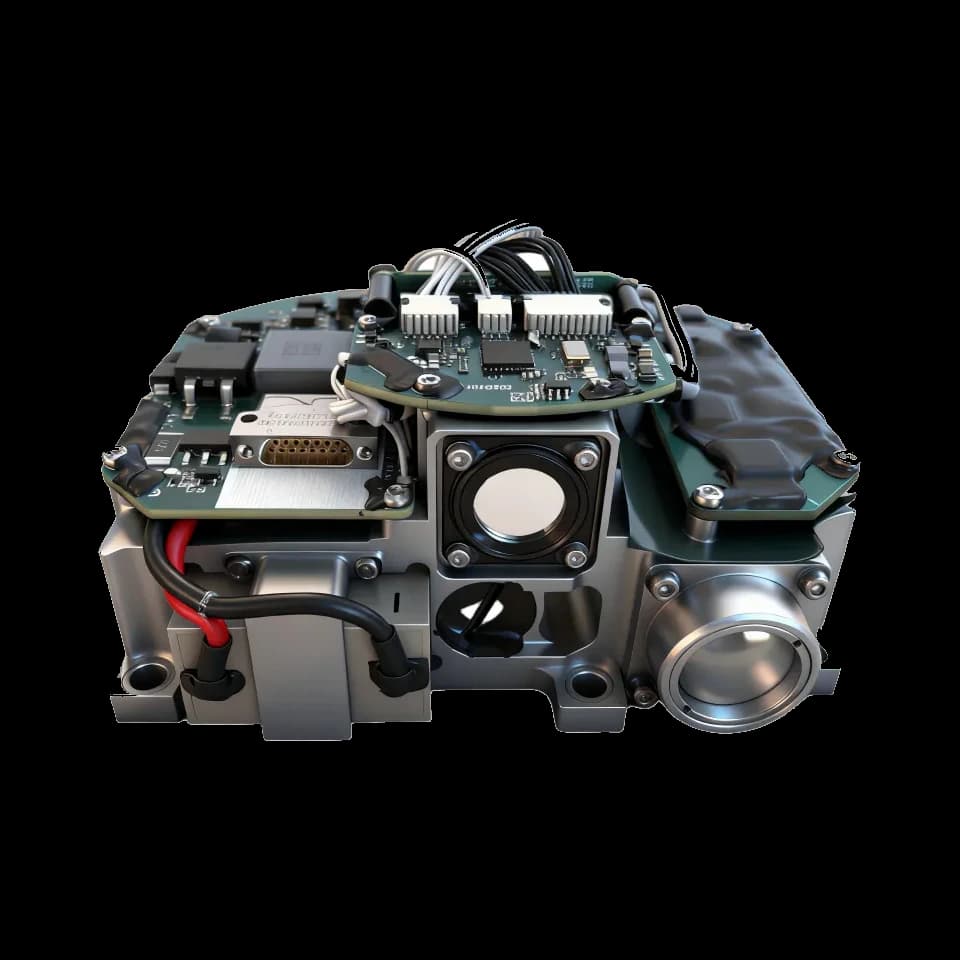

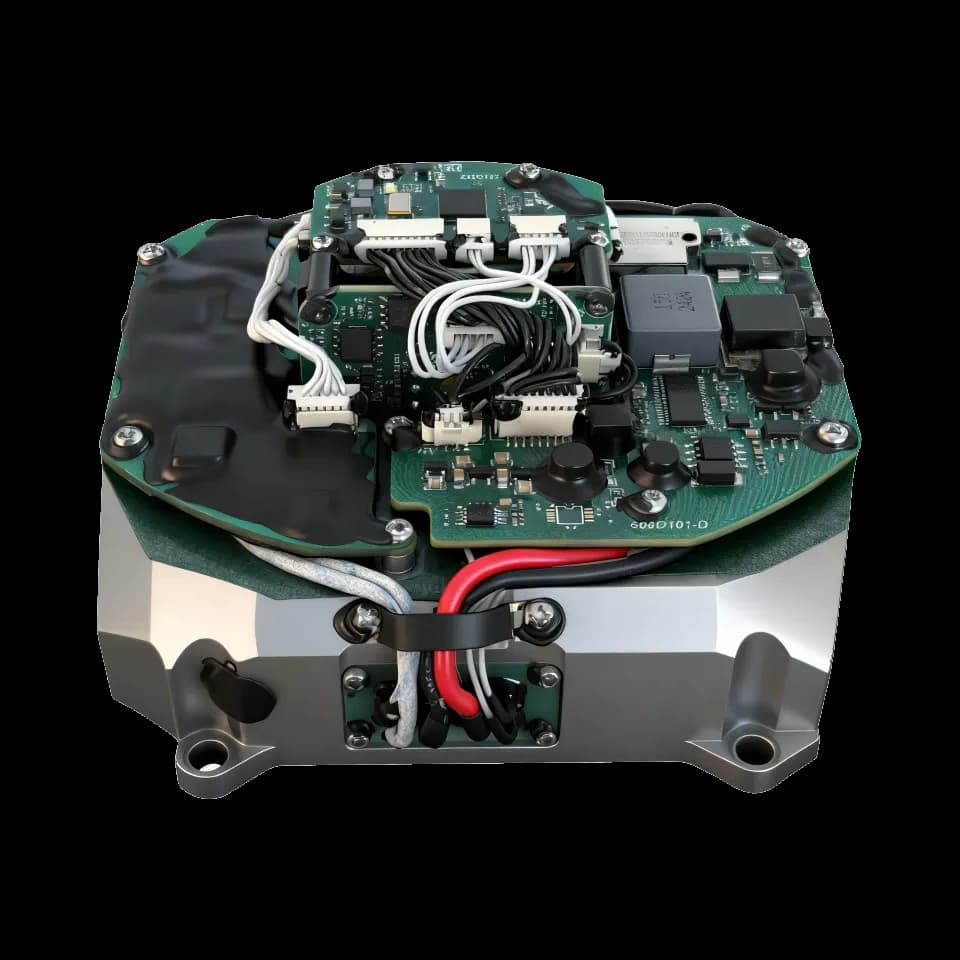

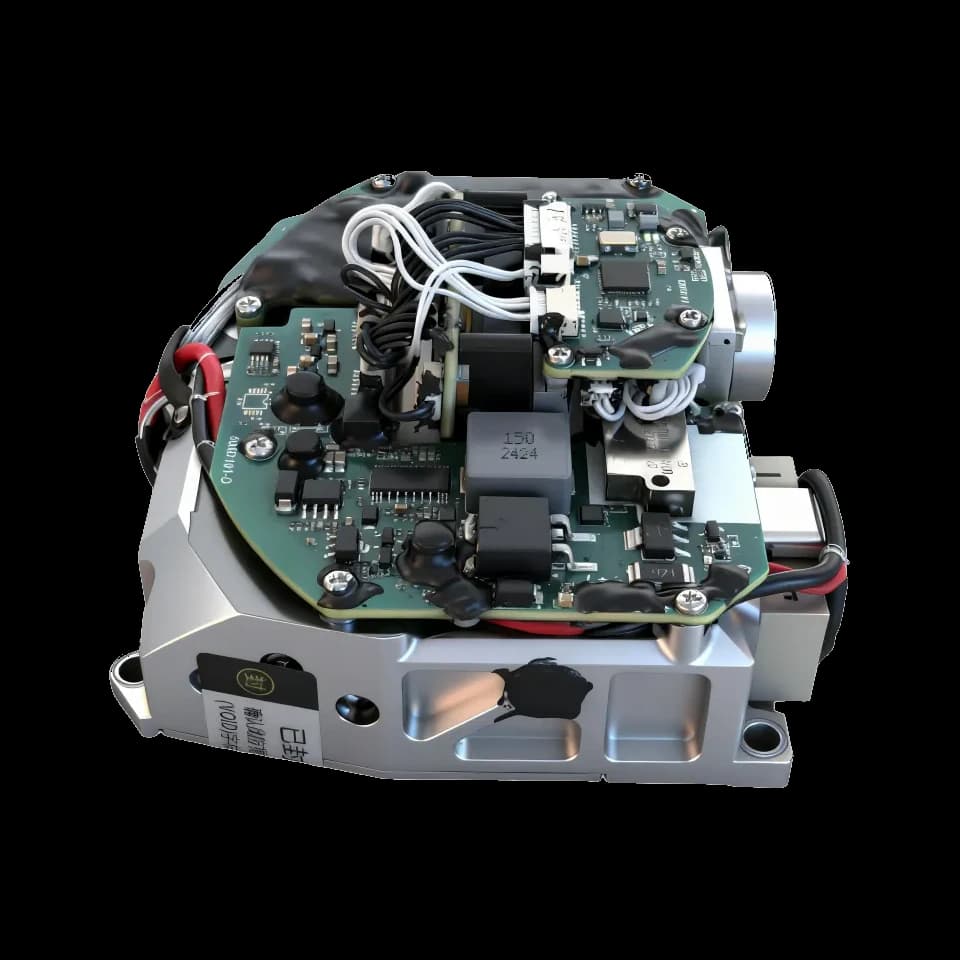

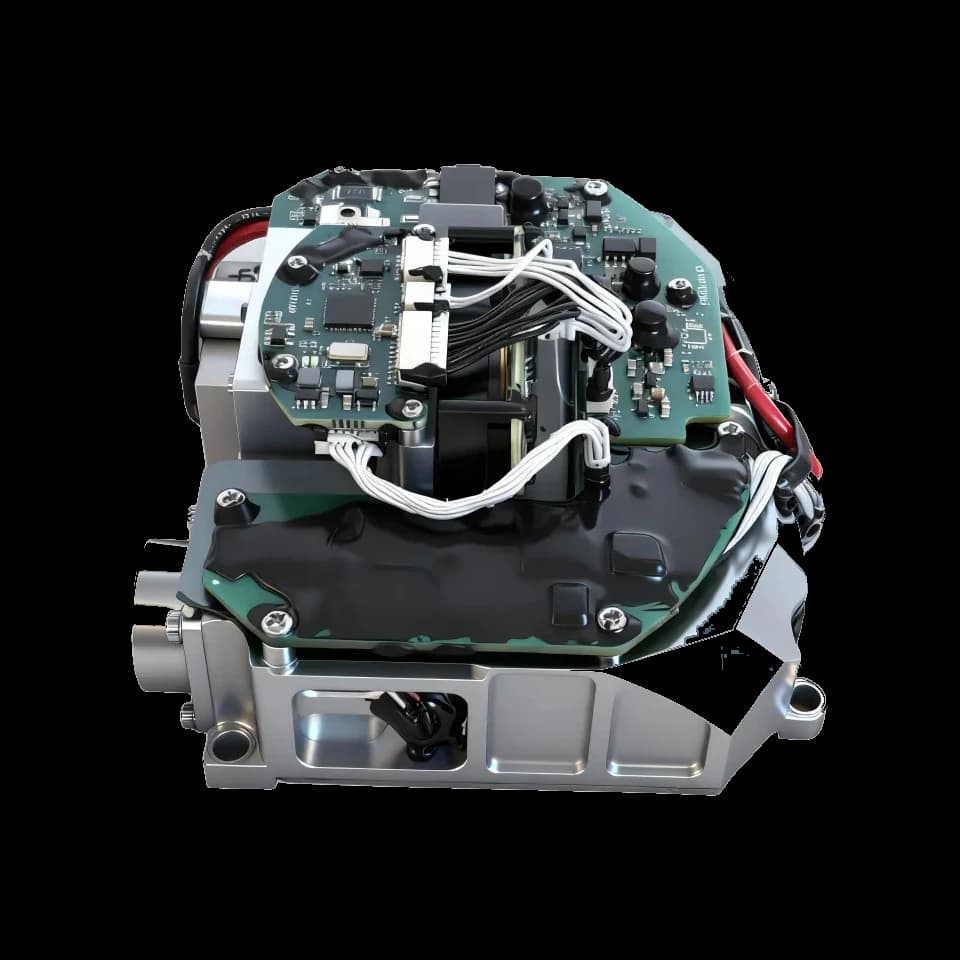

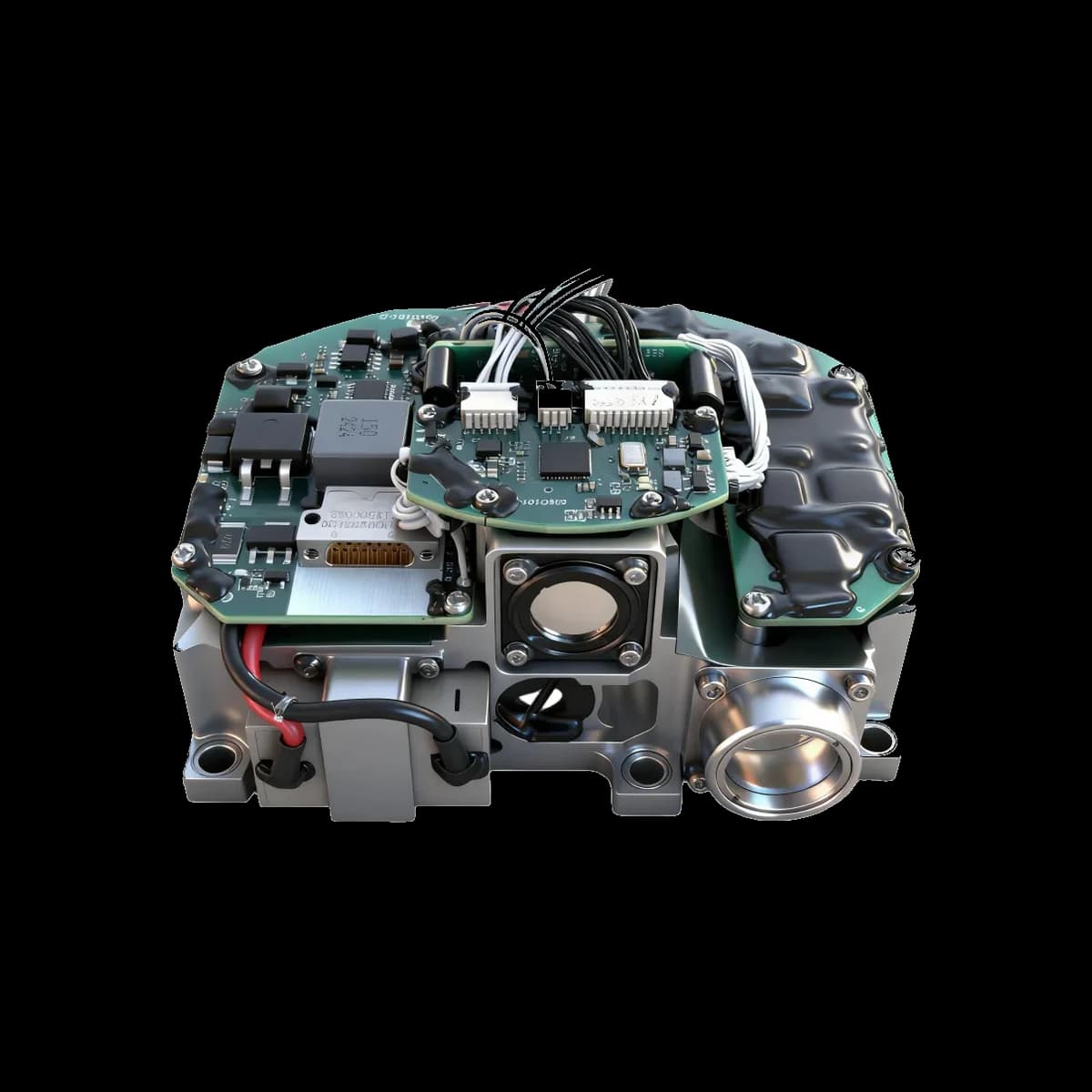

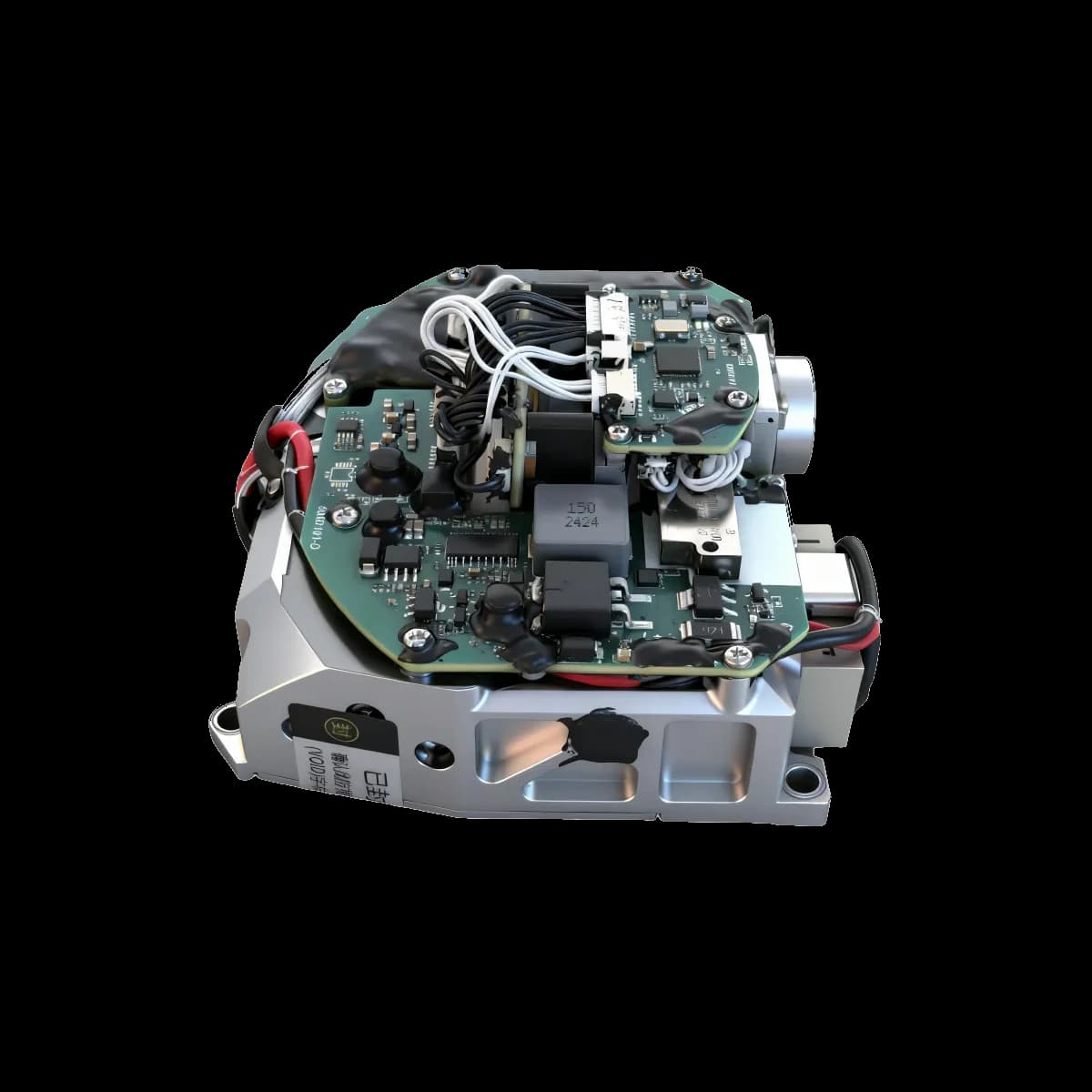

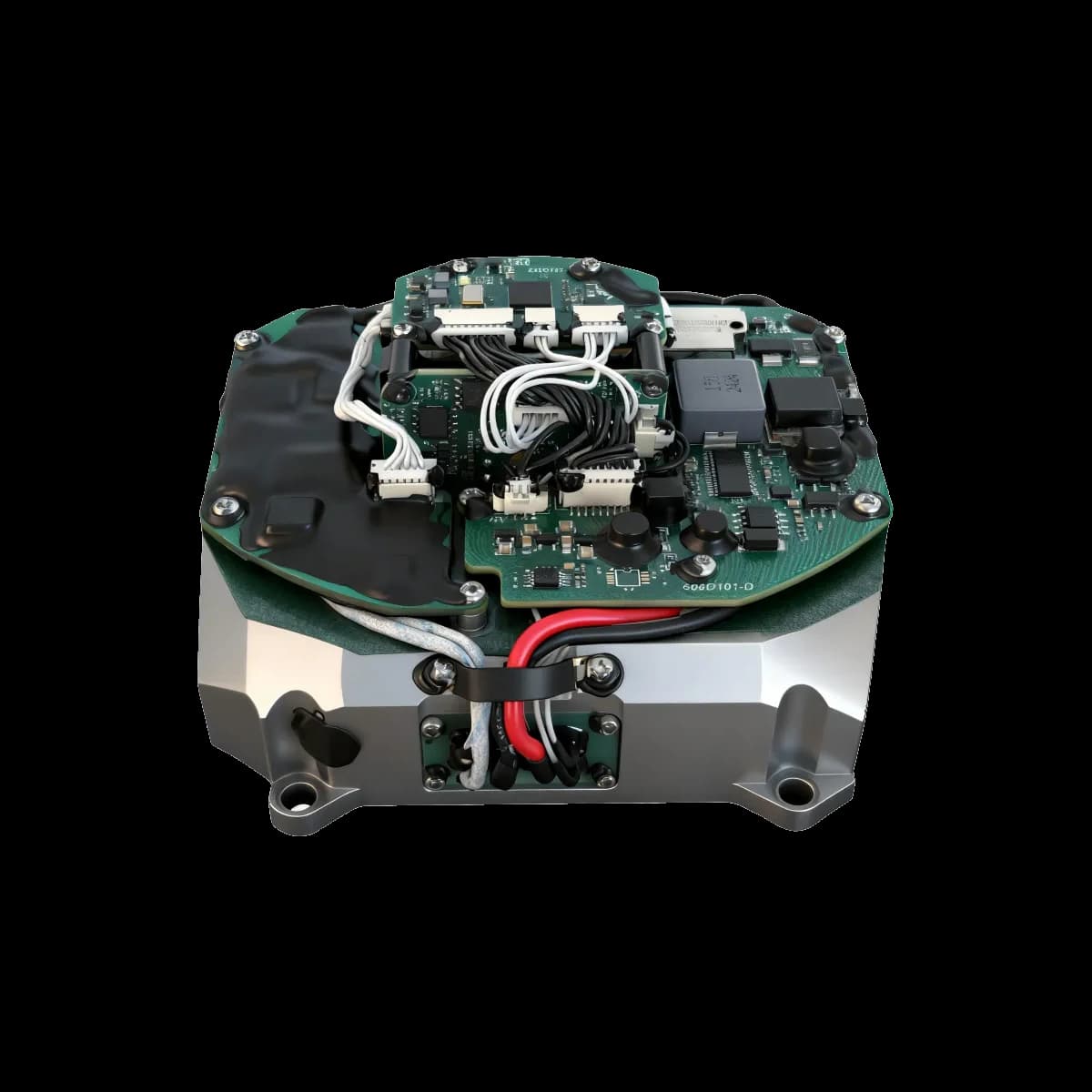

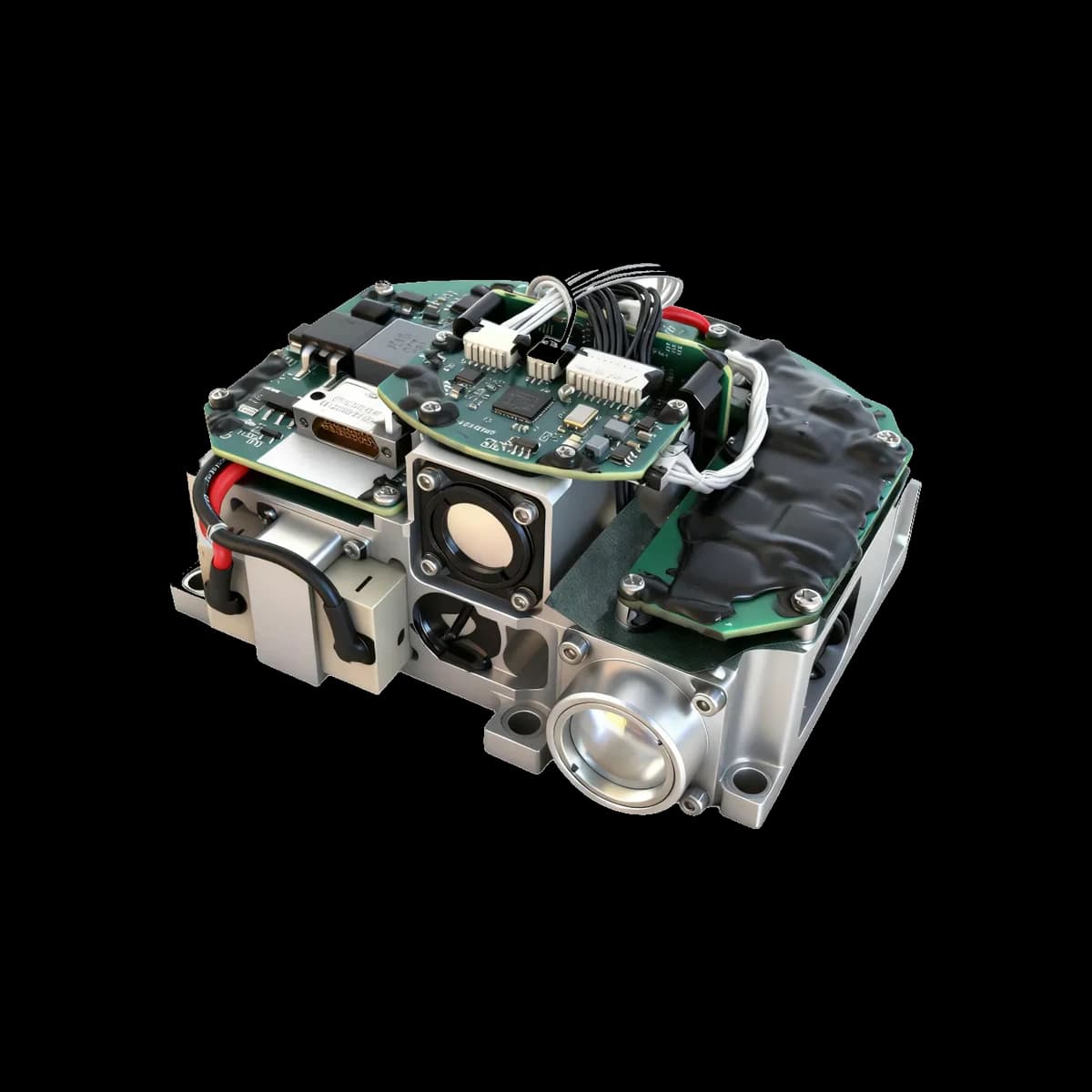

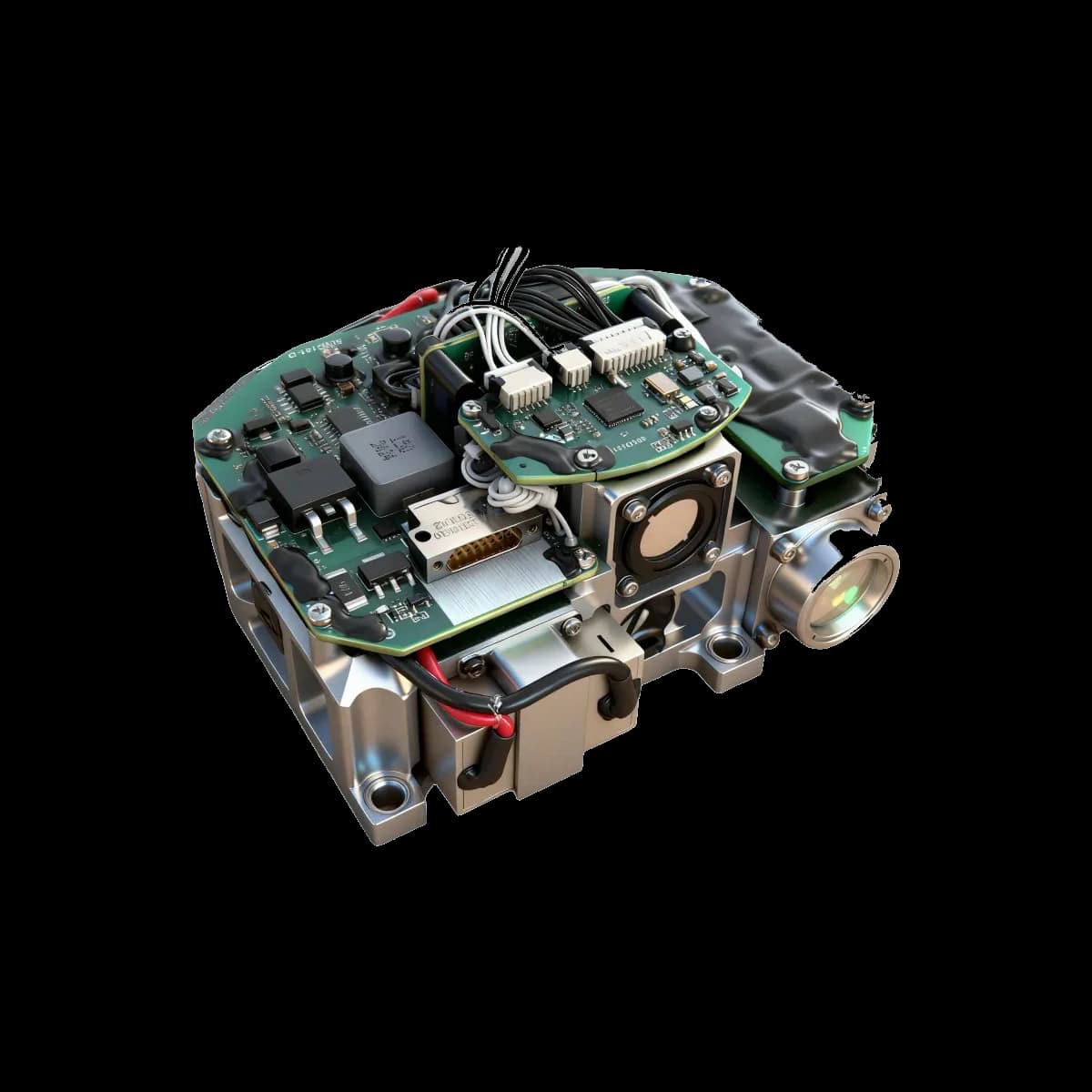

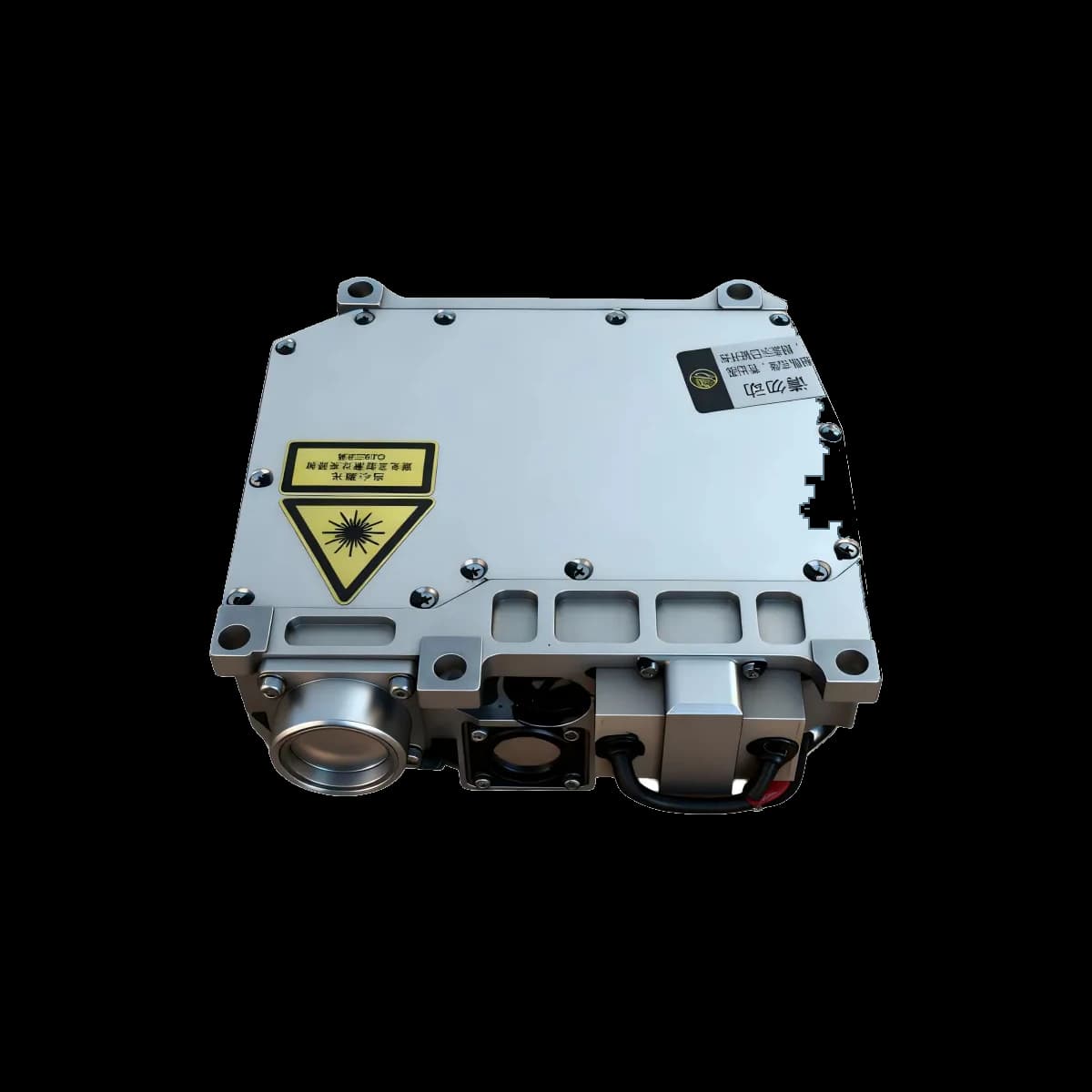

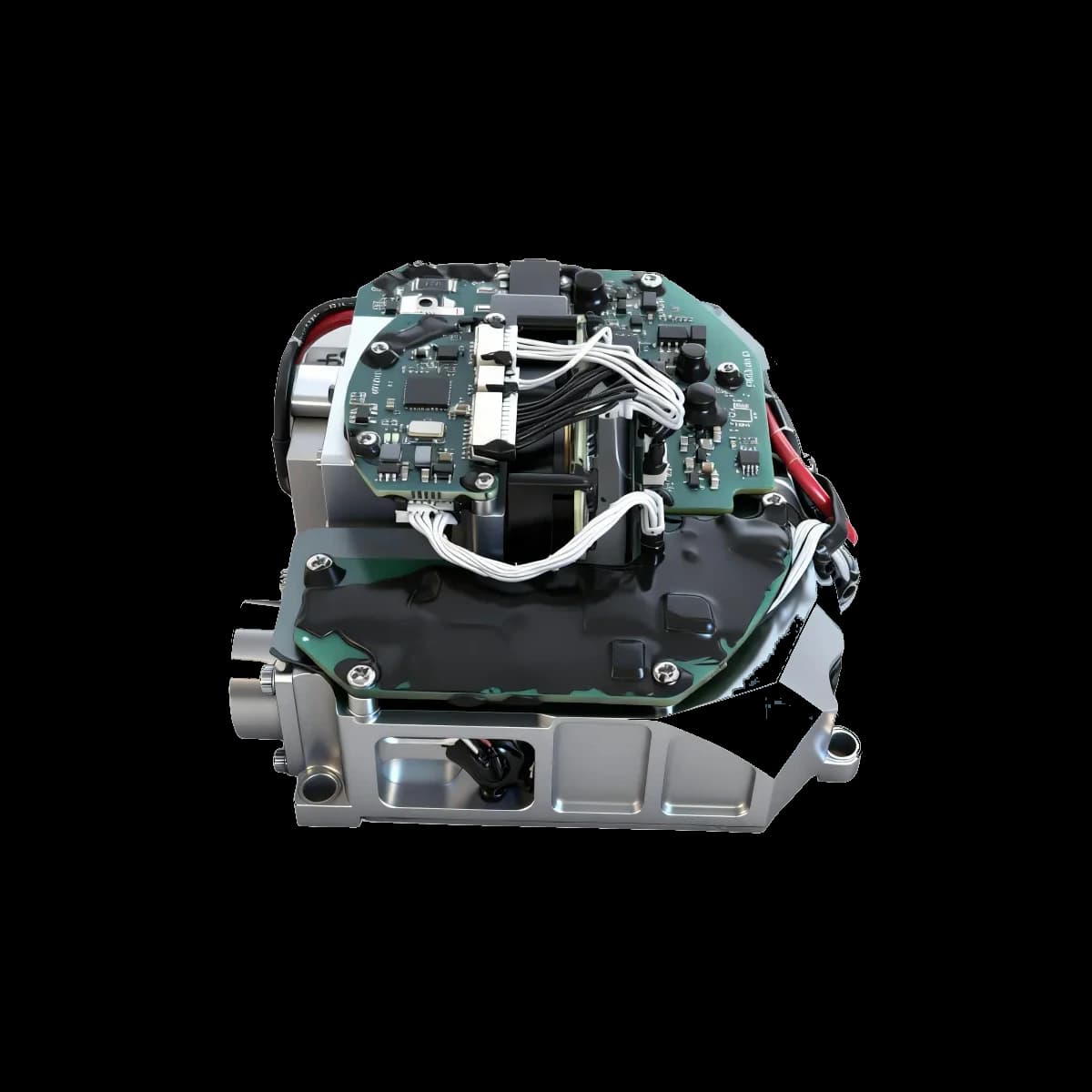

ERDI LDR40K3 40mJ Laser Target Designator Module – High-Precision Industrial Laser System

From $18,000 USD / unitLowest published unit price at 100+ pieces. Shipping included.
Product modelLDR40K3
ENGINEERING FILES

Technical Downloads

Use the current controlled document revision for design review and confirm the ordered connector and mechanical configuration before release.

LDR40K3 is listed in ERDI's 1064 nm ranging and designation family. Product-specific values, conditions and documents are shown only where they are bound to this model's controlled record.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details are confirmed in the quotation.

USD / unit
1–9 piecesBase tier$25,800 USDPublished unit price
10–49 pieces$23,000 USDSave 11%
50–99 pieces$20,500 USDSave 21%
100+ piecesLowest unit price$18,000 USDLowest published price · Save 30%
Buy now with PayPalRequest a quote

The server reconfirms the shipping-included price before PayPal approval. ERDI bears the PayPal merchant transaction fee; no separate PayPal surcharge is added. Inventory and lead time remain TBC after payment.

MODEL-LEVEL DATA

Detailed LDR40K3 Specifications

The technical material below is retained for this model only. Do not transfer a range, pulse, interface, mechanical or safety value from another 1064 nm product.

TECHNICAL SPECIFICATIONS

Parameter Specification
Wavelength 1064 nm
Range (Ranging) ≥ 5,000 m
Range (Designation) ≥ 3.5 km
Weight ≤ 420 g

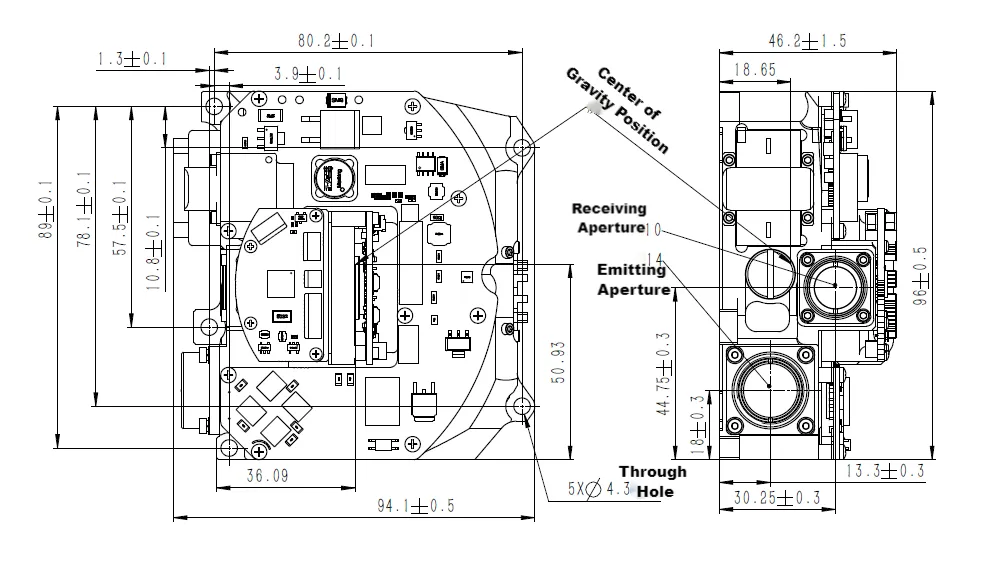

Dimensions 95 mm × 97 mm × 48 mm

Electrical Interface Requirements

The device is equipped with one RS422 communication interface.

The connector model on the laser rangefinder/designator is J30JZLN15ZKWA000, and the corresponding plug is J303JZ/XN15TJCAL01.
The matching plug will be supplied with the product upon delivery.
The electrical interface definitions are shown in Table  below.

Table : Electrical Interface Definition

Pin No.

Label

Description / Remarks

P-1

VIN+

26 V ± 4 V power input

P-2

VIN+

26 V ± 4 V power input

P-3

T+

External sync signal (positive)

P-4

VDD

For programming use

P-5

GND

For programming use (ground)

P-6

ARM_SWCLK

Programming clock (SWD interface)

P-7

ARM_SWDAT

Programming data (SWD interface)

P-8

T–

External sync signal (negative)

P-9

GND

Power ground (26 V return)

P-10

GND

Power ground (26 V return)

P-11

RS422_TX+

Laser Rangefinder/Designator Transmit (+)

P-12

RS422_TX–

Laser Rangefinder/Designator Transmit (–)

P-13

RS422_RX–

Laser Rangefinder/Designator Receive (–)

P-14

RS422_RX+

Laser Rangefinder/Designator Receive (+)

P-15

GND

Signal ground

Notes:

  • The laser rangefinder/designator is equipped with reverse polarity protection for the power supply.
  • The contractor (manufacturer) shall provide the corresponding plug.
SOURCE CONDITIONS

Model-specific conditions and limits

Conditions are retained only when the source states them. They are not reconstructed from a nominal range or wavelength.

Read the controlled model table for its stated target, reflectance, visibility, temperature, rate and acceptance conditions. No additional condition has been inferred for this model.

HOW TO READ THE MEASUREMENT

Pulsed Time-of-Flight Ranging

A pulsed rangefinder estimates one-way distance from the round-trip delay of an accepted optical return. The equation is general engineering context, not an additional LDR40K3 specification.

R = c × Δt / 2R: one-way distance · c: propagation speed · Δt: measured round-trip delay

Pulse energy describes emitted energy per pulse; its effect cannot be separated from pulse width, divergence, optical losses, receiver threshold and the stated target/atmosphere conditions. It is not a substitute for a model-specific near- or long-range acceptance test.

APPLICATION REVIEW

Source-stated application context

Application labels indicate evaluation context, not automatic fitness for a finished system.

The controlled LDR40K3 PDF describes measuring target distance and providing laser-coded illumination for guiding laser-guided weapons, with an airborne high-reliability application context.

This context is bound only to the controlled LDR40K3 document; end-system suitability and acceptance remain subject to engineering review.

INTEGRATION CHECK

Confirm short- and long-distance acceptance conditions

  • Define minimum distance, target material, reflectance, size and incidence angle.
  • Check receiver recovery, optical-axis overlap and strong-return handling at the intended near limit.
  • Verify supply tolerance, peak current, grounding, interface levels, connector and timing with the ordered revision.
  • For long-distance acceptance, state target geometry, visibility, weather, background and required detection probability.
  • Test with the installed window, boresight, field of view, enclosure and thermal path rather than a bare module alone.
  • Evaluate accessible emission, labels and failure conditions again for the finished laser product under IEC 60825-1.
TECHNICAL FAQ

Questions to resolve before design release

Does a stated maximum range apply to every target?

No. A stated range must be read with its target and environmental conditions. Dark, small, oblique, wet or partially obscured targets and degraded visibility can reduce received signal.

Does 1064 nm itself establish the laser classification?

No. Classification concerns accessible emission from the finished laser product. The module statement and final instrument assessment are distinct.

Can a long-range claim be used as the minimum range?

No. Minimum-distance behaviour depends on the particular transmit/receive geometry, receiver timing and strong-return management documented for the model and host system.

ENGINEERING REFERENCES

Product evidence and general technical context

The model PDF controls model claims. Public references below explain general engineering principles only.

  1. ERDI LDR40K3 model PDFModel-specific technical evidence.
  2. System Design of a Pulsed Laser RangefinderOptical Engineering 30(3), 1991 - link budget, background, noise, detection and range error.
  3. The Short-Range, High-Accuracy Compact Pulsed Laser Ranging SystemSensors 22(6), 2146, 2022 - pulsed-ToF equation, timing error, reflectivity and temperature effects.
  4. Laser system range calculations and the Lambert W functionApplied Optics 48(4), B1-B7, 2009 - range performance versus atmospheric transmission, target and system parameters, and threshold SNR; its 1.06 µm example is general context, not ERDI model data.
  5. Monostatic all-fiber rangefinder systemApplied Optics 54(25), 7687-7694, 2015 - a measured case study of shared-aperture geometry and receiver-recovery loss; it does not establish an ERDI model limit.
  6. Light Transmission in Fog: The Influence of Wavelength on the Extinction CoefficientApplied Sciences 9(14), 2843, 2019 - measured and modeled wavelength-dependent fog attenuation.
  7. IEC 60825-1:2014Laser-product classification and accessible-emission requirements; final equipment requires system-level assessment.
