ERDI OEM LASER MODULE

LRF0816C 1535 nm Rangefinder | 8 km Reference Target, Compact 25 mm Receiver

From $1,200 USD / unitLowest published unit price at 501+ pieces. Shipping included.
Product modelLRF0816C

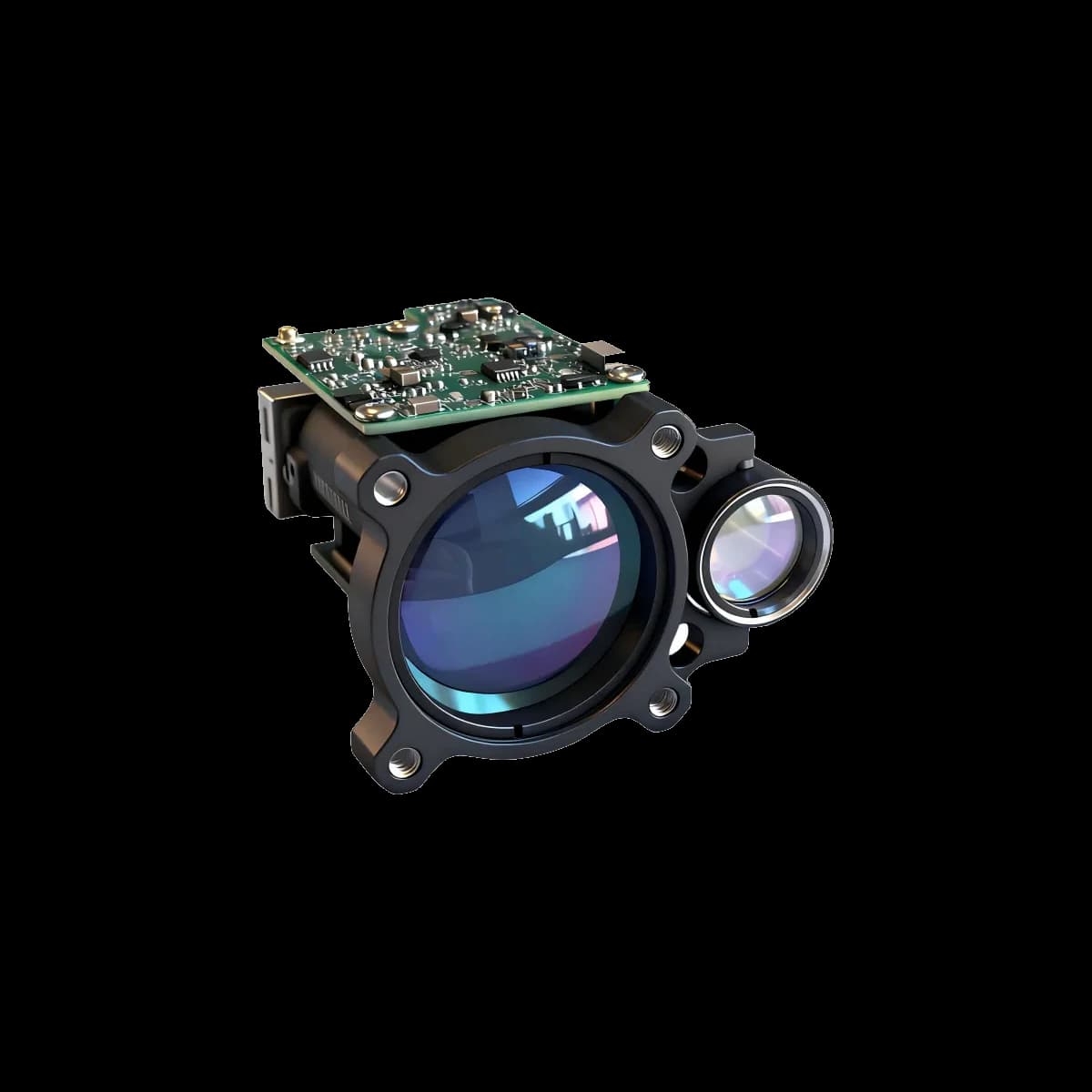

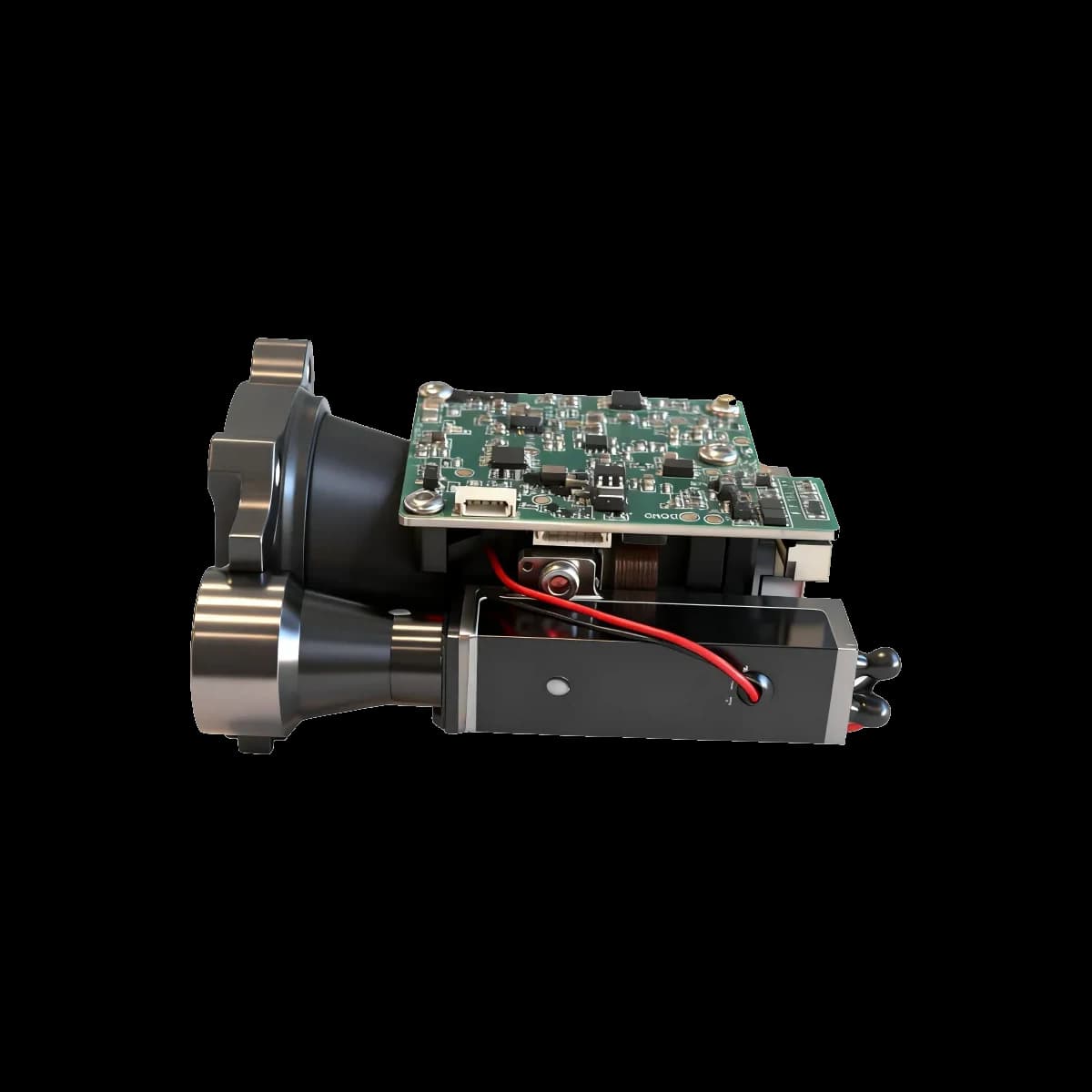

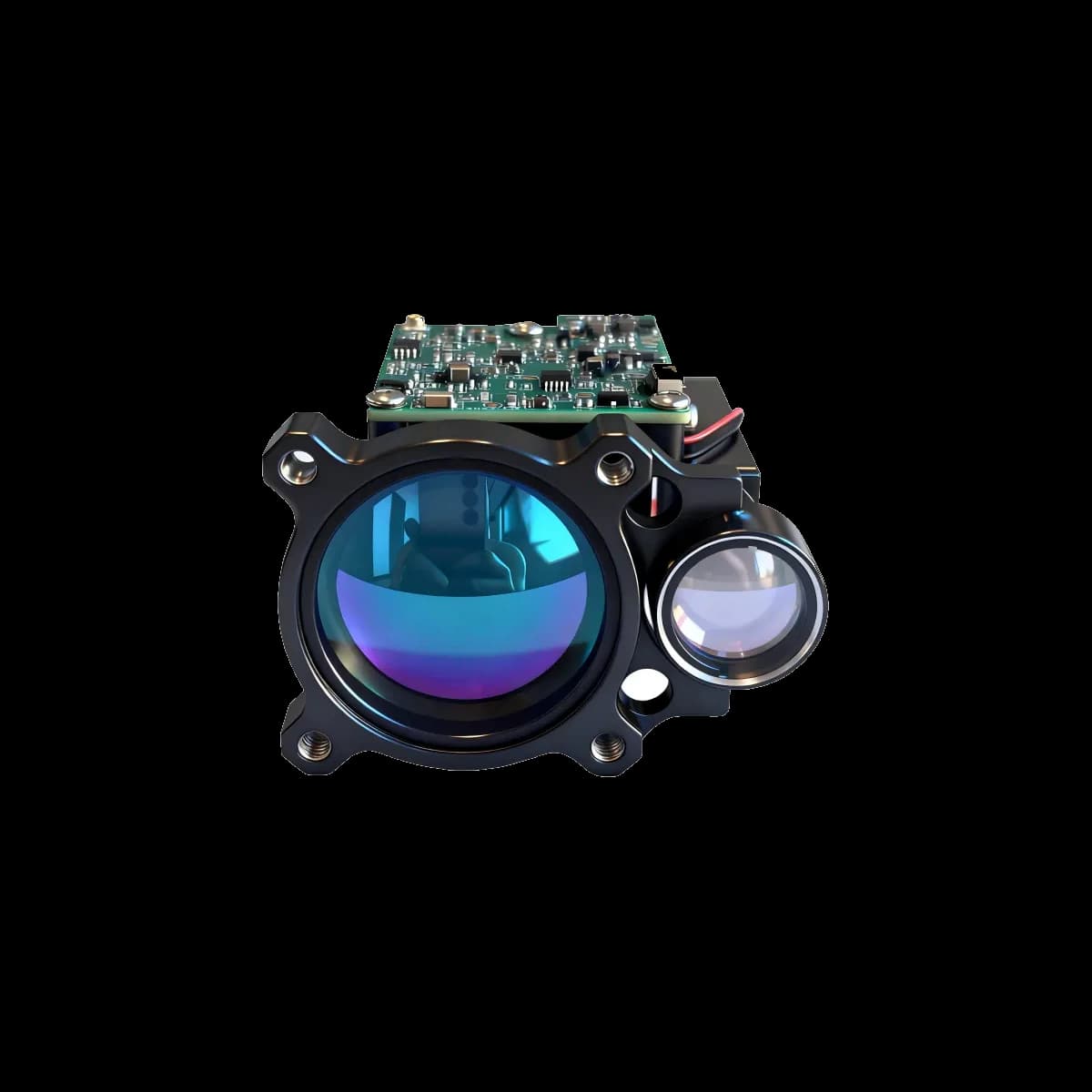

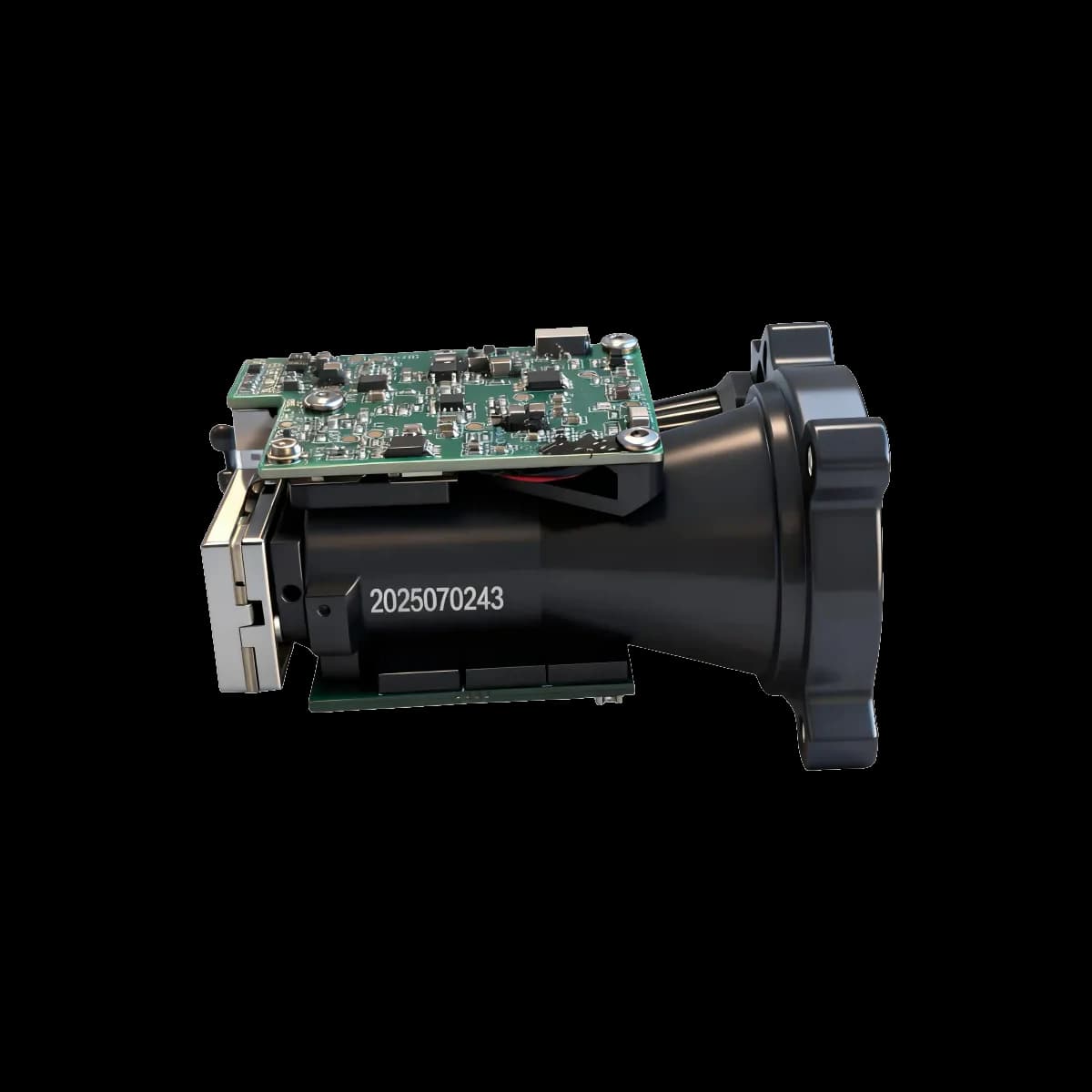

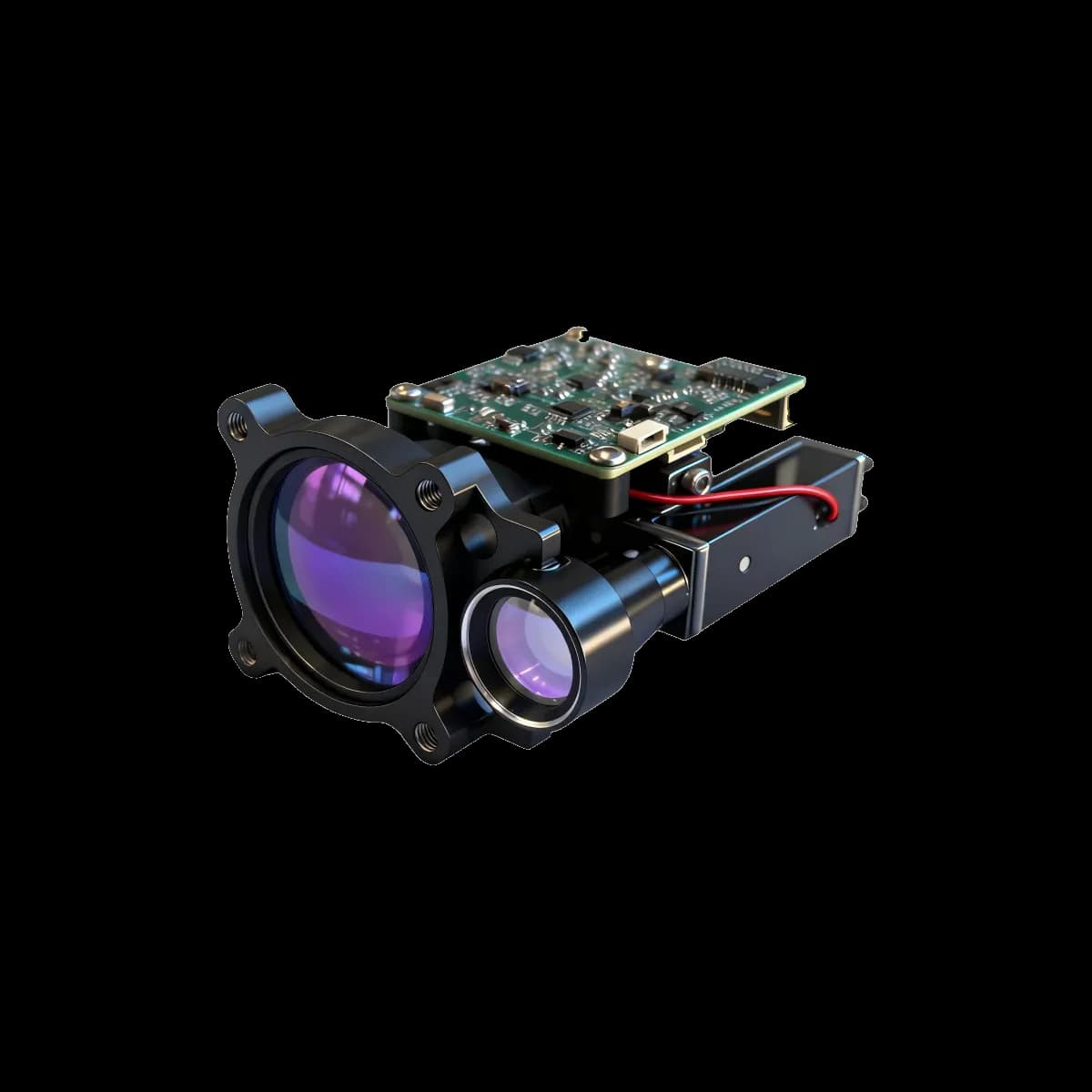

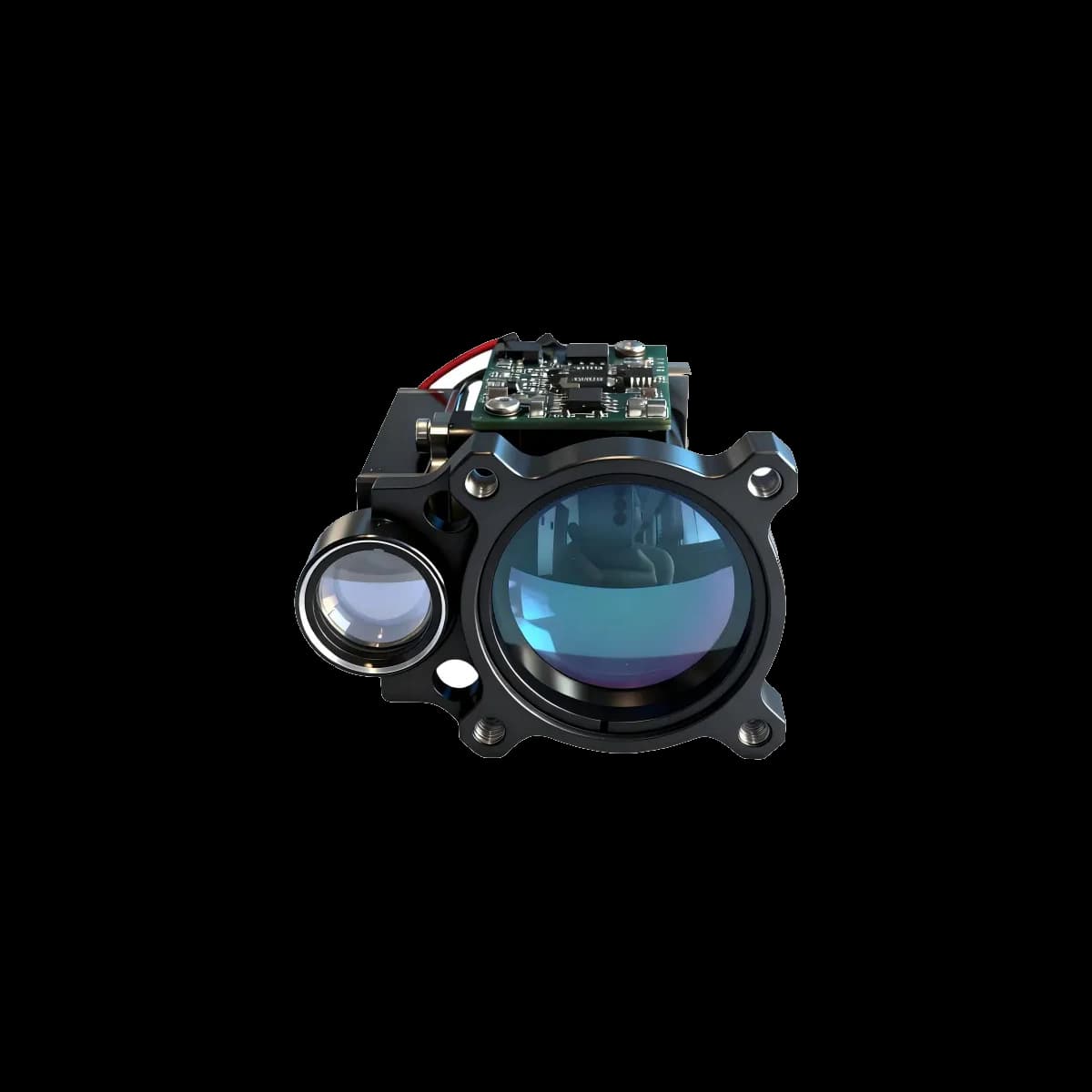

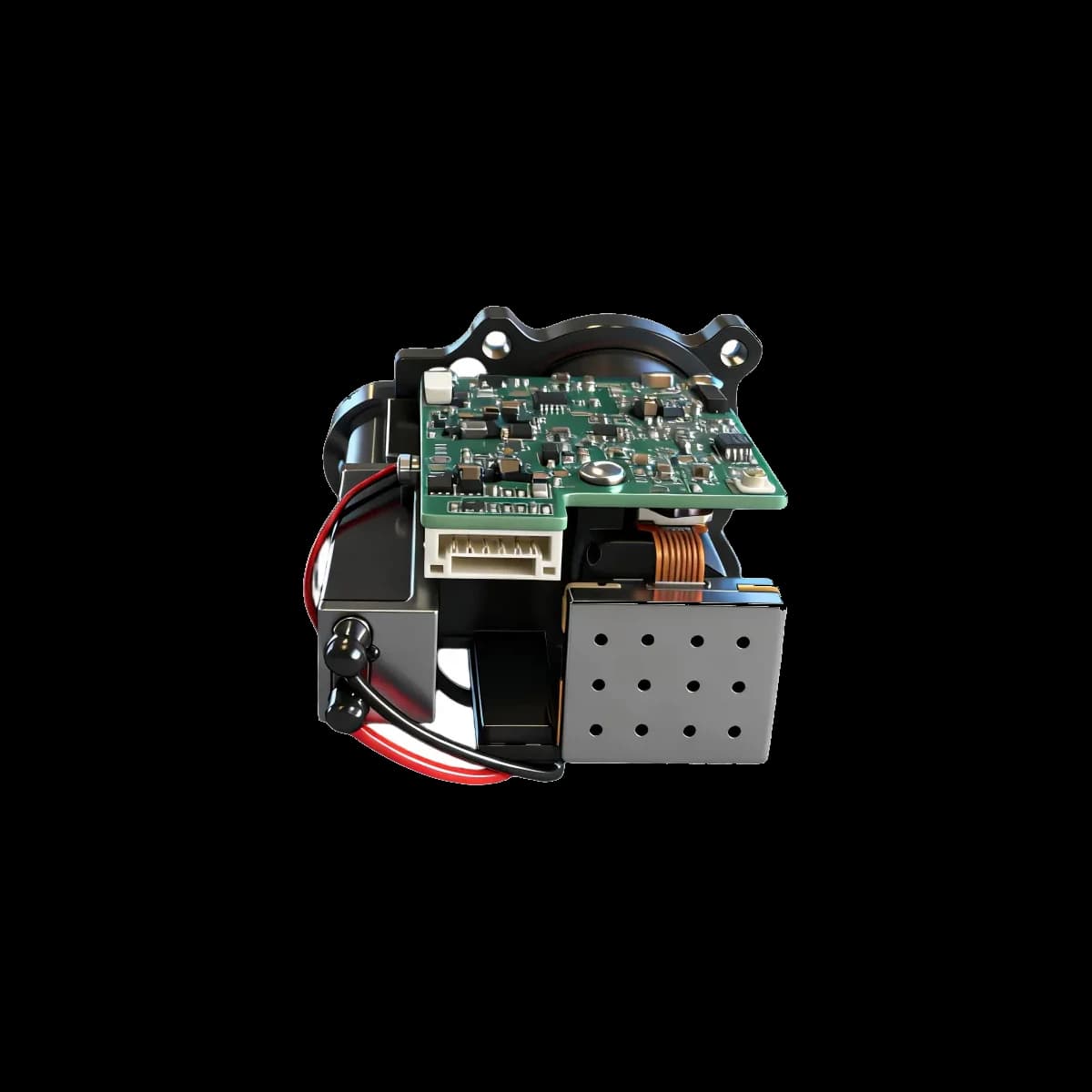

LRF0816C is a compact 1535 nm rangefinder with ≥300 µJ module energy and a 25 mm receiver lens. It lists ≥8 km to a 2.3 × 2.3 m target at 30% reflectance and visibility ≥10 km, with 1–10 Hz ranging.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$2,000 USDPublished unit price
31–200 pieces$1,800 USDSave 10%
201–500 pieces$1,400 USDSave 30%
501+ piecesLowest unit price$1,200 USDLowest published price · Save 40%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a quote

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

MODEL-LEVEL DATA

Detailed LRF0816C Specifications

The technical material below is retained for this model only. Do not transfer a range, pulse, interface, mechanical or safety value from another 1535 nm product.

Specifications

LRF0816C is a 1535 nm pulsed distance-measurement module. Its assigned laser source is ER300; receiver-component data below come from the supplied APD-A13B001 R01 document. The three specification levels describe different assemblies and measurement conditions.

1. LRF0816C module specifications

Source clarifications

The current PDF shows a six-contact connector but describes only five contacts. No sixth-contact function is inferred. Its average-power row leaves the frequency after “@” blank; no measurement rate is assigned to that power figure.

LRF0816C — TECHNICAL SPECIFICATIONS
Project Performance Indicators
Model LRF0816C
Laser Wavelength 1535±5nm
Module laser-safety statementClass I stated in the module document. Final accessible-emission classification applies to the complete configuration.
Divergence Angle ≤0.3 mrad
Laser Energy ≥300 μJ
Launch Lens Diameter Φ12 mm
Receiver Lens Diameter Φ25 mm
Measuring Range

(Reflectance 30%; visibility ≥10 km.)

Reference target(2.3m×2.3m) ≥8000m

Measuring human target(0.5m×1.7m) ≥1500m

Minimum Range ≤50 m
Ranging Frequency  1Hz ~10Hz
Number of multi-target detections Up to 3 targets
Ranging Accuracy ±2 m
Range Resolution ≤0.1 m
Precision Rate ≥98%
False Alarm Rate ≤1%
Pin-in-lead package model A1257WR-S-6P
Supply Voltage DC 4.5~16 V
Standby power consumption ≤1 mW
Average power consumption ≤4 W (measurement-rate condition not specified)
Peak Power Consumption ≤14W @12 V
Weight ≤ 58±1g
Dimension (L×W×H) 65mm×48mm×32 mm
Operating Temperature -40~+70 ℃
Storage Temperature -55~+75 ℃
Impact Resistance Meet the MIL-STD-810G testing standard
Vibration Resistance Meet the MIL-STD-810G testing standard
LRF0816C — PIN interface
Pin Definition Description Cable color
1 Positive power supply Power supply, 4.5 ~ 16V Red
2 Negative power supply Power supply, ground Black
3 POWER_ON Module power switch, TTL_ 3.3V level;

Module on (> 2.7V), module off (< 0.3V);

White
4 UART_TX Serial port sender, TTL_ 3.3V level Yellow
5 UART_RX Serial port receiver, TTL_ 3.3V level Green

Model-specific mechanical and interface drawings

LRF0816C OUTLINE DIMENSION(mm) source drawing 1
LRF0816C: OUTLINE DIMENSION(mm). Original model-bound drawing.
LRF0816C PIN interface source drawing 2
LRF0816C: PIN interface. Original model-bound drawing.

2. ER300 source-laser specifications

ER300 standalone laser component
ParameterValue
Optical wavelength1535 nm
Pulse energy≥300 µJ
Optical pulse width5 ns
Drive pulse width≤2.4 ms
Repetition rate1–10 Hz
Pulse stability10% (definition/statistical method not stated)
Raw beam diameter0.3 mm
Initial beam divergence≤7 mrad
Transverse modeTEM00
Operating / storage temperature−40 to +65 °C / −55 to +75 °C
Package dimensions / mass25 × 8 × 6.8 mm / 8.5 g
Component electrical entry2 V, 12 A
Shock / vibration entries1500 G, 0.5 ms / 20–2000 Hz, 20 G
Stated service life>1 million shots; test conditions not supplied

The electrical entries describe the component drive, not the module supply input. Drive conditions and pulse-width definitions must follow the component document and the individual factory record. An optical pulse-width value is not a pump-drive duration.

3. APD-A13B001 receiver-component specifications

Small screens: swipe the table horizontally to read all measurement conditions.

Supplied APD200 document — component values and conditions
ParameterValueMeasurement condition / scope
Device / active diameterAPD-A13B001 R01 / 200 µmSupplied APD200 document, p1
Detector spectral response interval800–1700 nmDetector response; not the filter passband
Responsivity0.9 A/W minimum; 1.0 A/W typicalλ = 1550 nm; incident power = 1 µW; M = 1
Dark current8 nA typical; 50 nA maximumVR = VBR − 3 V; incident power = 0
Multiplication factorM ≥10 / M ≥30λ = 1550 nm; 1 µW; respectively VBR − 3 V / VBR − 1 V
−3 dB bandwidth0.6 GHz minimum; 1.25 GHz typicalM = 10; RL = 50 Ω
Breakdown voltage35–50 VReverse current = 10 µA; incident power = 0
Capacitance1.8 pF typical; 2.0 pF maximumVR = VBR − 3 V; f = 1 MHz
Breakdown temperature coefficient0.05 minimum / 0.11 typical / 0.15 maximum V/°CReverse current = 10 µA; dark; −55 to +85 °C
Operating / storage temperature−40 to +85 °C / −55 to +125 °CComponent absolute-maximum table; not module environmental ratings
Maximum biasVBRAbsolute maximum, not a recommended operating setpoint
Maximum forward / reverse current5 mA / 3 mAAbsolute maximum ratings, not continuous design targets
Filter centre wavelength1535 ±5 nmSupplied filter table, p3
Filter FWHM<37 nmFull width at half maximum
Transmission at centre wavelength>90%Filter specification, not total receiver throughput
Blocking specificationT <1%; source lists 400–1750 nmStop-band/transition edges are not numerically defined; the stated blocking span is not a guarantee at every wavelength.
Optical surface quality60/40Source label: surface quality; not a transmission value

Responsivity is measured at 1550 nm; a value measured there is not silently relabeled as a measured 1535 nm value. Absolute maxima are stress limits. The filter document includes an illustrative spectrum, but does not define numerical transition edges or off-axis performance. No additional spectral guarantee is inferred.

SOURCE CONDITIONS

Model-specific conditions and limits

Conditions are retained only when the source states them. They are not reconstructed from a nominal range or wavelength.

Operating conditions

Read a range value together with its test case

Target dimensions, surface reflectance and atmospheric visibility are part of the range specification. The beam may partly miss a small object, illuminate a sloped surface or return from several depths. A high-reflectance building result cannot establish the same distance to a smaller or darker object. Humidity and temperature conditions shown in a source table describe that test; visibility is not interchangeable with a guaranteed transmission percentage.

Measurement rate and electrical conditions

Measurement rate is the number of reported measurement opportunities per second. It is separate from optical pulse duration, receiver bandwidth and the time required for an individual return. Read operating power at the frequency and supply printed beside it. Peak power describes a different electrical requirement from average power; an average figure alone does not characterize supply transients.

Environmental and measurement context

A module temperature rating, laser-component temperature range and APD maximum rating describe different assemblies. Likewise, a named vibration standard does not disclose every method, mounting condition or acceptance threshold. Range repeatability, reported resolution and absolute accuracy are different quantities: a fine numerical display increment does not establish the error of the complete measurement.

HOW TO READ THE MEASUREMENT

Pulsed Time-of-Flight Ranging

Technical principle

A pulse, a return and a measured interval

Pulsed time-of-flight ranging measures elapsed time between an optical launch reference and a detected echo. The basic relationship is R = vΔt/2, where v is the speed of light in the propagation medium. The factor of two accounts for the outward and return journeys. The familiar expression using c treats propagation as approximately in air/vacuum; absolute metrology also considers refractive index and calibrated internal delays.

The measurement chain contains a pulsed source, transmit optics, an illuminated surface, collection optics, spectral filtering, a detector and timing electronics. ER300 supplies optical pulses. The module's output beam is described by its own optical specification after integration. A nanosecond laser pulse is not the same quantity as a millisecond pump-drive pulse or a hertz measurement rate.

Initial divergence and the integrated beam

A bare source has its own beam diameter and divergence. Collimating and expanding optics alter the relationship between beam size and angular spread. Therefore the component's initial divergence and the assembled module's transmitter divergence belong in separate rows. Finite beams still diffract, and real optics add aberrations, alignment error and clipping. A quoted angular value also needs a full-angle/half-angle convention and a beam-width definition before it supports a numerical footprint calculation. Those definitions are not invented where the product record omits them. Newport's optics explanation provides the general context.

Why the same laser can appear in different range classes

The laser source is one contributor to system performance. At a fixed, uniform irradiance at the receiver entrance, a circular unobscured collecting aperture has area A = πD²/4. With equal throughput and no clipping, collected optical power is proportional to that area. A larger receiver lens can therefore collect more of the available return. This is an area relationship under stated assumptions, not a range multiplier and not a test result for this product.

The return reaching that aperture also depends on transmitted energy, beam spread, object size and reflectance, surface orientation, atmospheric attenuation and optical transmission. Increasing collection area may collect additional background light as well. Receiver field of view, throughput, detector response and the decision process determine how much useful information remains. Consequently, models sharing ER300 can have different conditional range specifications, and their ranges should be compared using equivalent target and weather conditions.

APD conversion, filtering and timing

The supplied InGaAs APD generates photocurrent and provides internal avalanche multiplication. Its responsivity at M = 1 describes conversion before multiplication; the gain values describe a specified reverse-bias condition. Internal gain accompanies multiplication noise. Dark current, capacitance and bandwidth also matter, so the maximum tabulated gain is not automatically the best operating point. The specified gain conditions below breakdown describe linear APD operation, not evidence of single-photon Geiger-mode operation. Hamamatsu's detector guide explains these distinctions.

The narrowband filter transmits the useful wavelength region while rejecting specified out-of-band light. It does not reject background that lies inside its passband. Its centre transmission is not the throughput of the lens, window, filter and detector assembly together. A detector bandwidth measured at 50 Ω likewise does not specify the installed amplifier bandwidth or the finished rangefinder's accuracy.

Short distances, long distances and processing

At short distances, the return arrives near the launch event; optical overlap, prompt scatter and receiver recovery can limit the usable minimum distance. A strong close return can also exceed the linear region. At long distances, reduced return strength makes background, noise and signal discrimination more significant. These are different mechanisms, so good long-range performance does not imply a zero blind zone or a guaranteed result at every shorter distance.

In a threshold-based timing receiver, changes in pulse amplitude can shift the threshold-crossing time, called time walk. Calibration, multiple-return discrimination and signal estimation are general approaches discussed in the literature. Signal estimation and timing correction depend on the receiver architecture; no specific firmware method is claimed without a model-specific record. Reported multi-target capability alone does not disclose the underlying algorithm. Kurtti, Jansson and Kostamovaara examine receiver/TDC timing behavior in their own research hardware.

Pulse energy describes emitted energy per pulse; its effect cannot be separated from pulse width, divergence, optical losses, receiver threshold and the stated target/atmosphere conditions. It is not a substitute for a model-specific near- or long-range acceptance test.

APPLICATION REVIEW

Source-stated application context

Application labels indicate evaluation context, not automatic fitness for a finished system.

The 65 × 48 × 32 mm envelope and DC 4.5–16 V supply distinguish this model from the larger LRF0815C record. Its transmitter lens is 12 mm and its divergence entry is ≤0.3 mrad. Those mechanical and optical facts are useful for comparing candidate distance-measurement modules without claiming an untested application-specific result.

LRF0816C separately lists ≥1.5 km for a 0.5 × 1.7 m human-size target under the table’s stated reflectance and visibility. Its minimum-range entry is ≤50 m, and average power is ≤4 W without a specified measurement rate. Smaller-target reach, near-distance limits and power operating points should therefore be evaluated independently.

INTEGRATION CHECK

Confirm short- and long-distance acceptance conditions

  • Define minimum distance, target material, reflectance, size and incidence angle.
  • Check receiver recovery, optical-axis overlap and strong-return handling at the intended near limit.
  • Verify supply tolerance, peak current, grounding, interface levels, connector and timing with the ordered revision.
  • For long-distance acceptance, state target geometry, visibility, weather, background and required detection probability.
  • Test with the installed window, boresight, field of view, enclosure and thermal path rather than a bare module alone.
  • Evaluate accessible emission, labels and failure conditions again for the finished laser product under IEC 60825-1.
TECHNICAL FAQ

Questions to resolve before design release

How is its 8 km result conditioned?

The reference target is 2.3 × 2.3 m, reflectance is 30% and visibility is ≥10 km. Under that row’s conditions, LRF0816C lists ≥8000 m. Its separate 0.5 × 1.7 m human-size target entry is ≥1500 m, rather than the reference target’s larger distance.

What distinguishes LRF0816C from LRF0815C?

LRF0816C lists a 25 mm receiver lens, a 65 × 48 × 32 mm envelope and DC 4.5–16 V supply. LRF0815C lists a 40 mm receiver and different package and supply. Their shared conditional reference-target distance does not make their mechanical or electrical configurations interchangeable.

Is 1–10 Hz the same rate specification as LRF0815C?

Not exactly. LRF0816C lists 1–10 Hz, while LRF0815C lists 0.5–10 Hz. Preserve the lower endpoint for each model. Neither reporting-rate label changes the specified target reflectance, target dimensions or visibility required for the respective long-range test case.

Can the average-power number be assigned to a chosen rate?

The reviewed table gives ≤4 W average power but does not specify its measurement rate. It would be misleading to present that number as a verified 10 Hz operating point without further evidence. Use the supplied version’s documented operating point for a rate-specific system budget.

Does its source-laser model explain the entire range performance?

ER300 identifies the source laser, not the complete measurement system. The LRF0816C module has its own aperture, output divergence, receiving optics and target-conditioned ranges. A component pulse-energy or initial-divergence entry must not be used as a substitute for those assembled-module facts.

ENGINEERING REFERENCES

Product evidence and general technical context

The model PDF controls model claims. Public references below explain general engineering principles only.

  1. LRF0816C controlled module datasheetThe module-specific parameters, target conditions and version notes cited on this page.
  2. Practical application of pulsed “eye-safe” microchip laser to laser rangefindersGeneral context for pulsed 1535 nm rangefinder architecture and source/receiver selection.
  3. System Design of a Pulsed Laser RangefinderHow target properties, background and receiver design enter a pulsed-rangefinder performance assessment.
