Compact ranging modules for UAV, EO/IR, handheld and long-range optical systems. Compare specified range, accuracy, divergence, interfaces, dimensions and environment.

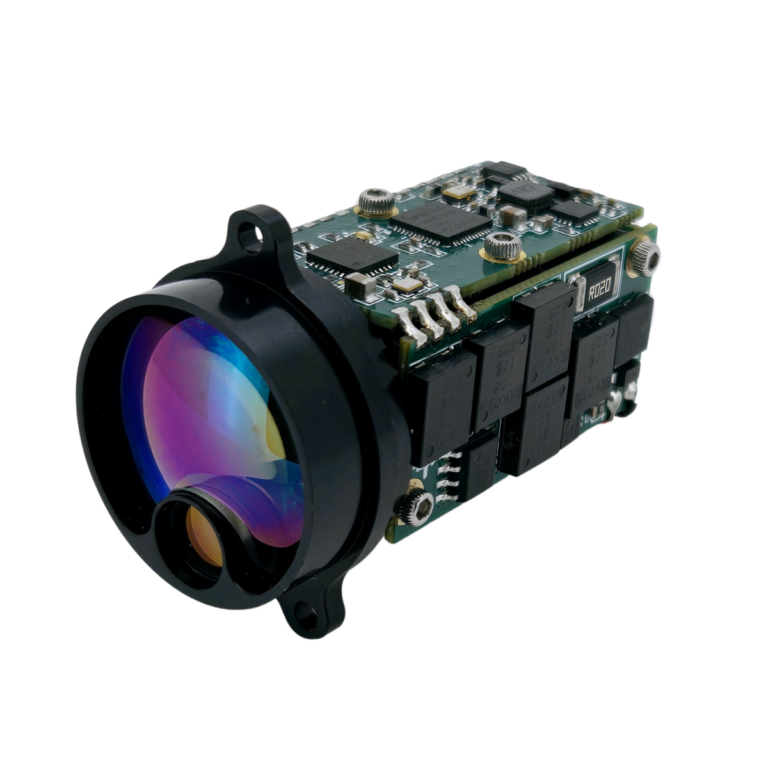

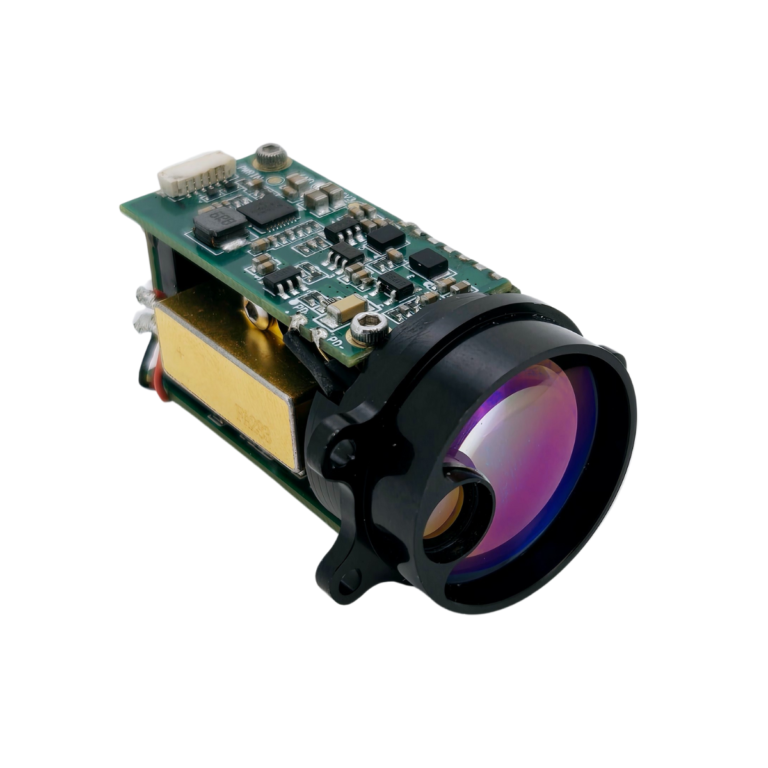

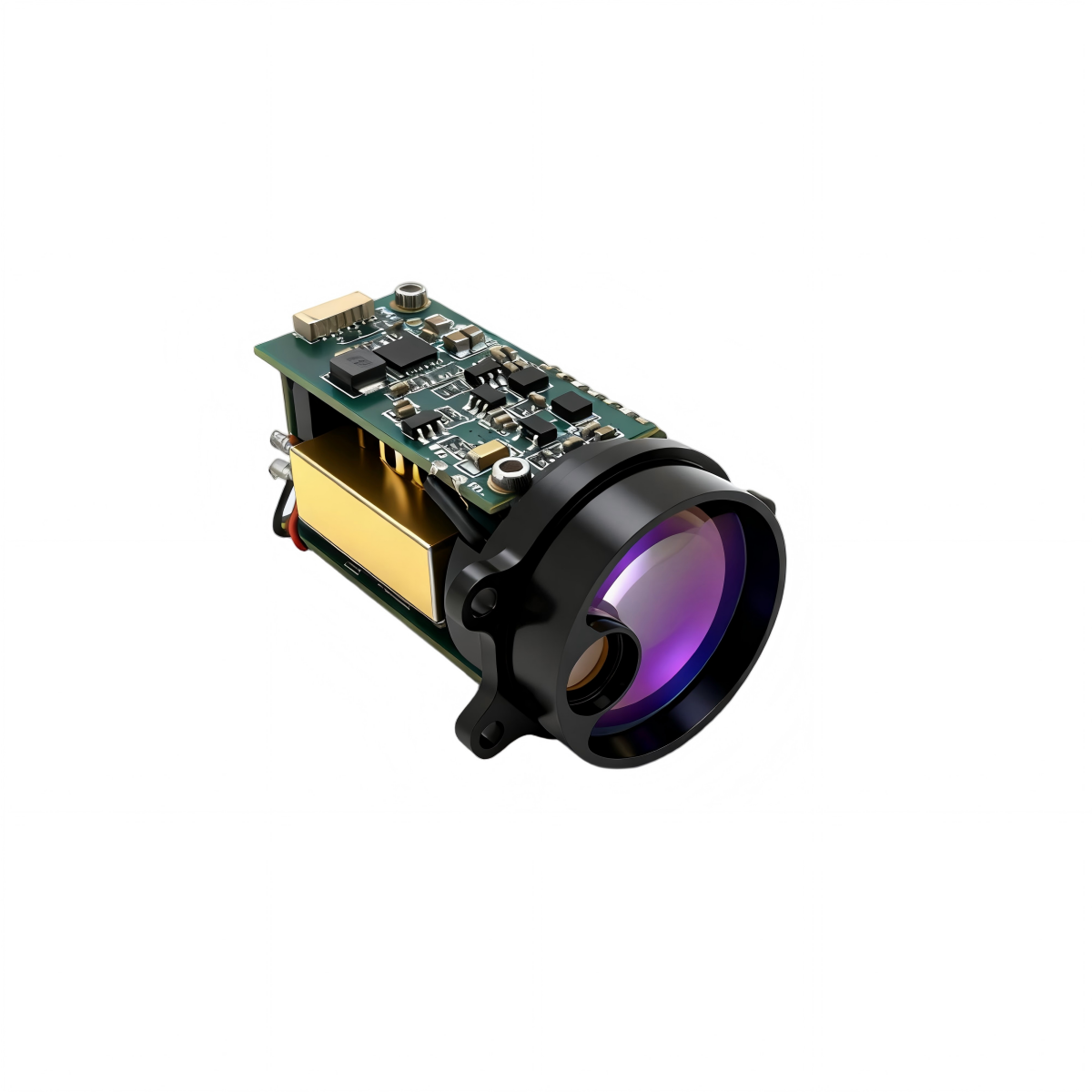

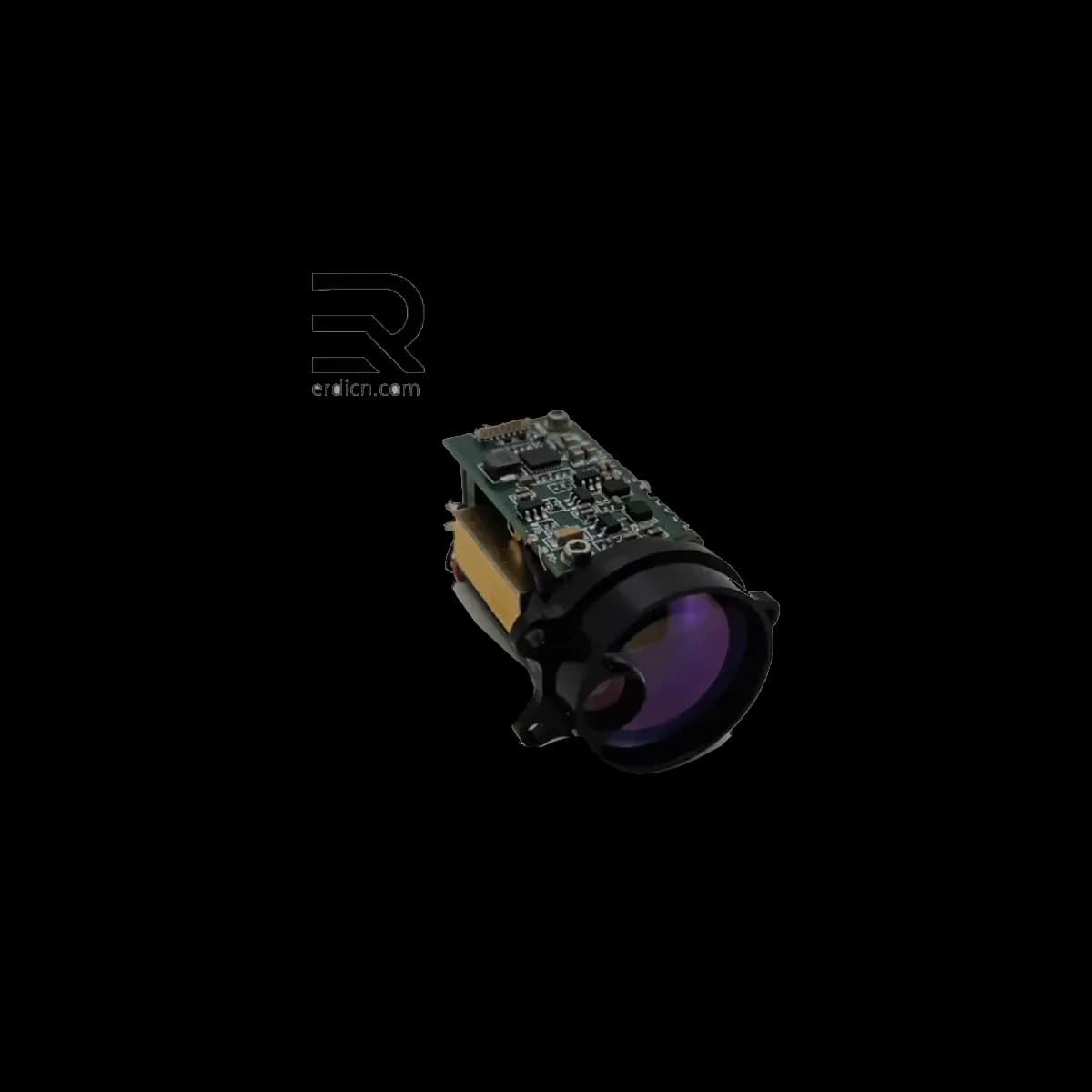

PRODUCT / TECHNICAL VIEW1535nm eye-safe laser rangefinder module for UAV and handheld LRF0105C combines 3km NATO range, 100µJ pulses and ultra-low 0.8W power—choose ERDI’s leading 1535nm rangefinder technology.
Compare specifications →

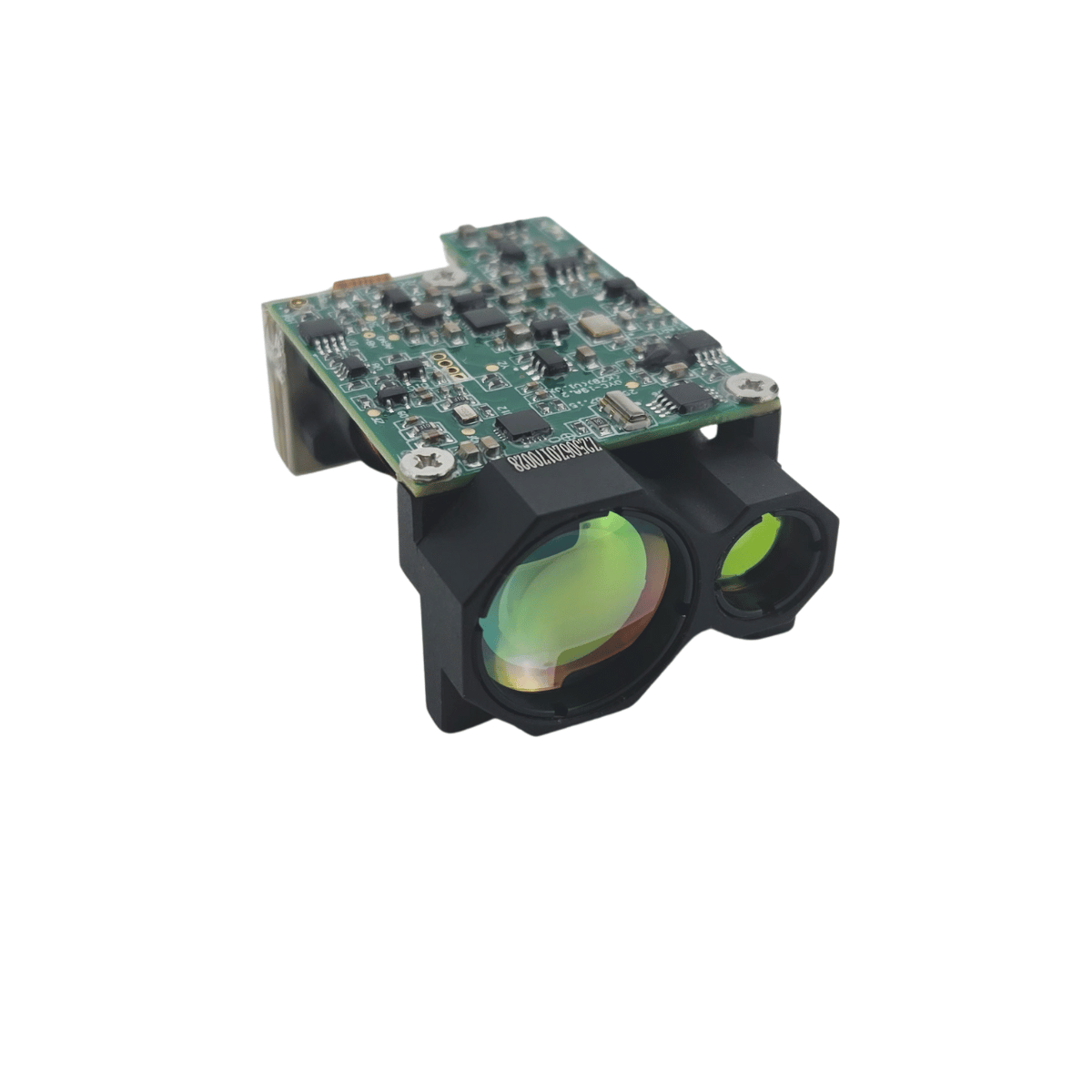

PRODUCT / TECHNICAL VIEW1535nm eye-safe laser rangefinder module for UAV gimbal and border surveillance LRF0310C delivers 10–3000m range, ±1m accuracy and 1–10Hz TOF in a 48×30.5×21mm, 32g design—rely on ERDI’s leading 1535nm rangefinder technology for your next payload.
Compare specifications →

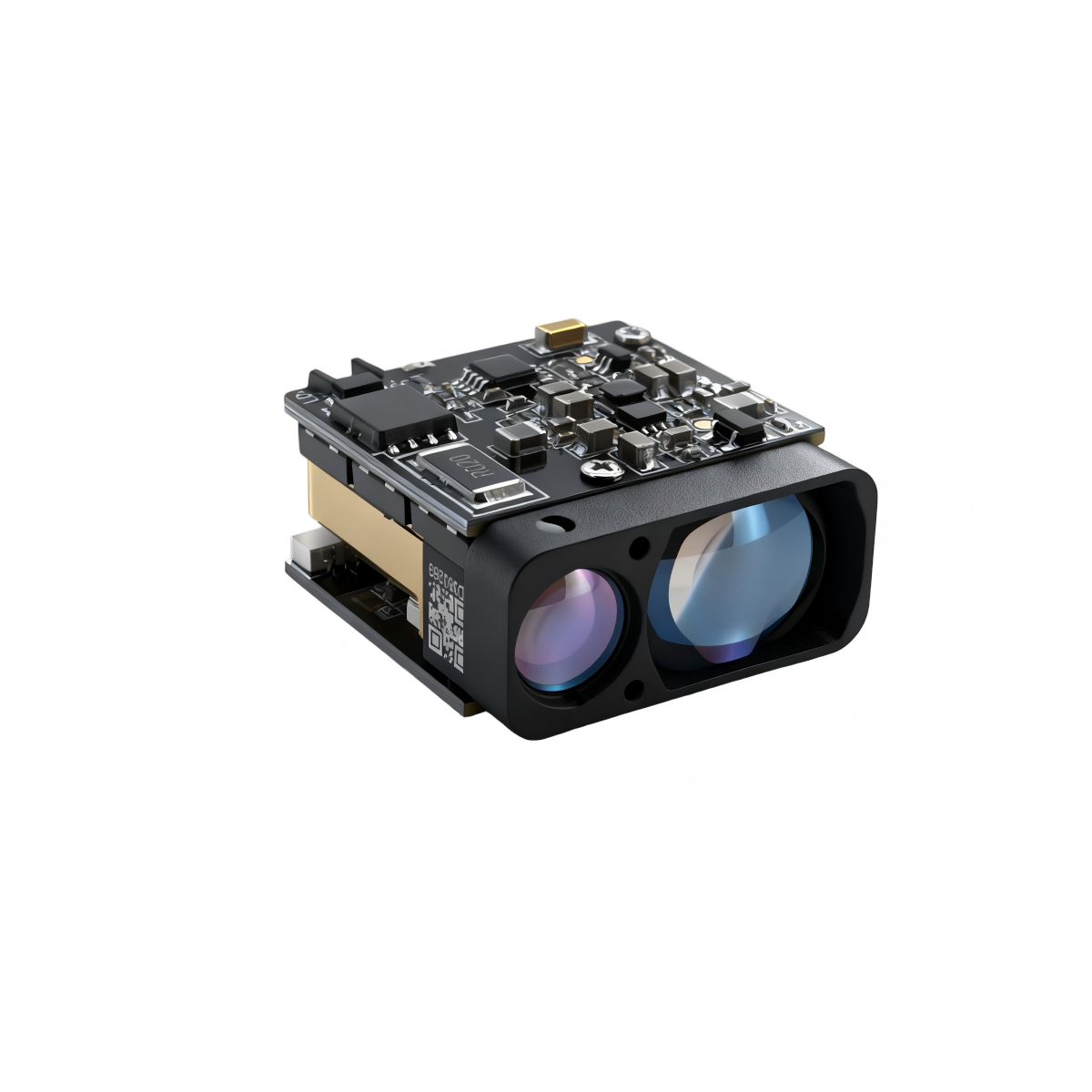

PRODUCT / TECHNICAL VIEW1535nm eye-safe laser rangefinder module for UAV LRF0305C measures 10–4000m with ±1m accuracy, 1–10Hz TOF and <1.5W power for drones, robots and EO/IR sensors—benefit from ERDI’s best-in-class 1535nm ranging technology.
Compare specifications →
PRODUCT / TECHNICAL VIEW1535nm eye-safe laser rangefinder module for drones and robotics LRF0306C offers 10–4000m range, ±1m accuracy and 1–3Hz TOF in a 27×25×15.5mm, 14g design—leverage ERDI’s leading 1535nm ranging technology for your next platform.
Compare specifications →

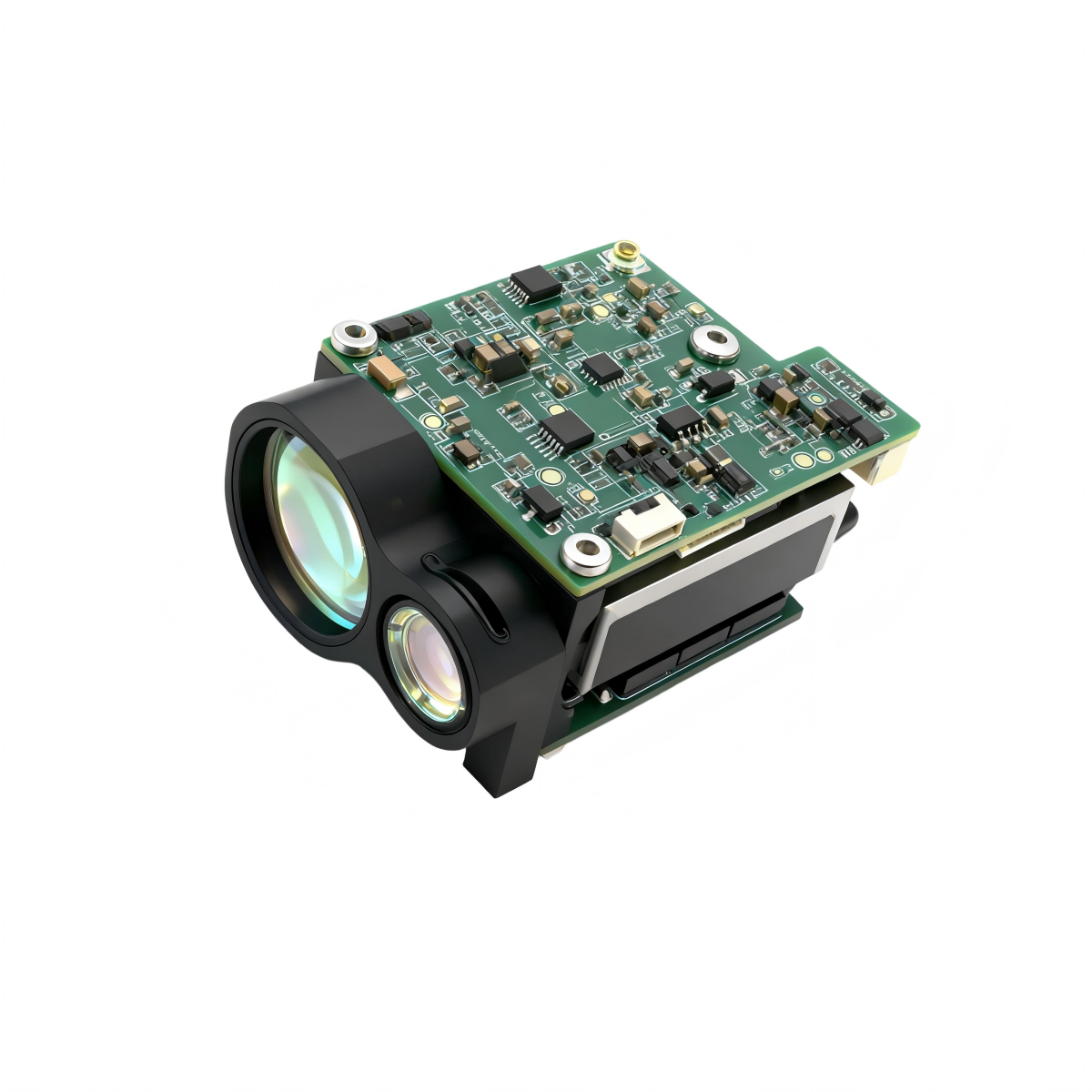

PRODUCT / TECHNICAL VIEWThe LRF0405C is a compact 1535 nm OEM laser rangefinder module specified for 15 m to 4 km ranging under defined target and visibility conditions. It combines +/-2 m accuracy, 0.1 m or better resolution, single or 1-10 Hz operation, up to three-target reporting and a five-pin UART interface in a 48 x 30.5 x 21 mm format.
Compare specifications →
PRODUCT / TECHNICAL VIEW1535nm eye-safe 6km laser rangefinder module LRF0609C offers 20–6000m vehicle range, ±2m accuracy, 1–10Hz TOF and ≤1.5W power in a 55×48×32mm, 62g design—build on ERDI’s leading 1535nm rangefinder platform for UAV, vehicle and security systems.
Compare specifications →

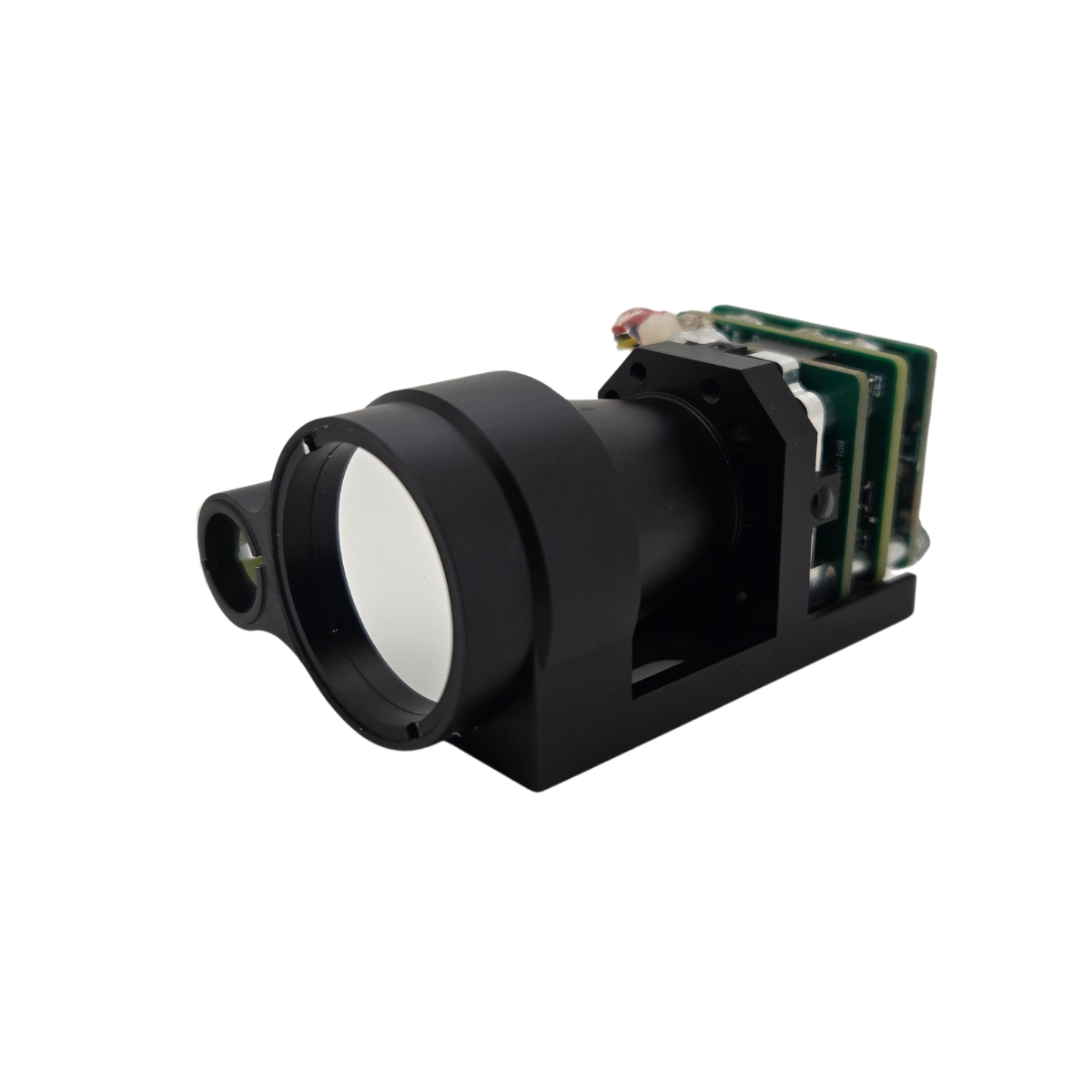

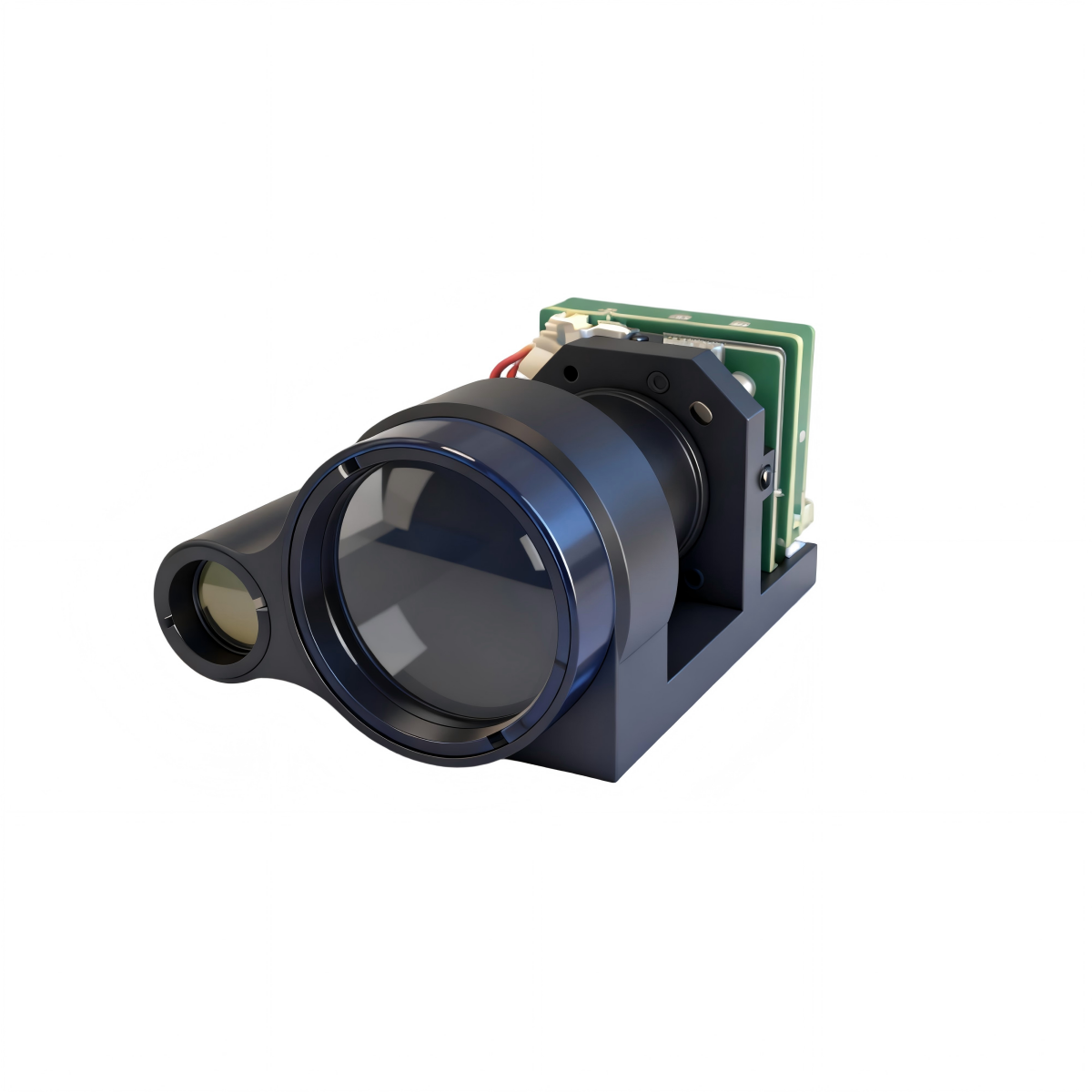

PRODUCT / TECHNICAL VIEW1535nm eye-safe 6km multi-pulse laser rangefinder module LRF0610C offers 15–6000m range, ±2m accuracy, 0.5–10Hz TOF and selectable TTL/RS-422 in a 70×32×40mm, 90g design—rely on ERDI’s leading 1535nm rangefinder platform for UAS, optical pods and boundary monitoring.
Compare specifications →

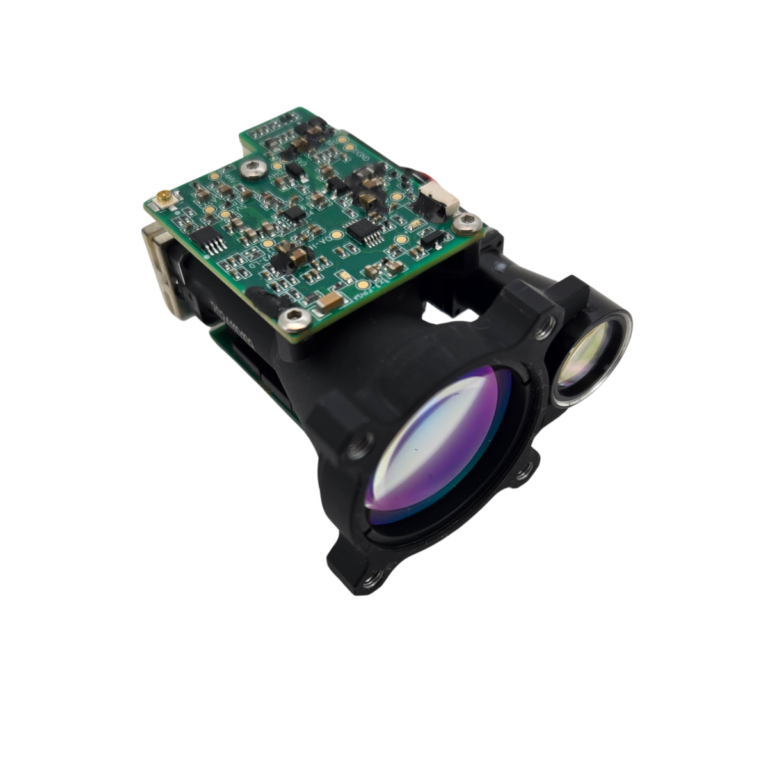

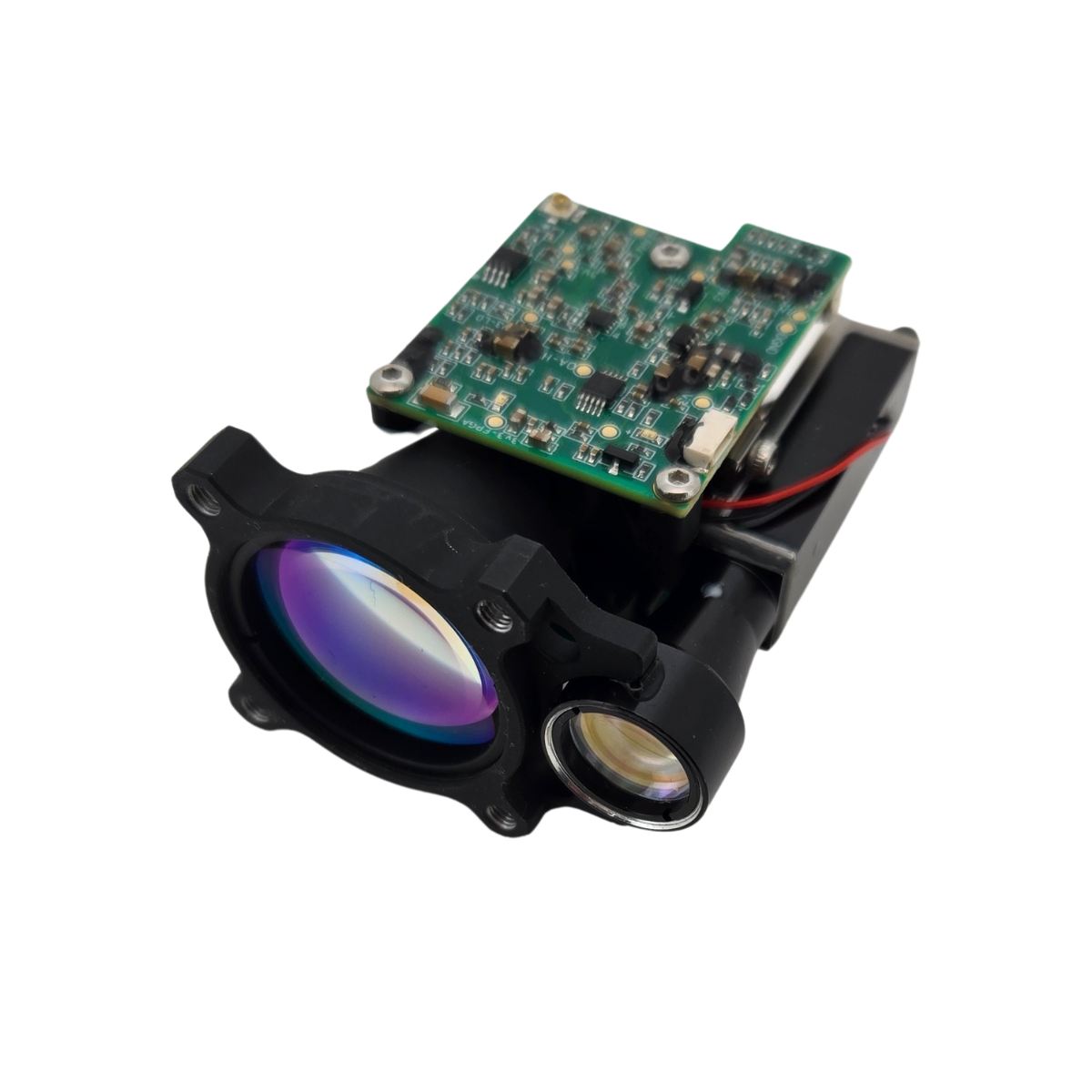

PRODUCT / TECHNICAL VIEW1535nm eye-safe laser rangefinder module 6km for security and UAV LRF0612C offers multi-pulse TOF, 50–6000m range, ±2m accuracy and 1–10Hz operation for monitoring, robotics and UAV pods—build on ERDI’s leading 1535nm rangefinder platform.
Compare specifications →

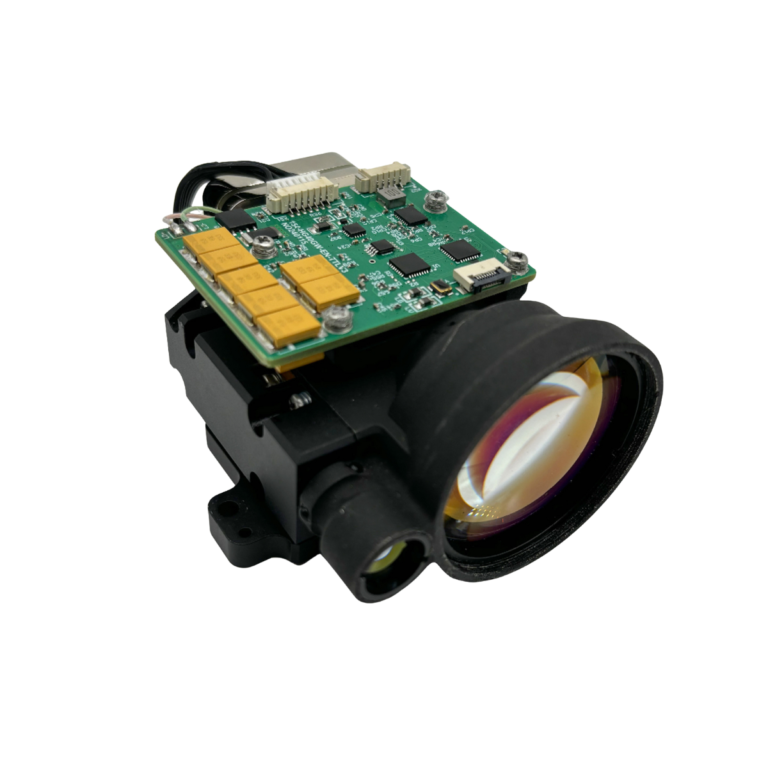

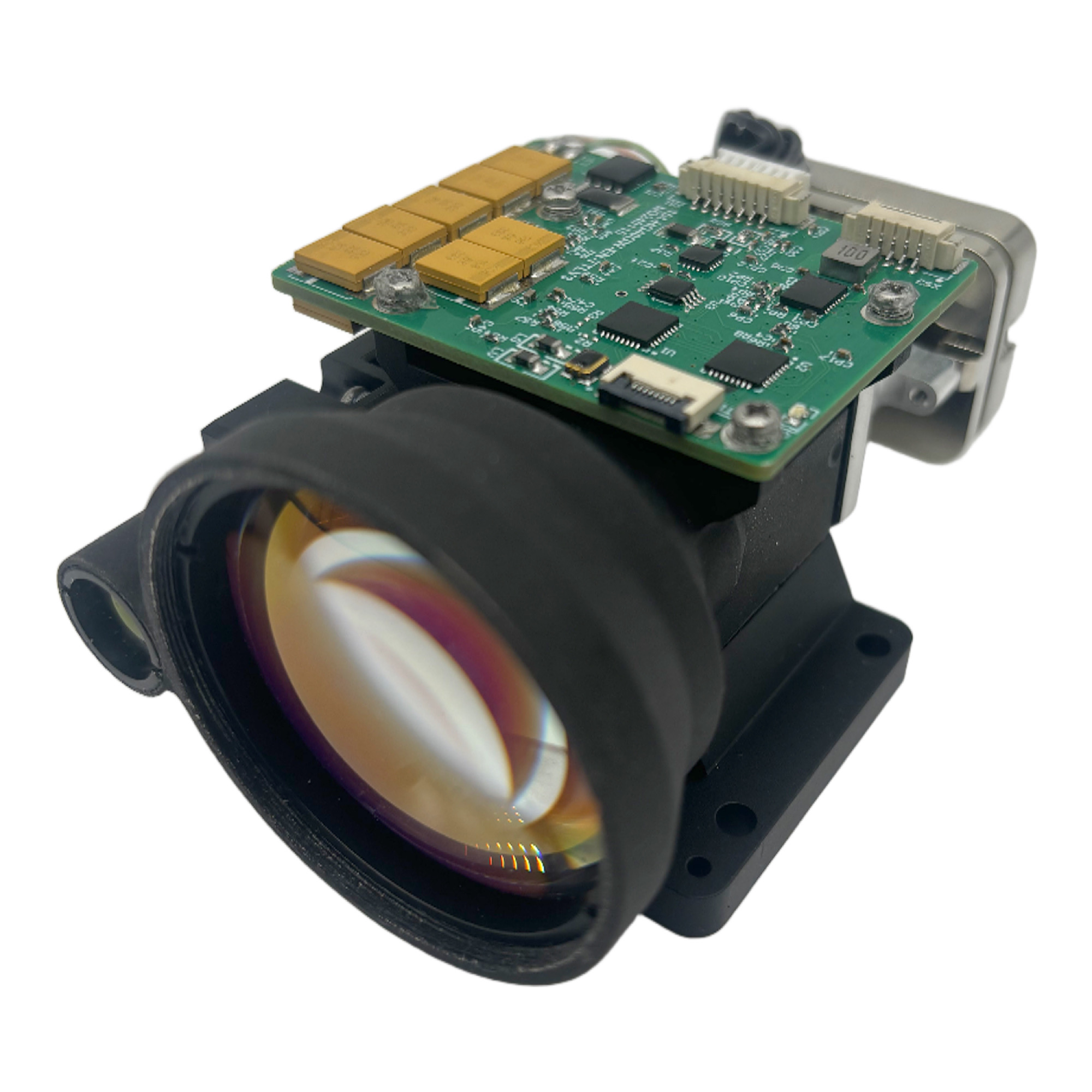

PRODUCT / TECHNICAL VIEWThe LRF0815C is a Class 1 eye-safe 1535 nm OEM laser rangefinder module for 15 m to 8 km ranging under specified conditions. It provides ±2 m accuracy, ≤0.1 m resolution, up to three-target reporting at 0.5–10 Hz, and selectable TTL or RS-422 communication. The 12 V, ≤175 g open-frame design supports UAV gimbals, EO/IR payloads, surveying and monitoring systems.
Compare specifications →PRODUCT / TECHNICAL VIEW1535nm eye-safe 8km laser rangefinder module LRF0816C uses multi-pulse TOF, 50–8000m range, ±2m accuracy and 1–10Hz UART 3.3V control for security, UAV, robotics and thermal imagers—take advantage of ERDI’s field-proven 1535nm rangefinder technology.

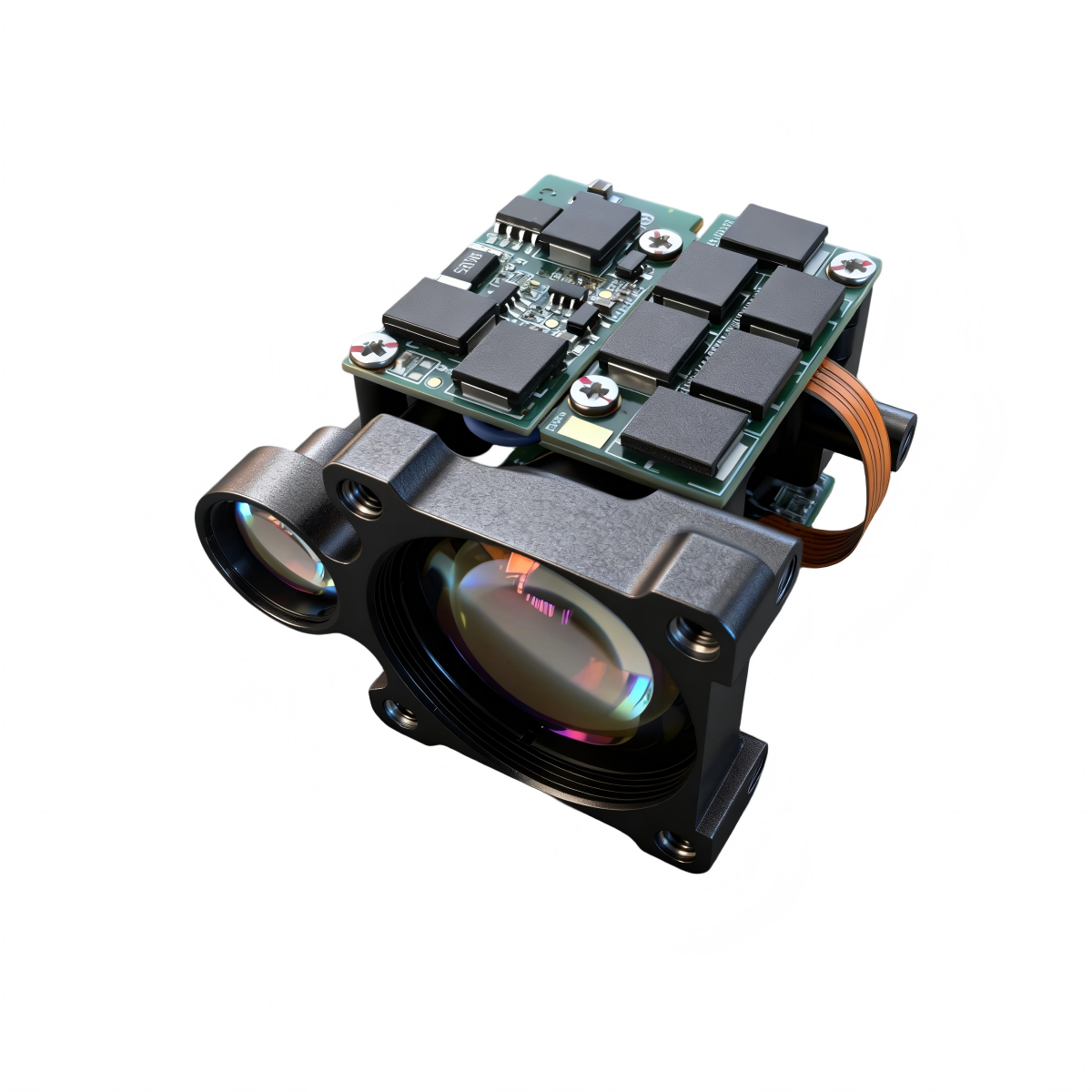

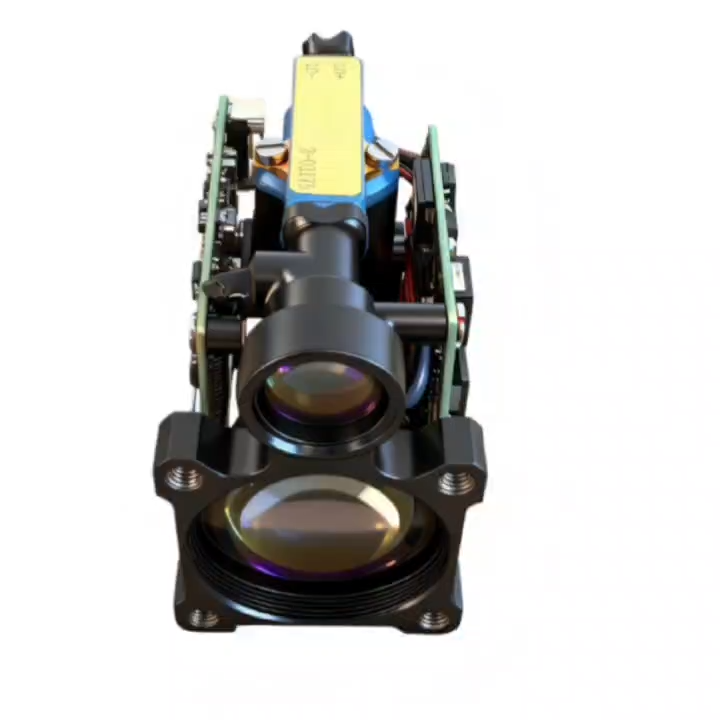

Compare specifications →PRODUCT / TECHNICAL VIEW1535nm mini eye-safe 8km laser rangefinder sensor LRF0818C delivers 20–8000m range, ±2m accuracy, 1–10Hz TOF and TTL UART control in a 59.5×26×32mm, 65g module—use ERDI’s proven 1535nm platform to upgrade UAV, handheld and security designs.
Compare specifications →

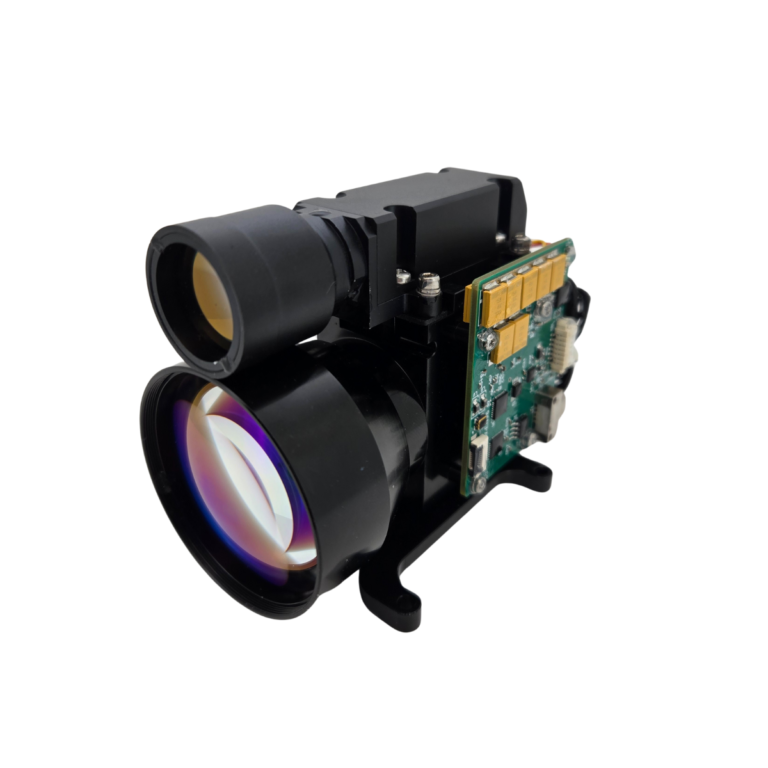

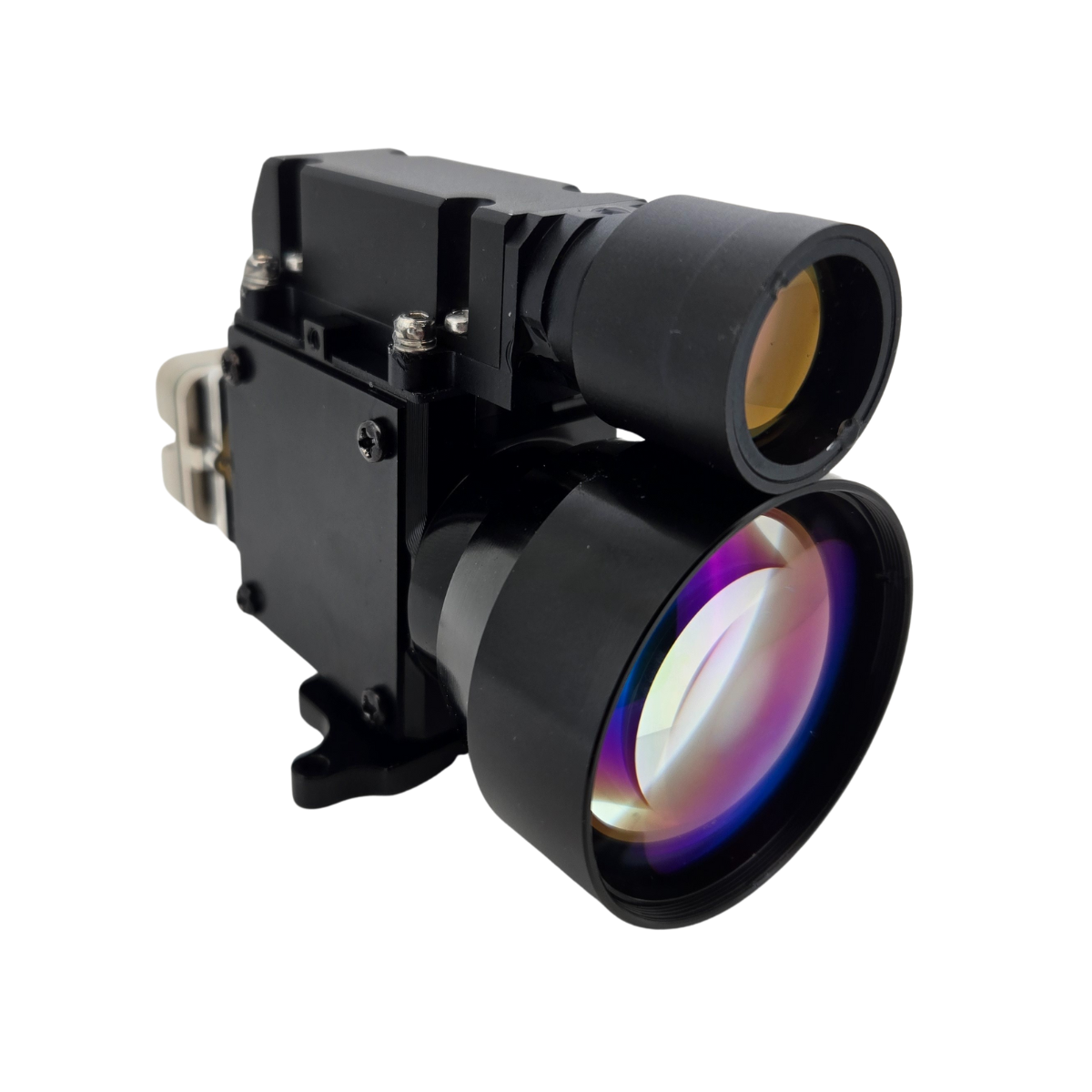

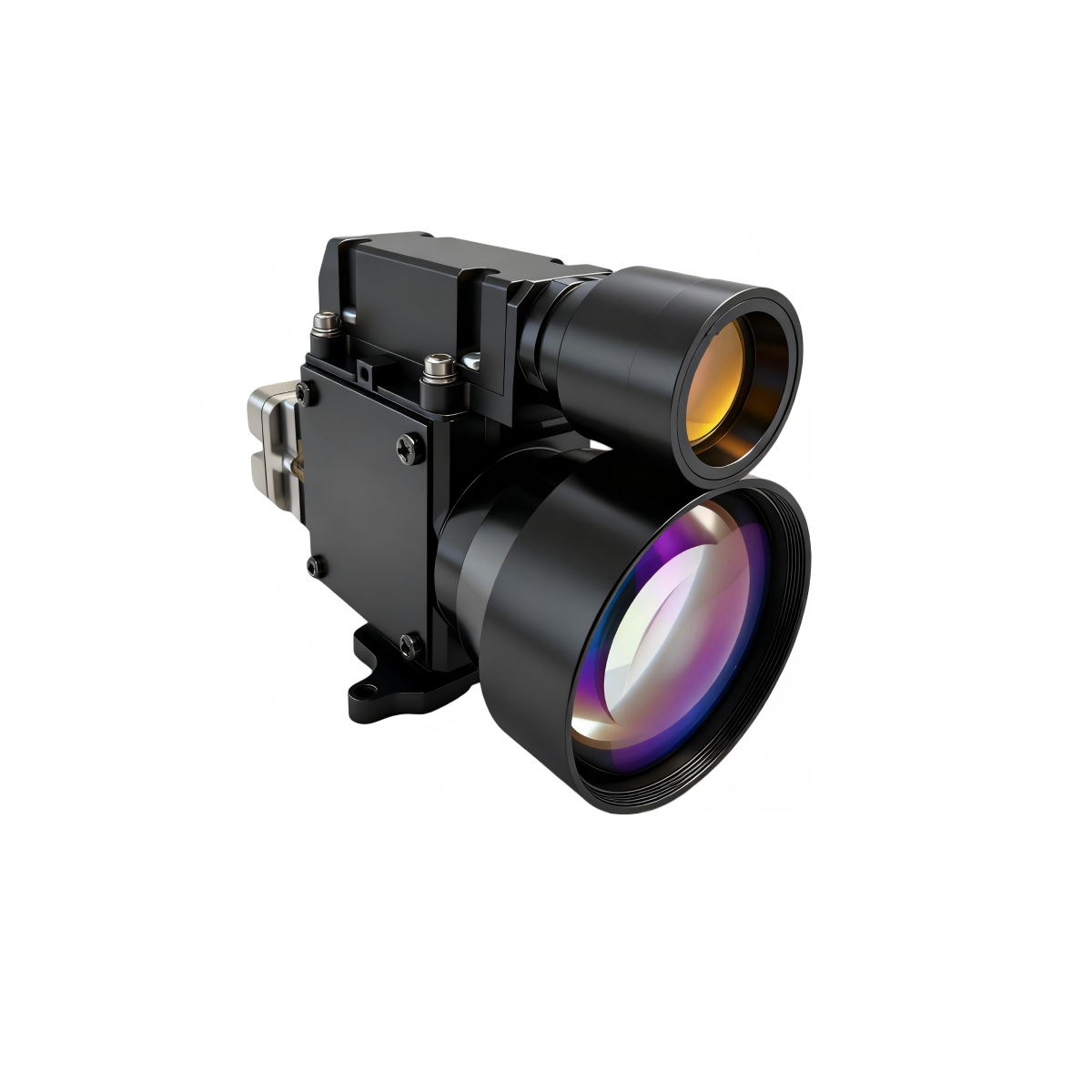

PRODUCT / TECHNICAL VIEW1535nm eye-safe 10km long-range laser rangefinder module LRF1017C provides 50–10000 m range, ±2 m accuracy and 0.5–10 Hz TOF in a 107×62×72 mm, 275 g OEM core—rely on our leading 1535nm rangefinder platform for border surveillance, coastal observation and mapping systems.
Compare specifications →
PRODUCT / TECHNICAL VIEW1535nm eye-safe 12km laser rangefinder module LRF1221C delivers 50–12000 m range, ±2 m accuracy and 0.5–10 Hz TOF in a 107×62×72 mm, 275 g OEM core—choose our leading 1535nm rangefinder platform for border surveillance, coastal observation and long-range mapping.
Compare specifications →

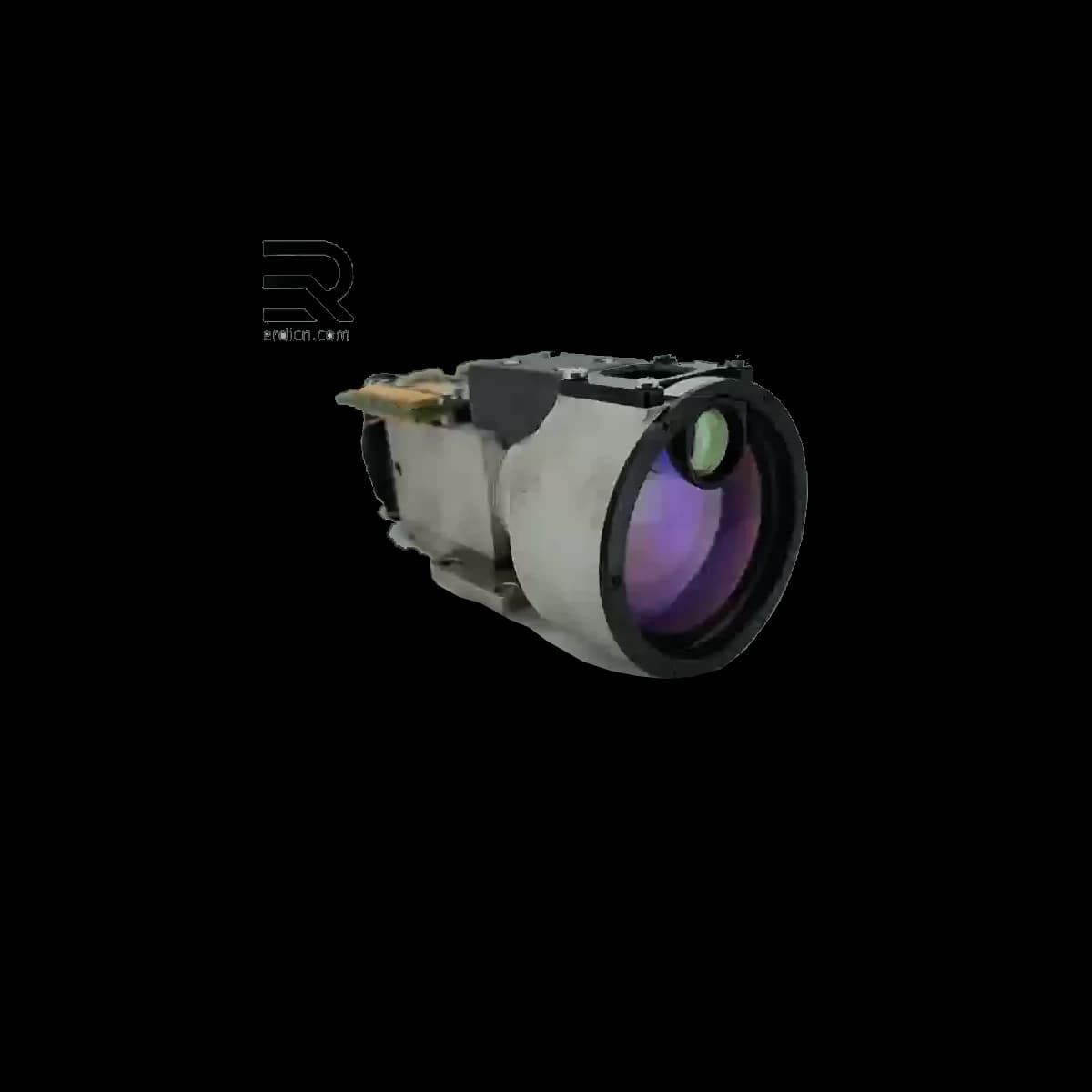

PRODUCT / TECHNICAL VIEW12km 1535nm eye safe laser rangefinder LRF1222C uses Class 1 1.54 μm pulses, ≥12 km NATO range, ±2 m accuracy and RS422/TTL control—choose our high-reliability ERDI module for border surveillance, vehicle turret and ship EO/IR systems.
Compare specifications →
PRODUCT / TECHNICAL VIEW1535nm eye-safe UAV laser rangefinder module LRF1831C delivers 50–12000 m range at ±2 m accuracy and 0.5–10 Hz in a compact OEM core.
Compare specifications →

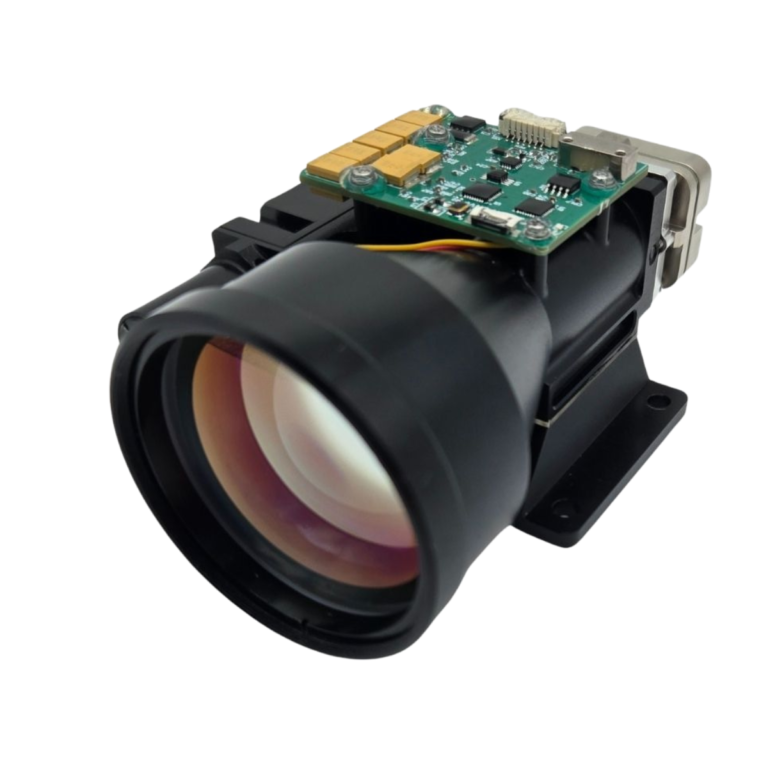

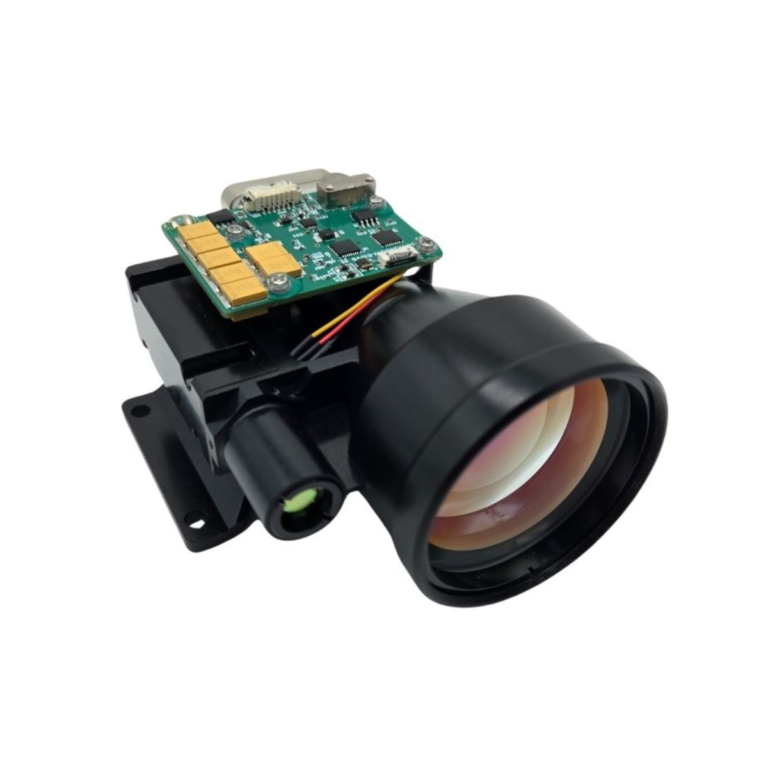

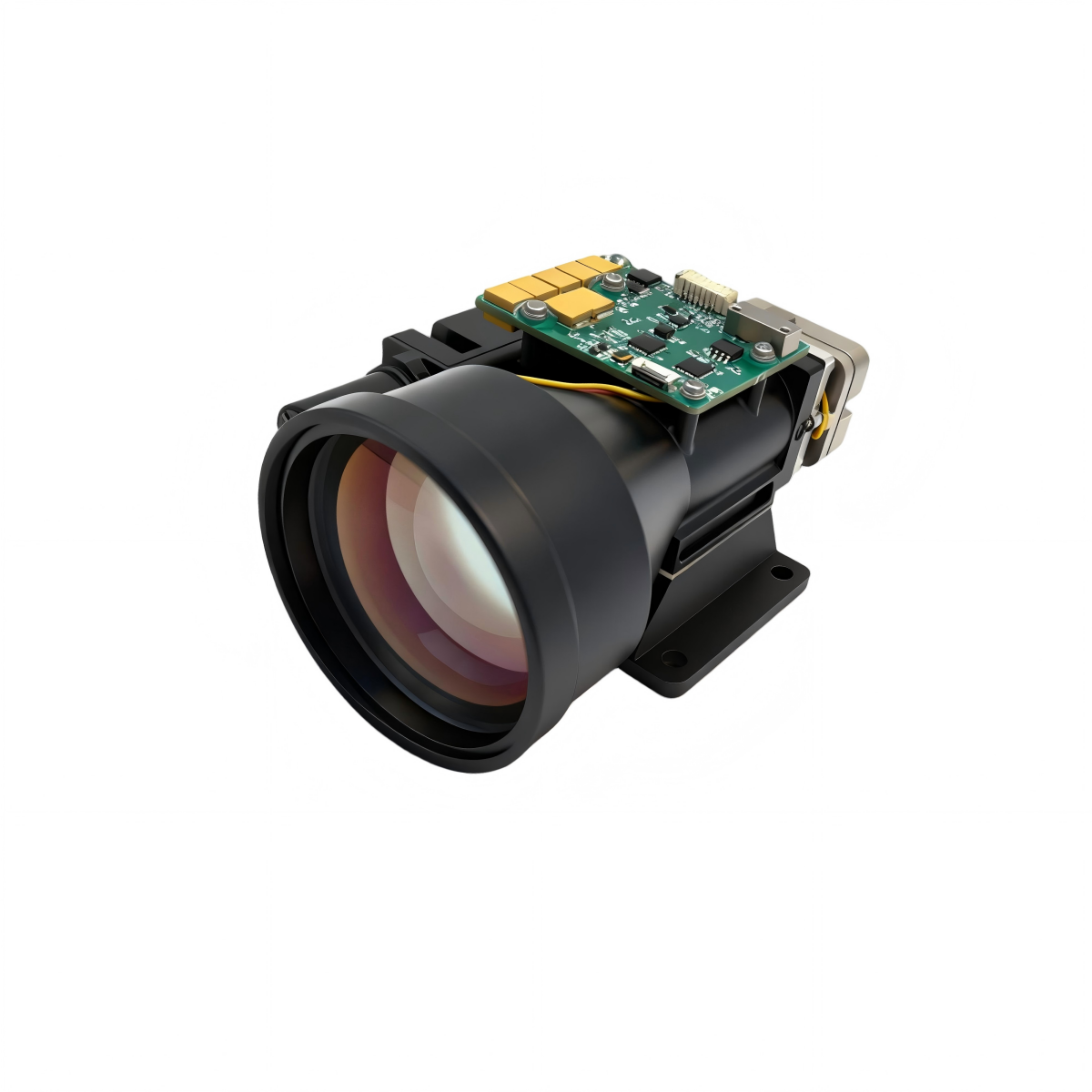

PRODUCT / TECHNICAL VIEW1535nm eye-safe 15km laser rangefinder module LRF1525C delivers 50–15000 m range, ±2 m accuracy and 0.5–10 Hz TOF in a 125×85×58.5 mm, 400 g OEM core—use our leading 1535nm rangefinder platform in vehicle, naval and airborne EO/IR systems.
Compare specifications →PRODUCT / TECHNICAL VIEW1535nm ultra long range eye-safe laser rangefinder module 18km+ LRF1829C offers 50–18000 m vehicle range and up to 23000 m 6×6 m target range with ±2 m accuracy and 0.5–10 Hz TOF.
Compare specifications →

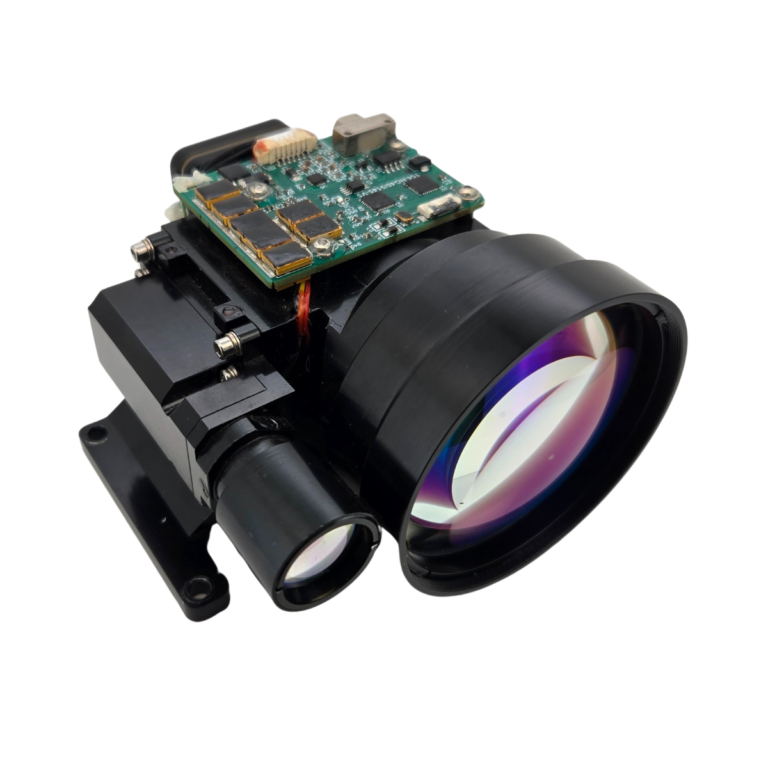

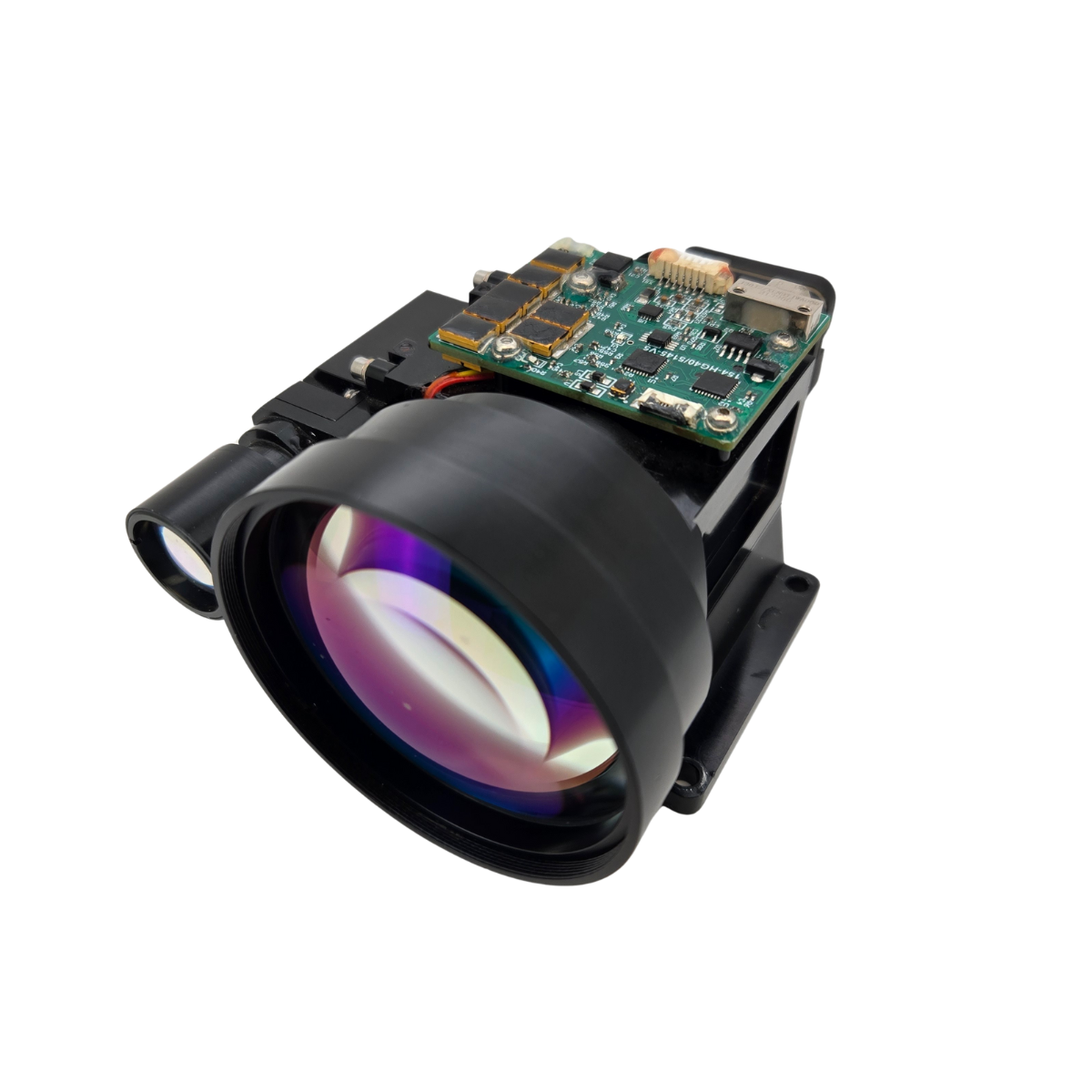

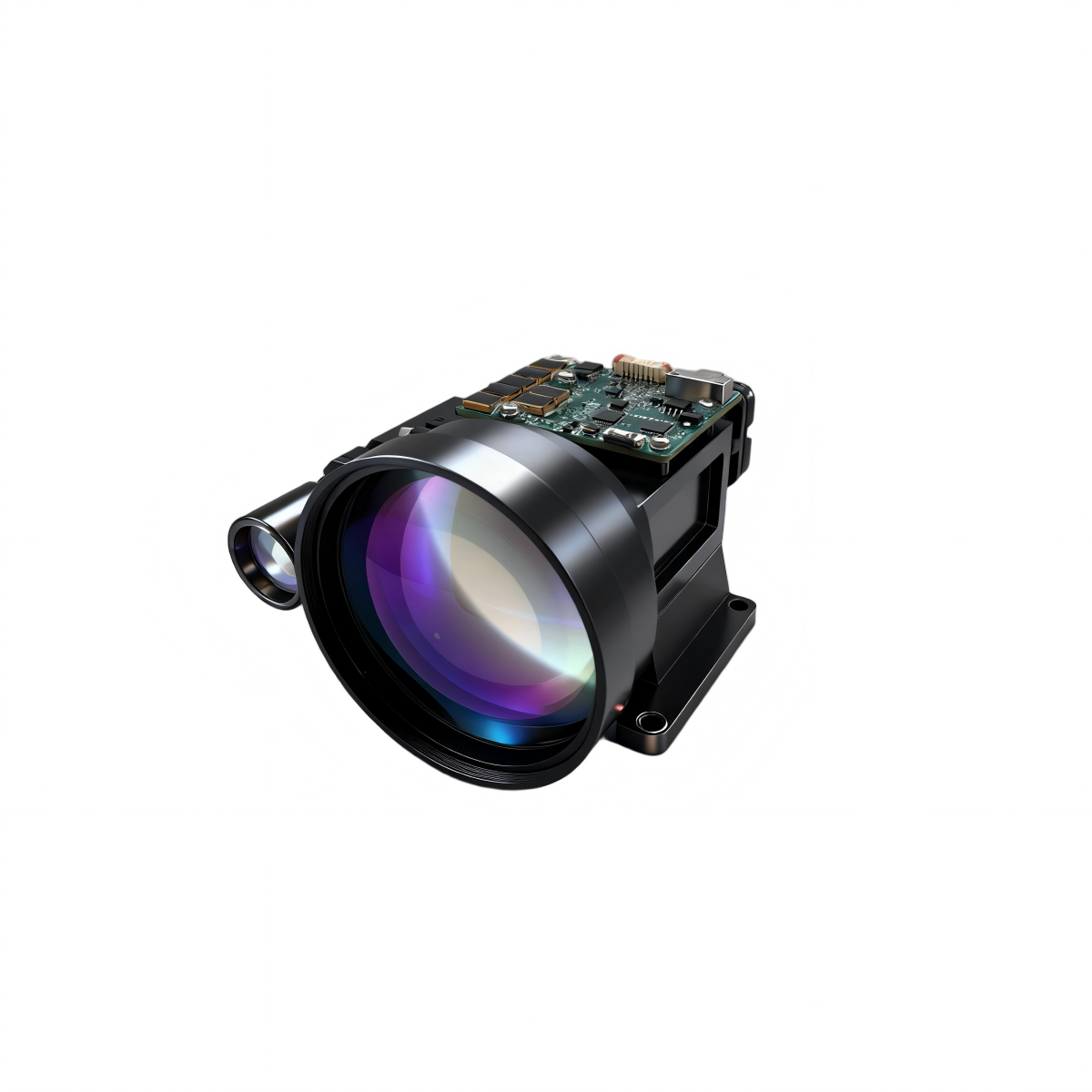

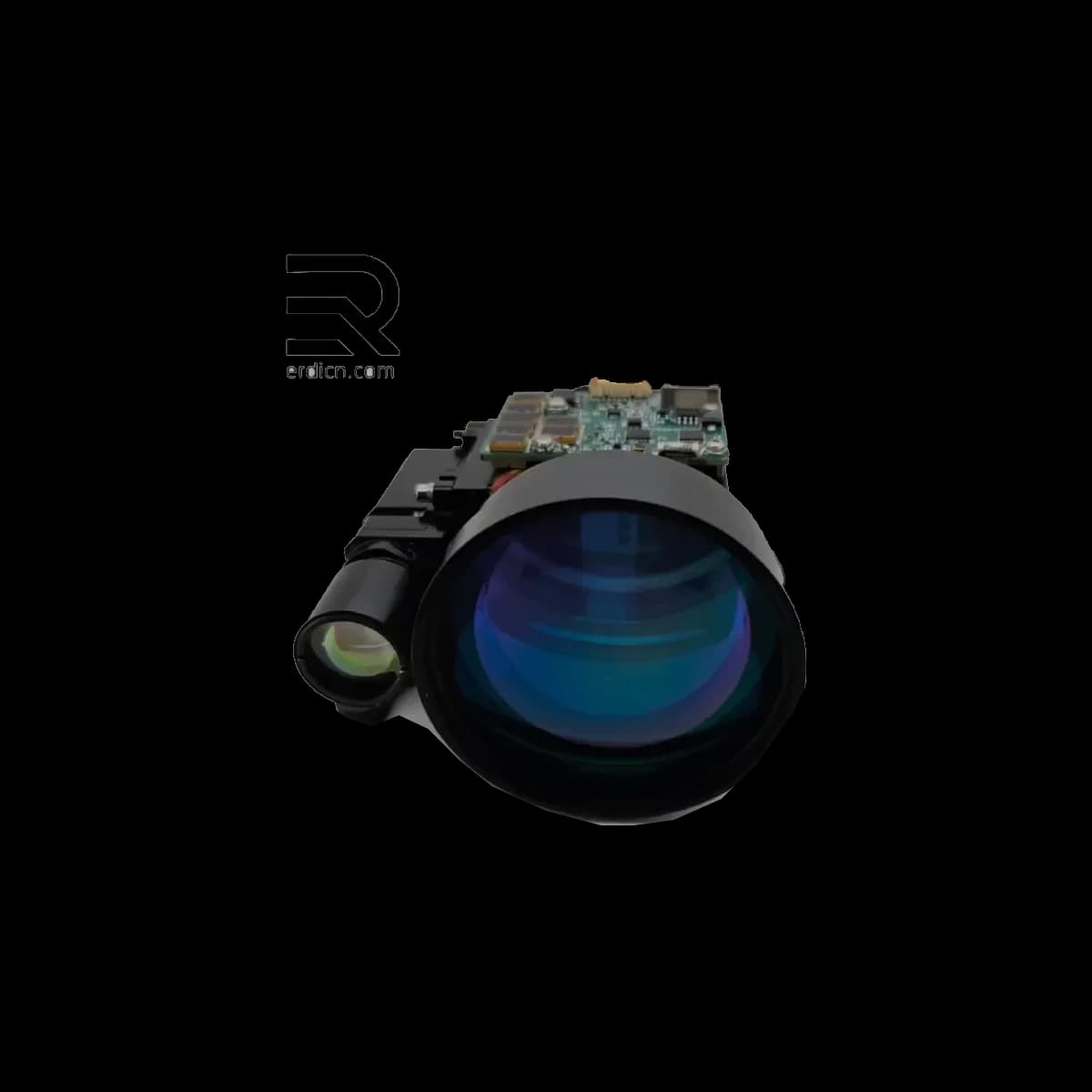

PRODUCT / TECHNICAL VIEW1535nm eye-safe 18km TOF laser rangefinder module LRF1830C provides 50–18000 m vehicle and up to 23000 m 6×6 m target range with ±2 m accuracy and 0.5–10 Hz operation.
Compare specifications →
