ERDI OEM LASER MODULE

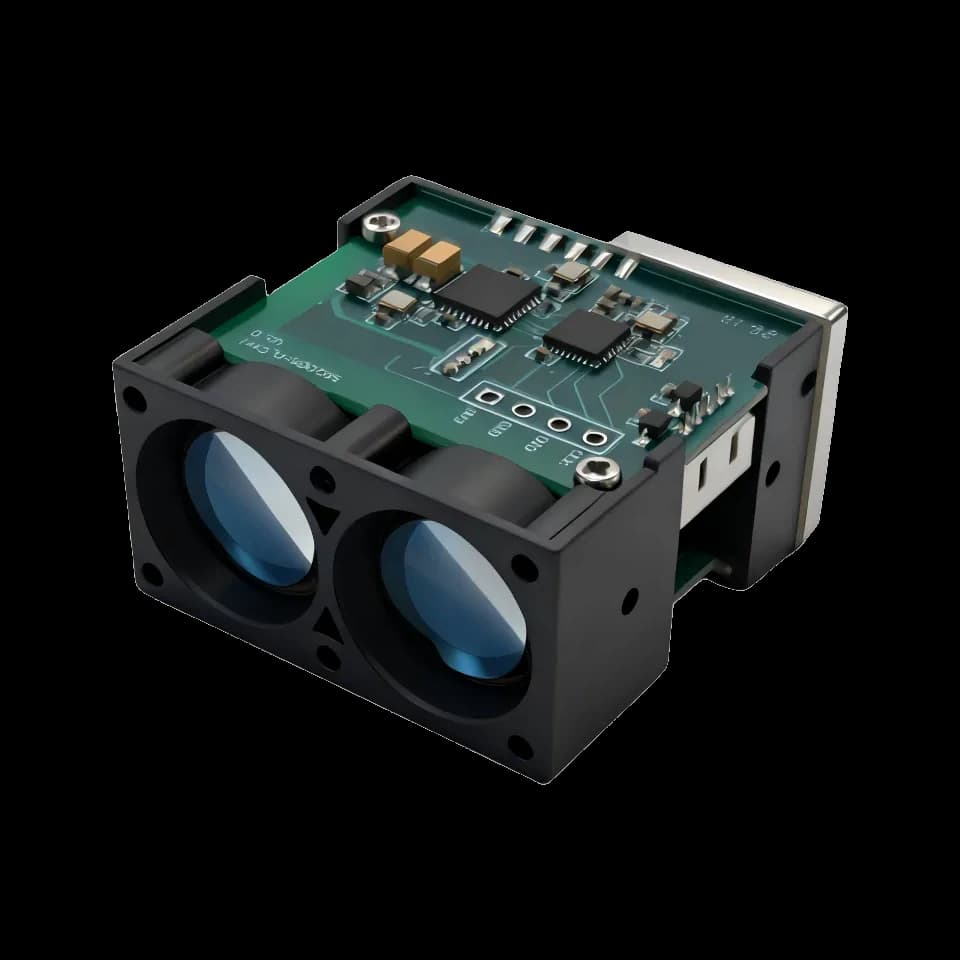

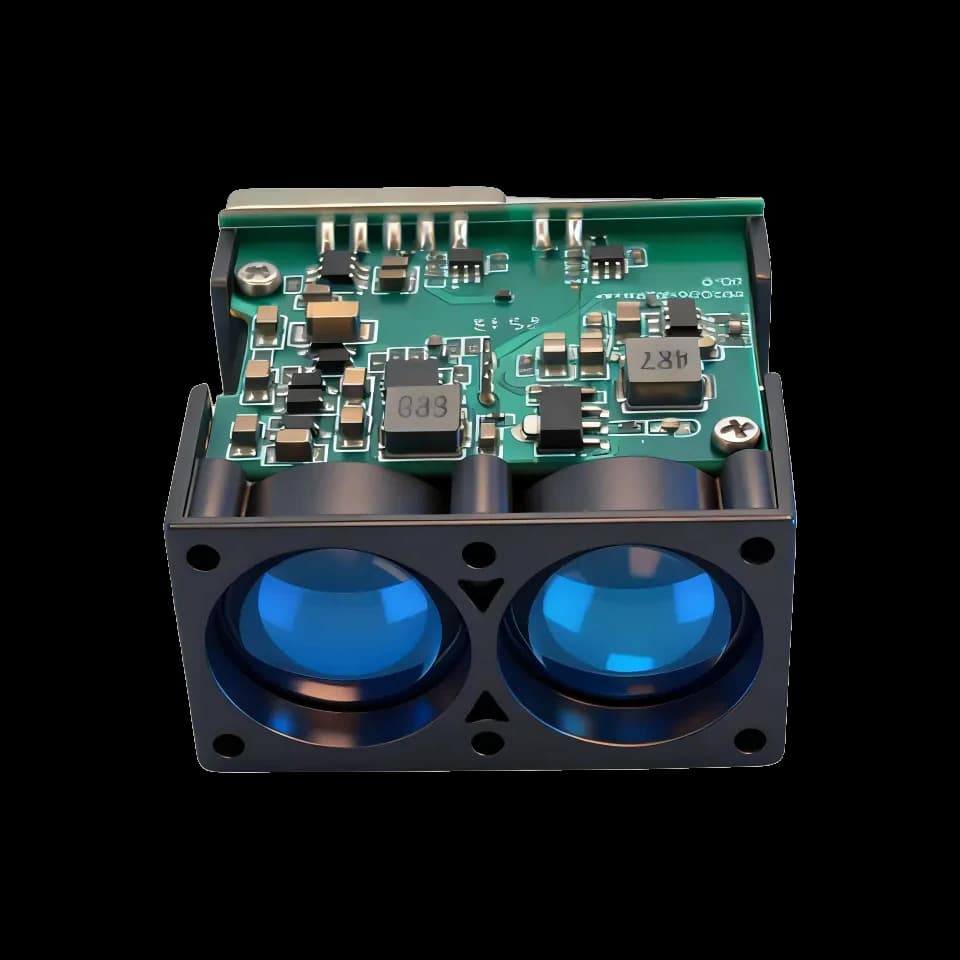

LRF100H Industrial DToF for Level-Monitoring Evaluation, 100 m at 90% Reflectivity

$230 USD / unitBase B2B price; approved quantity tiers are shown below. Shipping included.
Product modelLRF100H

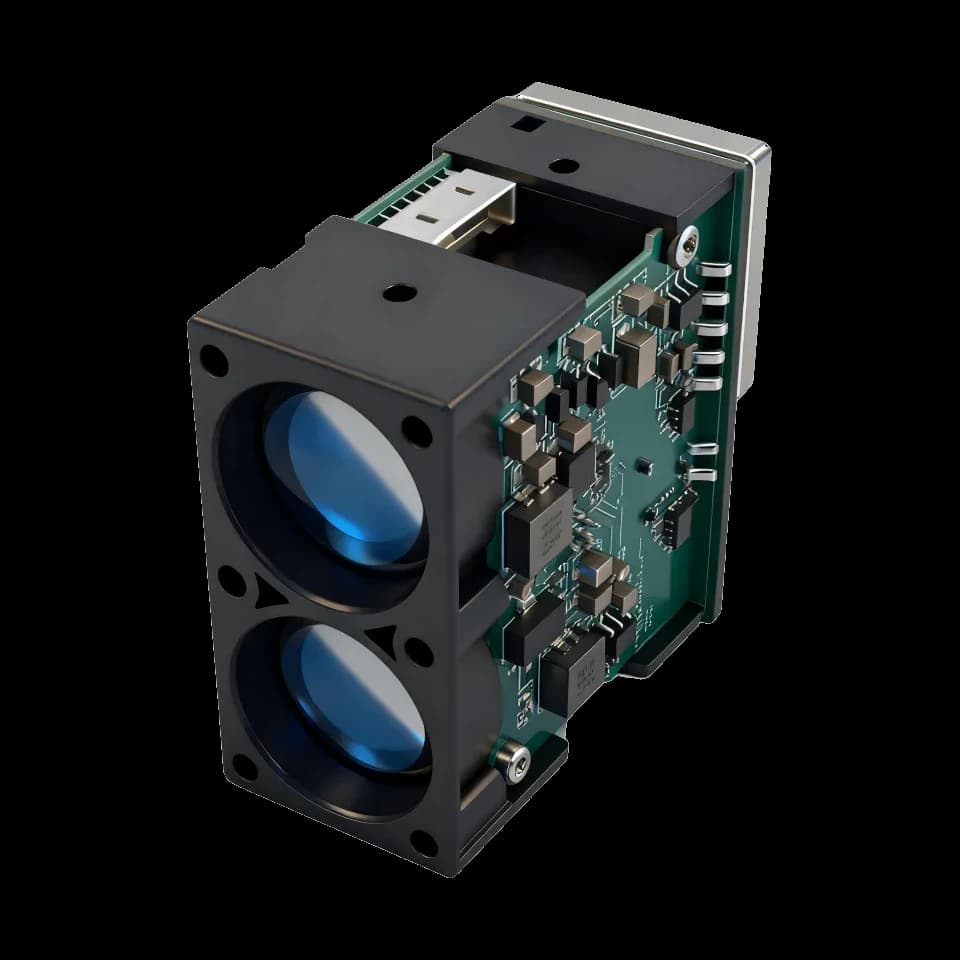

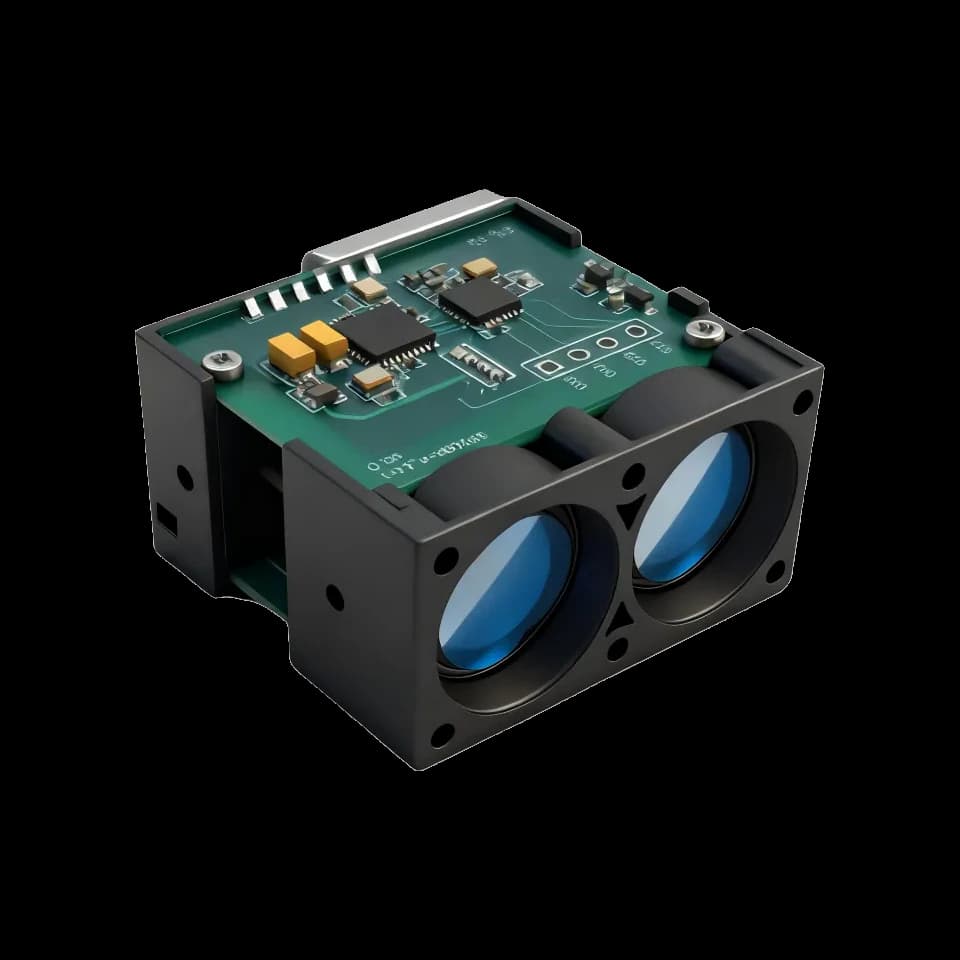

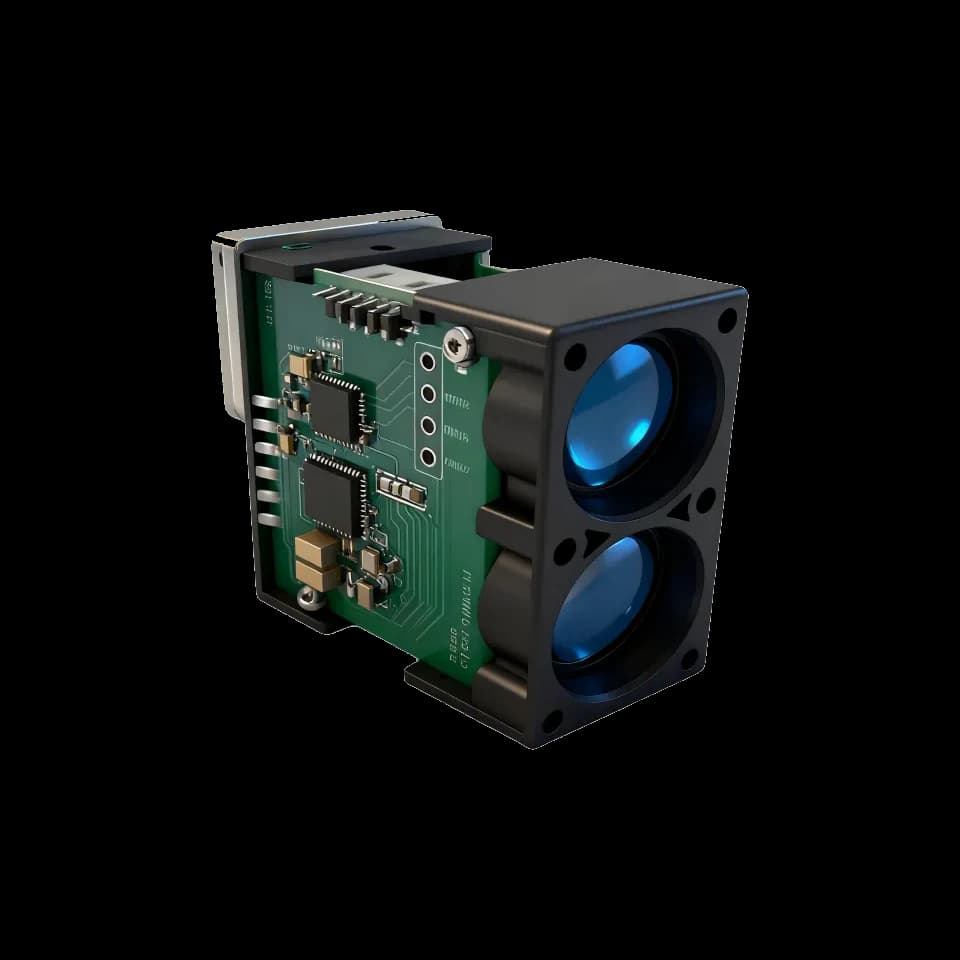

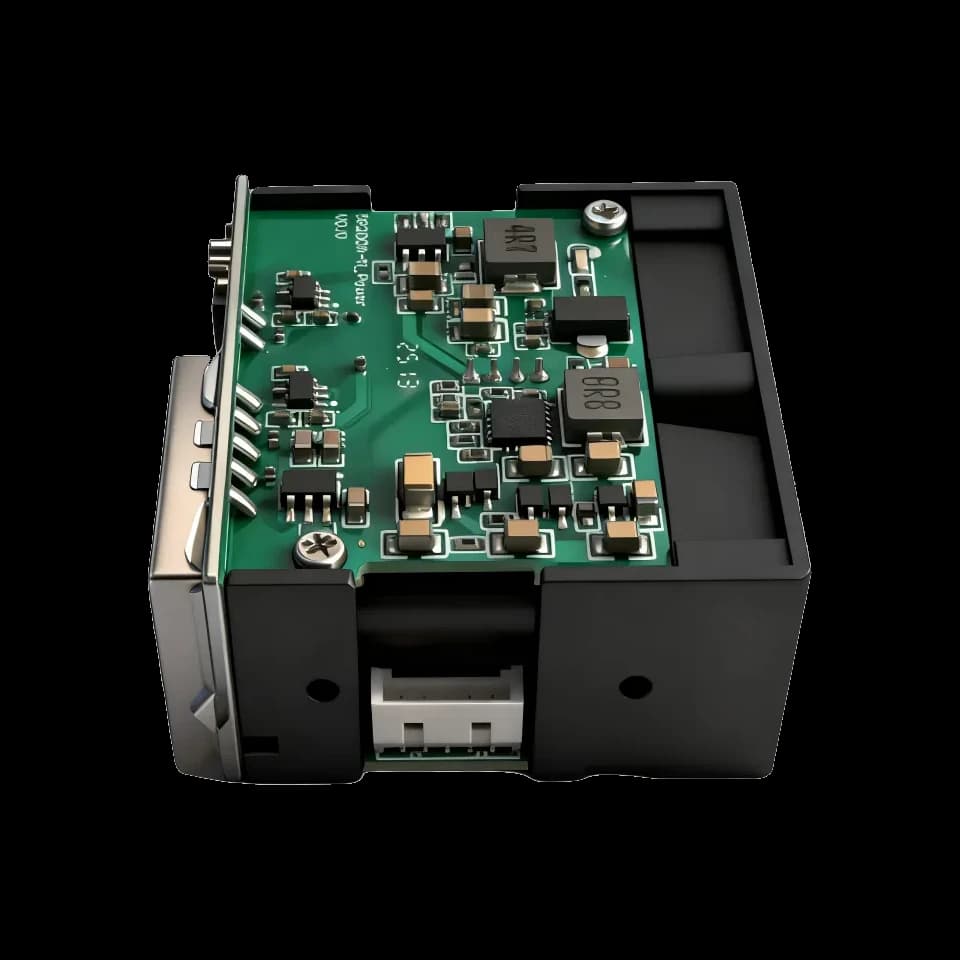

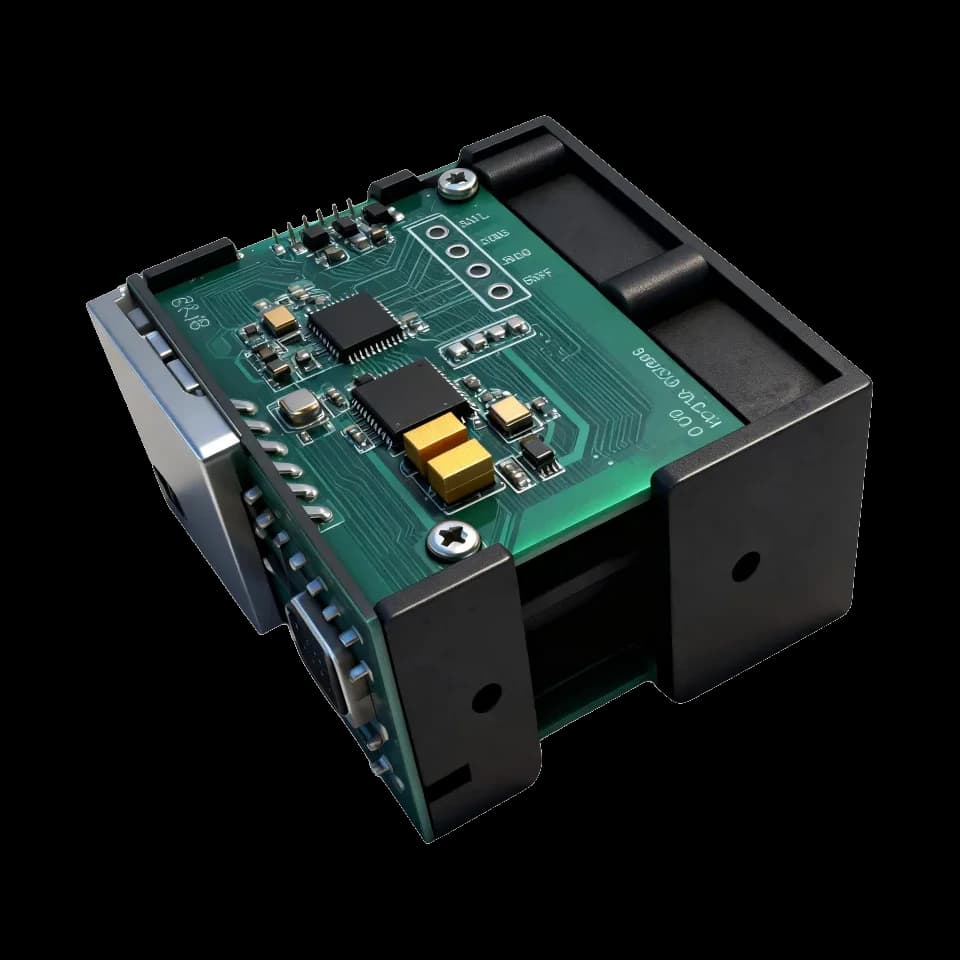

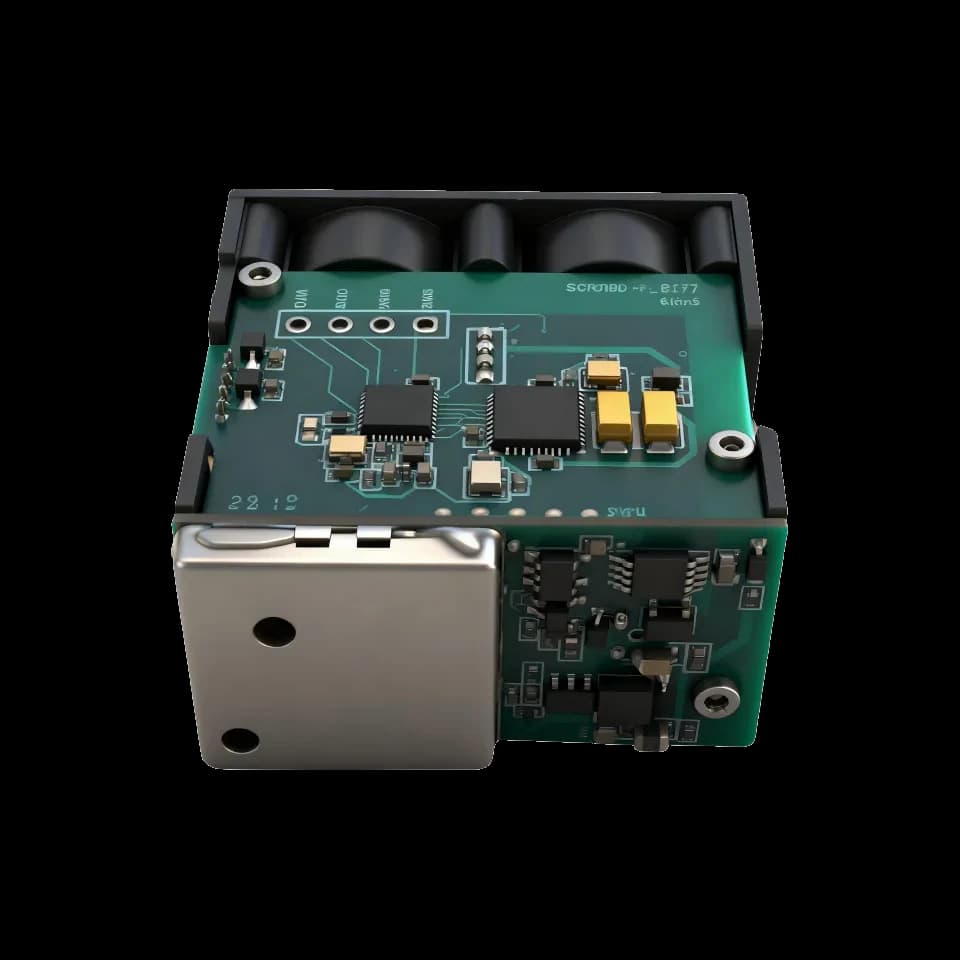

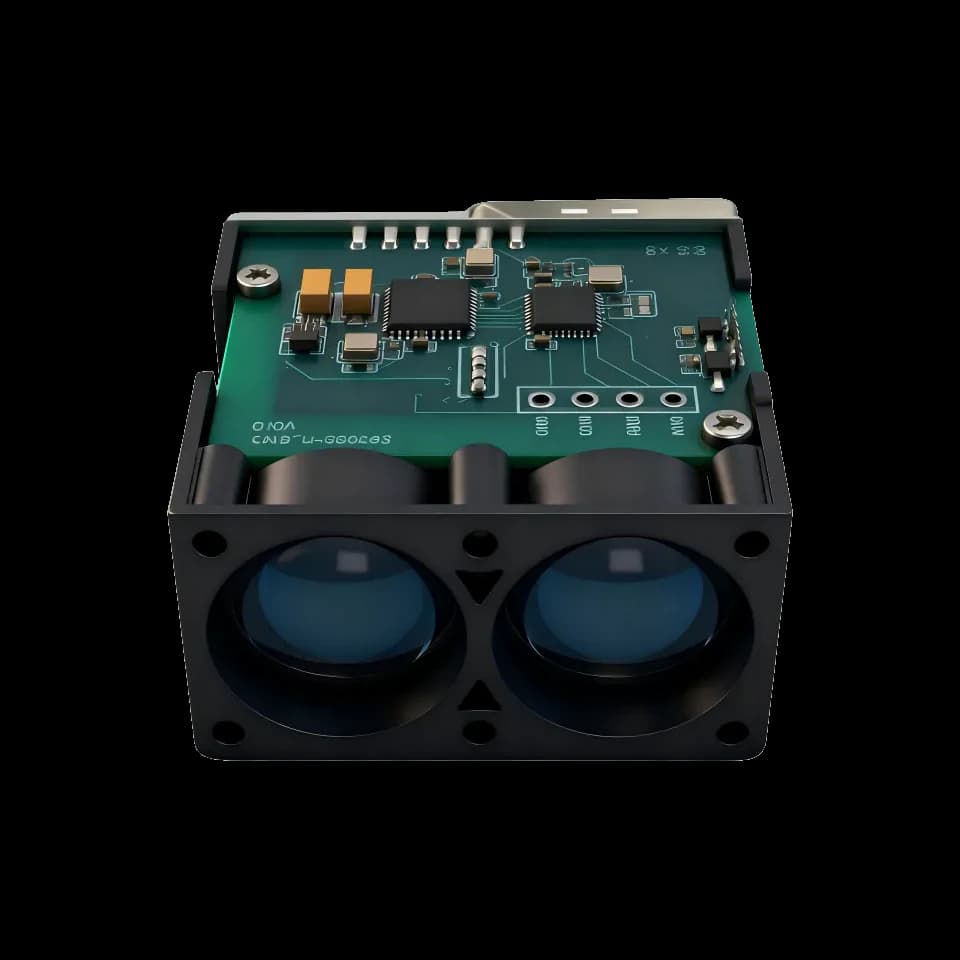

LRF100H is a 905 nm industrial DToF module for evaluations such as material-level detection and wind-power equipment monitoring. The source states 0.05–100 m at 90% reflectivity and 0.05–30 m at 10% reflectivity, with a 1 kHz default output setting.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$230 USDPublished unit price
31–500 pieces$140 USDSave 39%
501–999 pieces$120 USDSave 48%
1,000+ piecesLowest unit price$80 USDLowest published price · Save 65%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a Quote / Technical Review

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

MODEL-LEVEL DATA

Detailed LRF100H Specifications

The V2.0 record combines a 9–36 V DC supply, UART/IIC communication and 20 Hz–10 kHz operation with a 1 kHz default. Its 33 × 34 × 18 mm outline and 20 ± 2 g mass give concrete packaging criteria for an industrial controller or monitoring instrument.

For material-level and structural-monitoring work, compare the intended surface with both reflectivity limits rather than using a single nominal reach. The source lists a 100 klx ambient-light-immunity entry, but does not make that entry a full-range guarantee at the same illumination. Reported resolution and actual error limits remain separate selection factors.

Basic ranging performance

ParameterValueSource condition
Measurement range0.05-100 m (90% reflectivity); 0.05-30 m (10% reflectivity)The two source values remain bound to their stated target reflectivity.
Measurement frequency20 Hz-10 kHz (default: 1 kHz)Confirm against the controlled model document
Accuracy±10 cm (<10 m); 1% (≥10 m)Confirm against the controlled model document
Repeatability±5 cm (<10 m); ±10 cm at 100 mConfirm against the controlled model document
Ambient-light immunity100 klxConfirm against the controlled model document
Reported resolution1 cmFront-page feature statement; not an accuracy value

Optical parameters

ParameterValueSource condition
Central wavelength905 nmConfirm against the controlled model document
Photobiological safetyClass 1Confirm against the controlled model document
Field of viewAbout 4 mradConfirm against the controlled model document
Wavelength for indicationN/AConfirm against the controlled model document
Photobiological safety for indicationN/AConfirm against the controlled model document

Electrical and communication interface

ParameterValueSource condition
Supply voltage9-36 V DCConfirm against the controlled model document
Peak current100 mAConfirm against the controlled model document
Average current30 mAConfirm against the controlled model document
Average power consumption0.7 WConfirm against the controlled model document
Communication interfaceUART, IICConfirm against the controlled model document

Mechanical and environmental

ParameterValueSource condition
Protection levelN/AConfirm against the controlled model document
Dimensions33 × 34 × 18 mmConfirm against the controlled model document
Weight20 ± 2 gConfirm against the controlled model document
Operating temperature-20°C to +60°CConfirm against the controlled model document
Wire specification1.25 mm, 5P, 50 cm stranded wiresConfirm against the controlled model document
CustomizationAvailable in appearance / structure / output protocolConfirm against the controlled model document

Functional Description

The source states resistance to strong electromagnetic interference for positioning or collision-avoidance monitoring of land transport vehicles and overhead bridge cranes.

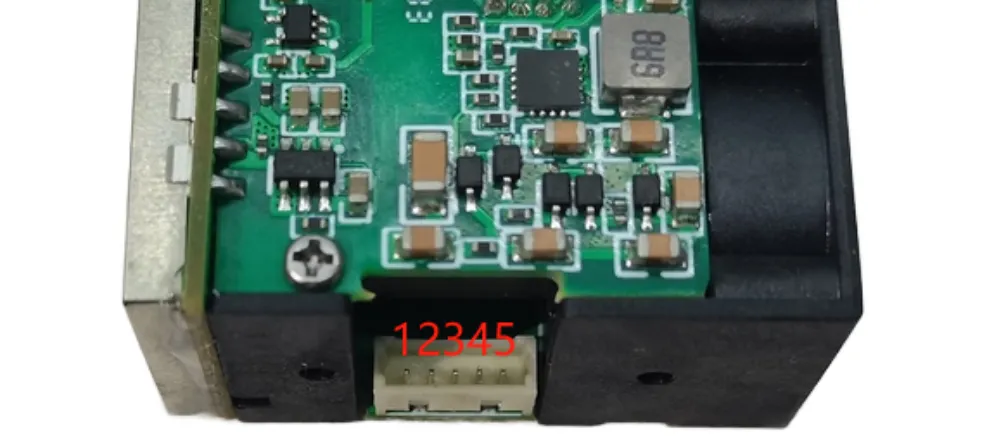

Electrical Interface Definition

Signal names and directions are transcribed from the model source.

PinSignalSource-stated function
19-36V (red)External power positive
2Power GND (black)External power negative
3Port GND (yellow)GND
4TX (green)Host RX
5RX (blue)Host TX

Mechanical Dimension Drawing and Electrical Interface Diagram

These figures are extracted from the named model source without generative modification.

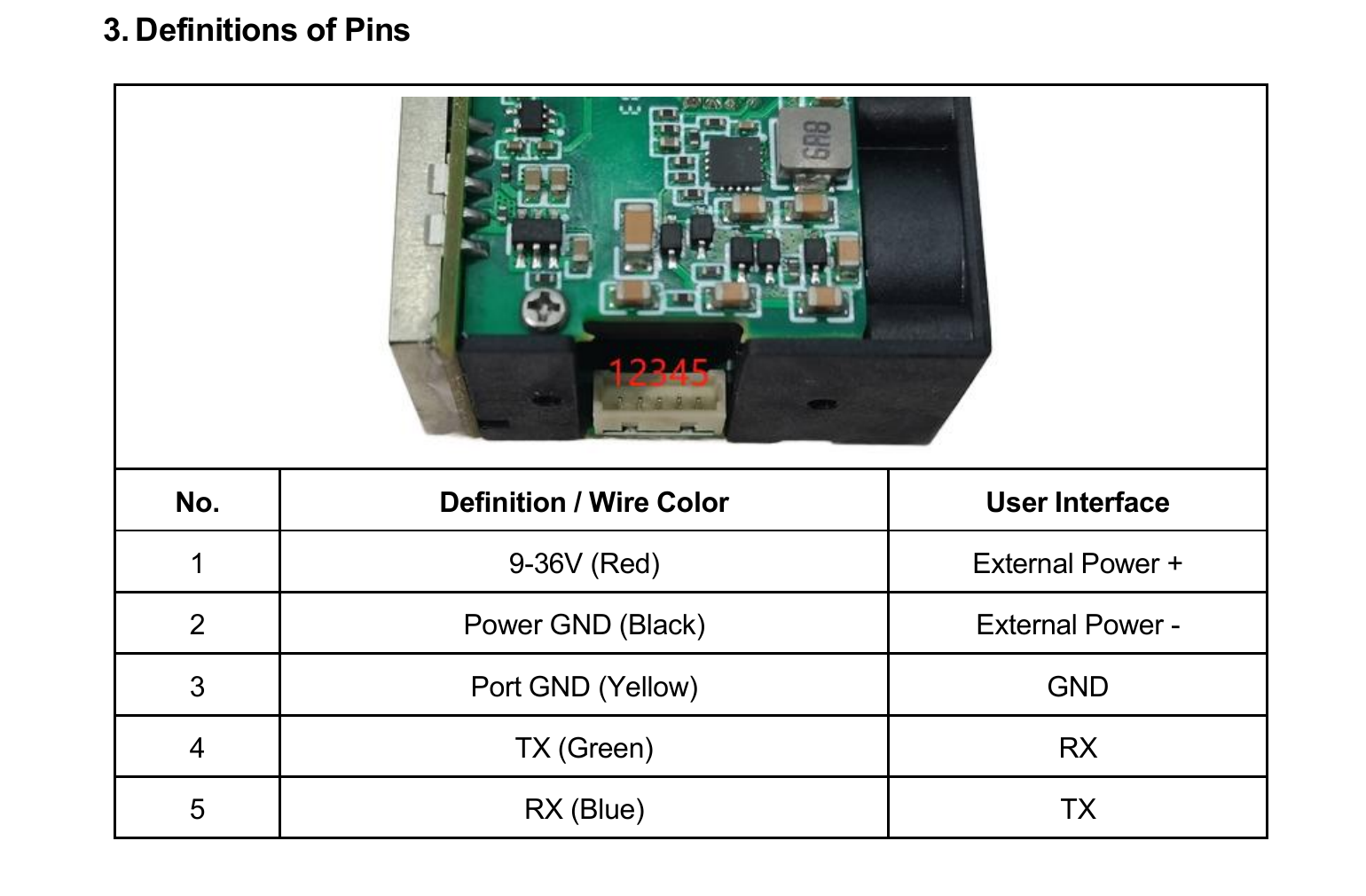

LRF100H five-pin electrical interface definition
Electrical interface definitionFive-pin 9-36 V power, ground and UART TX/RX definition extracted from page 3; no unstated IIC pin mapping is added.

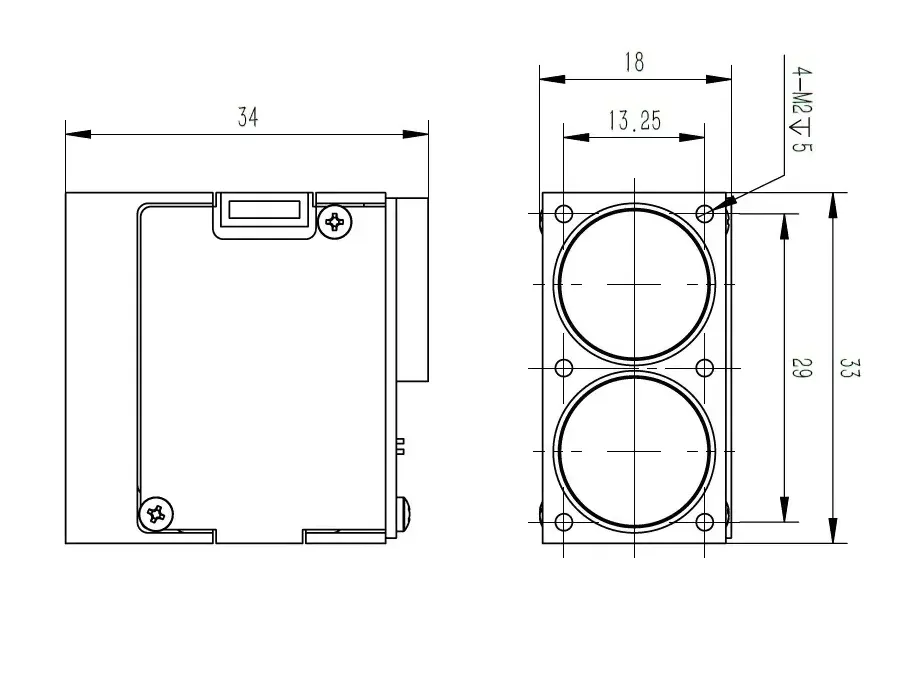

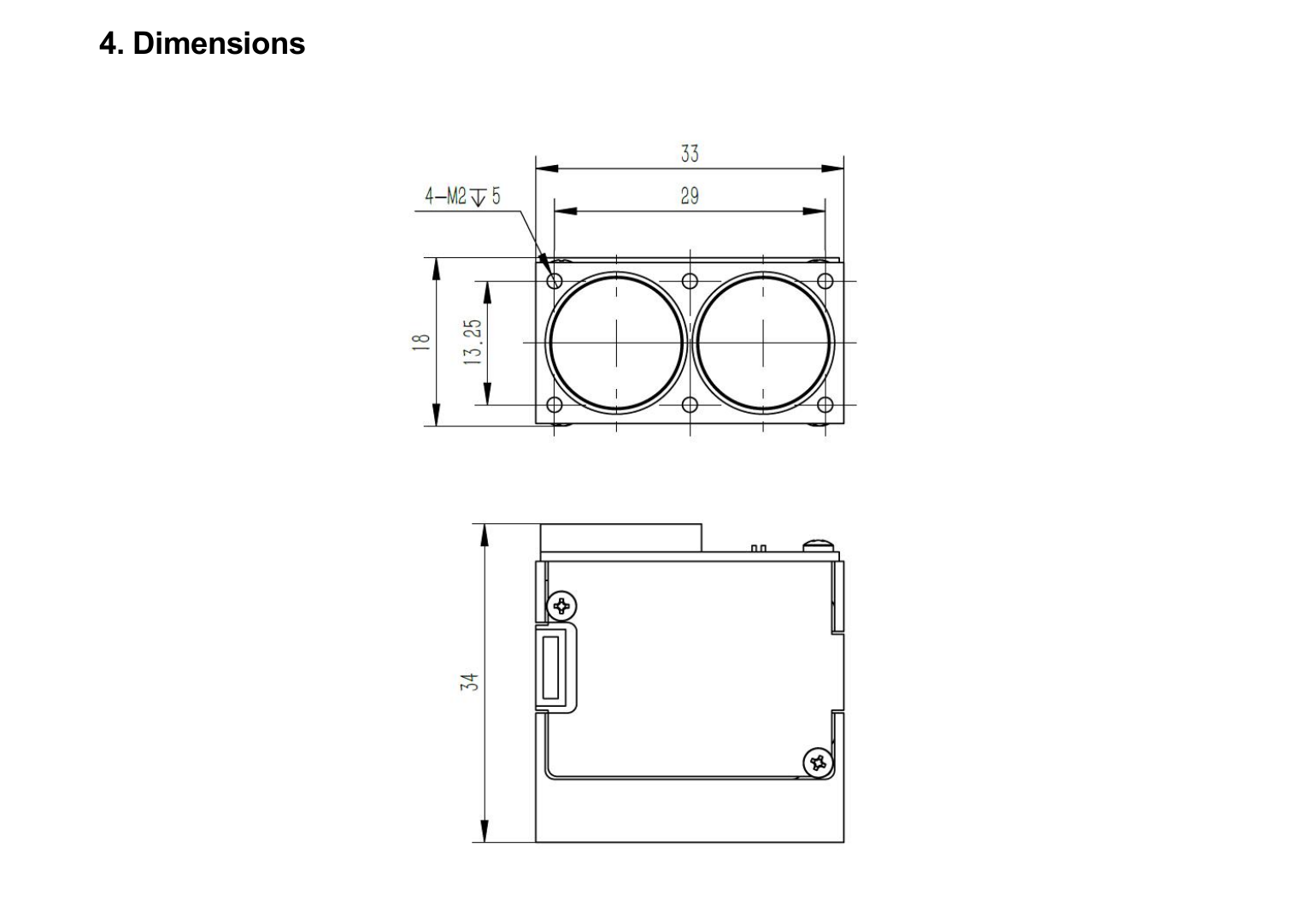

LRF100H two-dimensional mechanical drawing
Mechanical dimension drawingTwo-dimensional 33 × 34 × 18 mm source drawing extracted from page 3.
HOW TO READ THE MEASUREMENT

Direct Time-of-Flight Ranging

The LRF100H model document identifies the product as direct time of flight (DToF). It determines distance from the delay between an emitted optical pulse and the accepted return.

R = c × Δt / 2R: one-way distance · c: propagation speed · Δt: measured round-trip delay

Real performance also depends on target reflectivity and area, incidence angle, atmospheric attenuation, receiver aperture, background light, detector response, timing thresholds and contamination of the optical path.

ENGINEERING DECISIONS

What the verified data supports

These are traceable design inputs, not unsupported superlatives or guaranteed field outcomes.

01

Performance envelope

Measurement range: 0.05-100 m (90% reflectivity); 0.05-30 m (10% reflectivity) · Accuracy: ±10 cm (<10 m); 1% (≥10 m)

02

Timing and output

Measurement frequency: 20 Hz-10 kHz (default: 1 kHz) · Reported resolution: 1 cm · Repeatability: ±5 cm (<10 m); ±10 cm at 100 m

03

Electrical integration

Supply voltage: 9-36 V DC · Communication interface: UART, IIC · Average power consumption: 0.7 W

04

Mechanical integration

Dimensions: 33 × 34 × 18 mm · Weight: 20 ± 2 g · Operating temperature: -20°C to +60°C

APPLICATION REVIEW

Source-stated application context

Application labels indicate where the source proposes evaluation; they do not prove fitness without system testing.

  • Inspection-drone altitude holding
  • Wind-power equipment
  • Landslide monitoring
  • Material-level detection
  • Land-transport vehicle positioning and collision-avoidance monitoring
  • Overhead bridge-crane positioning and collision-avoidance monitoring
INTEGRATION CHECK

Confirm before selection

  • Define target size, reflectivity, incidence angle and required detection probability.
  • Reproduce sunlight, visibility, weather and optical-window conditions in acceptance testing.
  • Verify voltage tolerance, peak current, grounding, interface levels, baud rate and connector revision.
  • Separate accuracy, repeatability and displayed resolution in host requirements.
  • Confirm mounting datum, boresight, field of view, enclosure sealing and thermal path.
  • Assess accessible emission and labeling again after integration into the finished equipment.
TECHNICAL FAQ

Questions to resolve before design release

What should a level-monitoring project compare with the 100 m figure?

The 100 m value is specified at 90% target reflectivity; the corresponding 10%-reflectivity limit is 30 m. A level surface may differ in color, angle or return strength. Evaluate the actual material and installation before translating the catalog range into a process requirement.

Does the 100 klx entry guarantee 100 m operation in full sunlight?

No. The source provides 100 klx as an ambient-light-immunity entry without establishing the complete 100 m range under that illumination. Keep the range and lighting entries distinct. The assembled instrument should be checked under representative site lighting.

What measurement frequency is standard for LRF100H?

The table gives an operating range of 20 Hz–10 kHz and identifies 1 kHz as default. A project should confirm the applicable setting with the ordered configuration and target conditions, rather than assuming that every frequency delivers the same usable reach.

How does accuracy differ from repeatability for this model?

Accuracy is stated as ±10 cm below 10 m and 1% from 10 m upward. Repeatability is separately listed as ±5 cm below 10 m and ±10 cm at 100 m. Neither figure is equivalent to the front-page 1 cm resolution claim.

Which physical and electrical values support industrial evaluation?

LRF100H uses a 9–36 V DC supply, UART/IIC communication and a 33 × 34 × 18 mm package weighing 20 ± 2 g. The source does not supply a general enclosure protection rating, so environmental protection must be assessed for the completed installation.

ENGINEERING REFERENCES

Product evidence and general technical context

The model PDF controls product claims. Public references support only the general engineering explanations and must not be used to infer a missing model value.

  1. LRF100H Specification V2.0The named model’s stated specifications, conditions, interfaces and mechanical record.
  2. The Short-Range, High-Accuracy Compact Pulsed Laser Ranging SystemGeneral context for pulsed ranging, measurement error and target-dependent performance; not an ERDI model test.
