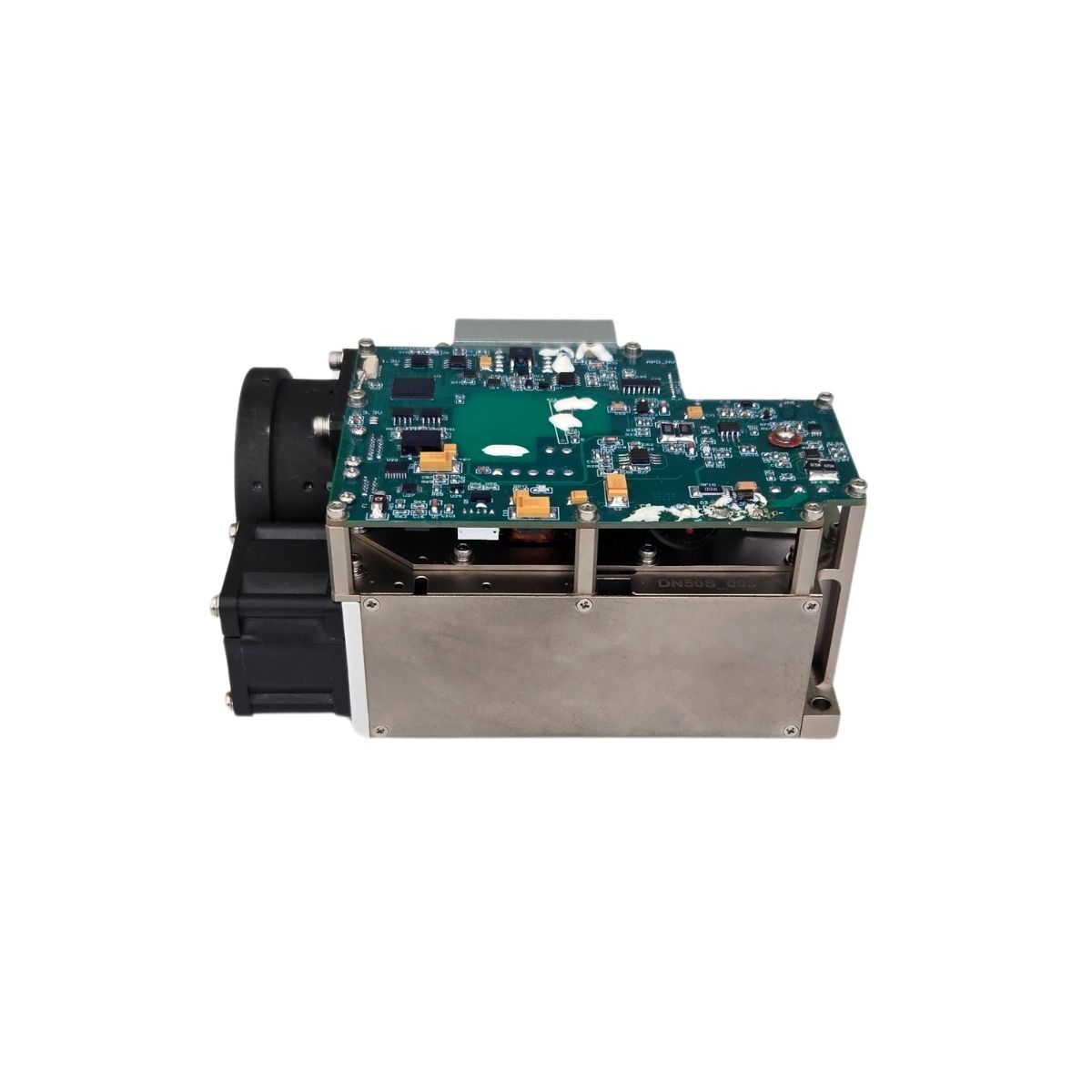

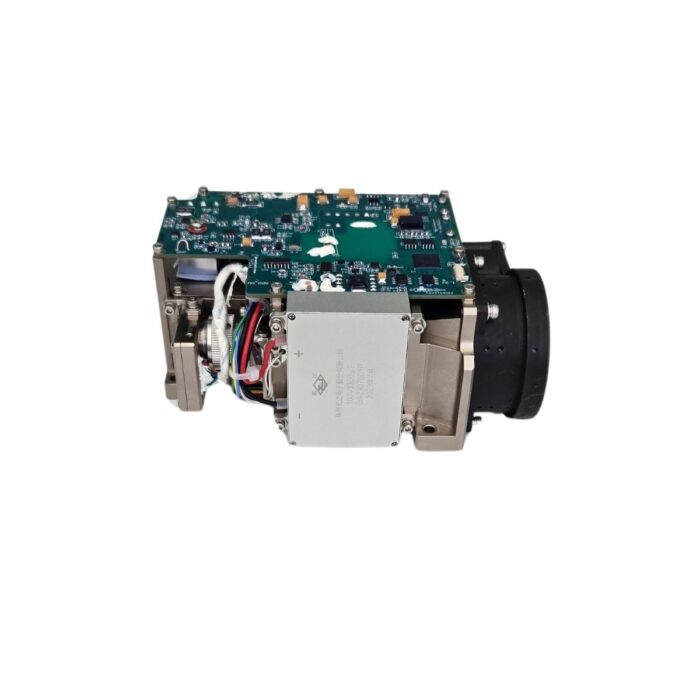

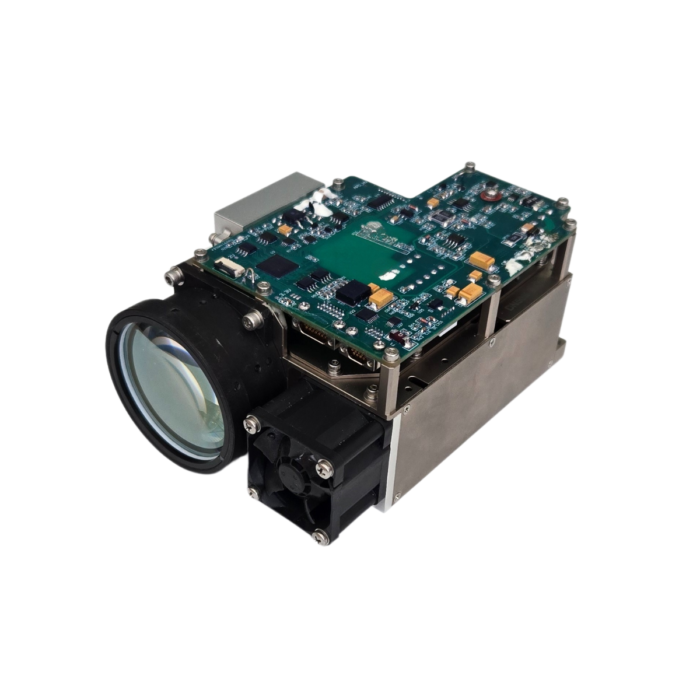

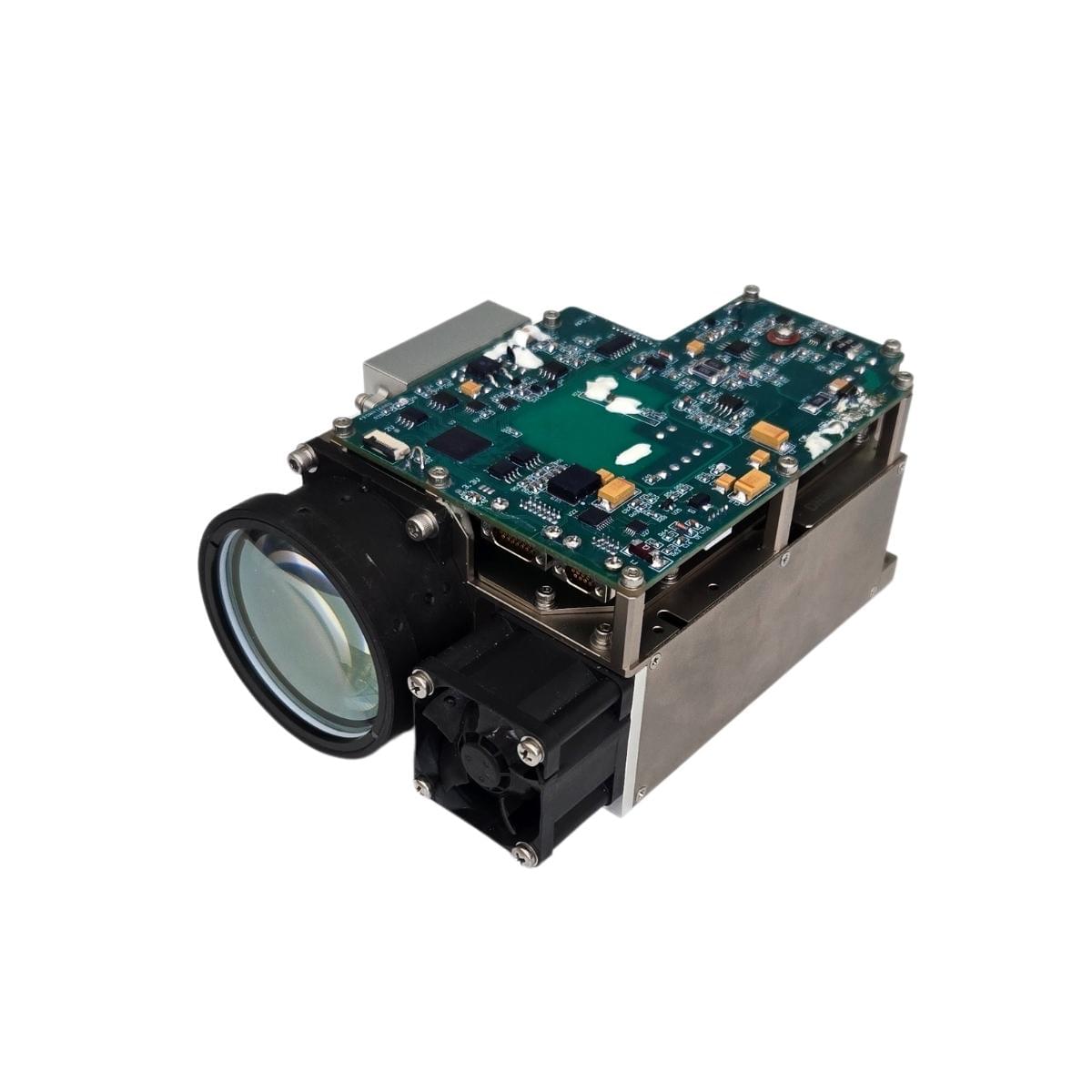

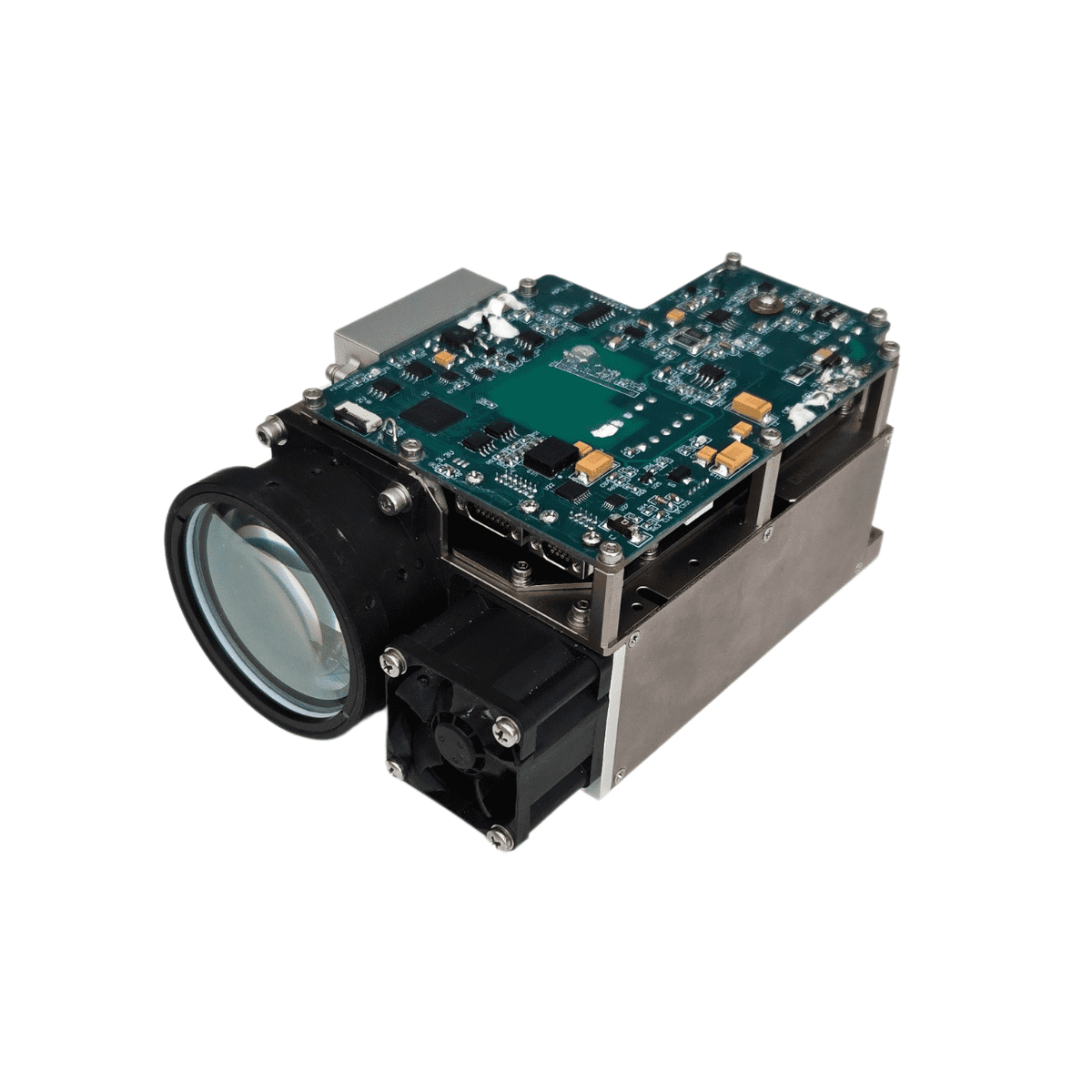

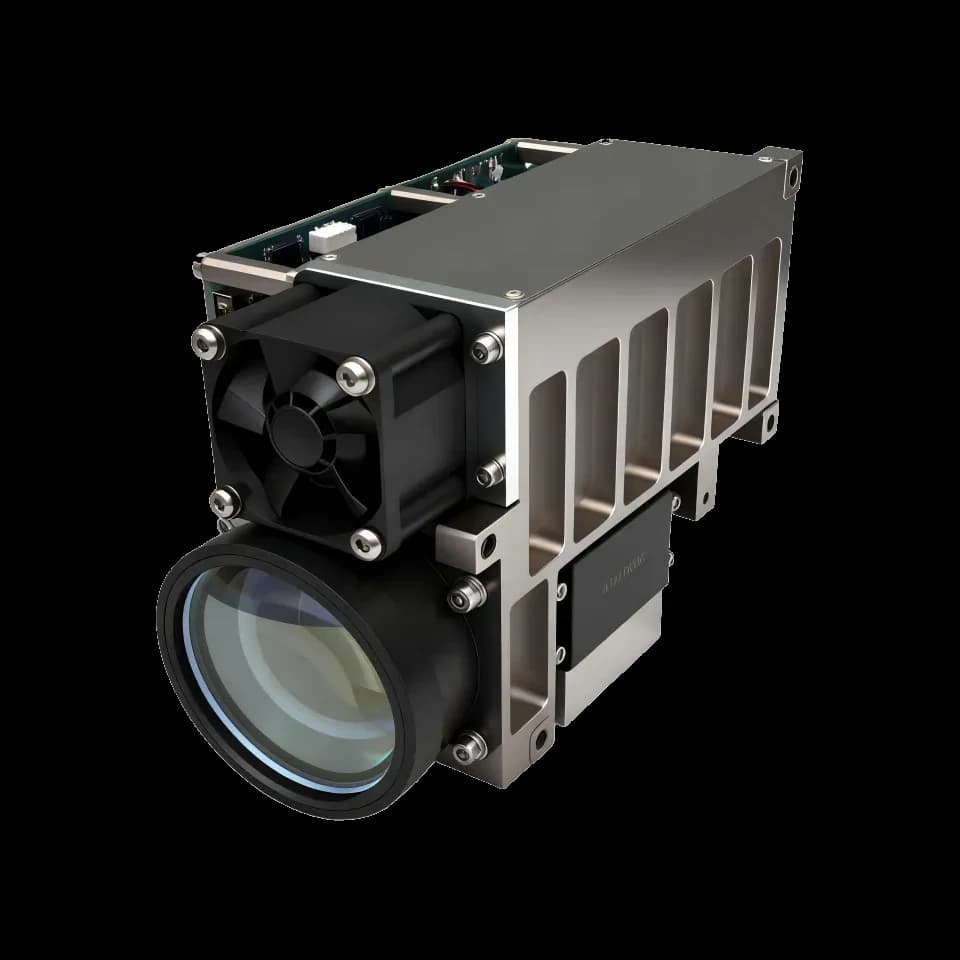

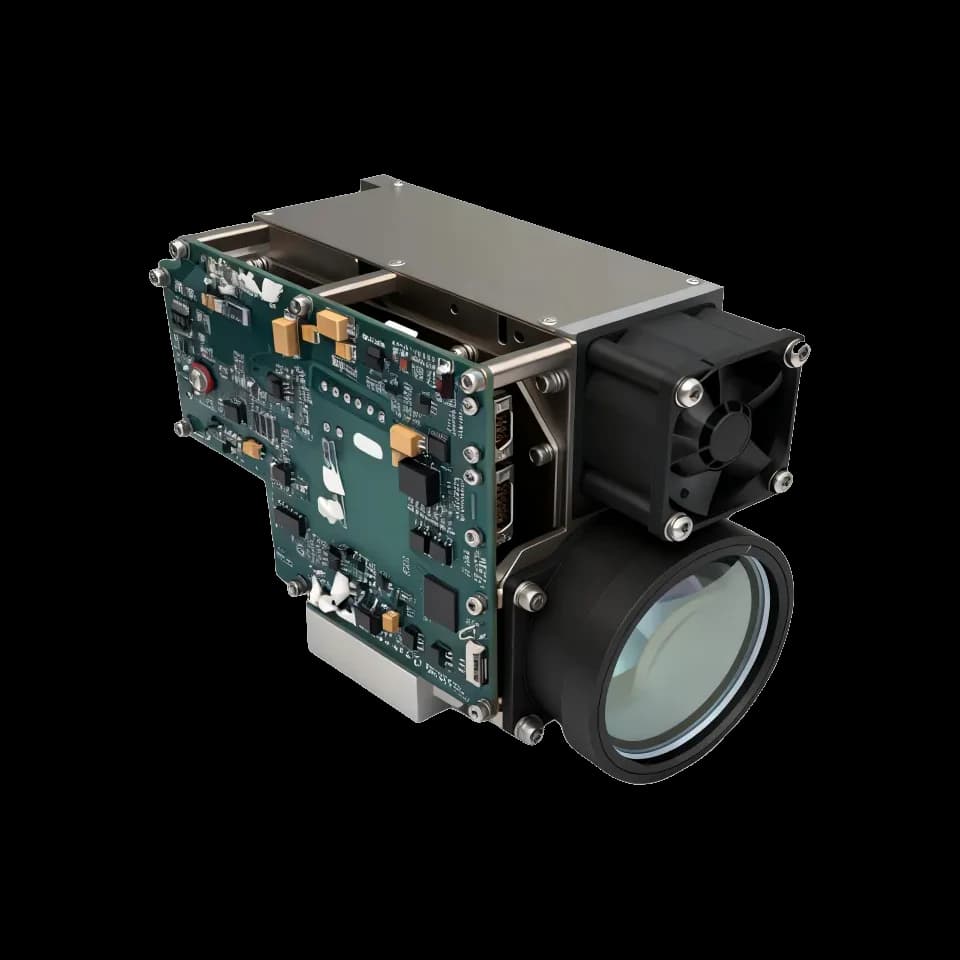

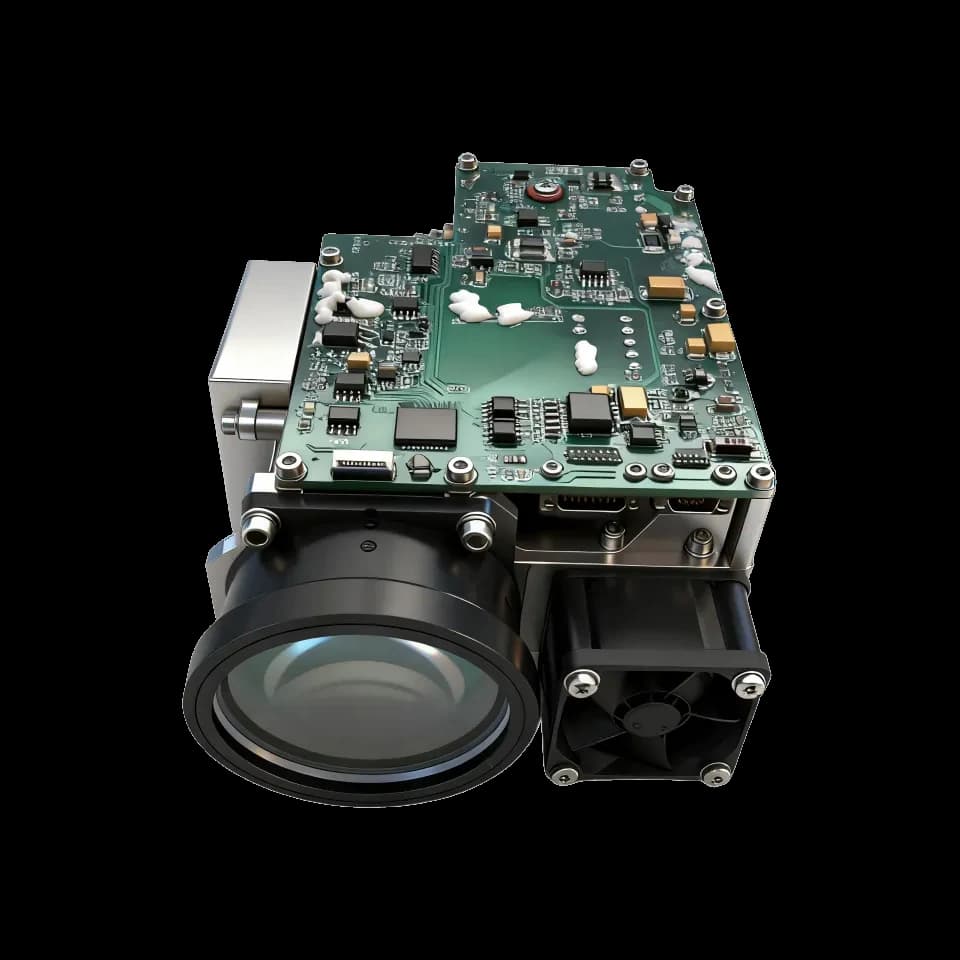

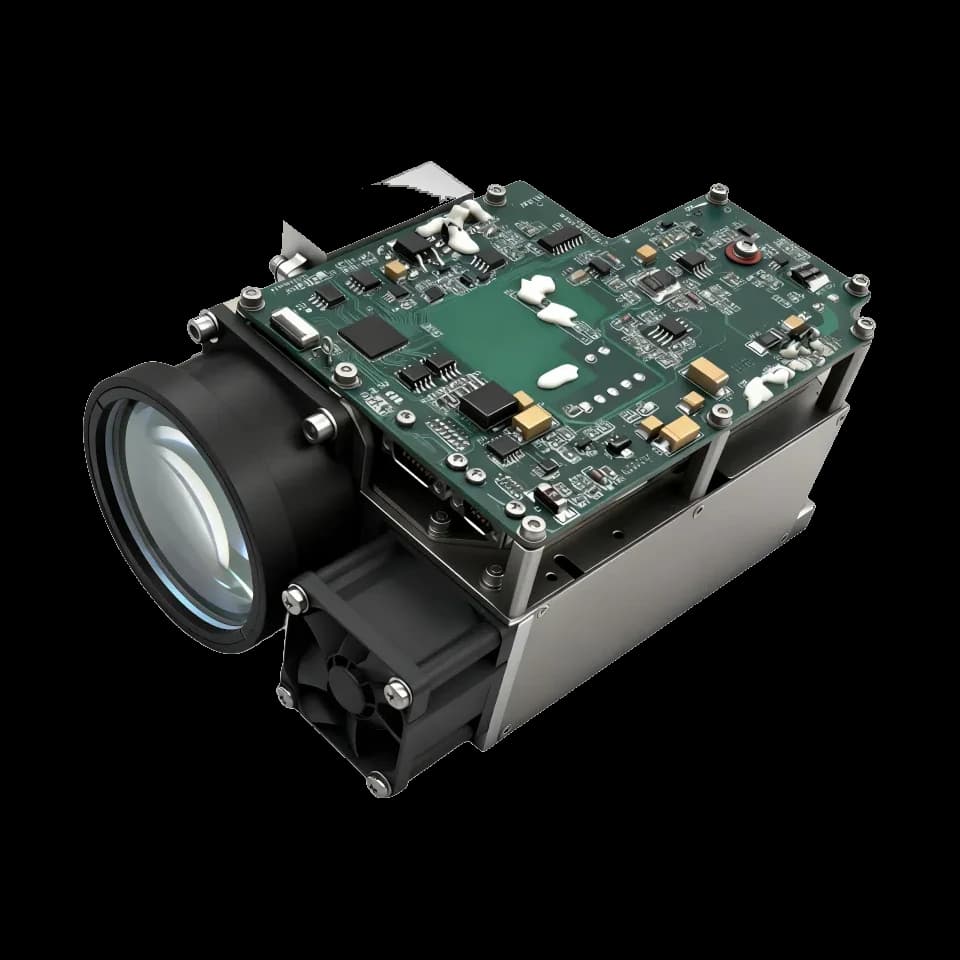

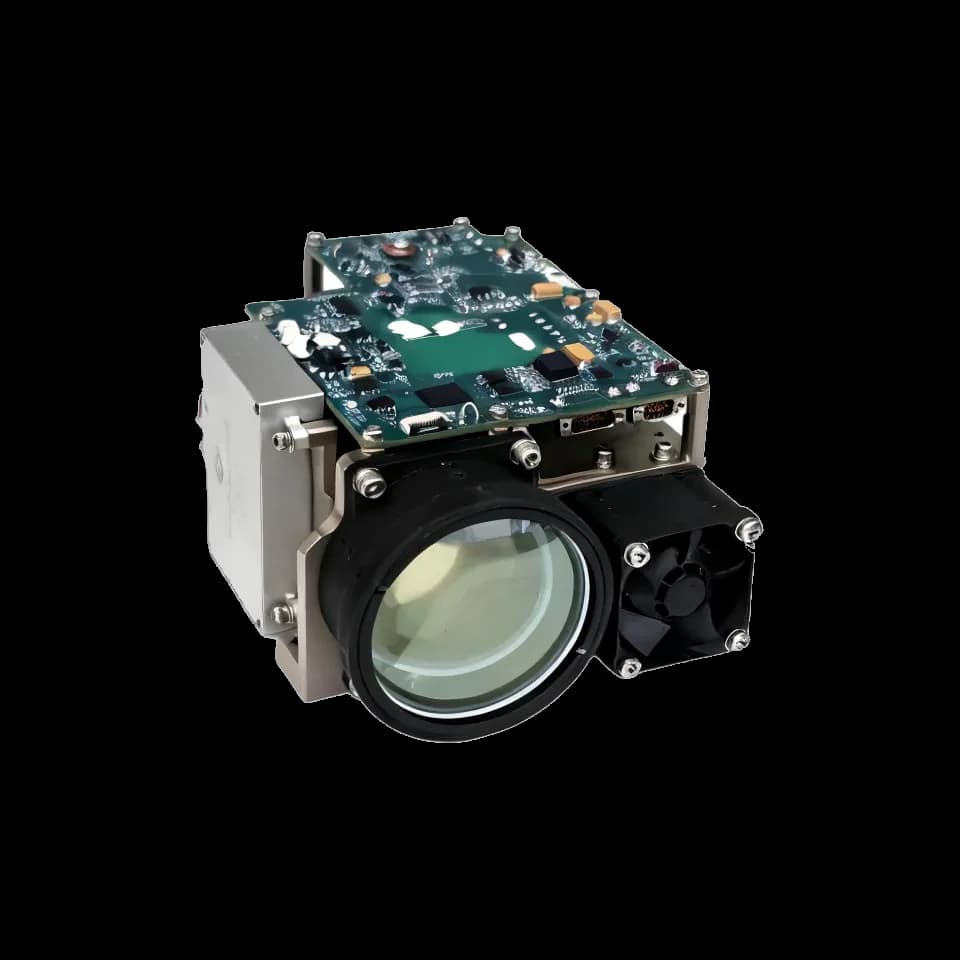

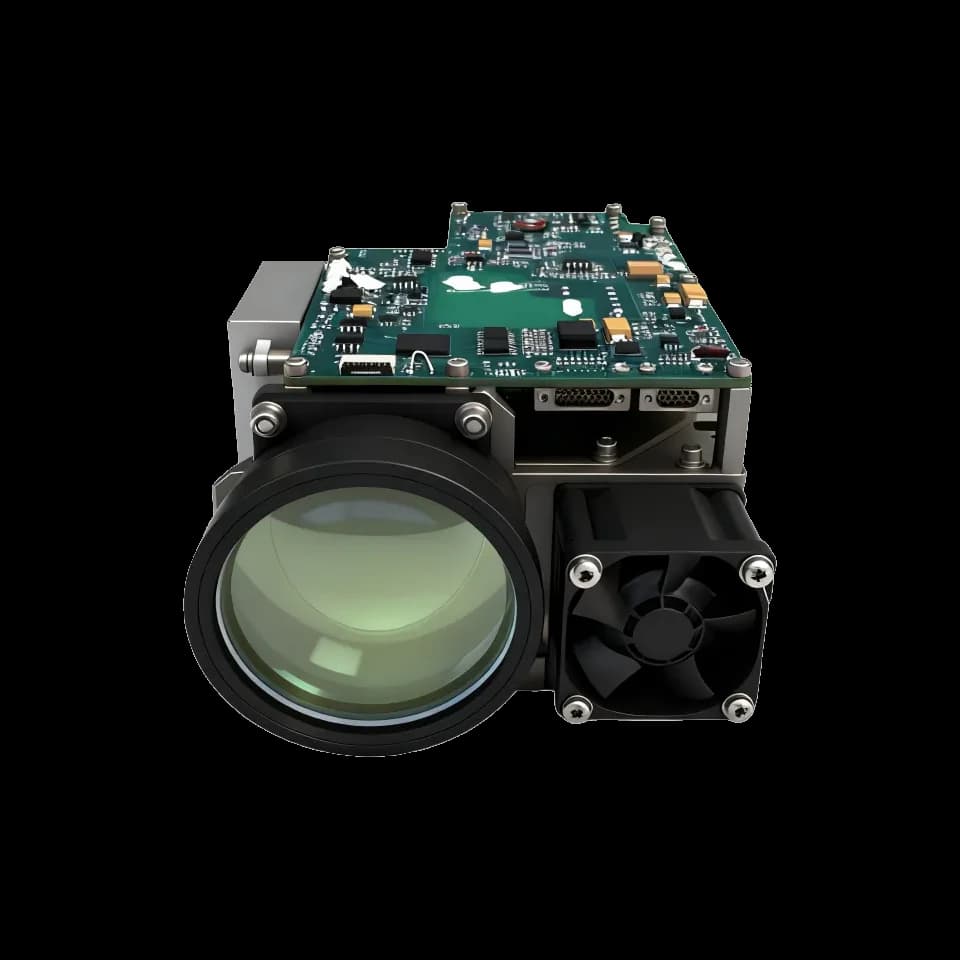

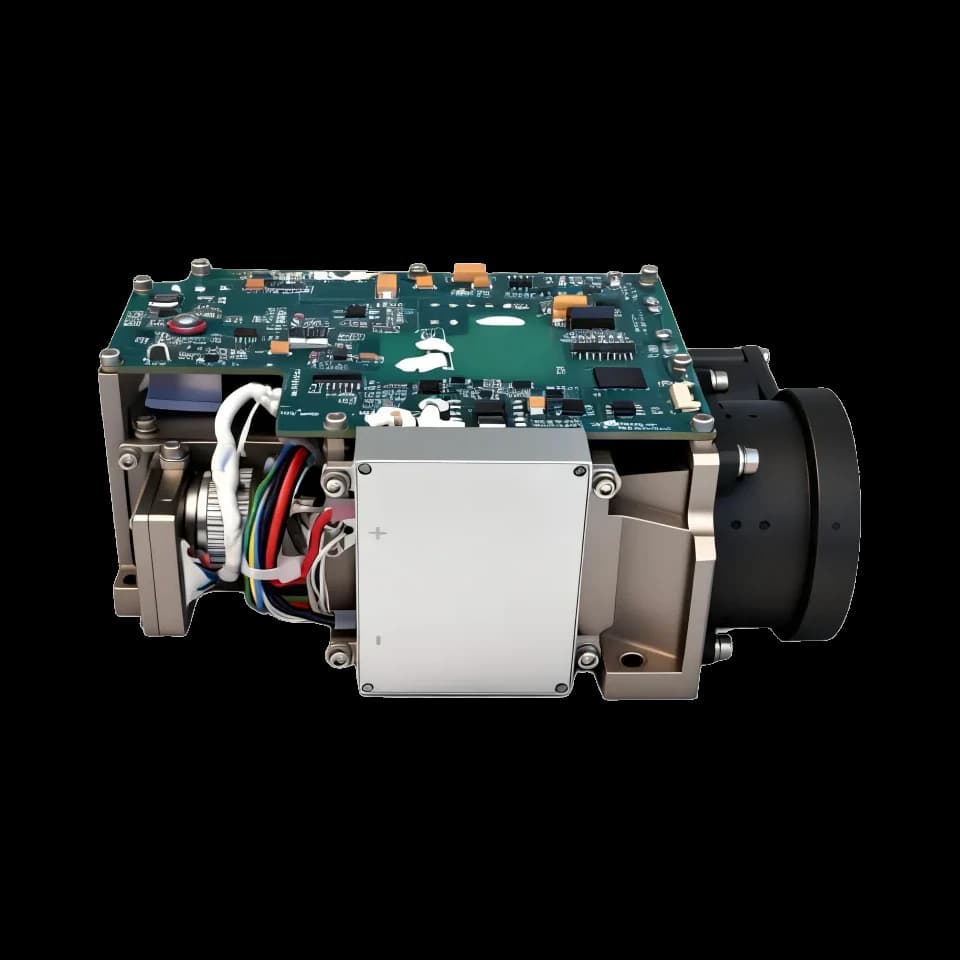

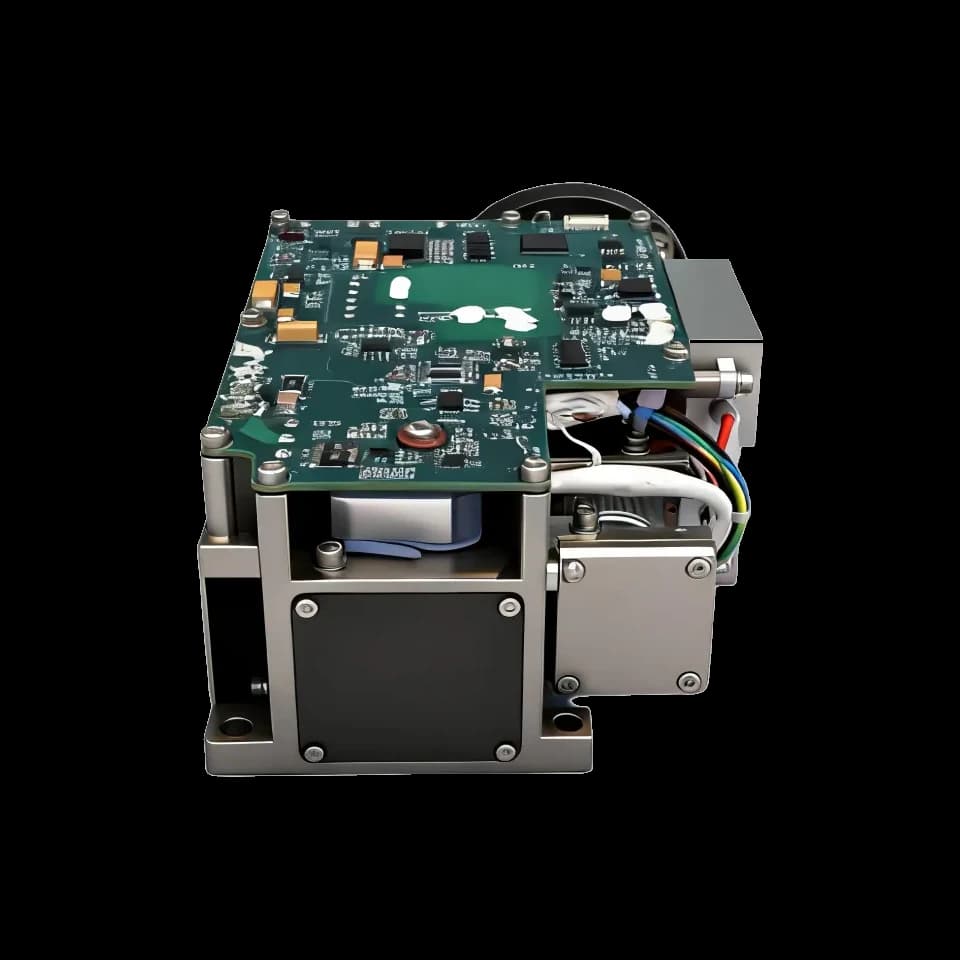

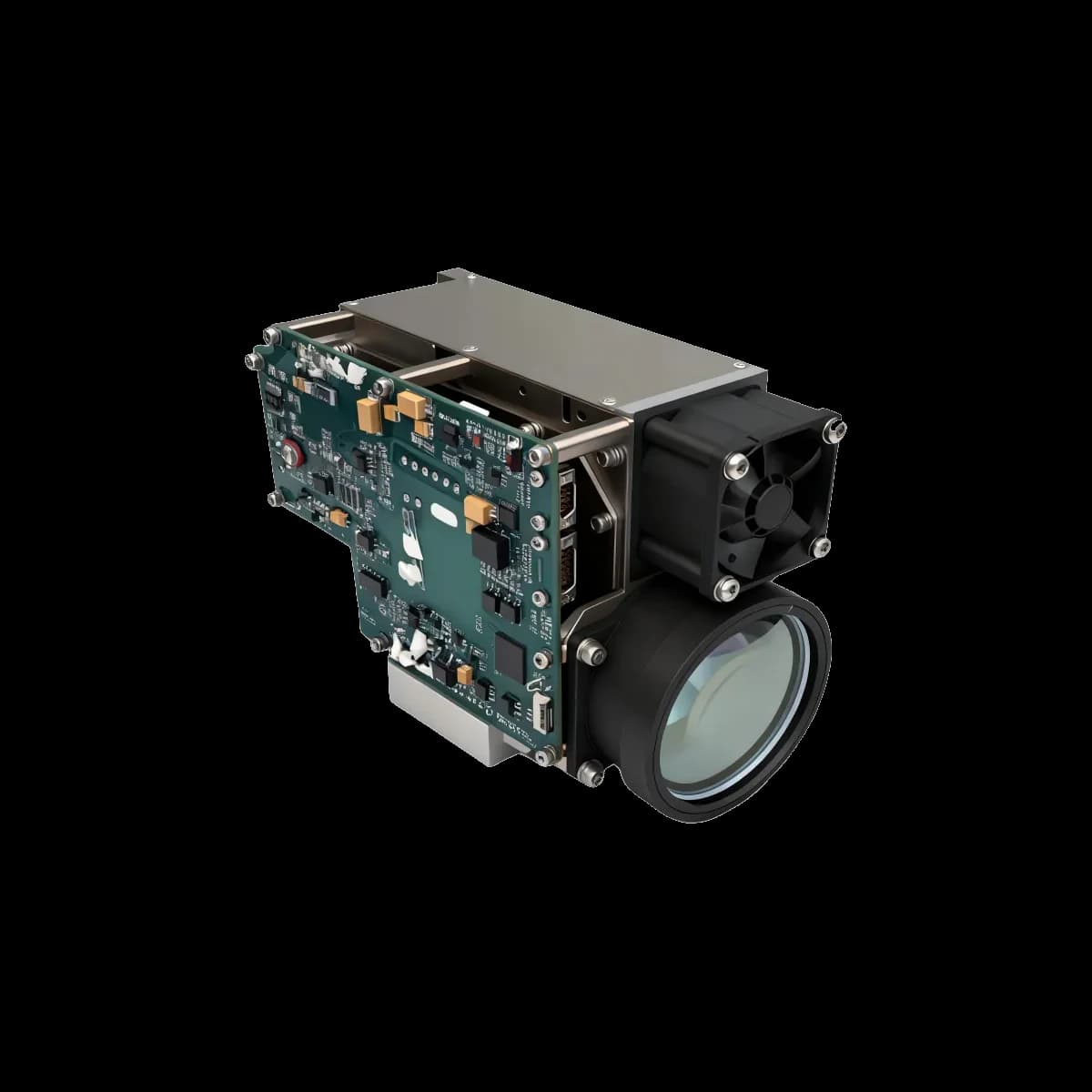

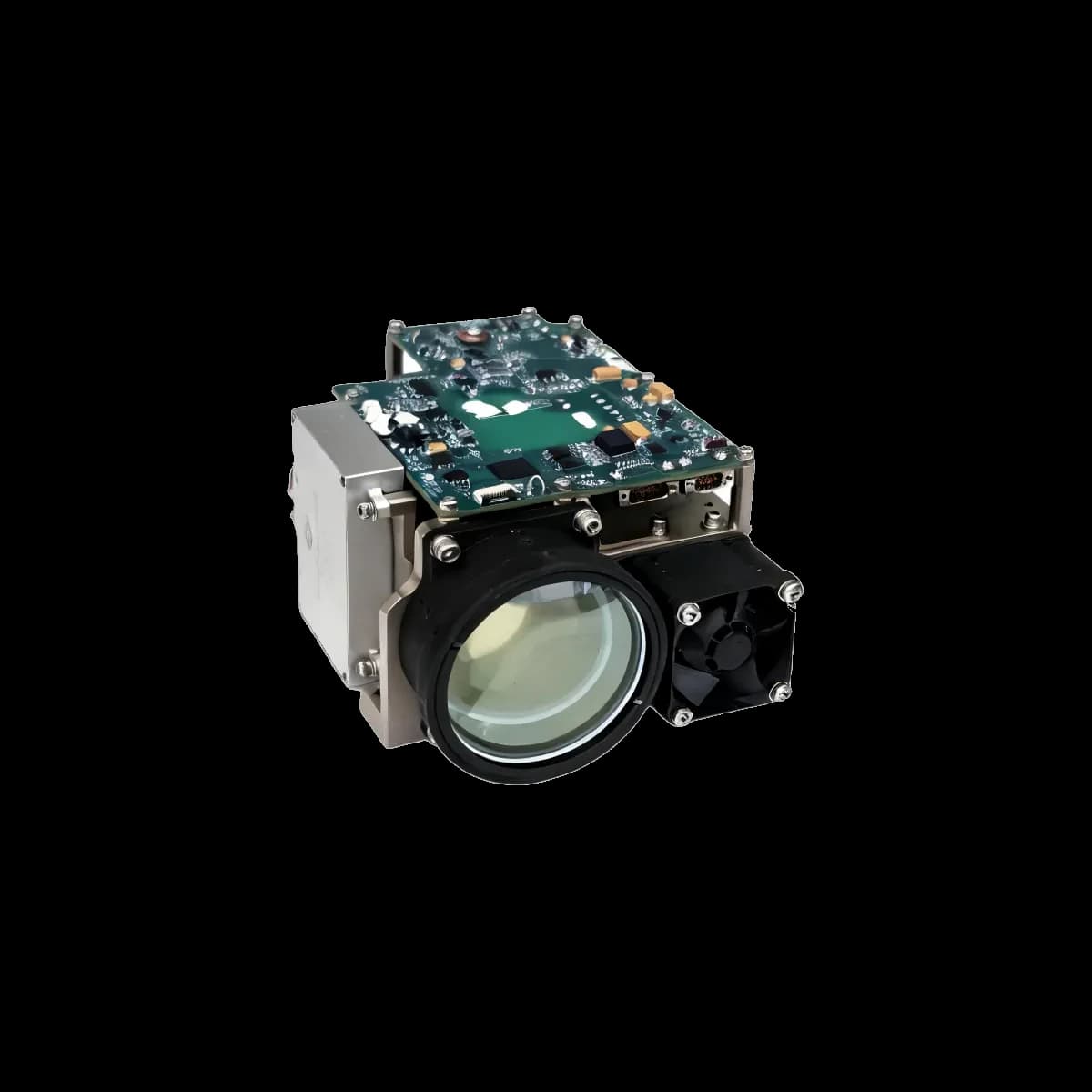

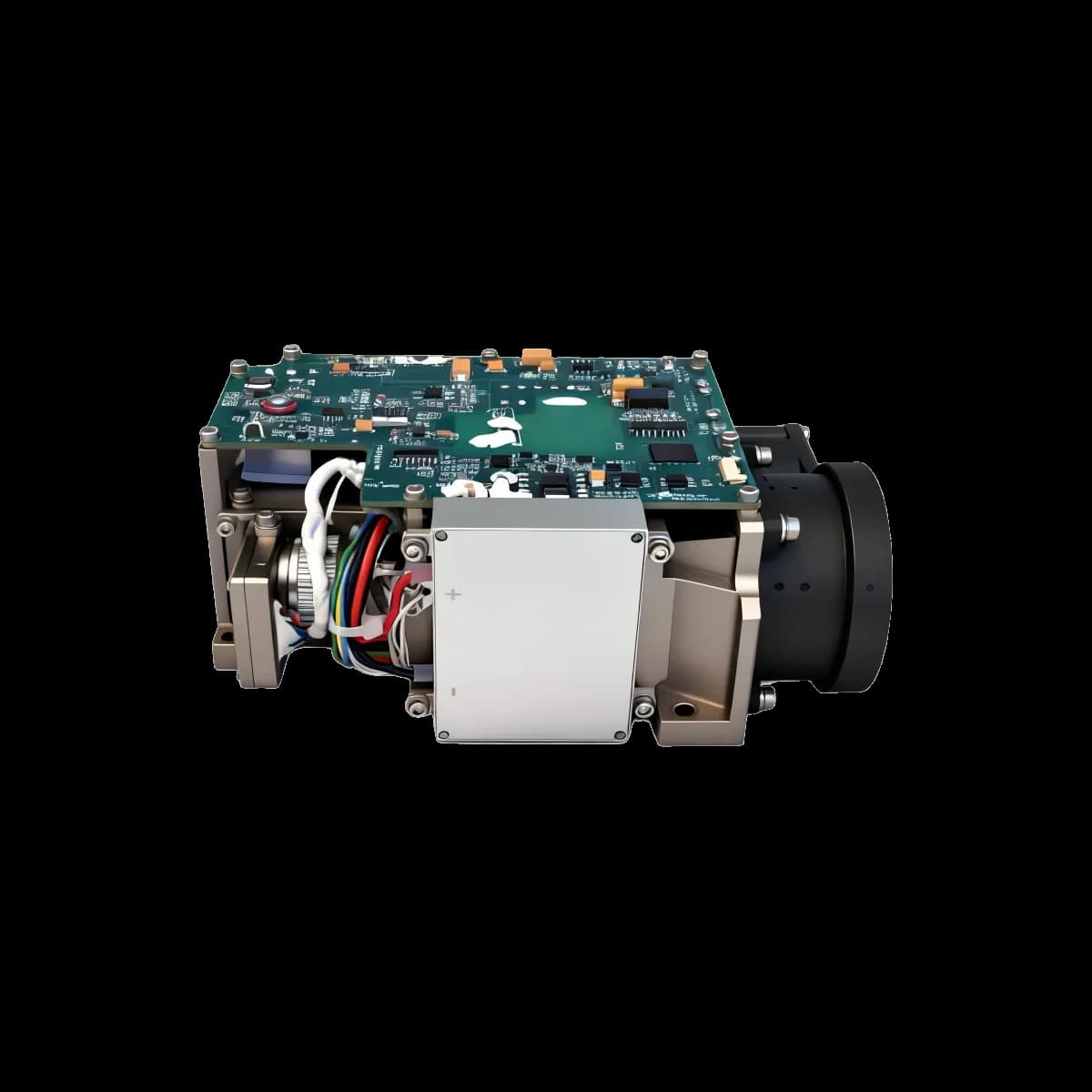

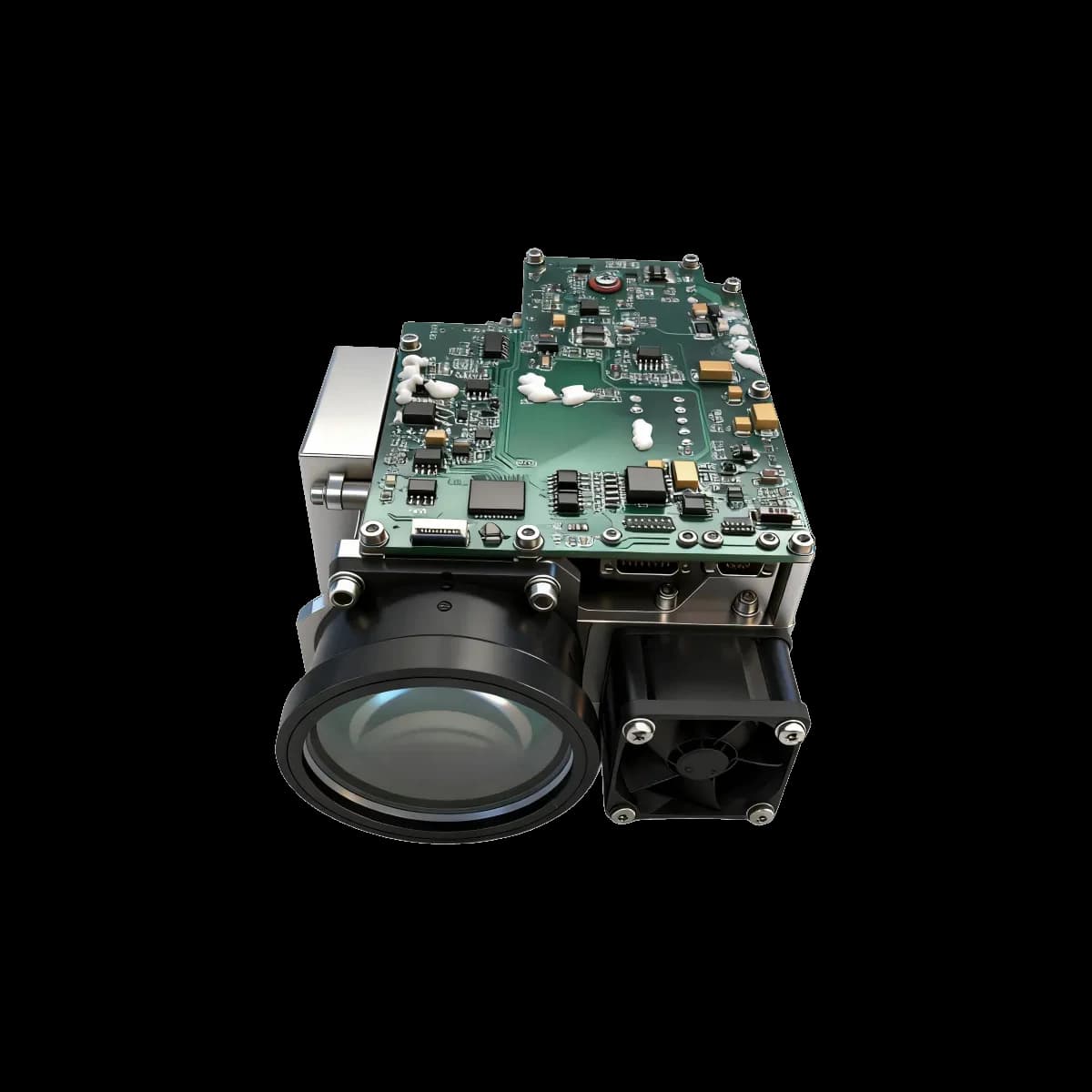

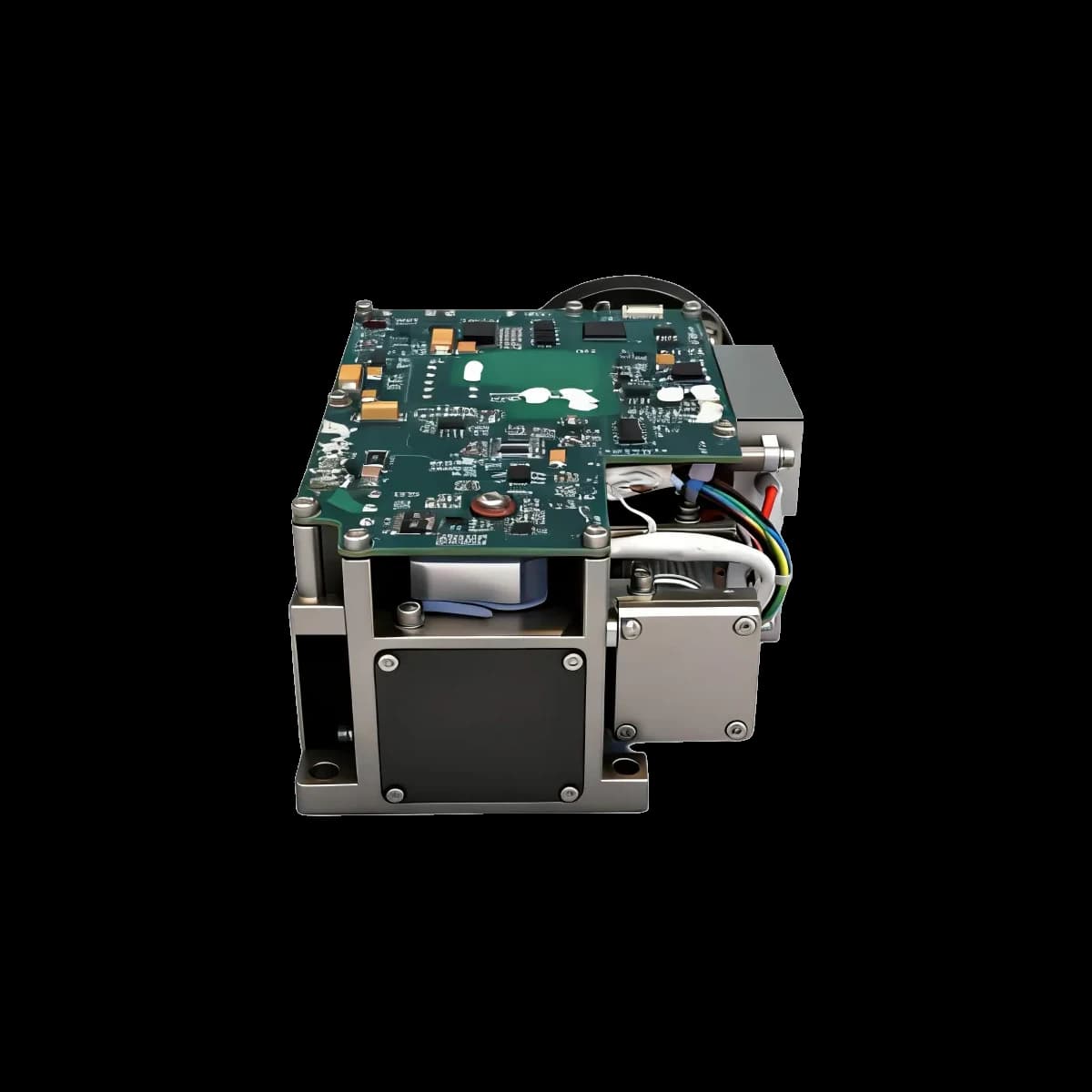

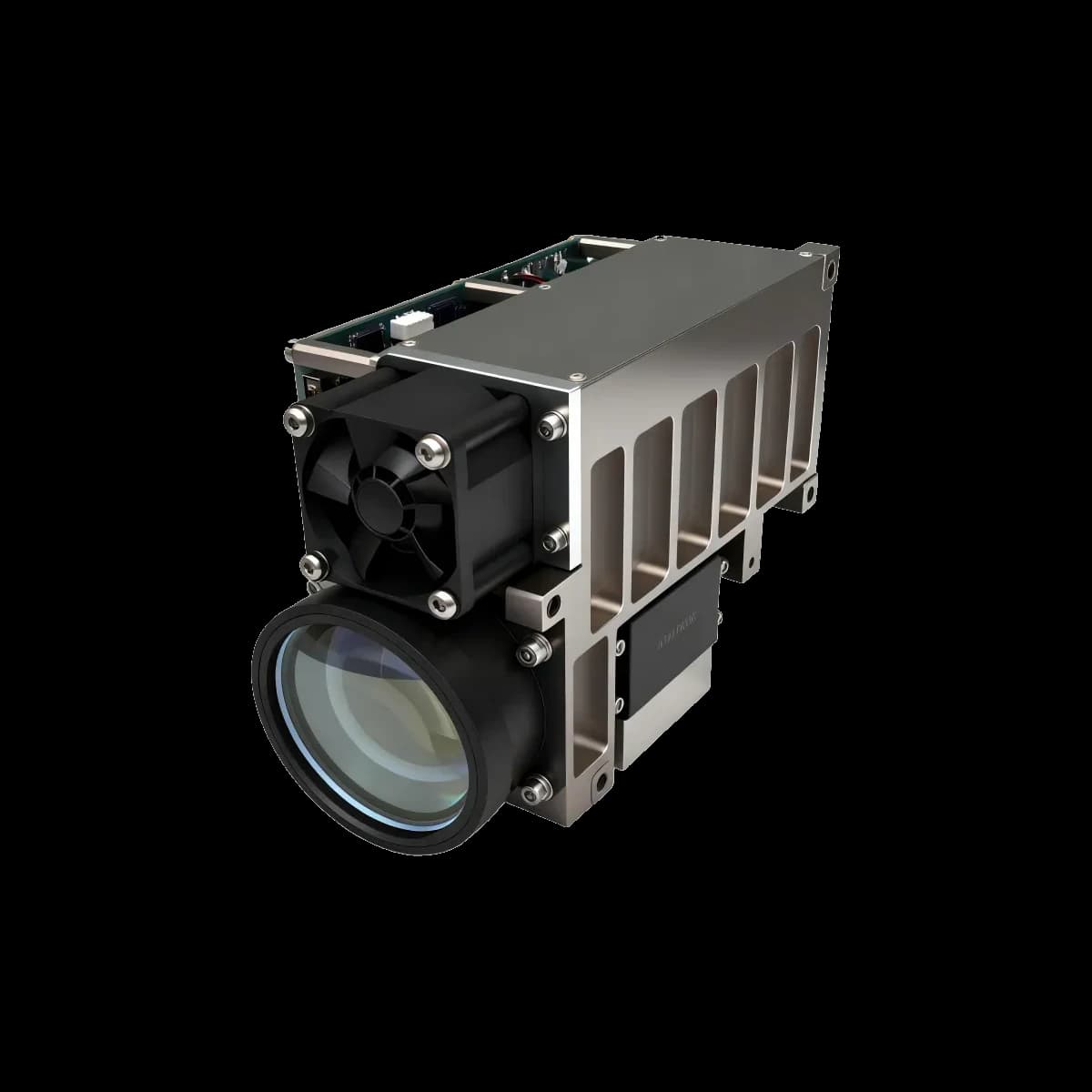

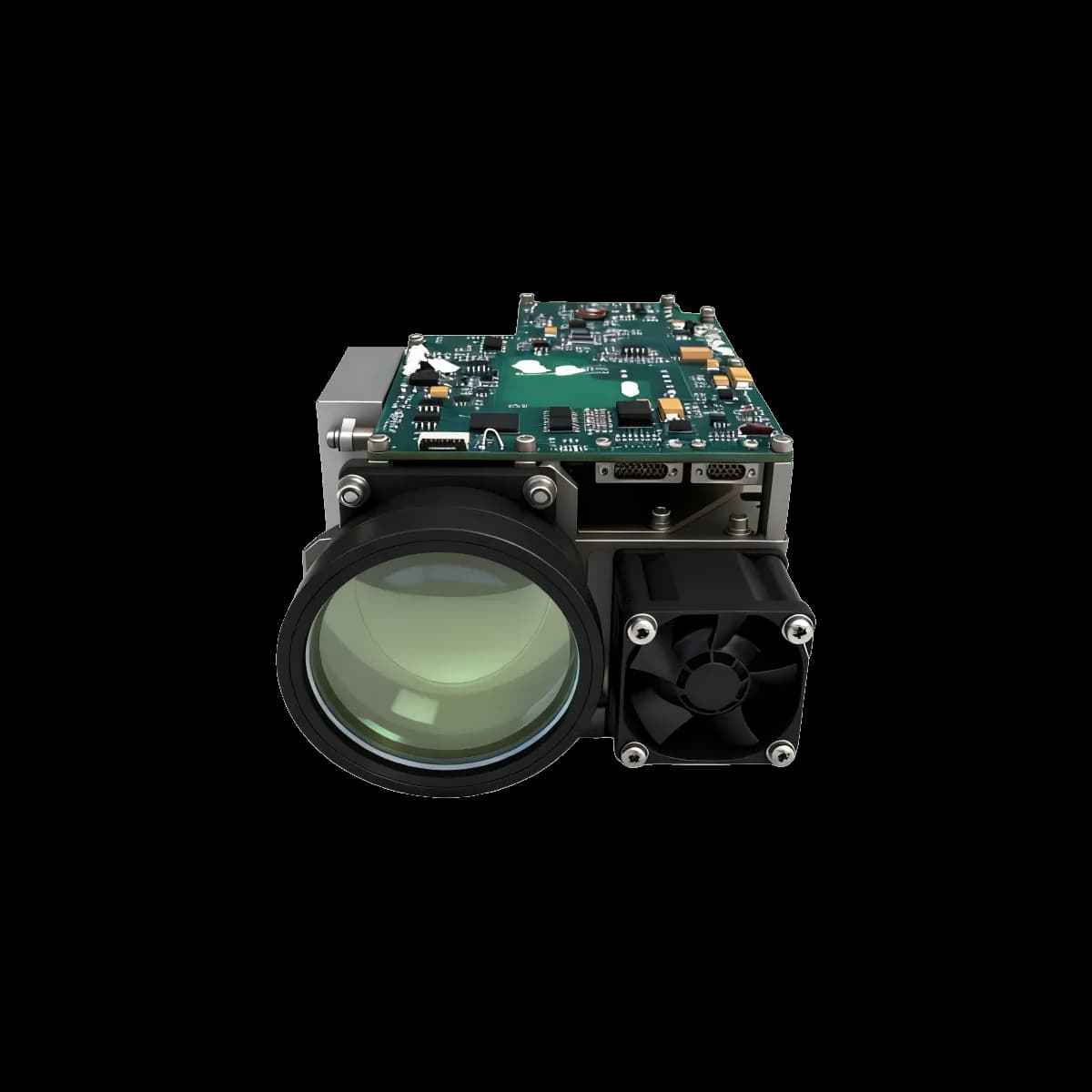

Detailed LDR80K2 Specifications
The technical material below is retained for this model only. Do not transfer a range, pulse, interface, mechanical or safety value from another 1064 nm product.
Specifications
The tables below retain the supplied model record except for entries explicitly withheld after a comparison with the current model PDF. A value, option or condition from another model is not interchangeable. General explanations are separated from model-specific entries.
Source-review note
The source has an incomplete energy unit, time units under a frequency label, differing capability statements and conflicting shock-waveform labels. No missing unit, conversion or qualification outcome is inferred.
Current LDR80K2 document — source checked 13 September 2026. On a small screen, swipe wide tables horizontally to read every column.
|
Laser Wavelength |
1064nm±1nm |
|---|---|
|
Pump Mode |
Side-pumped semiconductor (diode) pumping |
| Designation Frequency | Withheld pending a corrected, controlled model specification. See the source-review note above. |
|
Trigger Mode |
Internal-Synchronization Illumination / External-Synchronization Illumination |
| Output Energy | Withheld pending a corrected, controlled model specification. See the source-review note above. |
|
Dimensions |
≤150×102×55mm |
|
Weight |
≤850g |
| Designation Capability | Withheld pending a corrected, controlled model specification. See the source-review note above. |
|
Q-Switch Type |
Electro-optic Q-switch (EO Q-switch) |
|
Pulse Width |
15ns ±5ns |
|
Beam Divergence |
≤0.15mrad |
|
Energy Instability |
≤8%(RMS) |
|
Laser Designation Performance |
Short-duration irradiation mode: The irradiation time for each cycle is 17 seconds, followed by a 30-second interval. The system can perform up to 8 consecutive irradiation cycles. Long-duration irradiation mode: The irradiation time for each cycle is 60 seconds, followed by a 45-second interval. The system can perform up to 4 consecutive irradiation cycles. |
|
Optical Axis Parallelism Error Relative to Mounting Datum |
≤0.5mrad |
|
Ranging Performance |
· Minimum Measuring Distance: ≤ 300 m · Maximum Measuring Distance: ≥ 15 km · Ranging Frequency: 1–20 Hz (up to 3 simultaneous targets) · Ranging Accuracy: ≤ 5 m · Probability of Valid Ranging: ≥ 98% · Continuous Ranging Operating Time: 90 s |
|
Communication Serial Interface |
RS422 |
|
External Synchronization Interface |
+5 V differential line driver/receiver, RS-422 interface (delay from external synchronization signal to laser emission: 304.0 μs ± 0.1 μs). |
|
Laser Coding Mode |
l Precise Frequency Coding l Time Coding l Pseudo-Random Coding |
|
Period Accuracy |
<+-1us |
|
Power Supply |
DC 20V ~ 28V |
|
Power Consumption |
During operation, the average power consumption is not more than 55W, and the peak power consumption is not more than 100W. |
|
Low-Temperature Test |
Operating temperature: −40 °C |
|
High-Temperature Test |
Operating temperature: +60 °C |
|
Damp-Heat Test |
Relative humidity: 95% ± 3% |
| Shock Test | Withheld pending a corrected, controlled model specification. See the source-review note above. |
|
Vibration |
The equipment shall withstand flight vibration and the shocks occurring during takeoff and landing, and all components shall meet the environmental conditions of vehicle transportation. The vibration profile is a swept-frequency spectrum: l From 5 Hz to 16 Hz, constant-displacement sinusoidal vibration with an amplitude of 1.5 mm; l From 16 Hz to 60 Hz, constant-acceleration sinusoidal vibration with an acceleration level of 1.5 g. Each of the three axes shall be vibrated for 36 minutes. Test condition: Post-test requirement: |
| J30J-21ZKP | ||||
| pinout | functionality | clarification | orientations | note |
| 1 | TX+ | RS422 + | exports | RS422 communication interface |
| 2 | TX- | RS422 send - | exports | |
| 3 | RX+ | RS422 Receive + | importation | |
| 4 | RX- | RS422 Receive - | importation | |
| 5 | GND | RS422 Ground | GND | |
| 6 | EN+ | power supply enable (computing) | 24V power supply enable switch | |
| 7 | EN- | power supply enable (computing) | ||
| 8-13 | unoccupied | |||
| 14 | A | External Synchronous Differential+ (A) | importation | A, B are the A and B outputs of the differential chip (RS422 chip) |
| 15 | B | External Synchronous Differential - (B) | importation | |
| 16 | LED+ | DC5V | importation | Indicator light power supply |
| 17 | LED- | GND | importation | |
| 18-21 | ||||
| J30J-04ZK | ||||
| Pinout | functionality | clarification | orientations | note |
| A, B | 24V | Power supply | importation | bonus |
| C, D | GND | electric place | importation | (loanword) hack (computing) |

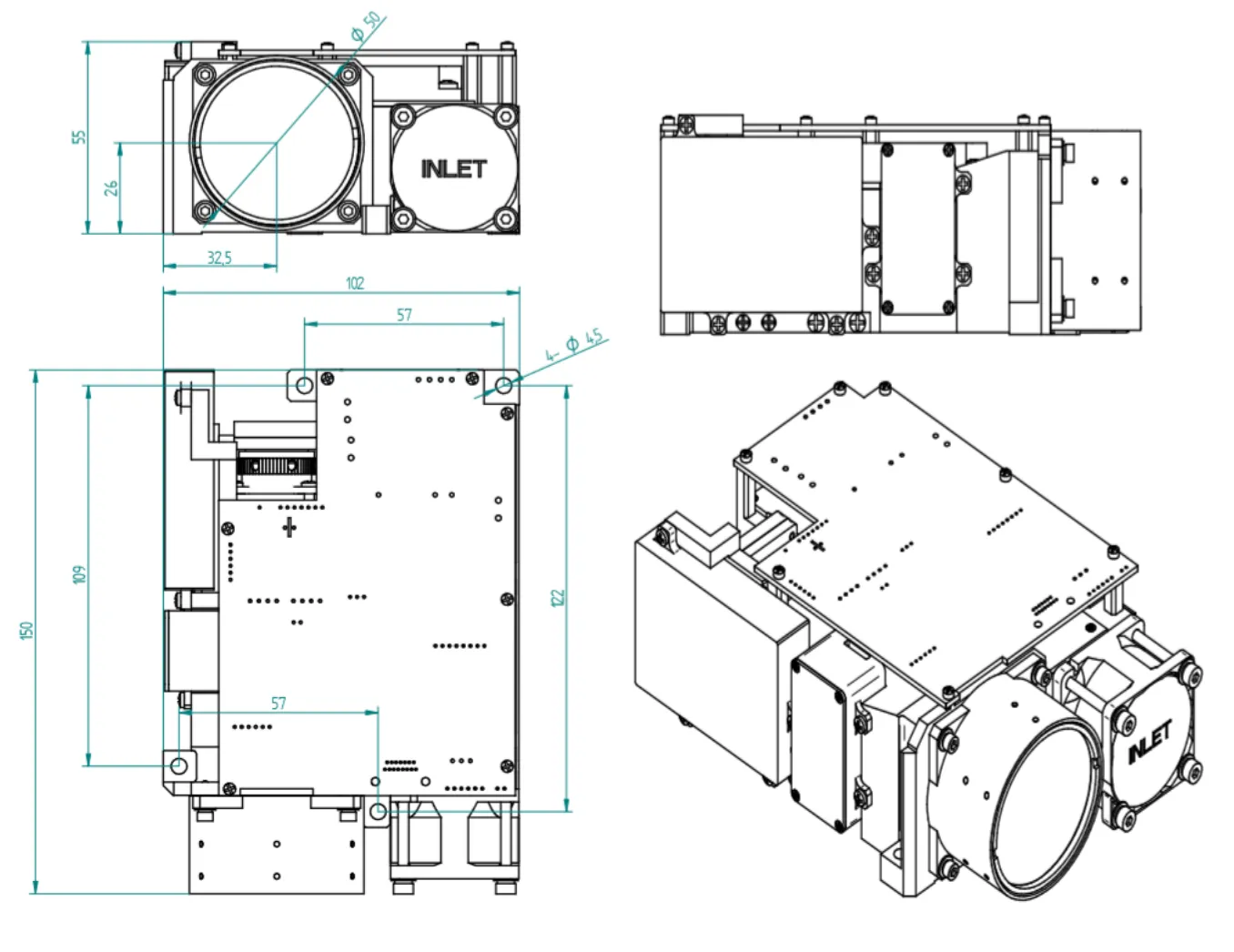

Technical drawings

Evidence status: published data is not a substitute for the ordered revision, a serial-number test report or a laser-classification report. A standard mentioned in a table is not proof of third-party certification.
Model-specific conditions and limits
Conditions are retained only when the source states them. They are not reconstructed from a nominal range or wavelength.
Operating conditions
Read the value together with its qualifier
A minimum, maximum, typical value and tolerance are different kinds of statement. “≥” is a lower bound and “≤” is an upper bound; neither is an exact measurement. A nominal value without tolerance does not establish a tolerance. Preserve the units and the condition printed beside every entry.
Keep operating modes separate
If the original table lists more than one operating mode, each rate, duration and stability statement belongs to its stated mode. This page does not combine the most favorable entries into a new operating specification. A published duration is not evidence of unrestricted continuous operation.
Environment and document revision
Storage limits describe a non-operating condition and must not be substituted for powered-operation limits. A test-standard name without the method, severity, configuration and outcome is an incomplete qualification record. Request the relevant report for the exact supplied revision; do not describe a reference to a standard as a blanket certification.
Safety review
1064 nm is outside normal visual perception. A beam that cannot be seen can still be hazardous; brightness or a camera image is not a safety measurement. Laser safety assessment must address the complete product and its accessible emission, not only the source wavelength. IEC 60825-1:2014 — Safety of laser products; FDA — Frequently Asked Questions About Lasers.
Pulsed Time-of-Flight Ranging
Technical principle
Laser emission: a high-level overview
A laser combines an energized gain medium with optical feedback to produce stimulated emission. Solid-state lasers use a solid host for the active species. The wavelength name alone does not identify a particular host material, pump wavelength or cavity construction, so this page does not infer those internal parts for LDR80K2. FDA — Frequently Asked Questions About Lasers.
What a pulsed-source specification describes
Pulse energy describes energy in one optical pulse. Pulse duration describes its temporal extent under a stated width convention. Repetition rate describes how often pulses occur. These quantities must not be substituted for each other: an energy specification is not a power specification, and a rate does not describe a waveform. Electrical input power and optical output also refer to different quantities.
Beam size and angular spread are different measurements
A beam diameter applies at a specified measurement plane. Divergence describes angular spreading rather than diameter at one location. Different width definitions and full-angle versus half-angle conventions can give different numerical descriptions of the same beam. Where the model record does not identify its convention, the comparison remains incomplete. ISO 11146-1:2021 — Beam-width, divergence and propagation measurement terminology.
Accuracy, resolution and stability are separate terms
Resolution describes the reported increment or discrimination scale; accuracy concerns the difference between a measurement and a reference. Stability concerns variation over an interval or set of conditions. A small displayed increment does not by itself establish small error, and one stability metric does not establish another. The original table’s labels and qualifiers remain important even when two entries share a numerical value.
Physical explanation versus product evidence
A scientific paper can explain a phenomenon without testing this product. Its measured output, material recipe, internal geometry or performance cannot be transferred to LDR80K2. A manufacturer's published record, a unit test, a qualification report and an independent standard each answer a different question. The references below are explicitly identified by that role.
Invisible radiation and responsible documentation
Eye and skin hazards depend on exposure, not on whether an observer sees a spot. A product page is not a safe operating procedure. Applicable controls and personnel responsibilities require a qualified safety review, and the product must retain its warnings and approved instructions. OSHA — Laser Hazards.
Pulse energy describes emitted energy per pulse; its effect cannot be separated from pulse width, divergence, optical losses, receiver threshold and the stated target/atmosphere conditions. It is not a substitute for a model-specific near- or long-range acceptance test.
Source-stated application context
Application labels indicate evaluation context, not automatic fitness for a finished system.
The retained specification records divergence ≤0.15 mrad and an enclosure bounded by 150 ×102 ×55 mm with mass ≤850 g. Its detailed 15 km ranging reference is conditional on the specified target and atmosphere. The repetition-rate entry is also linked to its stated operating conditions, not an unlimited continuous-use guarantee.
The source’s energy, frequency-label and other qualification inconsistencies remain visible in the review record. This page therefore does not describe the product as a verified 80 mJ source merely because that phrase appears in a historical introduction. Confirm a corrected controlled energy unit before relying on it in a product comparison.
Confirm short- and long-distance acceptance conditions
- Define minimum distance, target material, reflectance, size and incidence angle.
- Check receiver recovery, optical-axis overlap and strong-return handling at the intended near limit.
- Verify supply tolerance, peak current, grounding, interface levels, connector and timing with the ordered revision.
- For long-distance acceptance, state target geometry, visibility, weather, background and required detection probability.
- Test with the installed window, boresight, field of view, enclosure and thermal path rather than a bare module alone.
- Evaluate accessible emission, labels and failure conditions again for the finished laser product under IEC 60825-1.
Questions to resolve before design release
Why is LDR80K2 not advertised as a verified 80 mJ source?
The current source contains an incomplete output-energy unit and conflicting capability wording. That field remains withheld in the reviewed table. A model name or historical introduction cannot repair an incomplete unit, so a corrected controlled energy statement is needed before promoting it.
What does the 1–20 Hz ranging entry establish?
It records the model’s stated ranging-frequency range under its documented operating conditions. It is not evidence of indefinite operation at every frequency. Keep its associated operating limits attached, and do not substitute an unrelated frequency label whose source units are unresolved.
Is the 15 km ranging reference unconditional?
No. The detailed source ties ≥15 km to a 2.3 ×2.3 m target, diffuse reflectivity ≥0.2, visibility ≥20 km and relative humidity ≤70%. These conditions distinguish the entry from a guarantee for smaller targets, lower reflectance or degraded atmospheric visibility.
What beam and pulse values are retained for LDR80K2?
The reviewed table records 1064 ±1 nm wavelength, 15 ns ±5 ns optical pulse width and divergence ≤0.15 mrad. These are separate model-specific entries. They should not be combined into an additional beam-quality, safety or measurement-distance promise that the controlled source does not state.
Which external dimensions belong to LDR80K2?
The model table gives dimensions ≤150 ×102 ×55 mm and mass ≤850 g. Other LDR80 variants have different records, so their drawings and package limits are not interchangeable. Use the controlled LDR80K2 document for the supplied variant and its unresolved-source notes.
