ERDI OEM LASER MODULE

LR1200E4 4–1200 m 905 nm Distance Sensor with a Model-Specific E4 Body

$90 USD / unitBase B2B price; approved quantity tiers are shown below. Shipping included.
Product modelLR1200E4

LR1200E4 is a 905 nm ranging module with a 4–1200 m documented range, 2–10 Hz adaptive distance reporting and an E4 mechanical outline. Its accuracy table uses a 400 m breakpoint, which must not be replaced by the different LR1200E2 intervals.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$90 USDPublished unit price
31–200 pieces$70 USDSave 22%
201–500 pieces$50 USDSave 44%
501+ piecesLowest unit price$35 USDLowest published price · Save 61%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a Quote / Technical Review

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

PRODUCT OVERVIEW

Meet the LR1200E4

The 25.7 × 14.2 × 26.2 mm nominal body, UART-TTL communication and 3.3–5 V supply define the published integration option. Use these model-specific values when selecting a distance module for civilian observation or telescopic instruments. The source does not make the E4 suffix a standalone performance grade.

Accuracy is stated as ±1 m up to 400 m and ±(1 + 0.001D) m beyond 400 m. The effective accuracy table does not specify target reflectivity or size for this model, so conditions from an adjacent E2 manual must not be inserted as though they were documented for E4.

01

1200 m range class

4–1200 m standard range with a model-specific long-distance accuracy formula.

02

Host-controlled ranging

2–10 Hz (adaptive); single-shot and continuous measurement modes.

03

Compact integration

25.7 × 14.2 × 26.2 mm nominal dimensions in the current mechanical drawing; detailed tolerances remain controlling.

04

UART-TTL interface

115200 bps communication and a 3.3–5 V supply range; use the model-specific pinout and command table.

TECHNICAL DATA

LR1200E4 Specifications

Read performance values with their target and test conditions. The linked user manual provides the complete mechanical, electrical, and communication details.

ParameterValueConditions / notes
Laser wavelength905 ± 5 nm—
Measurement range4–1200 mStandard range; actual reach depends on target and environment.
Ranging accuracy±1 m (D ≤ 400 m); ±(1 + 0.001D) m (D > 400 m)Target reflectivity and size are not specified in the accuracy table.
Measurement update rate2–10 Hz (adaptive)Completed distance outputs; not the optical pulse-repetition rate.
Communication interfaceUART-TTLCustom configurations are specified separately.
Baud rate115200 bps—
Supply voltage3.3–5 V—
Operating temperature−20 °C to +55 °C—
Storage temperature−40 °C to +60 °C—
Mechanical drawing dimensions25.7 × 14.2 × 26.2 mmDrawing nominal values. Observe the individual tolerances in the model drawing; do not machine from the rounded summary alone.
Weight≤10 g—
Ingress protectionIP67Lens cavity only; not a blanket rating for the exposed board or the complete host product.
Laser safety classClass 1As stated in the model manual; finished-equipment assessment is separate.
Laser beam divergence< 4 mrad (small laser spot)—
Optical materialResin aspheric lens—
Receiver aperture9.2 mm × 14.5 mm—
Startup time≤ 200 ms—
Inrush current≈ 350 mAApproximate value in the specification table.
Sleep power consumption< 1 mW—
Standby power consumption≈ 0.2 WApproximate value in the specification table.
Short-range power consumption≈ 0.4 WApproximate value in the specification table.
Operating power consumption≈ 1 WApproximate value in the specification table.
  • For civilian equipment only. The model manual prohibits military applications.

Operation and Data Output

Single-shot mode requests one reported distance. For a weak return, the manual describes repeated internal measurements before reporting stable distance data. Continuous mode produces repeated results at the documented adaptive update rate.

The standard measurement-rate specification is 2–10 Hz (adaptive). Higher-rate custom versions mentioned in the manual are separate configurations, not the default performance of a standard unit.

Electrical Interface

PinSignalFunction
1GNDPower ground
2VCCPower input
3I/O (Reserved)Reserved for expansion
4TXDTransmit data: module → host
5RXDReceive data: host → module
6SW-SHOTFunction-enable input. The required control polarity must match the supplied configuration.

Mechanical Dimensions

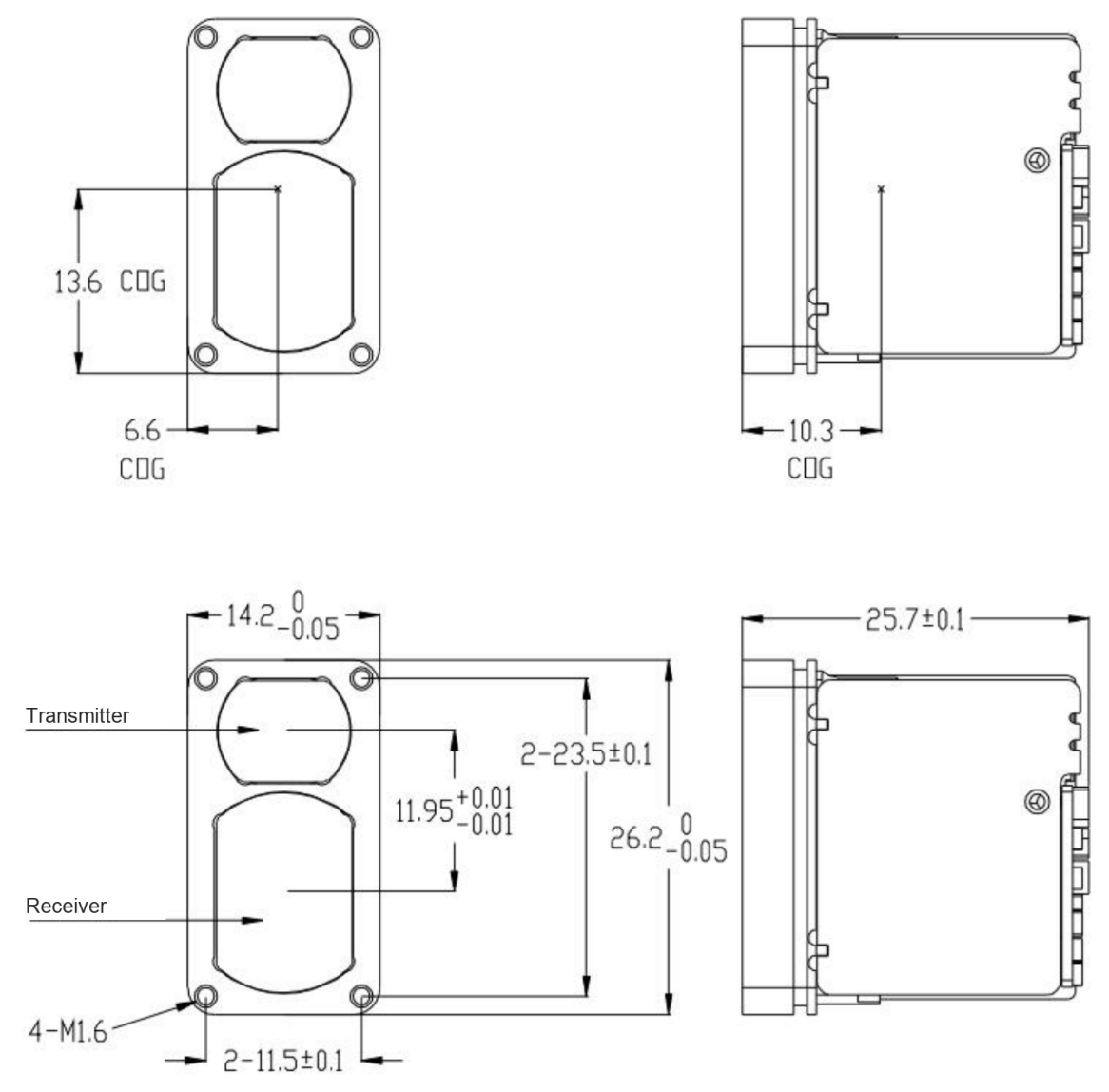

Use the drawing and its tolerances for installation. This drawing is reproduced directly from the current LR1200E4 user manual.

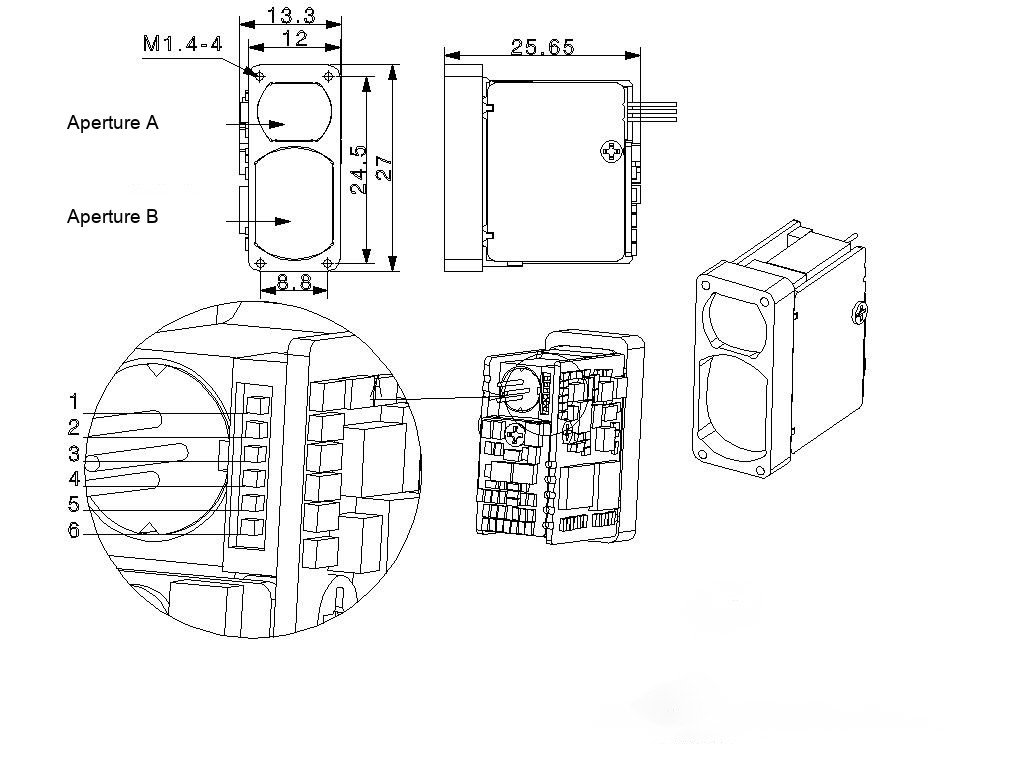

LR1200E4 mechanical drawing, current user manual page 4
LR1200E4 Mechanical DrawingManual page 4. Open the PDF to inspect the original dimensions and tolerances.
HOW IT WORKS

905 nm Pulsed Time of Flight and APD Reception

The following explains the general measurement principle of a 905 nm pulsed ranging system with APD reception. A short near-infrared pulse travels to the target, and reflected light returns through the receiving optics to a silicon avalanche photodiode (APD). The receiver converts the optical return into an electrical signal for distance measurement. Individual circuit implementations and performance remain model-specific.

R = c × Δt / 2R: one-way distance · c: speed of light along the path · Δt: round-trip travel time. Division by two accounts for the outward and return paths.

A 1 m change in distance corresponds to about 6.67 ns of round-trip travel time in free space. This is a physical relationship, not a claim about the module’s timing resolution or measurement accuracy. [1]

Why an APD helps detect a weak return

A silicon APD provides internal avalanche gain before subsequent signal processing. This can help a receiver detect weak optical pulses, but the gain also brings excess noise. More gain is not always better: receiver bandwidth, background light, bias stability, and temperature all affect the usable signal-to-noise ratio. [2] [3] [8]

Why range depends on the target

A large, bright surface usually returns more usable light than a small, dark, or angled one. At long distances, beam spreading can place only part of the transmitted light on the intended target. The receiver also sees losses through the atmosphere and any protective window, so a maximum range rating must be read with its target conditions. [1] [4] [7]

Why wavelength stability and filtering work together

Narrowband optical filtering reduces unwanted background light while passing the laser return. Lower transmitter wavelength drift helps preserve this overlap as temperature changes. Filter bandwidth, incidence angle, component variation, and temperature must still be considered together; a narrow filter alone does not establish sunlight immunity. [5] [6] [7]

Why timing errors become distance errors

Noise changes the estimated arrival time of a return pulse. A fixed-threshold detector can also trigger at different times as pulse amplitude changes, an effect called timing walk. The complete receiver and timing chain determines the final measurement error—not the detector response time by itself. [1] [8] [12]

MODEL SELECTION

Choose by Target, Range, and Integration

The E2 and E4 families cover 1000, 1200, 1500, and 2000 m nominal range classes. LRF1200A1 and LRF3000A1 have their own electrical, mechanical, and measurement specifications. Equal range-class numbers do not make different families pin-compatible or mechanically interchangeable.

Start with the smallest and darkest target your application must measure, the required update rate, and the available installation space. Then compare the model-specific supply, interface, drawing, and long-range accuracy formula. Do not select only by the maximum range number.

APPLICATIONS

Integration Applications

  • Handheld observation and ranging instruments
  • Night-vision and thermal-imaging equipment with distance readout
  • Telescopes and outdoor ranging instruments

Validate the complete installation with representative targets, lighting, temperature, and the final protective window.

PRACTICAL INTEGRATION

From Bench Test to Installed System

  • Power and signals: size the supply for transient current, use a common signal ground, and match logic levels. A module’s supply-voltage range is not automatically the voltage tolerance of its UART pins.

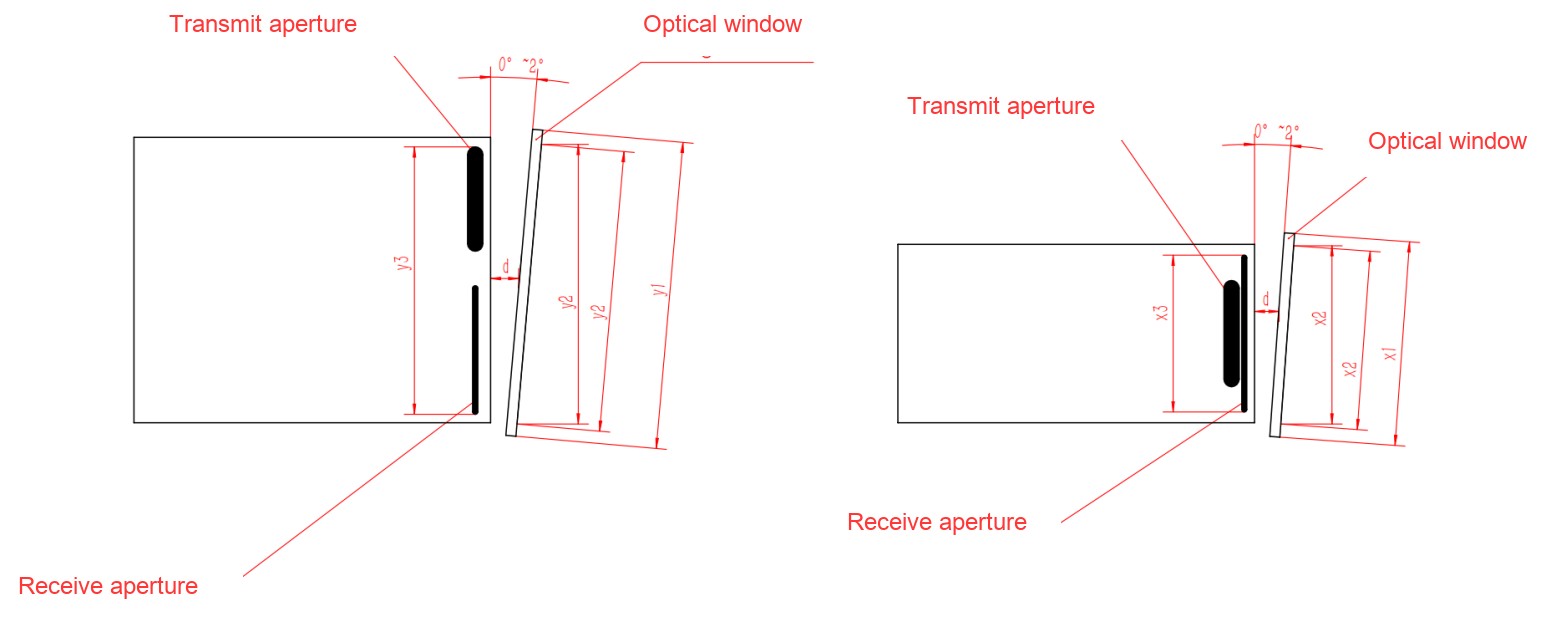

  • Optical window: choose material and coatings with suitable transmission near 905 nm. Keep transmit-to-receive reflections low, avoid aperture clipping, and test the assembled window for false near returns.
  • Target: test dark, small, angled, wet, and partially obscured surfaces at the required distance rather than only a large white panel.
  • Environment: assess direct sunlight, visibility, condensation, dust, and temperature changes. Keep the optical surfaces clean.
  • Data handling: use the model manual for byte order, scaling, checksum, and command timing. Check the STA/status field before interpreting the distance bytes, and reject failed measurements according to the model protocol.
  • Laser safety: assess the finished equipment, including added optics, controls, access, labeling, and applicable operating conditions. A component rating alone does not establish the system’s laser class.
TECHNICAL FAQ

LR1200E4: Frequently Asked Questions

Can LR1200E2 accuracy conditions be copied to LR1200E4?

No. The LR1200E4 accuracy table uses its own 400 m breakpoint and does not specify target reflectivity or size there. A neighboring E2 model’s whiteboard conditions cannot be silently imported. Request model-specific confirmation if the application needs a fully defined target condition.

Which accuracy formula belongs to this model?

The current record states ±1 m for D up to 400 m and ±(1 + 0.001D) m above 400 m, with D in meters. Keep this model’s intervals intact rather than simplifying the entire 1.2 km standard range to ±1 m.

What is the E4 body size used for selection?

The nominal mechanical dimensions are 25.7 × 14.2 × 26.2 mm. They distinguish the E4 package from the E2 option. Individual tolerances and complete mounting clearance must still come from the current model drawing, not the rounded summary alone.

Does 2–10 Hz guarantee a fixed reporting interval?

The source identifies the measurement output rate as adaptive. It is not a fixed-rate guarantee under every return condition and is not the laser’s internal pulse rate. Evaluate the intended distance and target behavior using the ordered configuration.

Does lens-cavity IP67 protect the whole instrument?

No. The model’s IP67 entry is confined to the lens cavity. The complete optical instrument, its electronics and any added enclosure require separate environmental assessment. The source’s Class 1 laser statement likewise does not replace finished-equipment safety review.
