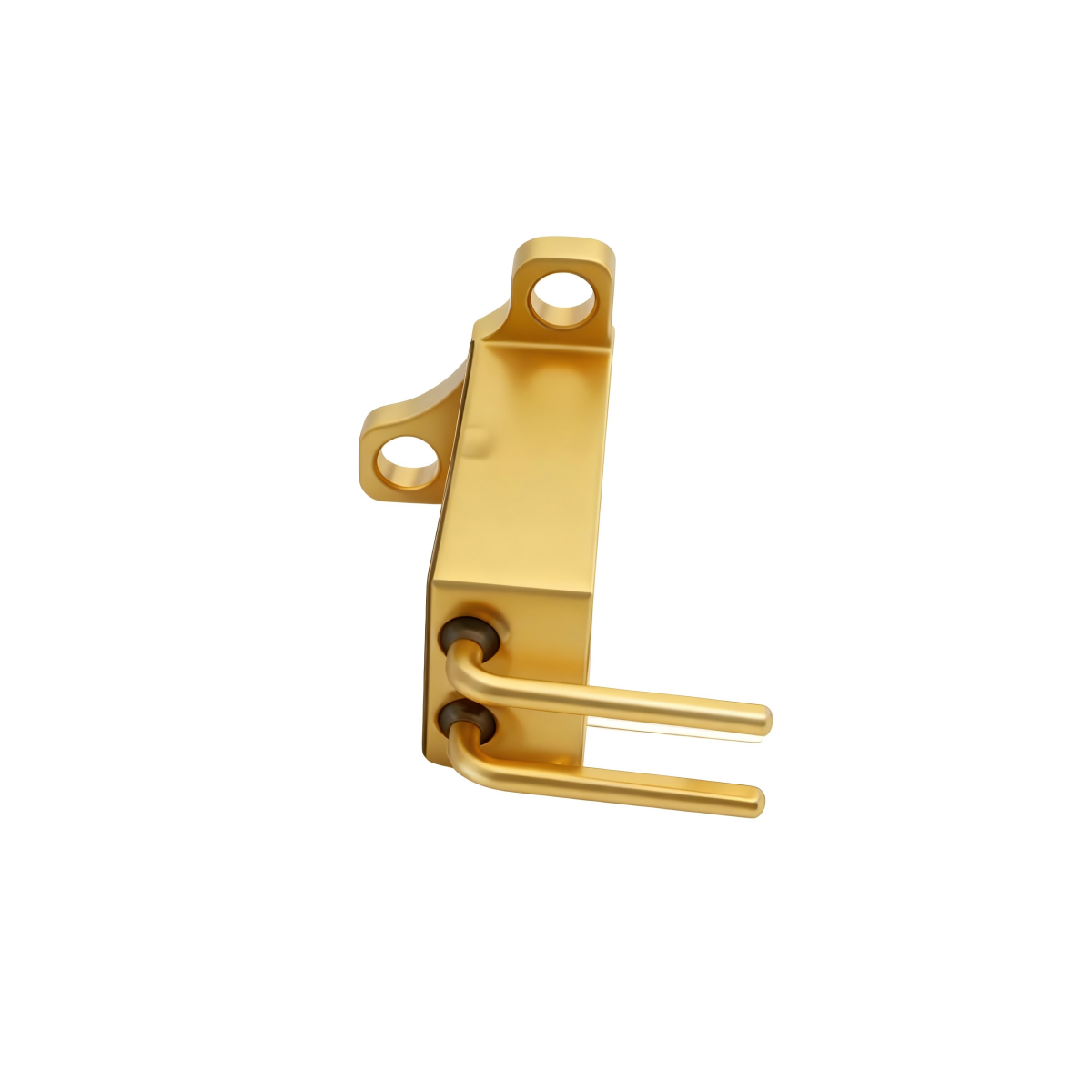

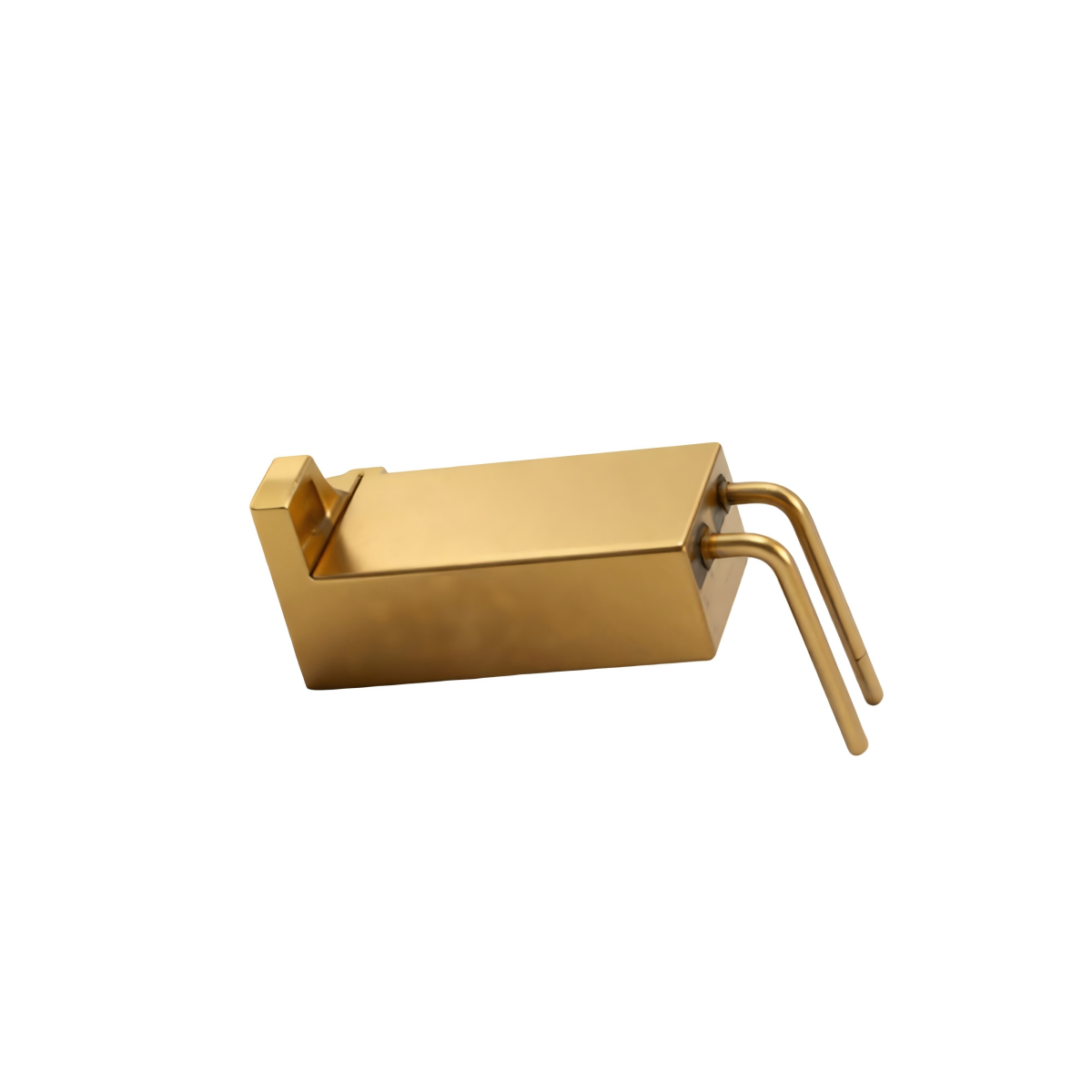

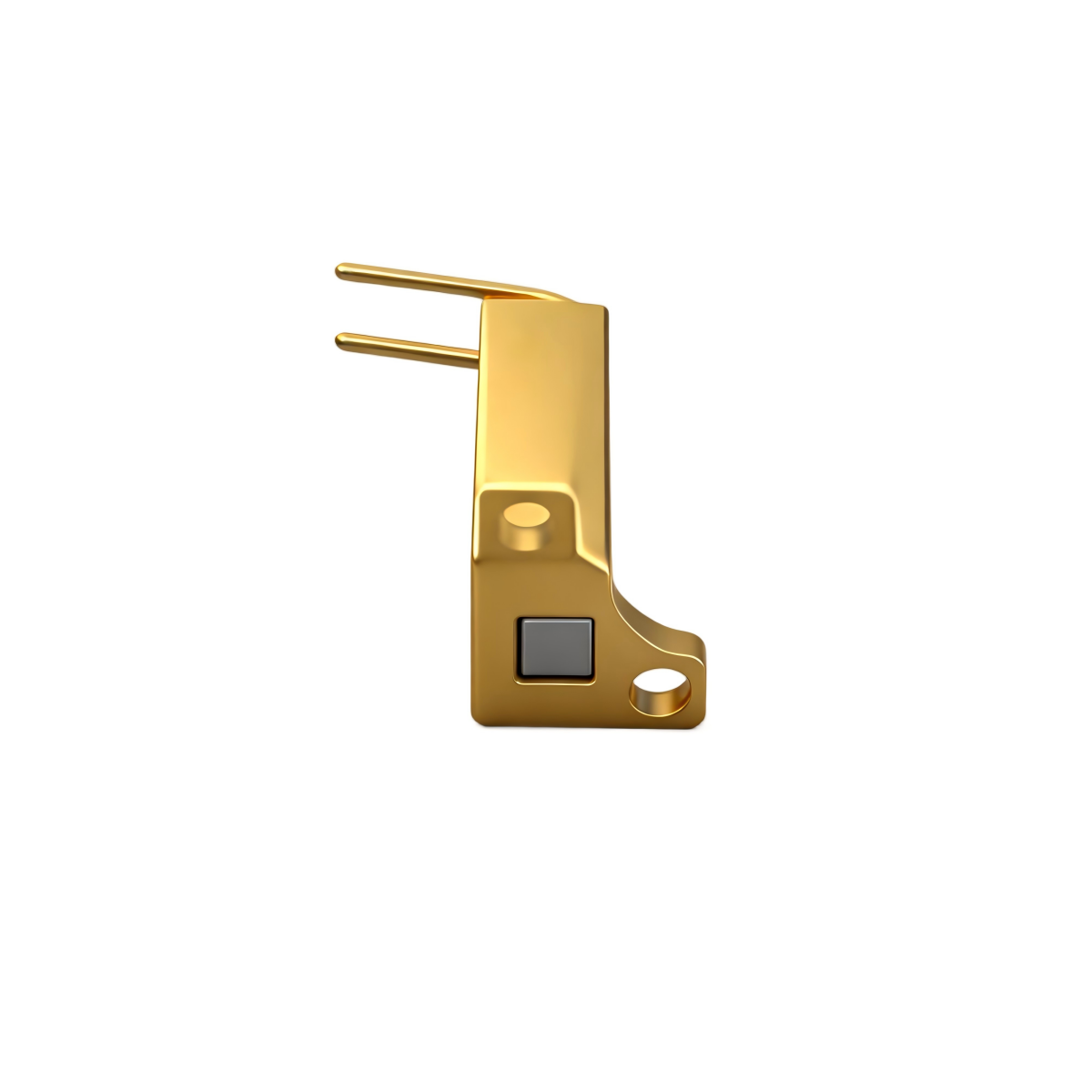

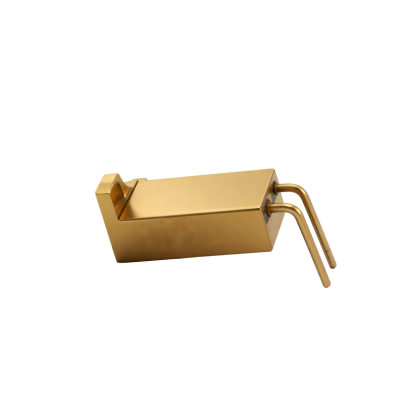

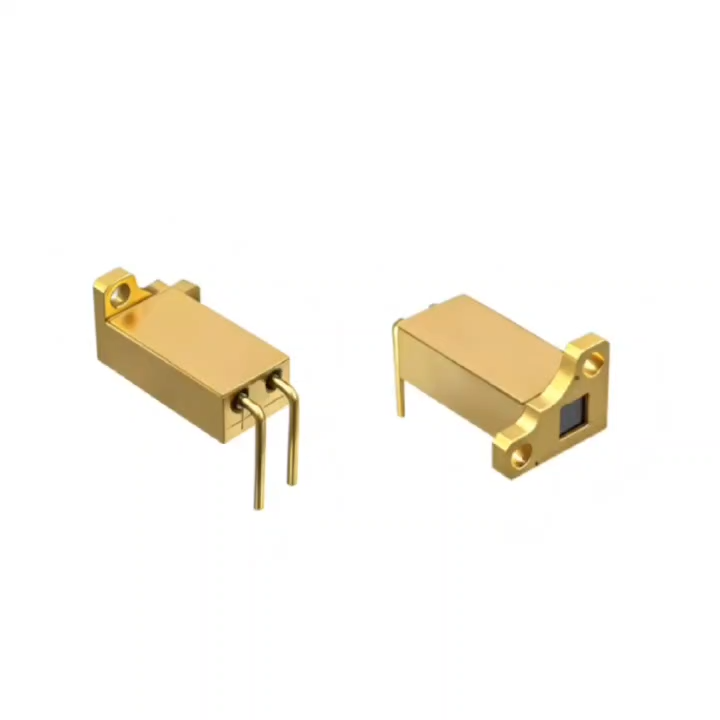

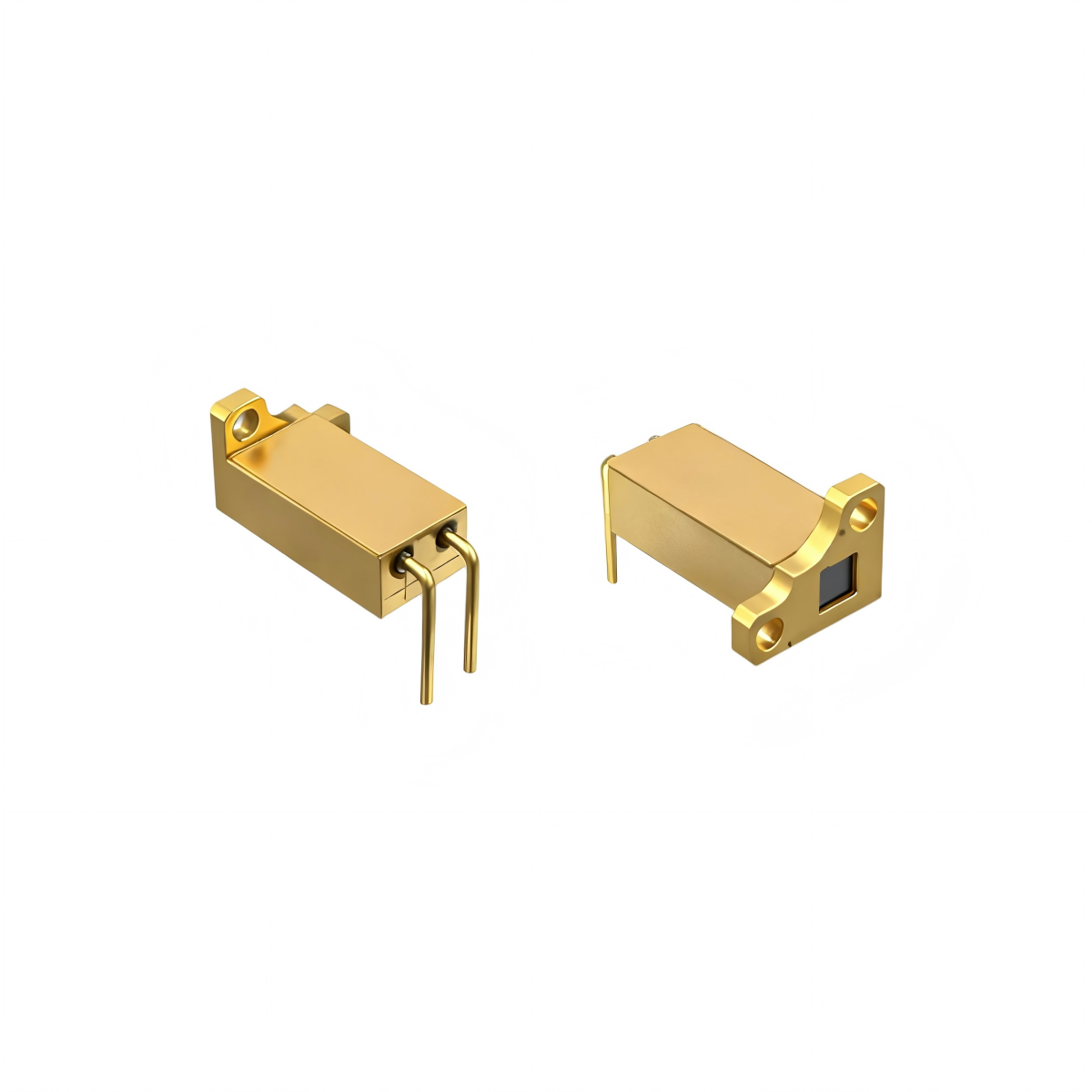

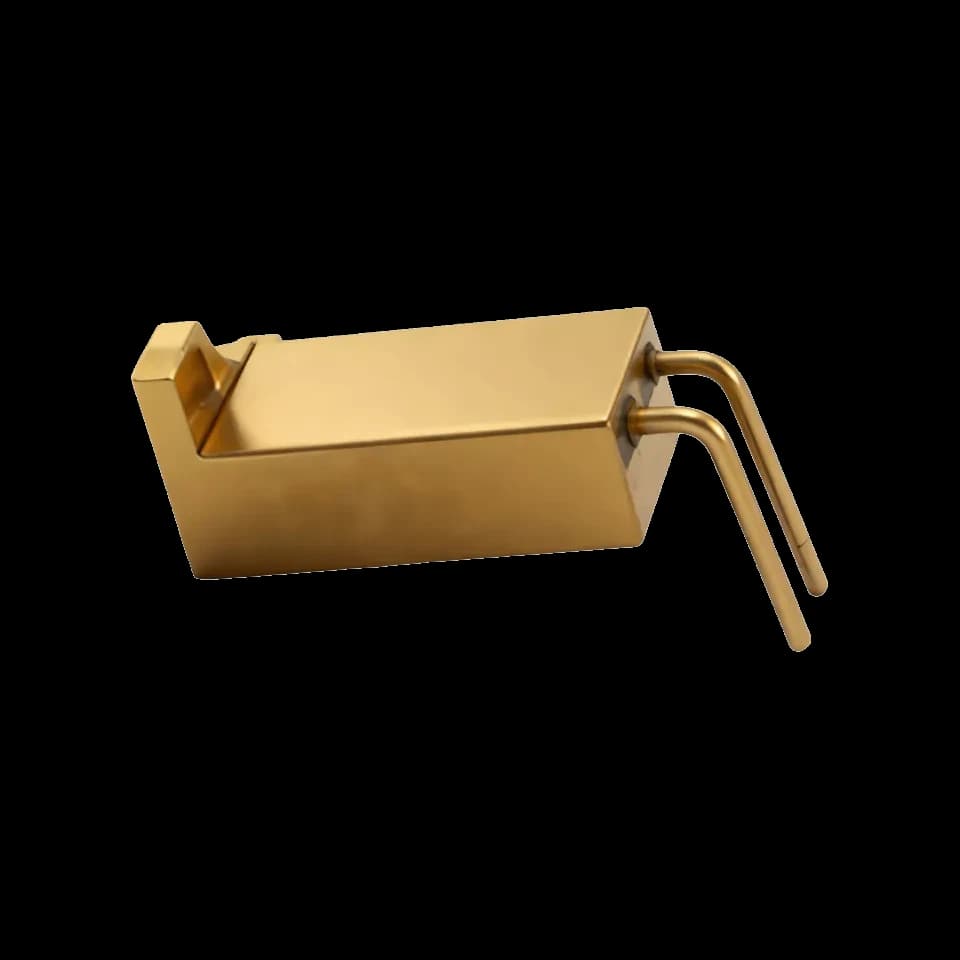

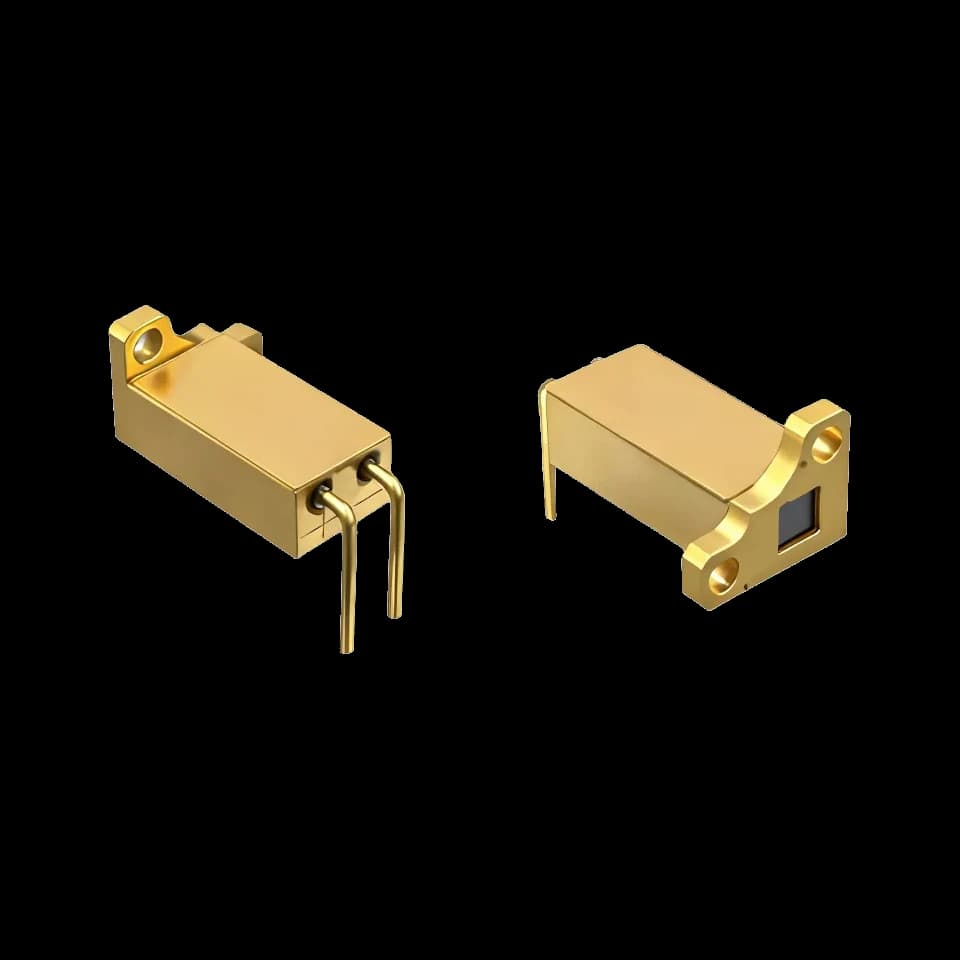

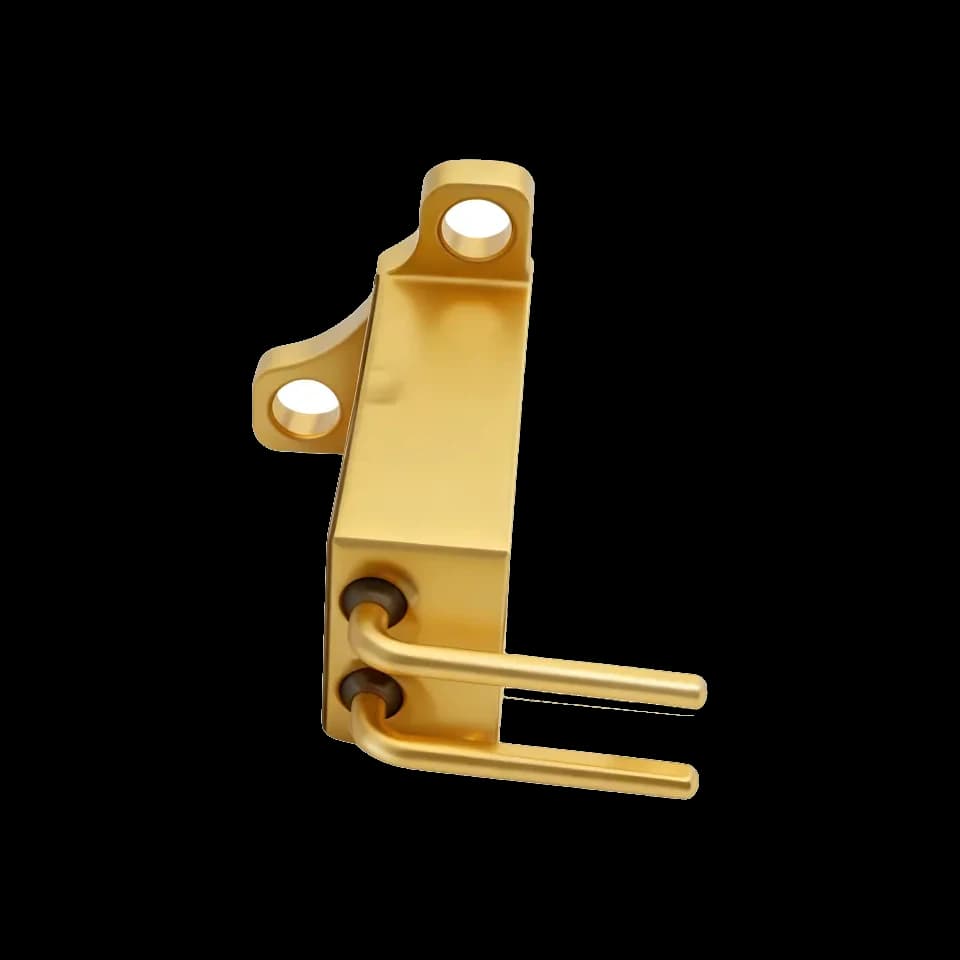

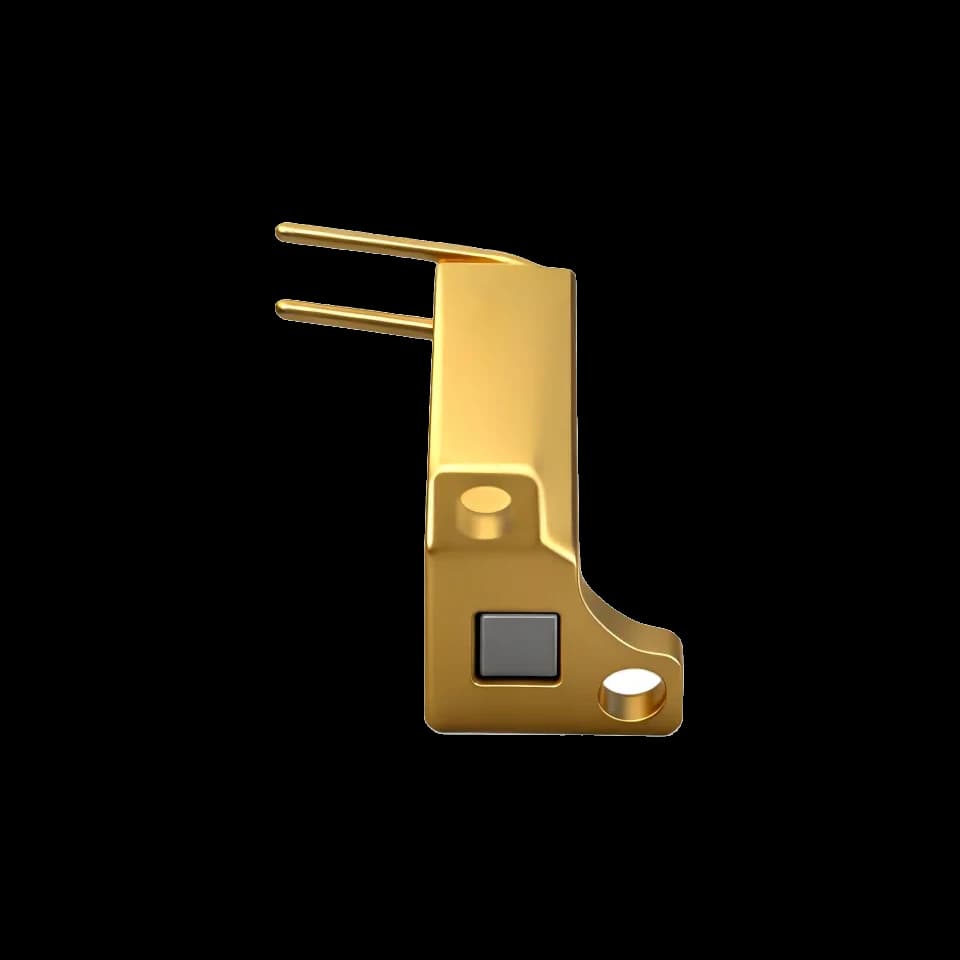

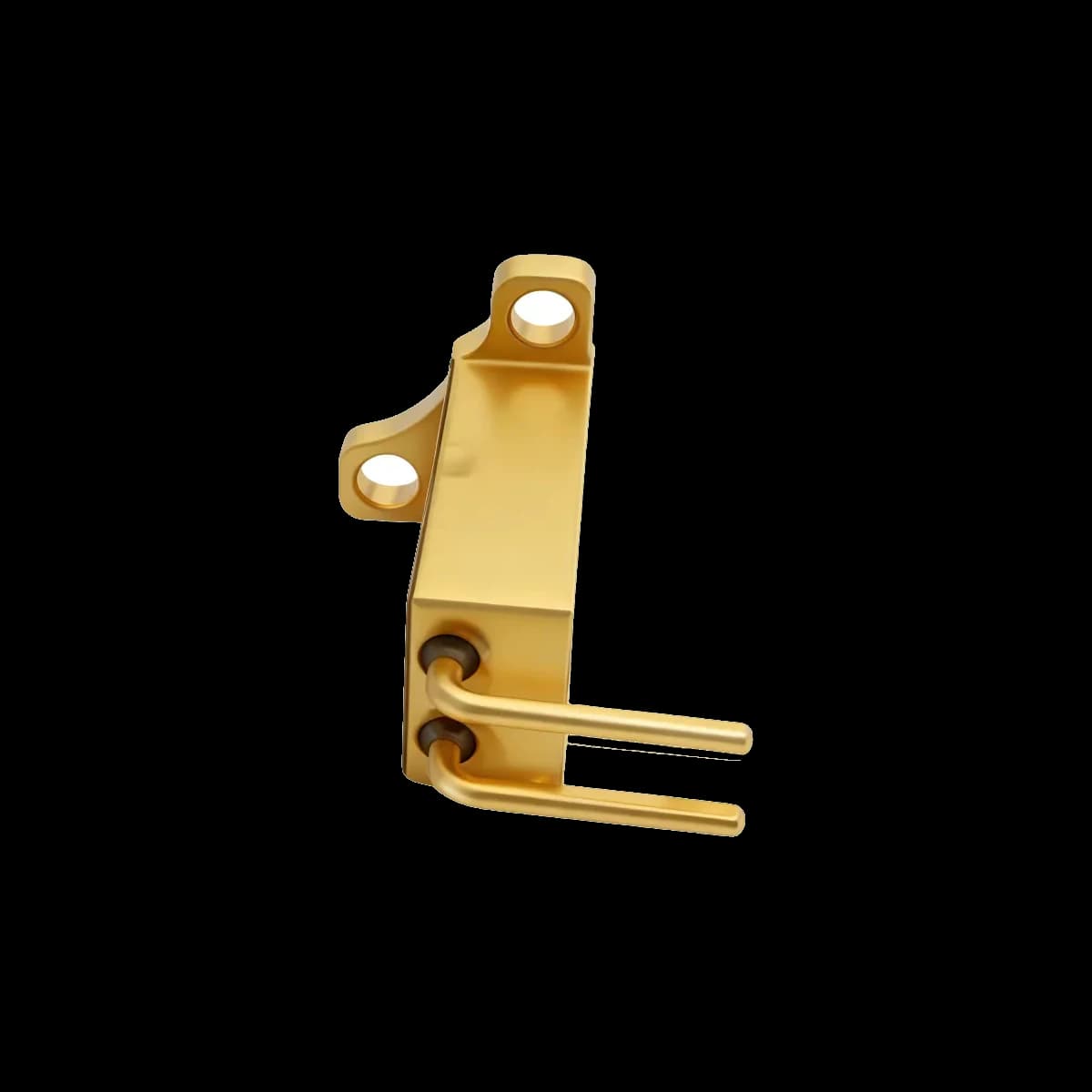

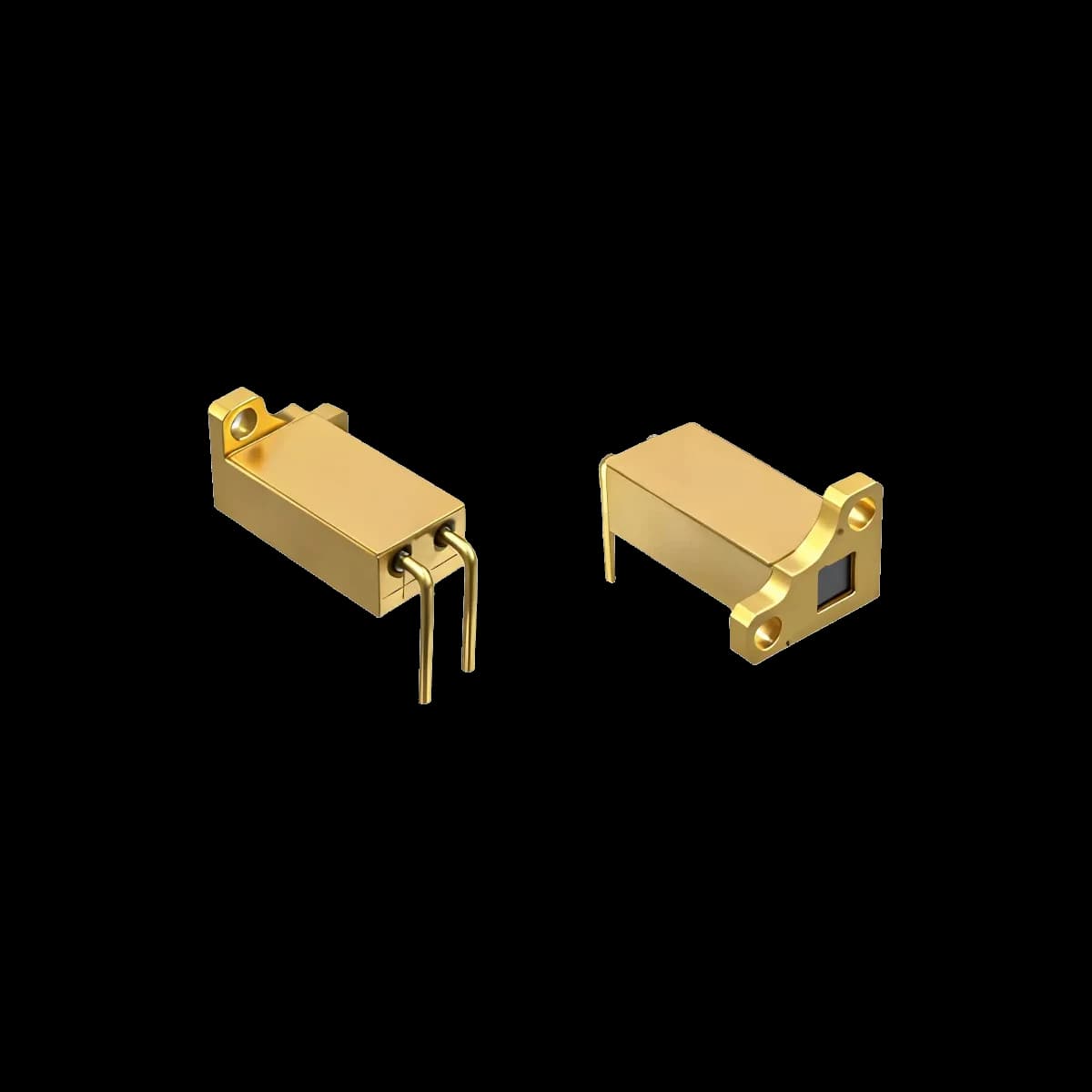

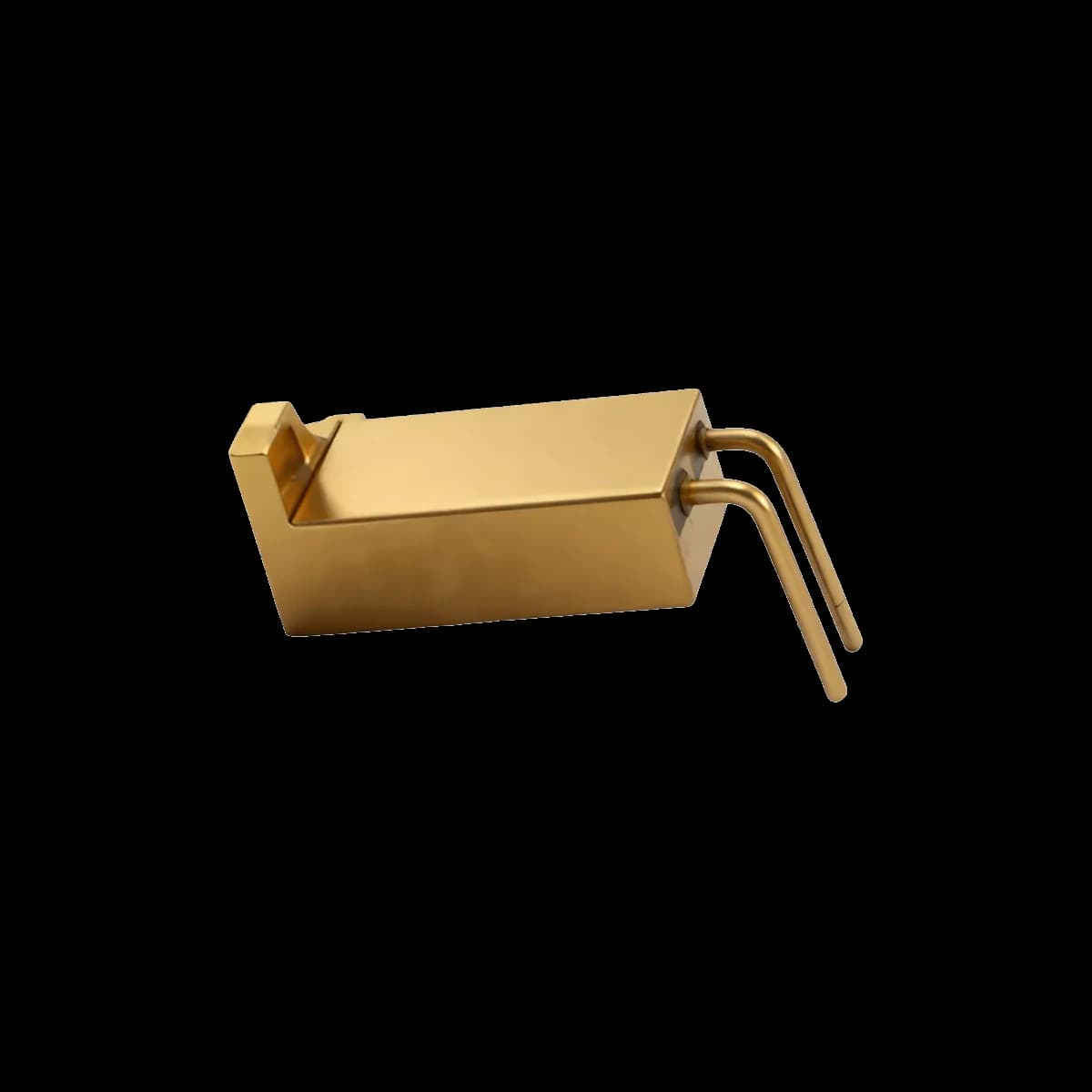

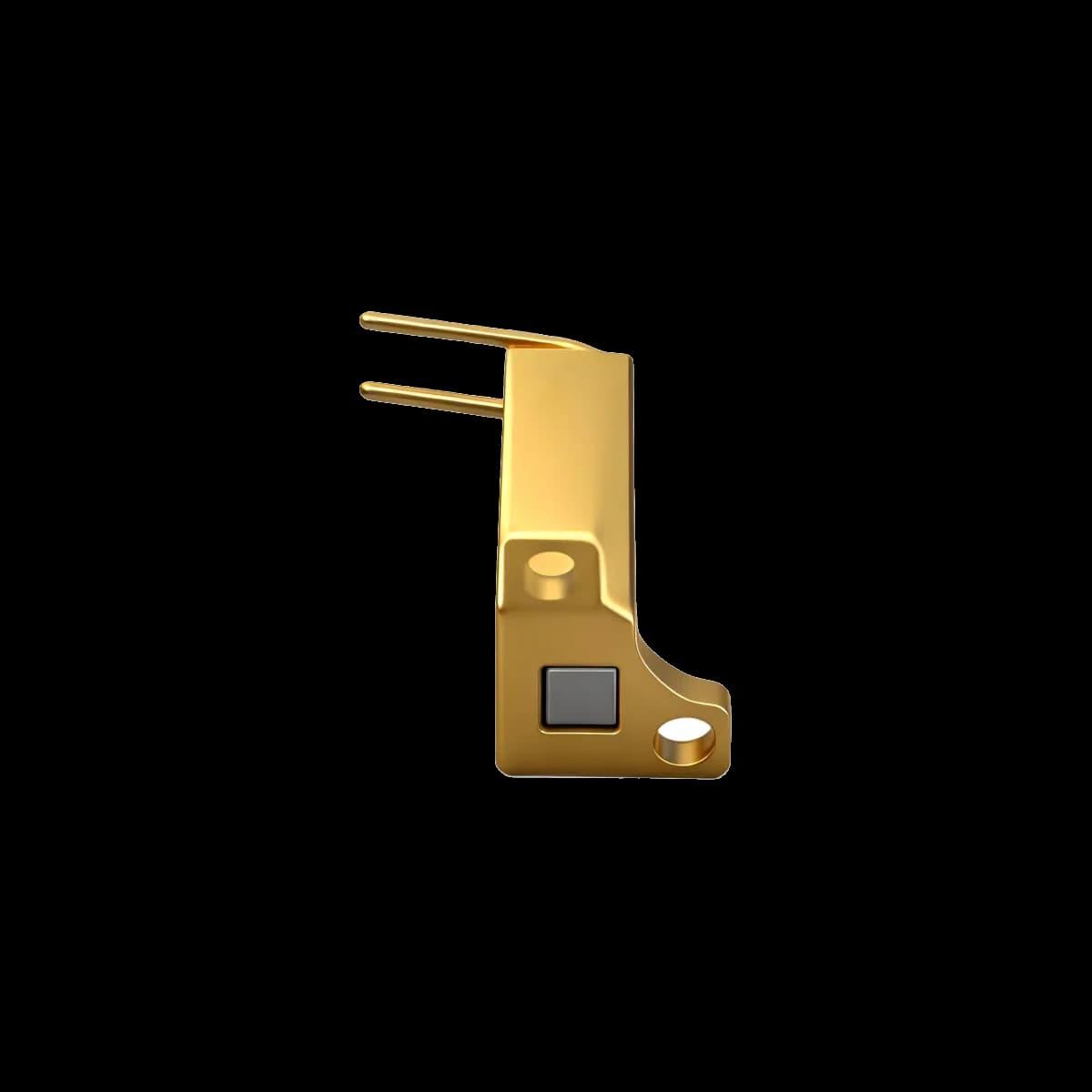

MINI-100 ≥100 µJ 1535 nm Microchip Laser, 3.5 ns and 2.5 g

From $100 USD / unitLowest published unit price at 1,000+ pieces. Shipping included.
Product modelMINI-100

MINI-100 is a 1535 nm erbium-glass microchip laser with a ≥100 µJ pulse-energy entry, a 3.5 ns optical pulse and a 2.5 g package. Its current manual also identifies Co:spinel in a model-specific laser diagram.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$200 USDPublished unit price
31–500 pieces$150 USDSave 25%
501–999 pieces$110 USDSave 45%
1,000+ piecesLowest unit price$100 USDLowest published price · Save 50%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a quote

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

MODEL-LEVEL DATA

Detailed MINI-100 Specifications

The technical material below is retained for this model only. Do not transfer a range, pulse, interface, mechanical or safety value from another 1535 nm product.

Specifications

MINI-100 is part of the 1535 nm erbium-glass pulsed laser family. Its current PDF lists pulse energy ≥100 μJ and optical pulse width 3.5 ns. Repetition-rate status is shown separately in the table. These are the source's distinct specifications; none establishes the distance or accuracy of a finished instrument.

MINI-100 — current Technical Downloads PDF specifications
ParameterCurrent PDF value
ModelMINI-100
Wavelength1535 nm
Laser classification — source entryClass 1 (classification report and evaluated configuration require confirmation)
Pulse energy≥100 μJ
Laser Pulse width3.5 ns
Drive pulse width≤ 1ms
Pulse repetition rate1~10Hz
Pulse stability10%
Raw Beam Diameter0.3 mm
Beam divergence angle≤ 10 mrad
Beam ModeTEM00
Operating temperature-40 ℃ ~ +65 ℃
Storage temperature-55 ℃ ~+ 85℃
Dimension (mm)14.5×6.3×4.37 mm3 (Three linear dimensions in mm are listed; the source’s mm³ typography is not a calculated volume.)
Weight2.5 g
Voltage2 V
Electric current12 A
ImpactMeets MIL-STD-810G test standards (1500 G, 0.5 ms)
VibrationMeets MIL-STD-810G test standards (20~2000 Hz/20 G)
Service life≥10 million times

Reading this model's optical specifications

The recorded raw beam diameter is 0.3 mm and divergence is ≤ 10 mrad. The current specification table does not state the divergence's full-angle/half-angle convention or the beam-width measurement method. Those definitions remain unspecified until a beam report confirms them. The beam-mode entry does not, by itself, supply a measured M² value.

Values above were checked against the current model PDF, including its inequality signs and stated measurement qualifiers. Source entries of “Class 1” require the corresponding classification report; shock, vibration and lifetime entries likewise need their stated test conditions. Missing tolerances and statistics are not reconstructed from another model or a paper.

Outline dimensions

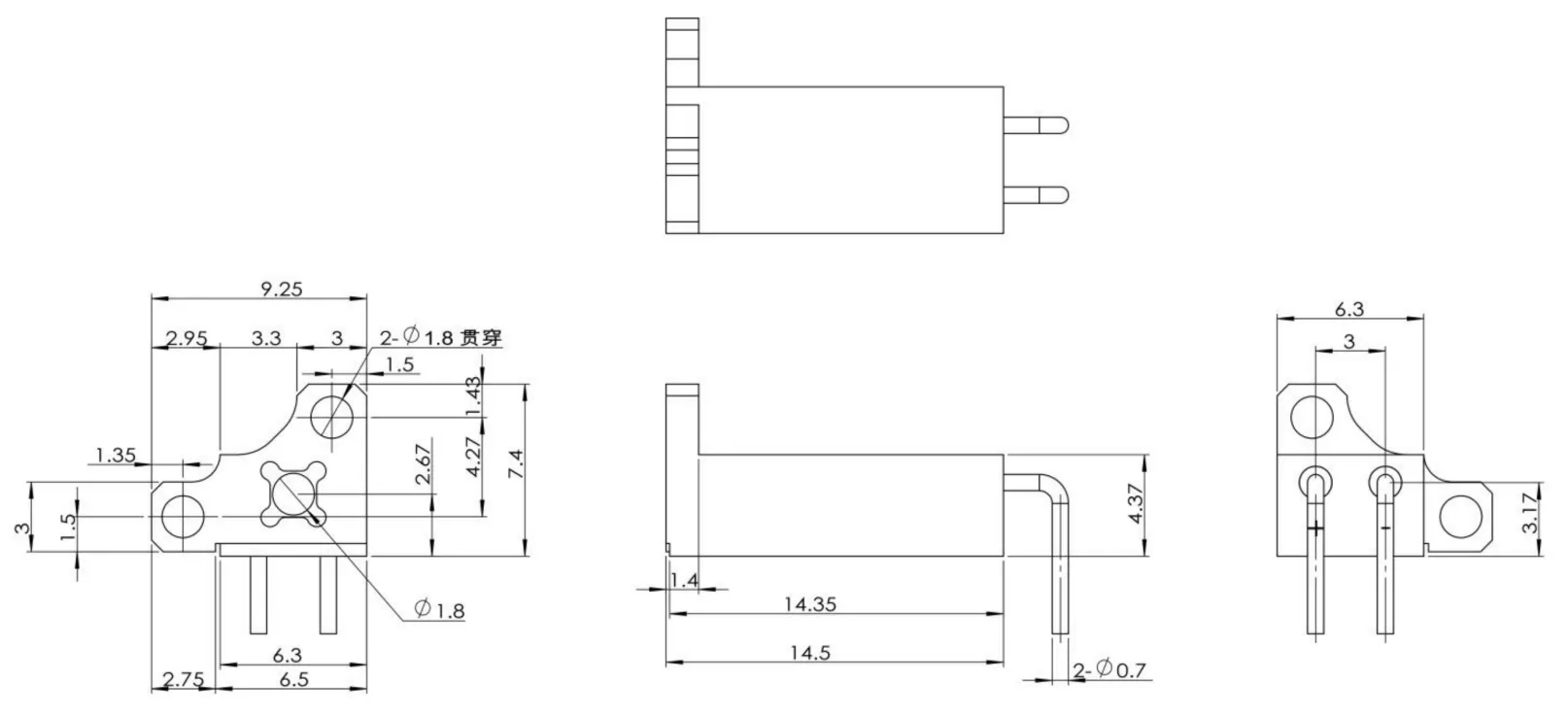

MINI-100 outline drawing retained from the original product record
MINI-100: original outline drawing. Verify the ordered variant and tolerances against its current mechanical drawing.
SOURCE CONDITIONS

Model-specific conditions and limits

Conditions are retained only when the source states them. They are not reconstructed from a nominal range or wavelength.

Operating conditions

Optical pulse and excitation pulse

MINI-100's table gives an optical pulse width of 3.5 ns and a drive pulse-width entry of ≤ 1ms. They describe different events: excitation loads energy into the gain assembly, whereas the emitted optical pulse is the short output event. They should not be interchanged when interpreting a trace or specification. This page provides no replacement driver settings; electrical connection and operating procedures belong to the supplied model manual.

Repetition rate, stability and temperature

Repetition-rate table entry: 1~10Hz. Where a source-version clarification appears above, confirm that individual rating before specifying the ordered configuration. The entry is not a specification for arbitrary bursts or continuous-wave operation. Pulse stability is recorded as 10%; the current table does not define whether this means RMS variation, peak-to-peak variation or another statistic. A meaningful comparison requires the same pulse count, repetition regime, warm-up state and measurement method.

The recorded operating range is -40 ℃ ~ +65 ℃; storage is -55 ℃ ~+ 85℃. Storage survival and emission performance are separate conditions. Temperature-dependent results should identify where temperature was measured, how the source was mounted and whether it had reached a stable thermal state.

What a useful optical test record contains

Record the model and serial number, output reference plane, wavelength, pulse-energy detector, temporal instrument response, measurement uncertainty and test temperature. Beam testing additionally needs x/y profiles, width definitions and the optical configuration. These details make results comparable without filling absent product specifications with assumed values. ISO 11146-1:2021; ISO 11146-2:2021.

HOW TO READ THE MEASUREMENT

1535 nm Pulsed-Source Integration Context

Technical principle

940 nm pumping: excitation and emission

ERDI's family description identifies a 940 nm pump architecture. This is a family-level statement; the retained MINI-100 table does not independently specify its pump diode or wavelength tolerance. Published bulk Er/Yb-glass experiments demonstrate 940 nm pumping with passive Q-switching, establishing a relevant physical example. Their pump powers and measured outputs are not MINI-100 specifications. Zou et al., 2017.

The pump supplies excitation to the sensitizer/gain system, while the useful laser emission occurs near 1.5 µm. In an Er/Yb architecture, ytterbium sensitization transfers excitation to erbium. The erbium laser transition supplies the output. Absorbed optical excitation, emitted pulse energy and electrical input are different quantities; their relationship depends on material properties and losses, not on the wavelength names alone. Liu et al., 2003.

Erbium glass: energy storage and optical gain

Erbium-doped glass is the active medium. Co-dopants and host composition influence absorption, transfer processes and available gain. The resonator feeds light through the excited material so that stimulated emission can amplify it. “Erbium glass” is a material class, not a universal composition: a product's glass grade, dopant concentrations and dimensions require its own specification. A paper's material recipe must not be assigned to this model. Liu et al., 2003.

Spinel: the passive Q-switch mechanism

The current MINI-100 manual's diagram labels its Q-switch “Co:spinel,” alongside the pump, gain medium and output coupler. This supplies a model-specific basis for discussing cobalt-doped spinel; the diagram does not specify dopant concentration or material grade. MINI-100 manual, page 2.

For a configuration using cobalt-doped magnesium aluminate spinel, Co²⁺:MgAl₂O₄ acts as a saturable absorber inside the resonator. Initially it contributes optical loss while excitation accumulates. As intracavity intensity rises, its absorption decreases, enabling a short pulse to develop; the gain then depletes and the absorber recovers. This is passive Q-switching. Undoped transparent spinel and cobalt-doped saturable-absorber spinel are different descriptions. MINI-100 is documented as using Co:spinel; its exact material grade and dopant concentration require the material record. Karlsson et al., 2000.

Output coupler: feedback and extraction

A laser resonator retains part of its circulating light as feedback. The output coupler transmits a fraction as useful emission while reflecting a fraction back into the cavity. Its role differs from a collimating lens or an external protective window. Coupling, gain and internal losses act together; increasing transmission does not universally increase output. Coating values, substrate and cavity geometry belong to the individual design, and are not specified here by analogy with another laser. Karlsson et al., 2000.

Square spots: identify the wavelength and plane

A square profile can refer to pump illumination, an output near-field image or a far-field distribution. These are different observations. A square glass element also does not prove a square intensity pattern. The available model table does not identify a square profile or its plane. Any future product-specific claim should therefore accompany a measured profile, wavelength, distance and x/y dimensions. A general discussion of pump shaping cannot establish the output shape.

Initial divergence and collimation

“Initial divergence” needs a defined position relative to external beam-conditioning optics. Full-angle and half-angle descriptions differ by a factor of two; asymmetric beams also need both transverse directions. Beam-width definitions must accompany the measurement. ISO 11146 supplies methods for widths, divergence and propagation ratios; it does not supply a value for this product. ISO 11146-1:2021; ISO 11146-2:2021.

Collimation changes the wavefront and effective waist. A finite beam still diffracts: in the ideal Gaussian description, a larger waist corresponds to smaller far-field divergence at a fixed wavelength. Real-beam quality and optical aberrations affect the result. This explains why a bare source and an assembled, beam-conditioned optical instrument may have different diameter and divergence entries. Neither “collimated” nor a single spot photograph proves zero divergence. MKS/Newport: Gaussian Beam Optics; MKS/Newport: Focusing and Collimating.

Pulse energy describes emitted energy per pulse; its effect cannot be separated from pulse width, divergence, optical losses, receiver threshold and the stated target/atmosphere conditions. It is not a substitute for a model-specific near- or long-range acceptance test.

APPLICATION REVIEW

Source-stated application context

Application labels indicate evaluation context, not automatic fitness for a finished system.

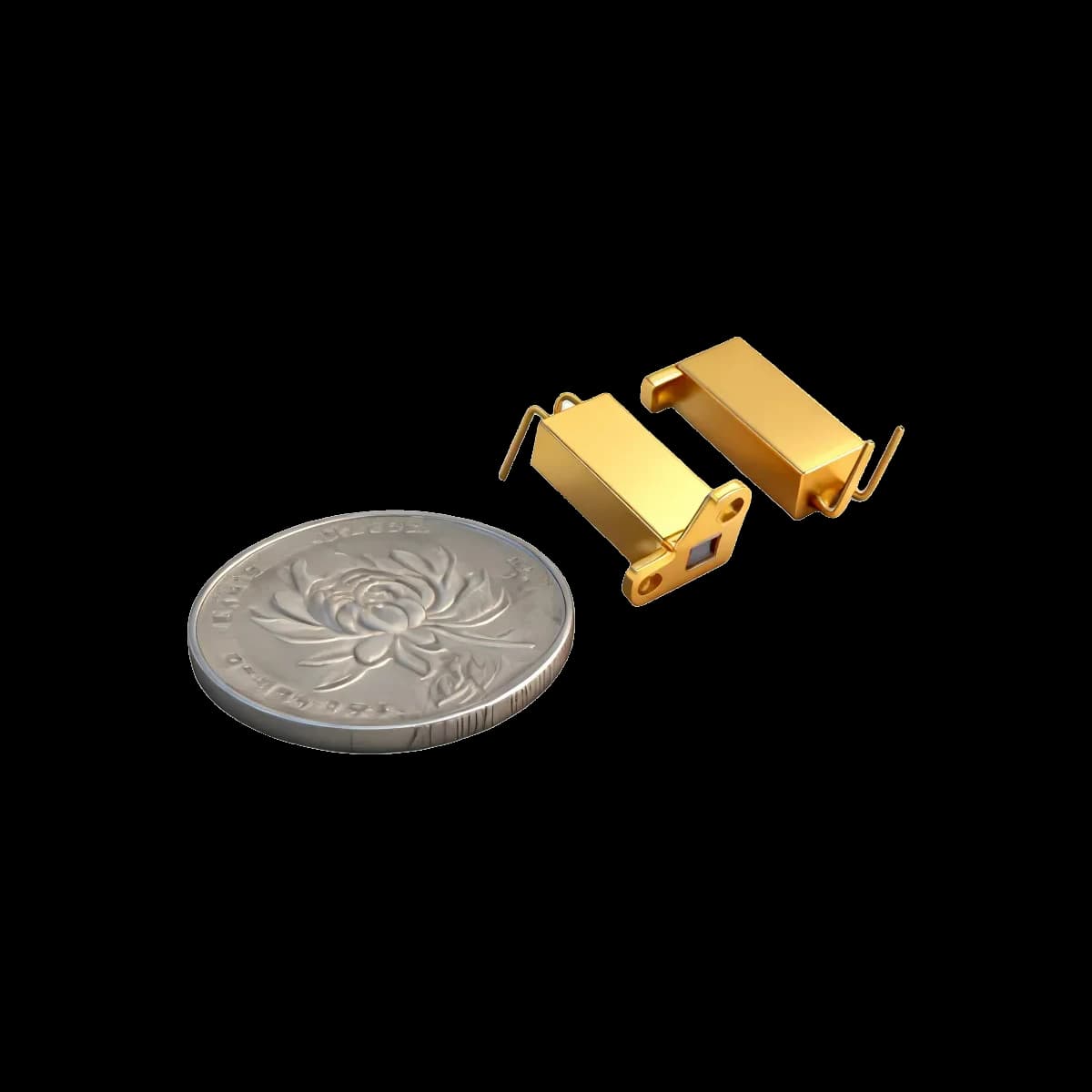

The 14.5 × 6.3 × 4.37 mm enclosure gives MINI-100 a different mechanical profile from the 7 g ER100 source despite their shared minimum-energy class. The current table also records a 1–10 Hz repetition regime, 0.3 mm raw beam diameter and divergence ≤10 mrad. None is a complete system-level ranging specification.

For this model, the current manual’s Co:spinel label supplies a direct basis for discussing a passive Q-switch component, without specifying its material grade or dopant concentration. Published erbium-glass research explains the general mechanism; its measured energy, pump power and beam quality are not transferred to MINI-100 as product claims.

INTEGRATION CHECK

Confirm short- and long-distance acceptance conditions

  • Define minimum distance, target material, reflectance, size and incidence angle.
  • Check receiver recovery, optical-axis overlap and strong-return handling at the intended near limit.
  • Verify supply tolerance, peak current, grounding, interface levels, connector and timing with the ordered revision.
  • For long-distance acceptance, state target geometry, visibility, weather, background and required detection probability.
  • Test with the installed window, boresight, field of view, enclosure and thermal path rather than a bare module alone.
  • Evaluate accessible emission, labels and failure conditions again for the finished laser product under IEC 60825-1.
TECHNICAL FAQ

Questions to resolve before design release

How does MINI-100 differ from ER100?

Both current records state a minimum pulse energy of 100 µJ, but MINI-100 lists 3.5 ns optical pulses and a 2.5 g package. ER100 has different pulse and mechanical entries. The matching energy class does not make the two source configurations interchangeable.

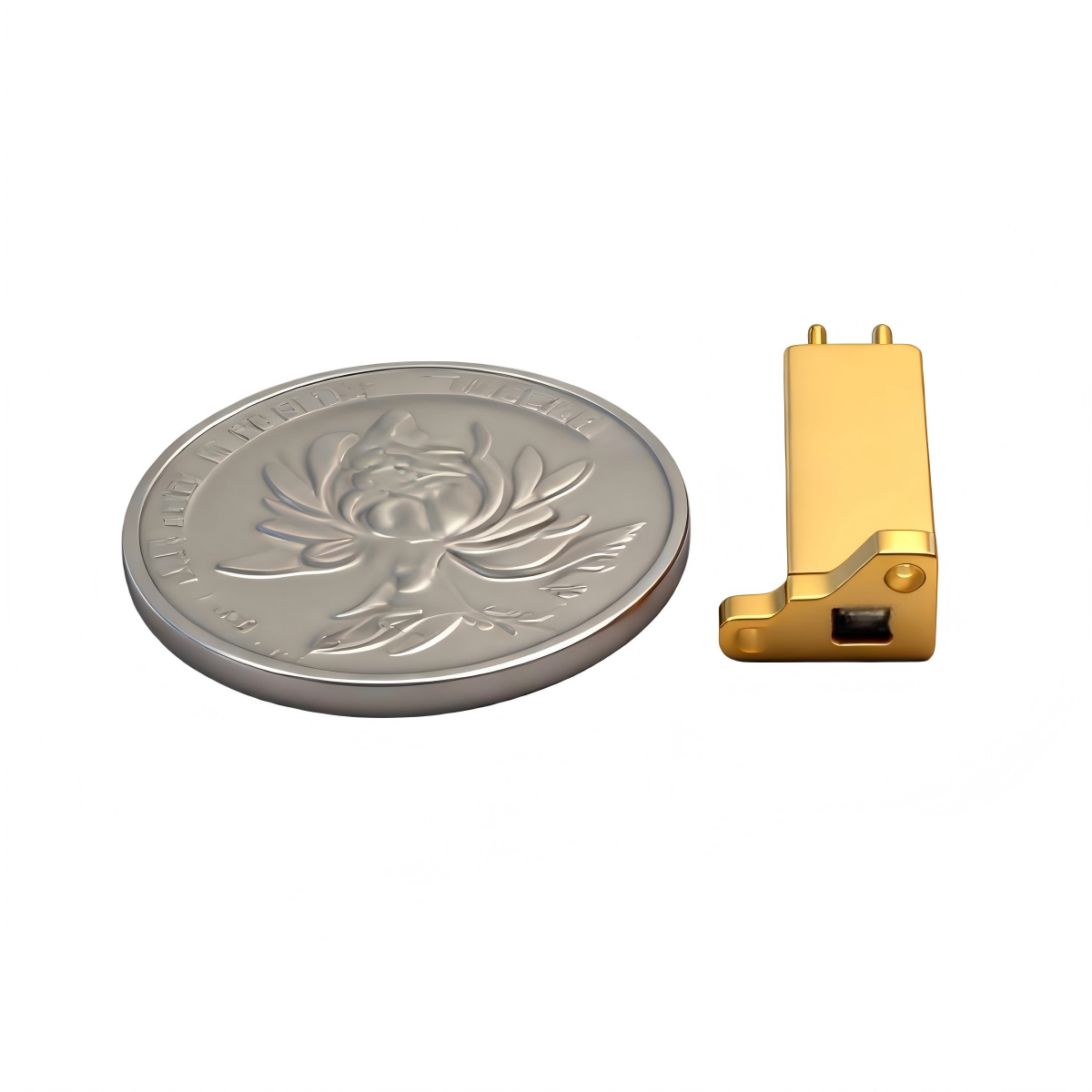

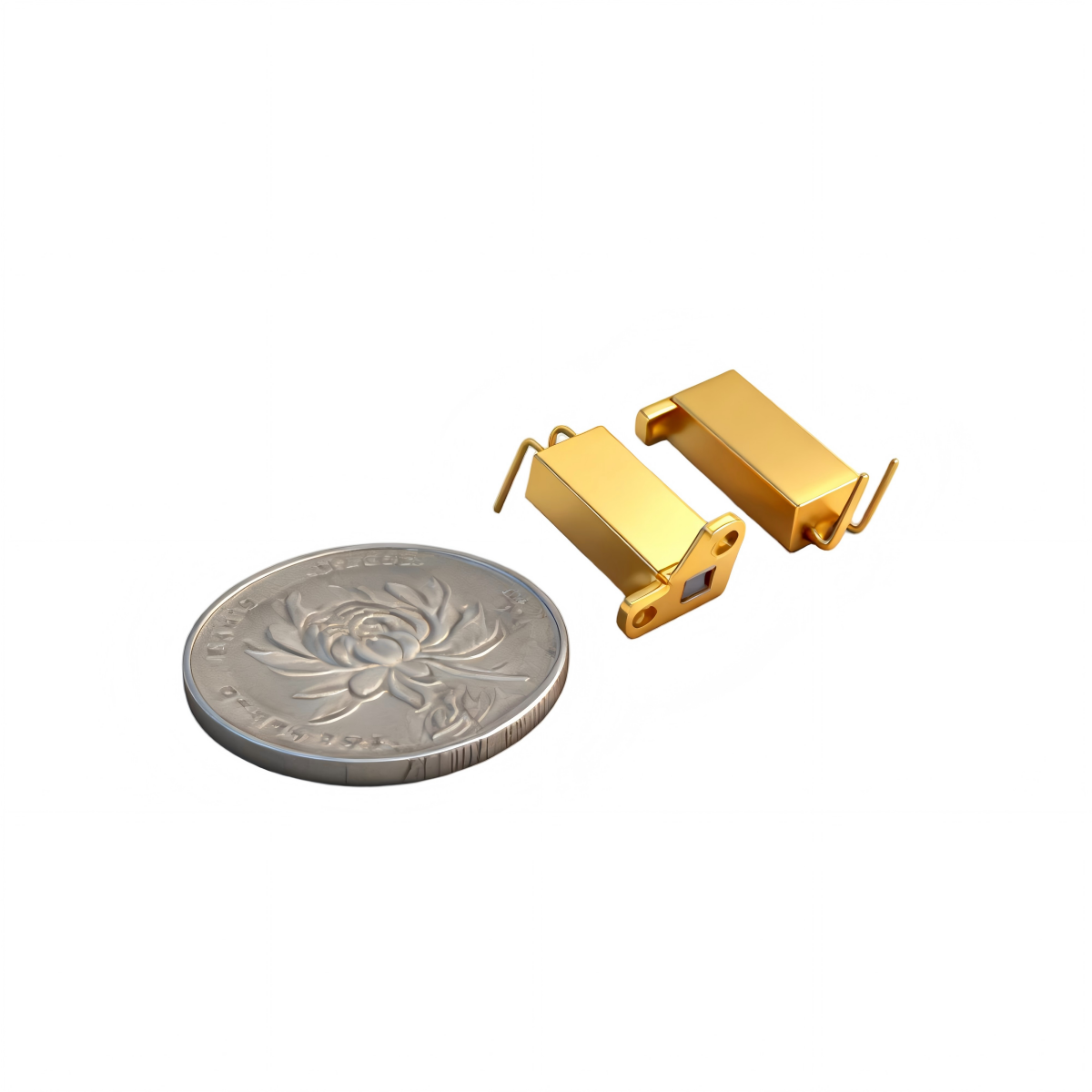

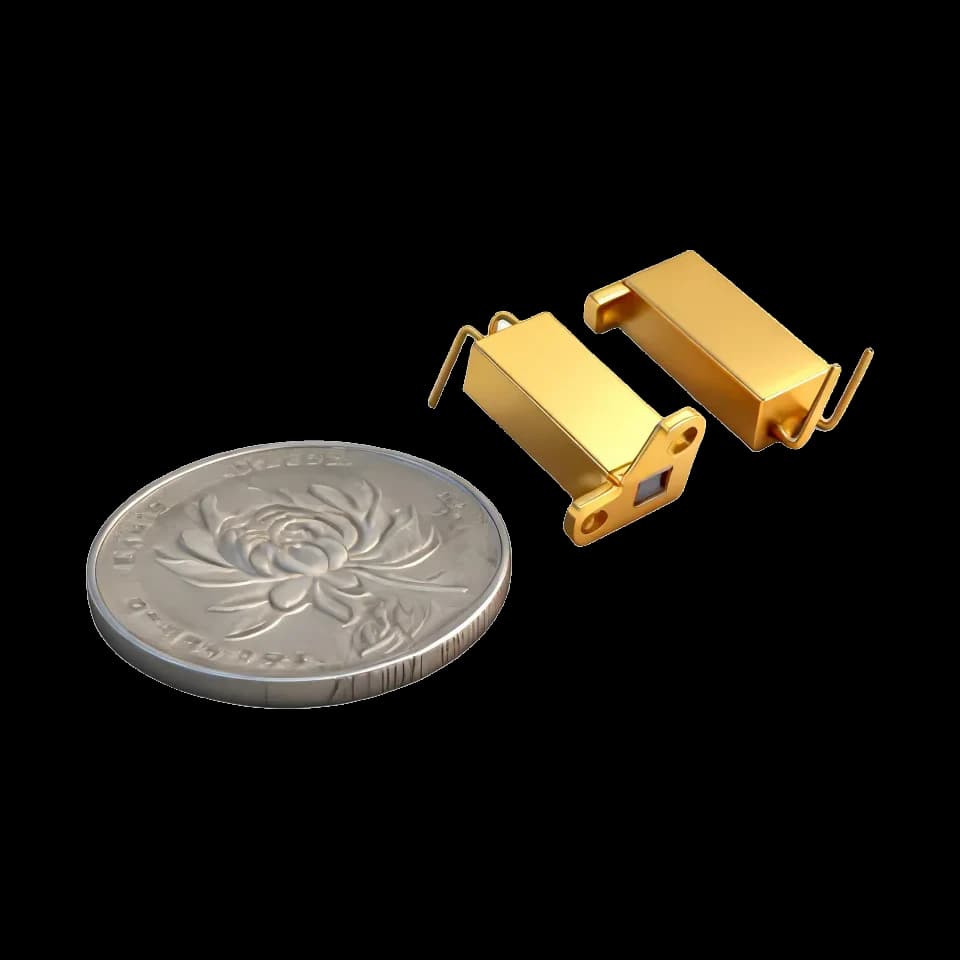

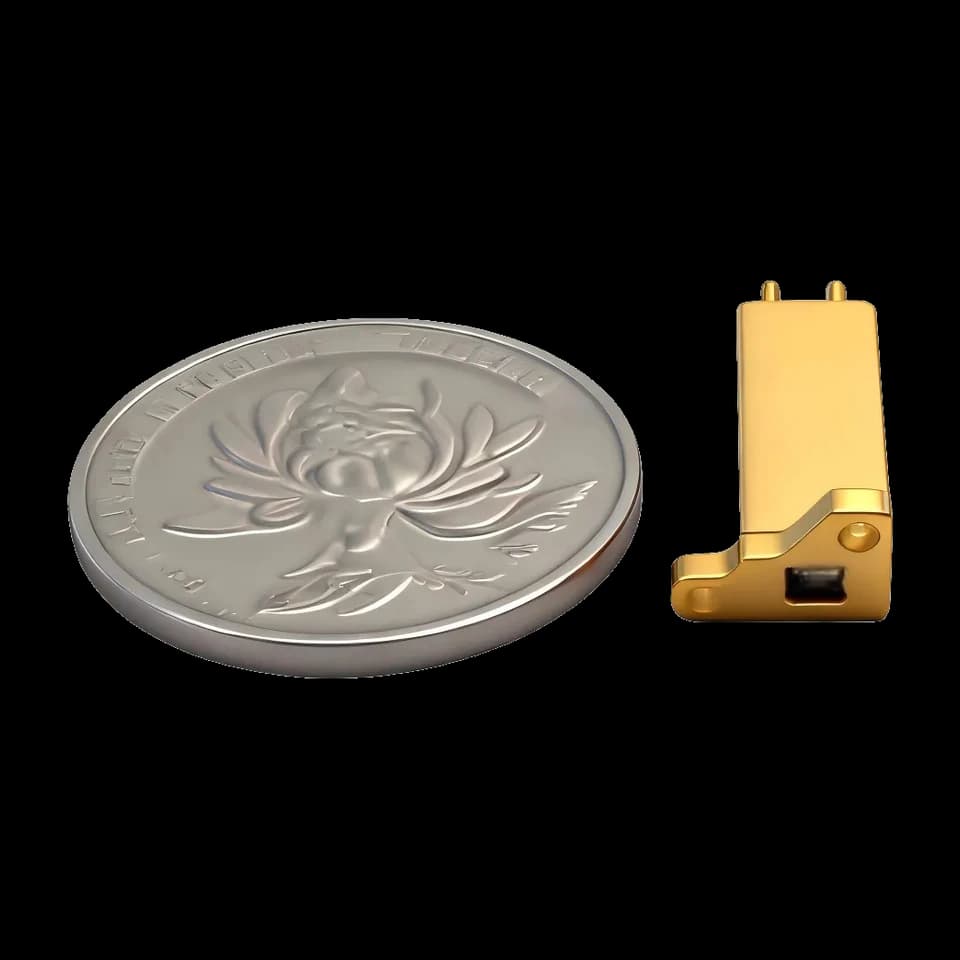

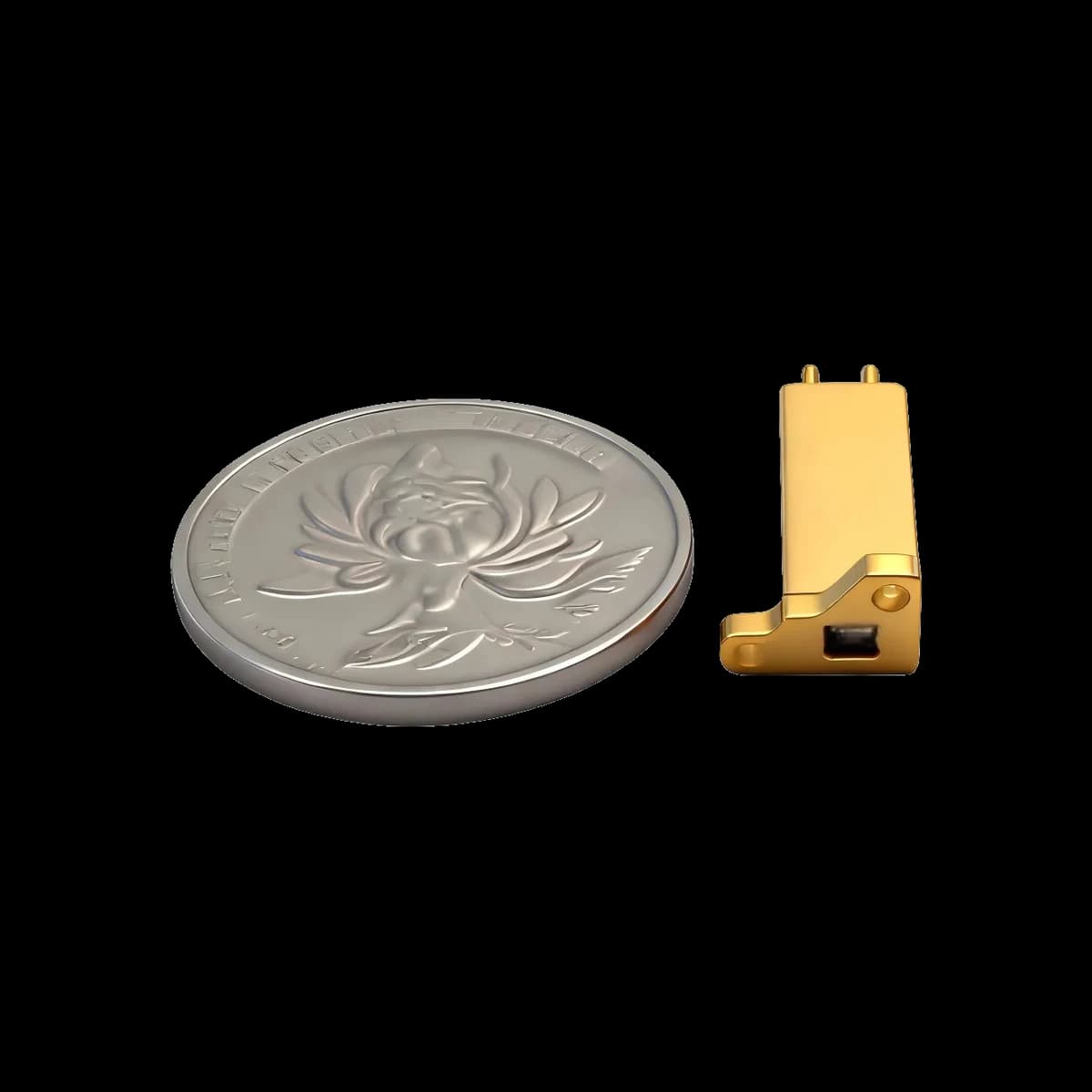

What is the documented MINI-100 enclosure size?

The current table lists three linear dimensions of 14.5 × 6.3 × 4.37 mm and a mass of 2.5 g. These are model-specific package values. The source’s dimensional typography must not be mistaken for a measured volume or a complete mounting-tolerance definition.

Is the MINI-100 Co:spinel description model-specific?

Yes. The current manual’s diagram labels the Q-switch Co:spinel. That supports the component description, but it does not specify a dopant concentration, grade or universal composition. The cited research is background on the mechanism, not evidence for an additional MINI-100 material or output specification.

Does MINI-100 guarantee a 3 km or 4 km instrument range?

No distance follows directly from the MINI-100 source-energy entry. A complete rangefinder depends on its receiver, optics, target and atmospheric conditions. Any 3 km, 4 km or other finished-instrument claim needs the relevant rangefinder model’s controlled specification rather than the source’s name or pulse energy.

What beam qualifications should accompany the miniature package claim?

The table lists a 0.3 mm raw beam diameter and divergence ≤10 mrad, but omits the width method and angular convention. The compact enclosure does not remove those measurement questions. A numerical M² result or final output-beam specification requires separate model-bound evidence.

ENGINEERING REFERENCES

Product evidence and general technical context

The model PDF controls model claims. Public references below explain general engineering principles only.

  1. MINI-100 controlled model datasheetModel identity and the product-specific values and qualifications discussed on this page.
  2. Karlsson et al. (2000), diode-pumped Er–Yb:glass laser with a Co²⁺:MgAl₂O₄ saturable absorberPublished background on passive Q-switching in erbium–ytterbium glass; does not establish this model’s energy, pump or material specification.
