ERDI OEM LASER MODULE

LRF22VB 200 Hz DToF Sensor for Robot Evaluation, 20 m at 90% Reflectivity

$90 USD / unitBase B2B price; approved quantity tiers are shown below. Shipping included.
Product modelLRF22VB

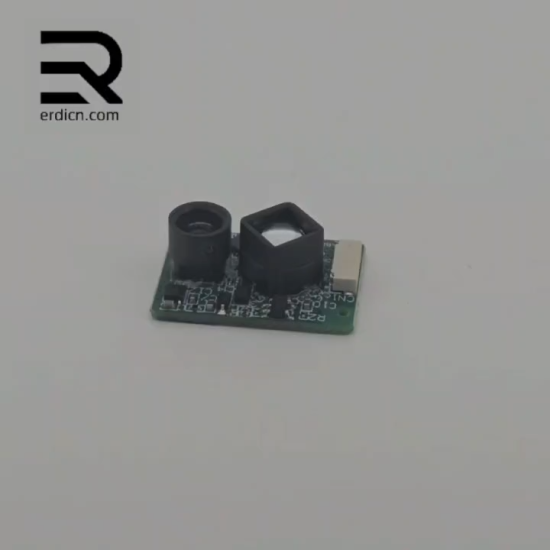

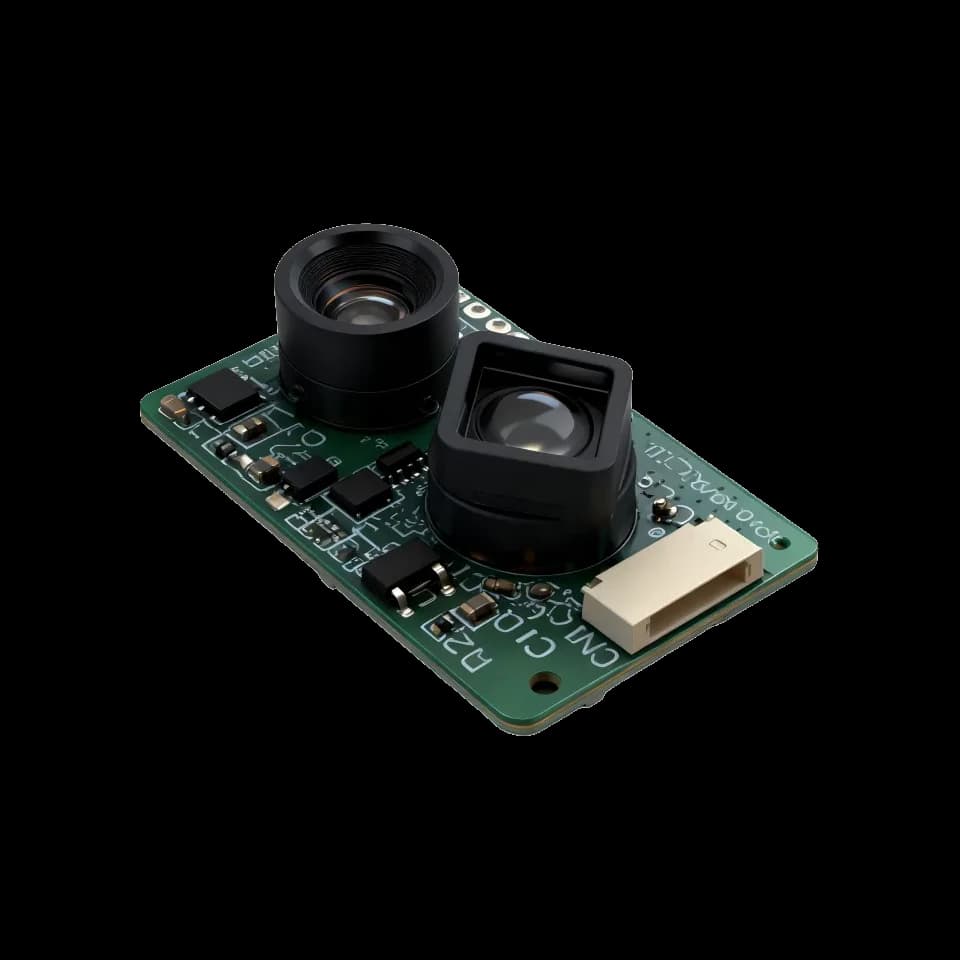

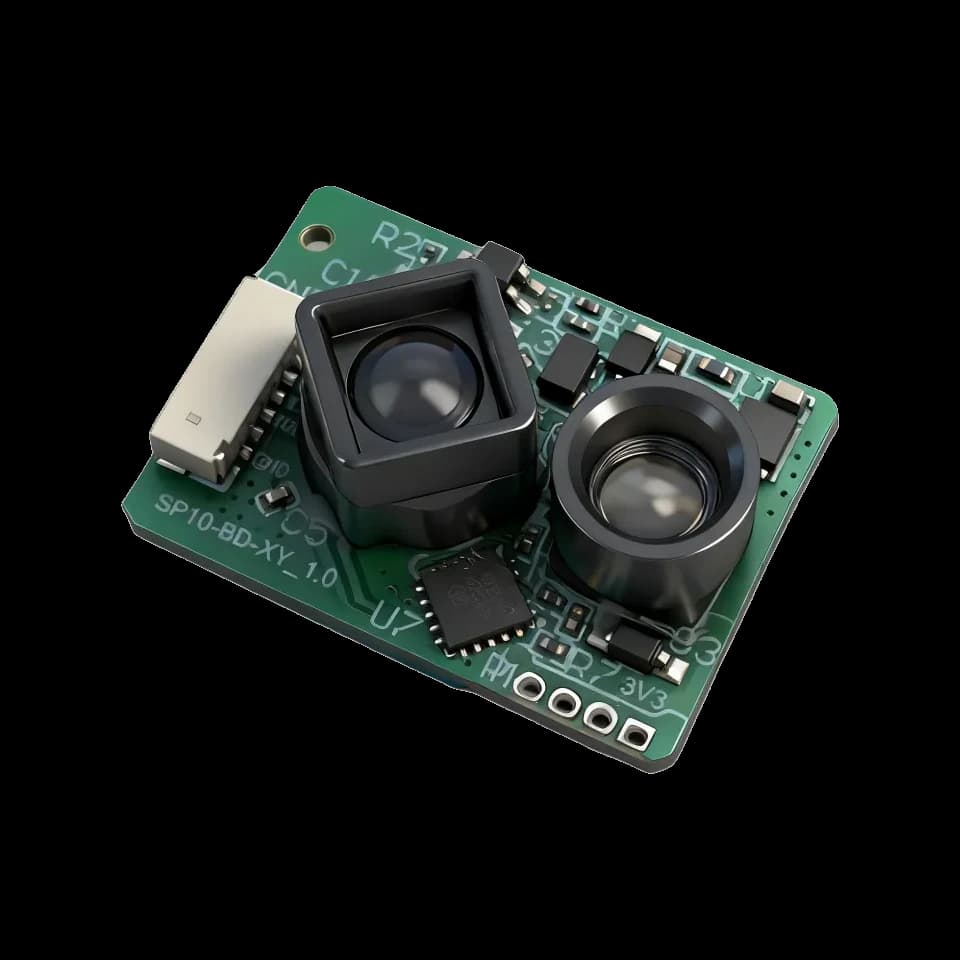

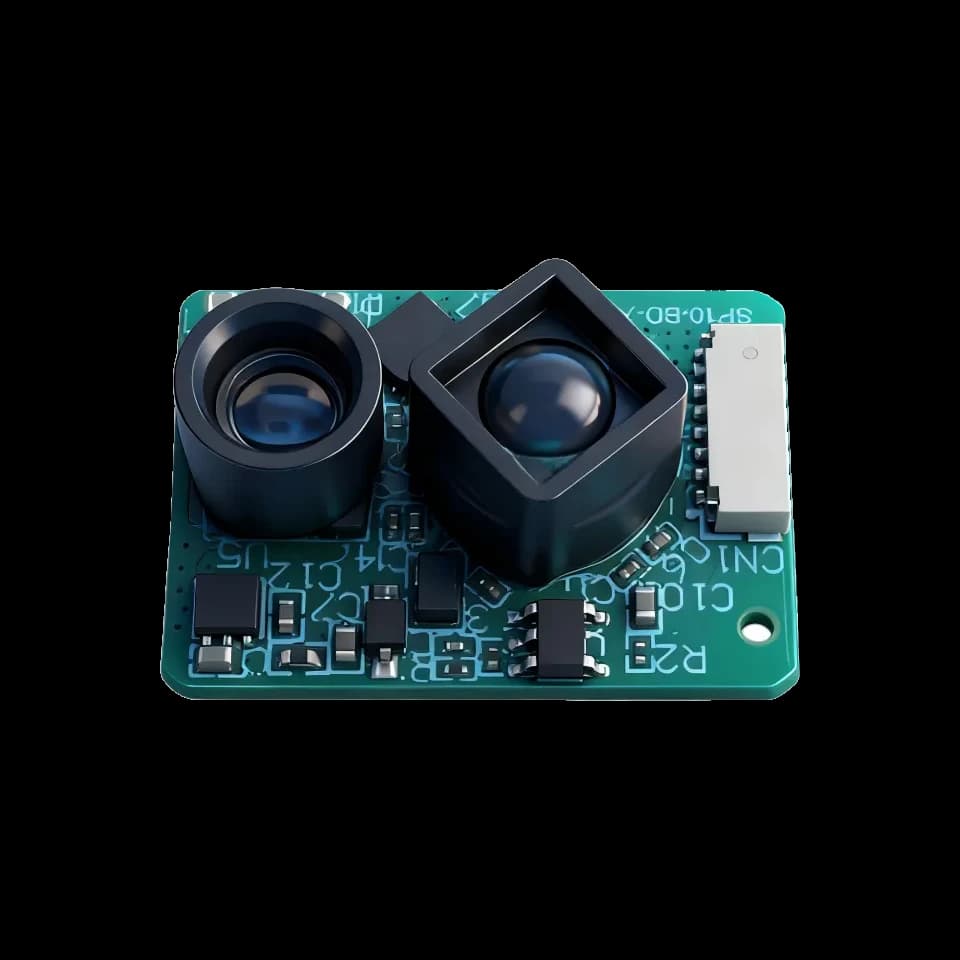

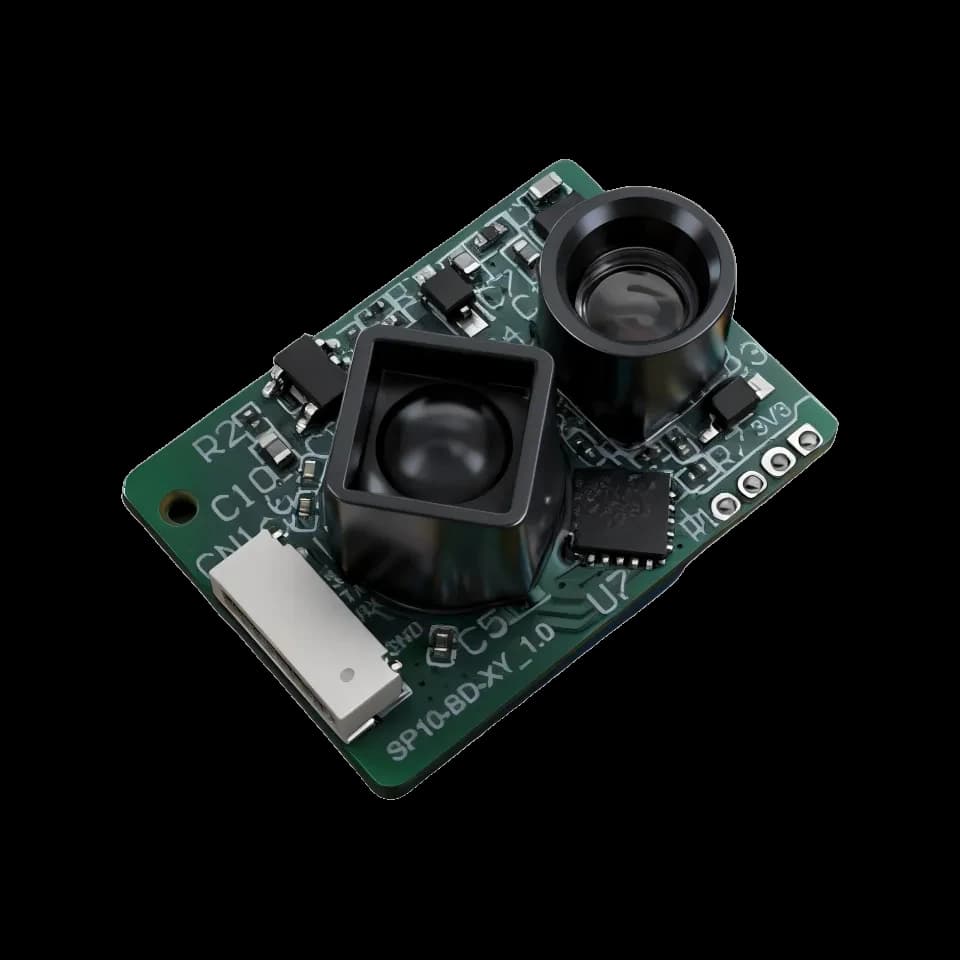

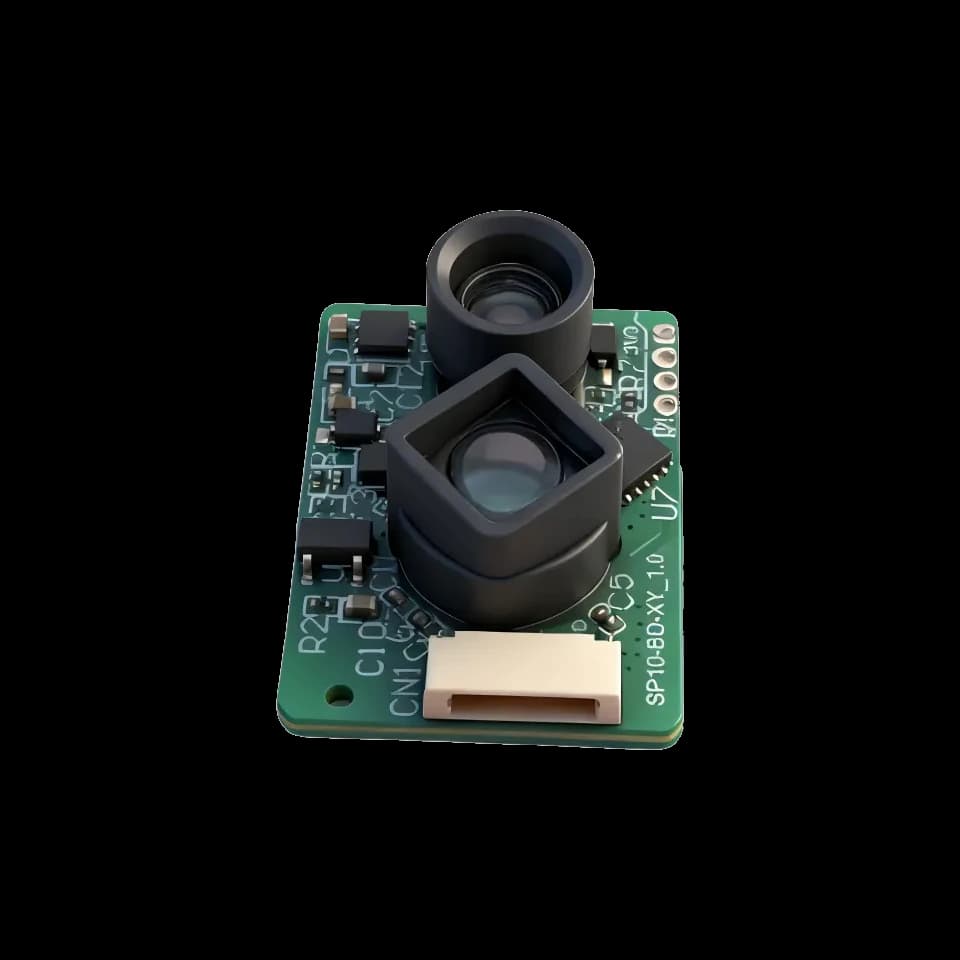

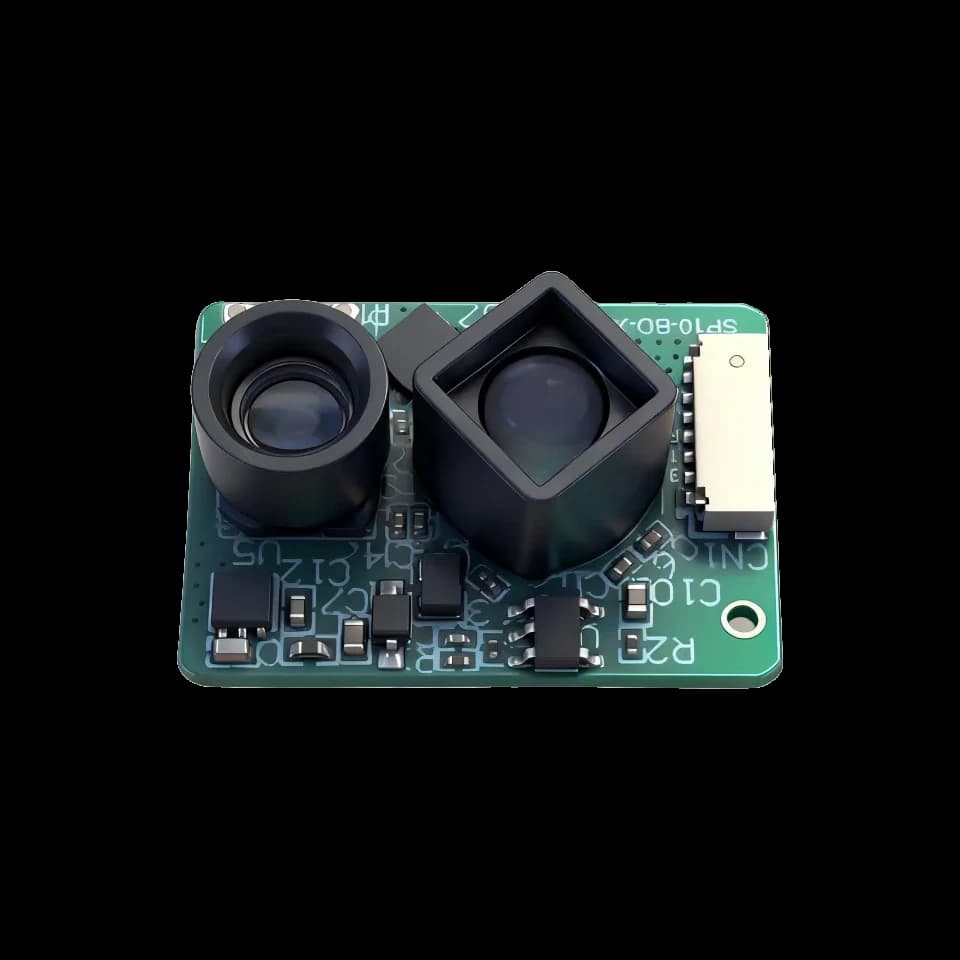

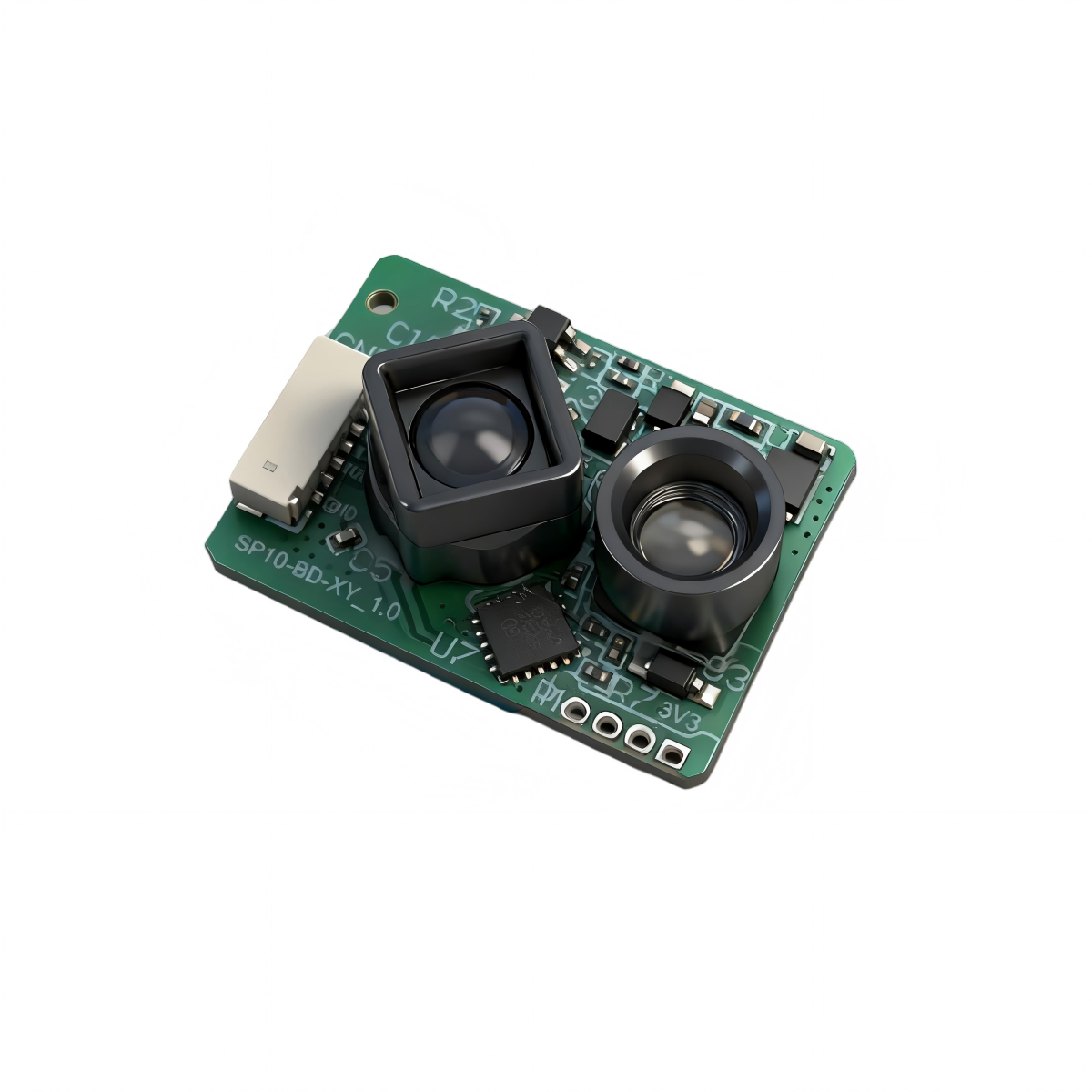

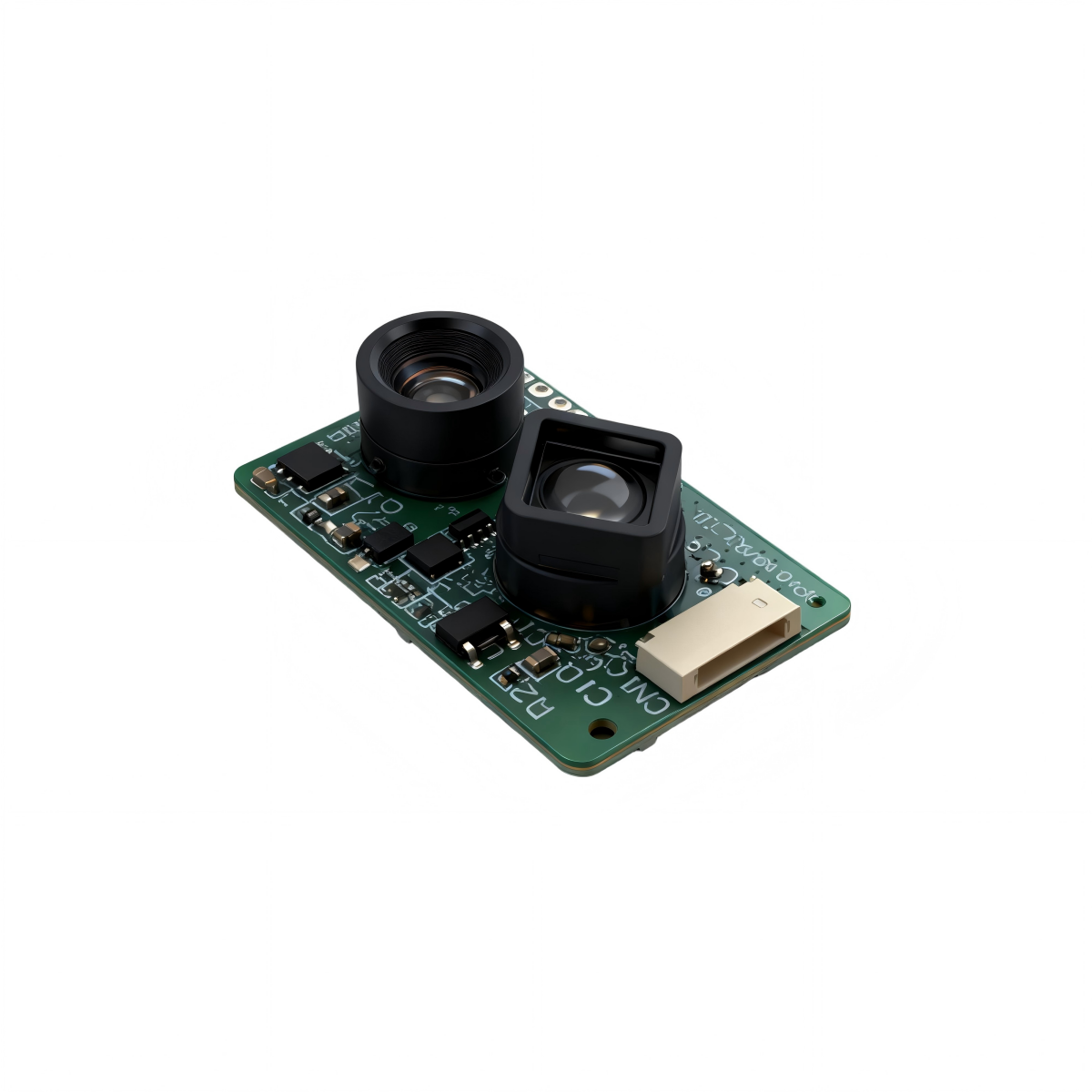

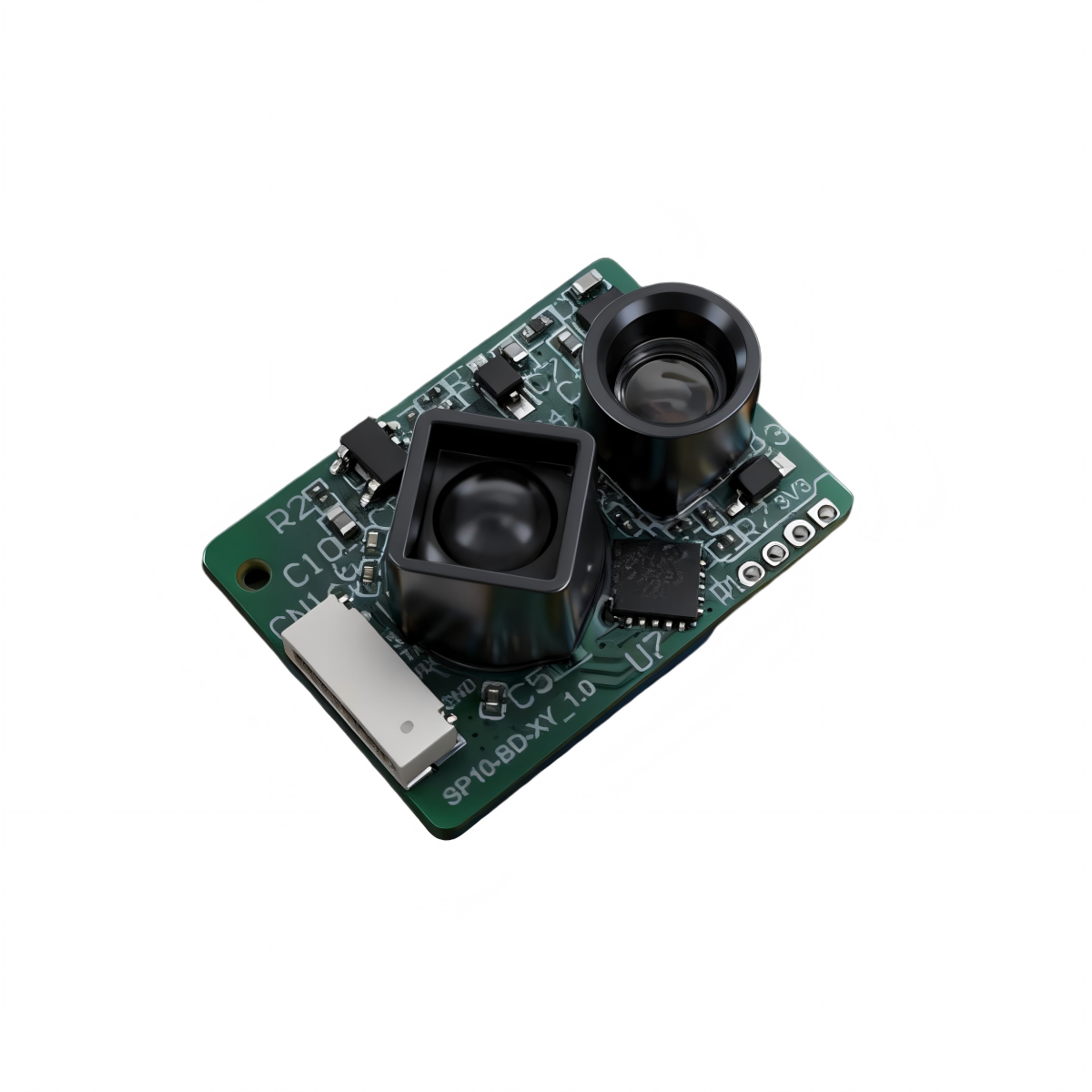

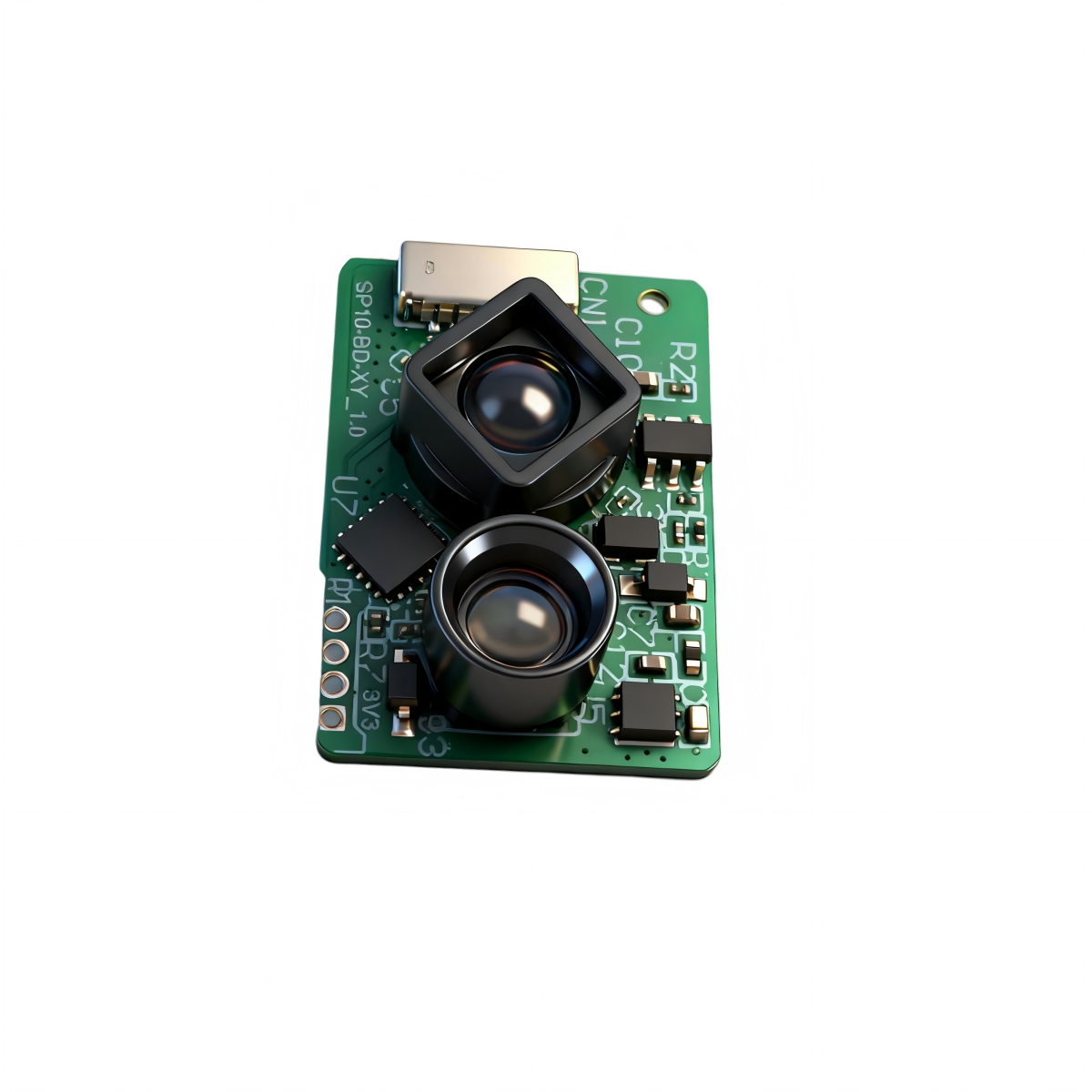

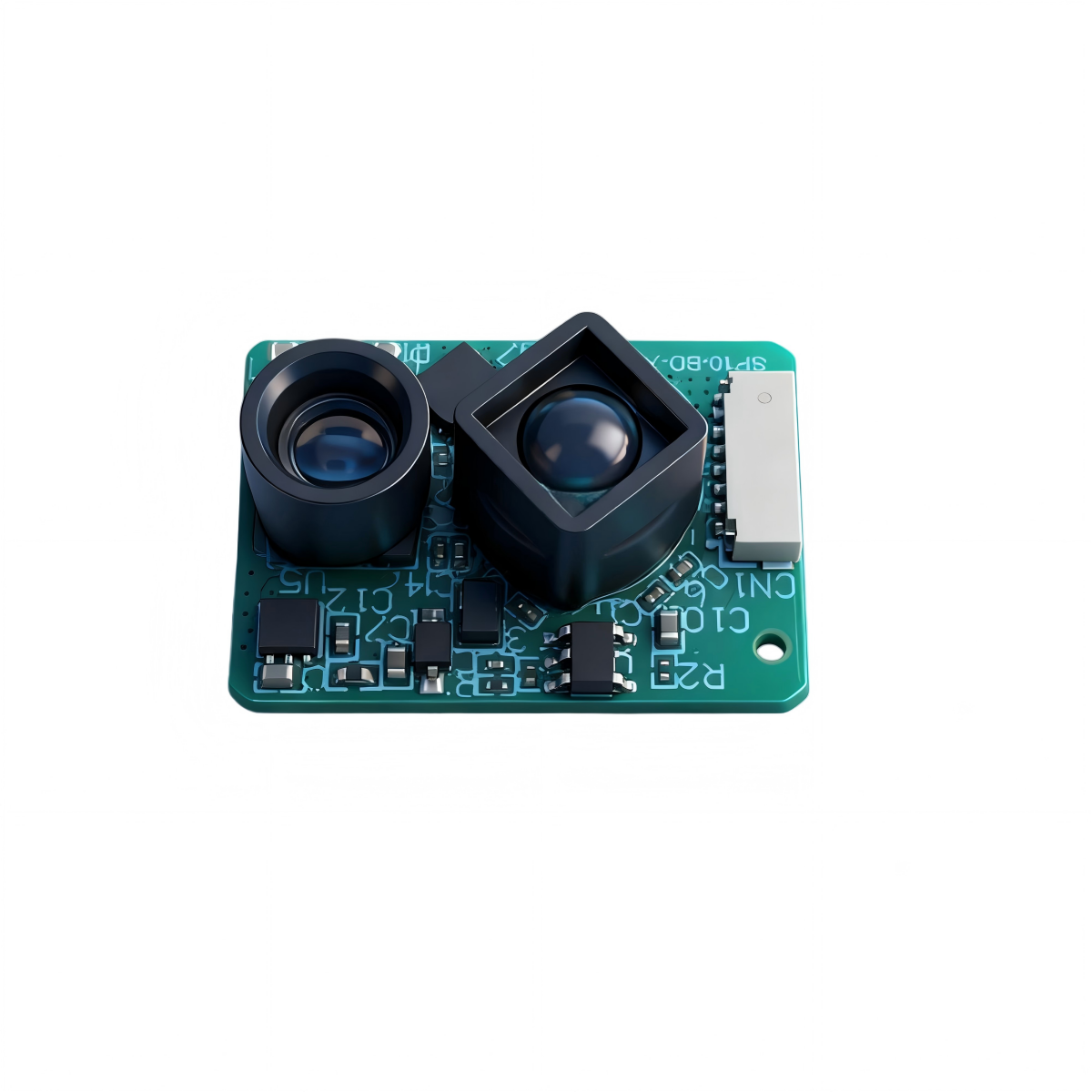

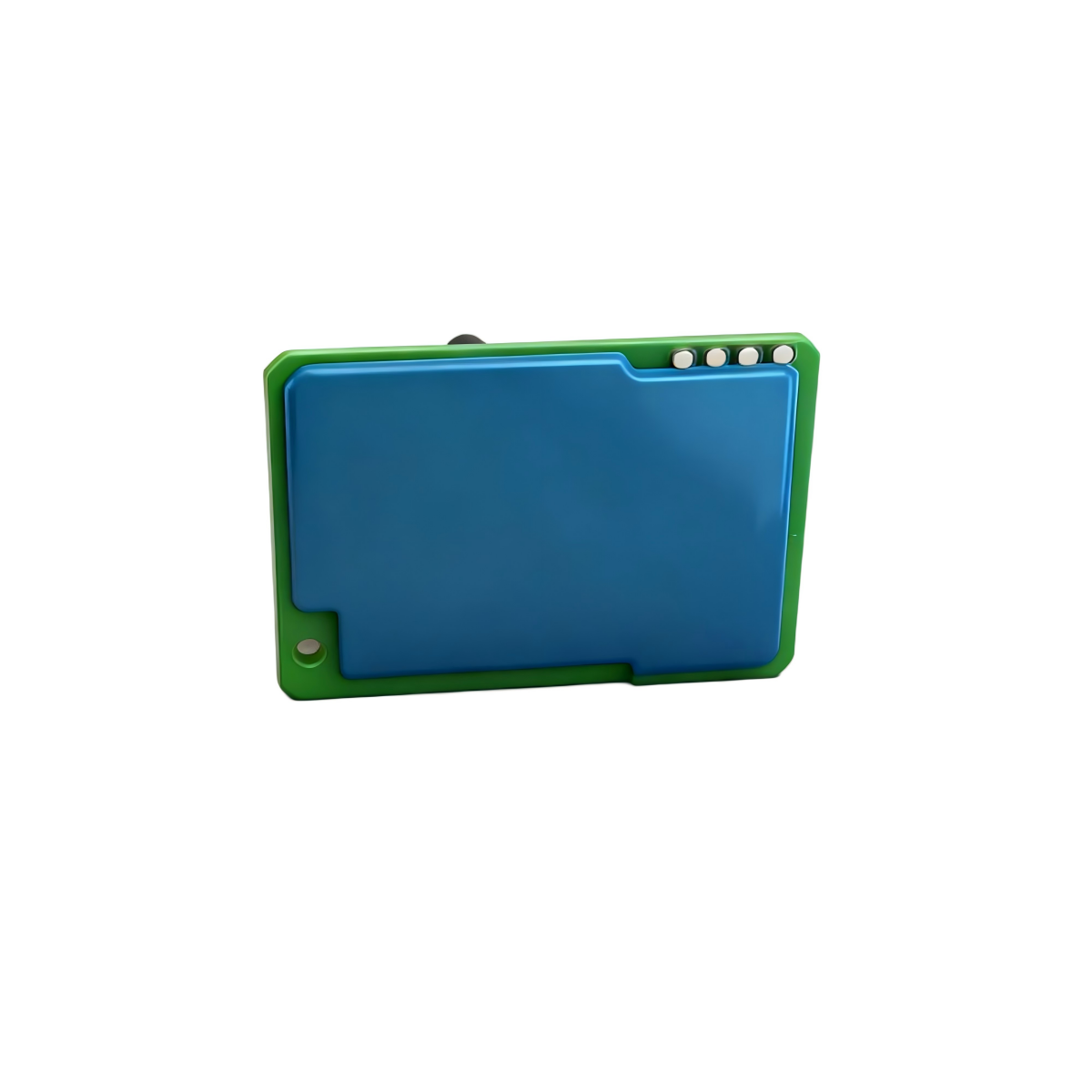

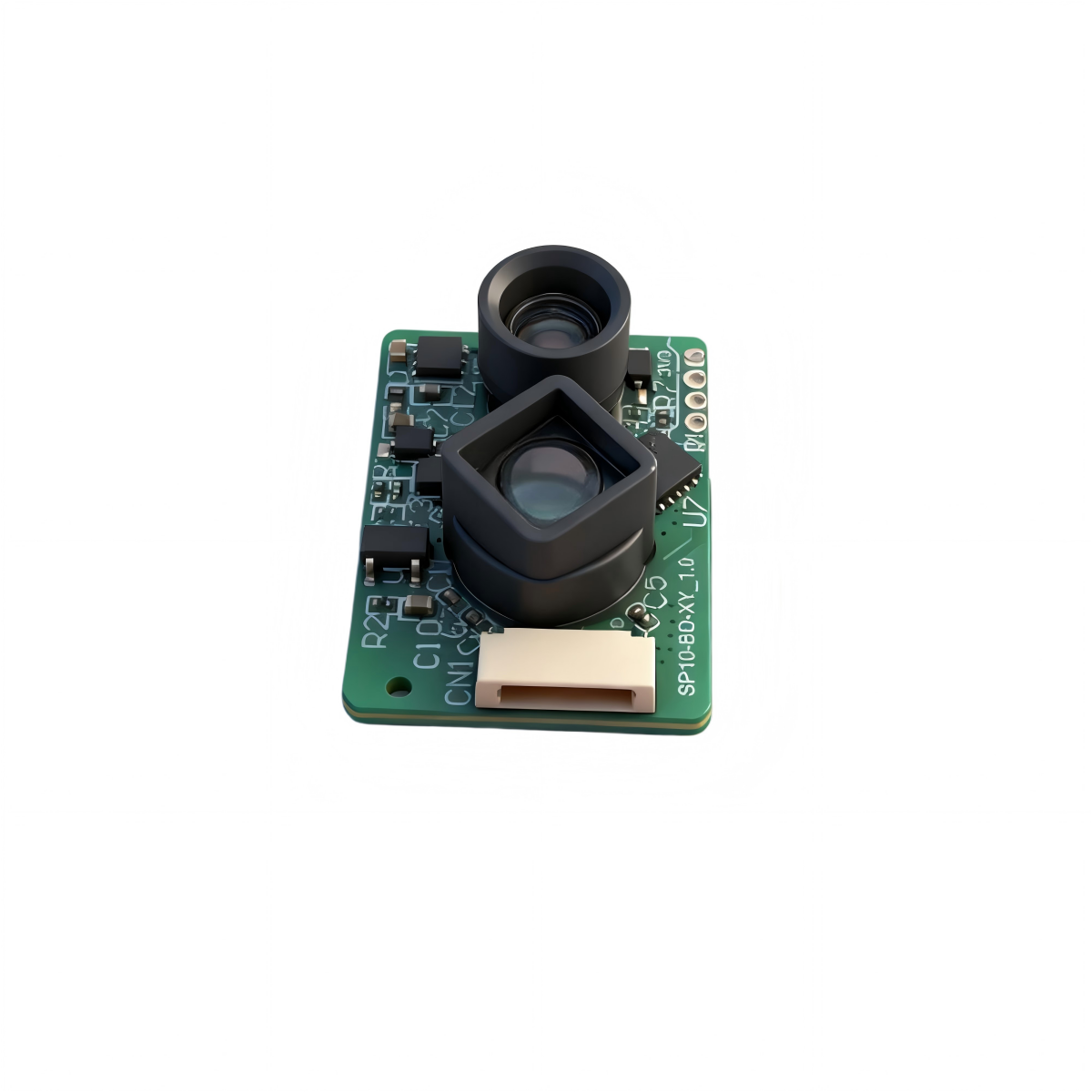

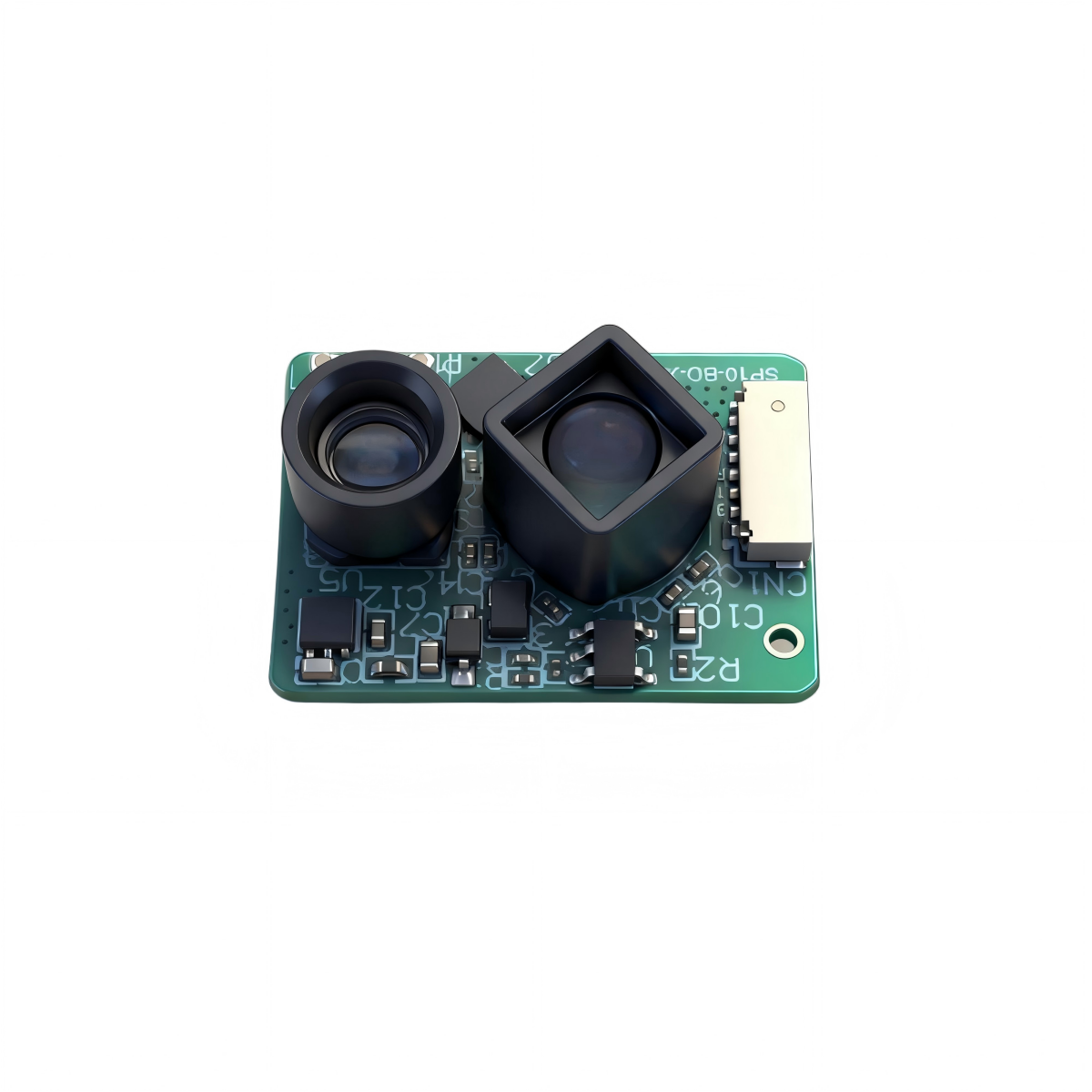

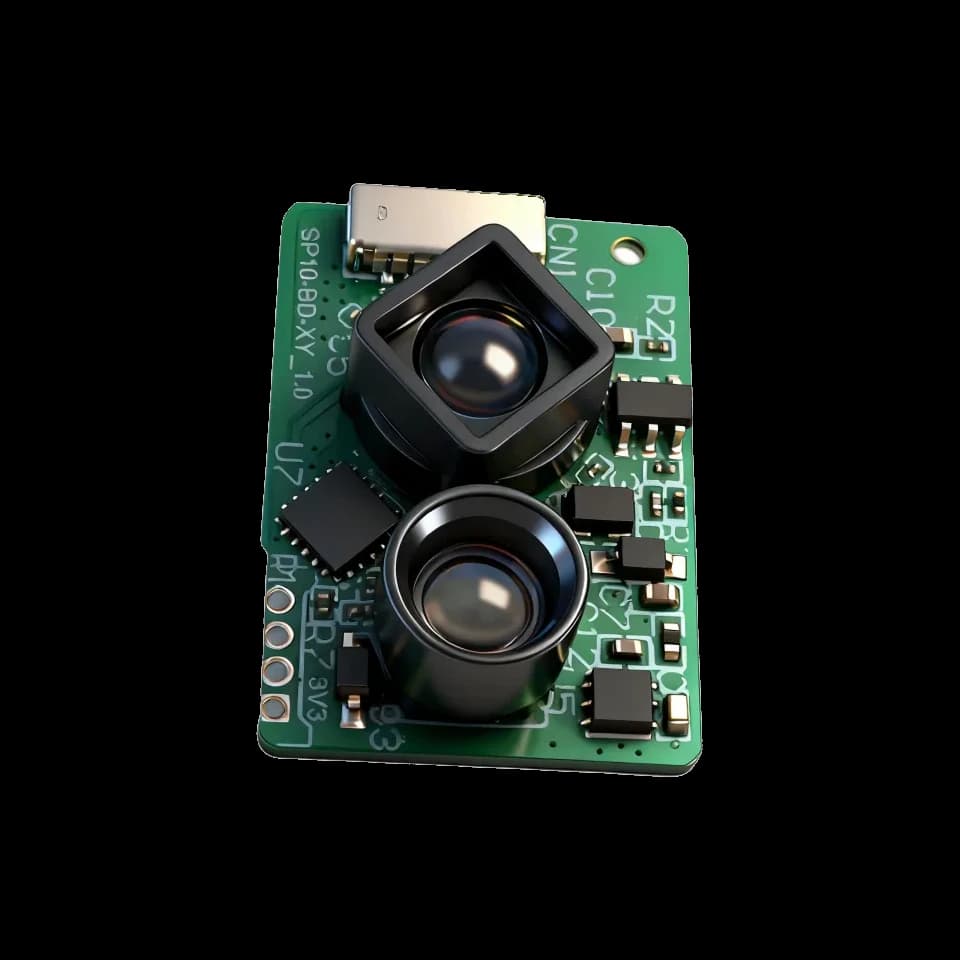

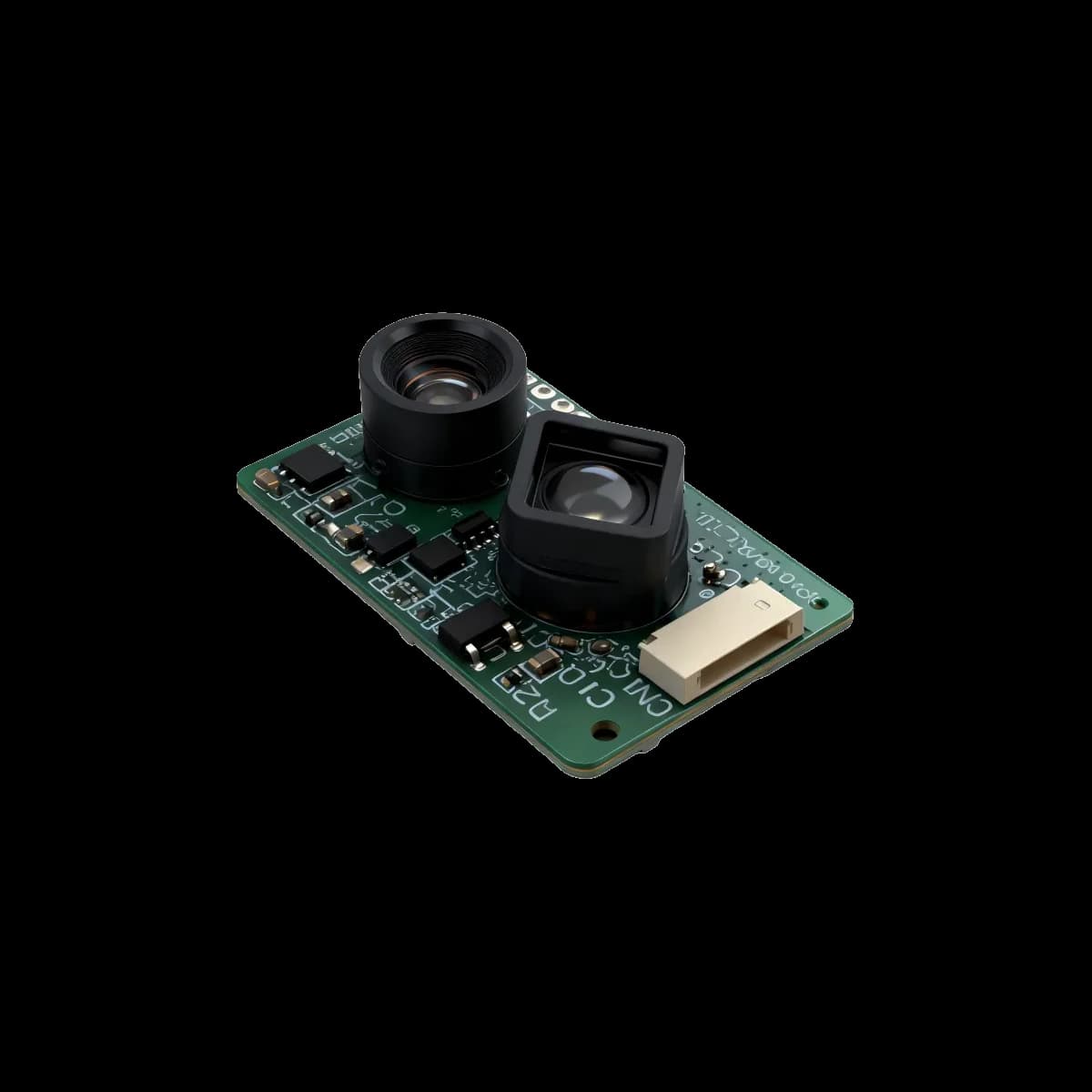

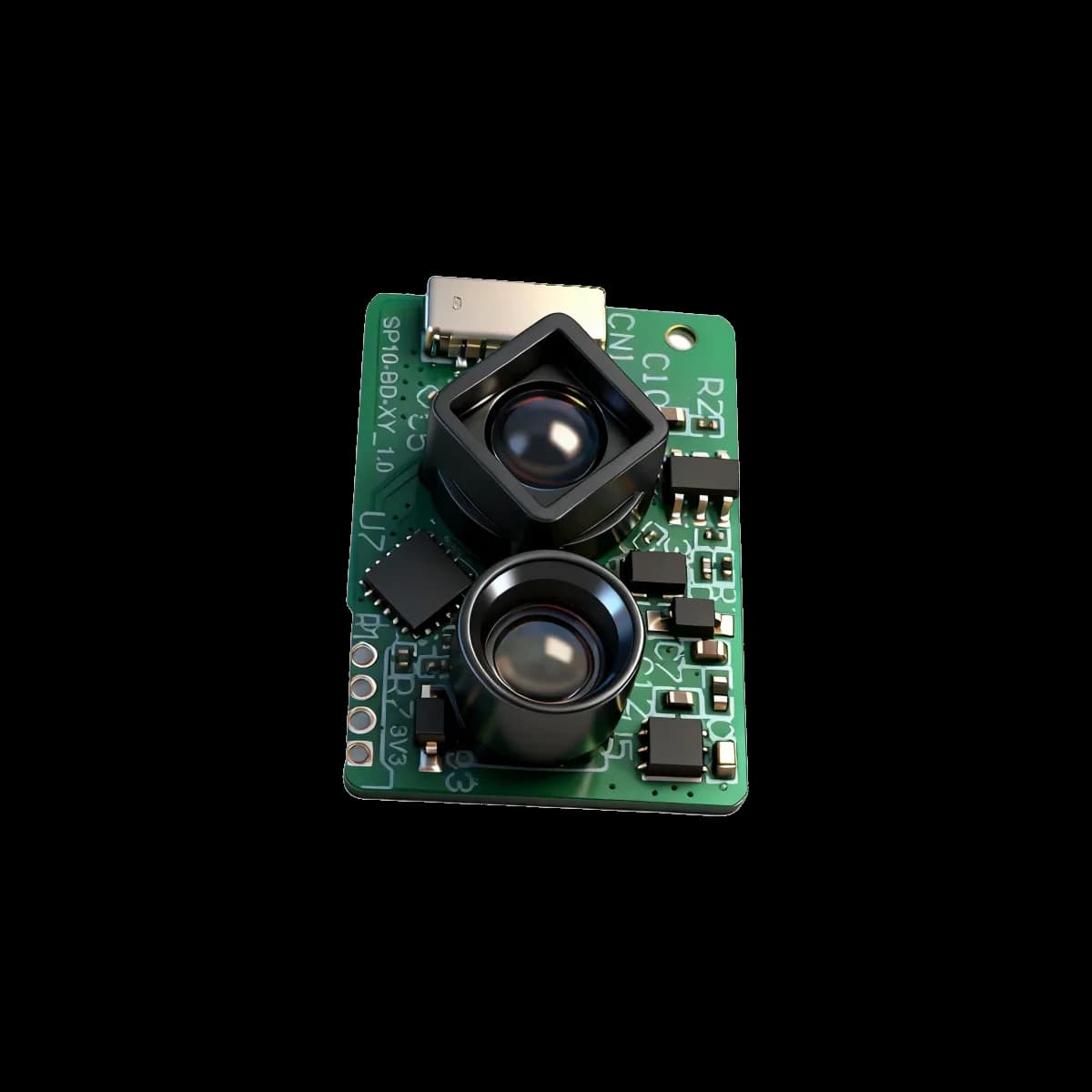

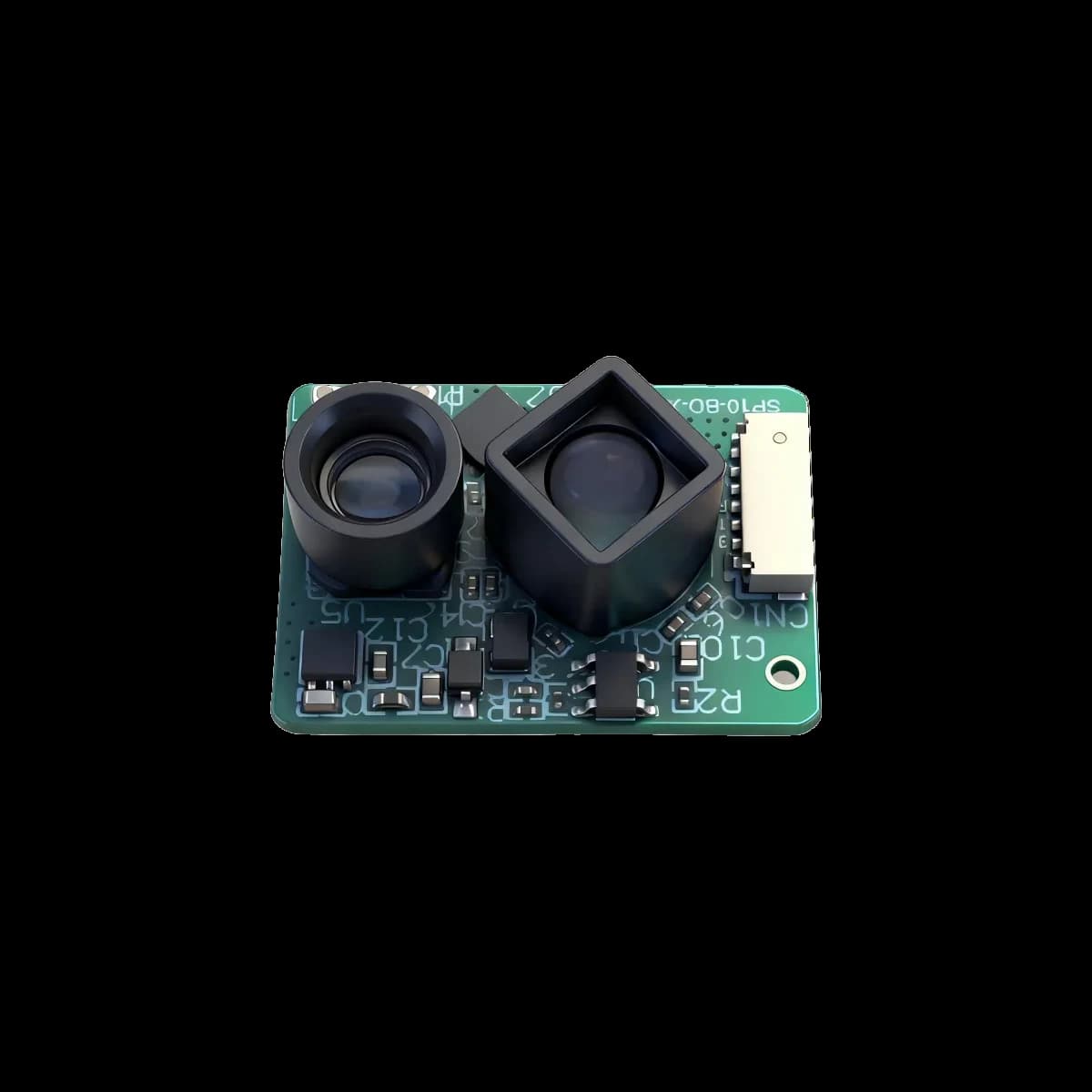

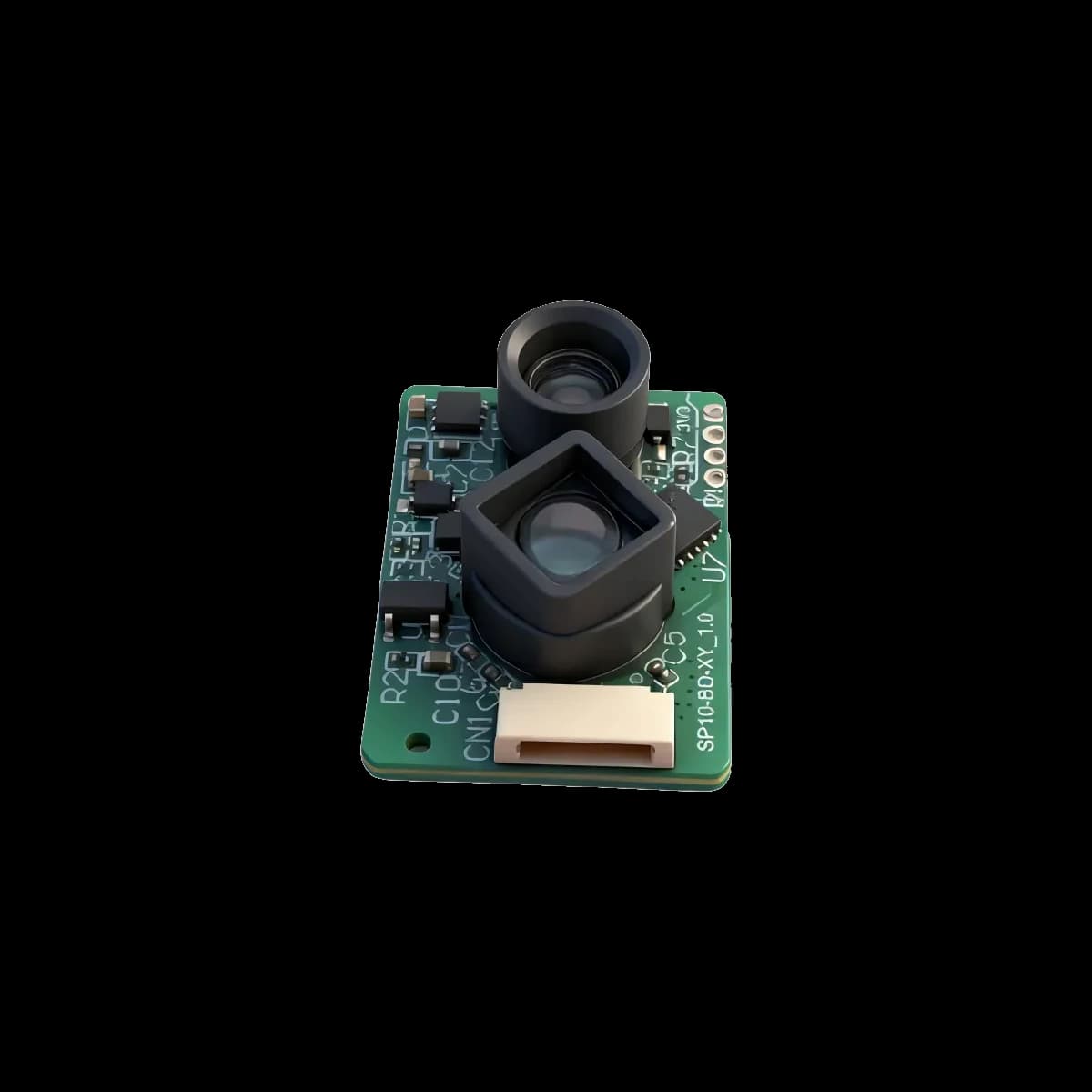

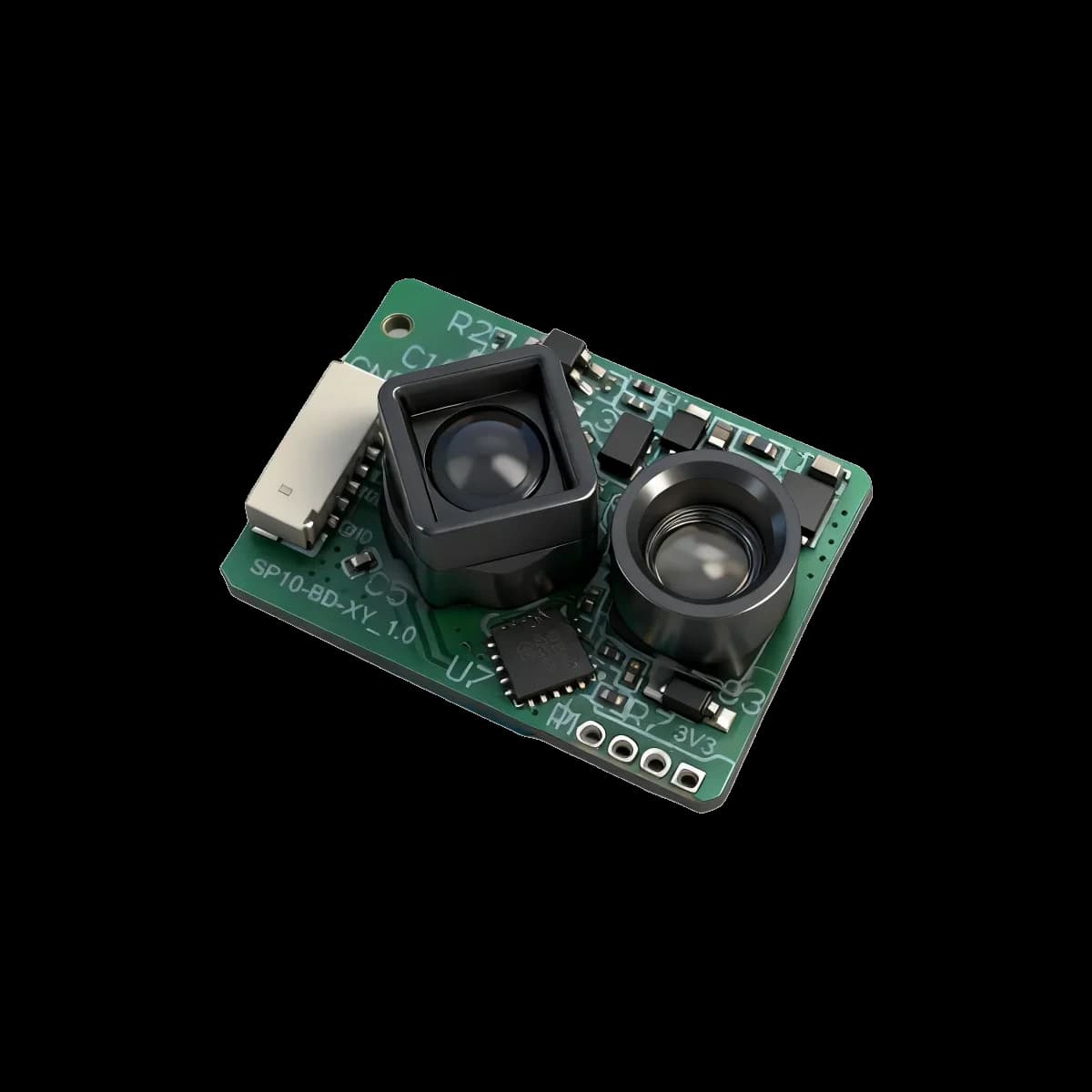

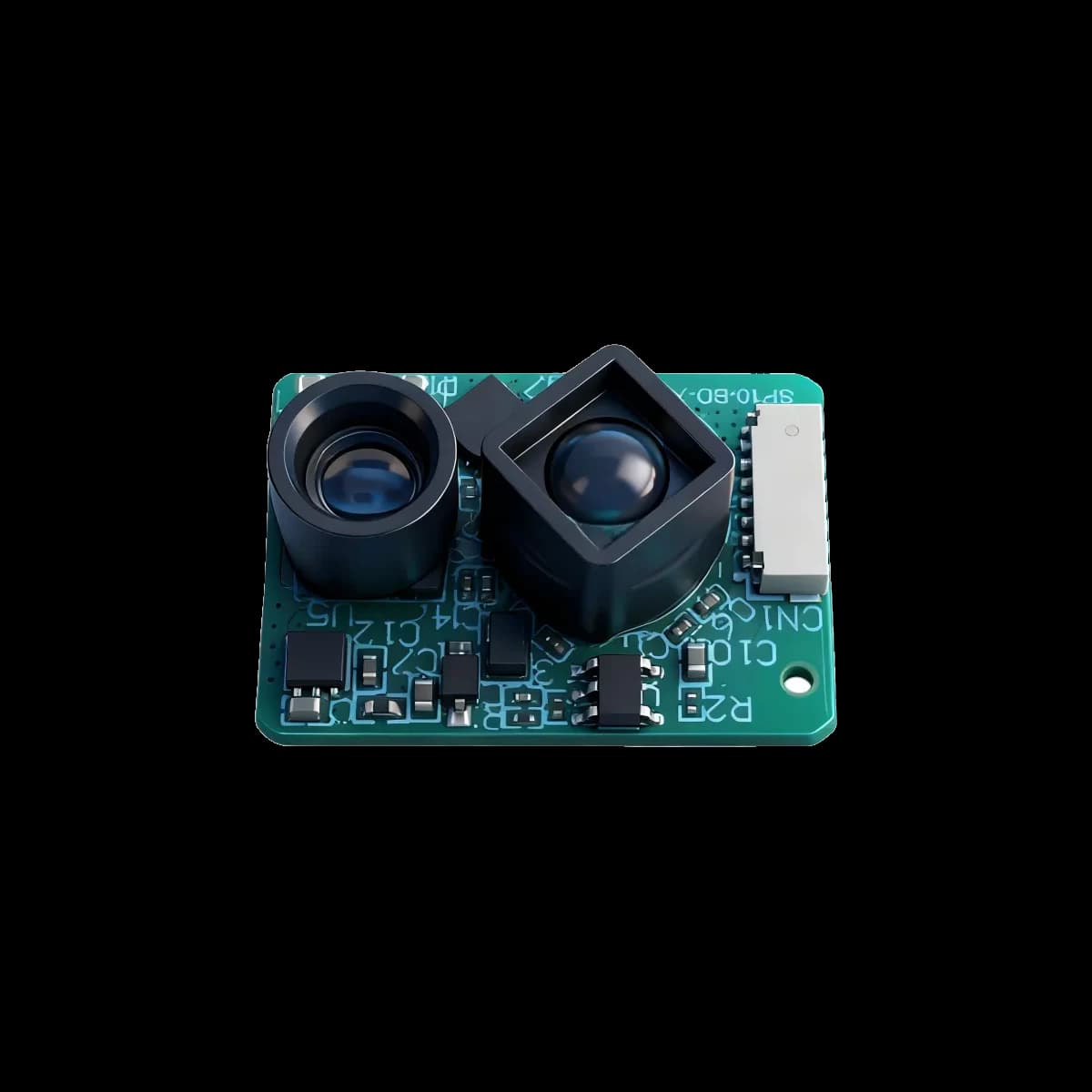

LRF22VB is a compact 905 nm DToF sensor with selectable distance output up to 200 Hz. Its V3.0 range statement separates 0.05–20 m at 90% reflectivity from 0.05–10 m at 10% reflectivity, supporting target-specific evaluation for robots and AGVs.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$90 USDPublished unit price
31–500 pieces$10 USDSave 89%
501–999 pieces$9 USDSave 90%
1,000+ piecesLowest unit price$8 USDLowest published price · Save 91%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a Quote / Technical Review

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

MODEL-LEVEL DATA

Detailed LRF22VB Specifications

Selectable 200, 100, 50, 20, 10 and 1 Hz outputs distinguish LRF22VB from sensors offered with only one stated measurement frequency. The source lists robot obstacle avoidance, drone altitude holding and industrial light-curtain applications. These are application directions for validation, not a claim that the bare module is a certified safety protective device.

The 21 × 15 × 7.43 mm package weighs 1.5 g and accepts 3–3.6 V DC, with UART/IIC communication. Compare the 10%-reflectivity reach against the actual surfaces in the intended machine. Accuracy, repeatability and the source’s reported resolution describe different properties and should remain separate in the equipment specification.

Basic ranging performance

ParameterValueSource condition
Measurement range0.05-20 m (90% reflectivity); 0.05-10 m (10% reflectivity)The two source values remain bound to their stated target reflectivity.
Measurement frequency200 Hz (alternatives: 100/50/20/10/1 Hz)Confirm against the controlled model document
Accuracy±5 cm (<5 m); 1% (≥5 m)Confirm against the controlled model document
Repeatability±30 mmConfirm against the controlled model document
Ambient-light immunity8 m at 60 klxConfirm against the controlled model document
Reported resolution1 mmFront-page feature statement; not an accuracy value

Optical parameters

ParameterValueSource condition
Central wavelength905 nmConfirm against the controlled model document
Photobiological safetyClass 1Confirm against the controlled model document
Field of view3°Confirm against the controlled model document
Wavelength for indicationN/AConfirm against the controlled model document
Photobiological safety for indicationN/AConfirm against the controlled model document

Electrical and communication interface

ParameterValueSource condition
Supply voltage3-3.6 V DCConfirm against the controlled model document
Peak current3.3 V at 70 mAConfirm against the controlled model document
Average current3.3 V at 40 mAConfirm against the controlled model document
Average power consumption<0.2 WConfirm against the controlled model document
Communication interfaceUART/IICConfirm against the controlled model document

Mechanical and environmental

ParameterValueSource condition
Protection levelN/AConfirm against the controlled model document
Dimensions21 × 15 × 7.43 mmConfirm against the controlled model document
Weight1.5 gConfirm against the controlled model document
Operating temperature-20°C to +60°CConfirm against the controlled model document
Wire specification6-pin 0.8 mm terminal, HC-0.8-6PWT, with 20 cm tinned stranded wiresConfirm against the controlled model document
CustomizationAvailable in appearance / structure / output protocolConfirm against the controlled model document

Functional Description

The source states direct time-of-flight ranging and lists 200 Hz measurement frequency with 100, 50, 20, 10 and 1 Hz alternatives.

The source describes flexible installation and expansion for drone, sweeping-robot and industrial-robot integration.

Electrical Interface Definition

Signal names and directions are transcribed from the model source.

PinSignalSource-stated function
1NC (white)Not connected
23.3V (red)External power positive
3TX / SCL (yellow)Host RX / SCL
4RX / SDA (green)Host TX / SDA
5NC (blue)Not connected
6GND (black)External power negative

Mechanical Dimension Drawing and Electrical Interface Diagram

These figures are extracted from the named model source without generative modification.

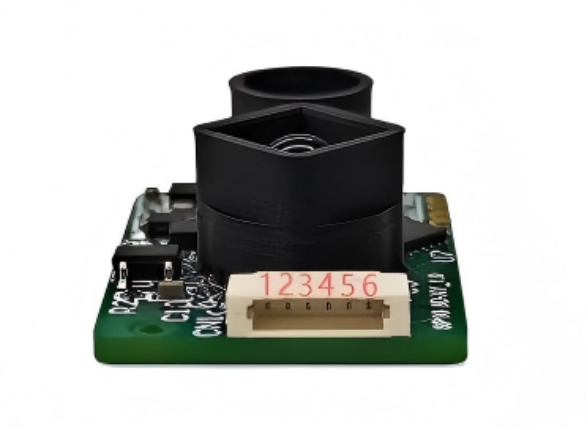

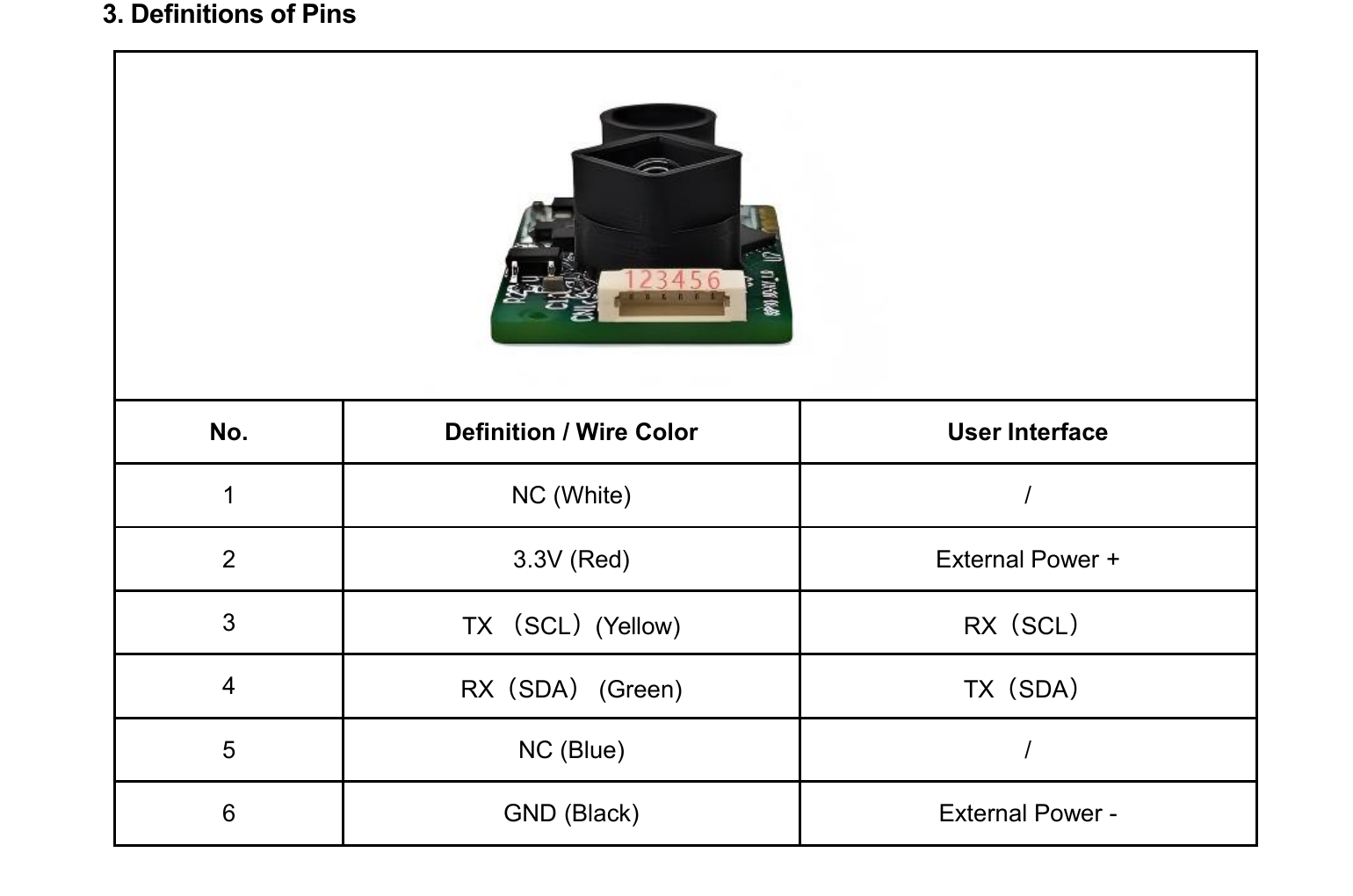

LRF22VB six-pin UART and IIC electrical interface definition
Electrical interface definitionSix-pin source interface showing the UART TX/RX and IIC SCL/SDA assignments on page 3.

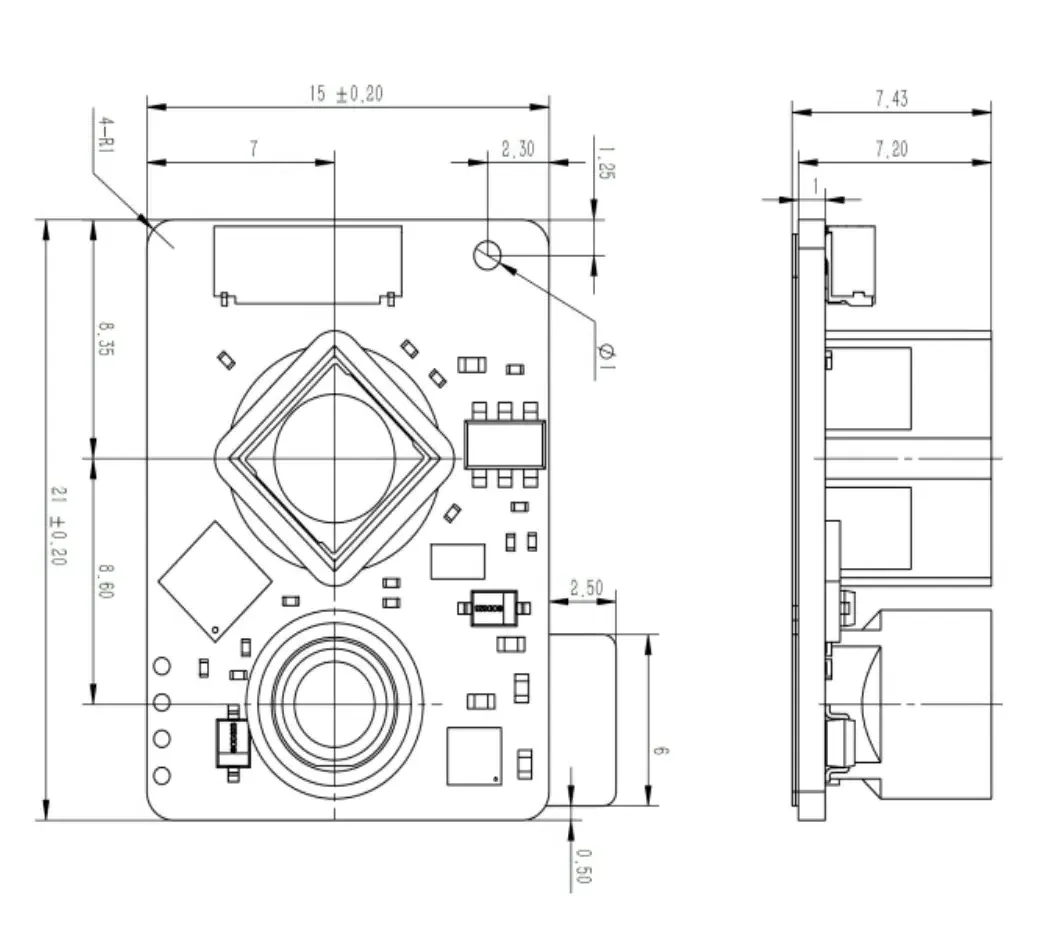

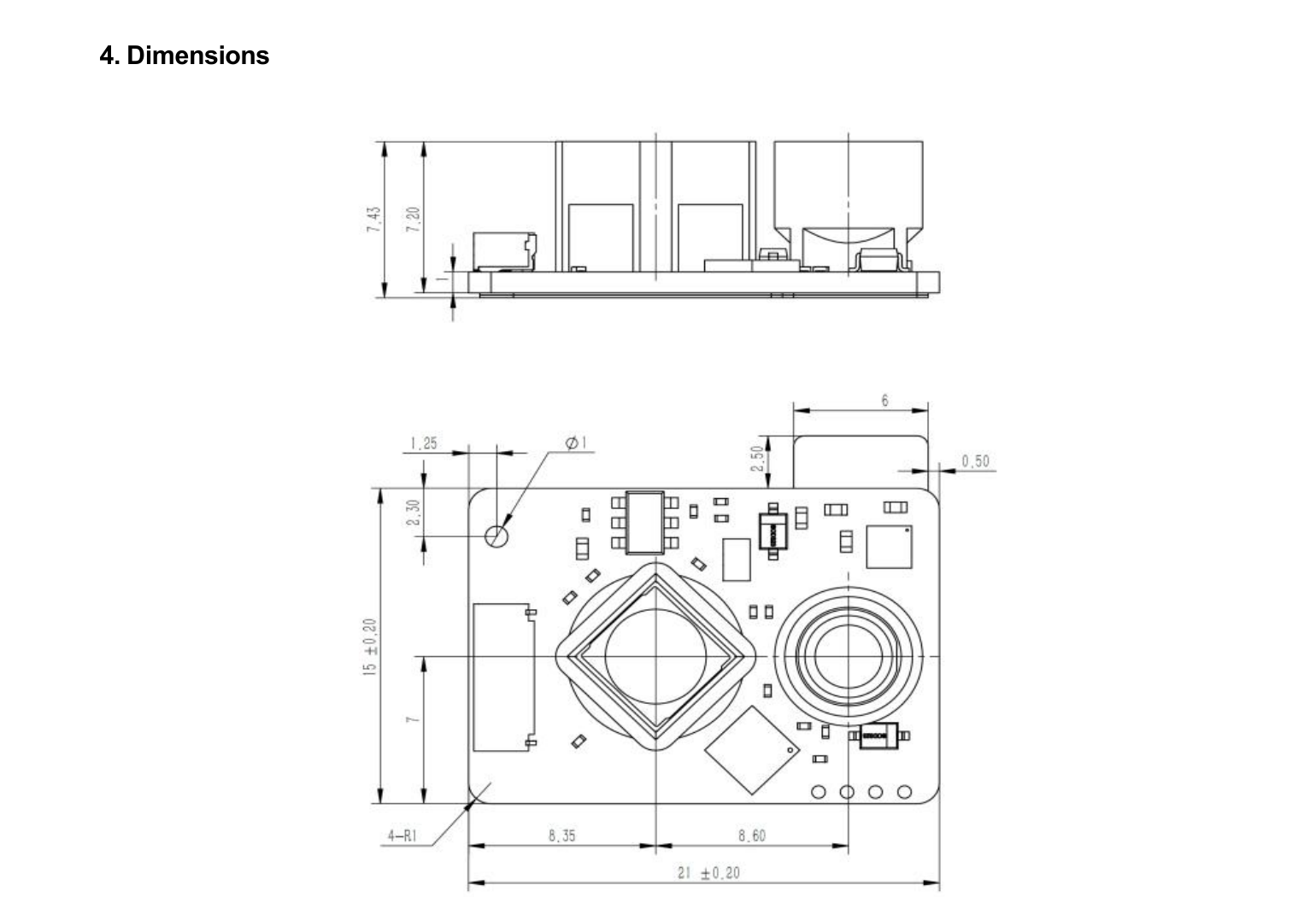

LRF22VB two-dimensional mechanical drawing
Mechanical dimension drawingTwo-dimensional 21 × 15 × 7.43 mm source drawing extracted from page 3.

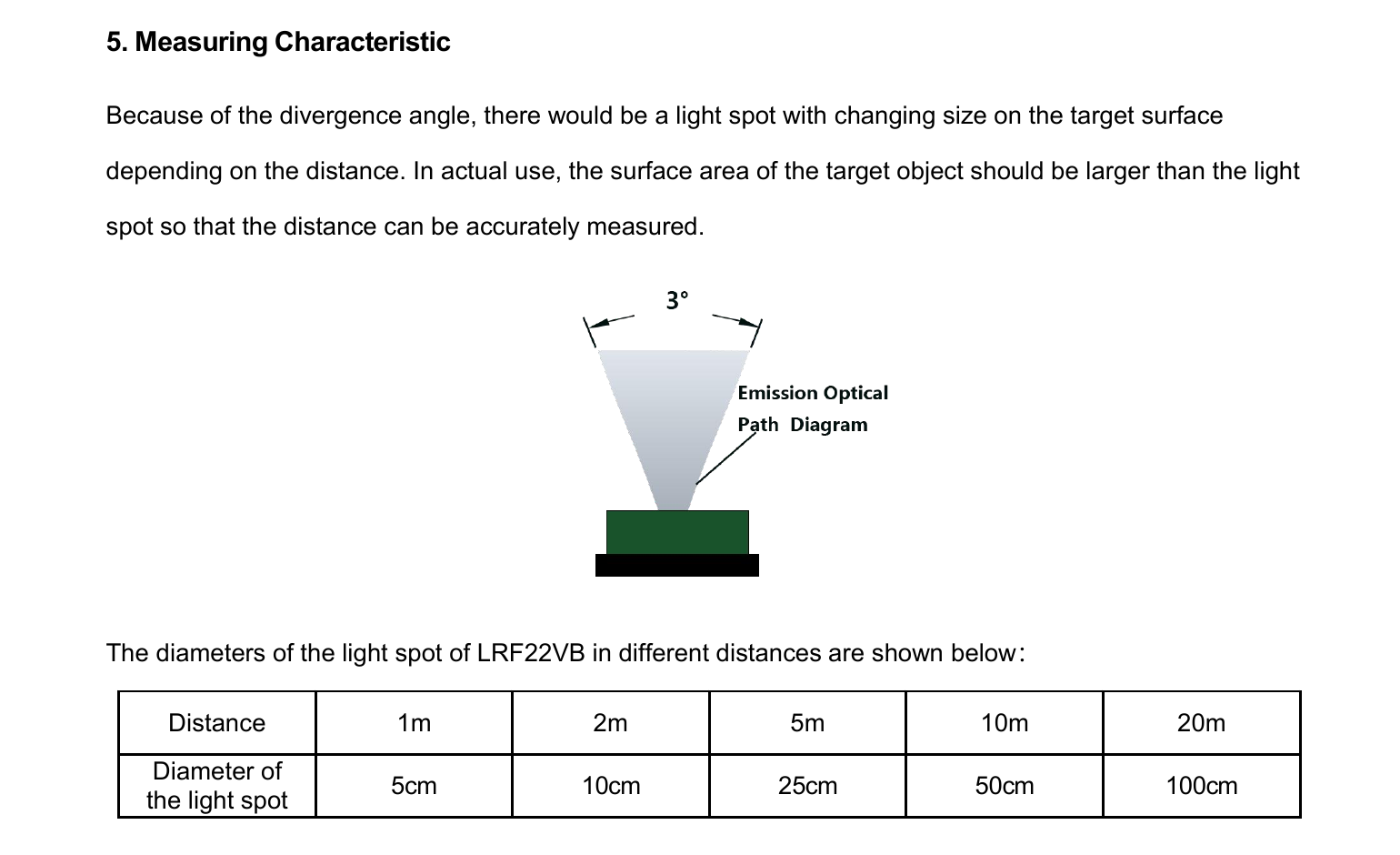

LRF22VB emission field and source-stated light-spot diameters
Measurement spot referenceSource page 4 associates the 3° emission field with spot diameters of 5, 10, 25, 50 and 100 cm at 1, 2, 5, 10 and 20 m respectively.
HOW TO READ THE MEASUREMENT

Direct Time-of-Flight Ranging

The LRF22VB model document identifies the product as direct time of flight (DToF). It determines distance from the delay between an emitted optical pulse and the accepted return.

R = c × Δt / 2R: one-way distance · c: propagation speed · Δt: measured round-trip delay

Real performance also depends on target reflectivity and area, incidence angle, atmospheric attenuation, receiver aperture, background light, detector response, timing thresholds and contamination of the optical path.

ENGINEERING DECISIONS

What the verified data supports

These are traceable design inputs, not unsupported superlatives or guaranteed field outcomes.

01

Performance envelope

Measurement range: 0.05-20 m (90% reflectivity); 0.05-10 m (10% reflectivity) · Accuracy: ±5 cm (<5 m); 1% (≥5 m)

02

Timing and output

Measurement frequency: 200 Hz (alternatives: 100/50/20/10/1 Hz) · Reported resolution: 1 mm · Repeatability: ±30 mm

03

Electrical integration

Supply voltage: 3-3.6 V DC · Communication interface: UART/IIC · Average power consumption: <0.2 W

04

Mechanical integration

Dimensions: 21 × 15 × 7.43 mm · Weight: 1.5 g · Operating temperature: -20°C to +60°C

APPLICATION REVIEW

Source-stated application context

Application labels indicate where the source proposes evaluation; they do not prove fitness without system testing.

  • Drone altitude holding and obstacle avoidance
  • Robot obstacle avoidance
  • Industrial-grade light curtains
  • AGV obstacle avoidance
  • Camera focusing
INTEGRATION CHECK

Confirm before selection

  • Define target size, reflectivity, incidence angle and required detection probability.
  • Reproduce sunlight, visibility, weather and optical-window conditions in acceptance testing.
  • Verify voltage tolerance, peak current, grounding, interface levels, baud rate and connector revision.
  • Separate accuracy, repeatability and displayed resolution in host requirements.
  • Confirm mounting datum, boresight, field of view, enclosure sealing and thermal path.
  • Assess accessible emission and labeling again after integration into the finished equipment.
TECHNICAL FAQ

Questions to resolve before design release

Which measurement frequencies does LRF22VB offer?

The controlled table states 200 Hz with alternatives of 100, 50, 20, 10 and 1 Hz. Choose and validate the relevant setting in the ordered configuration. An output-frequency value alone does not specify the accuracy achieved on every target.

How should the 20 m and 10 m limits be compared?

The 20 m upper limit belongs to a 90%-reflectivity target; the 10 m upper limit belongs to a 10%-reflectivity target. Both start at 0.05 m in the source. Do not describe 20 m as unconditional obstacle-detection reach on dark materials.

Can LRF22VB be used as a certified industrial light curtain?

The source names industrial-grade light curtains as an application direction. That does not establish a functional-safety rating, protective-device certification or validated stopping distance for an assembled machine. The host safety function needs its own design review and acceptance testing.

What electrical format is specified for integration?

The source lists UART/IIC communication, a 3–3.6 V DC supply and a six-pin connection. These entries describe the LRF22VB configuration. Confirm the model’s connector and protocol documentation rather than transferring a pinout from a physically similar sensor.

Does millimeter resolution mean millimeter accuracy here?

No. The front page reports 1 mm resolution, while the specification gives ±5 cm accuracy below 5 m and 1% from 5 m upward. Repeatability is stated separately as ±30 mm. Keep all three quantities distinct when comparing sensing requirements.

ENGINEERING REFERENCES

Product evidence and general technical context

The model PDF controls product claims. Public references support only the general engineering explanations and must not be used to infer a missing model value.

  1. LRF22VB Specification V3.0The named model’s stated specifications, conditions, interfaces and mechanical record.
  2. The Short-Range, High-Accuracy Compact Pulsed Laser Ranging SystemGeneral context for pulsed ranging, measurement error and target-dependent performance; not an ERDI model test.
