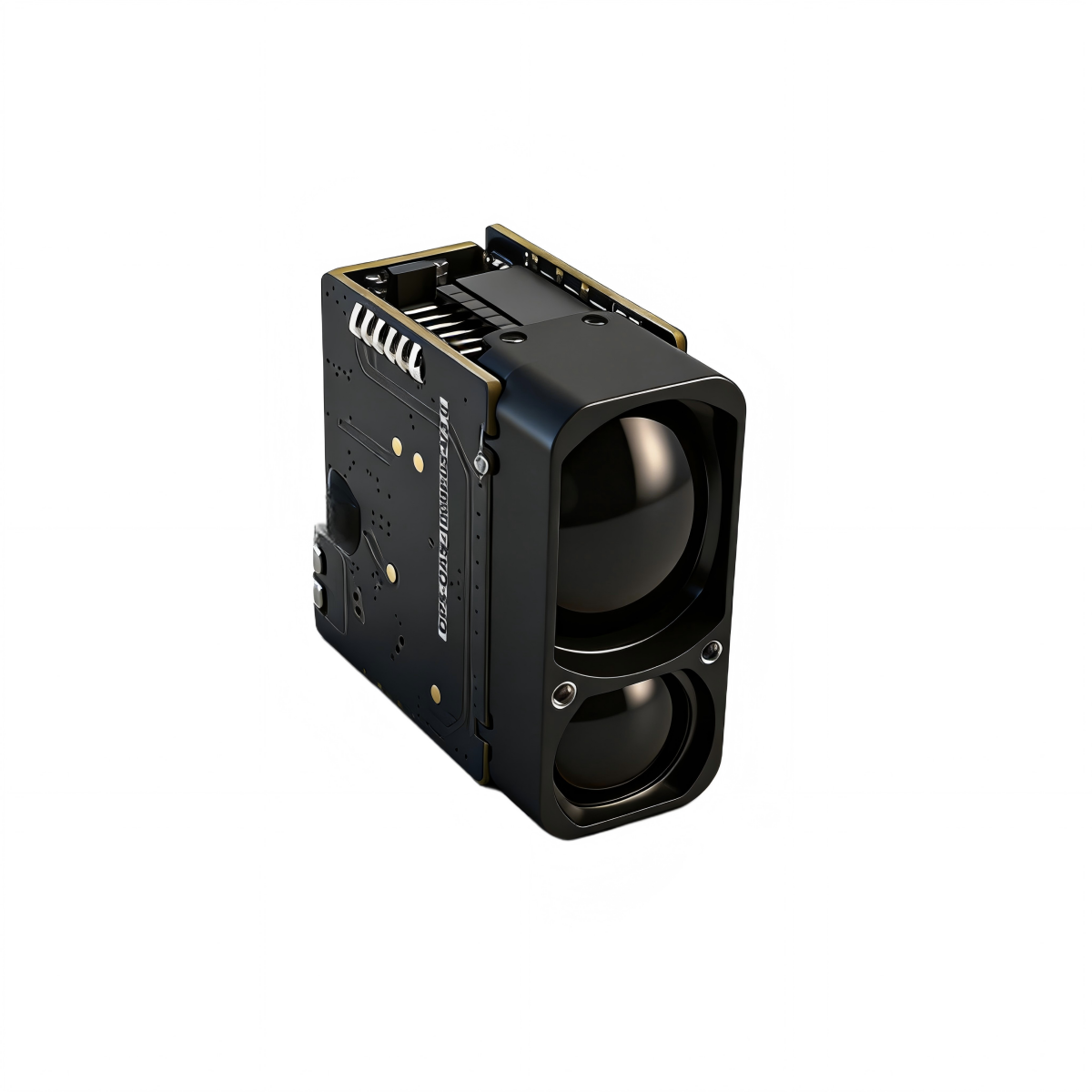

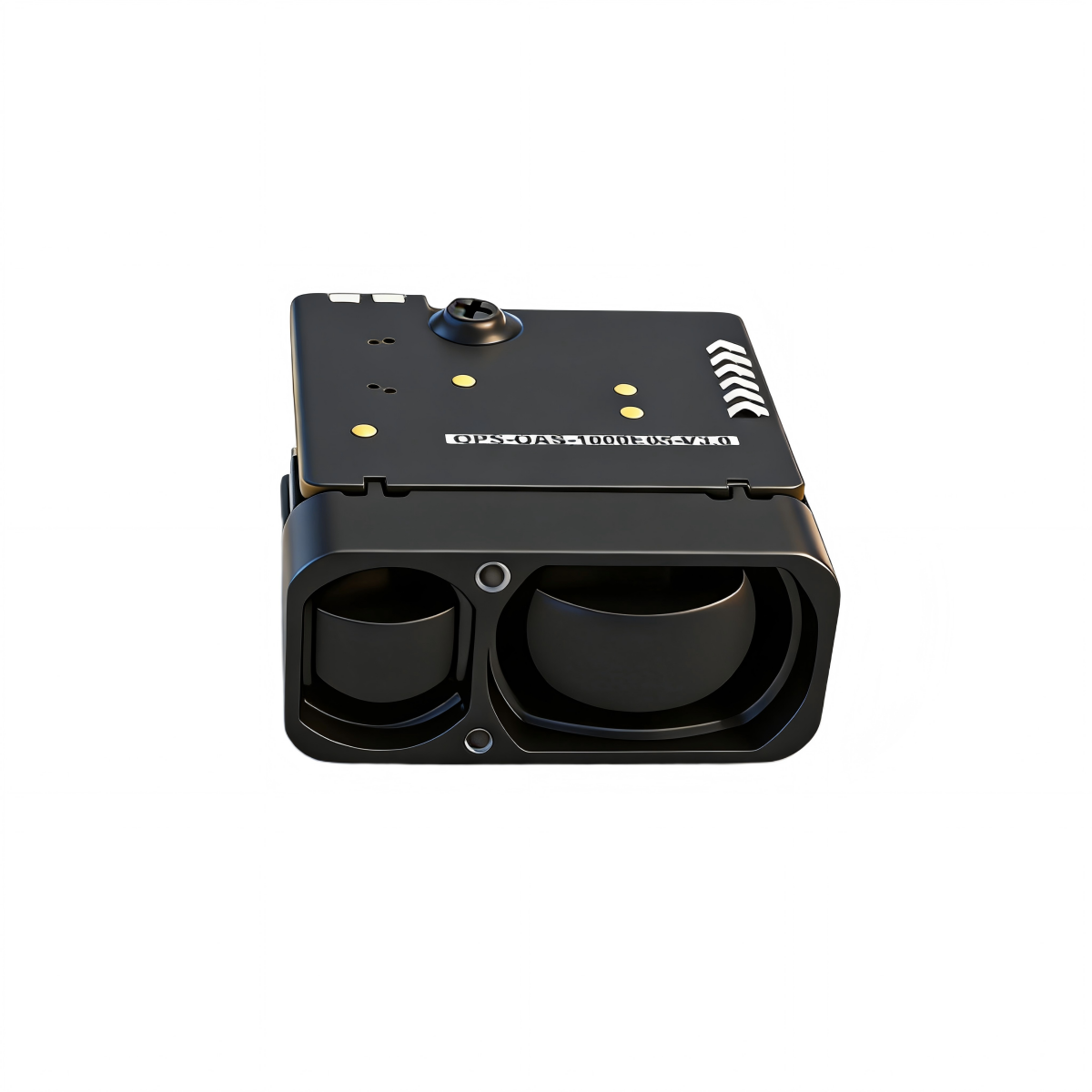

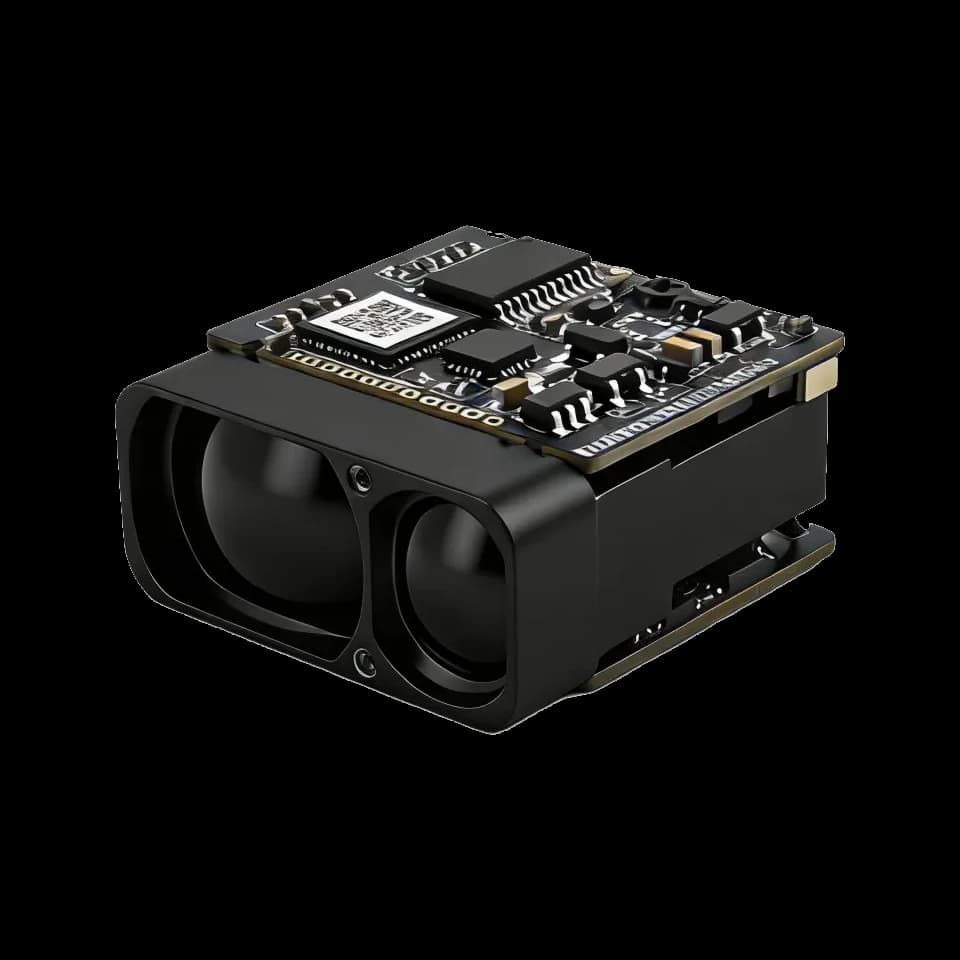

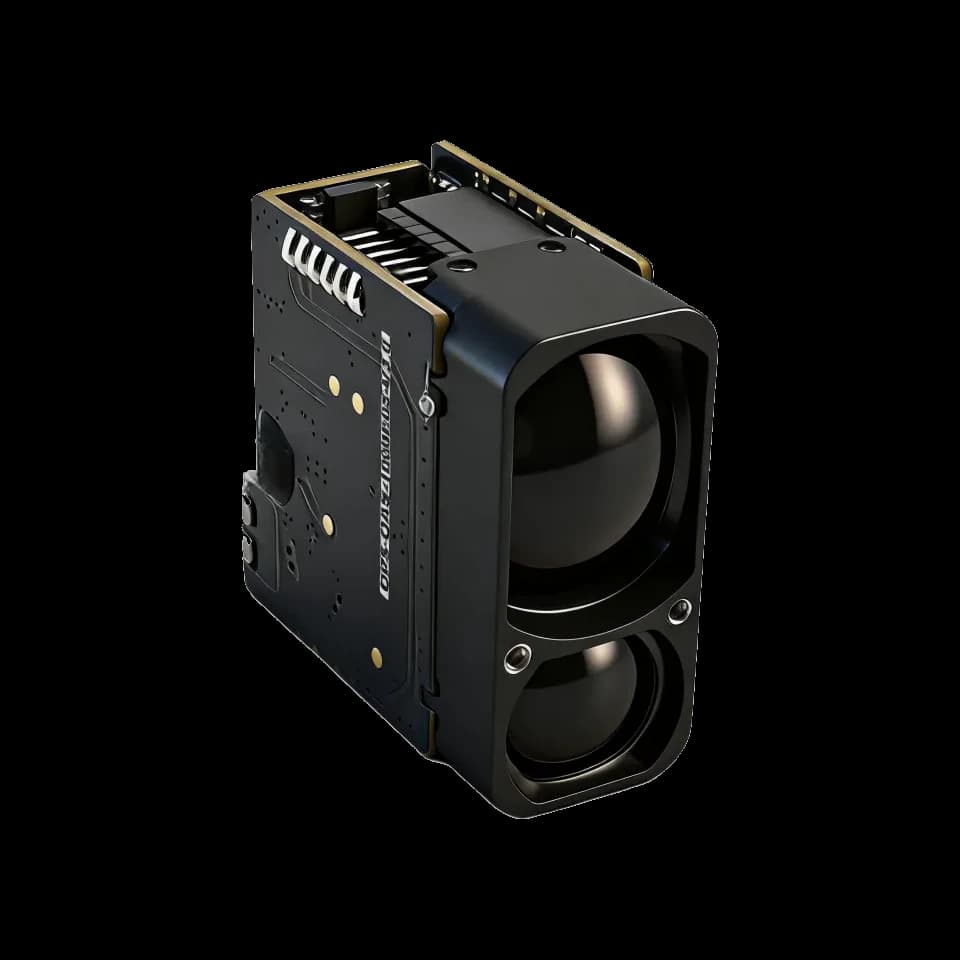

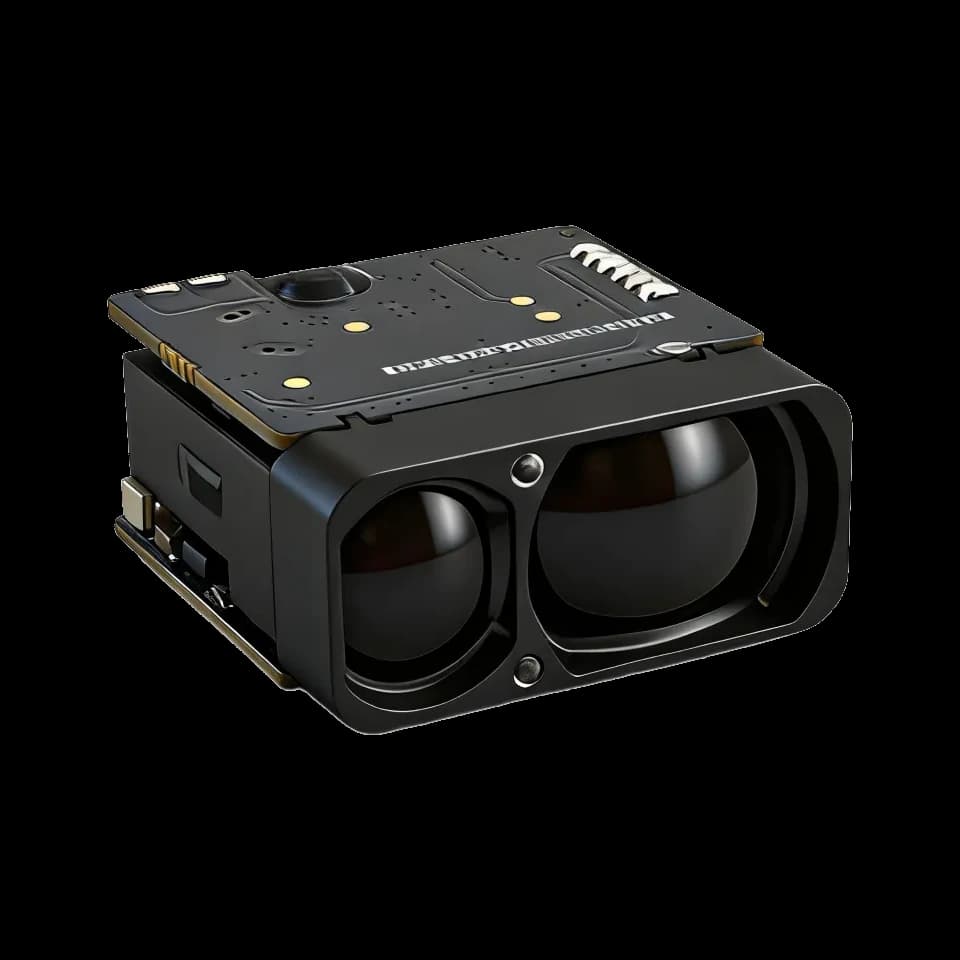

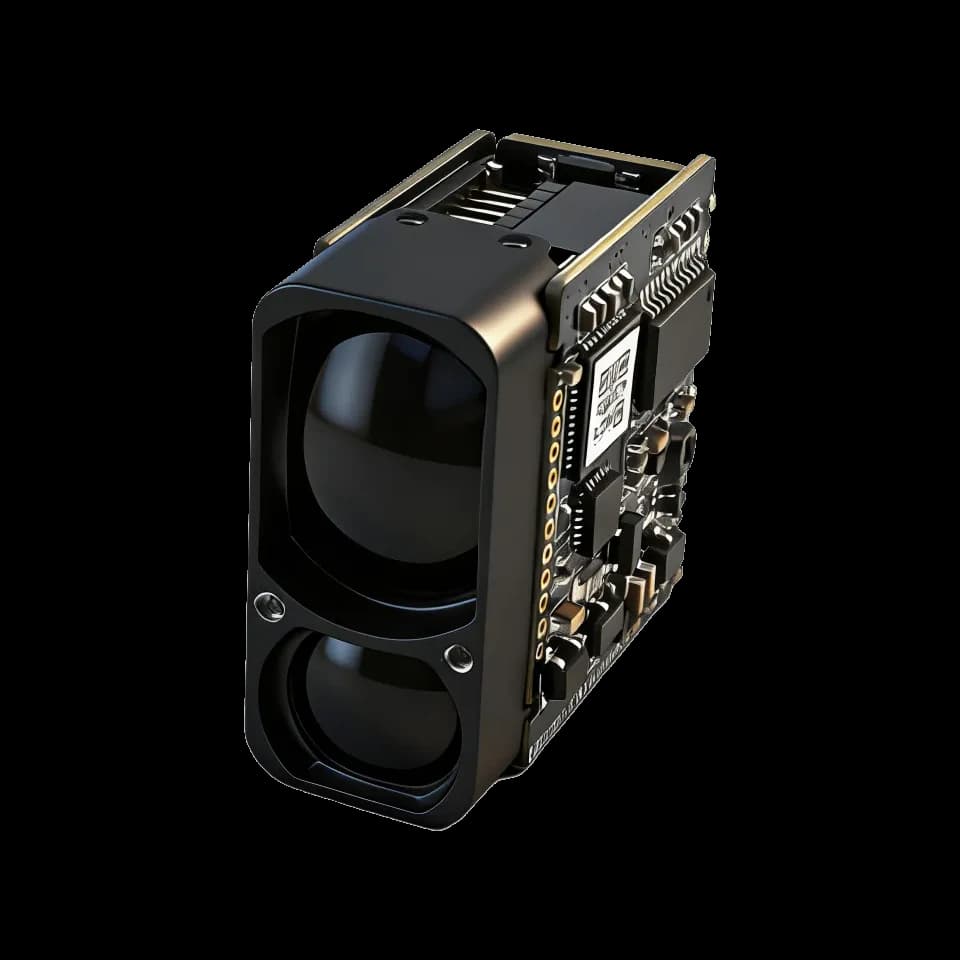

Meet the LR2000E2
The source gives a nominal 25.7 × 13.3 × 24.6 mm body, UART-TTL and a 3.3–5 V supply for civilian observation and outdoor ranging instruments. The 2 km standard figure remains dependent on target and environment. It should not be converted into a guarantee of detecting a small or dark object at that distance.
Accuracy is ±1 m up to 400 m and 0.4% of D beyond 400 m to 2000 m. Target size and reflectivity are not specified in this model’s accuracy table, so conditions must not be borrowed from shorter-range E-series records. The current effective table also does not supply a model-specific weight or ingress-protection entry.
2000 m range class
4–2000 m standard range with a model-specific long-distance accuracy formula.
Host-controlled ranging
2–10 Hz (adaptive); single-shot and continuous measurement modes.
Compact integration
25.7 × 13.3 × 24.6 mm nominal dimensions in the current mechanical drawing; detailed tolerances remain controlling.
UART-TTL interface
115200 bps communication and a 3.3–5 V supply range; use the model-specific pinout and command table.
LR2000E2 Specifications
Read performance values with their target and test conditions. The linked user manual provides the complete mechanical, electrical, and communication details.
| Parameter | Value | Conditions / notes |
|---|---|---|
| Laser wavelength | 905 ± 5 nm | — |
| Measurement range | 4–2000 m | Standard range; actual reach depends on target and environment. |
| Ranging accuracy | ±1 m (D ≤ 400 m); 0.4% of D (400 m < D ≤ 2000 m) | Target reflectivity and size are not specified in the accuracy table. |
| Measurement update rate | 2–10 Hz (adaptive) | Completed distance outputs; not the optical pulse-repetition rate. |
| Communication interface | UART-TTL | Custom configurations are specified separately. |
| Baud rate | 115200 bps | — |
| Supply voltage | 3.3–5 V | — |
| Operating temperature | −20 °C to +60 °C | — |
| Storage temperature | −40 °C to +60 °C | — |
| Mechanical drawing dimensions | 25.7 × 13.3 × 24.6 mm | Drawing nominal values. Observe the individual tolerances in the model drawing; do not machine from the rounded summary alone. |
| Laser safety class | Class 1 | As stated in the model manual; finished-equipment assessment is separate. |
| Laser beam divergence | < 6 mrad | — |
| Optical material | PMMA | — |
| Receiver aperture | 9.2 mm × 14.5 mm | — |
| Startup time | ≤ 200 ms | — |
| Inrush current | < 400 mA | — |
| Operating power consumption | ≈ 1.2 W | Approximate value in the specification table. |
- For civilian equipment only. The model manual prohibits military applications.
Operation and Data Output
Single-shot mode requests one reported distance. For a weak return, the manual describes repeated internal measurements before reporting stable distance data. Continuous mode produces repeated results at the documented adaptive update rate.
The standard measurement-rate specification is 2–10 Hz (adaptive). Use the current protocol table for command timing and output format.
Electrical Interface
| Pin | Signal | Function |
|---|---|---|
| 1 | GND | Power ground |
| 2 | VCC | Power input |
| 3 | I/O (Reserved) | Reserved for expansion |
| 4 | TXD | Transmit data: module → host |
| 5 | RXD | Receive data: host → module |
| 6 | SW-SHOT | Function-enable input. The required control polarity must match the supplied configuration. |

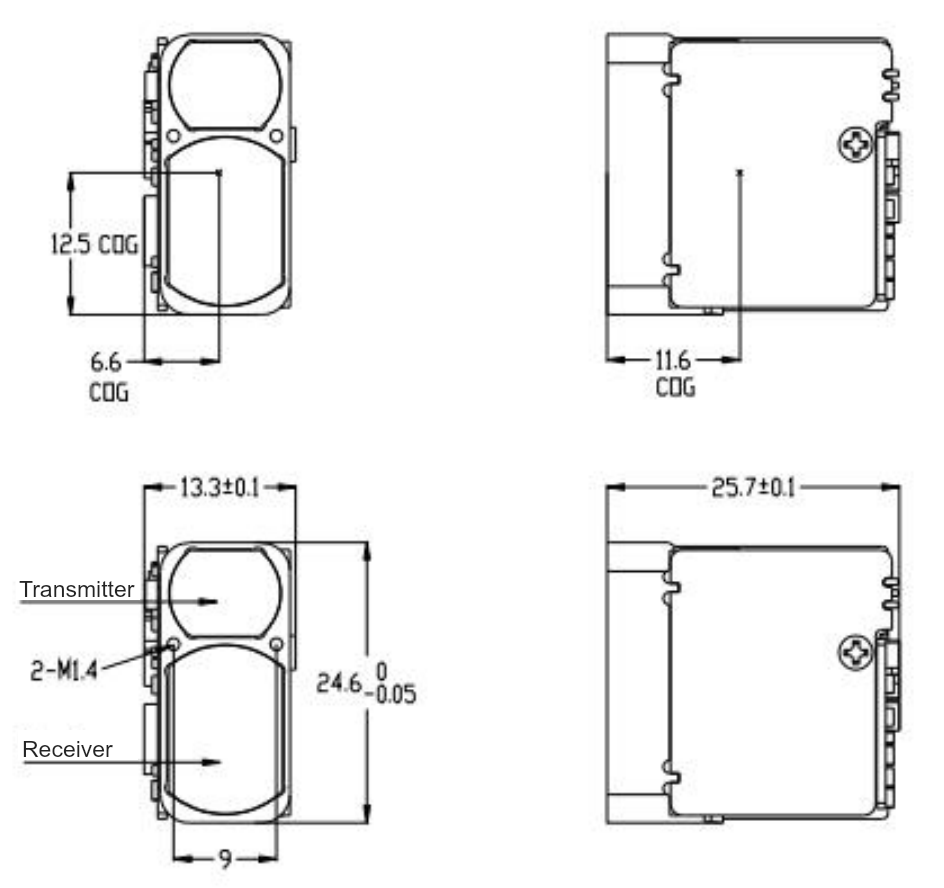

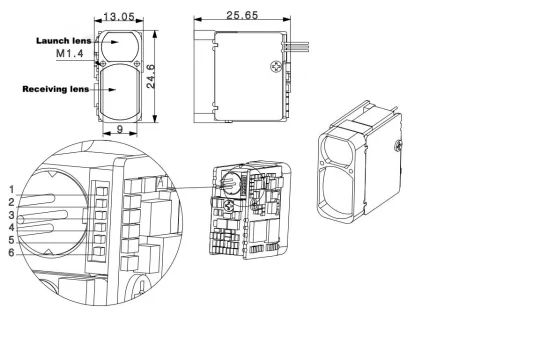

Mechanical Dimensions
Use the drawing and its tolerances for installation. This drawing is reproduced directly from the current LR2000E2 user manual.
905 nm Pulsed Time of Flight and APD Reception
The following explains the general measurement principle of a 905 nm pulsed ranging system with APD reception. A short near-infrared pulse travels to the target, and reflected light returns through the receiving optics to a silicon avalanche photodiode (APD). The receiver converts the optical return into an electrical signal for distance measurement. Individual circuit implementations and performance remain model-specific.
Transmit pulse → target → reflected light
Receiving optics → APD → timing processing → host
A 1 m change in distance corresponds to about 6.67 ns of round-trip travel time in free space. This is a physical relationship, not a claim about the module’s timing resolution or measurement accuracy. [1]
Why an APD helps detect a weak return
A silicon APD provides internal avalanche gain before subsequent signal processing. This can help a receiver detect weak optical pulses, but the gain also brings excess noise. More gain is not always better: receiver bandwidth, background light, bias stability, and temperature all affect the usable signal-to-noise ratio. [2] [3] [8]
Why range depends on the target
A large, bright surface usually returns more usable light than a small, dark, or angled one. At long distances, beam spreading can place only part of the transmitted light on the intended target. The receiver also sees losses through the atmosphere and any protective window, so a maximum range rating must be read with its target conditions. [1] [4] [7]
Why wavelength stability and filtering work together
Narrowband optical filtering reduces unwanted background light while passing the laser return. Lower transmitter wavelength drift helps preserve this overlap as temperature changes. Filter bandwidth, incidence angle, component variation, and temperature must still be considered together; a narrow filter alone does not establish sunlight immunity. [5] [6] [7]
Why timing errors become distance errors
Noise changes the estimated arrival time of a return pulse. A fixed-threshold detector can also trigger at different times as pulse amplitude changes, an effect called timing walk. The complete receiver and timing chain determines the final measurement error—not the detector response time by itself. [1] [8] [12]
Choose by Target, Range, and Integration
The E2 and E4 families cover 1000, 1200, 1500, and 2000 m nominal range classes. LRF1200A1 and LRF3000A1 have their own electrical, mechanical, and measurement specifications. Equal range-class numbers do not make different families pin-compatible or mechanically interchangeable.
Start with the smallest and darkest target your application must measure, the required update rate, and the available installation space. Then compare the model-specific supply, interface, drawing, and long-range accuracy formula. Do not select only by the maximum range number.
Integration Applications
- Handheld observation and ranging instruments
- Night-vision and thermal-imaging equipment with distance readout
- Telescopes and outdoor ranging instruments
Validate the complete installation with representative targets, lighting, temperature, and the final protective window.
From Bench Test to Installed System
- Power and signals: size the supply for transient current, use a common signal ground, and match logic levels. A module’s supply-voltage range is not automatically the voltage tolerance of its UART pins.
- Optical window: choose material and coatings with suitable transmission near 905 nm. Keep transmit-to-receive reflections low, avoid aperture clipping, and test the assembled window for false near returns.
- Target: test dark, small, angled, wet, and partially obscured surfaces at the required distance rather than only a large white panel.
- Environment: assess direct sunlight, visibility, condensation, dust, and temperature changes. Keep the optical surfaces clean.
- Data handling: use the model manual for byte order, scaling, checksum, and command timing. Check the STA/status field before interpreting the distance bytes, and reject failed measurements according to the model protocol.
- Laser safety: assess the finished equipment, including added optics, controls, access, labeling, and applicable operating conditions. A component rating alone does not establish the system’s laser class.
LR2000E2: Frequently Asked Questions
Is ±1 m the accuracy across the full 2 km standard range?
No. The source gives ±1 m up to 400 m and 0.4% of distance for the longer interval through 2000 m. A fixed short-distance error cannot replace that percentage specification. Keep the interval definition attached to any accuracy summary.
Can the 90% whiteboard condition from LR1500E2 be applied here?
No. LR2000E2 does not specify target reflectivity or size in its accuracy table. Importing another model’s condition would create unsupported certainty. Request confirmation for the actual target and environment required by the civilian host instrument.
What distinguishes the LR2000E2 body from LR2000E4?
The E2 nominal drawing dimensions are 25.7 × 13.3 × 24.6 mm. The E4 record has a different outline. Similar range and interface entries do not establish a common installation envelope, so use the exact model drawing for mechanical evaluation.
Does the public record establish an IP rating or mass for LR2000E2?
The effective controlled table used here does not supply those entries for this model. They are therefore not inferred from shorter-range E-series products. Obtain a confirmed LR2000E2 mechanical and environmental record if those values are procurement requirements.
What does the adaptive reporting rate tell the host designer?
It states a 2–10 Hz rate for completed measurement outputs rather than the internal optical pulse rate. The reporting interval should be evaluated with the actual distance and return conditions. It does not on its own establish uninterrupted fixed-rate distance data.
