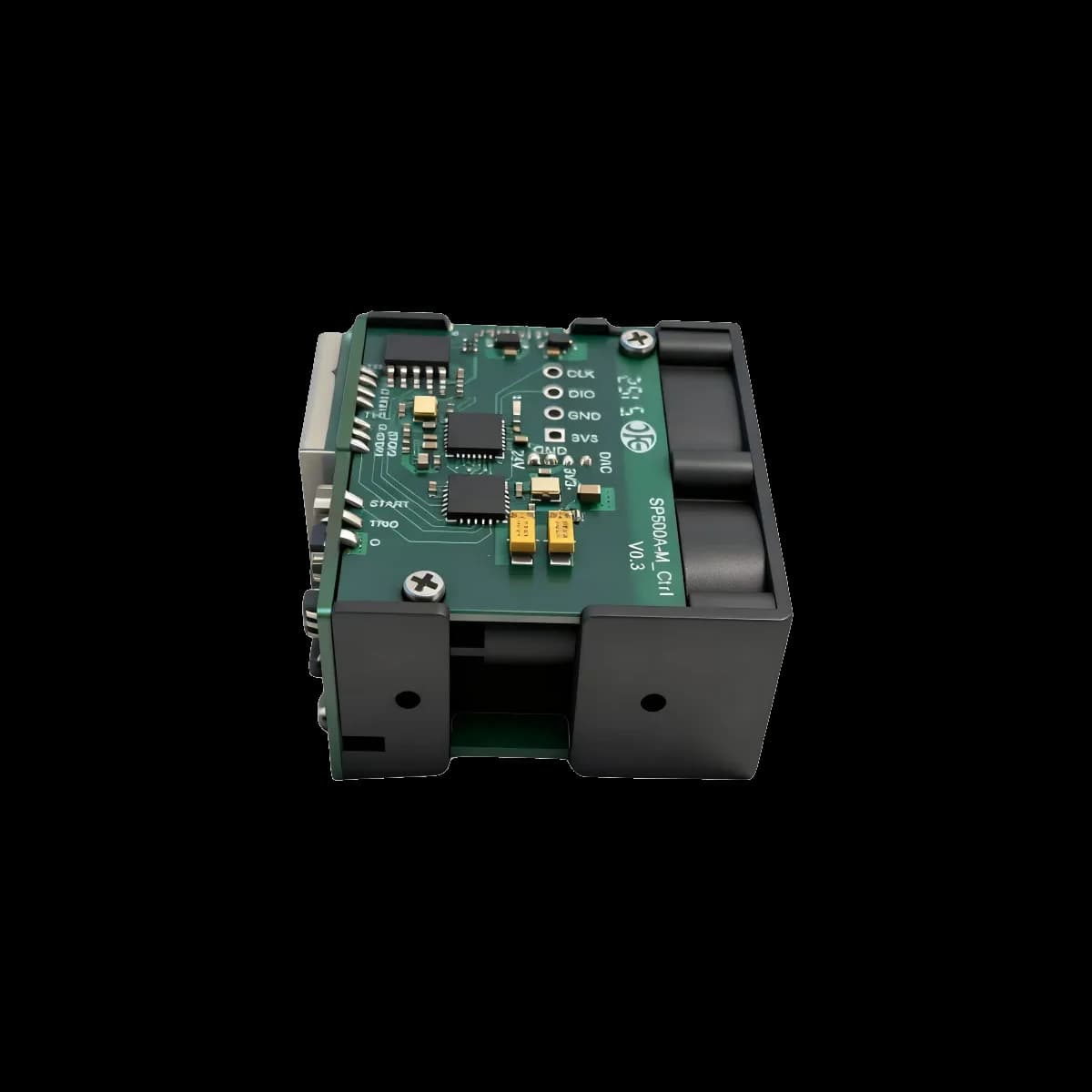

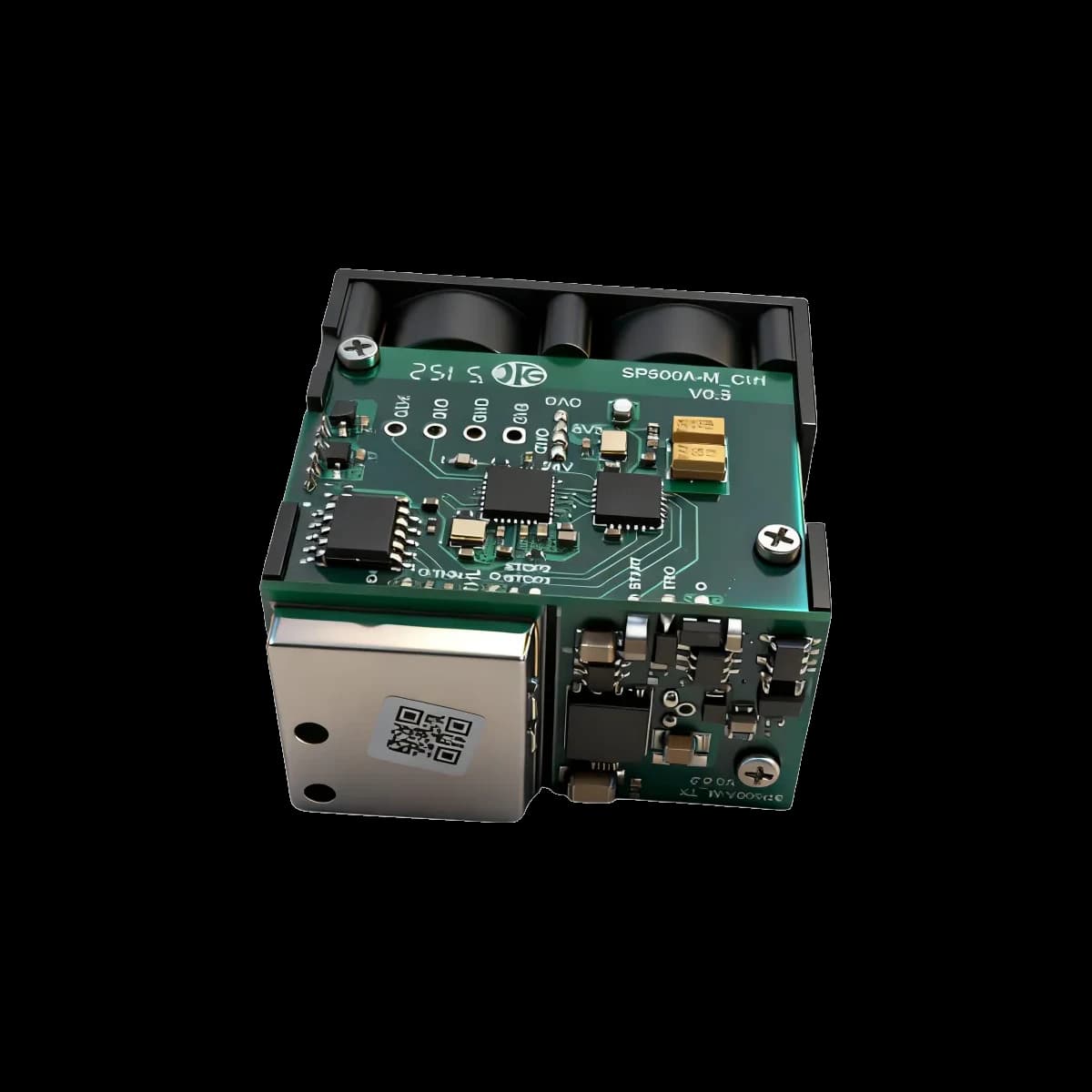

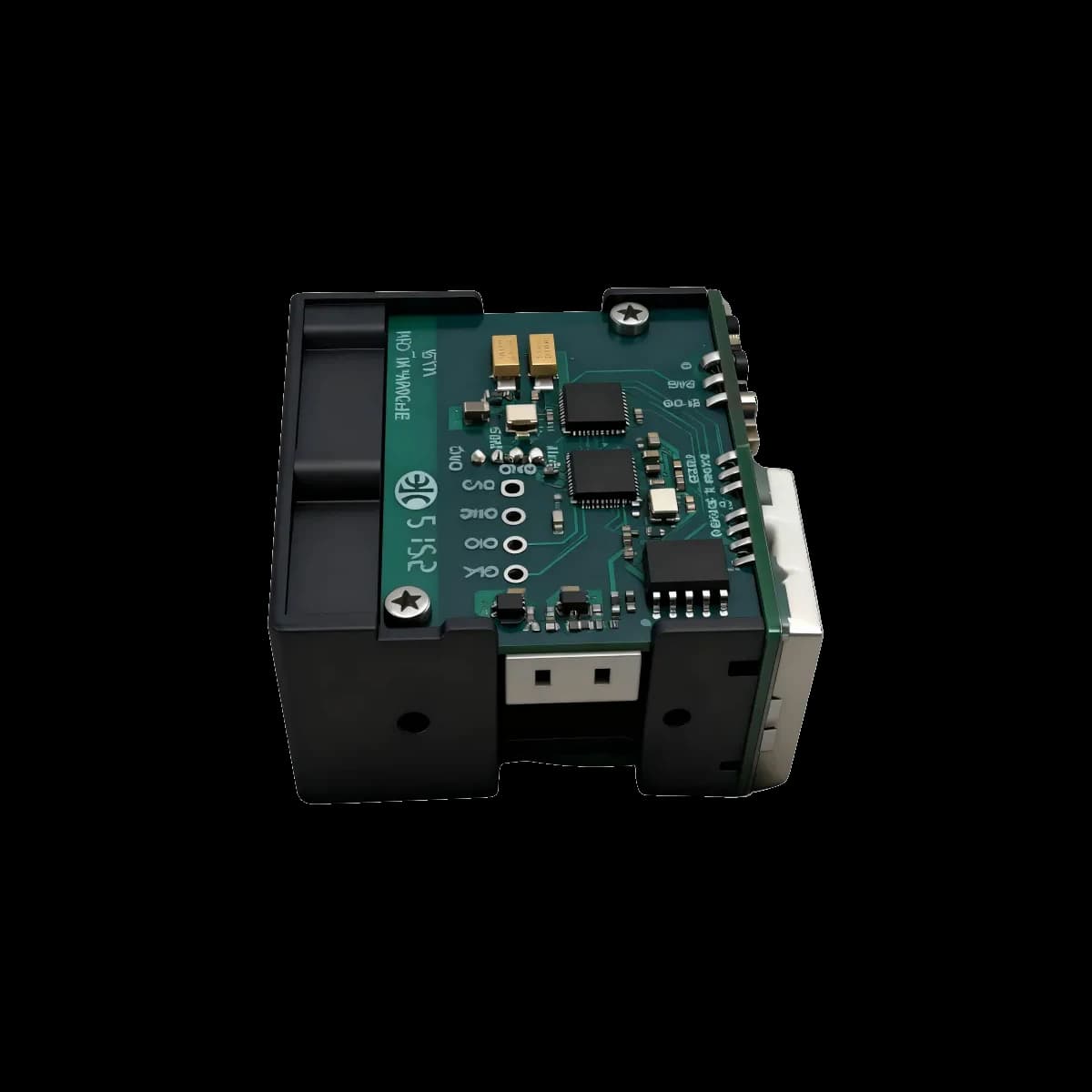

Detailed LRF1500H Specifications
Every value below is bound to the model source named on this page. Qualifiers and test conditions are retained; missing values are not inferred.
Basic ranging performance
| Parameter | Value | Source condition |
|---|---|---|
| Measurement range | 0.05-1500 m (90% reflectivity); 0.05-300 m (10% reflectivity) | The two source values remain bound to their stated target reflectivity. |
| Measurement frequency | 1 kHz or 50 Hz (automatically switched to match reflected-signal intensity) | Confirm against the controlled model document |
| Accuracy | ±10 cm (<10 m); 1% (≥10 m) | Confirm against the controlled model document |
| Repeatability | ±5 cm (<10 m); ±100 cm at 1500 m | Confirm against the controlled model document |
| Ambient-light immunity | 100 klx | Confirm against the controlled model document |
| Reported resolution | 1 cm | Front-page feature statement; not an accuracy value |

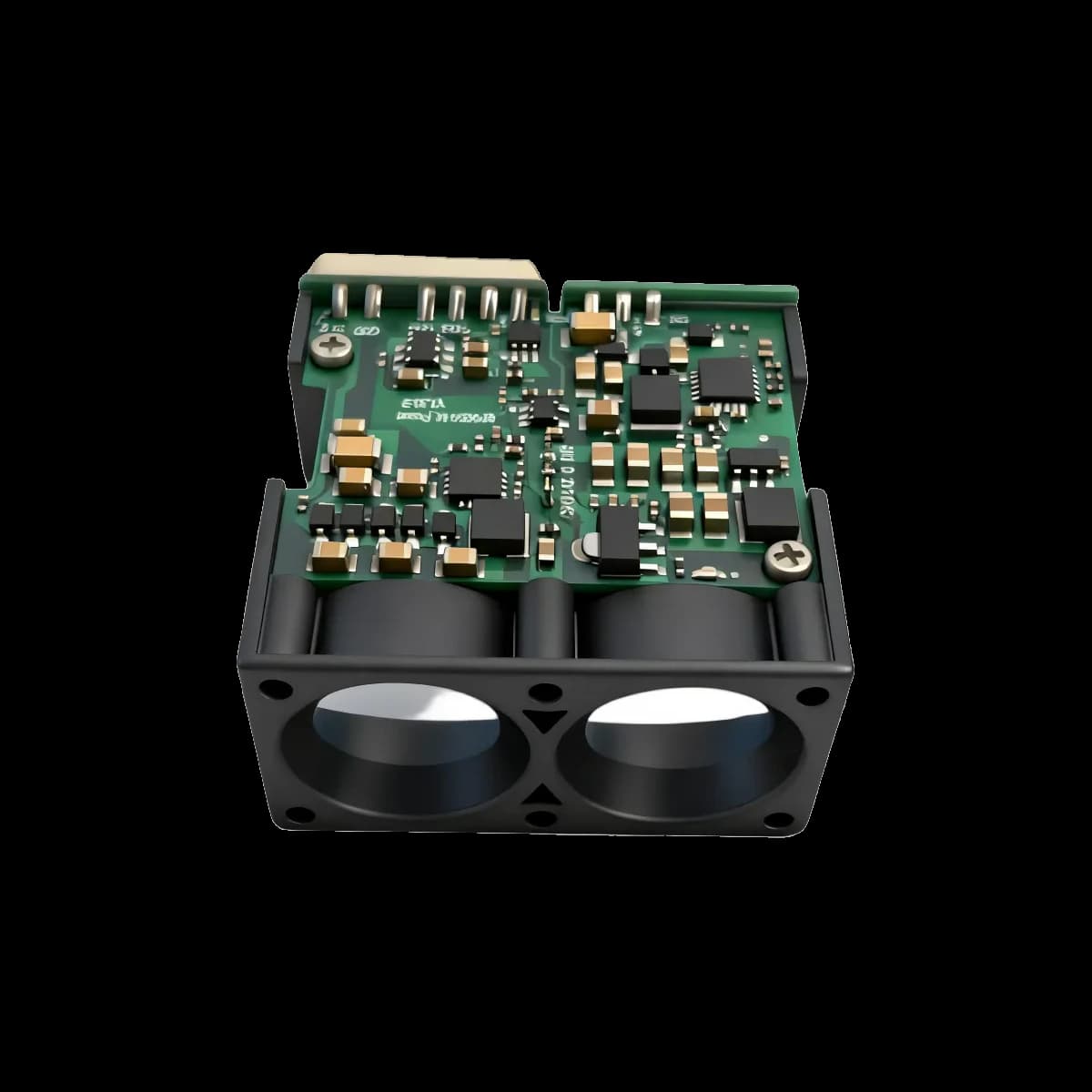

Optical parameters
| Parameter | Value | Source condition |
|---|---|---|
| Central wavelength | 905 nm | Confirm against the controlled model document |
| Photobiological safety | Class 1 | Confirm against the controlled model document |
| Field of view | About 4 mrad | Confirm against the controlled model document |
| Wavelength for indication | N/A | Confirm against the controlled model document |
| Photobiological safety for indication | N/A | Confirm against the controlled model document |
Electrical and communication interface
| Parameter | Value | Source condition |
|---|---|---|
| Supply voltage | 9-36 V DC | Confirm against the controlled model document |
| Peak current | 100 mA | Confirm against the controlled model document |
| Average current | 55 mA | Confirm against the controlled model document |
| Average power consumption | 1.2 W | Confirm against the controlled model document |
| Communication interface | UART/IIC | Confirm against the controlled model document |
Mechanical and environmental
| Parameter | Value | Source condition |
|---|---|---|
| Protection level | N/A | Confirm against the controlled model document |
| Dimensions | 33 × 34 × 18 mm | Confirm against the controlled model document |
| Weight | 20 ± 2 g | Confirm against the controlled model document |
| Operating temperature | -20°C to +60°C | Confirm against the controlled model document |
| Wire specification | 1.25 mm, 5P, 50 cm stranded wires | Confirm against the controlled model document |
| Customization | Available in appearance / structure / output protocol | Confirm against the controlled model document |
Functional Description
The source states that 1 kHz or 50 Hz is selected automatically to match reflected-signal intensity.
The product is designed as a module for customer secondary development and integration.

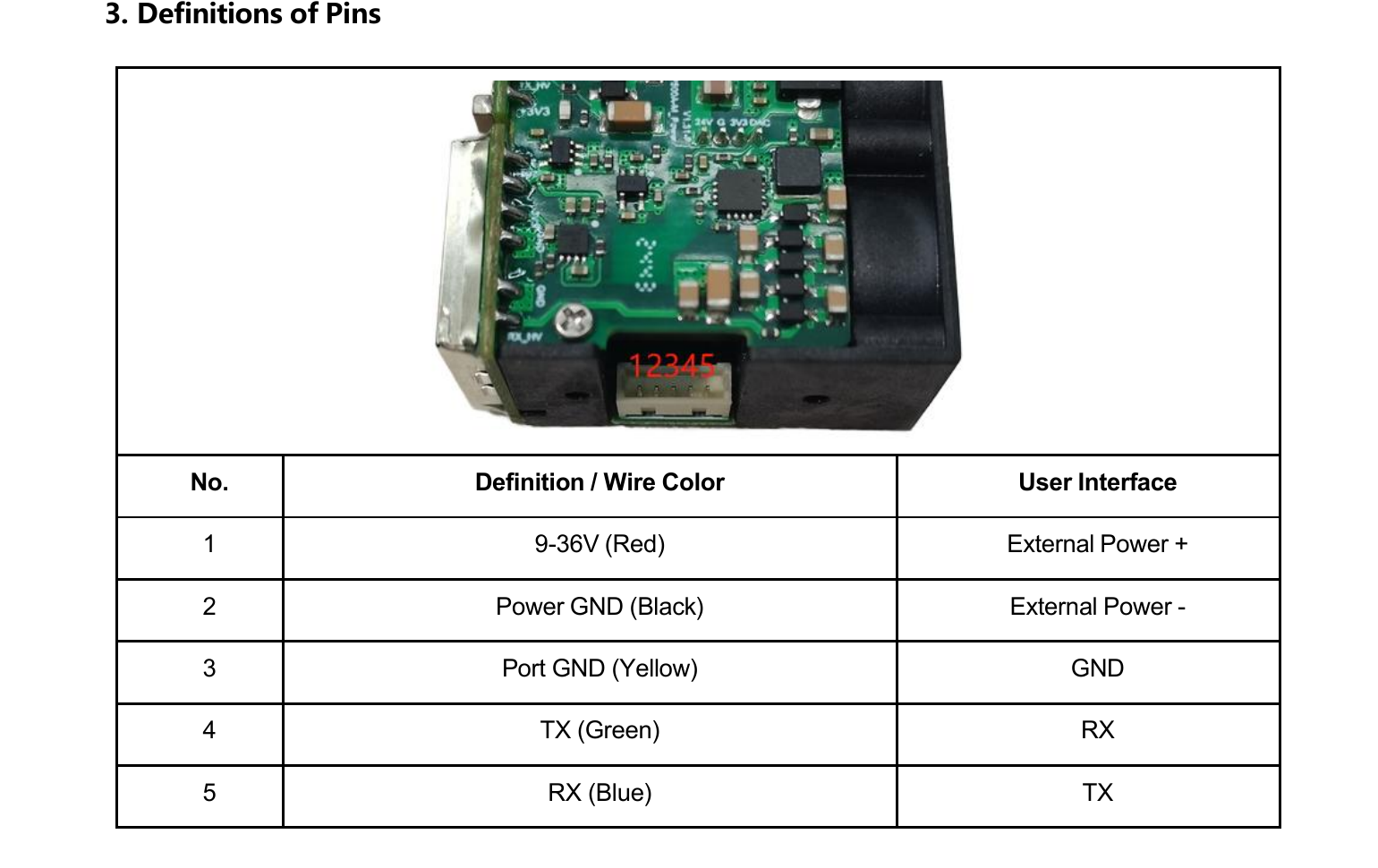

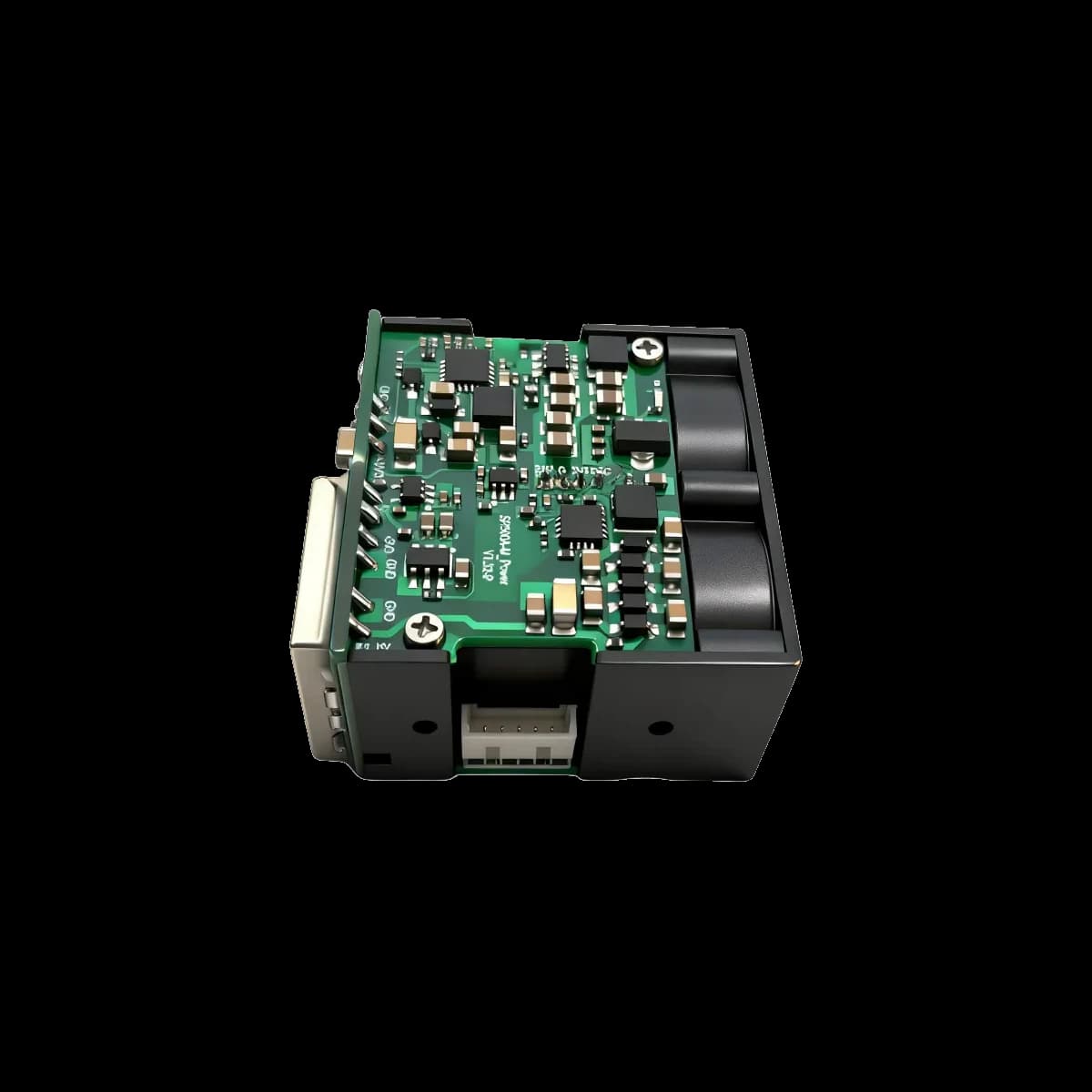

Electrical Interface Definition
Signal names and directions are transcribed from the model source.
| Pin | Signal | Source-stated function |
|---|---|---|
| 1 | 9-36V (red) | External power positive |
| 2 | Power GND (black) | External power negative |
| 3 | Port GND (yellow) | GND |
| 4 | TX (green) | Host RX |
| 5 | RX (blue) | Host TX |

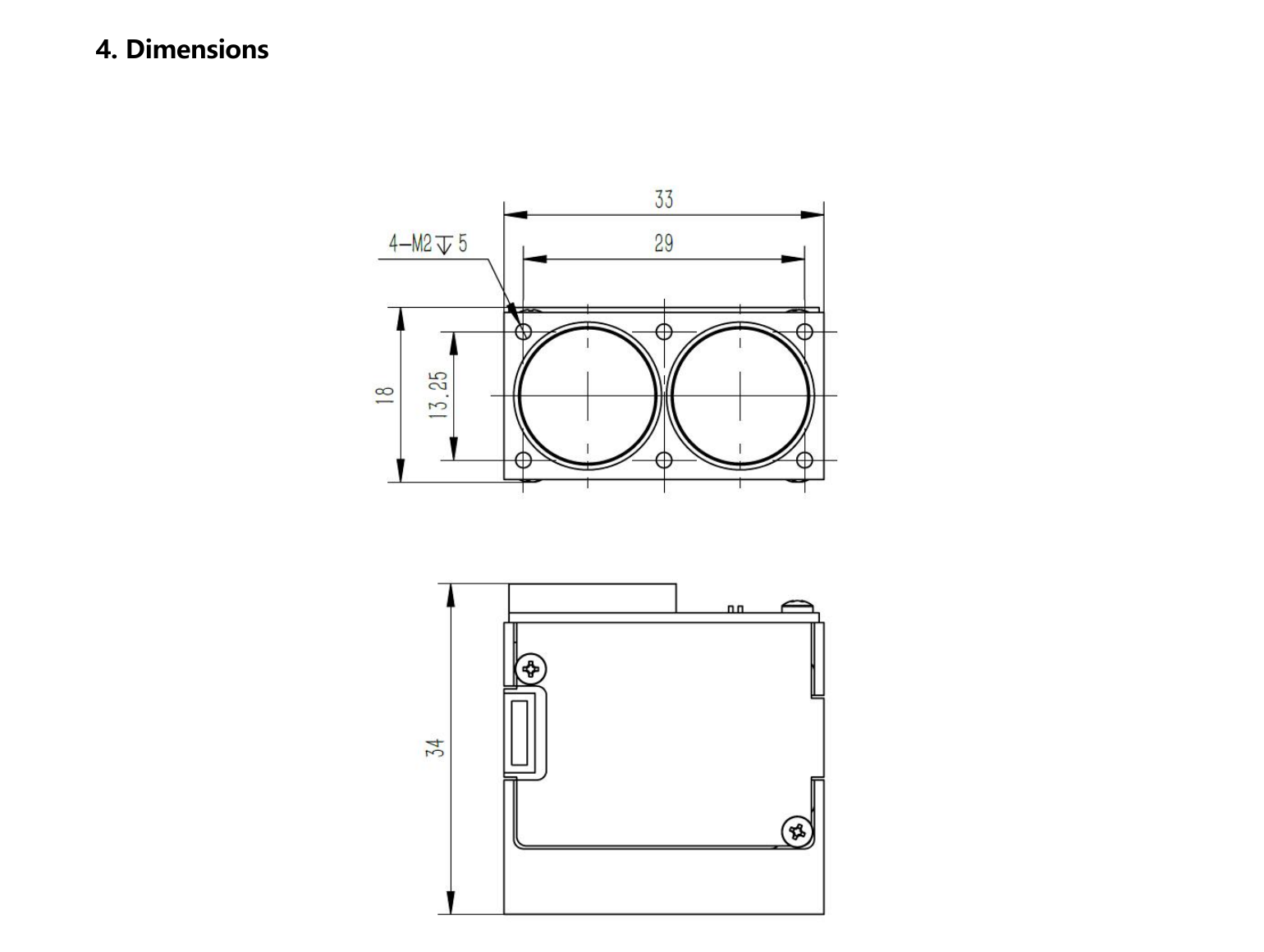

Mechanical Dimension Drawing and Electrical Interface Diagram
These figures are extracted from the named model source without generative modification.
Direct Time-of-Flight Ranging
The LRF1500H model document identifies the product as direct time of flight (DToF). It determines distance from the delay between an emitted optical pulse and the accepted return.
Real performance also depends on target reflectivity and area, incidence angle, atmospheric attenuation, receiver aperture, background light, detector response, timing thresholds and contamination of the optical path.
What the verified data supports
These are traceable design inputs, not unsupported superlatives or guaranteed field outcomes.
Performance envelope
Measurement range: 0.05-1500 m (90% reflectivity); 0.05-300 m (10% reflectivity) · Accuracy: ±10 cm (<10 m); 1% (≥10 m)
Timing and output
Measurement frequency: 1 kHz or 50 Hz (automatically switched to match reflected-signal intensity) · Reported resolution: 1 cm · Repeatability: ±5 cm (<10 m); ±100 cm at 1500 m
Electrical integration
Supply voltage: 9-36 V DC · Communication interface: UART/IIC · Average power consumption: 1.2 W
Mechanical integration
Dimensions: 33 × 34 × 18 mm · Weight: 20 ± 2 g · Operating temperature: -20°C to +60°C
Source-stated application context
Application labels indicate where the source proposes evaluation; they do not prove fitness without system testing.
- UAV integration
- Pod integration
- Security systems
- Traffic-safety early warning
- Camera focusing
- Tower-crane distance detection
- Blade-encroachment detection
Confirm before selection
- Define target size, reflectivity, incidence angle and required detection probability.
- Reproduce sunlight, visibility, weather and optical-window conditions in acceptance testing.
- Verify voltage tolerance, peak current, grounding, interface levels, baud rate and connector revision.
- Separate accuracy, repeatability and displayed resolution in host requirements.
- Confirm mounting datum, boresight, field of view, enclosure sealing and thermal path.
- Assess accessible emission and labeling again after integration into the finished equipment.
Questions to resolve before design release
Does the maximum stated range apply to every target?
No. Use the reflectivity and environmental conditions shown beside the range row. Smaller, darker, oblique or partially obscured targets and degraded visibility can reduce received signal.
Are resolution, repeatability and accuracy interchangeable?
No. Resolution is the reporting increment, repeatability describes variation under repeated conditions, and accuracy describes closeness to the reference distance under the stated test method.
Is the finished product automatically Class 1?
No. A module-level source statement does not replace the accessible-emission and failure-condition assessment of the finished equipment, its window, controls, service access and labeling.
Which documents control wiring and interface release?
The ordered connector drawing, pin definition and approved interface document control the design.
