ERDI OEM LASER MODULE

LRF50H 1 kHz-Default Industrial DToF Module, 50 m at 90% Reflectivity

$160 USD / unitBase B2B price; approved quantity tiers are shown below. Shipping included.
Product modelLRF50H

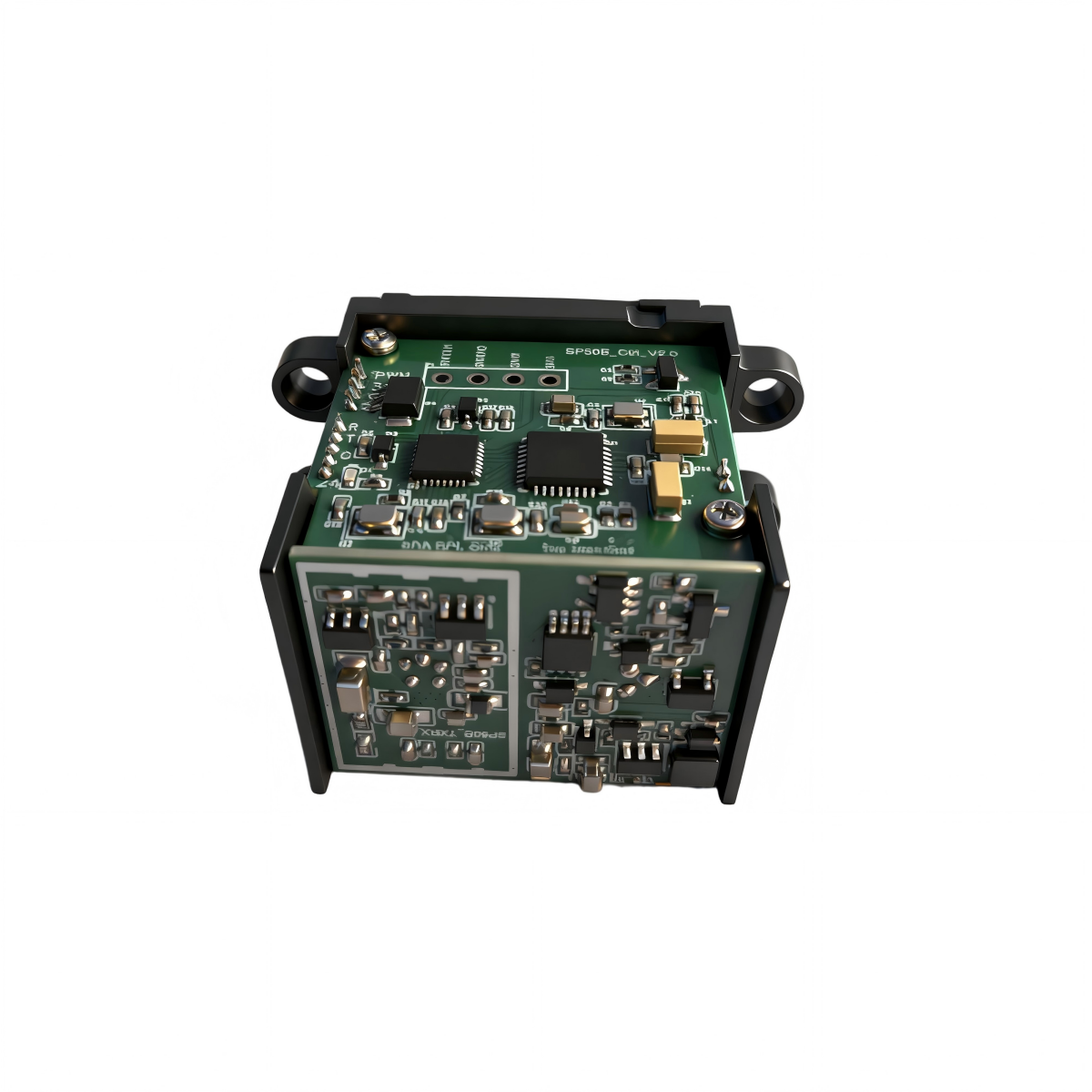

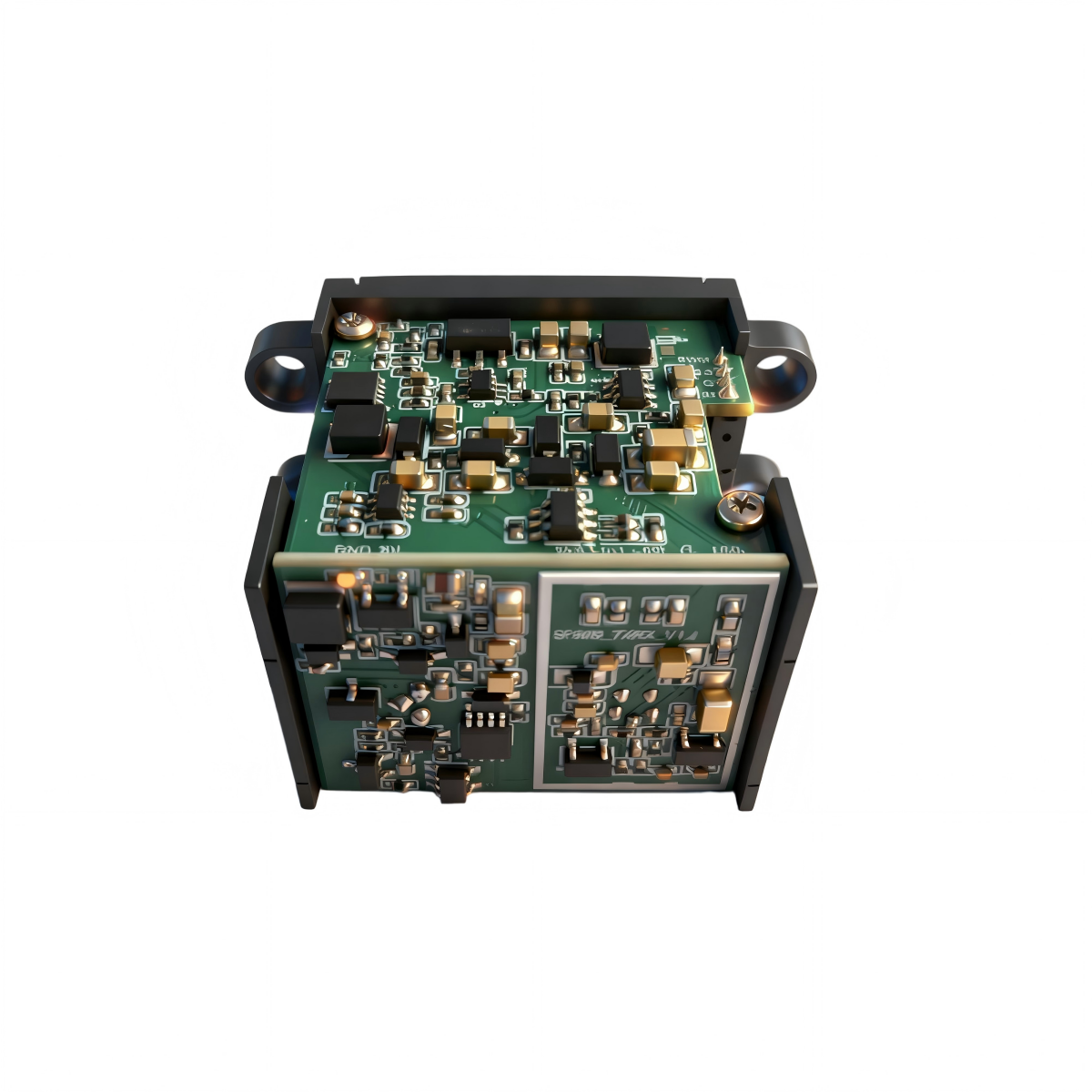

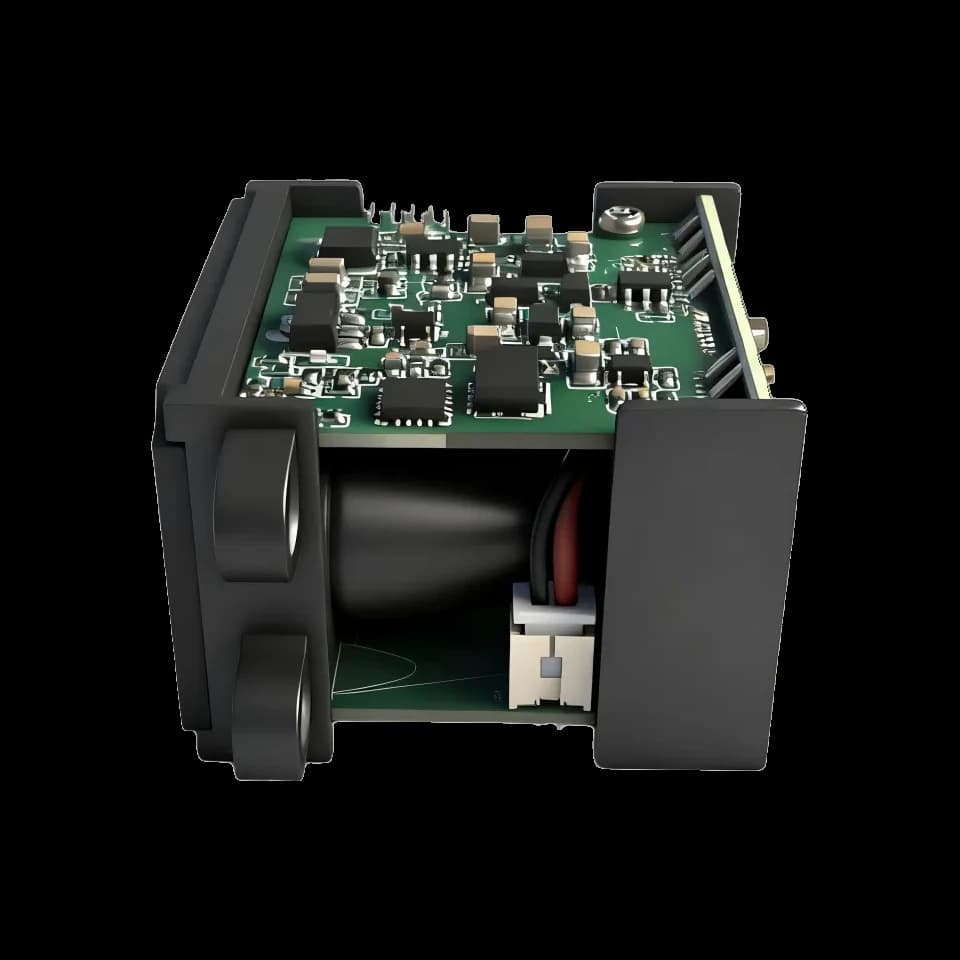

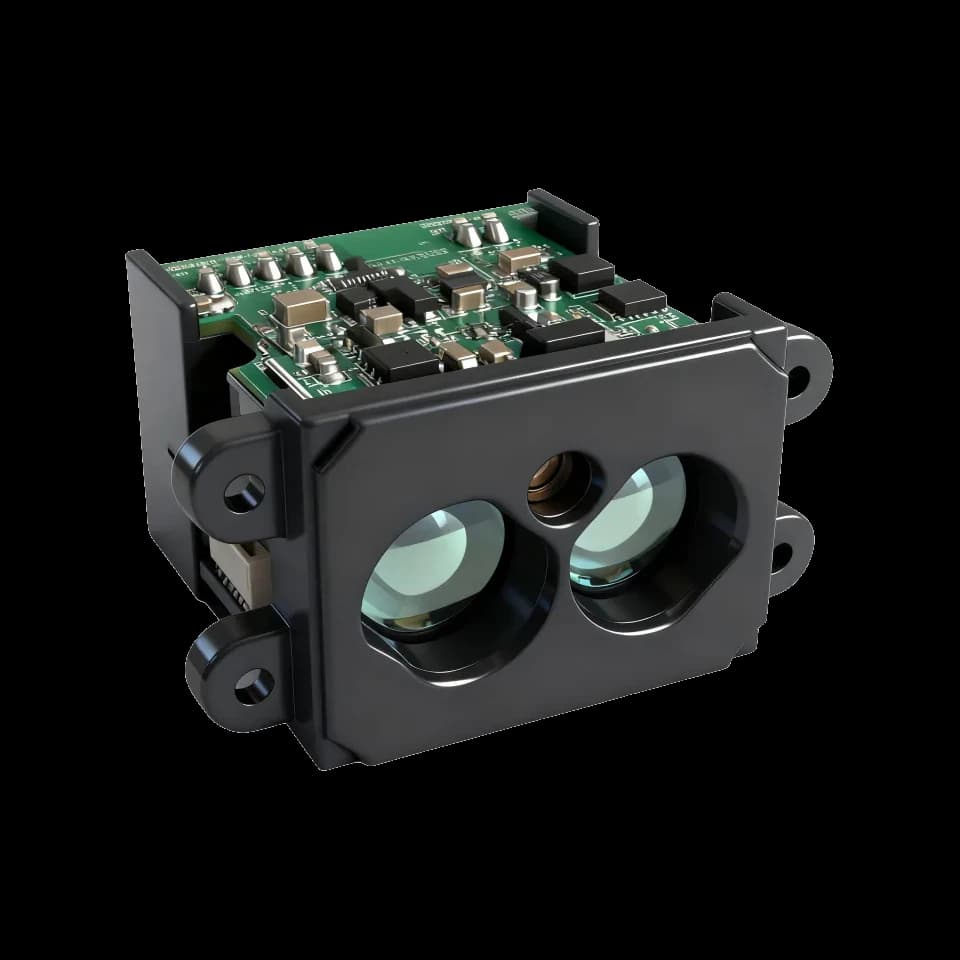

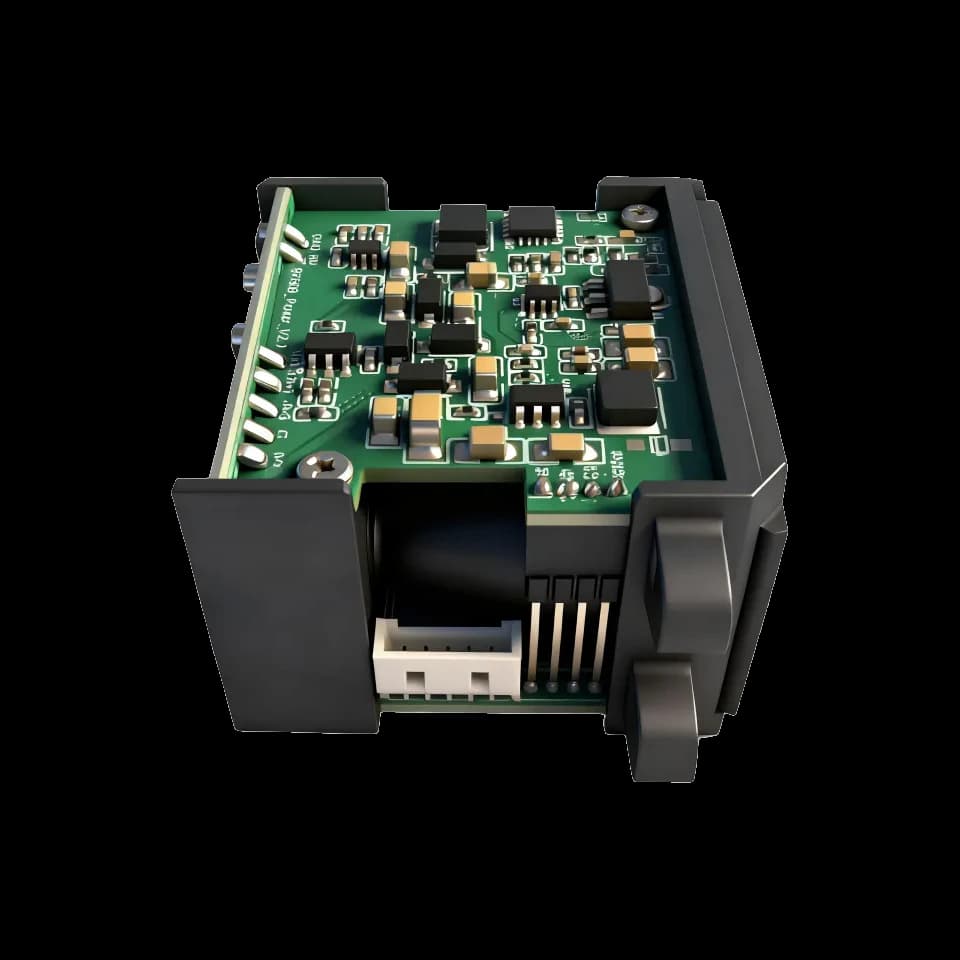

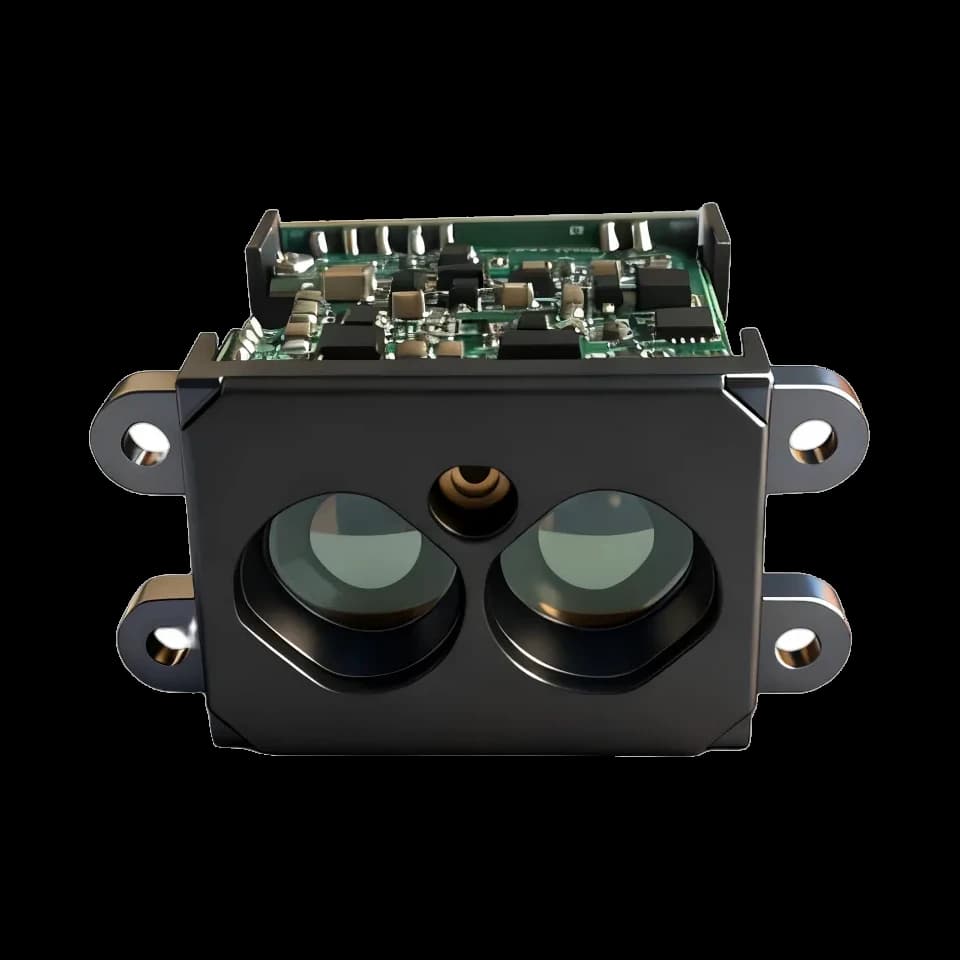

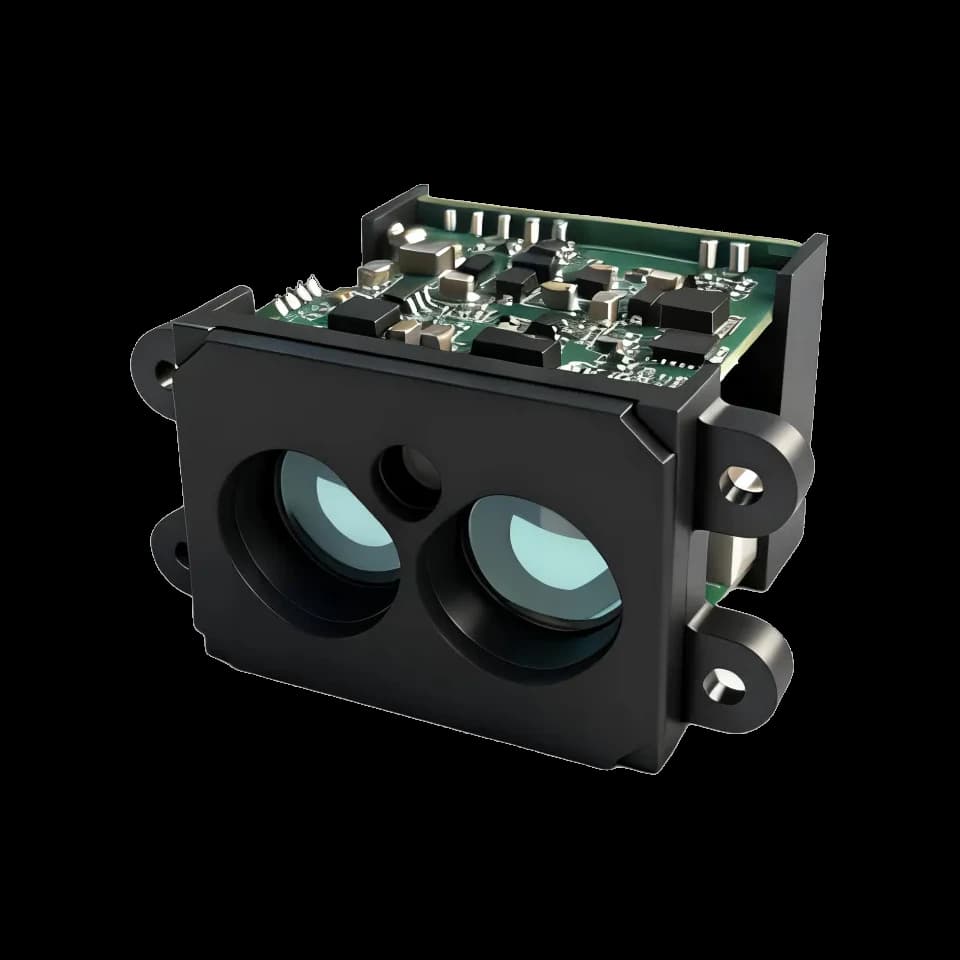

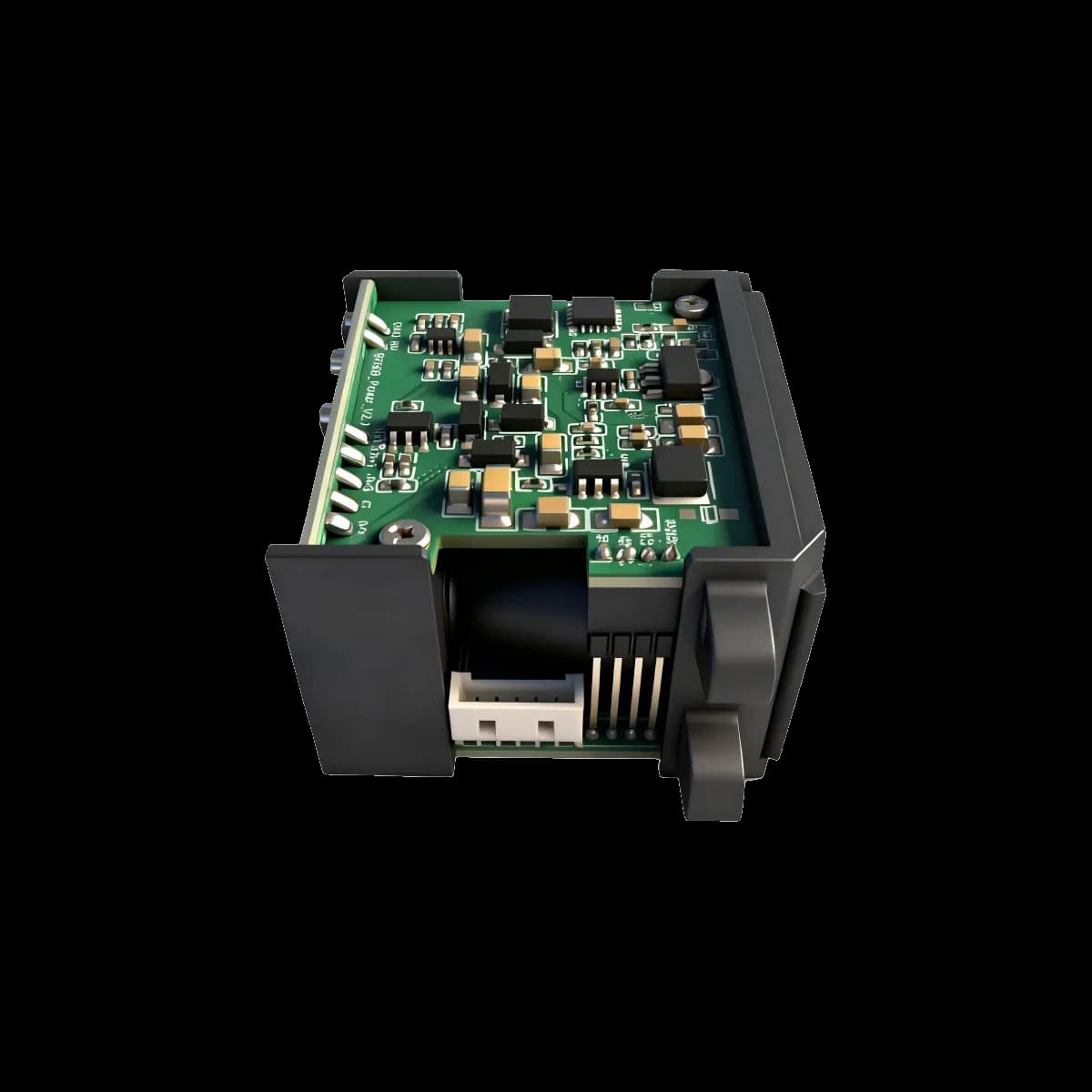

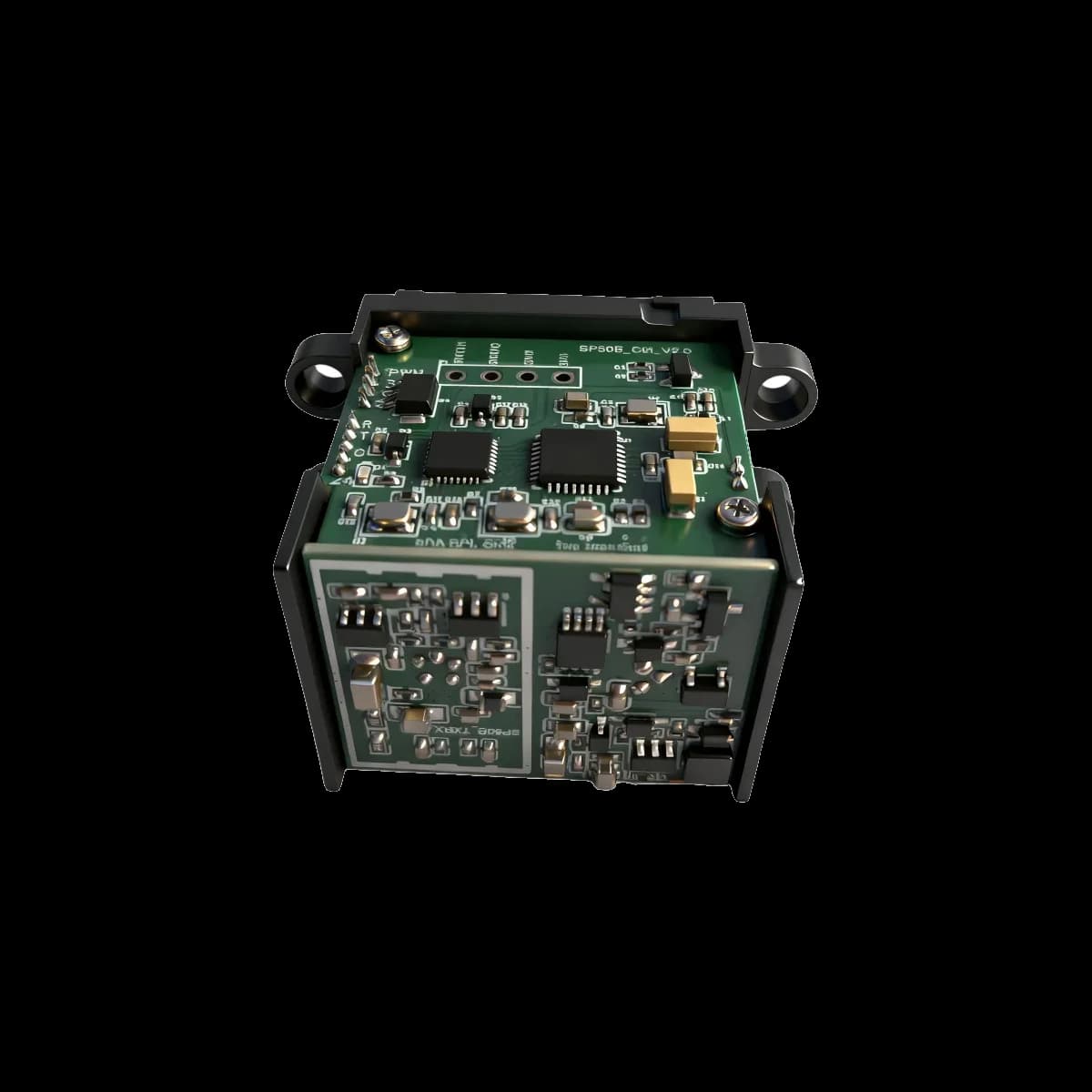

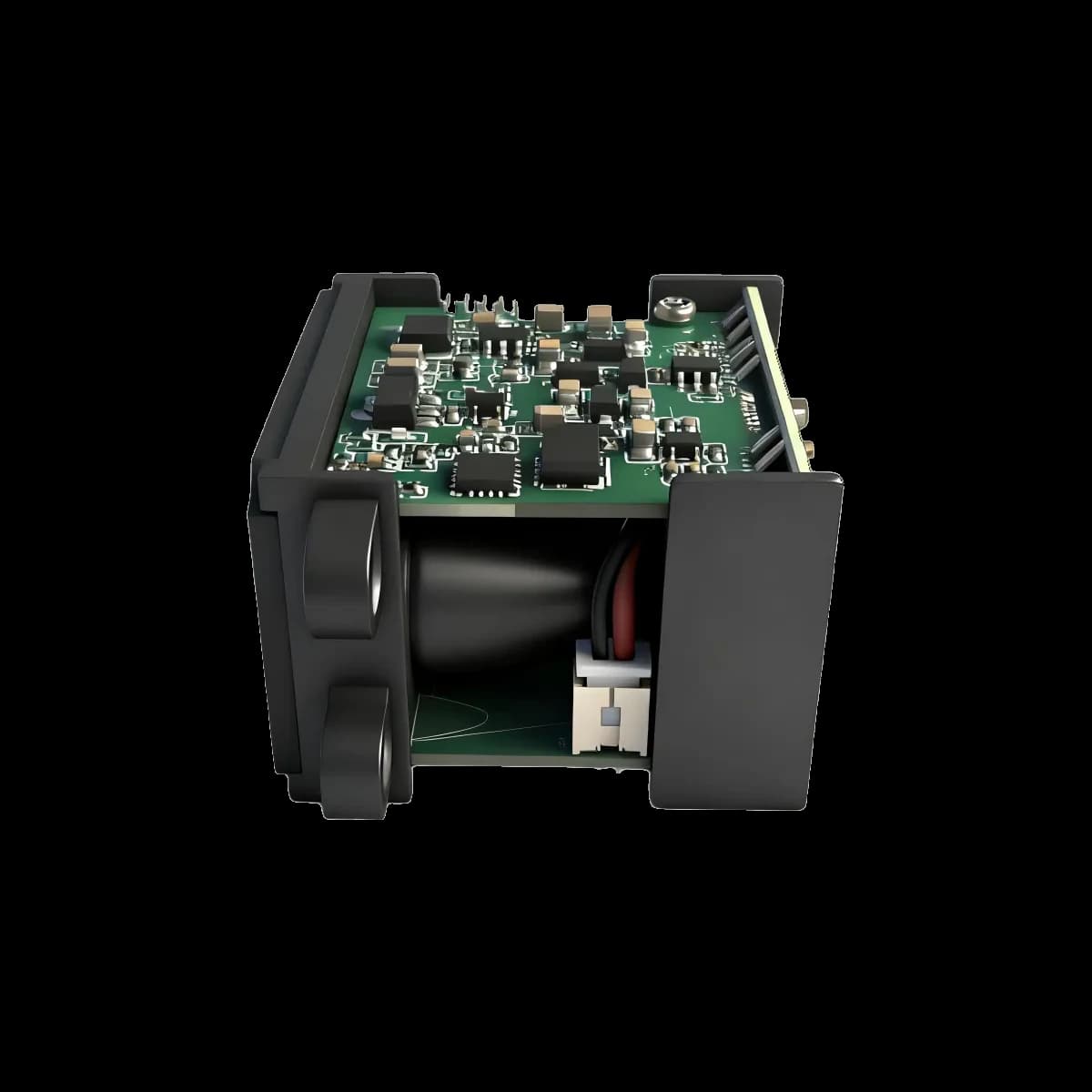

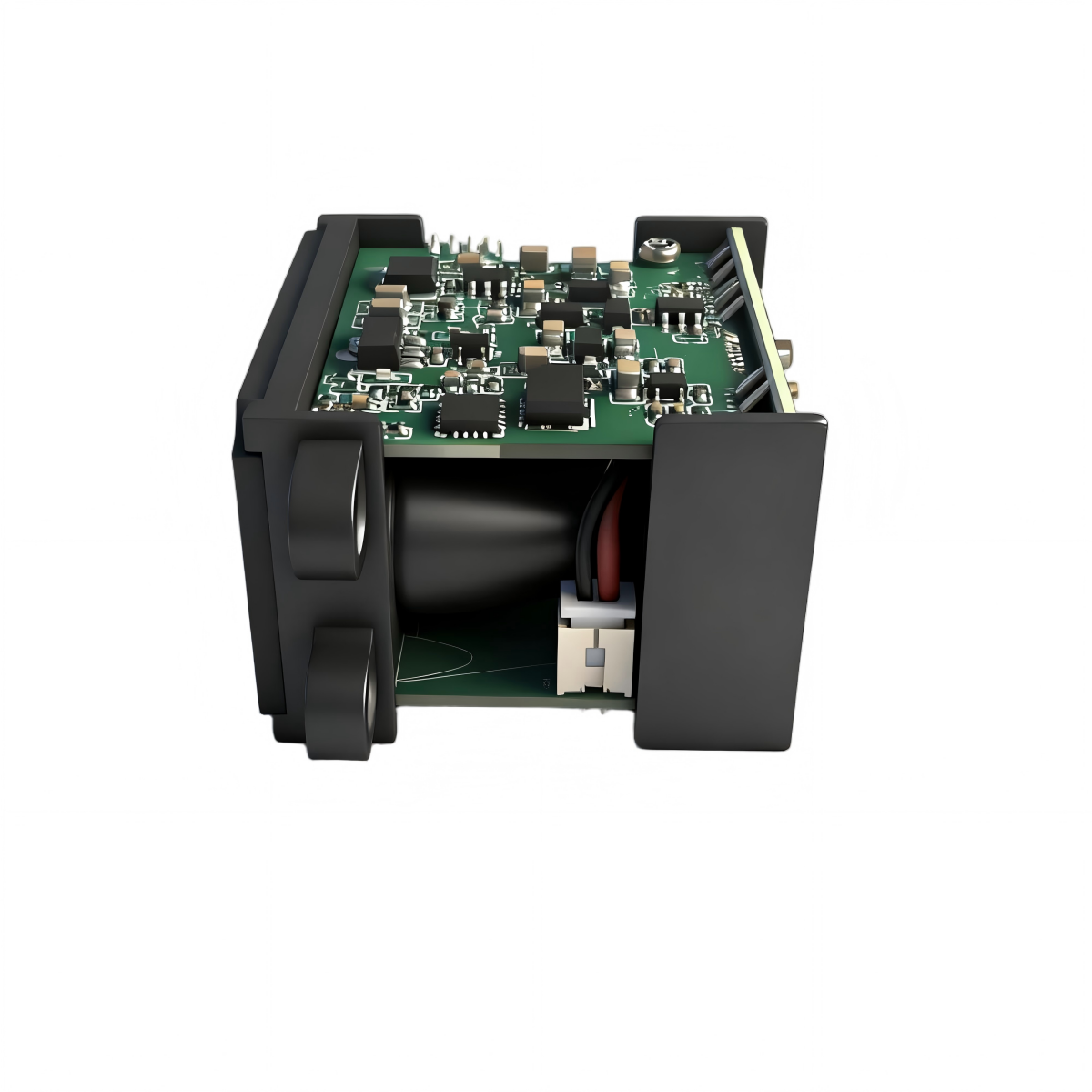

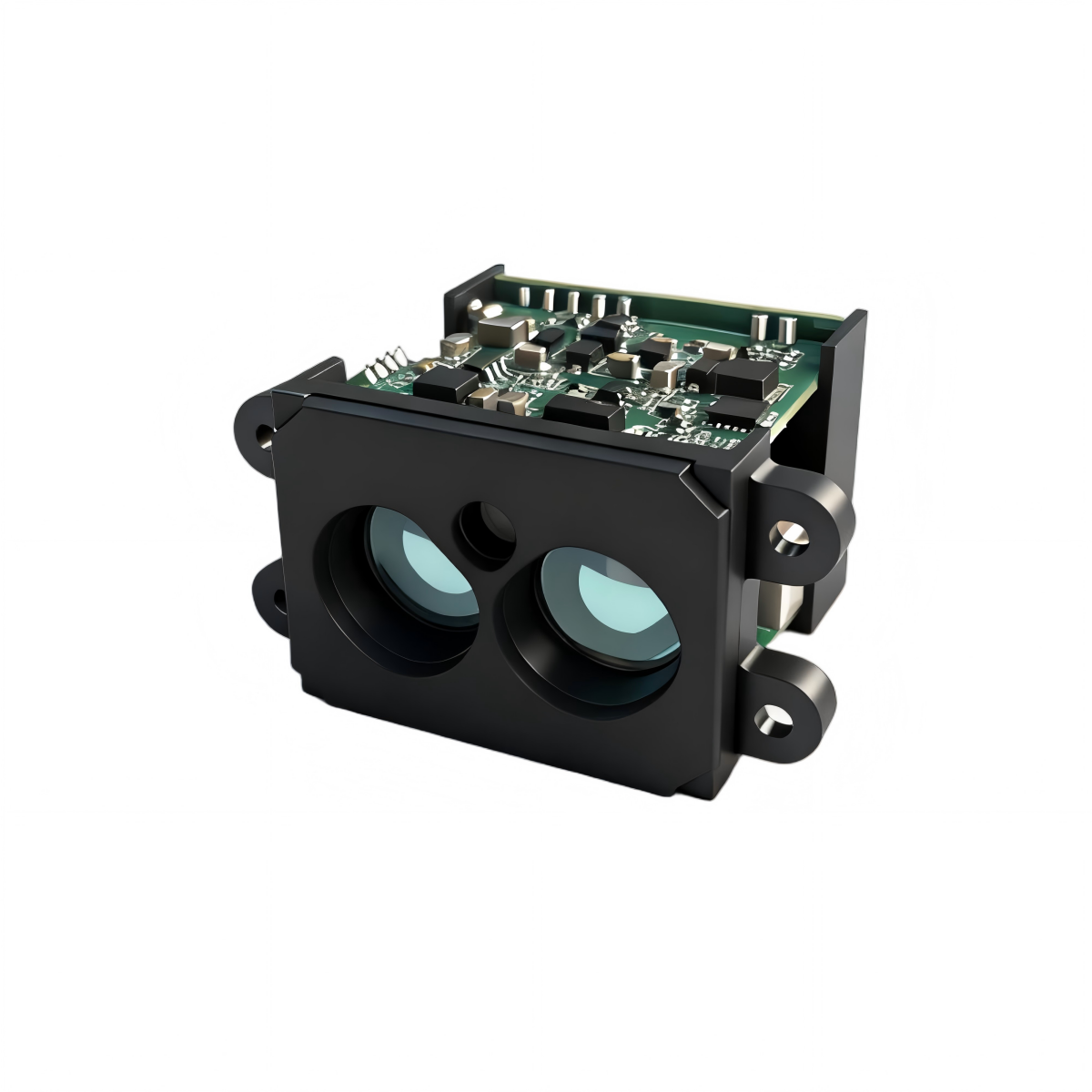

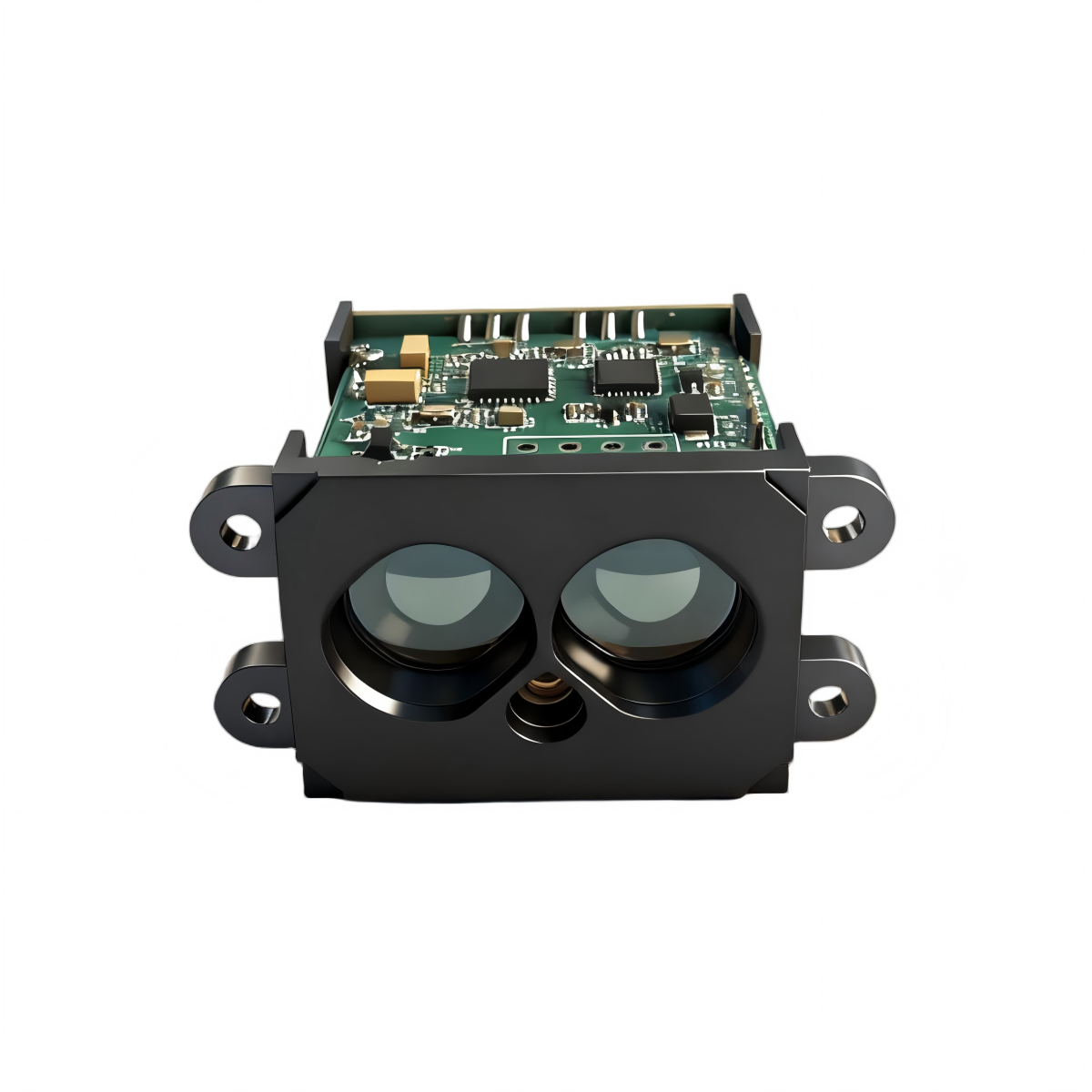

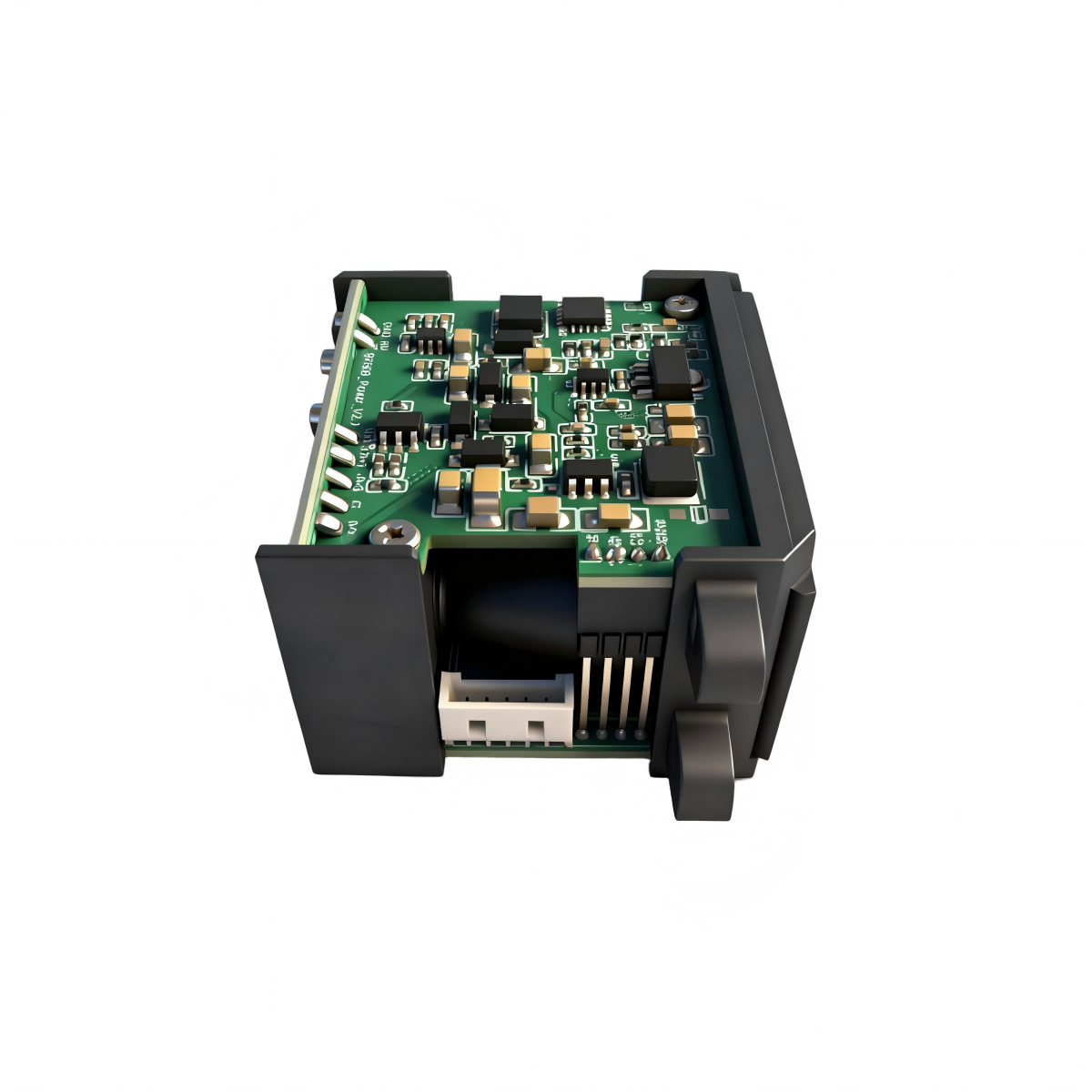

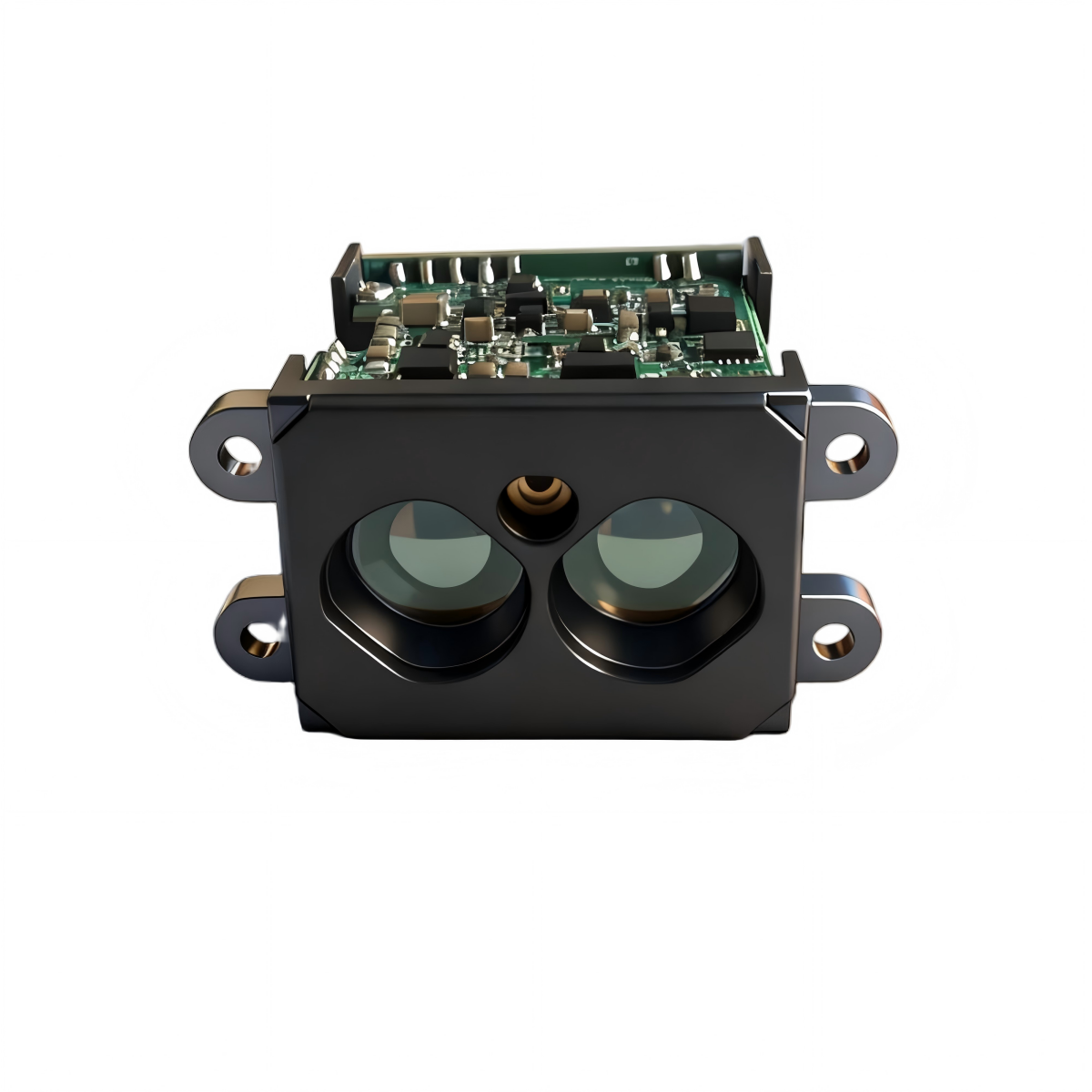

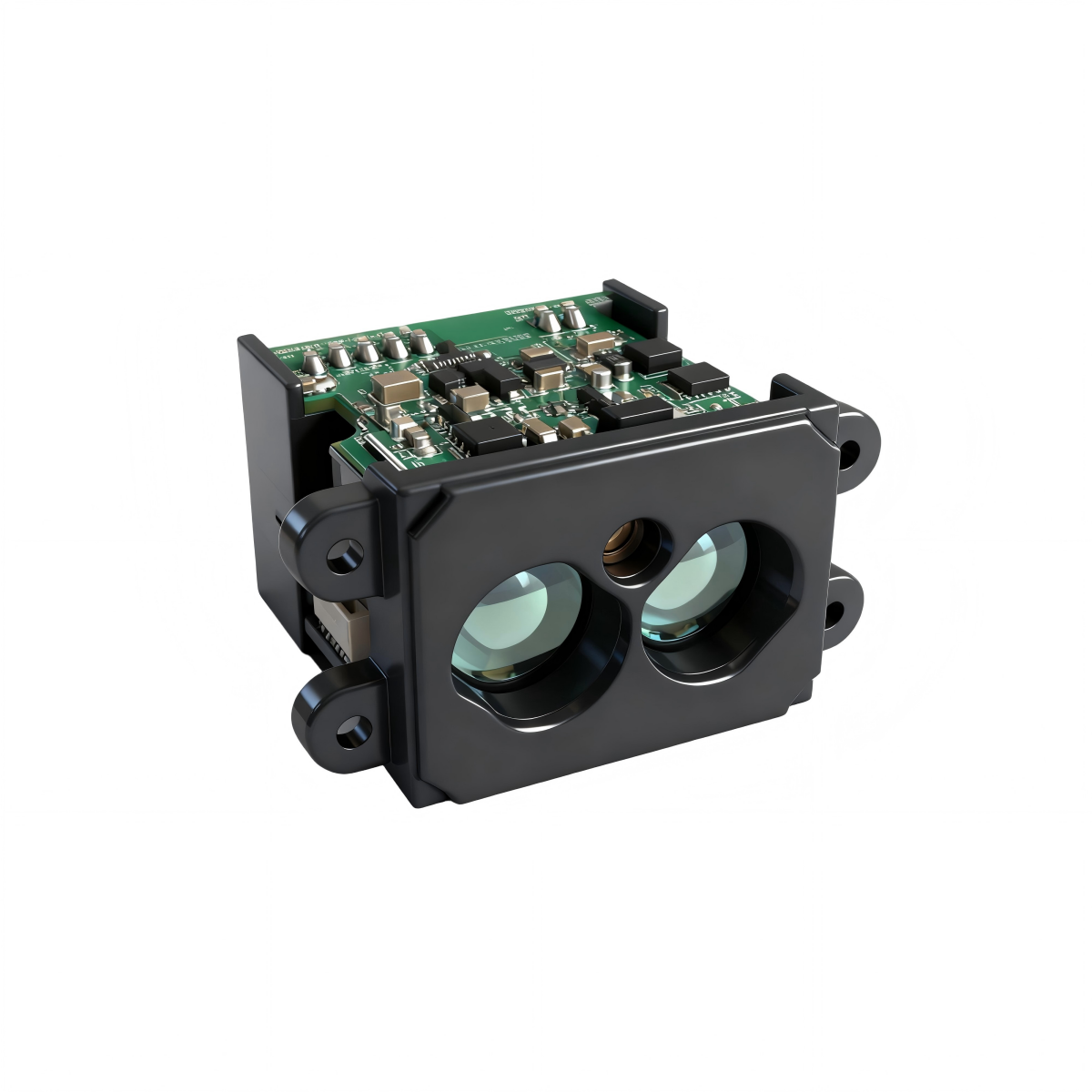

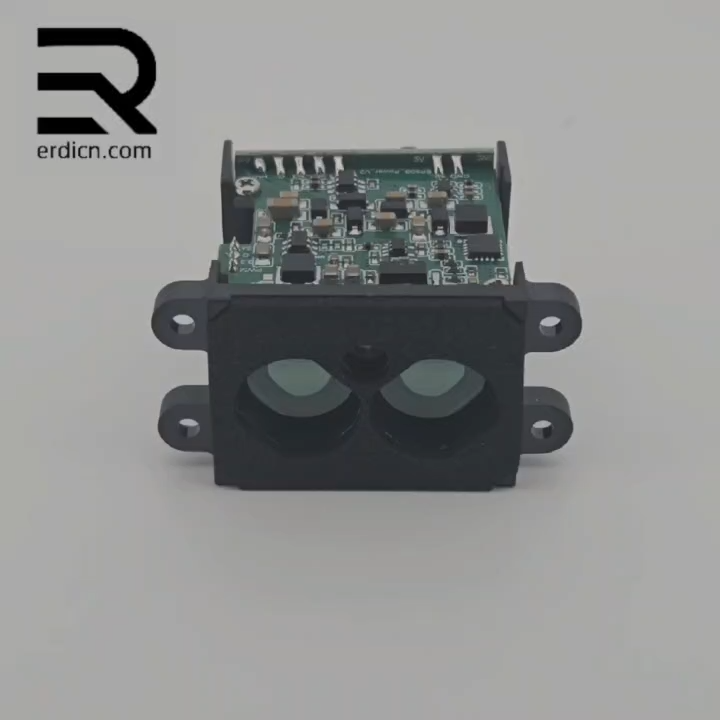

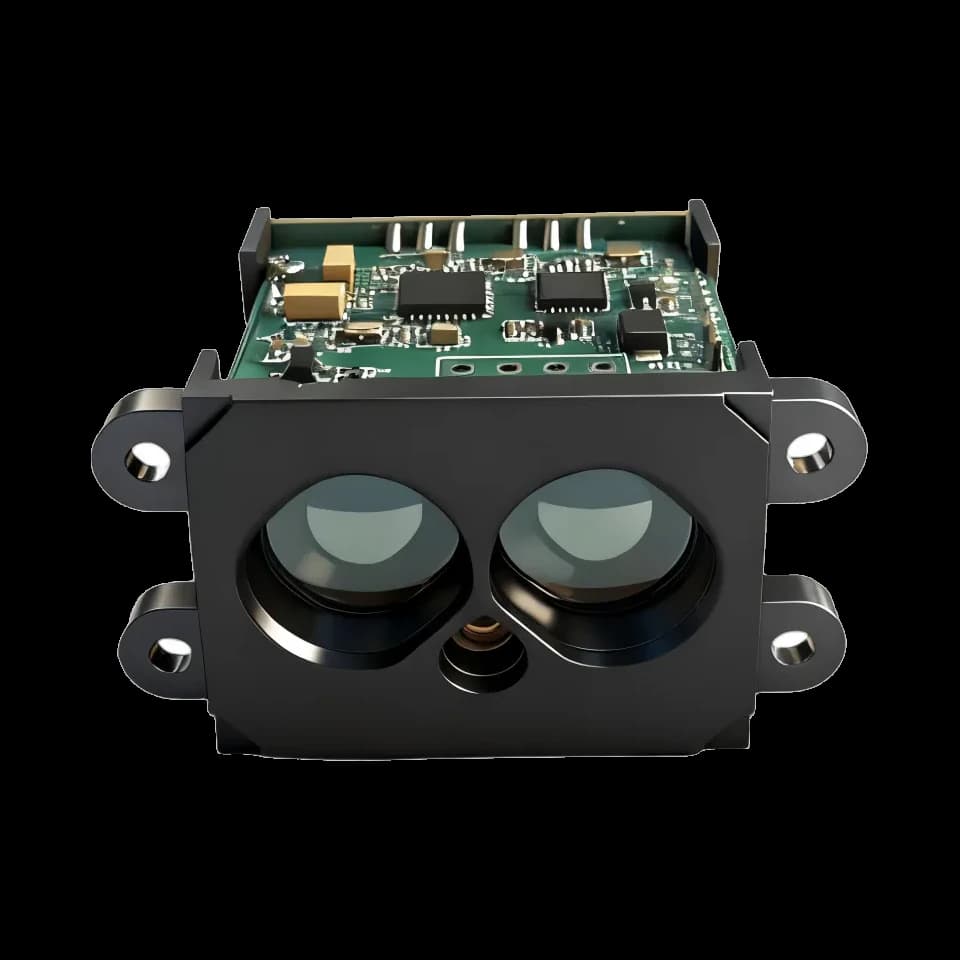

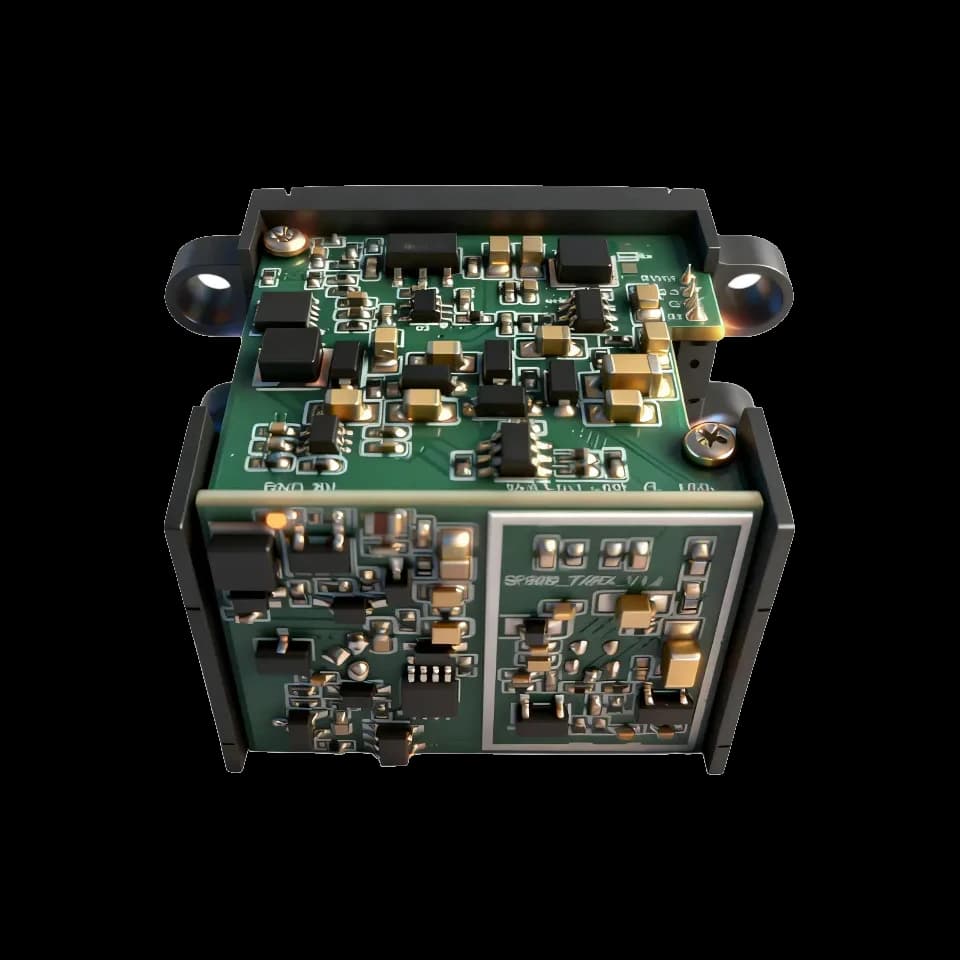

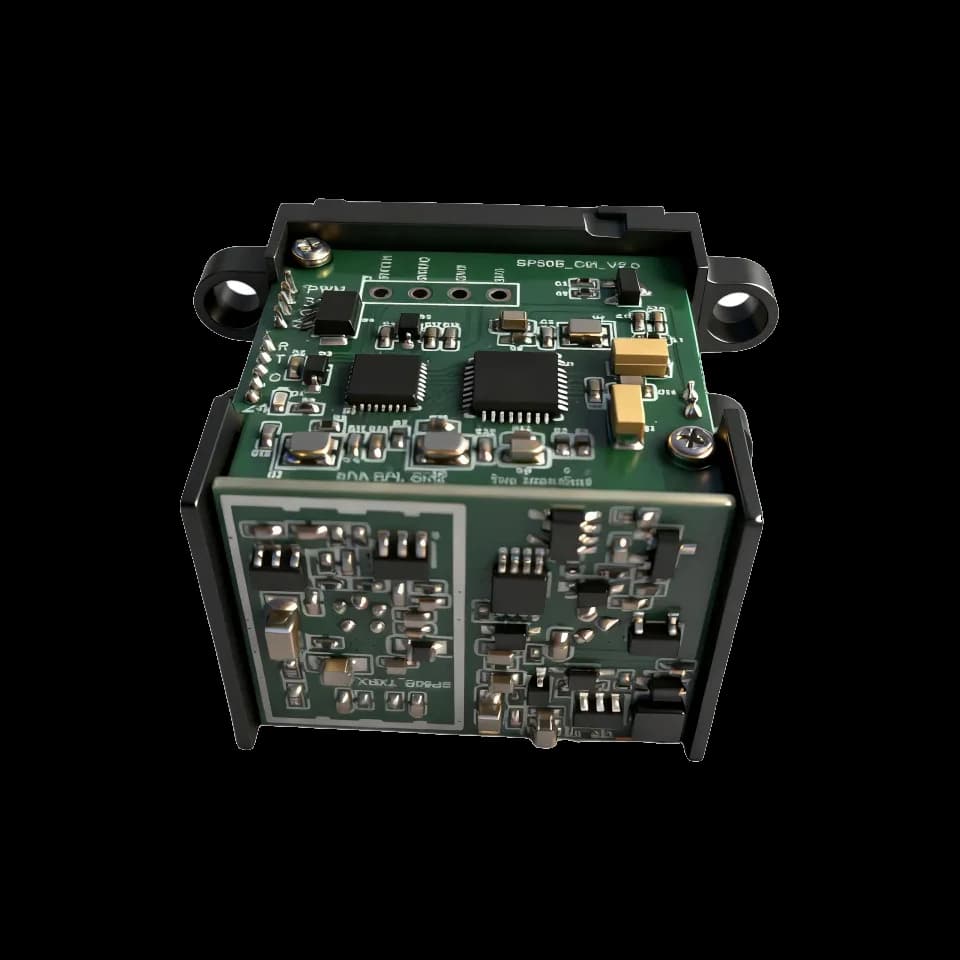

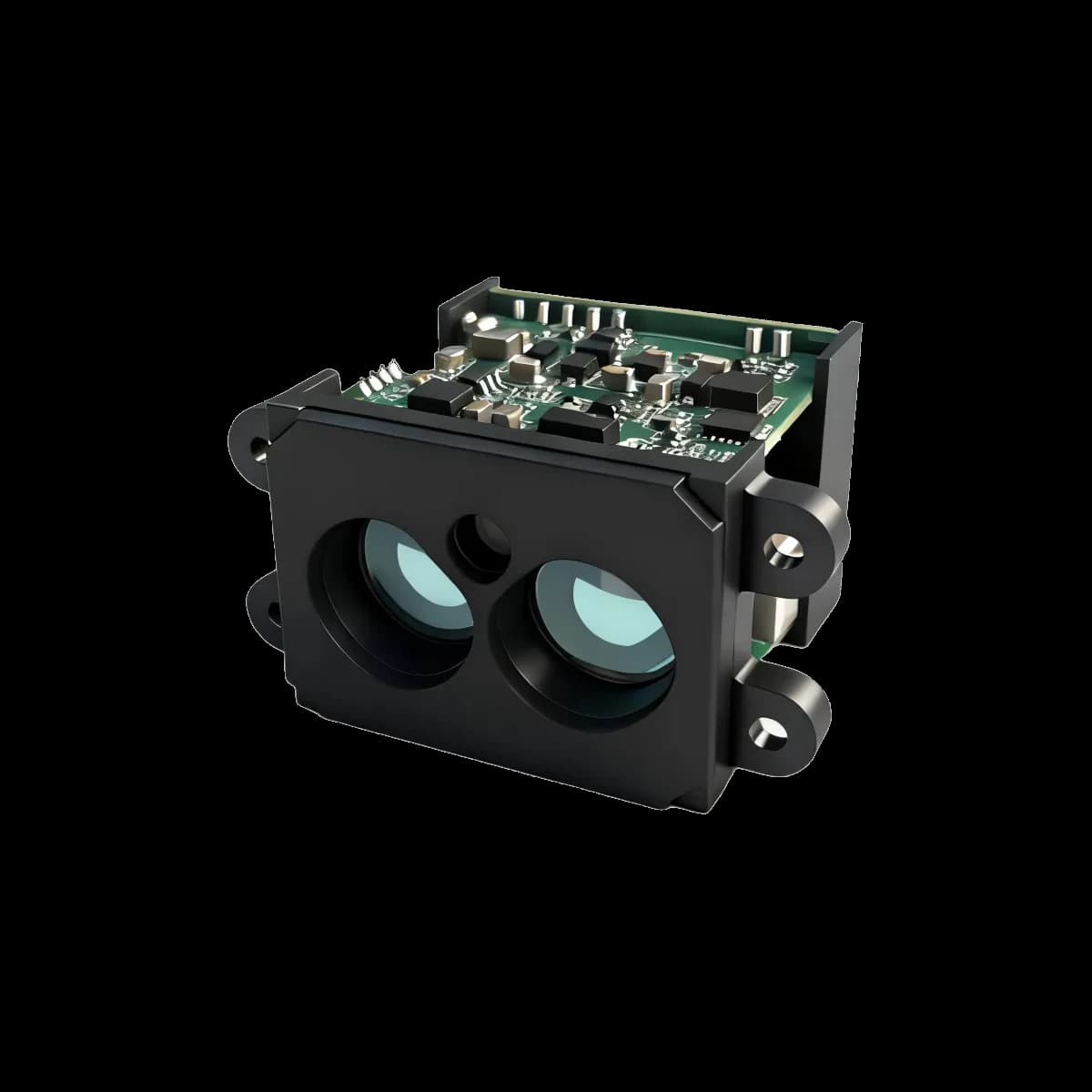

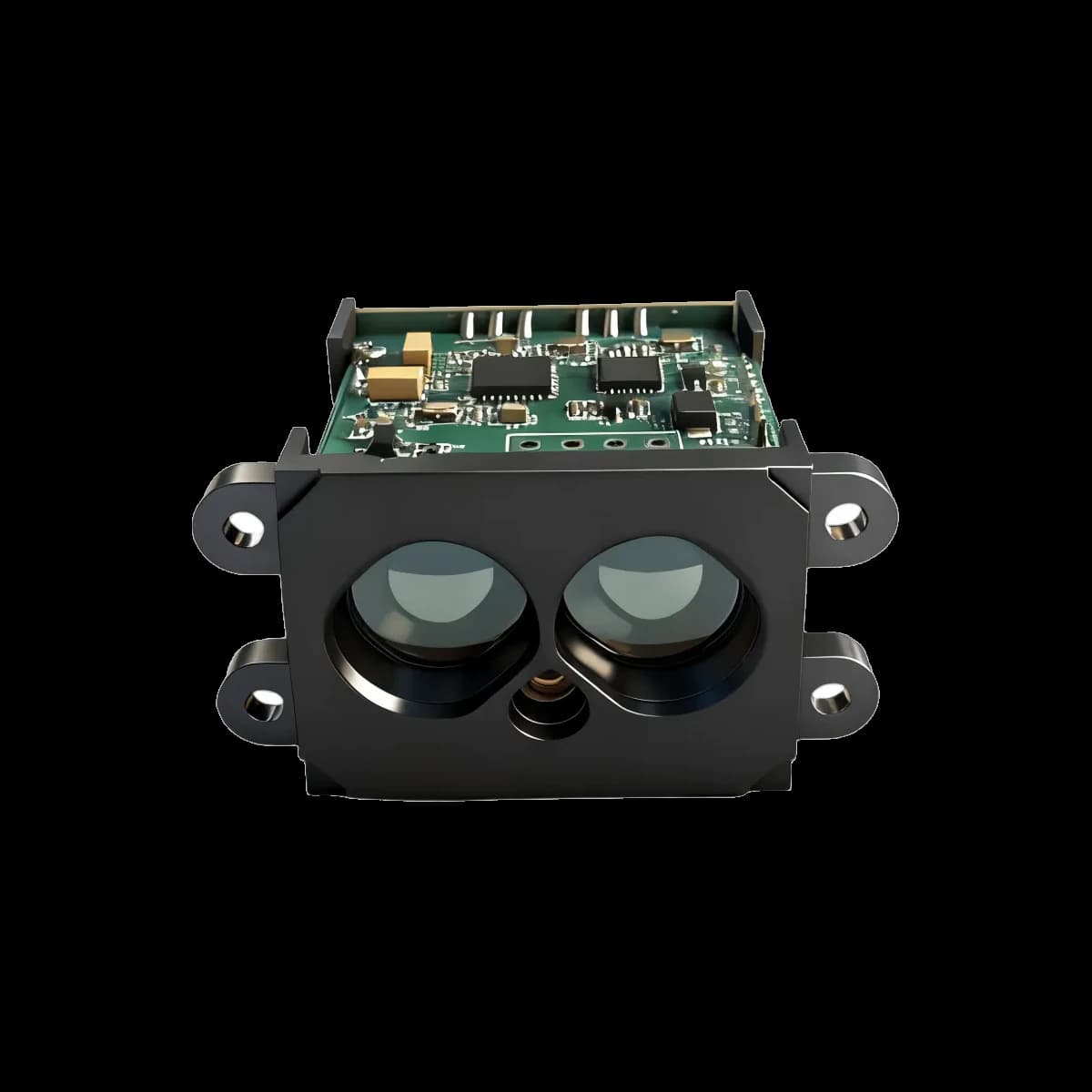

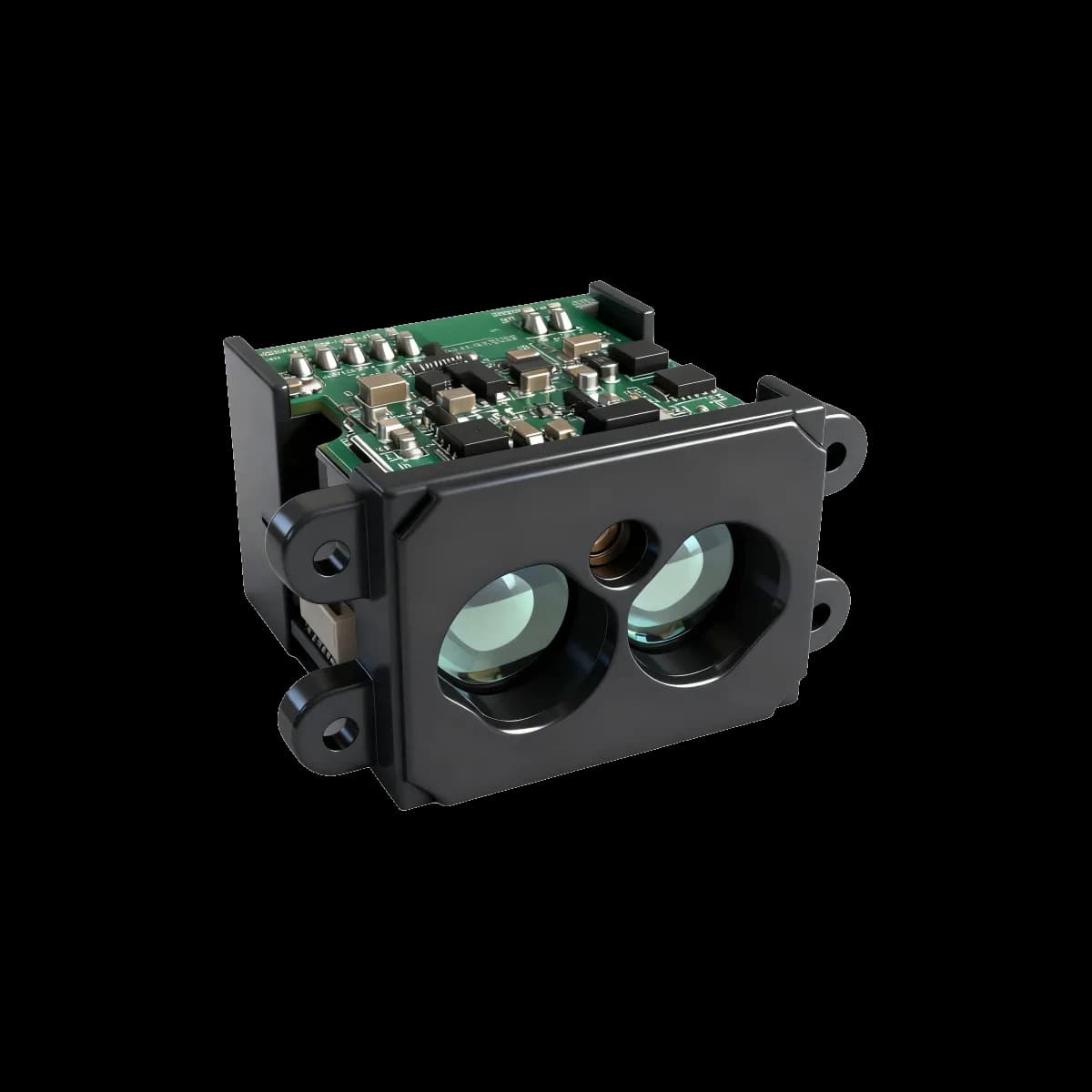

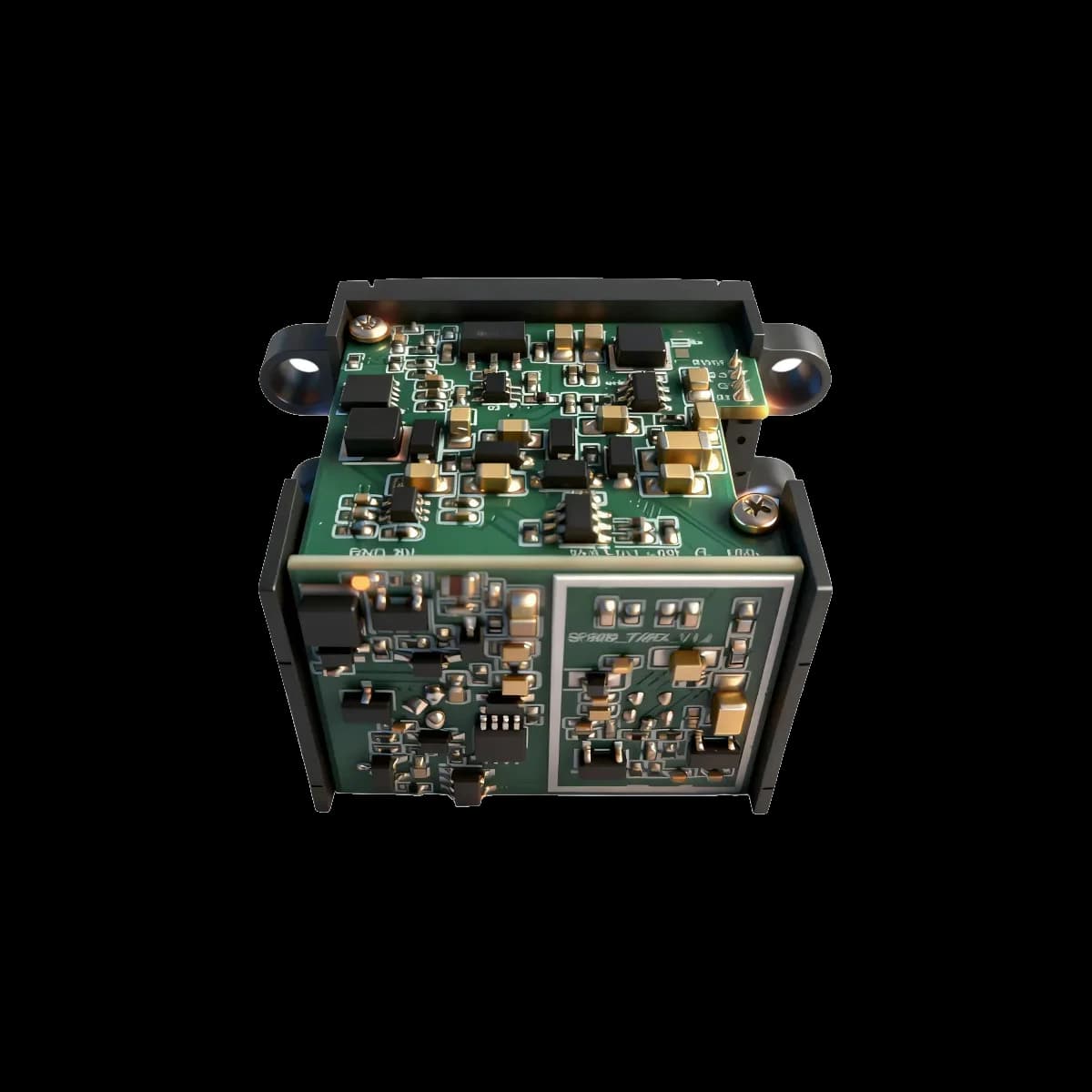

LRF50H is a 905 nm industrial DToF module with a 1 kHz default measurement frequency and a separate visible alignment light. Its indoor, 25 °C range entry is 0.05–50 m at 90% reflectivity and 0.05–15 m at 10% reflectivity.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$160 USDPublished unit price
31–500 pieces$80 USDSave 50%
501–999 pieces$70 USDSave 56%
1,000+ piecesLowest unit price$50 USDLowest published price · Save 69%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a Quote / Technical Review

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

MODEL-LEVEL DATA

Detailed LRF50H Specifications

The source specifies 20 Hz–10 kHz operation with a 1 kHz default, alongside a 9–36 V DC input and UART output. Overhead-crane positioning, carriage distance control and inspection robots are listed application directions. Select this model around its own target and electrical conditions rather than treating all 50 m sensors as interchangeable.

LRF50H also provides a switchable 650 nm alignment light. The document gives separate safety statements for the ranging emitter and indication light, so the Class 1 ranging entry must not be applied indiscriminately to the visible beam. Outdoor ambient-light performance is separately stated as 45 m at 100 klx under the specified reflector condition.

Basic ranging performance

ParameterValueSource condition
Measurement range0.05-50 m (90% reflectivity); 0.05-15 m (10% reflectivity)The two source values remain bound to their stated target reflectivity. The source marks this parameter as measured at 25°C in an indoor environment.
Measurement frequency20 Hz-10 kHz (default: 1 kHz)Confirm against the controlled model document
Accuracy±5 cm (<10 m); 1% (≥10 m), 2σConfirm against the controlled model document
Repeatability±5 cmConfirm against the controlled model document
Ambient-light immunity45 m at 100 klx90% reflector in an outdoor environment at 25°C, per source footnote.
Reported resolution1 cmFront-page feature statement; not an accuracy value

Optical parameters

ParameterValueSource condition
Central wavelength905 nmConfirm against the controlled model document
Photobiological safetyClass 1Confirm against the controlled model document
Field of viewAbout 4 mradConfirm against the controlled model document
Wavelength for indication650 nm (visible red light)Confirm against the controlled model document
Photobiological safety for indicationClass 2Confirm against the controlled model document

Electrical and communication interface

ParameterValueSource condition
Supply voltage9-36 V DCConfirm against the controlled model document
Peak current24 V at 100 mAConfirm against the controlled model document
Average current24 V at 34 mAConfirm against the controlled model document
Average power consumption0.8 WConfirm against the controlled model document
Communication interfaceUARTConfirm against the controlled model document

Mechanical and environmental

ParameterValueSource condition
Protection levelN/AConfirm against the controlled model document
Dimensions38 × 20 × 30 mmConfirm against the controlled model document
Weight15 ± 2 gConfirm against the controlled model document
Operating temperature-20°C to +60°C (no condensation; indication red light automatically turns off below -20°C)Confirm against the controlled model document
Wire specification5-pin 1.25 mm terminal, M1250V-05P, with 50 cm tinned loose wireConfirm against the controlled model document
CustomizationAvailable in appearance / structure / output protocolConfirm against the controlled model document

Functional Description

The coaxial 650 nm aiming light can be switched on or off to support alignment and installation.

The source states that the aiming light automatically turns off below -20°C and that the specified operating range requires no condensation.

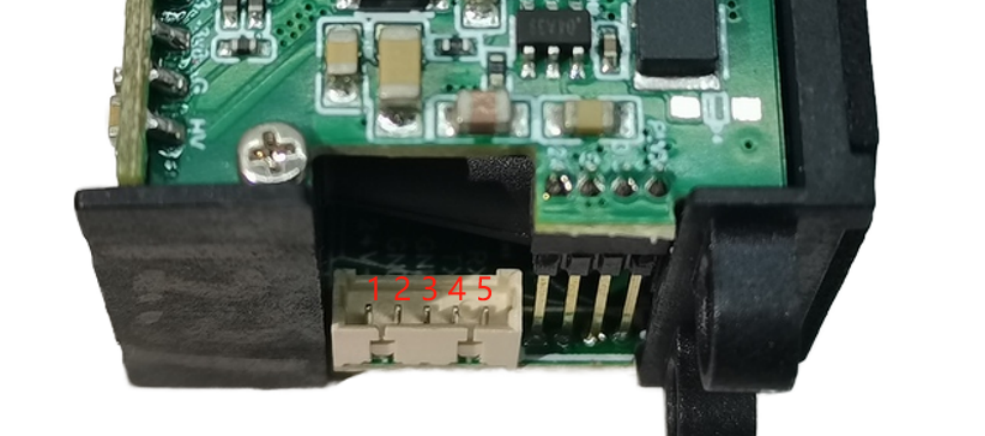

Electrical Interface Definition

Signal names and directions are transcribed from the model source.

PinSignalSource-stated function
19-36V (red)External power positive
2GND (black)GND
3GND (yellow)GND
4TX (green)Host RX
5RX (blue)Host TX

Mechanical Dimension Drawing and Electrical Interface Diagram

These figures are extracted from the named model source without generative modification.

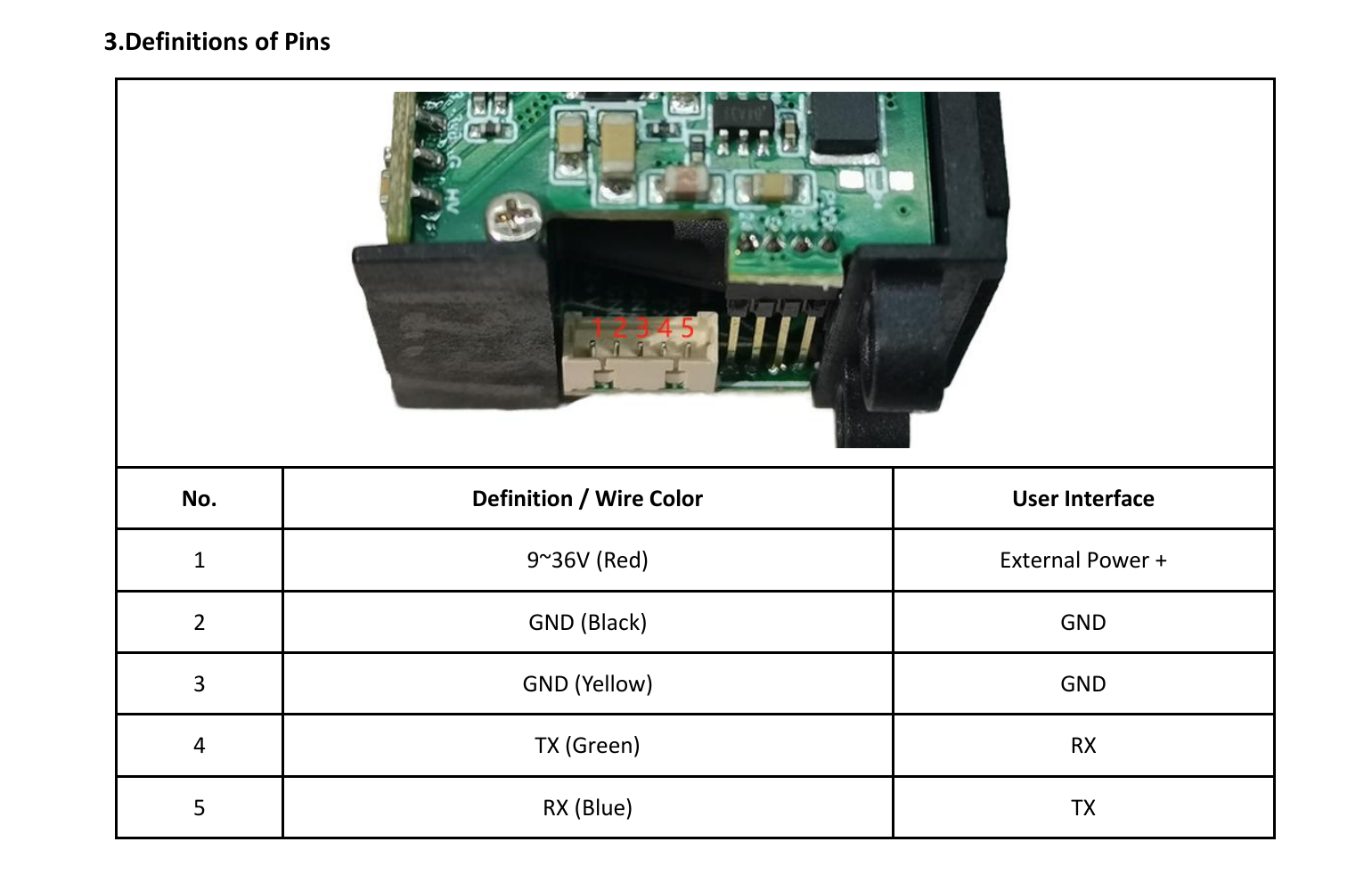

LRF50H five-pin electrical interface definition
Electrical interface definitionFive-pin 9-36 V power, dual-ground and UART TX/RX definition extracted from page 3.

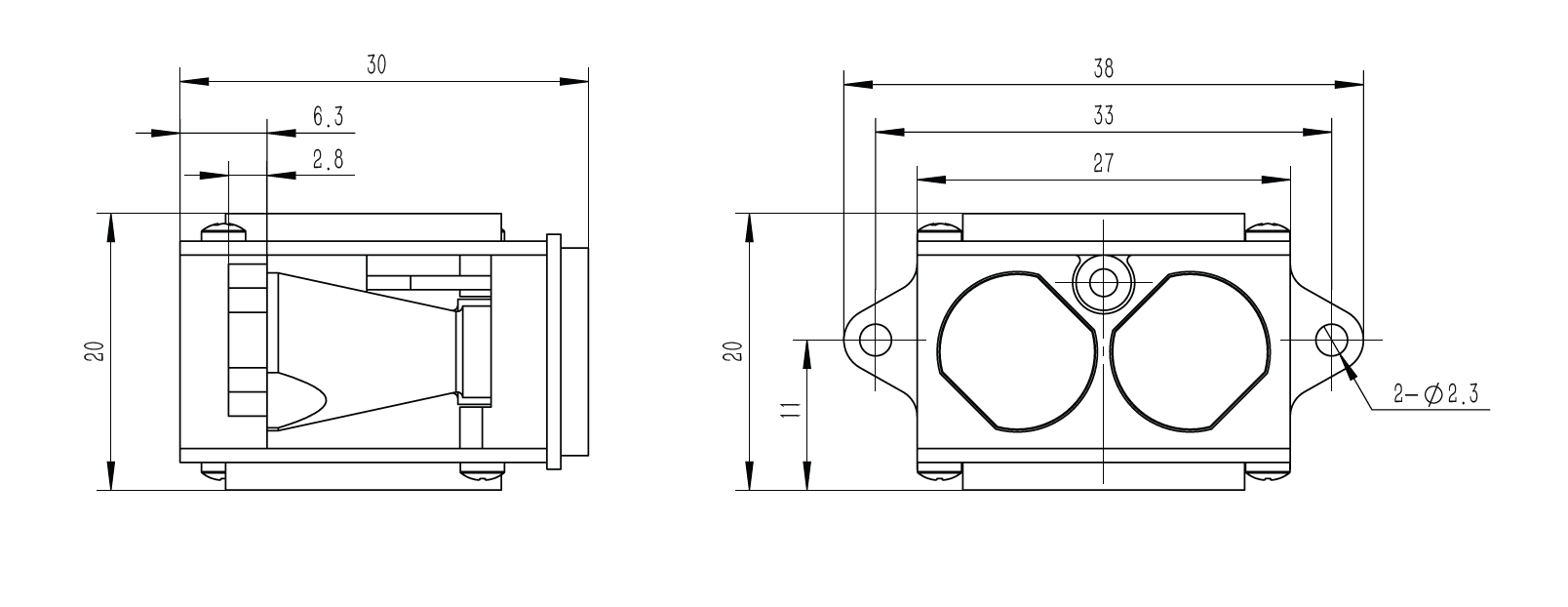

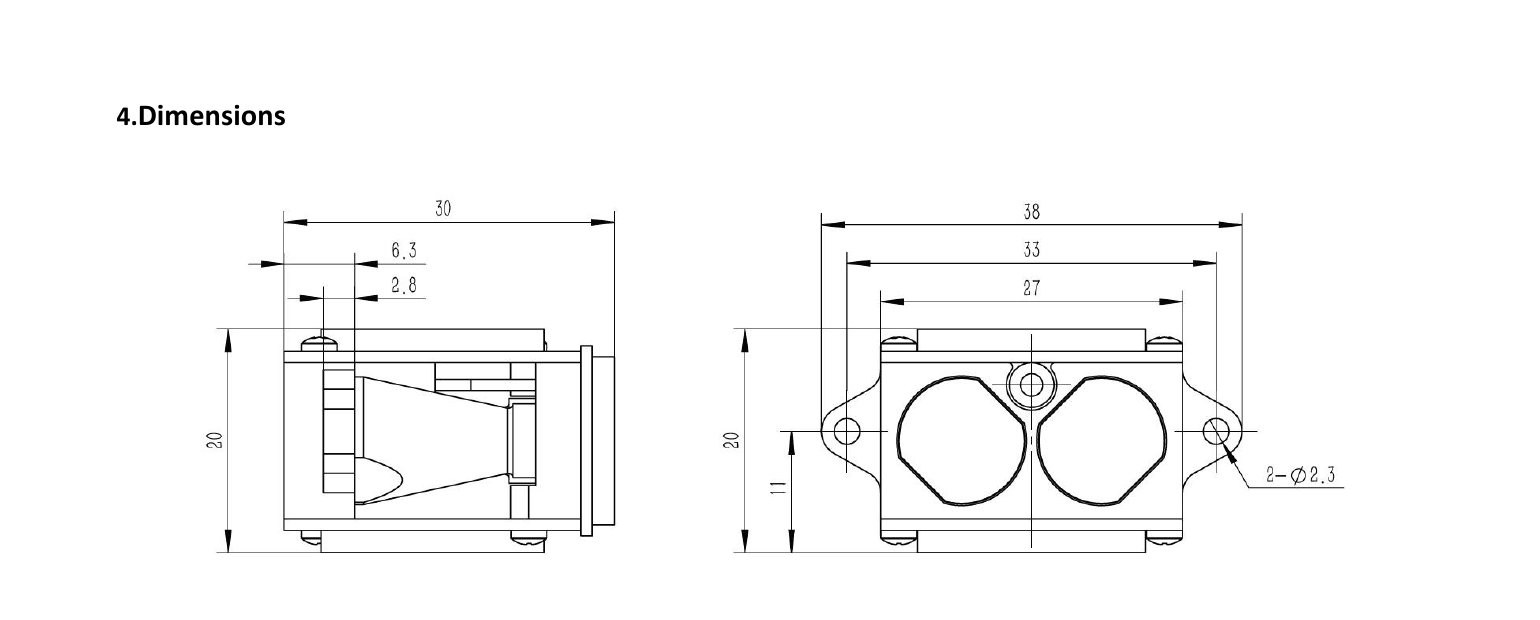

LRF50H two-dimensional mechanical drawing
Mechanical dimension drawingTwo-dimensional 38 × 20 × 30 mm source drawing extracted from page 3.
HOW TO READ THE MEASUREMENT

Direct Time-of-Flight Ranging

The LRF50H model document identifies the product as direct time of flight (DToF). It determines distance from the delay between an emitted optical pulse and the accepted return.

R = c × Δt / 2R: one-way distance · c: propagation speed · Δt: measured round-trip delay

Real performance also depends on target reflectivity and area, incidence angle, atmospheric attenuation, receiver aperture, background light, detector response, timing thresholds and contamination of the optical path.

ENGINEERING DECISIONS

What the verified data supports

These are traceable design inputs, not unsupported superlatives or guaranteed field outcomes.

01

Performance envelope

Measurement range: 0.05-50 m (90% reflectivity); 0.05-15 m (10% reflectivity) · Accuracy: ±5 cm (<10 m); 1% (≥10 m), 2σ

02

Timing and output

Measurement frequency: 20 Hz-10 kHz (default: 1 kHz) · Reported resolution: 1 cm · Repeatability: ±5 cm

03

Electrical integration

Supply voltage: 9-36 V DC · Communication interface: UART · Average power consumption: 0.8 W

04

Mechanical integration

Dimensions: 38 × 20 × 30 mm · Weight: 15 ± 2 g · Operating temperature: -20°C to +60°C (no condensation; indication red light automatically turns off below -20°C)

APPLICATION REVIEW

Source-stated application context

Application labels indicate where the source proposes evaluation; they do not prove fitness without system testing.

  • Overhead-crane positioning
  • Distance control for carriage connection
  • Security and protection
  • Inspection robots
INTEGRATION CHECK

Confirm before selection

  • Define target size, reflectivity, incidence angle and required detection probability.
  • Reproduce sunlight, visibility, weather and optical-window conditions in acceptance testing.
  • Verify voltage tolerance, peak current, grounding, interface levels, baud rate and connector revision.
  • Separate accuracy, repeatability and displayed resolution in host requirements.
  • Confirm mounting datum, boresight, field of view, enclosure sealing and thermal path.
  • Assess accessible emission and labeling again after integration into the finished equipment.
TECHNICAL FAQ

Questions to resolve before design release

What separates LRF50H from a small 50 m VB sensor?

LRF50H is specified with a 9–36 V input, UART, 20 Hz–10 kHz operation and a 1 kHz default. It also has a separate 650 nm indication light. These model-specific features matter more than the shared 50 m headline alone.

Under what conditions is the 50 m range stated?

The source marks the measurement-range entry as an indoor measurement at 25 °C. It gives 50 m at 90% reflectivity and 15 m at 10% reflectivity. The outdoor ambient-light entry is separate and must not replace those source conditions.

Are the ranging and visible alignment beams the same safety class?

No. The source lists Class 1 for ranging and Class 2 for the 650 nm indication light. Finished equipment must account for both channels and operating modes. The ranging statement alone does not establish an unrestricted visible alignment-beam safety claim.

Is 1 cm resolution the same as specified measurement error?

No. The front-page resolution entry is 1 cm. Accuracy is separately given as ±5 cm below 10 m and 1% from 10 m upward, with a 2σ designation. Those conditions should accompany accuracy comparisons or acceptance criteria.

Which application directions are documented for LRF50H?

The model source lists overhead-crane positioning, carriage-connection distance control, security and inspection robots. These support an application evaluation, not a guarantee of collision protection. Validate target behavior, update timing and the complete installation for the proposed equipment.

ENGINEERING REFERENCES

Product evidence and general technical context

The model PDF controls product claims. Public references support only the general engineering explanations and must not be used to infer a missing model value.

  1. LRF50H Specification V3.0The named model’s stated specifications, conditions, interfaces and mechanical record.
  2. The Short-Range, High-Accuracy Compact Pulsed Laser Ranging SystemGeneral context for pulsed ranging, measurement error and target-dependent performance; not an ERDI model test.
