ERDI OEM LASER MODULE

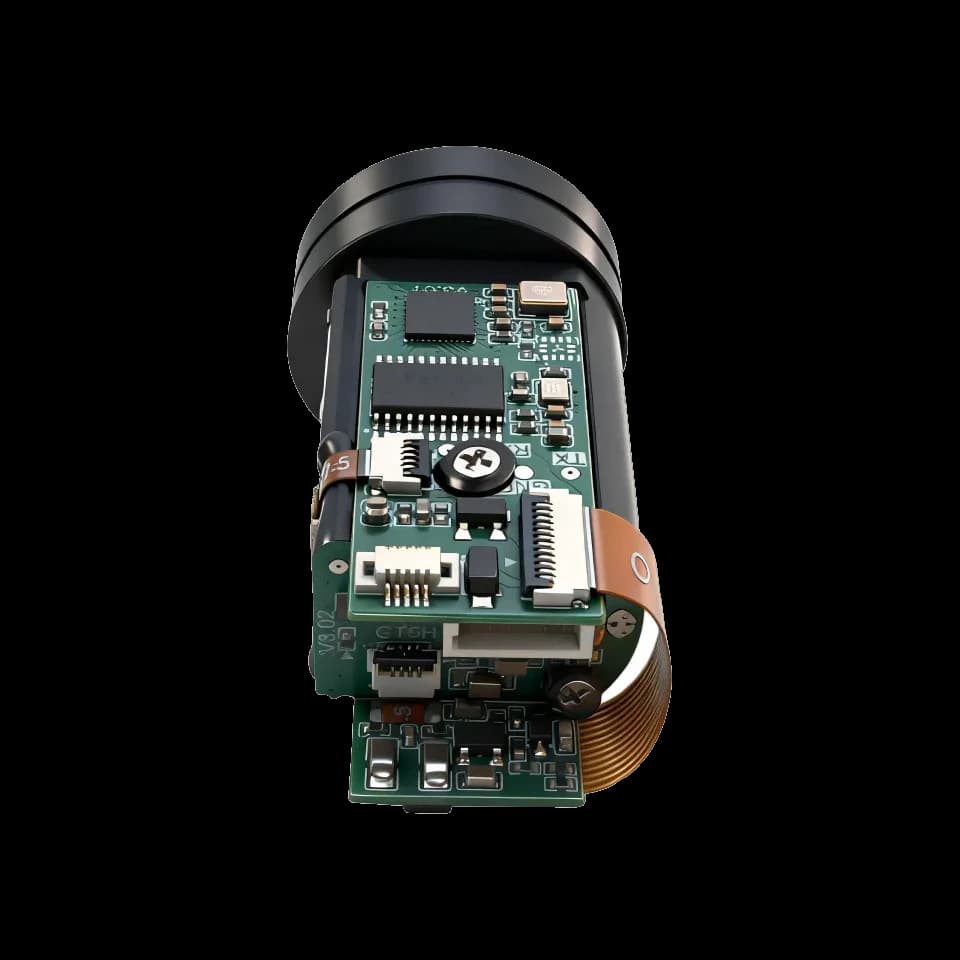

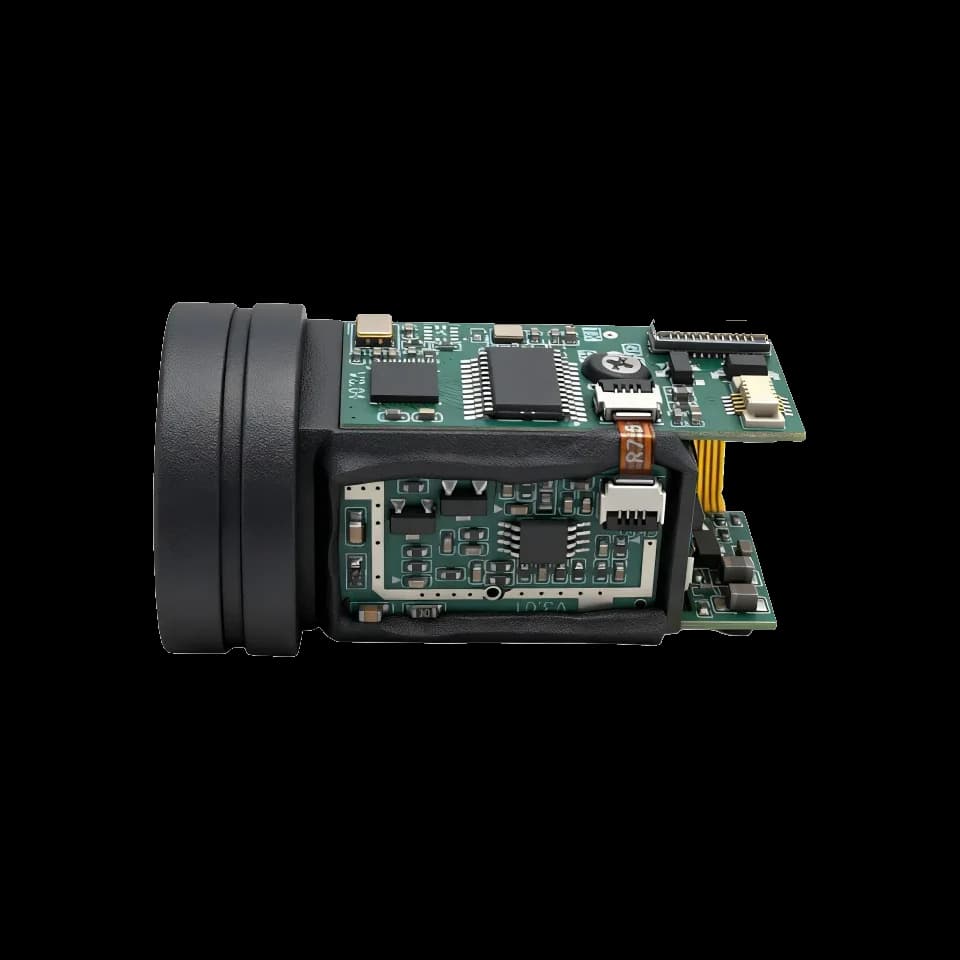

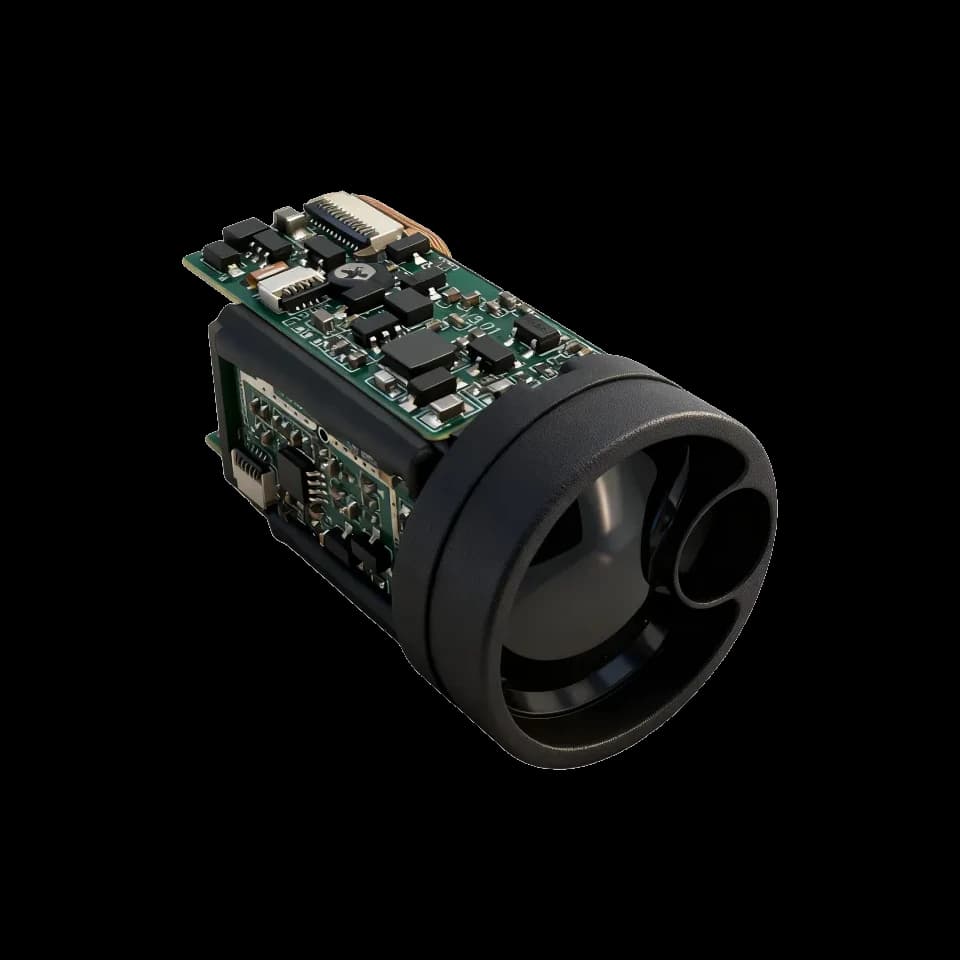

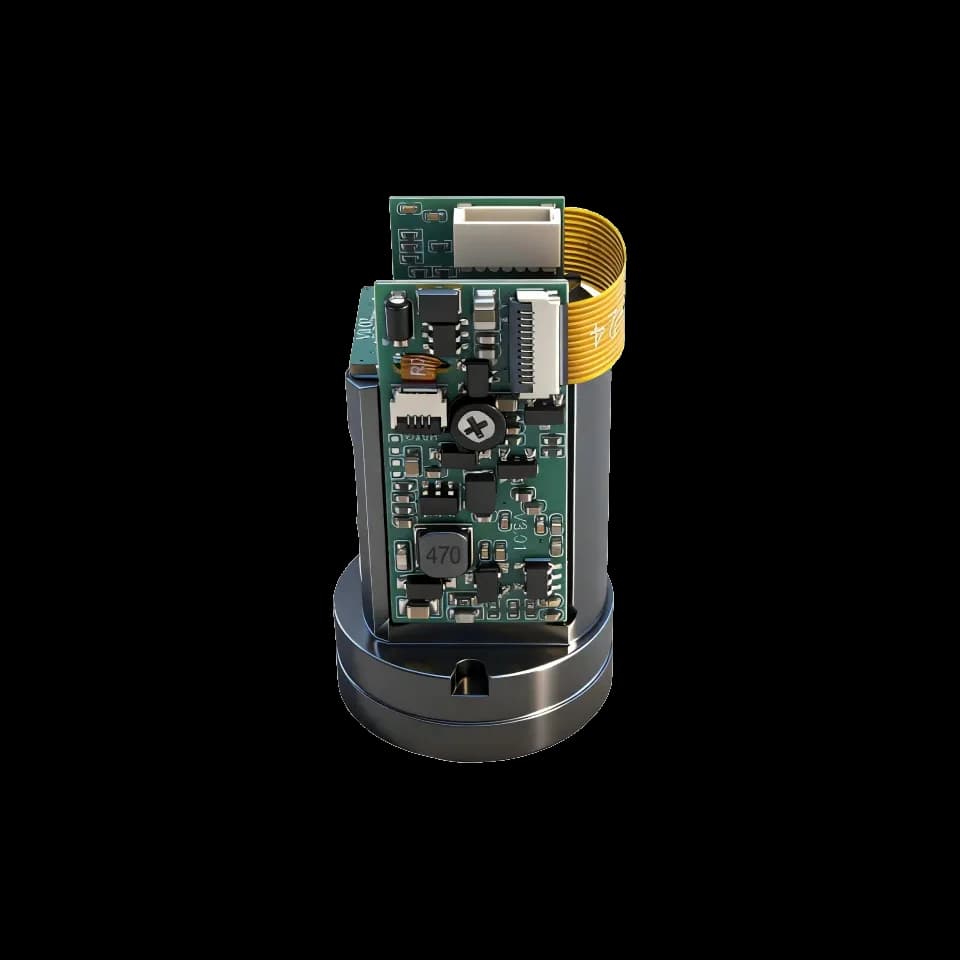

LRF1200A1 5–1200 m Building-Target Rangefinder in a Ø23 × 40 mm Body

$90 USD / unitBase B2B price; approved quantity tiers are shown below. Shipping included.
Product modelLRF1200A1

LRF1200A1 is a cylindrical 905 nm laser rangefinder specified for a 5–1200 m building-target range. Its 1–3 Hz measurement rate, 3.3 V TTL-level UART and Ø23 × 40 mm format define a compact digital distance-readout option for civilian instruments.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$90 USDPublished unit price
31–200 pieces$70 USDSave 22%
201–500 pieces$50 USDSave 44%
501+ piecesLowest unit price$35 USDLowest published price · Save 61%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a Quote / Technical Review

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

PRODUCT OVERVIEW

Meet the LRF1200A1

The 40 mm cylindrical body and 18 g stated mass provide concrete packaging information rather than a generic compactness claim. The model uses a 3.3 ± 0.1 V DC supply, unlike modules with a wider published input range. Verify these exact electrical and mechanical entries for the intended observation or ranging host.

The source separates 0.1 m display resolution from distance-dependent accuracy. Its error expression changes above 100 m, so the short-distance ±1 m statement cannot be applied throughout the 1200 m building-target span. IP67 is listed for the lens only, while final-equipment environmental and laser-safety assessments remain separate.

01

Cylindrical format

Ø23 × 40 mm dimensions and an 18 g specified mass.

02

Building-target ranging

5–1200 m range with 1–3 Hz output.

03

Separate resolution and accuracy

0.1 m display increment with a distance-dependent accuracy formula.

04

3.3 V electrical integration

3.3 ± 0.1 V DC supply and a 3.3 V TTL-level UART interface.

TECHNICAL DATA

LRF1200A1 Specifications

Read performance values with their target and test conditions. The linked user manual provides the complete mechanical, electrical, and communication details.

ParameterValueConditions / notes
Laser wavelength905 nm—
Measurement range5–1200 mBuilding target; the source table gives ≥5–1200 m.
Ranging accuracy±1 m (5 m ≤ L ≤ 100 m); ±(1 + 0.004L) m (L > 100 m)L is distance in meters.
Display resolution0.1 mReporting increment, not ranging accuracy.
Measurement update rate1–3 Hz—
Communication interfaceUART, 3.3 V TTL—
Supply voltage3.3 ± 0.1 V DC—
Standby power consumption≤400 mW—
Operating power consumption≤1.5 W—
Startup time≤500 ms—
DimensionsØ23 × 40 mmCylindrical; use the drawing tolerances.
Weight18 g—
Operating temperature−20 °C to +60 °C—
Storage temperature−55 °C to +65 °C—
Ingress protectionIP67Lens only.
Laser safety classClass 1As stated in the model manual; finished-equipment assessment is separate.
Transmitter lens diameterØ6.6 mm—
Receiver lens diameterØ18 mm—
  • For civilian equipment only. The model manual prohibits military applications.

Operation and Data Output

The host uses the serial communication protocol to operate the ranging module. The low-power mode turns the controller off, so it does not respond to normal commands while asleep.

The manual describes an active-low enable input for normal operation and a high level for low-power mode. Use the LRF1200A1 interface and timing definitions rather than an E-series wiring assumption.

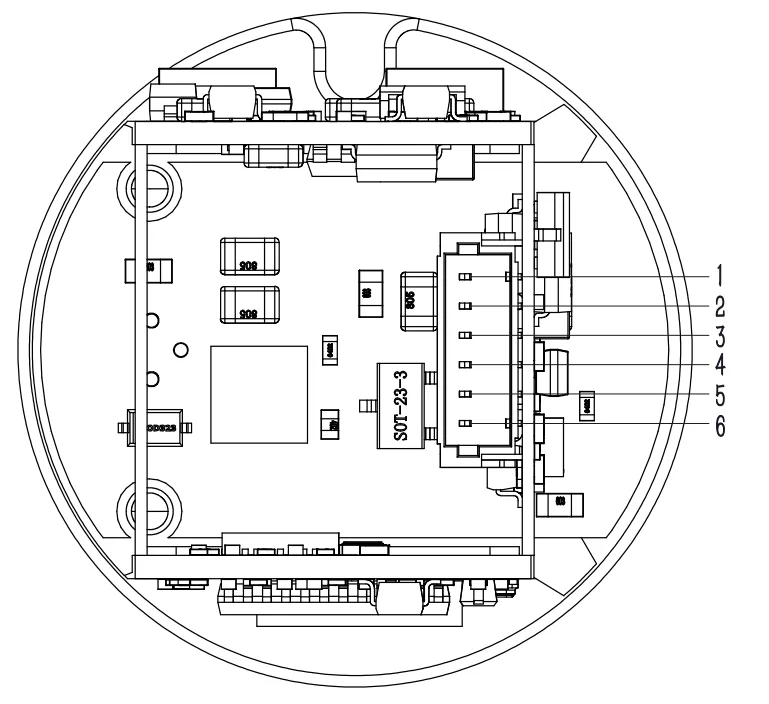

Electrical Interface

PinSignalFunction
1GNDPower ground
2Power Supply3.3 V DC input; specified supply tolerance: ±0.1 V
3NCNot connected
4TTL_TXDTransmit data: module → host; 3.3 V TTL
5TTL_RXDReceive data: host → module; 3.3 V TTL
6Enable PinActive low: normal operation. High level: low-power mode.

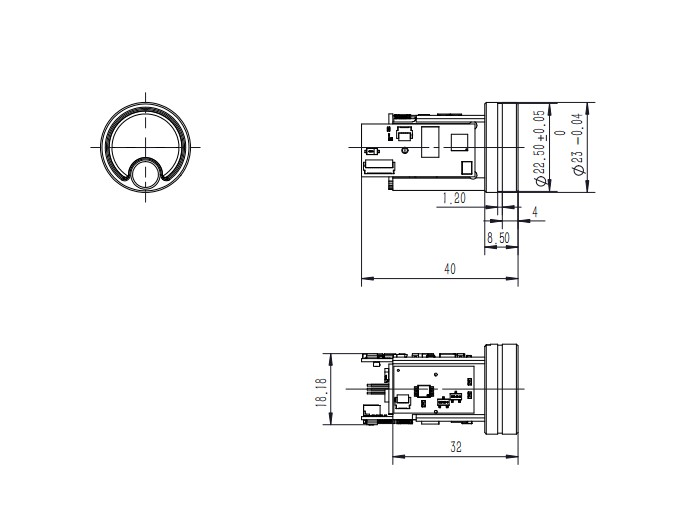

Mechanical Dimensions

Use the drawing and its tolerances for installation. This drawing is reproduced directly from the current LRF1200A1 user manual.

LRF1200A1 mechanical drawing, current user manual page 5
LRF1200A1 Mechanical DrawingManual page 5. Open the PDF to inspect the original dimensions and tolerances.
HOW IT WORKS

905 nm Pulsed Time of Flight and APD Reception

The following explains the general measurement principle of a 905 nm pulsed ranging system with APD reception. A short near-infrared pulse travels to the target, and reflected light returns through the receiving optics to a silicon avalanche photodiode (APD). The receiver converts the optical return into an electrical signal for distance measurement. Individual circuit implementations and performance remain model-specific.

R = c × Δt / 2R: one-way distance · c: speed of light along the path · Δt: round-trip travel time. Division by two accounts for the outward and return paths.

A 1 m change in distance corresponds to about 6.67 ns of round-trip travel time in free space. This is a physical relationship, not a claim about the module’s timing resolution or measurement accuracy. [1]

Why an APD helps detect a weak return

A silicon APD provides internal avalanche gain before subsequent signal processing. This can help a receiver detect weak optical pulses, but the gain also brings excess noise. More gain is not always better: receiver bandwidth, background light, bias stability, and temperature all affect the usable signal-to-noise ratio. [2] [3] [8]

Why range depends on the target

A large, bright surface usually returns more usable light than a small, dark, or angled one. At long distances, beam spreading can place only part of the transmitted light on the intended target. The receiver also sees losses through the atmosphere and any protective window, so a maximum range rating must be read with its target conditions. [1] [4] [7]

Why wavelength stability and filtering work together

Narrowband optical filtering reduces unwanted background light while passing the laser return. Lower transmitter wavelength drift helps preserve this overlap as temperature changes. Filter bandwidth, incidence angle, component variation, and temperature must still be considered together; a narrow filter alone does not establish sunlight immunity. [5] [6] [7]

Why timing errors become distance errors

Noise changes the estimated arrival time of a return pulse. A fixed-threshold detector can also trigger at different times as pulse amplitude changes, an effect called timing walk. The complete receiver and timing chain determines the final measurement error—not the detector response time by itself. [1] [8] [12]

MODEL SELECTION

Choose by Target, Range, and Integration

The E2 and E4 families cover 1000, 1200, 1500, and 2000 m nominal range classes. LRF1200A1 and LRF3000A1 have their own electrical, mechanical, and measurement specifications. Equal range-class numbers do not make different families pin-compatible or mechanically interchangeable.

Start with the smallest and darkest target your application must measure, the required update rate, and the available installation space. Then compare the model-specific supply, interface, drawing, and long-range accuracy formula. Do not select only by the maximum range number.

APPLICATIONS

Integration Applications

  • Compact instruments requiring digital distance readout
  • OEM distance-measurement integration

Validate the complete installation with representative targets, lighting, temperature, and the final protective window.

PRACTICAL INTEGRATION

From Bench Test to Installed System

  • Power and signals: size the supply for transient current, use a common signal ground, and match logic levels. A module’s supply-voltage range is not automatically the voltage tolerance of its UART pins.
  • Optical window: choose material and coatings with suitable transmission near 905 nm. Keep transmit-to-receive reflections low, avoid aperture clipping, and test the assembled window for false near returns.
  • Target: test dark, small, angled, wet, and partially obscured surfaces at the required distance rather than only a large white panel.
  • Environment: assess direct sunlight, visibility, condensation, dust, and temperature changes. Keep the optical surfaces clean.
  • Data handling: use the model manual for byte order, scaling, checksum, and command timing. Check the STA/status field before interpreting the distance bytes, and reject failed measurements according to the model protocol.
  • Laser safety: assess the finished equipment, including added optics, controls, access, labeling, and applicable operating conditions. A component rating alone does not establish the system’s laser class.
TECHNICAL FAQ

LRF1200A1: Frequently Asked Questions

What target qualifies the 1200 m range?

The model table identifies a building target for the 5–1200 m measurement span. It does not make that value an unconditional reach on every object. A small, dark or poorly oriented target should be evaluated against the actual application requirements.

How does its input supply differ from wider-input modules?

The source states 3.3 ± 0.1 V DC, rather than a broad 3.3–5 V supply range. Its UART is specified at 3.3 V TTL level. Use those exact model entries when reviewing the host electrical requirements.

Does 0.1 m display resolution imply 0.1 m accuracy?

No. Accuracy is given as ±1 m from 5 m to 100 m and ±(1 + 0.004L) m above 100 m, with L in meters. Display resolution describes a reporting increment, not the complete error relative to a reference distance.

What is the published measurement frequency?

LRF1200A1 is specified at 1–3 Hz. This distinguishes its source record from neighboring compact modules with other adaptive rate ranges. It should not be replaced with a faster value from an E-series or SPD-series model.

Which protection scope is documented?

The source limits the IP67 statement to the lens. It does not establish an overall rating for exposed module electronics or the host instrument. The manual’s Class 1 statement is also a model record, with finished-equipment laser-safety assessment remaining separate.

FURTHER READING

Product Documentation and Technical Literature

The model manual defines product specifications. The references below explain measurement principles and integration effects; results from other systems are not LRF1200A1 performance ratings.

  1. LRF1200A1 User Manual — v1.2 · 2025.10 · Public edition 2026-09-06Current model specifications, drawings, and communication protocol.
  2. [model-reading-2] Performance Analysis of Next-Generation LADAR for Manufacturing, Construction, and MobilityGeneral background on laser ranging and target/environmental influences; not validation of this ERDI model.
  3. [1] Pulsed time-of-flight laser range finder techniques for fast, high precision measurement applicationsAri Kilpelä. University of Oulu, 2004-01-30. Direct pulsed-ToF principle, d = c_airΔt/2, timing precision, pulse slew rate, receiver noise and timing walk. Scope: Short-range research prototypes and their numerical results are not ERDI product specifications.
  4. [2] Influence of Temperature Variation on Optical Receiver Sensitivity and its CompensationAleš Prokeš. Radioengineering; Brno University of Technology institutional repository, 2007-09. Temperature dependence of silicon-APD gain, excess-noise factor, dark current and receiver sensitivity; reverse-bias temperature compensation. Scope: The calculations use a specific APD/TIA free-space optical receiver; no numerical curve is transferable to an ERDI module.
  5. [3] Multiplication Noise in Uniform Avalanche DiodesR. J. McIntyre. IEEE Transactions on Electron Devices, 1966-01. Avalanche multiplication is not noiseless; multiplication noise depends on gain and carrier ionization statistics. Scope: Ideal uniform-multiplication and white-noise theory; real devices and complete receivers require further modeling and measurement.
  6. [4] Analysis of the Backscattered Energy in Terrestrial Laser Scanning DataNorbert Pfeifer; Bernhard Höfle; Christian Briese; Martin Rutzinger; Alexander Haring. ISPRS, 2008. Lidar link equation; target reflectance, effective area, incidence angle, beam divergence, range, aperture and atmospheric/system transmission. Scope: The experiments use terrestrial scanners around 1540–1550 nm. The general link-budget relationships are relevant here; the measured values are not ERDI specifications.
  7. [5] Fabry–Perot interferometer as a solar background noise suppressor: application to daytime lidarKarnam Raghunath; Karnam Ramesh; Sanama Narayana Reddy. Annals of Geophysics, 2012-06-05. Daylight solar background degrades lidar SNR; receiver field of view and narrow spectral filtering are relevant mitigations. Scope: The study concerns atmospheric lidar rather than a compact 905 nm module. Its reported SNR improvement is specific to the experimental system.
  8. [6] Wavelength-Stabilized High-Pulse-Power Laser Diodes for Automotive LiDARAndrea Knigge; Andreas Klehr; Hans Wenzel; Anissa Zeghuzi; Jörg Fricke; Andre Maaßdorf; Armin Liero; Günther Tränkle. physica status solidi (a), 2018-01-16. A 905 nm pulsed laser source can exhibit temperature-dependent wavelength shift; wavelength stabilization is relevant over a wide temperature span. Scope: The Bragg-grating device and 65 pm/K result are research-specific and do not describe an ERDI emitter.
  9. [7] LiDAR Evaluation System: Measurement of Transmittance of Bandpass FiltersRisa Fuji; Kazumi Kawahara. Shimadzu Corporation, 2020-03-26. Protective-window and bandpass-filter transmission should be evaluated near 905 nm across incidence angle; passband and throughput can change with angle. Scope: This measurement application note explains optical characterization methods. It is not an ERDI performance test or a statement of component sourcing.
  10. [8] Wide dynamic range CMOS receiver techniques for a pulsed Time-of-Flight laser rangefinderAram Baharmast. University of Oulu, 2021-08-27. Receiver noise and bandwidth, input-pulse amplitude and width, SNR, timing walk, jitter and dynamic range are system-level coupled quantities. Scope: The CMOS implementation and prototype figures are research-specific and do not imply ERDI uses the same architecture.
  11. [9] Comparison of 905 nm and 1550 nm semiconductor laser rangefinders' performance deterioration due to adverse environmental conditionsJacek Wojtanowski; Marek Zygmunt; Mirosława Kaszczuk; Zygmunt Mierczyk; Michał Muzal. Opto-Electronics Review, 2014-06-29. Range depends on visibility-related atmospheric attenuation and target-reflectance changes caused by surface condition, with wavelength-dependent effects. Scope: Modeled selected conditions; it does not prove a universal 905 nm versus 1550 nm ranking or any ERDI range.
  12. [10] JCGM 200:2012 — International Vocabulary of Metrology: Basic and General Concepts and Associated Terms (VIM), 3rd editionJoint Committee for Guides in Metrology. BIPM/JCGM, 2012. Authoritative distinctions among measurement accuracy, precision/repeatability and resolution. Scope: Defines metrology terms; it does not provide a laser-rangefinder test method or product value.
  13. [11] IEC 60825-1:2014 — Safety of laser products – Part 1: Equipment classification and requirementsInternational Electrotechnical Commission. IEC, 2014-05-15. Laser classification applies to the laser product and its accessible emission; a component designation does not automatically establish the finished-equipment classification. Scope: The public page is a summary, not the full standard, test report or compliance certificate.
  14. [12] Methods of Precise Distance Measurements for Laser Rangefinders with Digital Acquisition of SignalsMichał Muzal; Marek Zygmunt; Piotr Knysak; Tadeusz Drozd; Marcin Jakubaszek. Sensors, 2021-09-26. 905 nm direct-ToF equation, waveform timing extraction, bias versus random error, uncertainty, and use of multiple pulses in a measurement method. Scope: The one-centimeter laboratory result is specific to the research prototype and measurement method, not an ERDI product specification.
