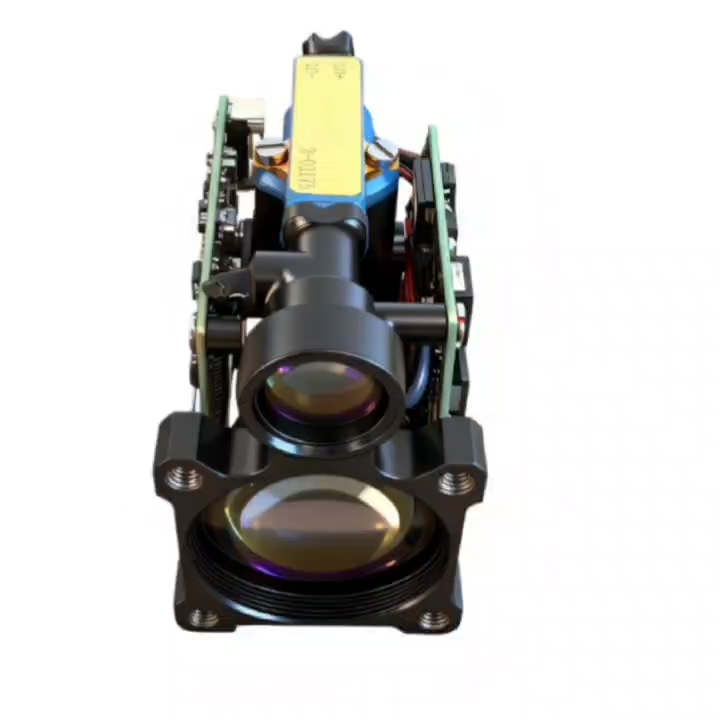

LRF0818C 1535 nm Rangefinder | 8 km Vehicle Target, TTL Module

From $900 USD / unitLowest published unit price at 1,001+ pieces. Shipping included.
Product modelLRF0818C

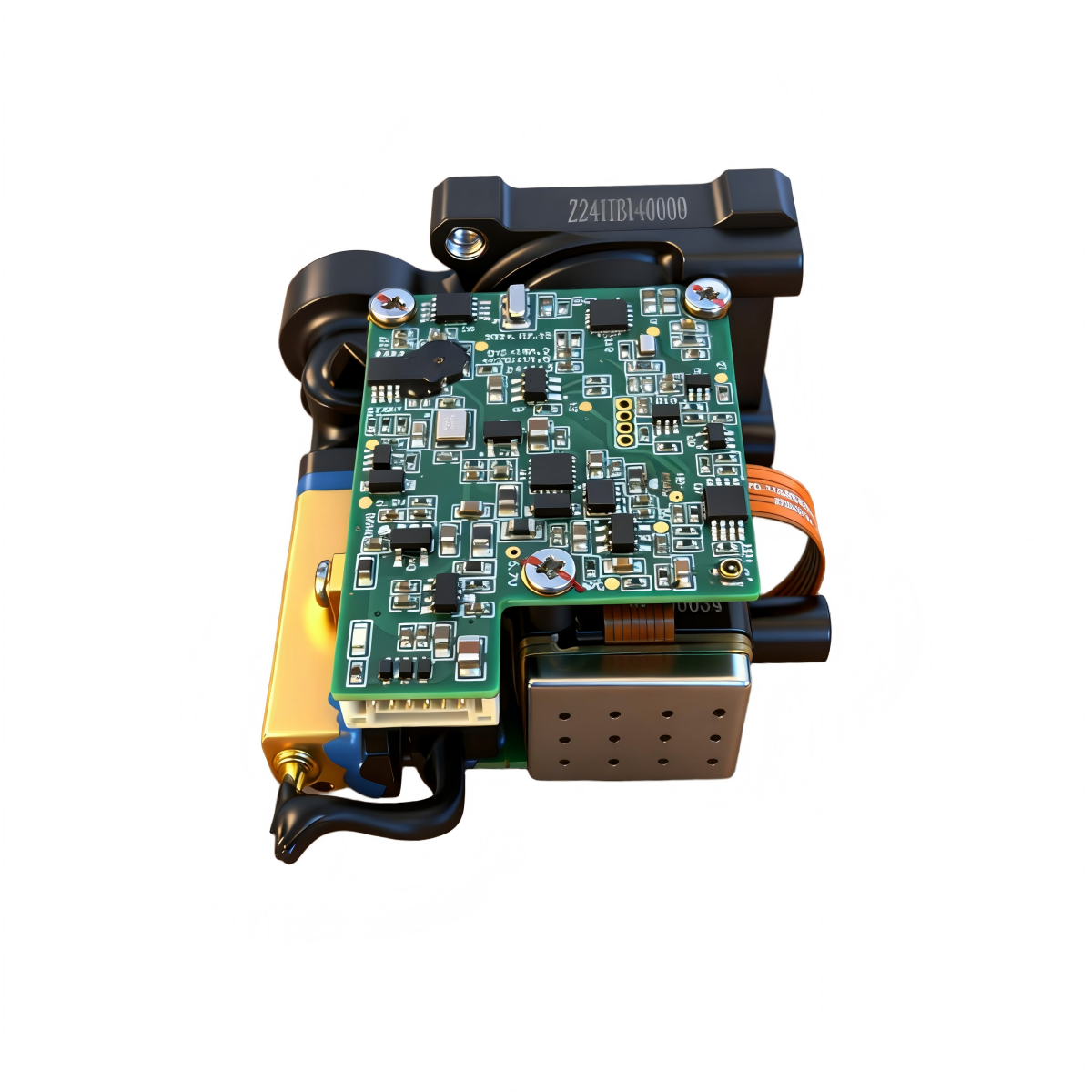

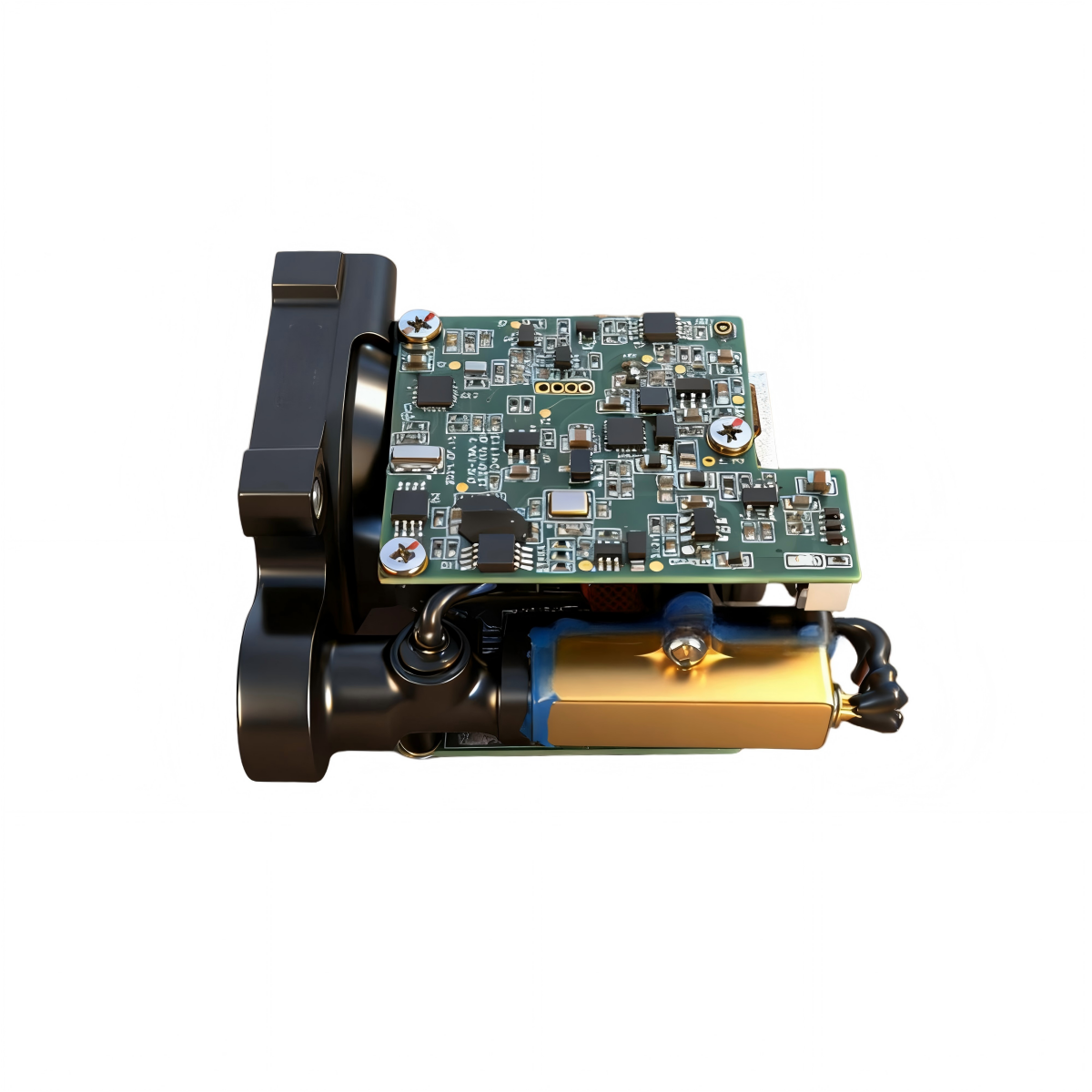

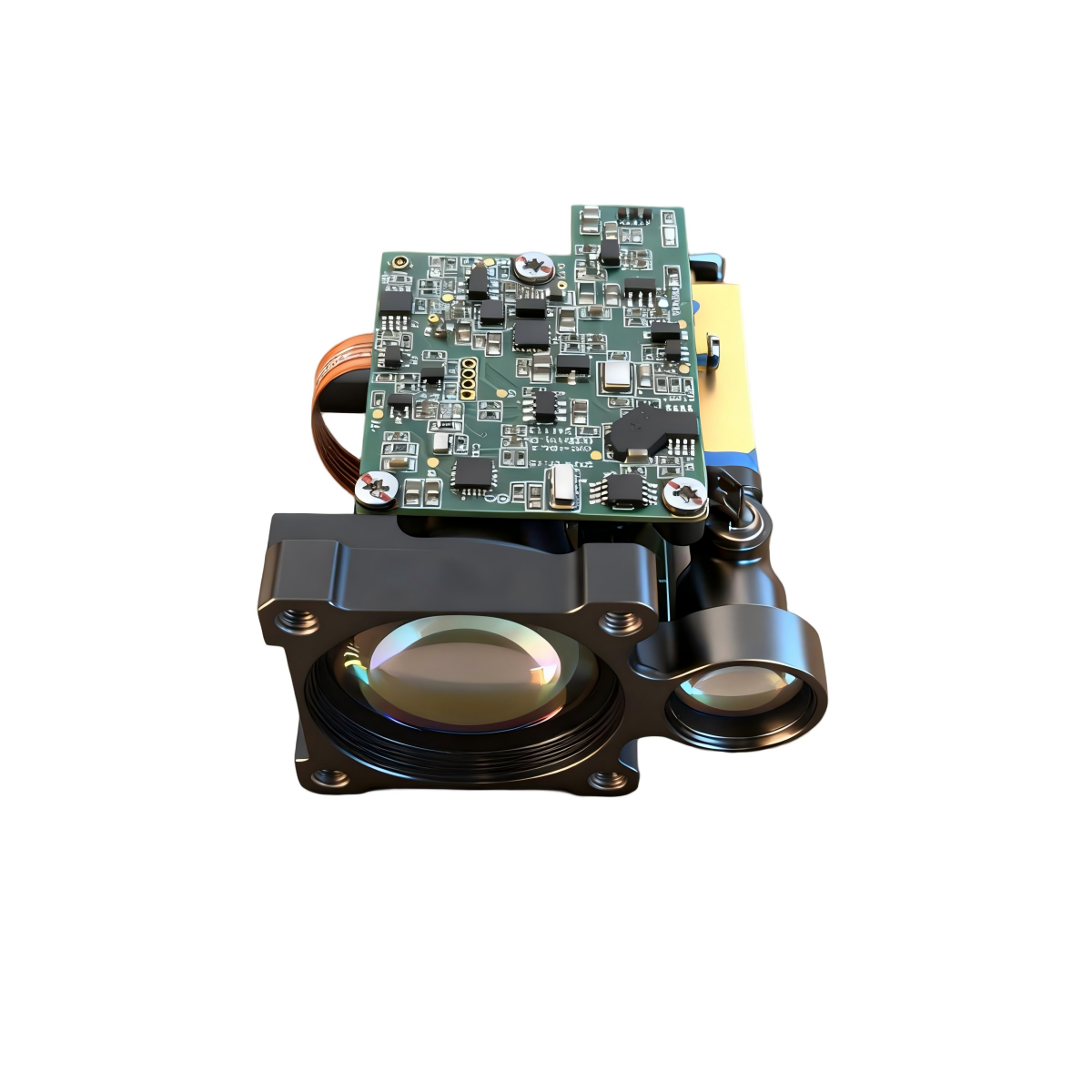

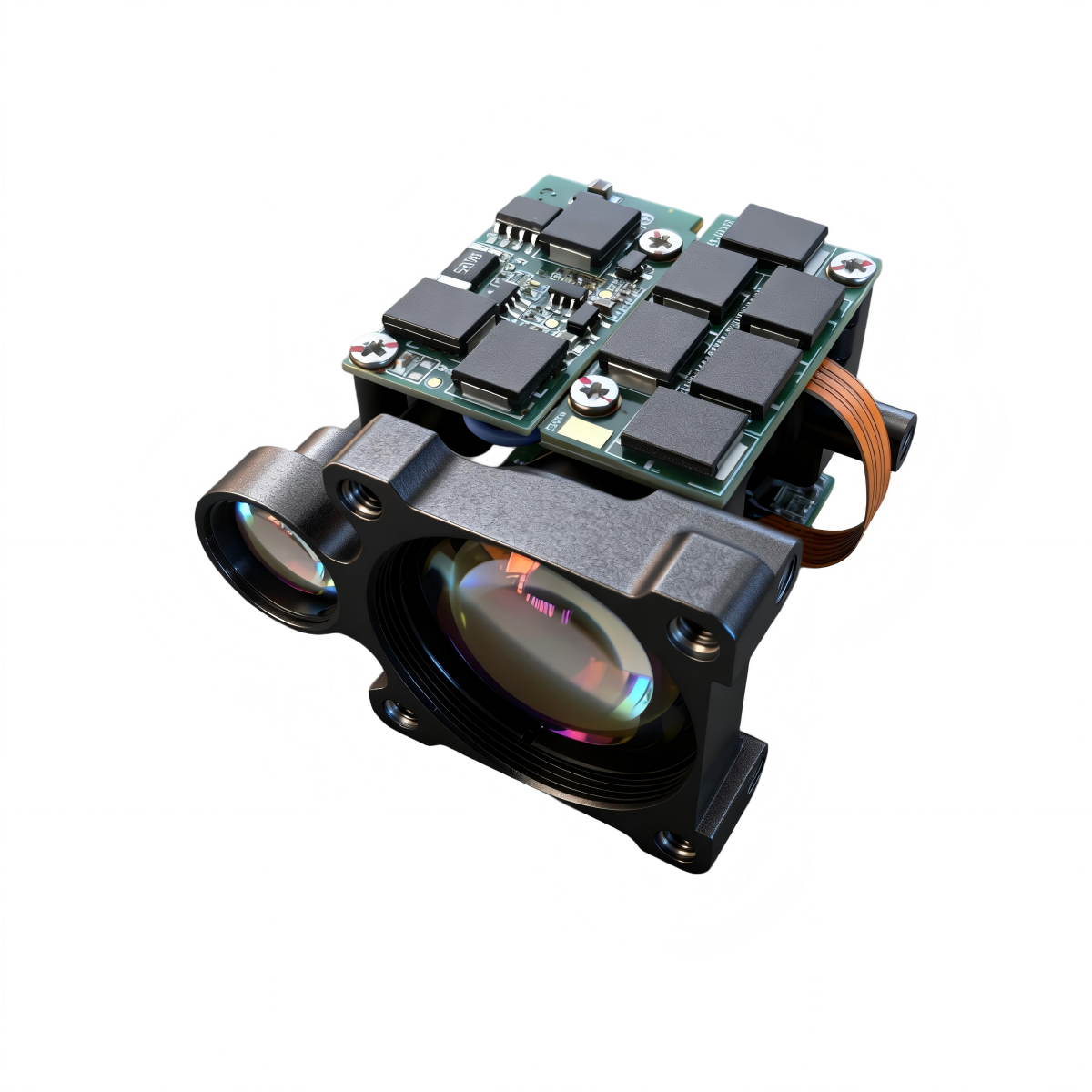

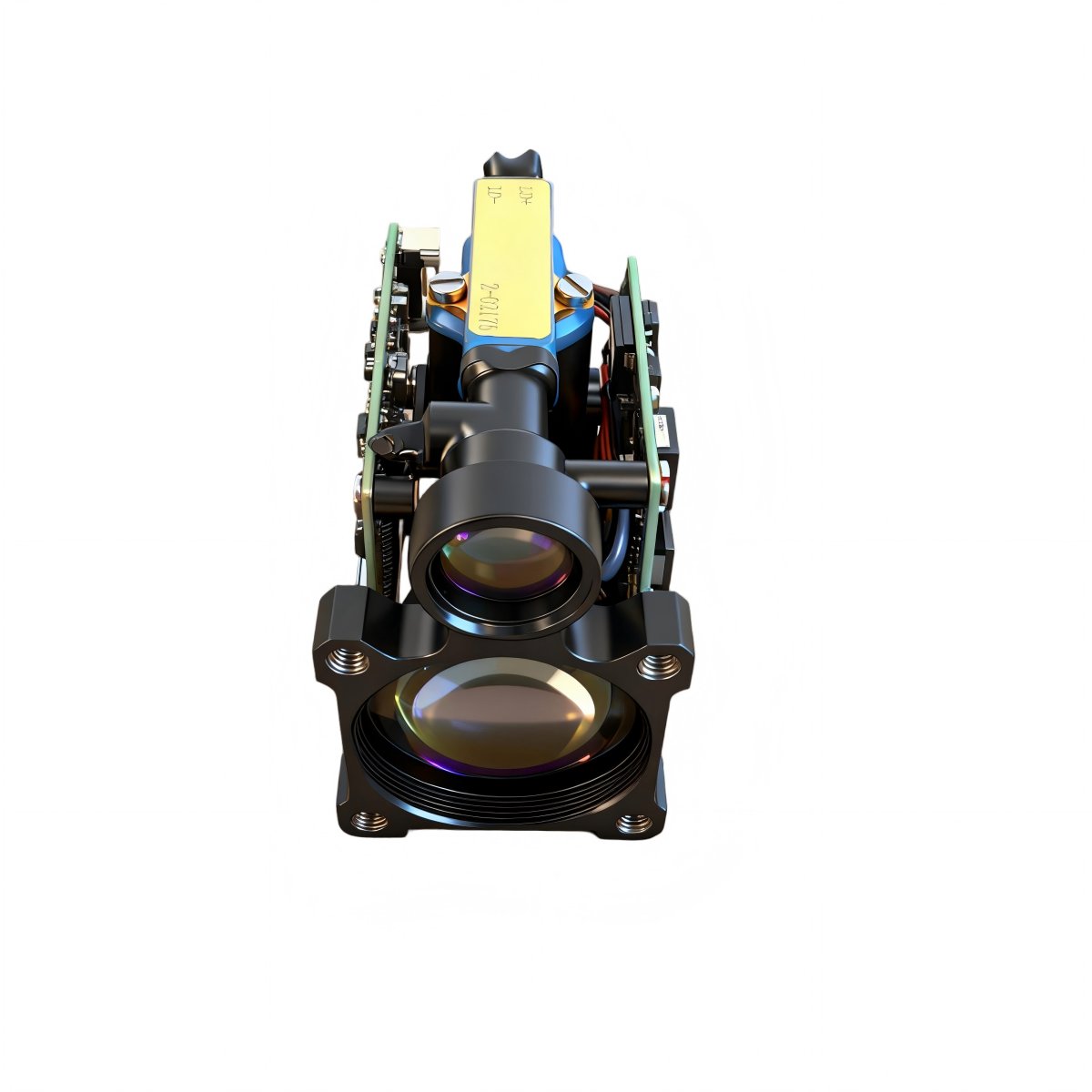

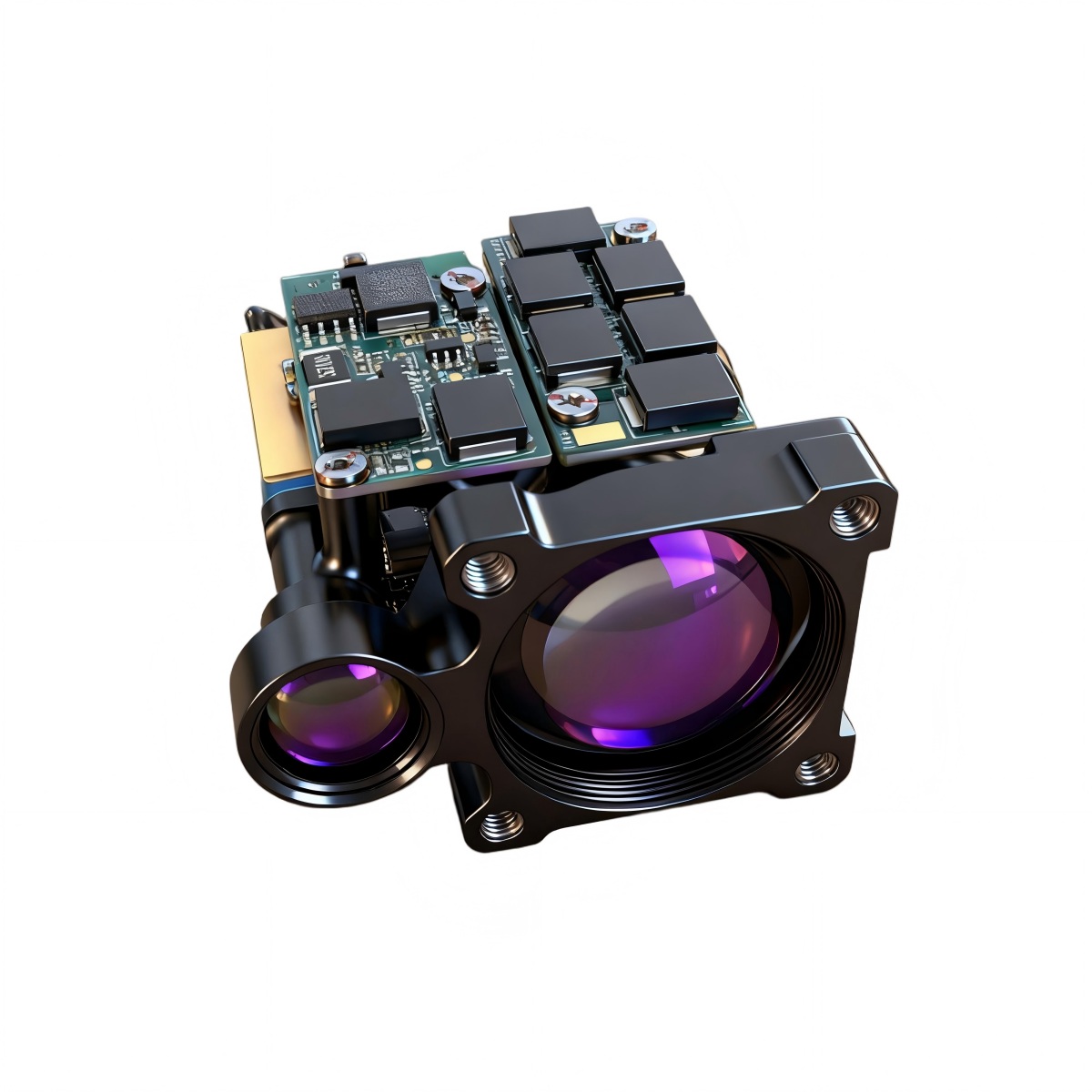

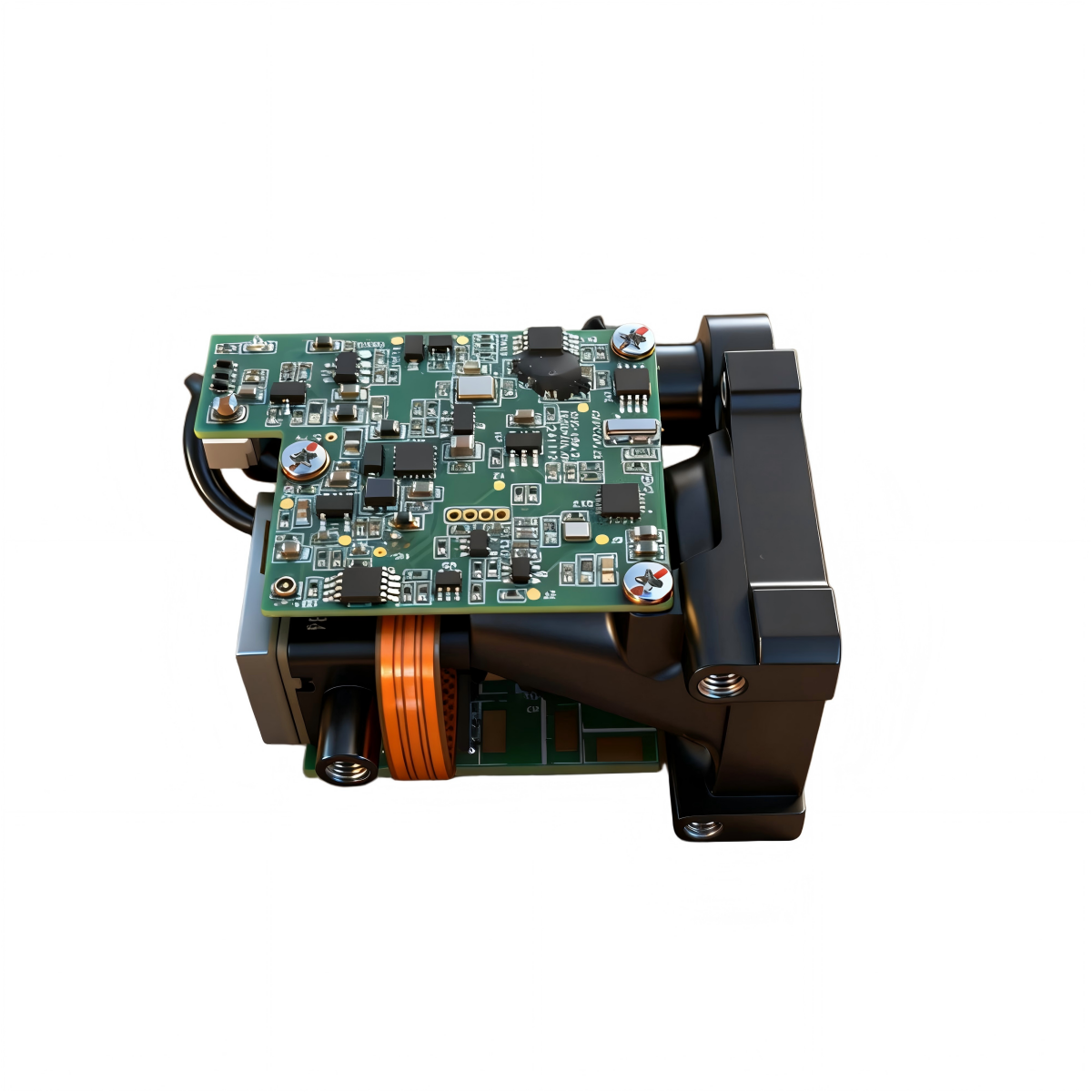

LRF0818C is a 1535 nm ±10 nm rangefinder with TTL communication and a 26 mm receiver aperture. Its ≥8 km vehicle-target result uses a 2.3 × 4.6 m target at 30% reflectivity, visibility ≥12 km and relative humidity ≤60%.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$2,000 USDPublished unit price
31–200 pieces$1,800 USDSave 10%
201–1,000 pieces$1,400 USDSave 30%
1,001+ piecesLowest unit price$900 USDLowest published price · Save 55%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a quote

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

MODEL-LEVEL DATA

Detailed LRF0818C Specifications

The technical material below is retained for this model only. Do not transfer a range, pulse, interface, mechanical or safety value from another 1535 nm product.

Specifications

LRF0818C is a 1535 nm pulsed distance-measurement module. Its assigned laser source is ER300; receiver-component data below come from the supplied APD-A13B001 R01 document. The three specification levels describe different assemblies and measurement conditions.

1. LRF0818C module specifications

Source clarifications

The 4,500 m human-size and 2,600 m small-object entries are labelled “design guarantee” in the PDF. They must not be presented as measured field-test results.

LRF0818C — Technical Summary

Parameter

Specification

Operating wavelength

 1535 nm ± 10 nm

Laser-safety descriptionThe source describes the module as 1535 nm eye-safe but does not state a numerical laser class in the reviewed specification. Wavelength alone is not a classification.

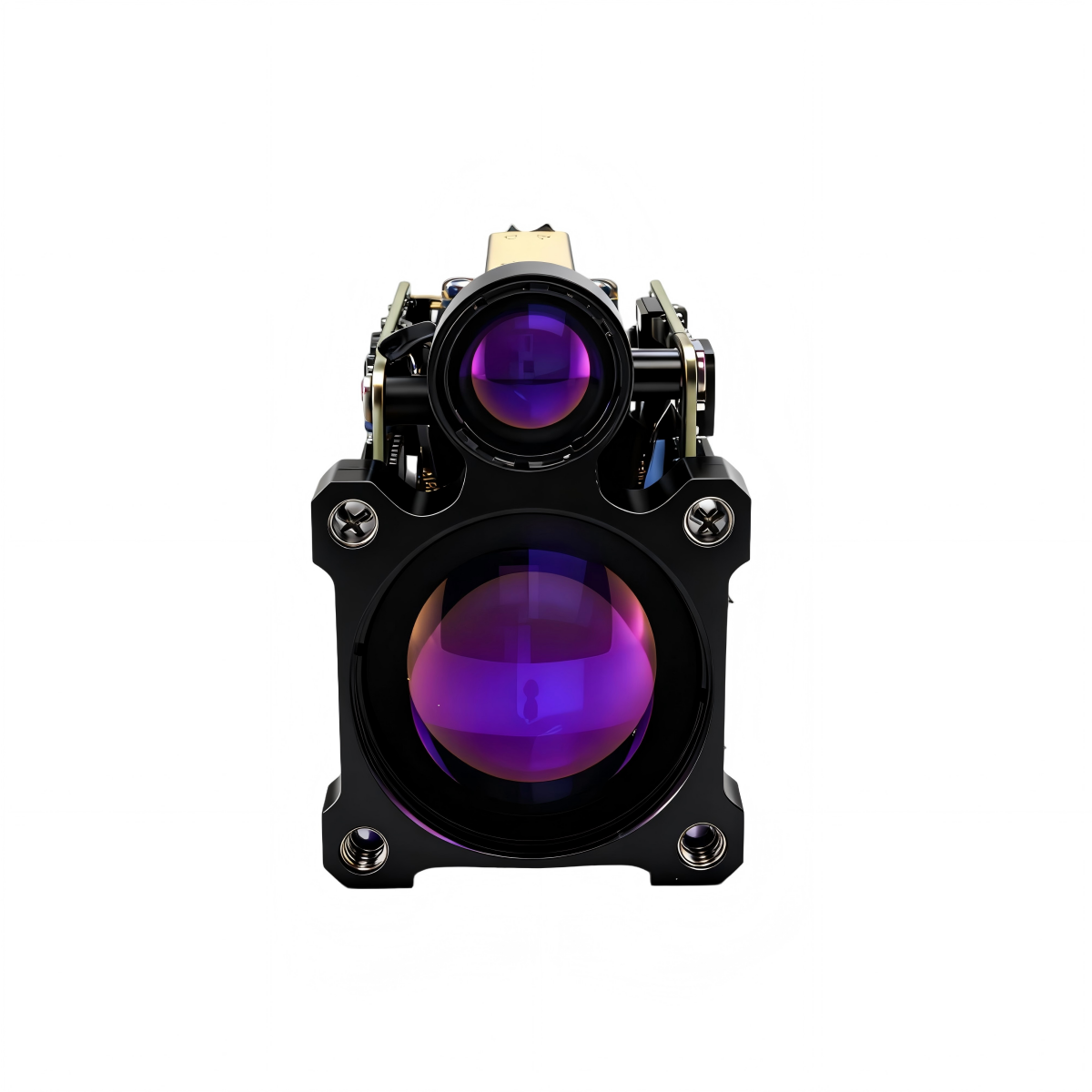

Transmitting aperture

Φ12 mm

Receiving aperture

Φ26 mm

 Maximum range

Under visibility ≥ 12 km and relative humidity ≤ 60%, tested against a 0.3-reflectivity panel (or equivalent target)

Vehicle (2.3 m × 4.6 m): ≥ 8000 m

Human (0.5 m × 1.7 m): ≥ 4500 m (design guarantee)

Small object (0.2 m × 0.3 m): ≥ 2600 m (design guarantee)

Minimum range

≤ 20 m

Range accuracy

≤ ±2 m

Ranging rate

Single shot, 1 Hz, 2 Hz, 3 Hz, 4 Hz, 5 Hz, 10 Hz

Beam divergence

≤ 0.4 mrad

Operating temperature

−40 °C to +60 °C

Storage temperature

−50 °C to +70 °C (to be qualified at the system level)

Vibration

5→50→5 Hz sweep, 1 octave/min, 2.5 g (system-level qualification)

Shock

1200 g, 1 ms (system-level qualification)

Overall dimensions

≤ 59.5 mm × 26 mm × 32 mm

Weight

≤ 65 g

Communication interface

TTL

Supply voltage

4.5 V–16 V

Power consumption

Standby ≤ 1 mW;

Operating ≤ 4 W;

Peak ≤ 14 W @ 12 V

LRF0818C — additional source entries, PDF page 1
ParameterValue
Valid-return rate≥98% (module PDF statement)
Documented functionsSingle/continuous ranging; first/last return selection; range gate; built-in self-test; status and temperature reporting; shot counter; serial firmware update. These names do not disclose the implemented detection algorithm.
LRF0818C — Electrical Interface

Pin #

Pin No.

Remarks

P-1

VIN+

Power input, 4.5–16 V

P-2

VIN-

Power ground (GND)

P-3

POWER_ON

Module power enable (TTL, 3.3 V logic level);
Module ON (> 2.7 V), module OFF (< 0.3 V)

P-4

UART_TX

UART TXD (serial transmit), TTL, 3.3 V logic level

P-5

UART_RX

UART RXD (serial receive), TTL, 3.3 V logic level

P-6

GND

Serial ground (SGND)

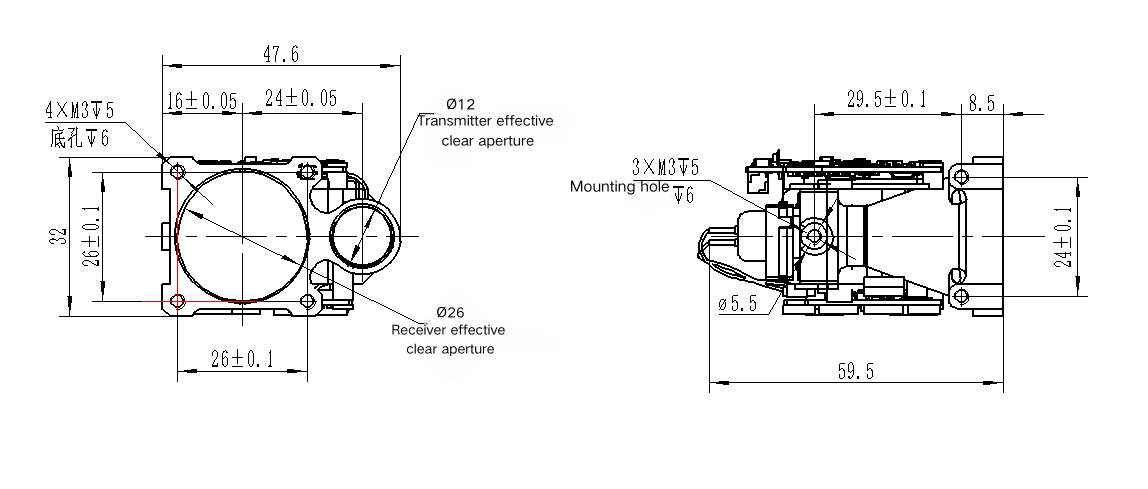

Model-specific mechanical and interface drawings

LRF0818C Structural dimensions source drawing 1
LRF0818C: Structural dimensions. Original model-bound drawing.

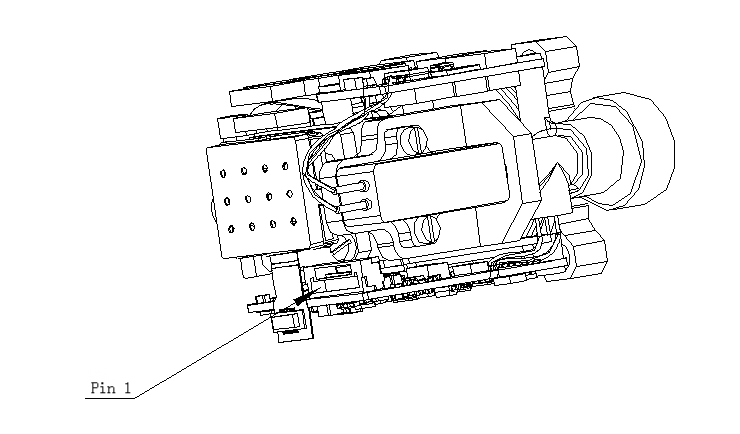

LRF0818C Electrical Interface source drawing 2
LRF0818C: Electrical Interface. Original model-bound drawing.

2. ER300 source-laser specifications

ER300 standalone laser component
ParameterValue
Optical wavelength1535 nm
Pulse energy≥300 µJ
Optical pulse width5 ns
Drive pulse width≤2.4 ms
Repetition rate1–10 Hz
Pulse stability10% (definition/statistical method not stated)
Raw beam diameter0.3 mm
Initial beam divergence≤7 mrad
Transverse modeTEM00
Operating / storage temperature−40 to +65 °C / −55 to +75 °C
Package dimensions / mass25 × 8 × 6.8 mm / 8.5 g
Component electrical entry2 V, 12 A
Shock / vibration entries1500 G, 0.5 ms / 20–2000 Hz, 20 G
Stated service life>1 million shots; test conditions not supplied

The electrical entries describe the component drive, not the module supply input. Drive conditions and pulse-width definitions must follow the component document and the individual factory record. An optical pulse-width value is not a pump-drive duration.

3. APD-A13B001 receiver-component specifications

Small screens: swipe the table horizontally to read all measurement conditions.

Supplied APD200 document — component values and conditions
ParameterValueMeasurement condition / scope
Device / active diameterAPD-A13B001 R01 / 200 µmSupplied APD200 document, p1
Detector spectral response interval800–1700 nmDetector response; not the filter passband
Responsivity0.9 A/W minimum; 1.0 A/W typicalλ = 1550 nm; incident power = 1 µW; M = 1
Dark current8 nA typical; 50 nA maximumVR = VBR − 3 V; incident power = 0
Multiplication factorM ≥10 / M ≥30λ = 1550 nm; 1 µW; respectively VBR − 3 V / VBR − 1 V
−3 dB bandwidth0.6 GHz minimum; 1.25 GHz typicalM = 10; RL = 50 Ω
Breakdown voltage35–50 VReverse current = 10 µA; incident power = 0
Capacitance1.8 pF typical; 2.0 pF maximumVR = VBR − 3 V; f = 1 MHz
Breakdown temperature coefficient0.05 minimum / 0.11 typical / 0.15 maximum V/°CReverse current = 10 µA; dark; −55 to +85 °C
Operating / storage temperature−40 to +85 °C / −55 to +125 °CComponent absolute-maximum table; not module environmental ratings
Maximum biasVBRAbsolute maximum, not a recommended operating setpoint
Maximum forward / reverse current5 mA / 3 mAAbsolute maximum ratings, not continuous design targets
Filter centre wavelength1535 ±5 nmSupplied filter table, p3
Filter FWHM<37 nmFull width at half maximum
Transmission at centre wavelength>90%Filter specification, not total receiver throughput
Blocking specificationT <1%; source lists 400–1750 nmStop-band/transition edges are not numerically defined; the stated blocking span is not a guarantee at every wavelength.
Optical surface quality60/40Source label: surface quality; not a transmission value

Responsivity is measured at 1550 nm; a value measured there is not silently relabeled as a measured 1535 nm value. Absolute maxima are stress limits. The filter document includes an illustrative spectrum, but does not define numerical transition edges or off-axis performance. No additional spectral guarantee is inferred.

SOURCE CONDITIONS

Model-specific conditions and limits

Conditions are retained only when the source states them. They are not reconstructed from a nominal range or wavelength.

Operating conditions

Read a range value together with its test case

Target dimensions, surface reflectance and atmospheric visibility are part of the range specification. The beam may partly miss a small object, illuminate a sloped surface or return from several depths. A high-reflectance building result cannot establish the same distance to a smaller or darker object. Humidity and temperature conditions shown in a source table describe that test; visibility is not interchangeable with a guaranteed transmission percentage.

Measurement rate and electrical conditions

Measurement rate is the number of reported measurement opportunities per second. It is separate from optical pulse duration, receiver bandwidth and the time required for an individual return. Read operating power at the frequency and supply printed beside it. Peak power describes a different electrical requirement from average power; an average figure alone does not characterize supply transients.

Environmental and measurement context

A module temperature rating, laser-component temperature range and APD maximum rating describe different assemblies. Likewise, a named vibration standard does not disclose every method, mounting condition or acceptance threshold. Range repeatability, reported resolution and absolute accuracy are different quantities: a fine numerical display increment does not establish the error of the complete measurement.

HOW TO READ THE MEASUREMENT

Pulsed Time-of-Flight Ranging

Technical principle

A pulse, a return and a measured interval

Pulsed time-of-flight ranging measures elapsed time between an optical launch reference and a detected echo. The basic relationship is R = vΔt/2, where v is the speed of light in the propagation medium. The factor of two accounts for the outward and return journeys. The familiar expression using c treats propagation as approximately in air/vacuum; absolute metrology also considers refractive index and calibrated internal delays.

The measurement chain contains a pulsed source, transmit optics, an illuminated surface, collection optics, spectral filtering, a detector and timing electronics. ER300 supplies optical pulses. The module's output beam is described by its own optical specification after integration. A nanosecond laser pulse is not the same quantity as a millisecond pump-drive pulse or a hertz measurement rate.

Initial divergence and the integrated beam

A bare source has its own beam diameter and divergence. Collimating and expanding optics alter the relationship between beam size and angular spread. Therefore the component's initial divergence and the assembled module's transmitter divergence belong in separate rows. Finite beams still diffract, and real optics add aberrations, alignment error and clipping. A quoted angular value also needs a full-angle/half-angle convention and a beam-width definition before it supports a numerical footprint calculation. Those definitions are not invented where the product record omits them. Newport's optics explanation provides the general context.

Why the same laser can appear in different range classes

The laser source is one contributor to system performance. At a fixed, uniform irradiance at the receiver entrance, a circular unobscured collecting aperture has area A = πD²/4. With equal throughput and no clipping, collected optical power is proportional to that area. A larger receiver lens can therefore collect more of the available return. This is an area relationship under stated assumptions, not a range multiplier and not a test result for this product.

The return reaching that aperture also depends on transmitted energy, beam spread, object size and reflectance, surface orientation, atmospheric attenuation and optical transmission. Increasing collection area may collect additional background light as well. Receiver field of view, throughput, detector response and the decision process determine how much useful information remains. Consequently, models sharing ER300 can have different conditional range specifications, and their ranges should be compared using equivalent target and weather conditions.

APD conversion, filtering and timing

The supplied InGaAs APD generates photocurrent and provides internal avalanche multiplication. Its responsivity at M = 1 describes conversion before multiplication; the gain values describe a specified reverse-bias condition. Internal gain accompanies multiplication noise. Dark current, capacitance and bandwidth also matter, so the maximum tabulated gain is not automatically the best operating point. The specified gain conditions below breakdown describe linear APD operation, not evidence of single-photon Geiger-mode operation. Hamamatsu's detector guide explains these distinctions.

The narrowband filter transmits the useful wavelength region while rejecting specified out-of-band light. It does not reject background that lies inside its passband. Its centre transmission is not the throughput of the lens, window, filter and detector assembly together. A detector bandwidth measured at 50 Ω likewise does not specify the installed amplifier bandwidth or the finished rangefinder's accuracy.

Short distances, long distances and processing

At short distances, the return arrives near the launch event; optical overlap, prompt scatter and receiver recovery can limit the usable minimum distance. A strong close return can also exceed the linear region. At long distances, reduced return strength makes background, noise and signal discrimination more significant. These are different mechanisms, so good long-range performance does not imply a zero blind zone or a guaranteed result at every shorter distance.

In a threshold-based timing receiver, changes in pulse amplitude can shift the threshold-crossing time, called time walk. Calibration, multiple-return discrimination and signal estimation are general approaches discussed in the literature. Signal estimation and timing correction depend on the receiver architecture; no specific firmware method is claimed without a model-specific record. Reported multi-target capability alone does not disclose the underlying algorithm. Kurtti, Jansson and Kostamovaara examine receiver/TDC timing behavior in their own research hardware.

Pulse energy describes emitted energy per pulse; its effect cannot be separated from pulse width, divergence, optical losses, receiver threshold and the stated target/atmosphere conditions. It is not a substitute for a model-specific near- or long-range acceptance test.

APPLICATION REVIEW

Source-stated application context

Application labels indicate evaluation context, not automatic fitness for a finished system.

The module’s ≤59.5 × 26 × 32 mm envelope and ≤65 g mass make it a distinct packaging option for conditioned vehicle-size distance measurements. Its optical table lists a 12 mm transmitting aperture and ≤0.4 mrad beam divergence. The wavelength tolerance, aperture and divergence are all model-specific, rather than borrowed from the neighboring 0815C or 0816C records.

The source separately marks its ≥4.5 km human-size and ≥2.6 km small-object entries as design guarantees. That evidence label is retained rather than presenting them as measured acceptance results. Electrical entries give DC 4.5–16 V input, operating power ≤4 W and standby ≤1 mW; the reviewed module table does not supply a module pulse-energy value.

INTEGRATION CHECK

Confirm short- and long-distance acceptance conditions

  • Define minimum distance, target material, reflectance, size and incidence angle.
  • Check receiver recovery, optical-axis overlap and strong-return handling at the intended near limit.
  • Verify supply tolerance, peak current, grounding, interface levels, connector and timing with the ordered revision.
  • For long-distance acceptance, state target geometry, visibility, weather, background and required detection probability.
  • Test with the installed window, boresight, field of view, enclosure and thermal path rather than a bare module alone.
  • Evaluate accessible emission, labels and failure conditions again for the finished laser product under IEC 60825-1.
TECHNICAL FAQ

Questions to resolve before design release

Does the 8 km figure refer to a building or a vehicle target?

The reviewed LRF0818C record names a 2.3 × 4.6 m vehicle target at 0.3 reflectivity or equivalent panel conditions, visibility ≥12 km and relative humidity ≤60%. Its result is ≥8000 m. It should not be relabeled as an unconditional building or arbitrary-object range.

Are its human-size and small-object entries measured test results?

The source labels ≥4500 m for a 0.5 × 1.7 m human-size target and ≥2600 m for a 0.2 × 0.3 m object as design guarantees. This page preserves that evidence level; it does not upgrade those entries into measured results or independent test certification.

What makes its mechanical form different?

The record states ≤59.5 × 26 × 32 mm and ≤65 g, with a 26 mm receiving aperture. This is a different envelope from the 0815C and 0816C models. A mechanical fit assessment should use this model’s controlled drawing, not a similarly named module’s dimensions.

Can a numerical laser class or module energy be added?

Neither a numerical class nor a module pulse-energy value appears in the reviewed LRF0818C specification. The eye-safe description and separate source-component data do not supply those missing facts. Final product classification and any required module-energy guarantee need their own controlled supporting record.

Which wavelength and rate wording is accurate?

The reviewed wavelength entry is 1535 nm ±10 nm. The ranging list names single shot and specified rates through 10 Hz, rather than every intermediate setting. Preserve the actual tolerance and supported modes instead of copying another 1535 nm model’s narrower tolerance or continuous-rate wording.

ENGINEERING REFERENCES

Product evidence and general technical context

The model PDF controls model claims. Public references below explain general engineering principles only.

  1. LRF0818C controlled module datasheetThe module-specific parameters, target conditions and version notes cited on this page.
  2. Practical application of pulsed “eye-safe” microchip laser to laser rangefindersGeneral context for pulsed 1535 nm rangefinder architecture and source/receiver selection.
  3. Light Transmission in Fog: The Influence of Wavelength on the Extinction CoefficientWhy atmospheric conditions must remain attached to a stated ranging test case.
PRODUCT INQUIRY
