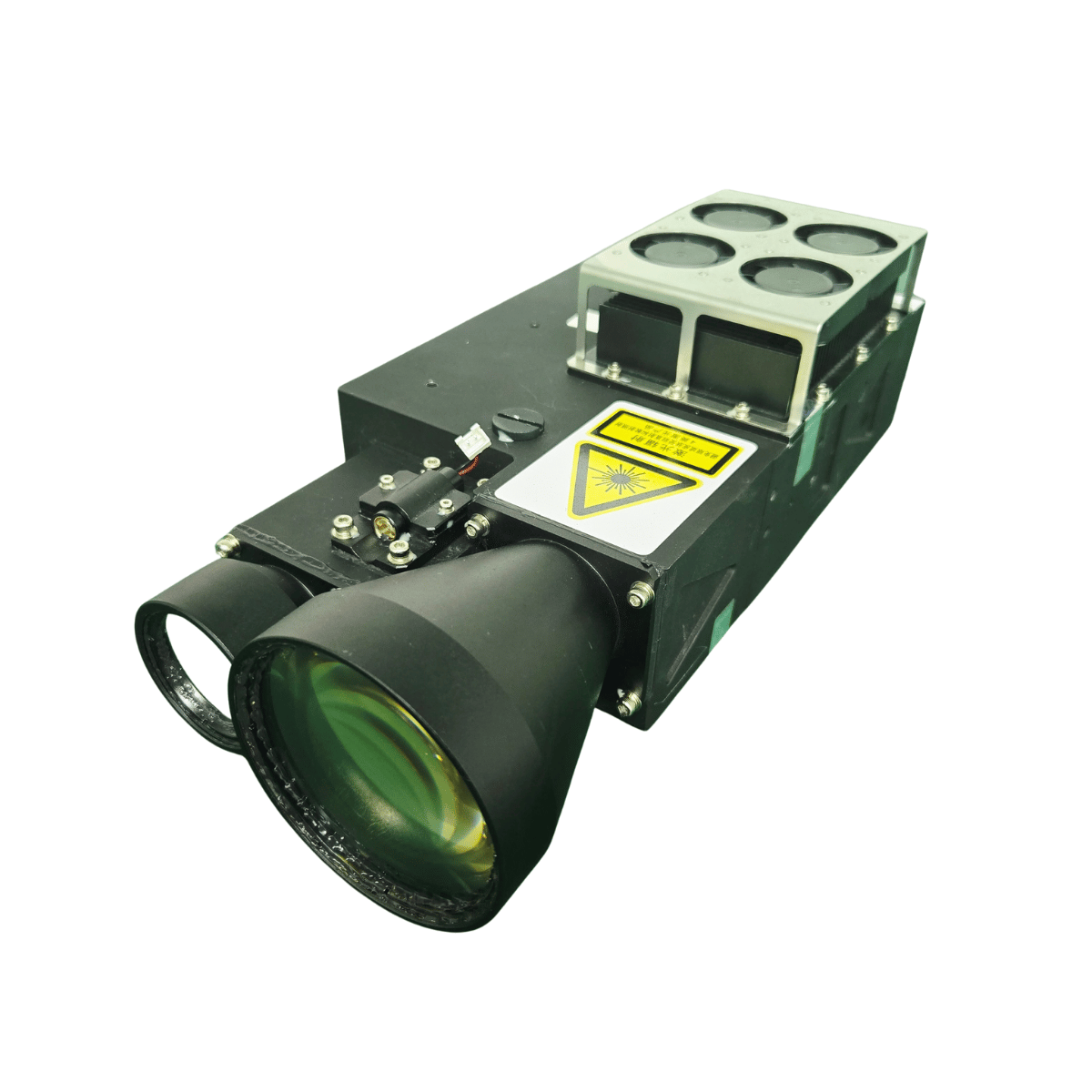

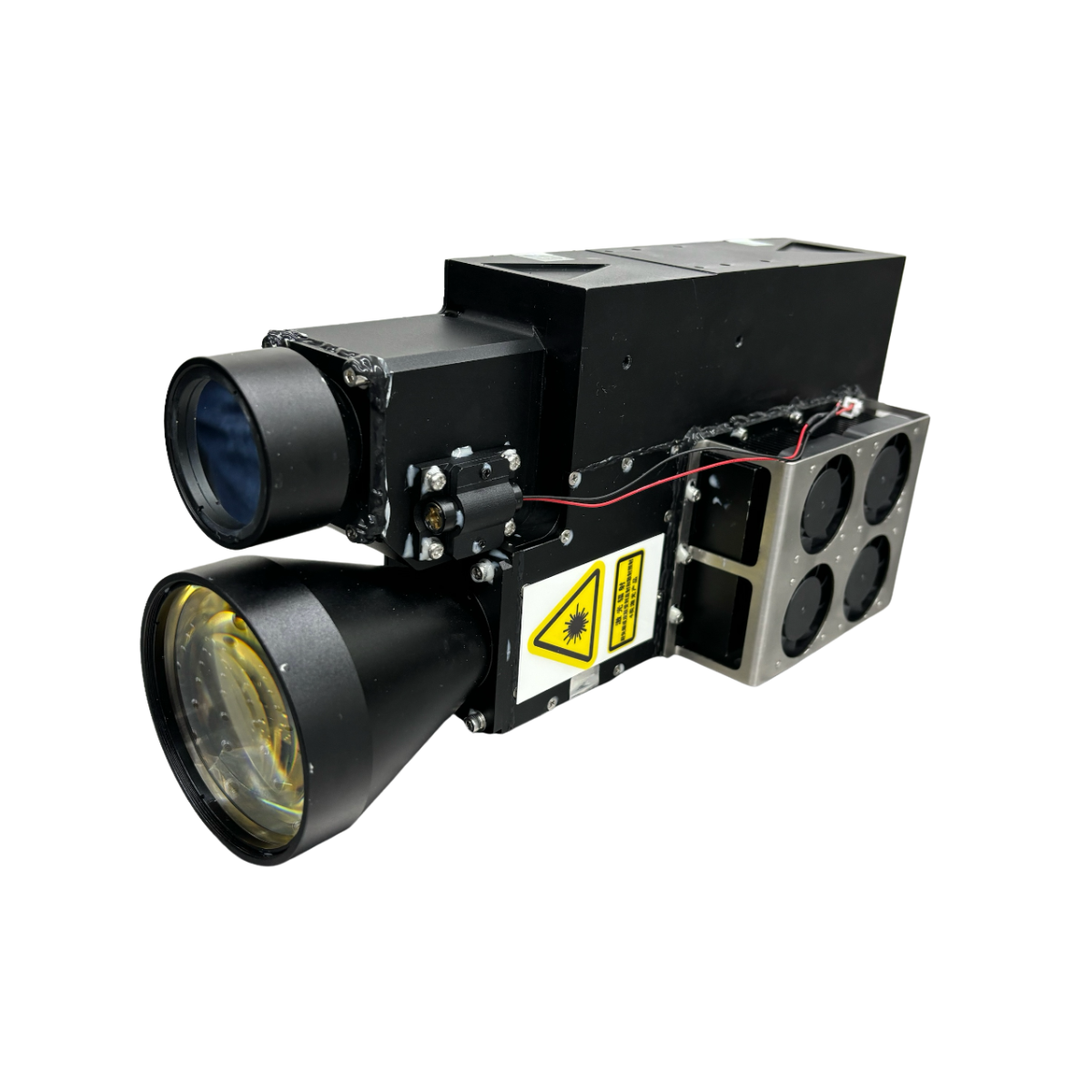

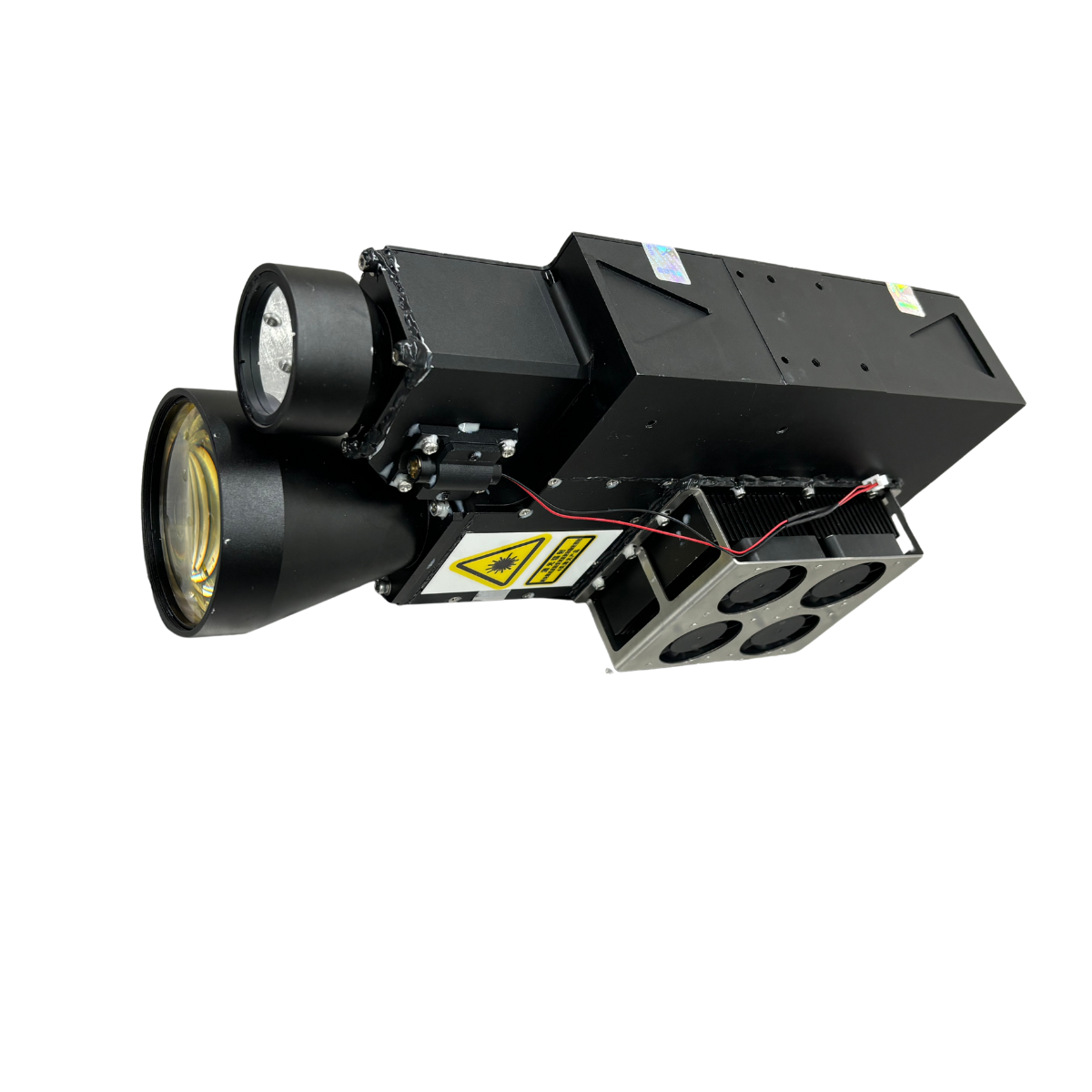

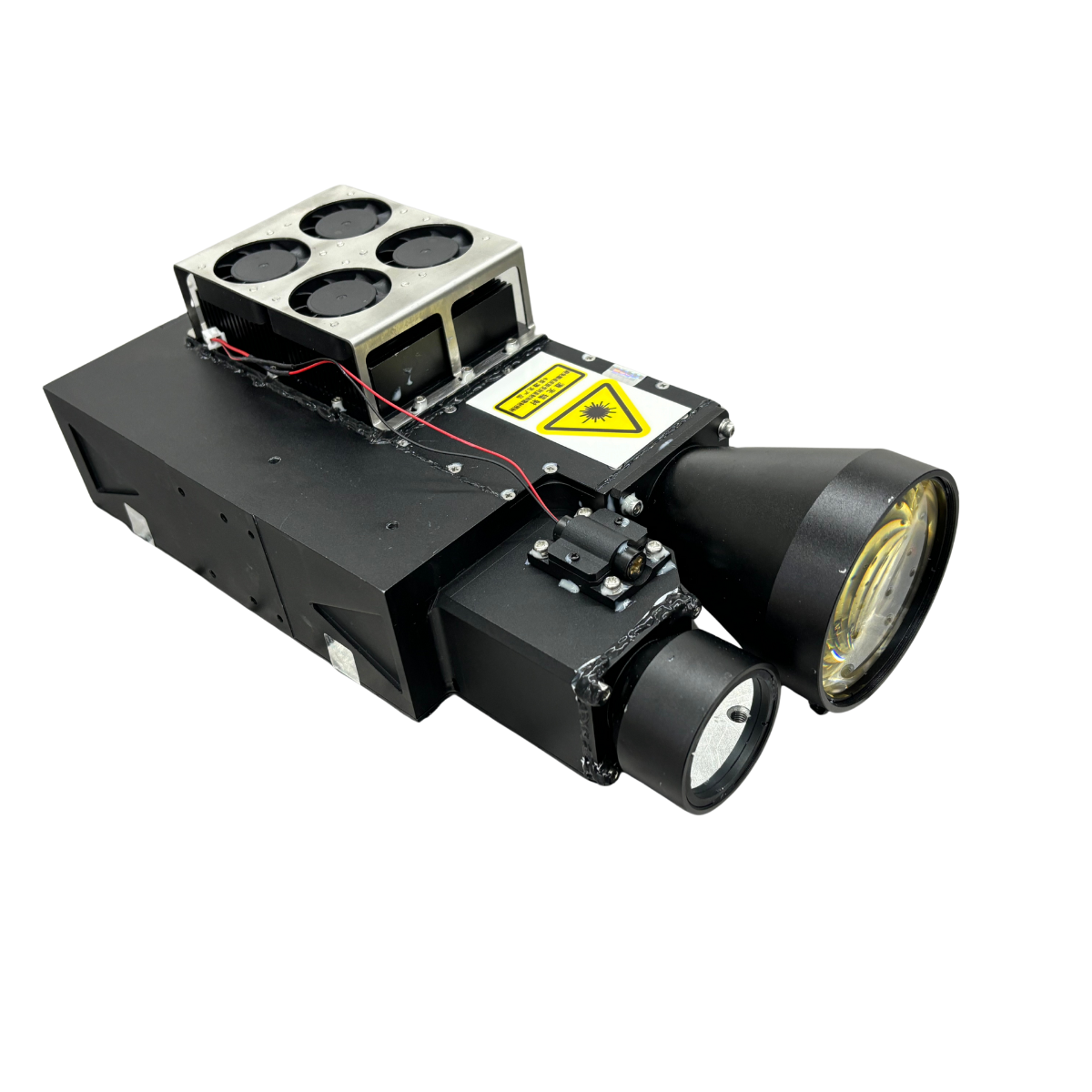

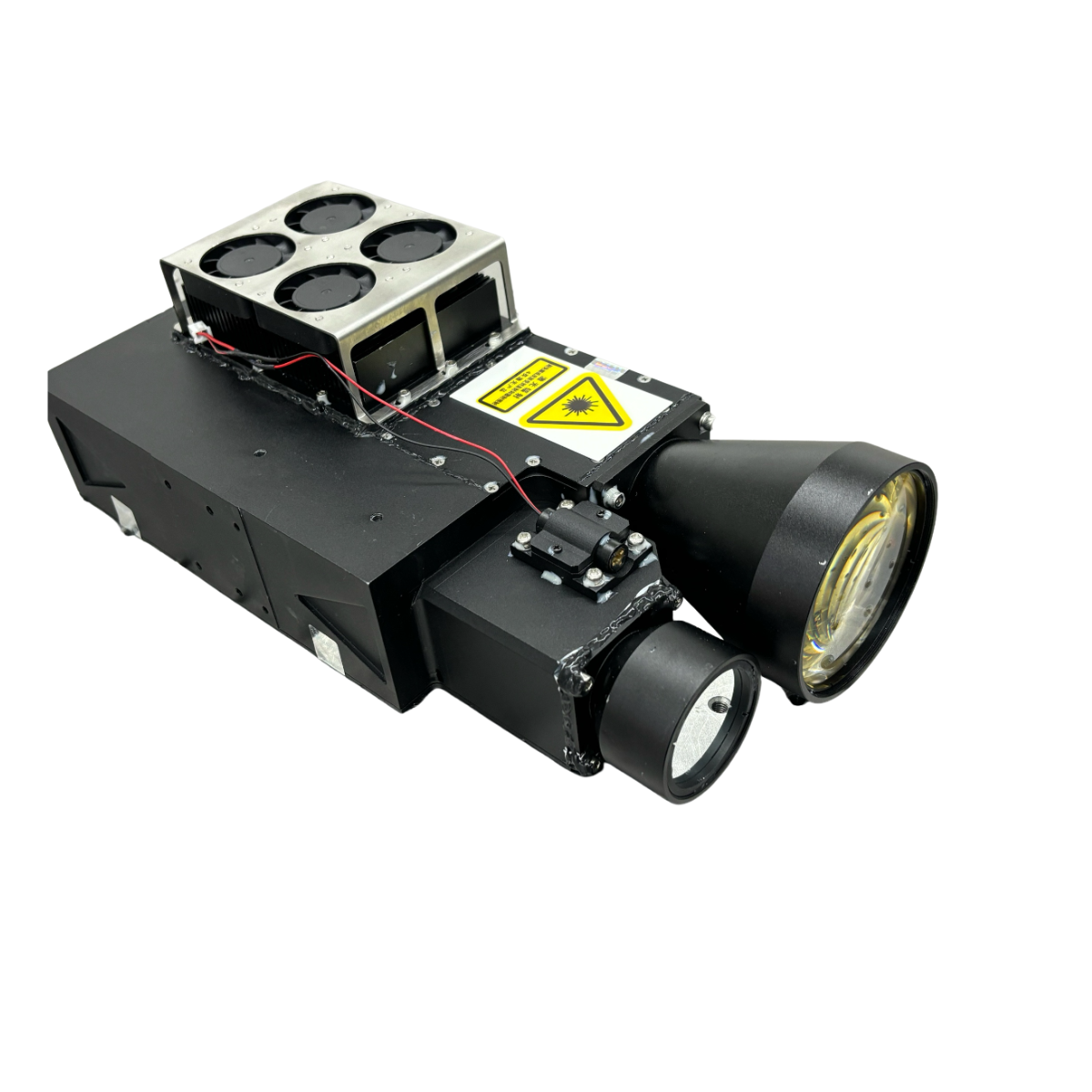

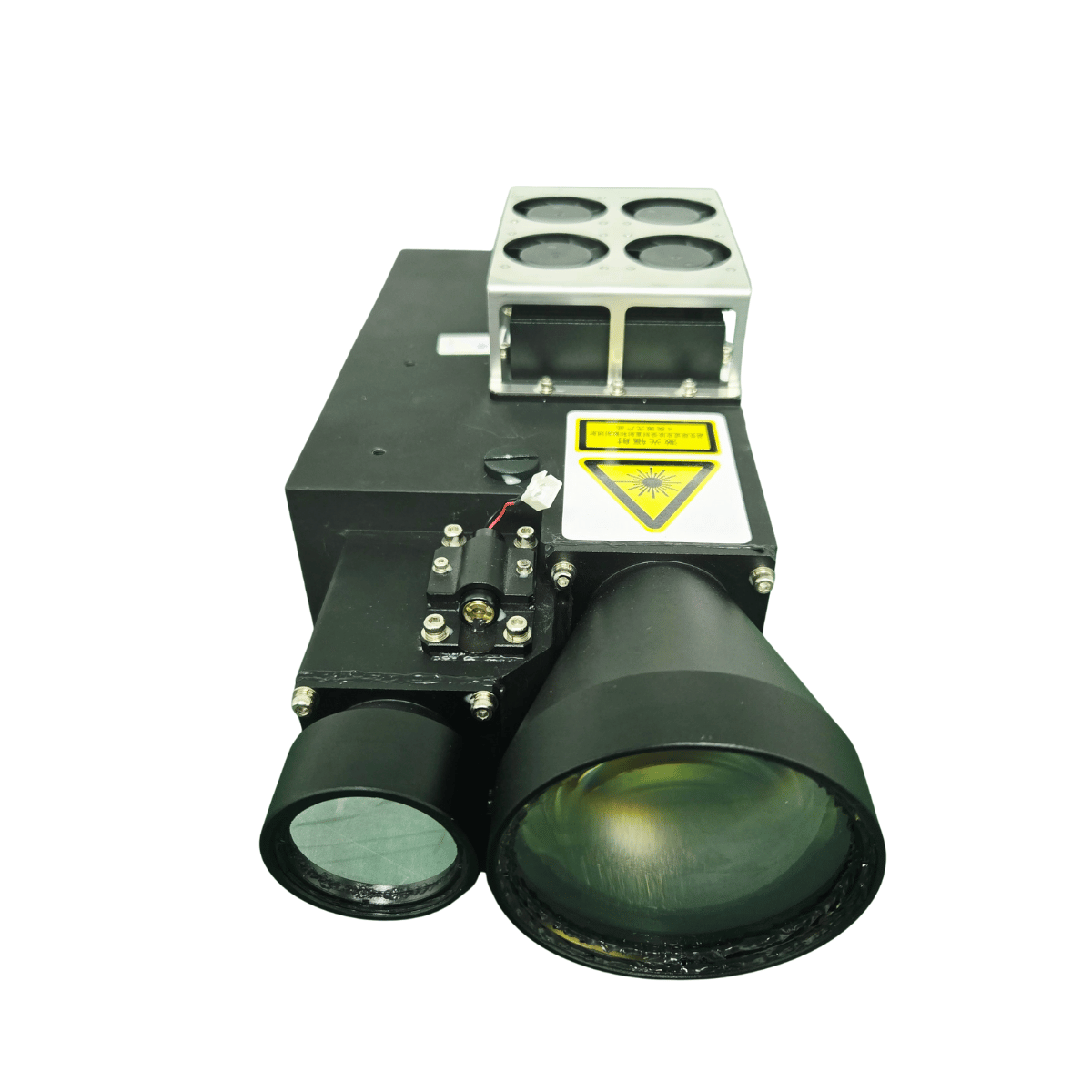

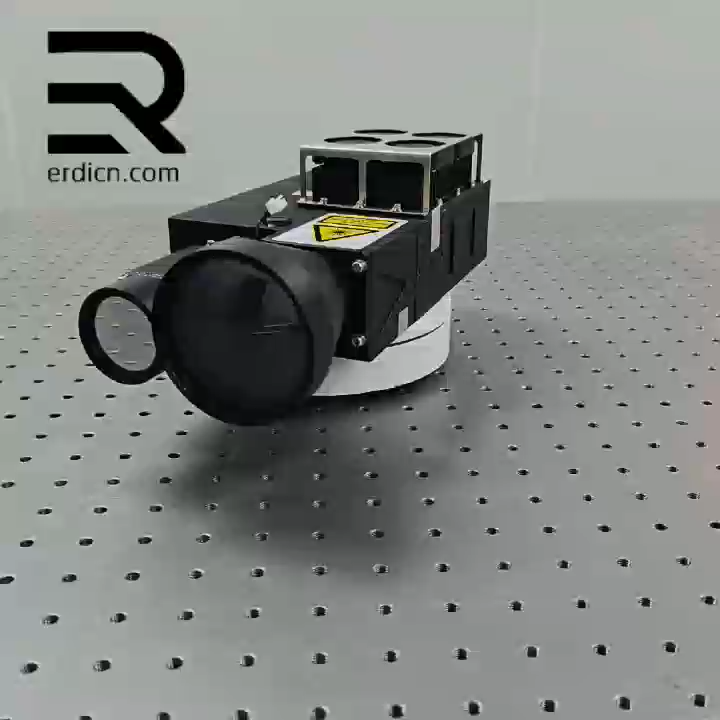

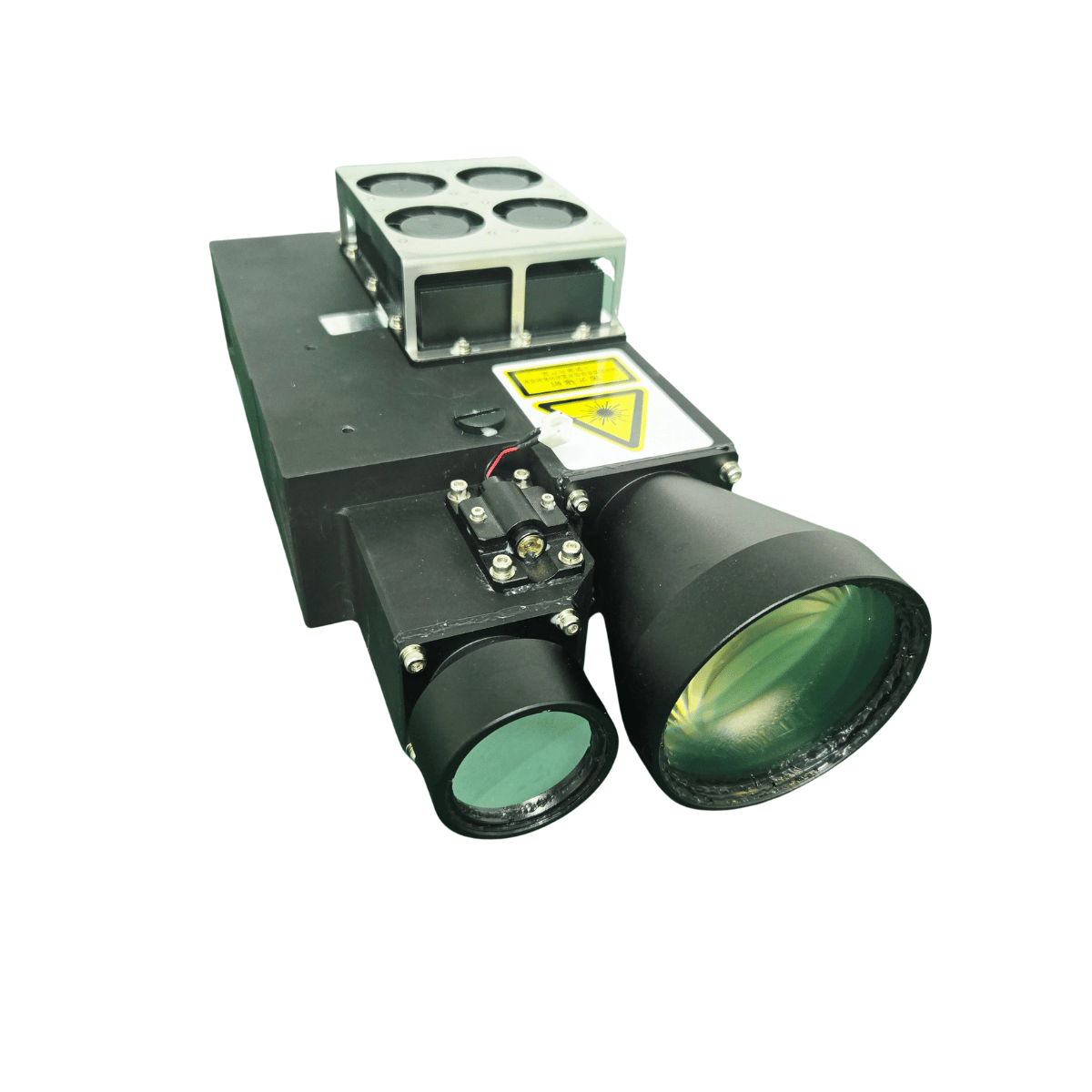

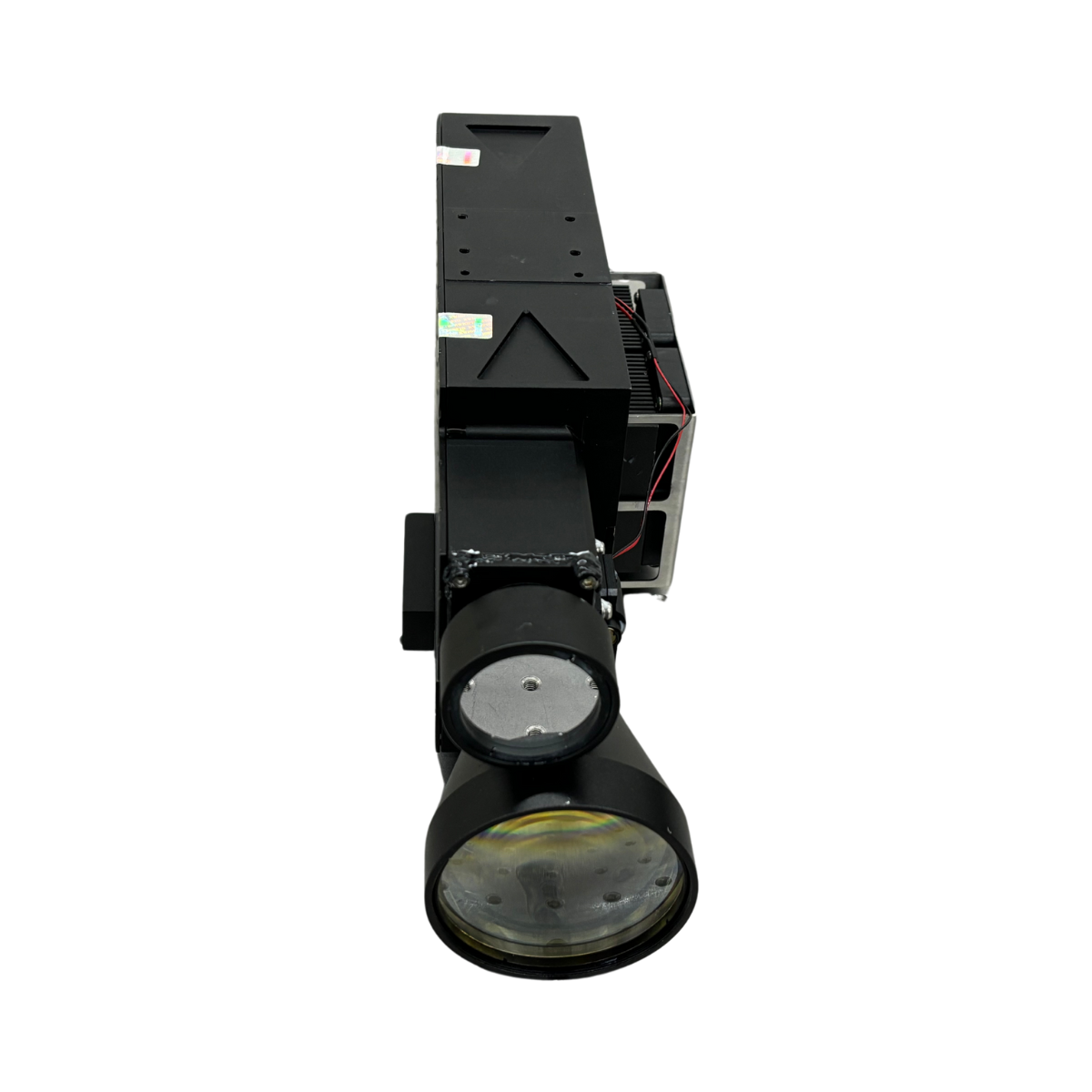

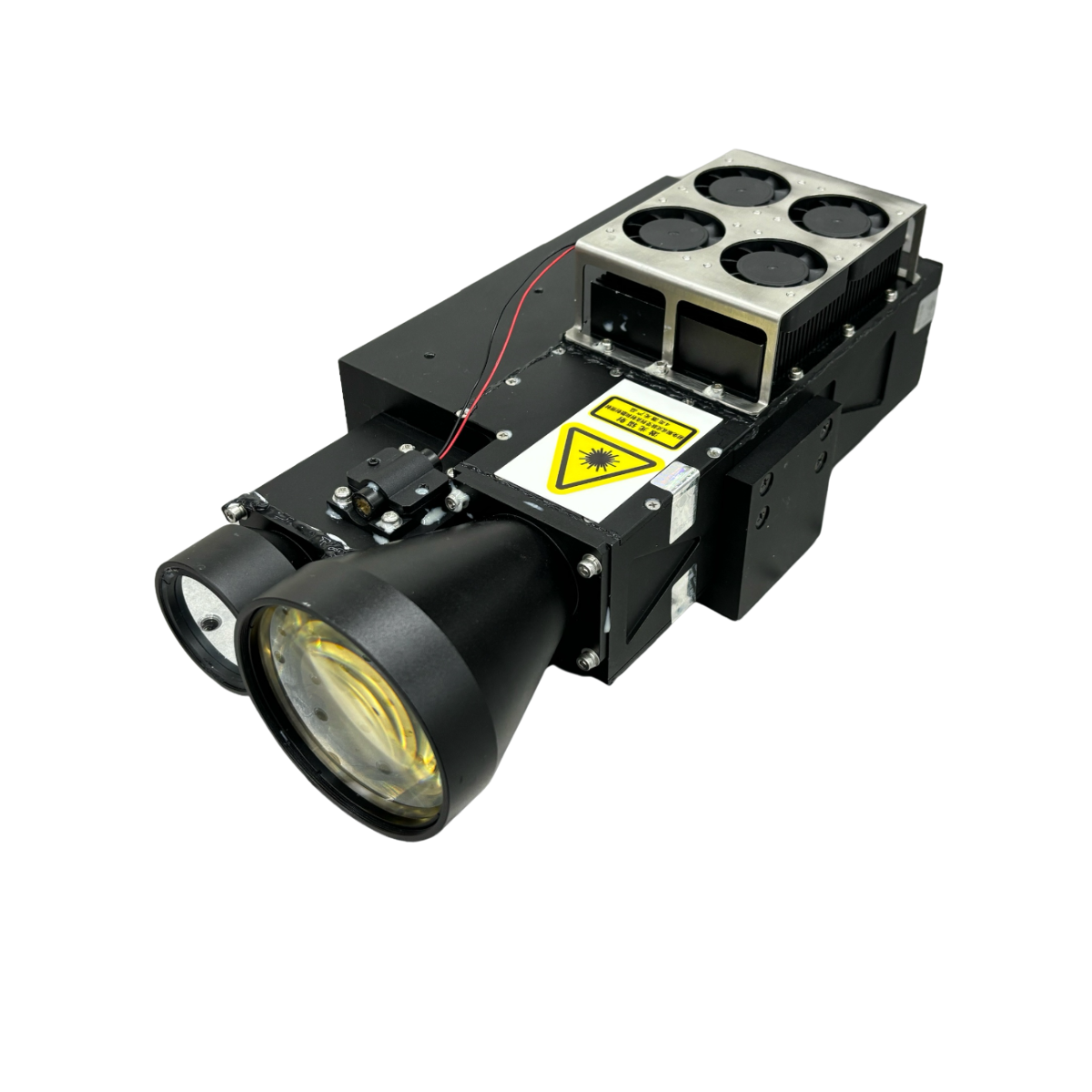

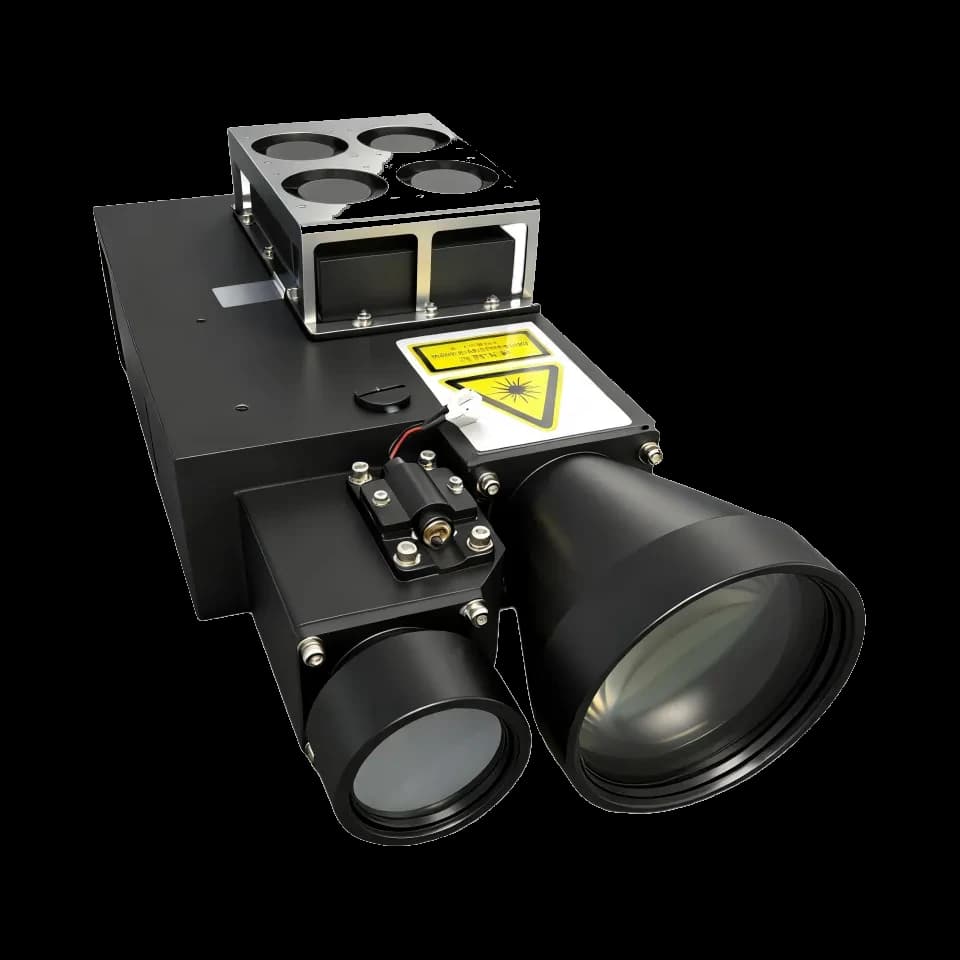

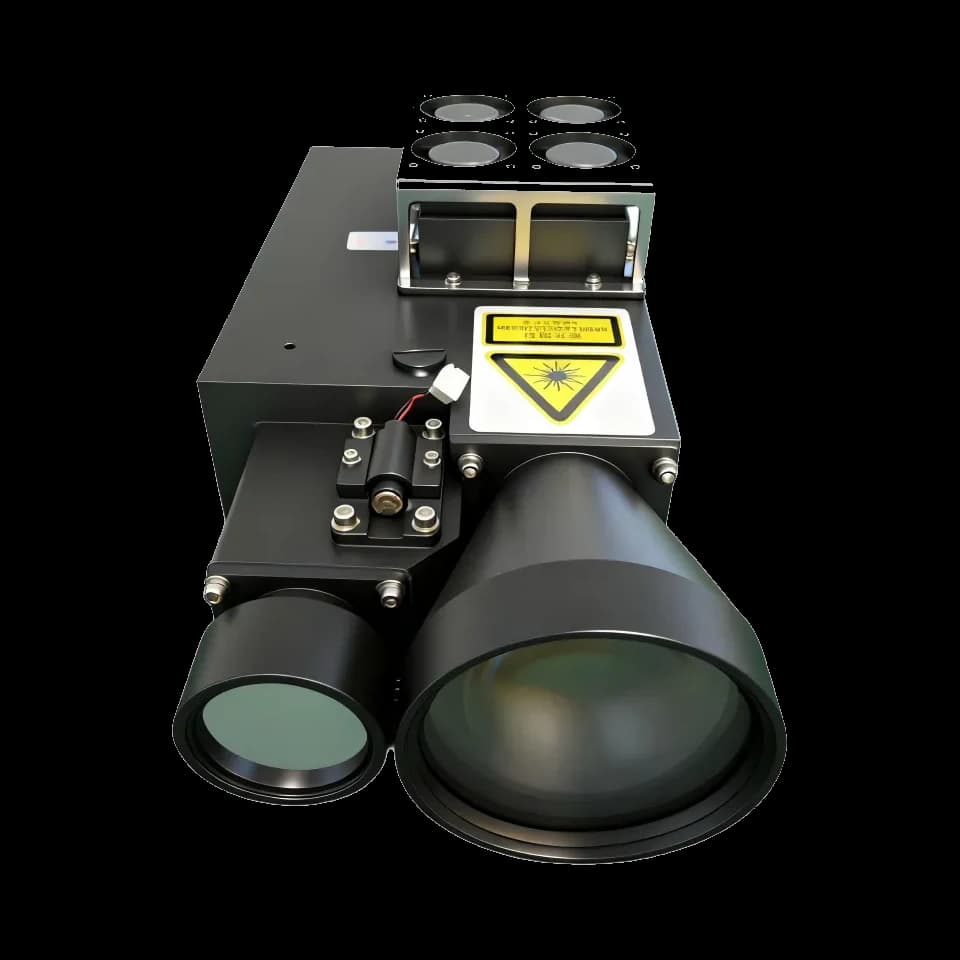

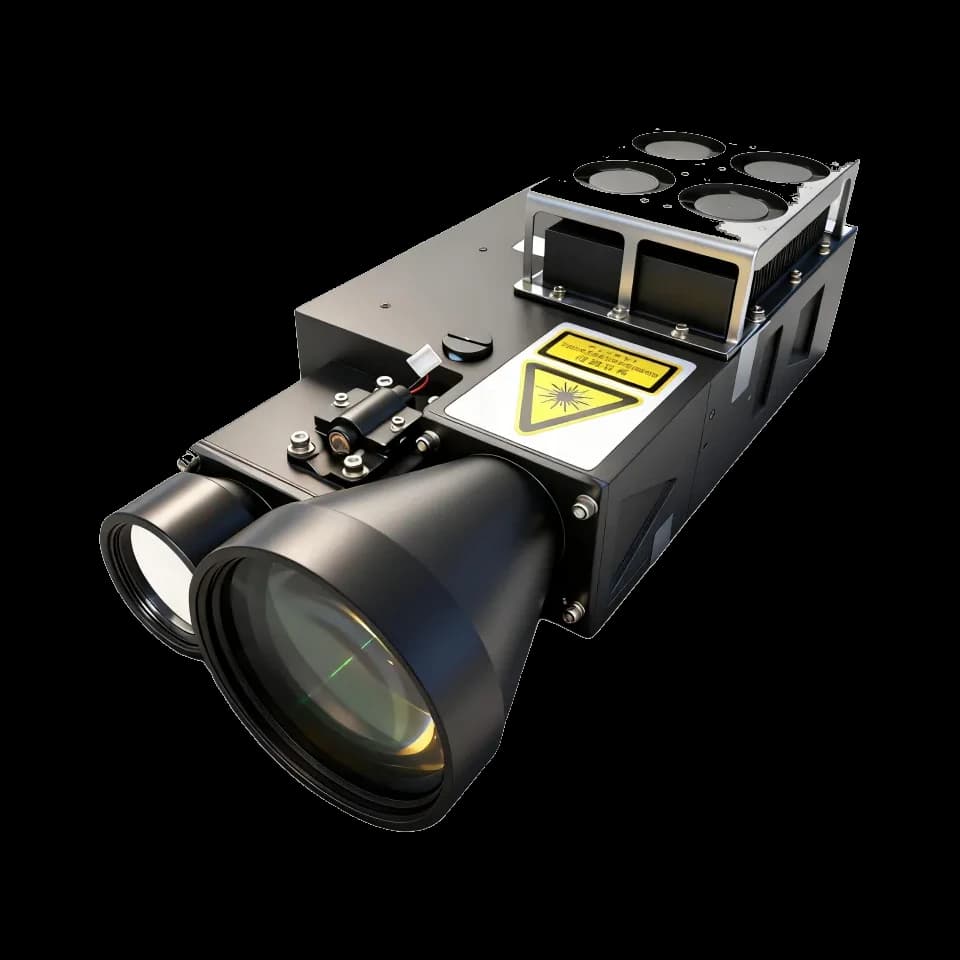

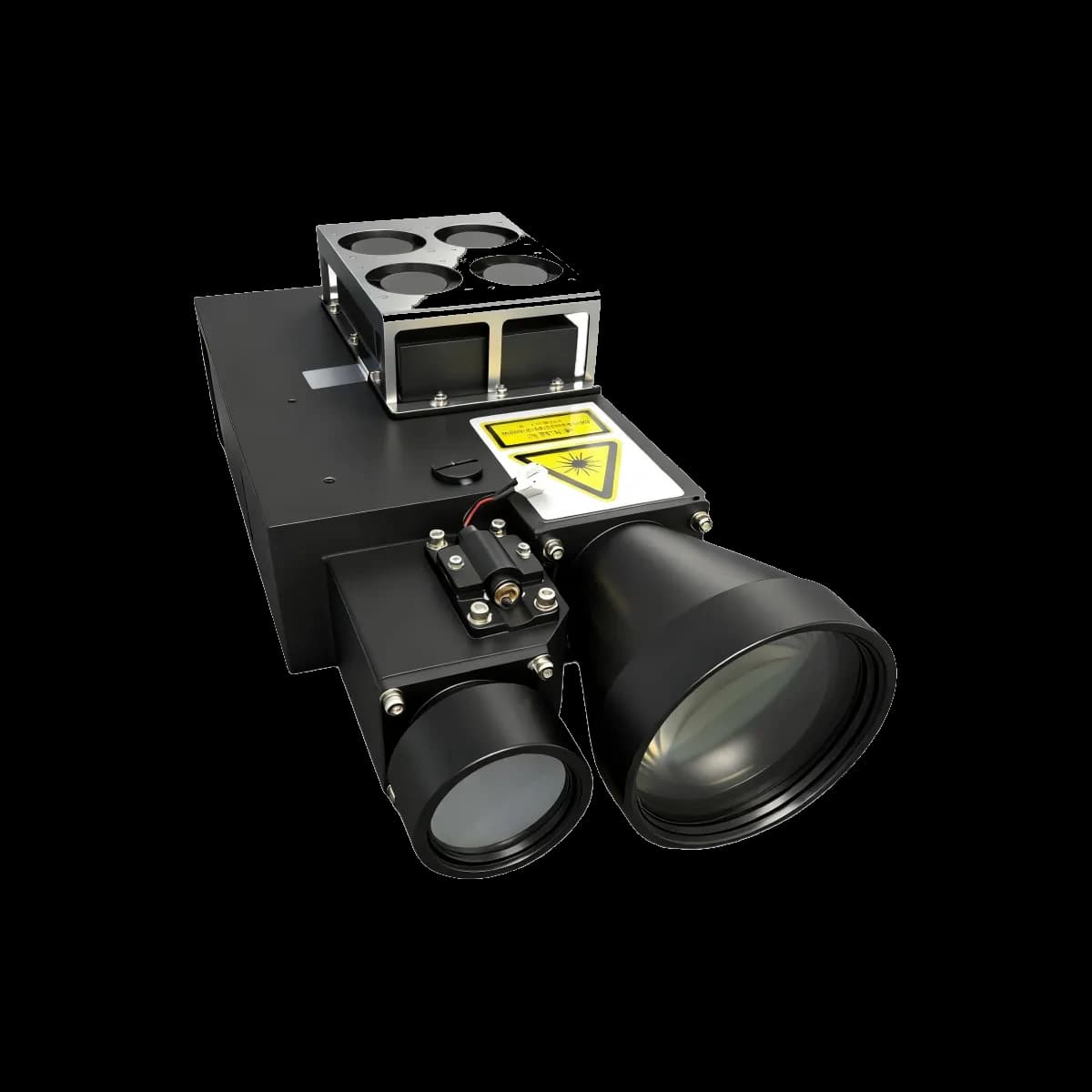

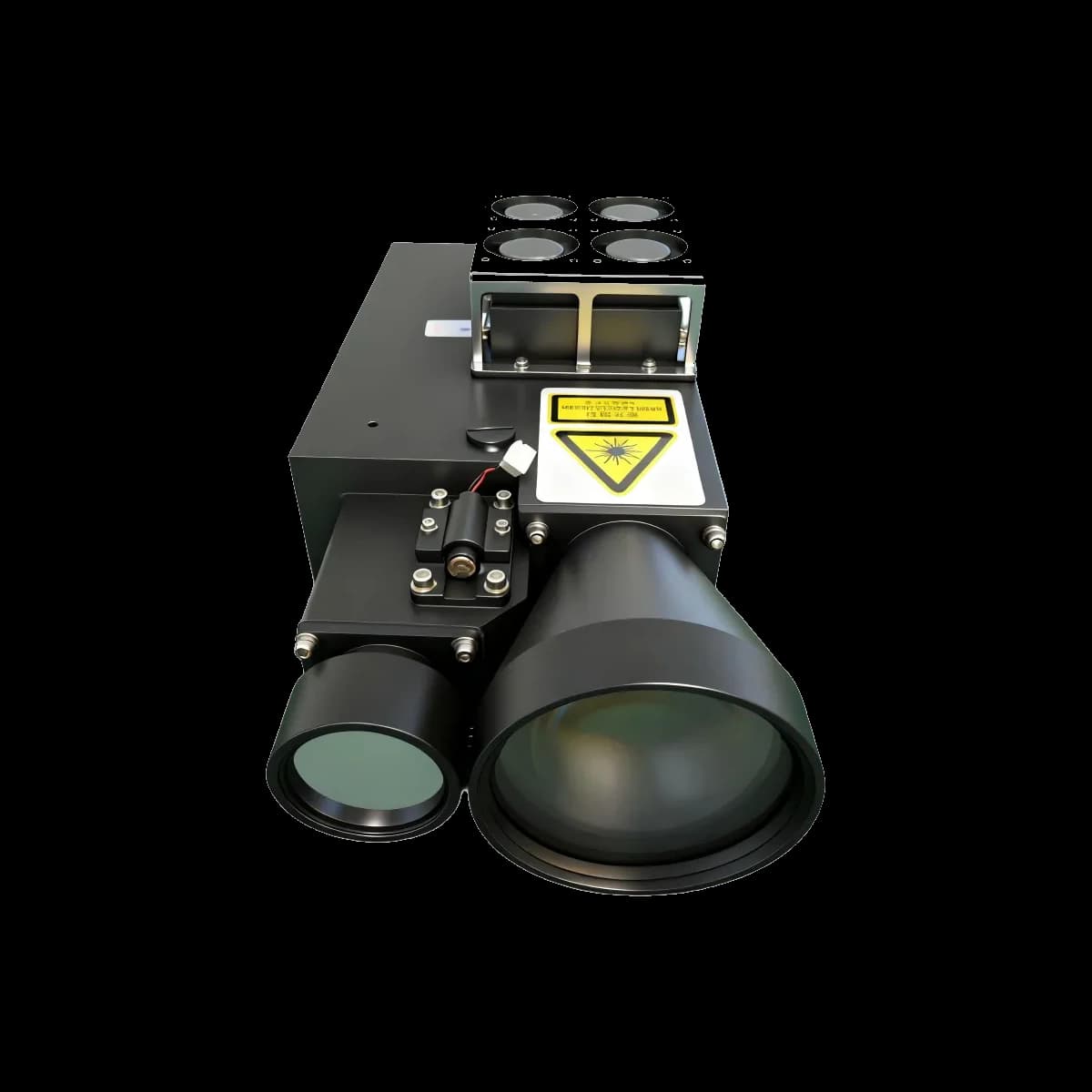

Detailed LR160 Specifications
The technical material below is retained for this model only. Do not transfer a range, pulse, interface, mechanical or safety value from another 1064 nm product.
TECHNICAL SPECIFICATIONS
|
Laser Wavelength |
1064nm±1nm |
|
Laser Energy |
85 mJ and 160 mJ (switchable) |
|
Optical Delay |
304 μs±1μs |
|
Beam Divergence |
≤0.2mrad |
|
Laser Designation Frequency |
8~21Hz |
|
Ranging Frequency |
10Hz |
|
Laser Pulse Width |
l0ns ~l5ns |
|
Power Stability |
≤8% |
|
Ranging Range |
0.2 m – 30 km |
|
Ranging Error |
≤5m |
|
Target Selection |
First Target / Second Target / Last Target |
|
Valid Measurement Rate |
98% |
|
Trigger Mode |
Internal Sync Illumination, External Sync Illumination |
|
Dimensions |
≤306×145×94mm |
|
Weight |
≤3.3kg |
|
Laser Designation Performance |
Laser Designation Center Frequency: 20 Hz Low/Normal Temperature, 85 mJ Output Low/Normal Temperature, 160 mJ Output High Temperature, 85 mJ Output High Temperature, 160 mJ Output |
|
Ranging Performance |
Minimum Measuring Distance: ≤ 300 m Maximum Measuring Distance: ≥ 30 km Ranging Frequency: 10 Hz (up to 3 targets) Continuous Operating Cycles: l Low/Normal Temperature: l High Temperature, 85 mJ Output: l High Temperature, 160 mJ Output: |
|
|
RS422 |
|
External Synchronization Interface |
+5 V differential line-driver chip, RS-422 interface (laser emission delay from external sync signal: 304.0 μs ± 0.1 μs) |
|
Coding Mode |
Precise frequency coding and time coding |
|
Period Accuracy |
<±1us |
|
Power Supply |
DC 24V±4V |
|
Startup Time |
< 1 minute (at room temperature) |
|
Low Temperature |
Operating temperature: −40 °C |
|
High Temperature |
Operating temperature: +60 °C |

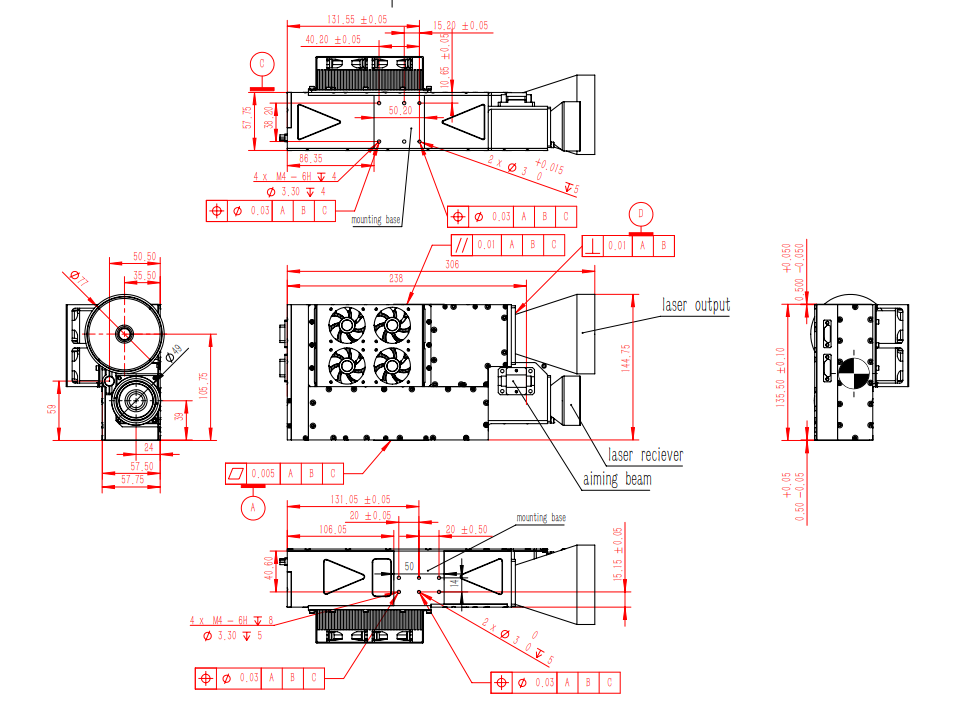

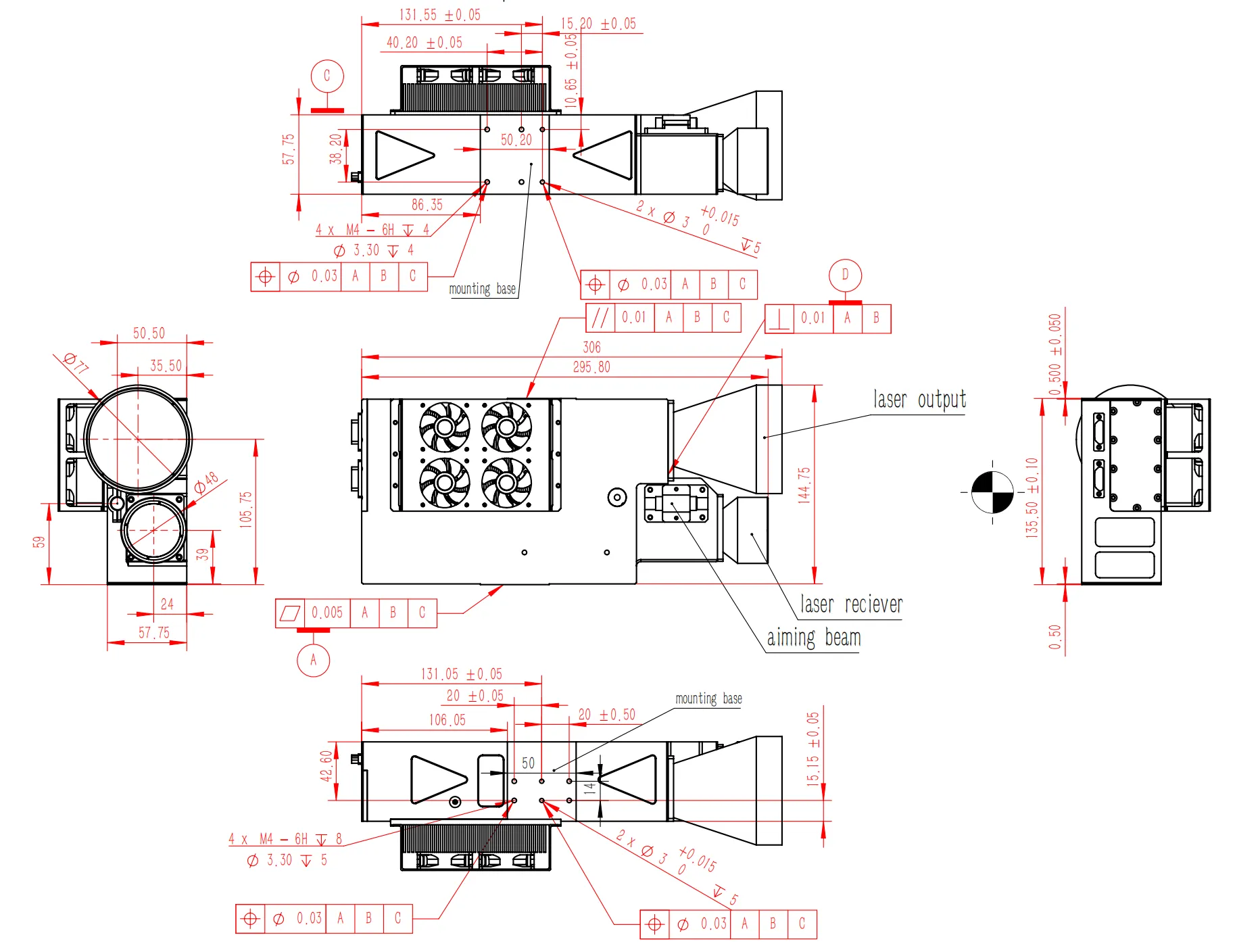

OUTLINE DIMENSION(mm)

PIN INTERFACE

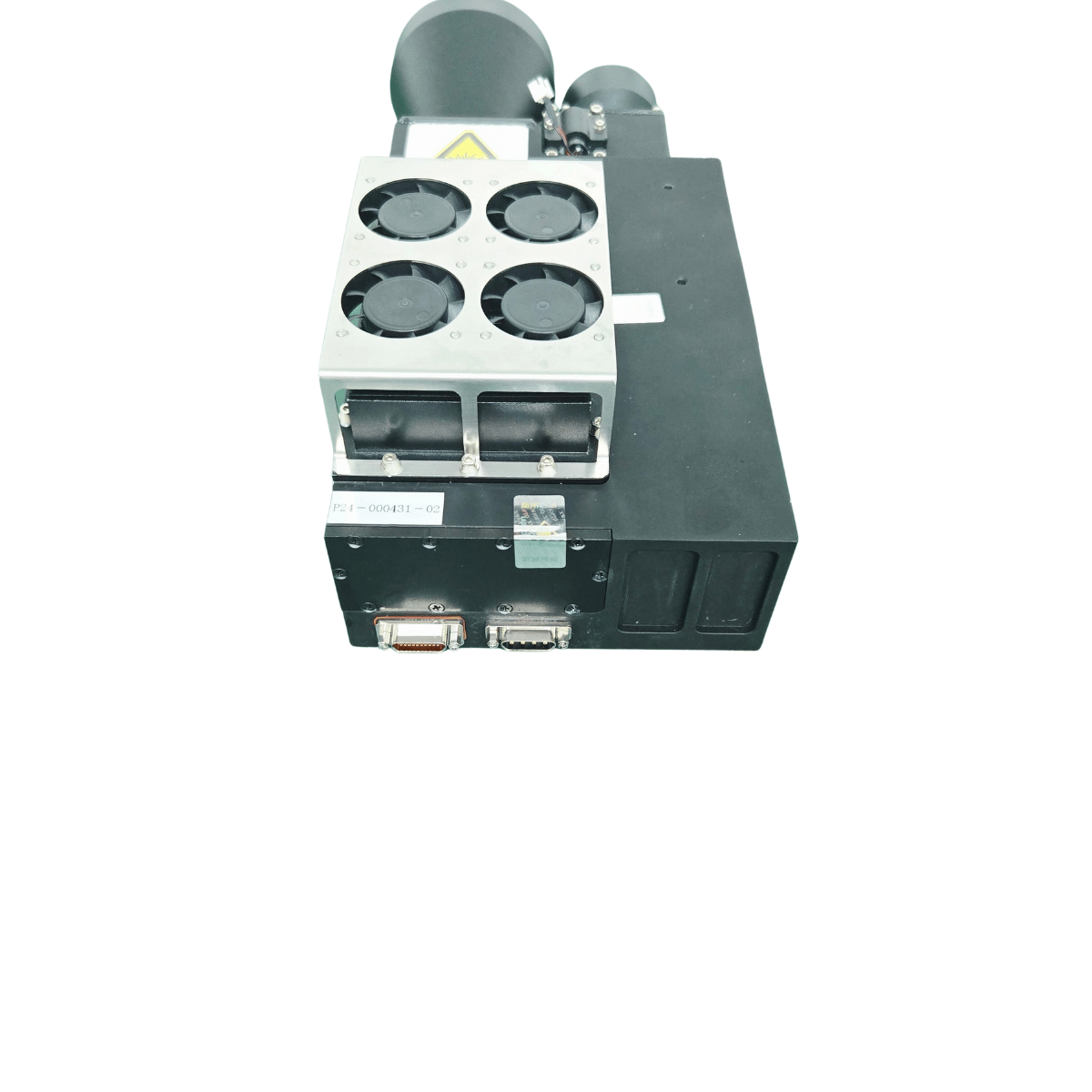

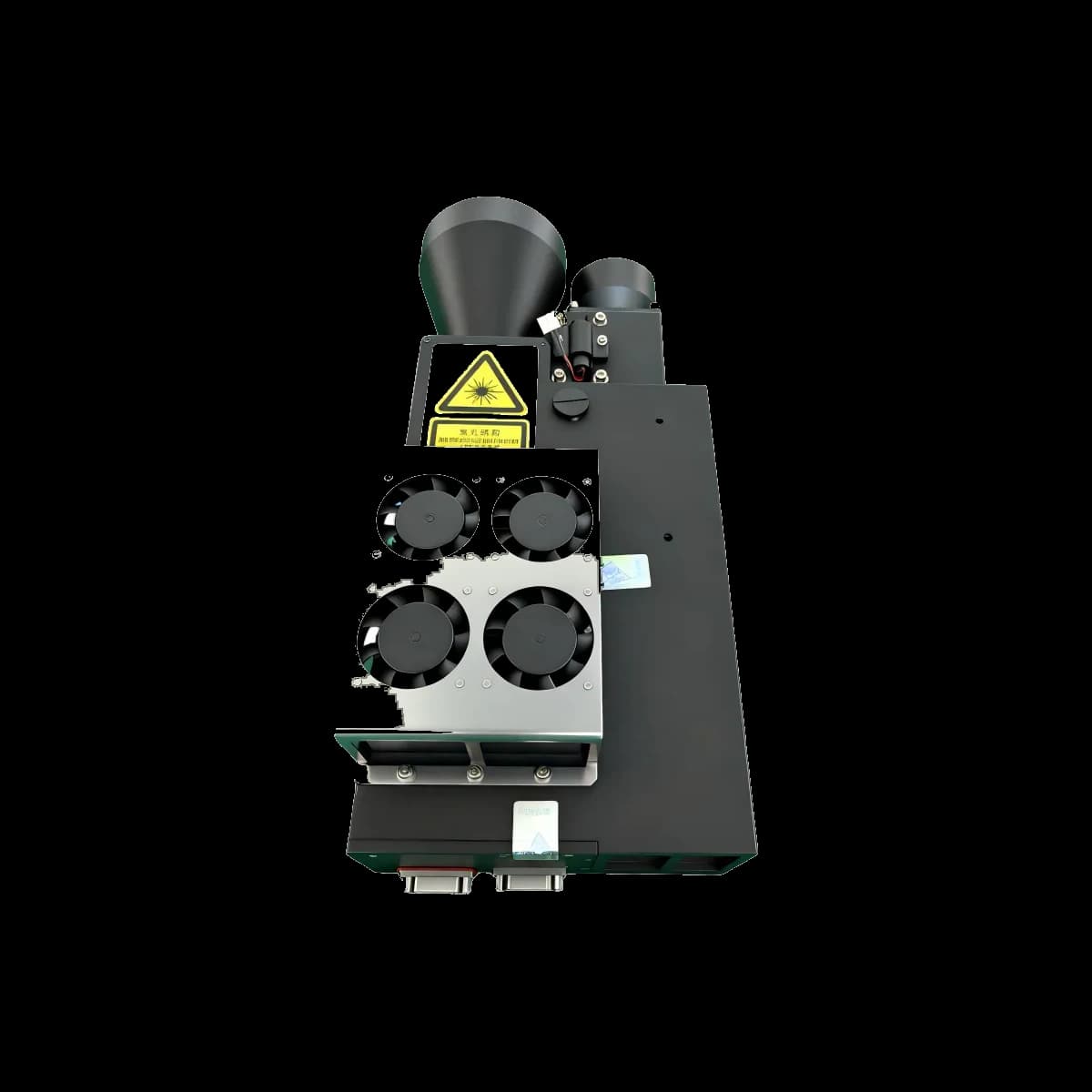

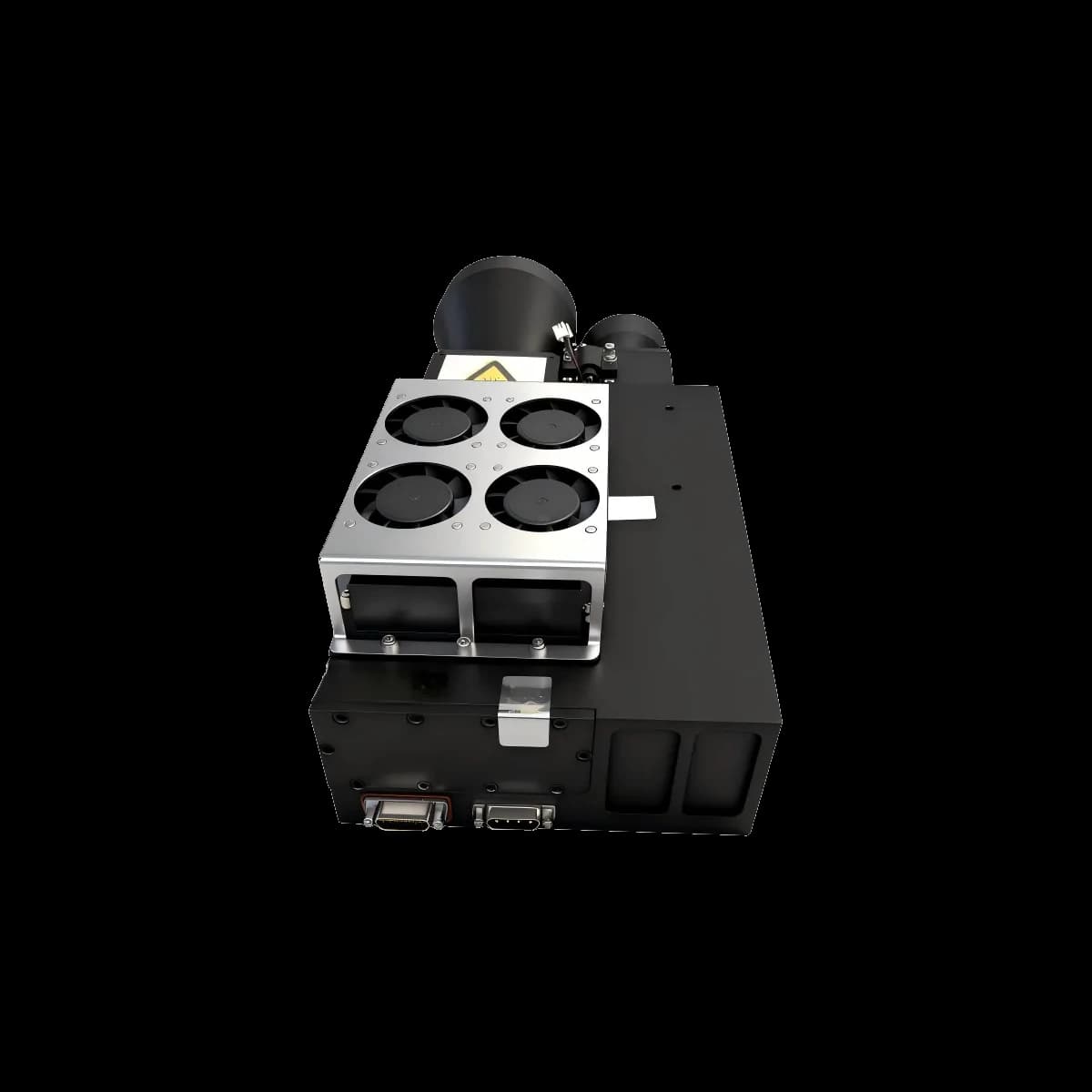

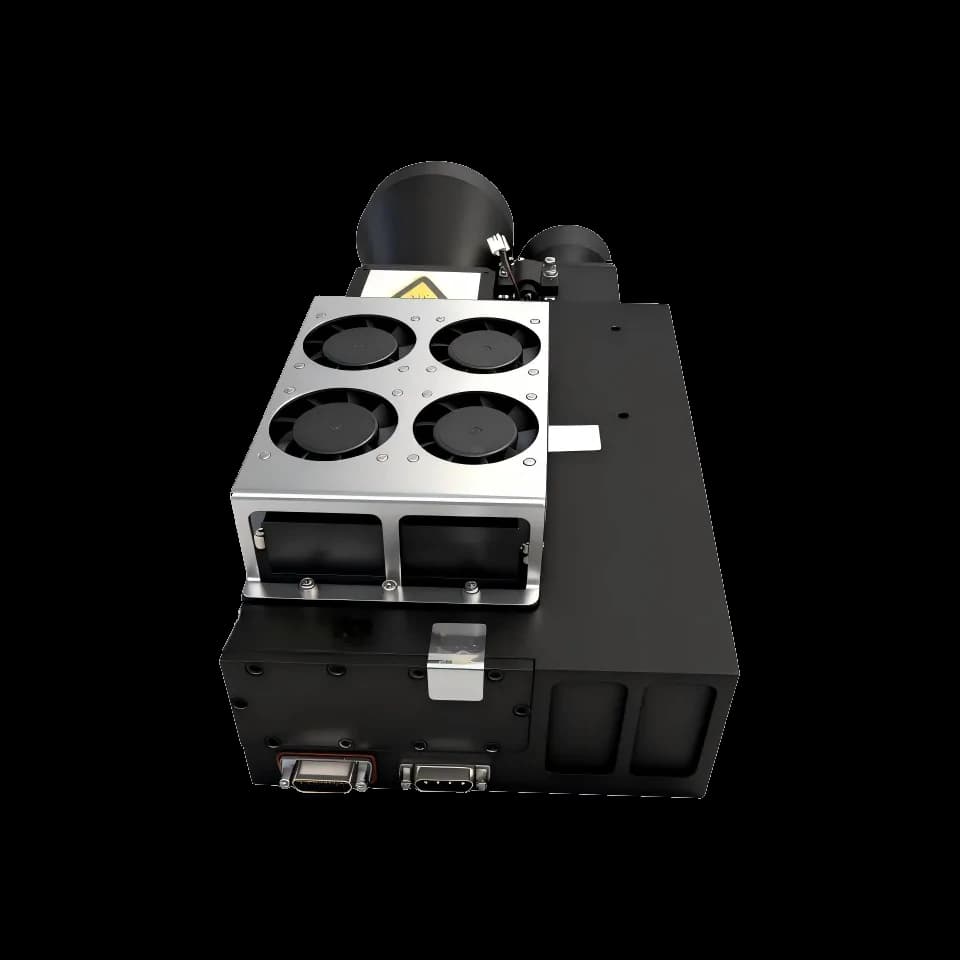

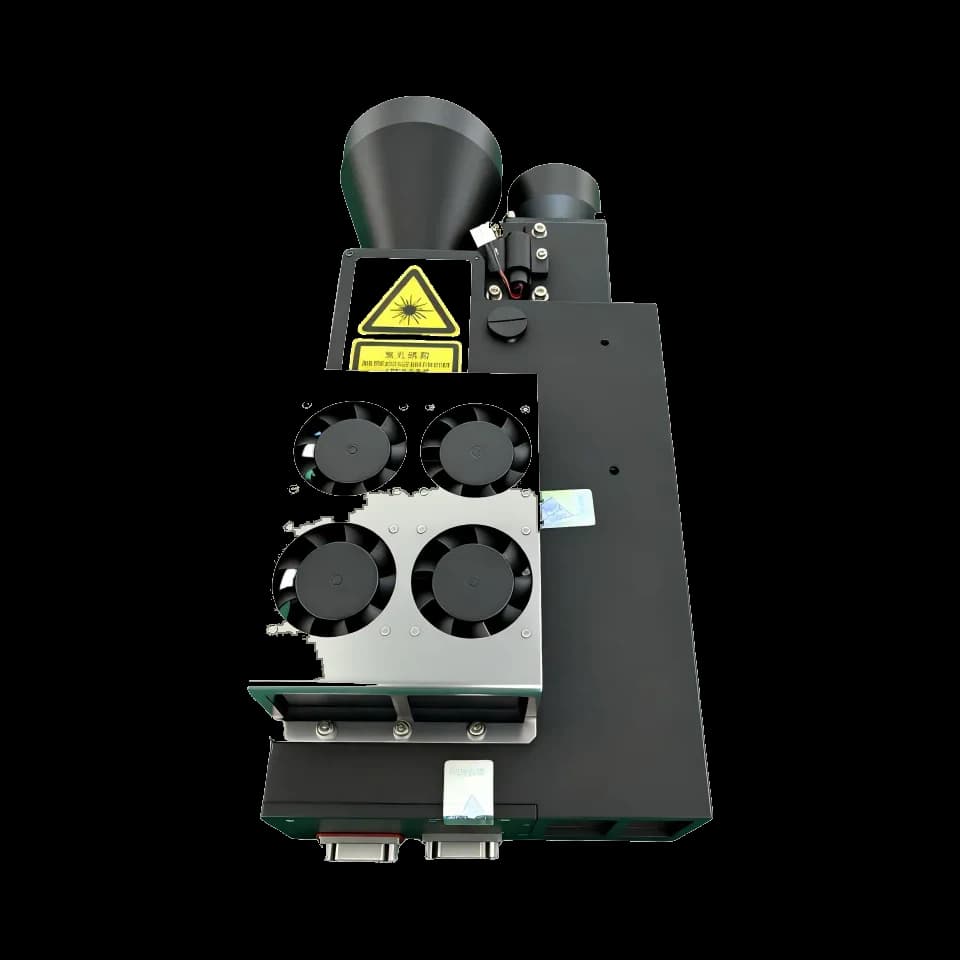

- The electrical connection interface consists of the J30J-21ZKPand J30J-04ZK
The interface definitions are as follows:
Table 1 — J30J-21ZKP Interface Definition
|
J30J-21ZKP |
||||
|
Pin |
Function |
Description |
Direction |
Remarks |
|
1 |
TX+ |
RS-422 TX+ |
Output |
RS-422 Communication Interface |
|
2 |
TX- |
RS-422 TX− |
Output |
|
|
3 |
RX+ |
RS-422 RX+ |
Input |
|
|
4 |
RX- |
RS-422 RX− |
Input |
|
|
5 |
GND |
RS-422 GND |
GND |
|
|
6 |
EN+ |
Power Enable |
|
24 V Power Enable Switch |
|
7 |
EN- |
Power Enable |
|
|
|
8-13 |
|
Not Connected / NC |
|
|
|
14 |
A |
External Sync Differential + (A) |
Input |
A and B are the A/B differential outputs of the RS-422 driver chip |
|
15 |
B |
External Sync Differential − (B) |
Input |
|
|
16 |
LED+ |
DC5V |
Input |
Laser Designation Power Supply |
|
17 |
LED- |
GND |
Input |
|
|
18-21 |
|
|
|
|
Table 2 — J30J-04ZK Interface Definition
|
J30J-04ZK |
||||
|
Pin |
Function |
Description |
Direction |
Remarks |
|
A、B |
24V |
Power Supply |
Input |
Red |
|
C、D |
GND |
Power GND |
Input |
Black |
- Power Supply Interface:+24 VDC ±10%
- External Trigger:RS-422 differential signal

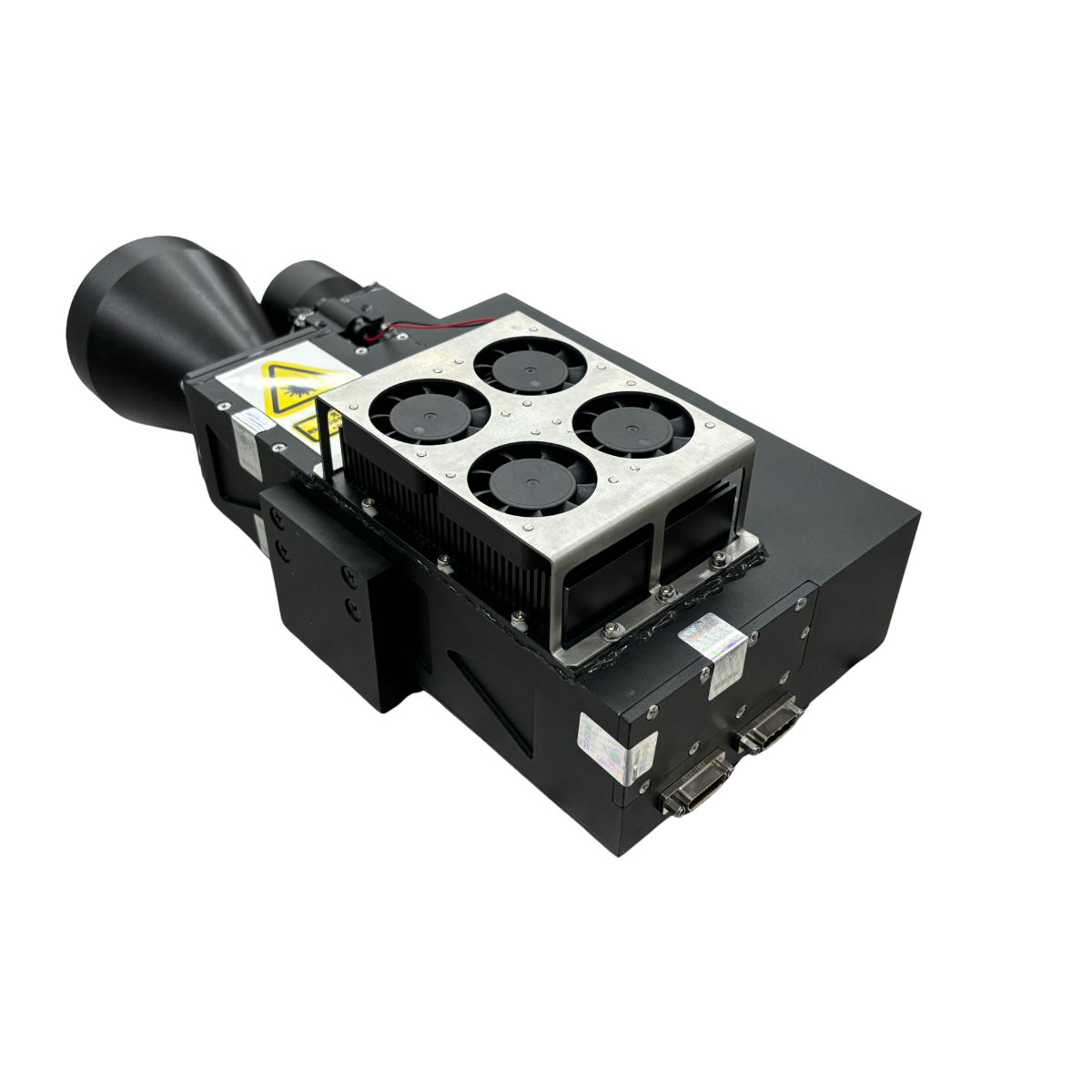

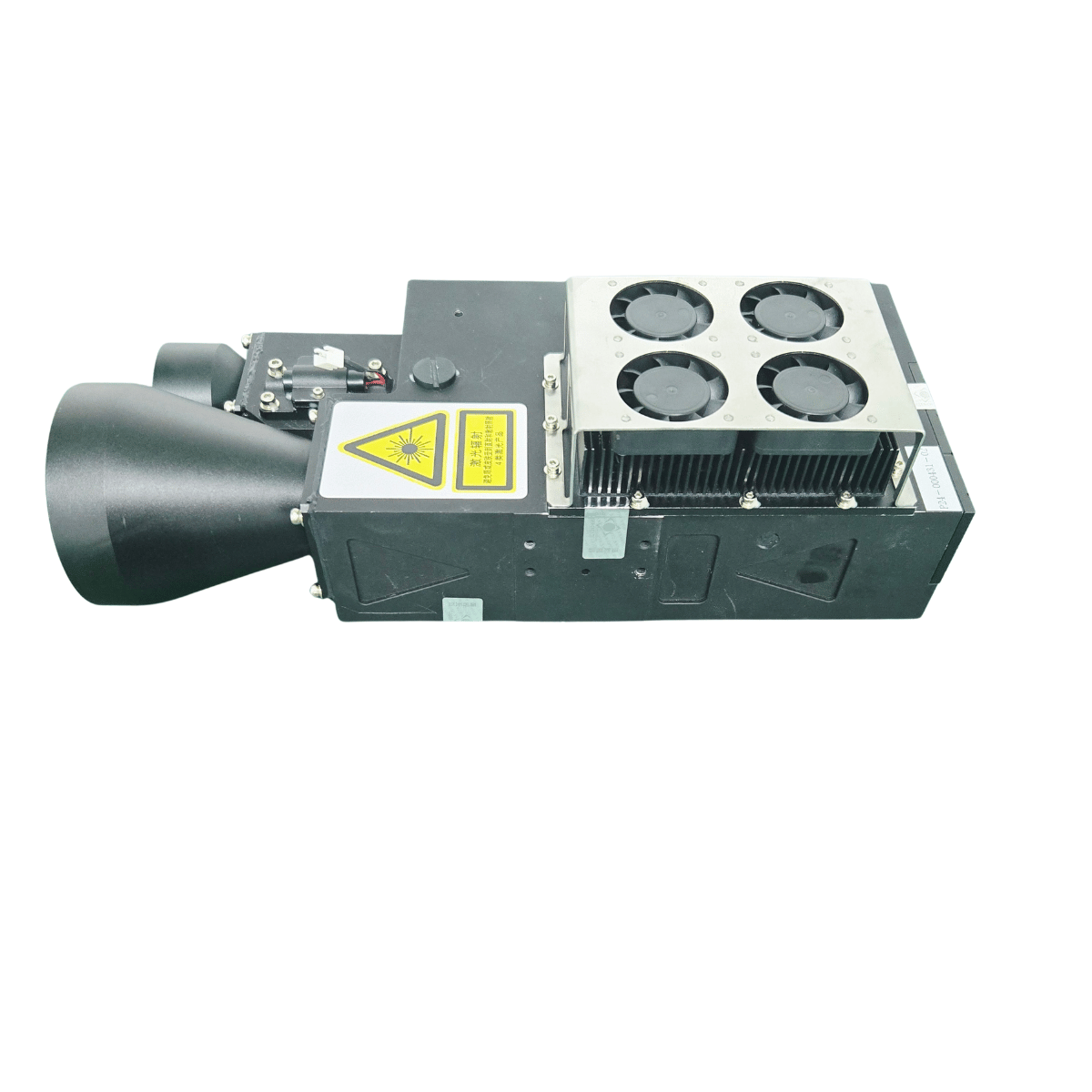

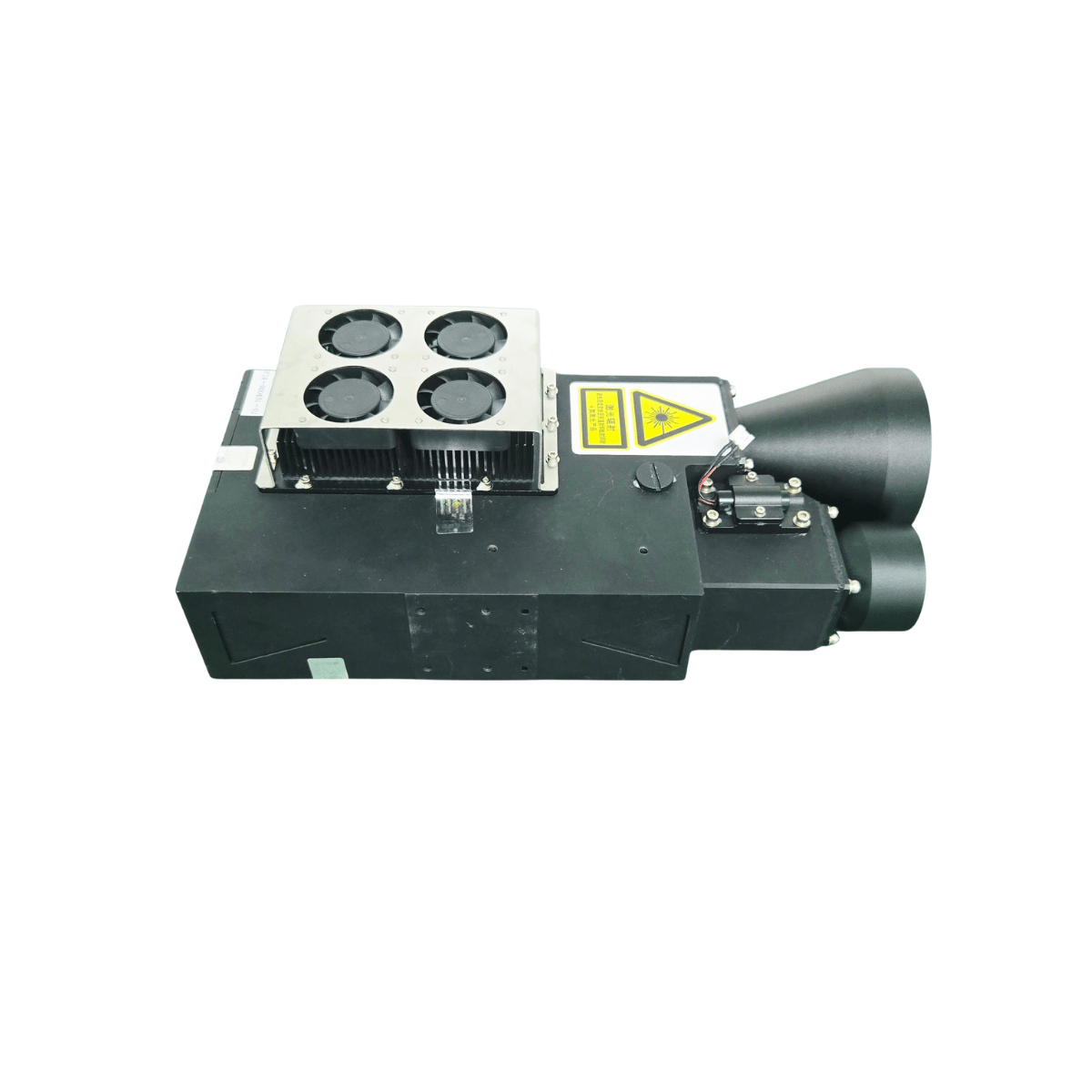

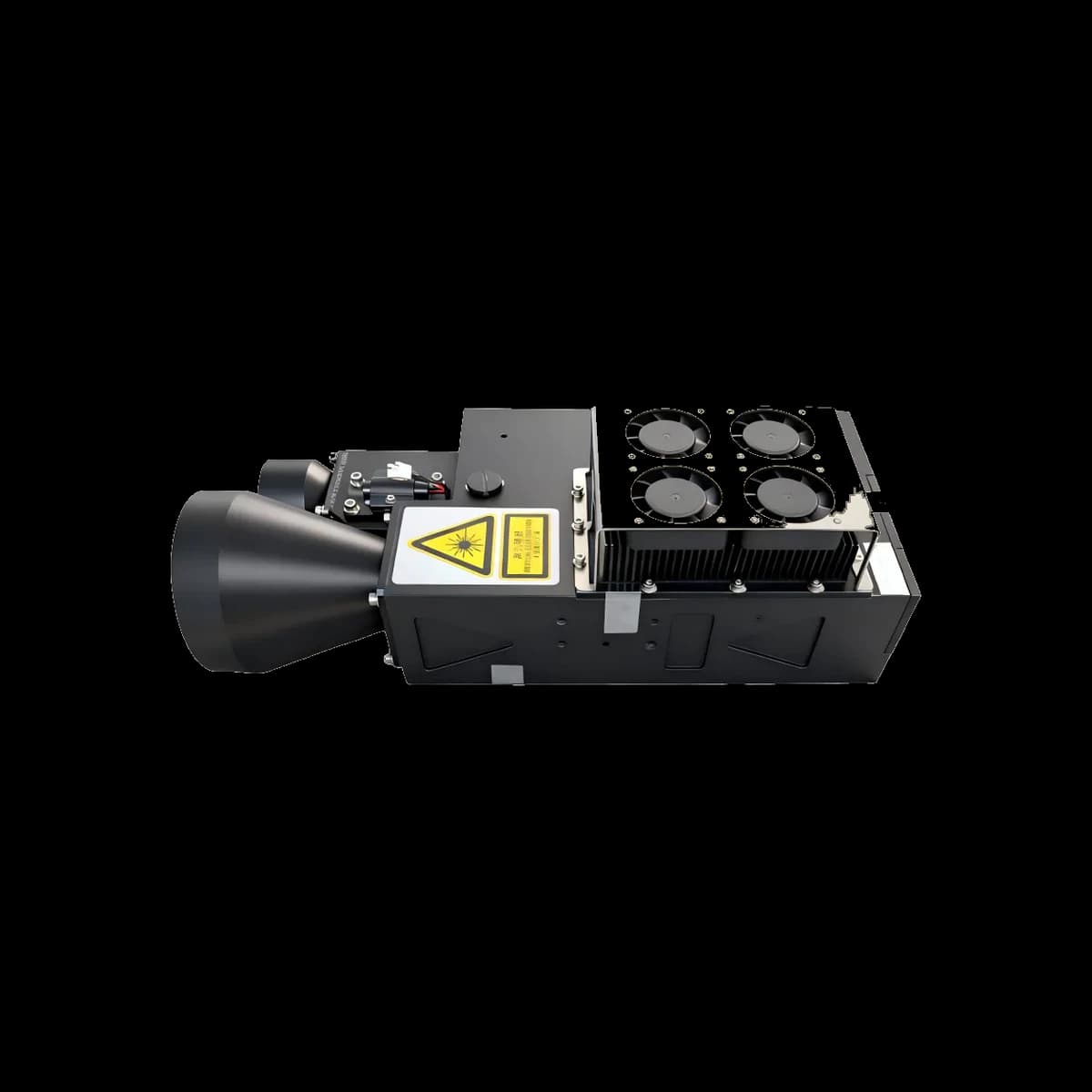

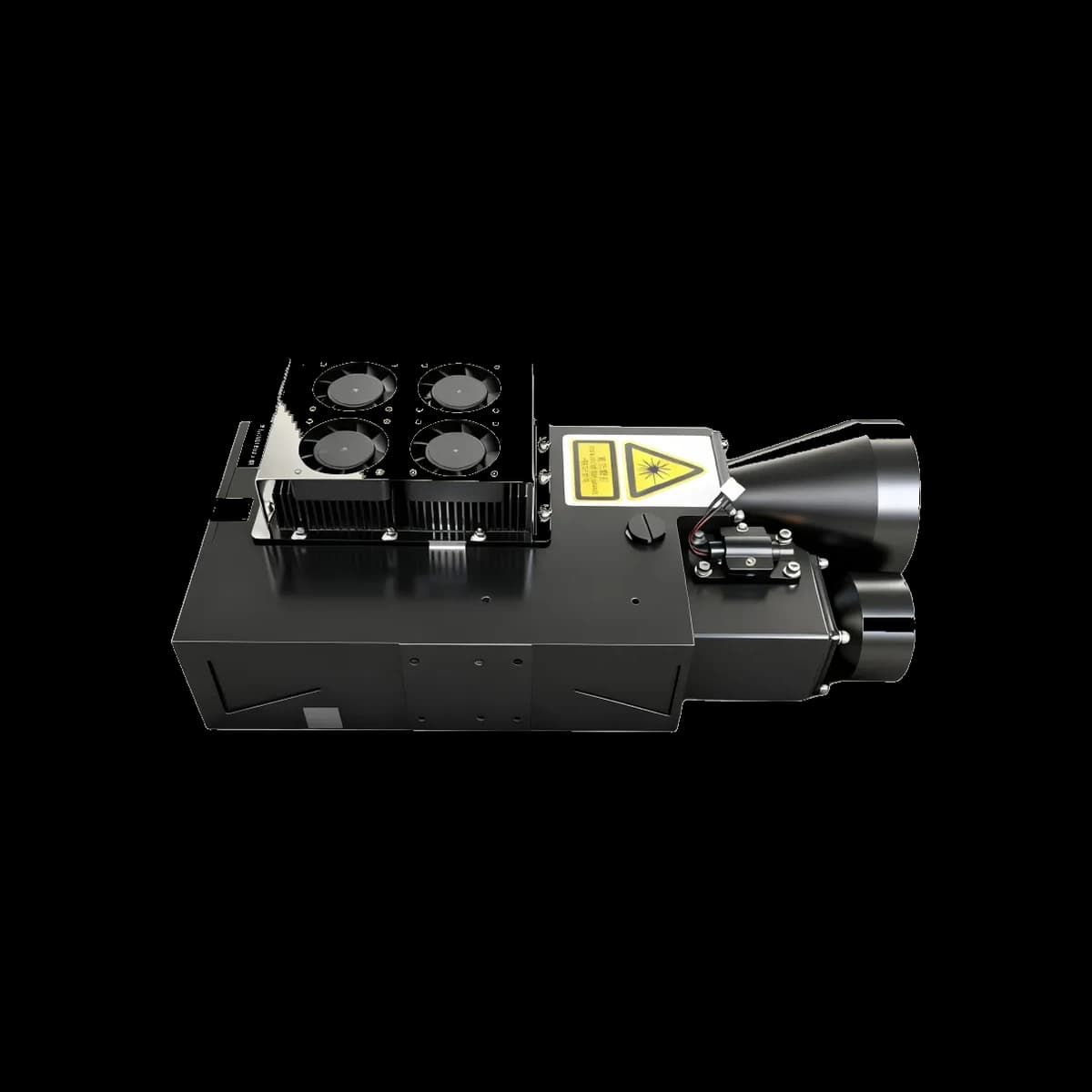

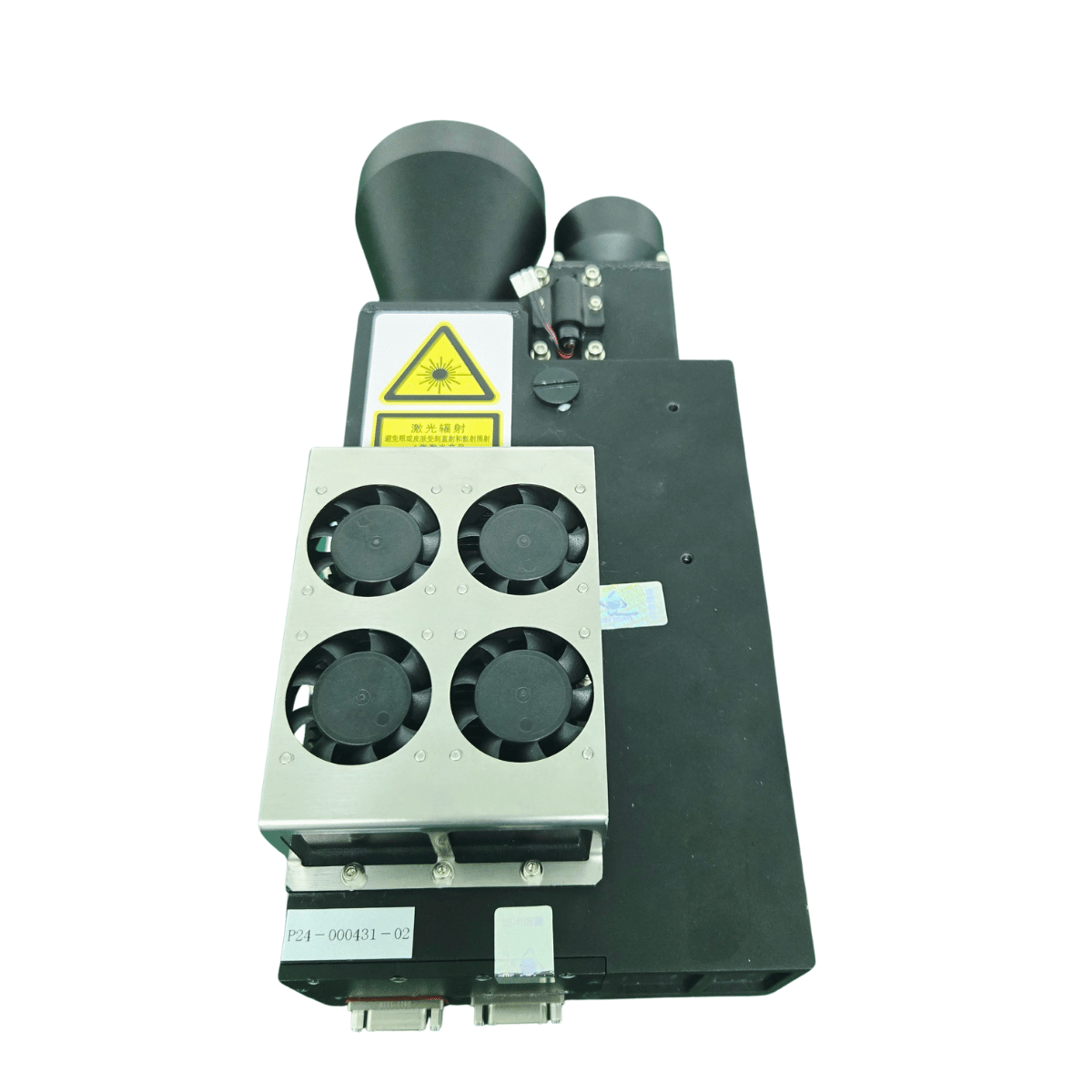

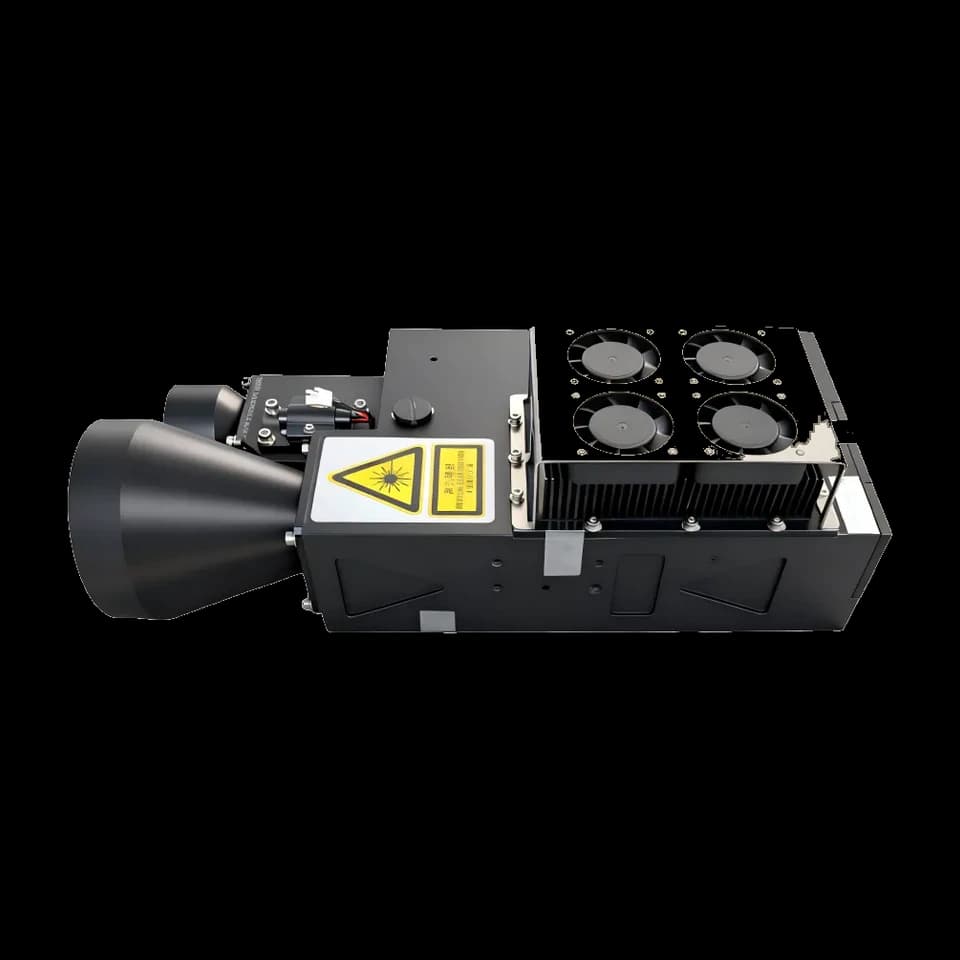

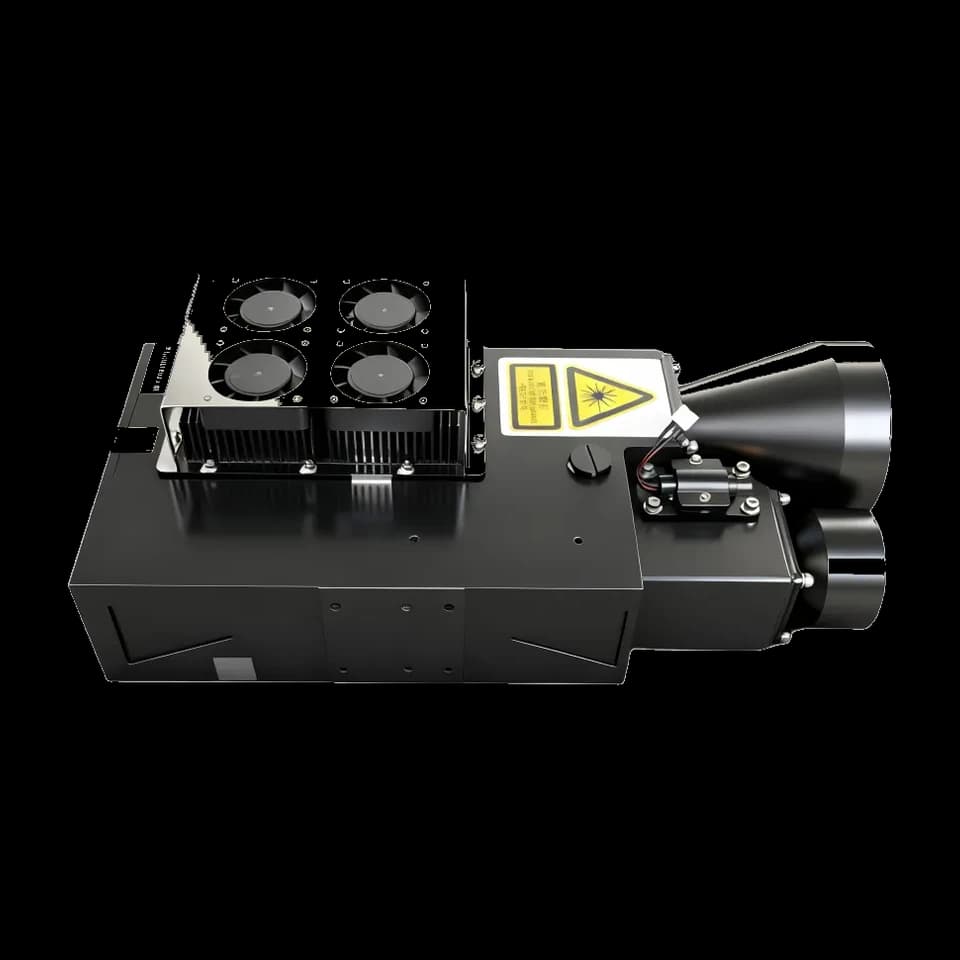

- Cooling Method:Cooling fan located at the front of the device
Model-specific conditions and limits
Conditions are retained only when the source states them. They are not reconstructed from a nominal range or wavelength.
Read the controlled model table for its stated target, reflectance, visibility, temperature, rate and acceptance conditions. No additional condition has been inferred for this model.
Pulsed Time-of-Flight Ranging
A pulsed rangefinder estimates one-way distance from the round-trip delay of an accepted optical return. The equation is general engineering context, not an additional LR160 specification.
Pulse energy describes emitted energy per pulse; its effect cannot be separated from pulse width, divergence, optical losses, receiver threshold and the stated target/atmosphere conditions. It is not a substitute for a model-specific near- or long-range acceptance test.
Source-stated application context
Application labels indicate evaluation context, not automatic fitness for a finished system.
The controlled LR160 PDF identifies UAV gimbals, aircraft pods, vehicle turrets, and coastal or border defense systems as application contexts.
This context is bound only to the controlled LR160 document; end-system suitability and acceptance remain subject to engineering review.
Confirm short- and long-distance acceptance conditions
- Define minimum distance, target material, reflectance, size and incidence angle.
- Check receiver recovery, optical-axis overlap and strong-return handling at the intended near limit.
- Verify supply tolerance, peak current, grounding, interface levels, connector and timing with the ordered revision.
- For long-distance acceptance, state target geometry, visibility, weather, background and required detection probability.
- Test with the installed window, boresight, field of view, enclosure and thermal path rather than a bare module alone.
- Evaluate accessible emission, labels and failure conditions again for the finished laser product under IEC 60825-1.
Questions to resolve before design release
Does a stated maximum range apply to every target?
No. A stated range must be read with its target and environmental conditions. Dark, small, oblique, wet or partially obscured targets and degraded visibility can reduce received signal.
Does 1064 nm itself establish the laser classification?
No. Classification concerns accessible emission from the finished laser product. The module statement and final instrument assessment are distinct.
Can a long-range claim be used as the minimum range?
No. Minimum-distance behaviour depends on the particular transmit/receive geometry, receiver timing and strong-return management documented for the model and host system.
Product evidence and general technical context
The model PDF controls model claims. Public references below explain general engineering principles only.
- ERDI LR160 model PDFModel-specific technical evidence.
- System Design of a Pulsed Laser RangefinderOptical Engineering 30(3), 1991 - link budget, background, noise, detection and range error.
- The Short-Range, High-Accuracy Compact Pulsed Laser Ranging SystemSensors 22(6), 2146, 2022 - pulsed-ToF equation, timing error, reflectivity and temperature effects.
- Laser system range calculations and the Lambert W functionApplied Optics 48(4), B1-B7, 2009 - range performance versus atmospheric transmission, target and system parameters, and threshold SNR; its 1.06 µm example is general context, not ERDI model data.
- Monostatic all-fiber rangefinder systemApplied Optics 54(25), 7687-7694, 2015 - a measured case study of shared-aperture geometry and receiver-recovery loss; it does not establish an ERDI model limit.
- Light Transmission in Fog: The Influence of Wavelength on the Extinction CoefficientApplied Sciences 9(14), 2843, 2019 - measured and modeled wavelength-dependent fog attenuation.
- IEC 60825-1:2014Laser-product classification and accessible-emission requirements; final equipment requires system-level assessment.
