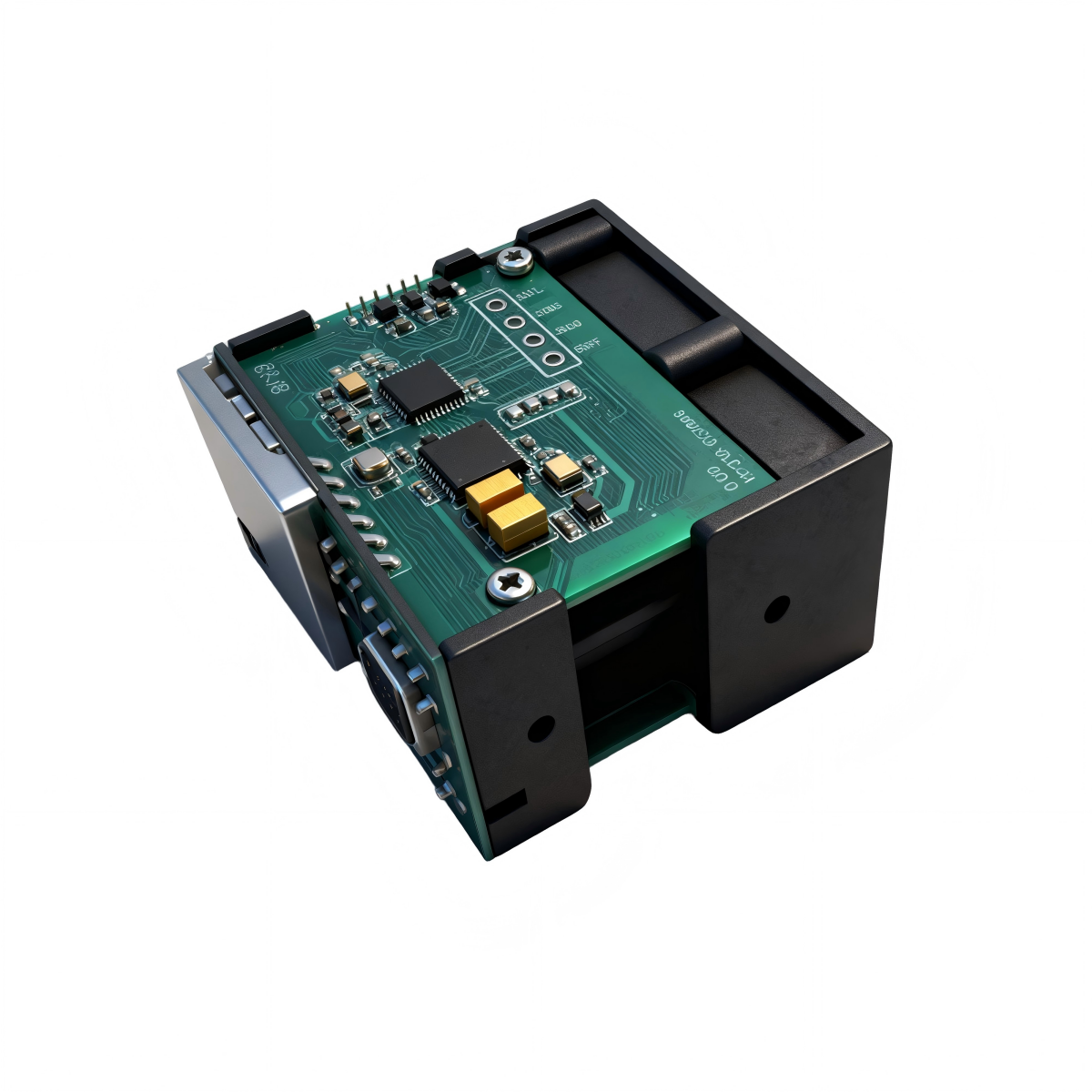

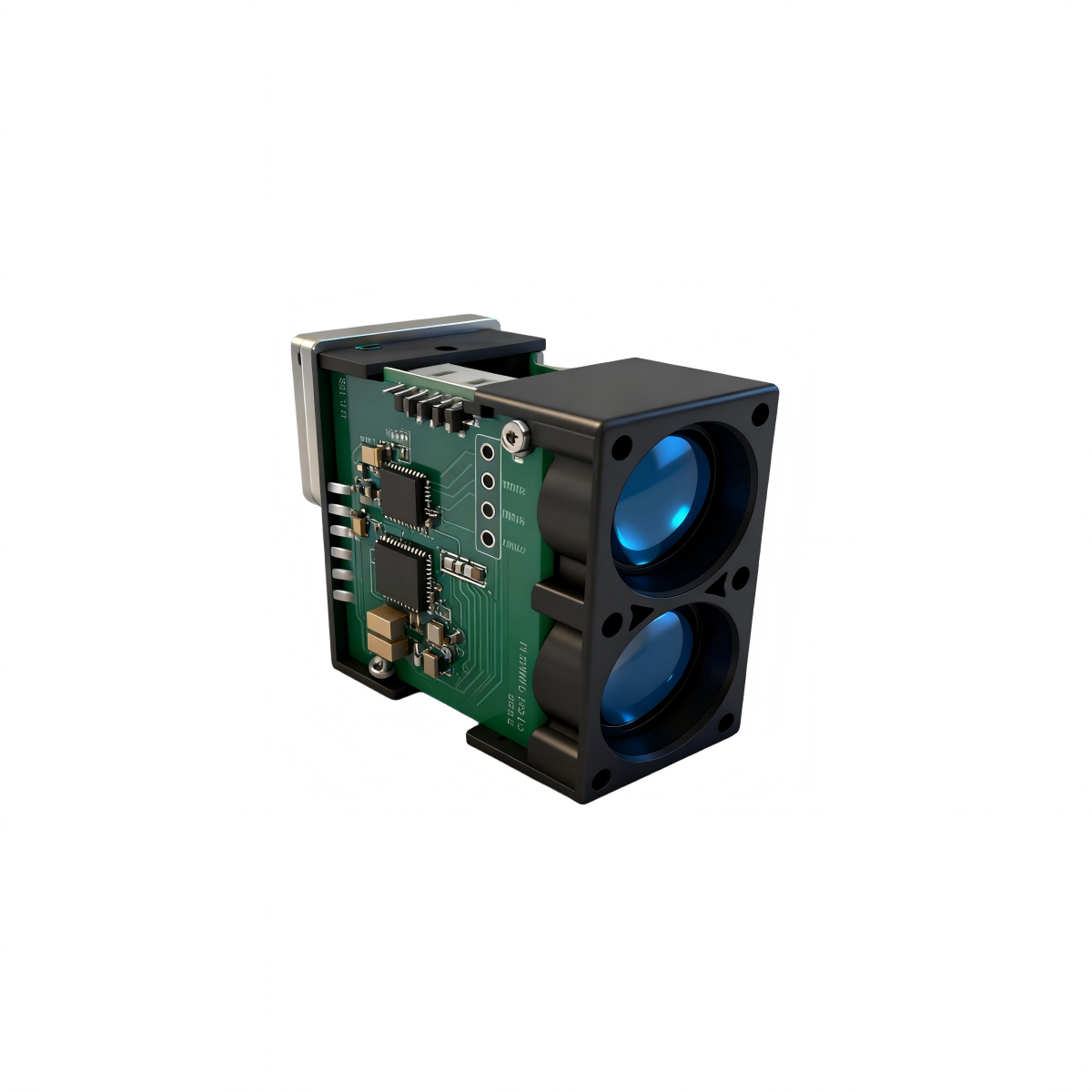

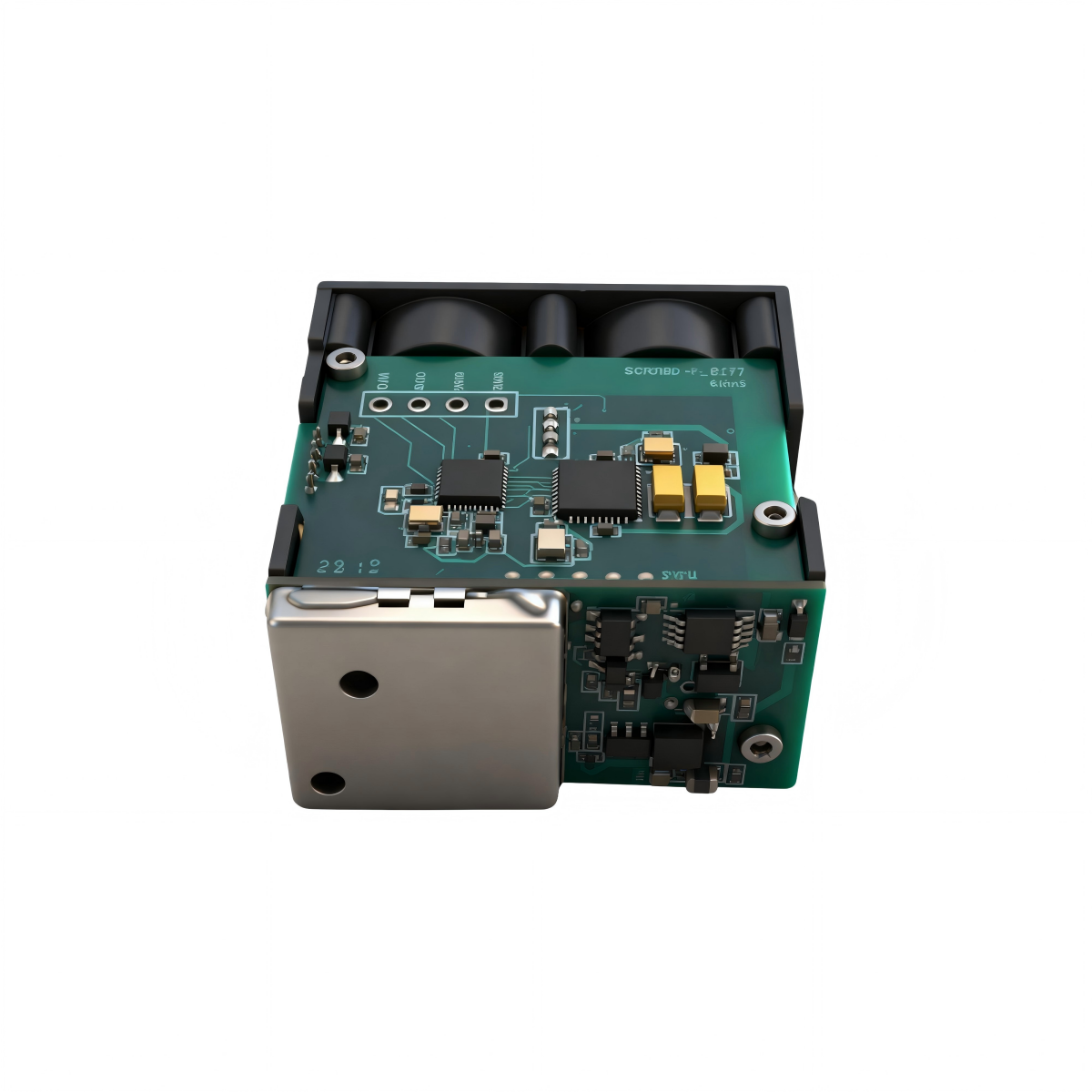

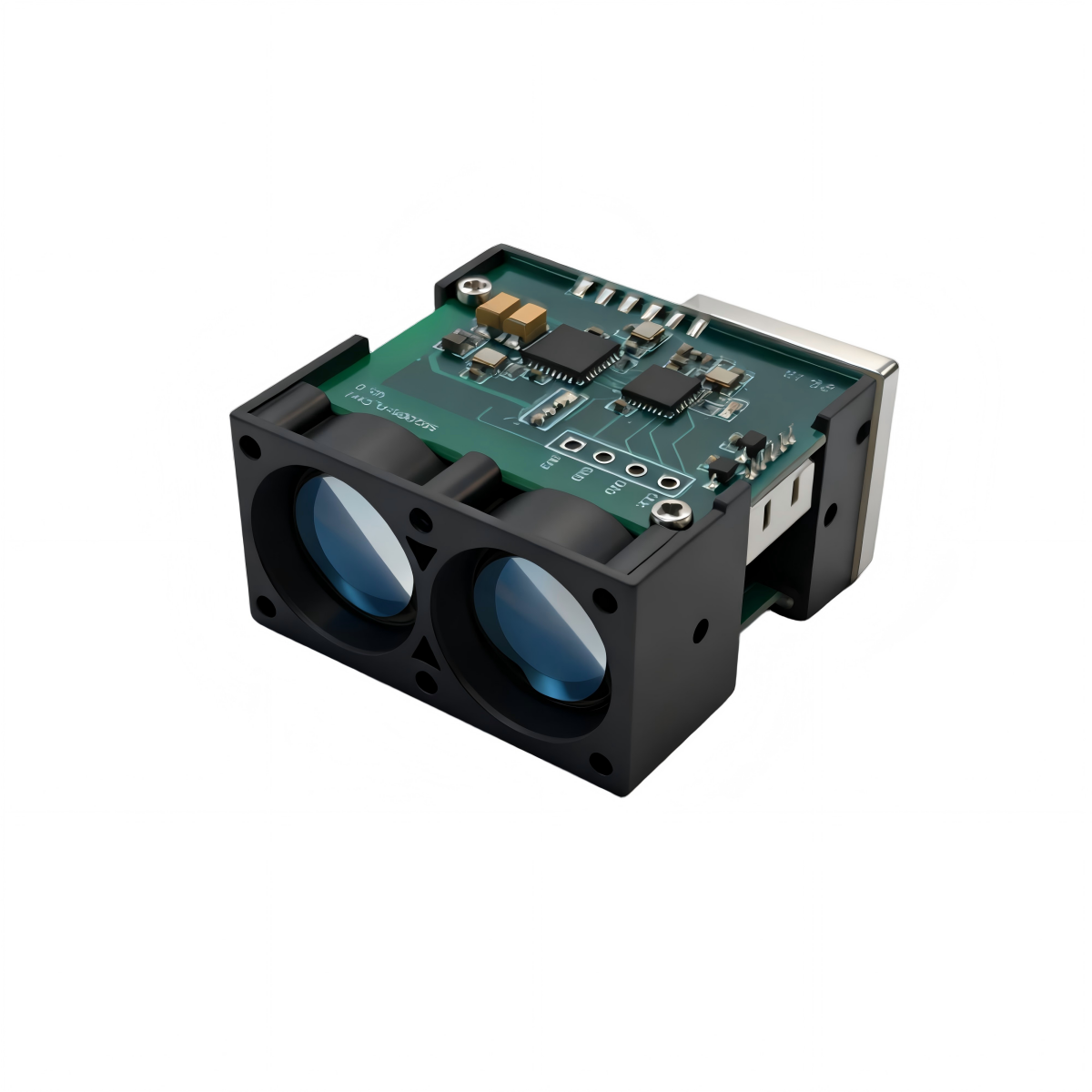

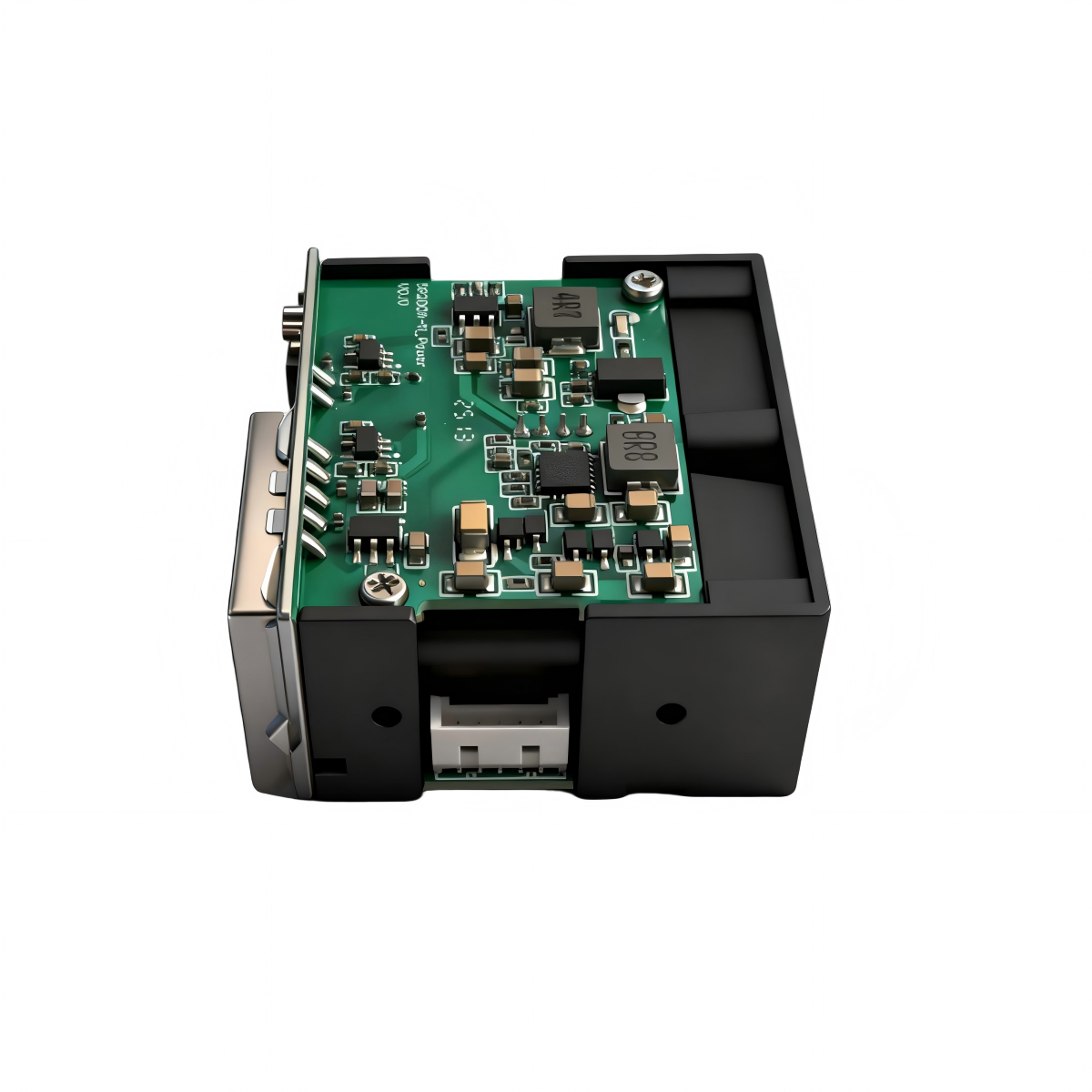

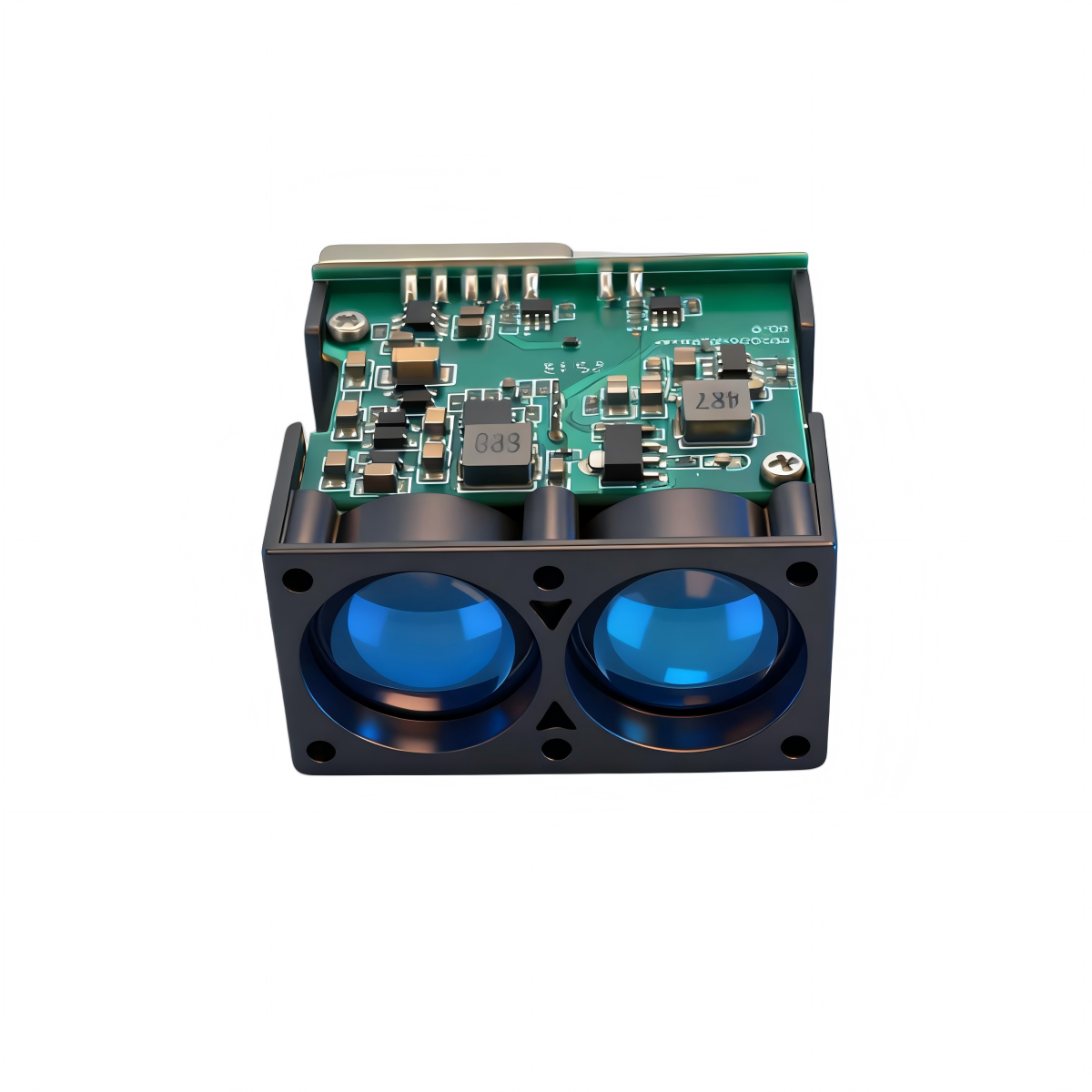

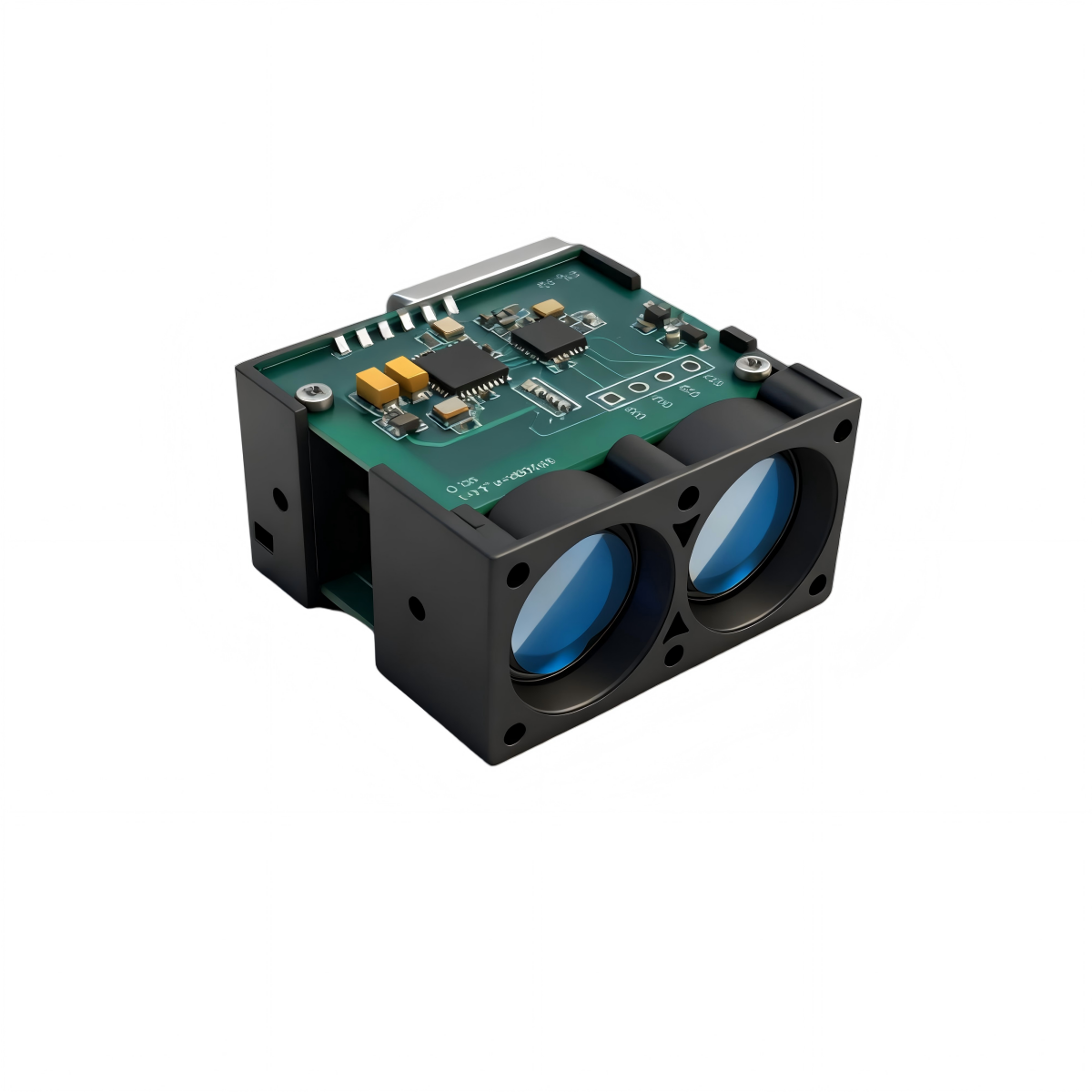

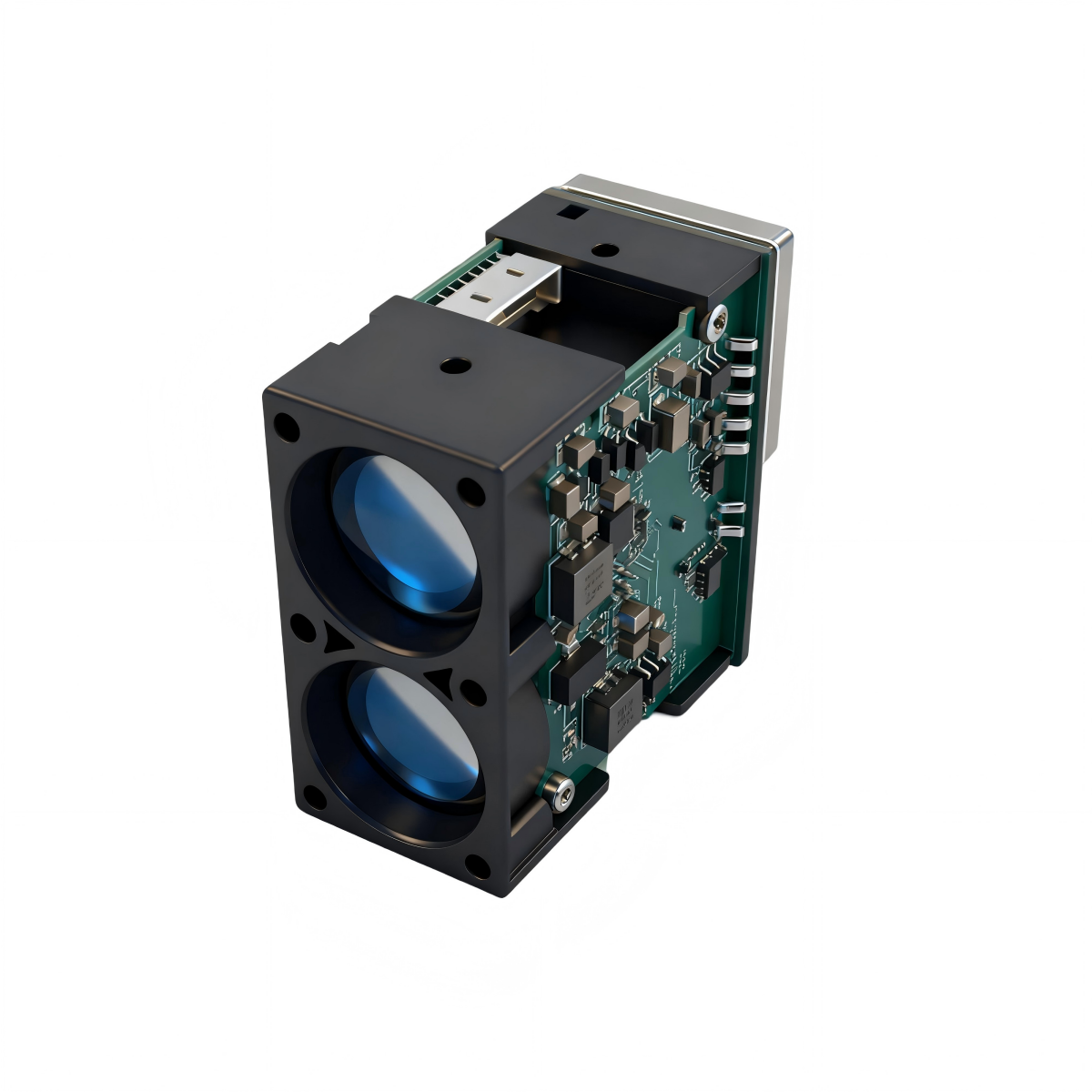

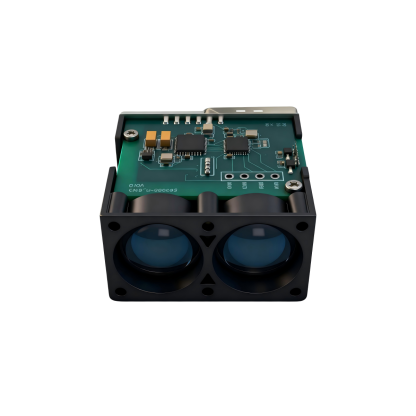

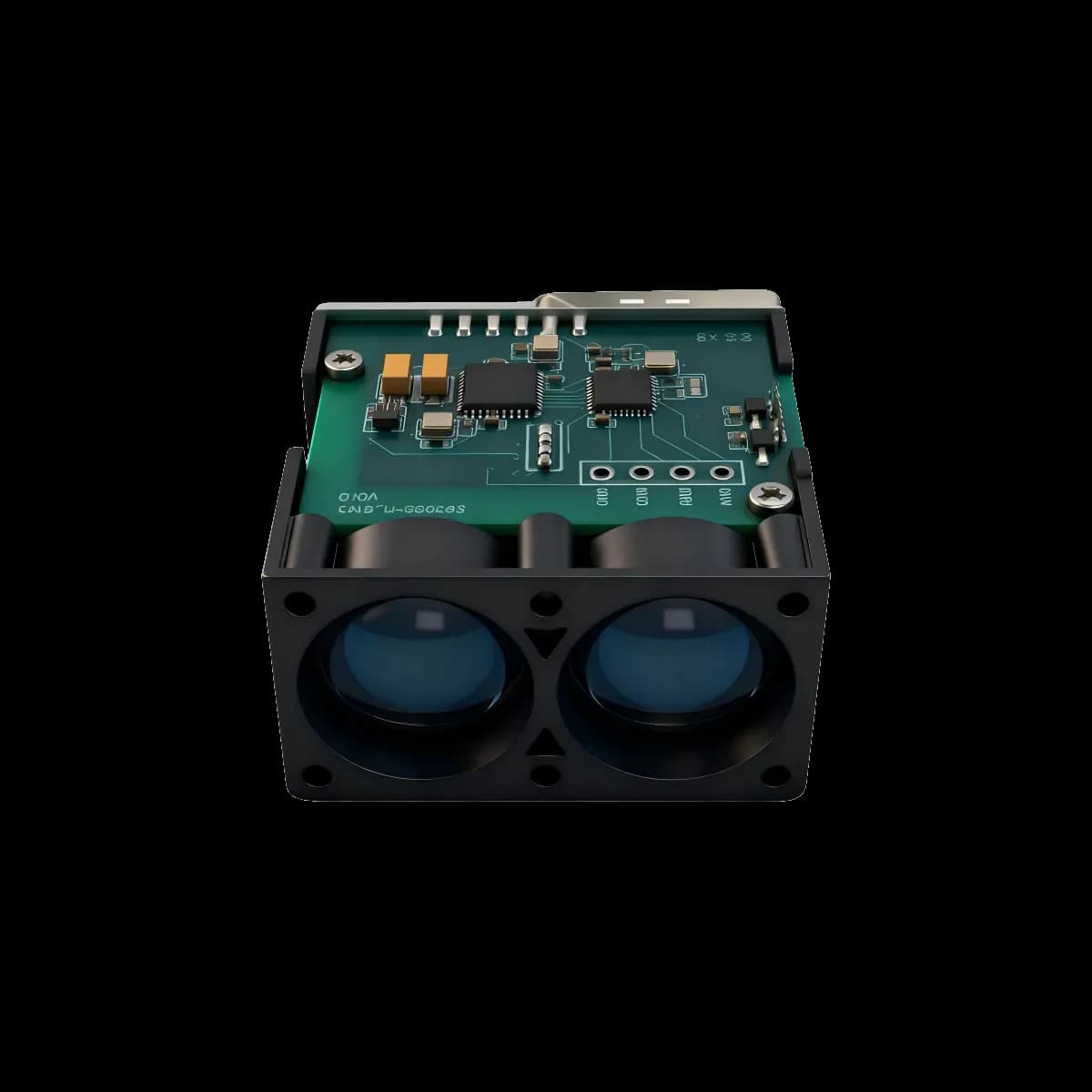

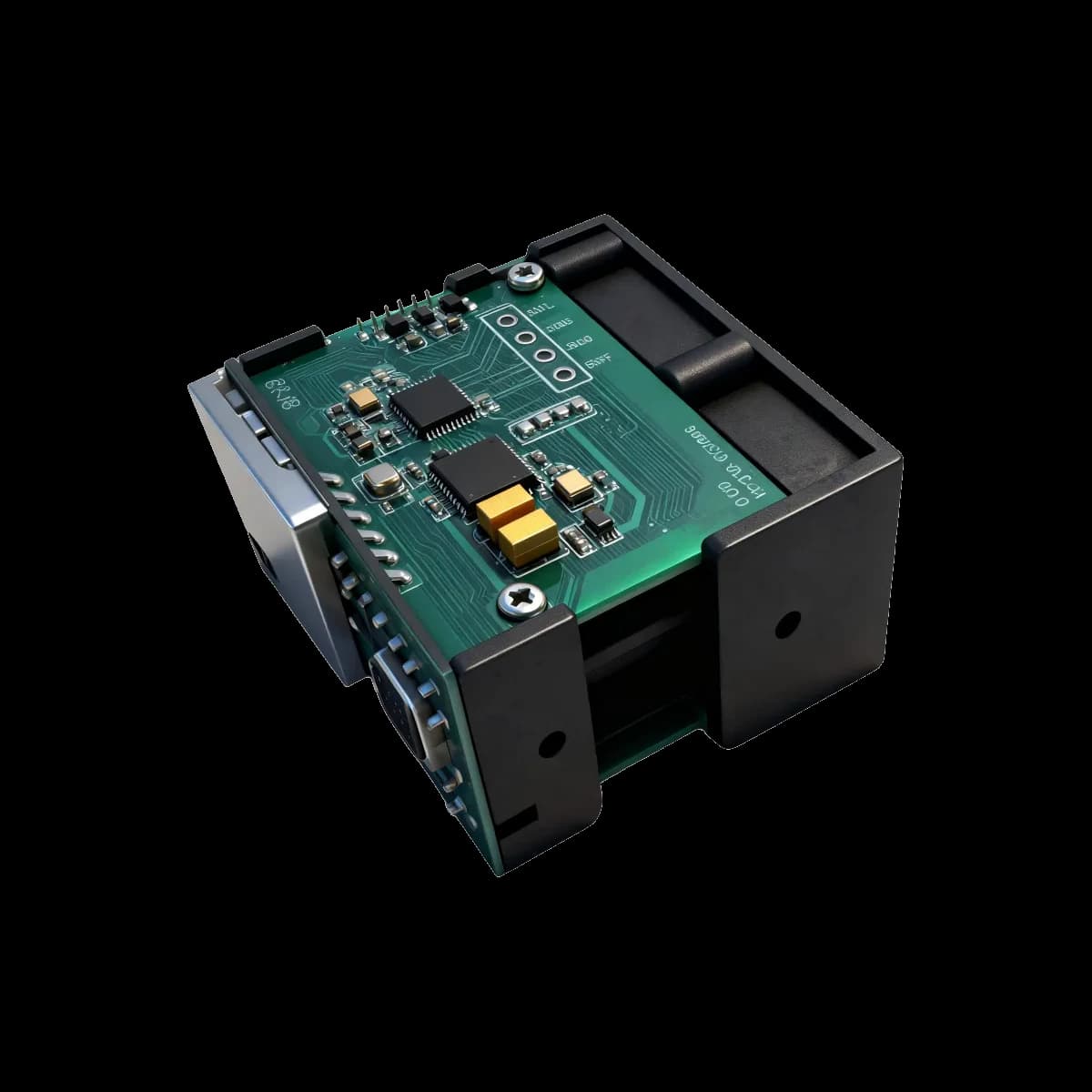

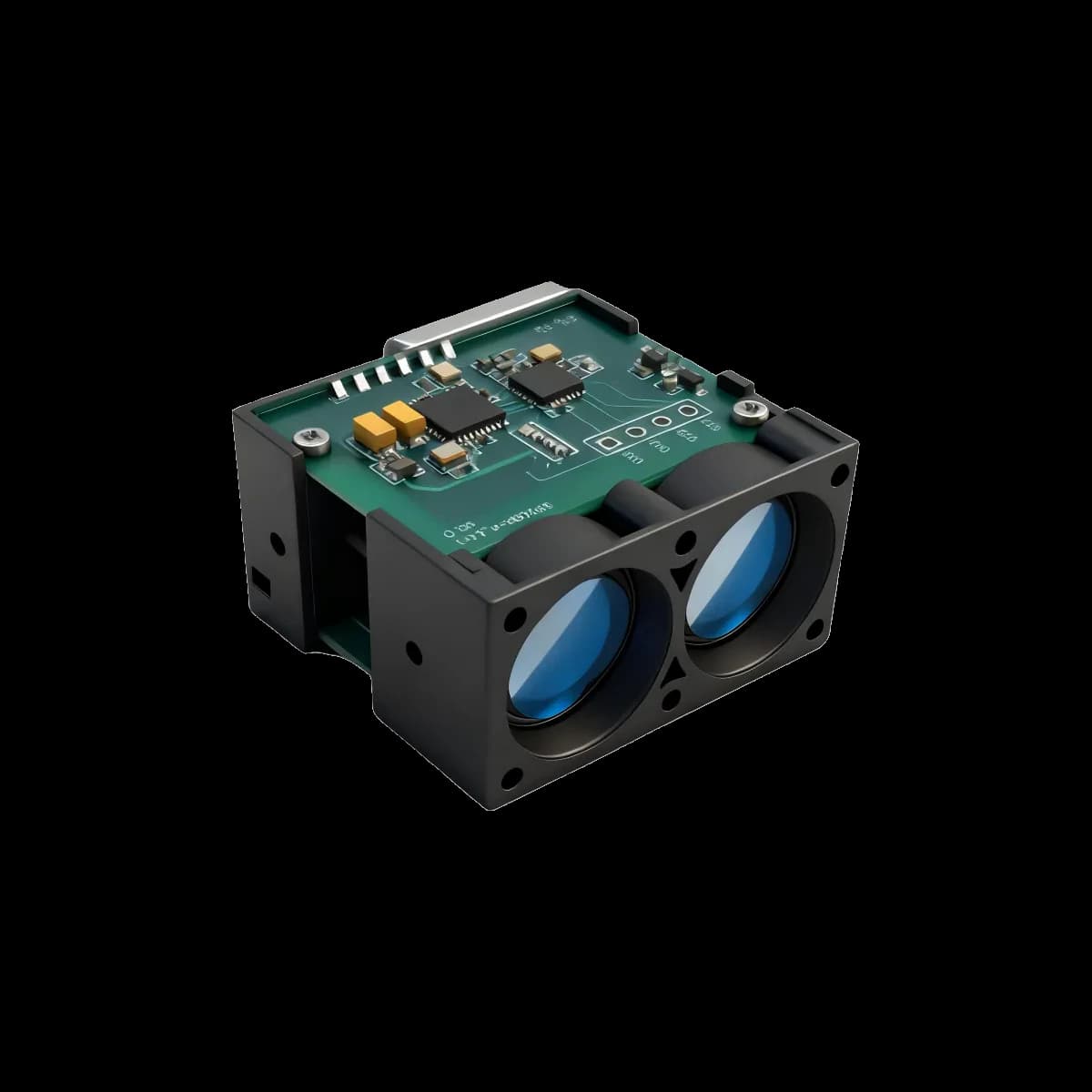

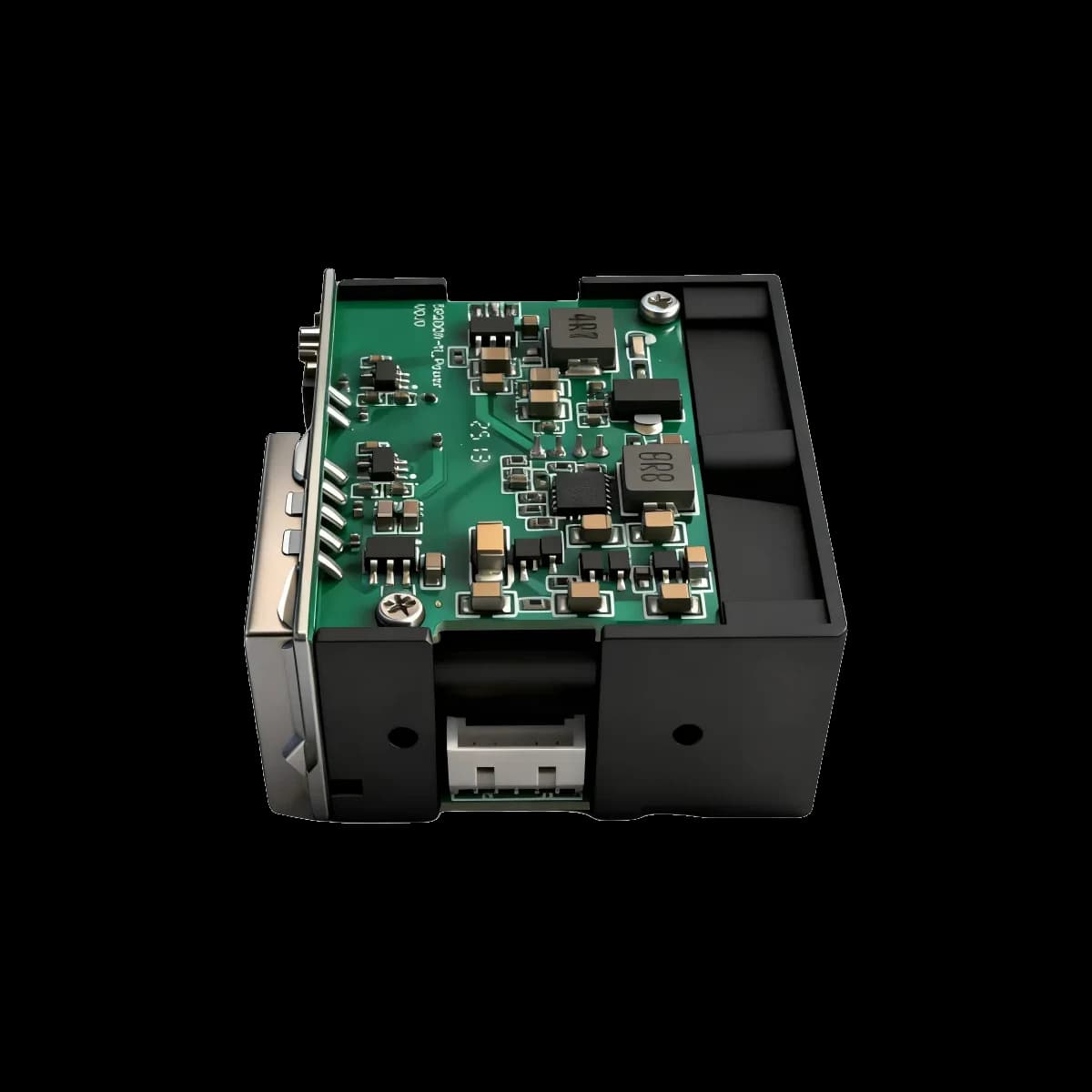

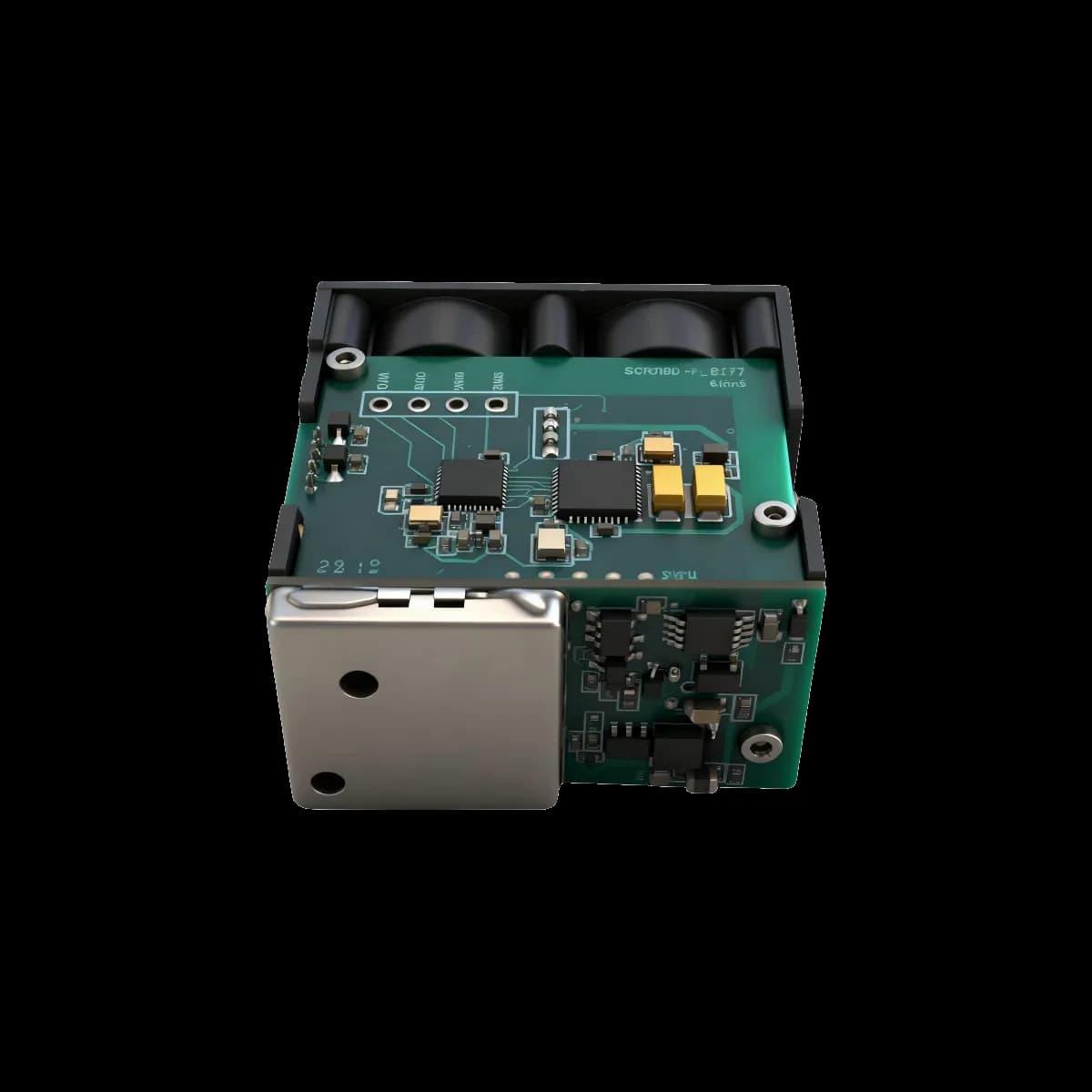

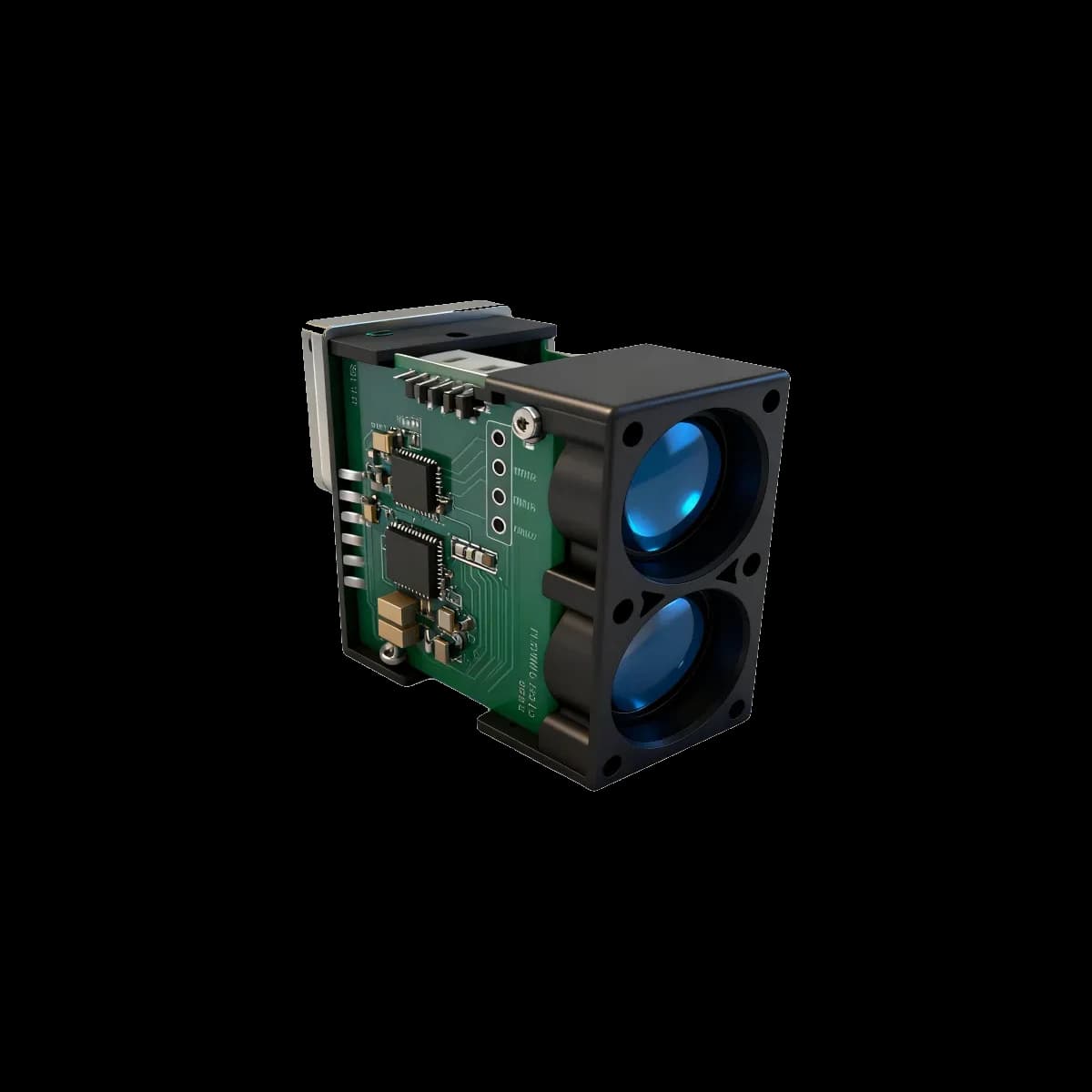

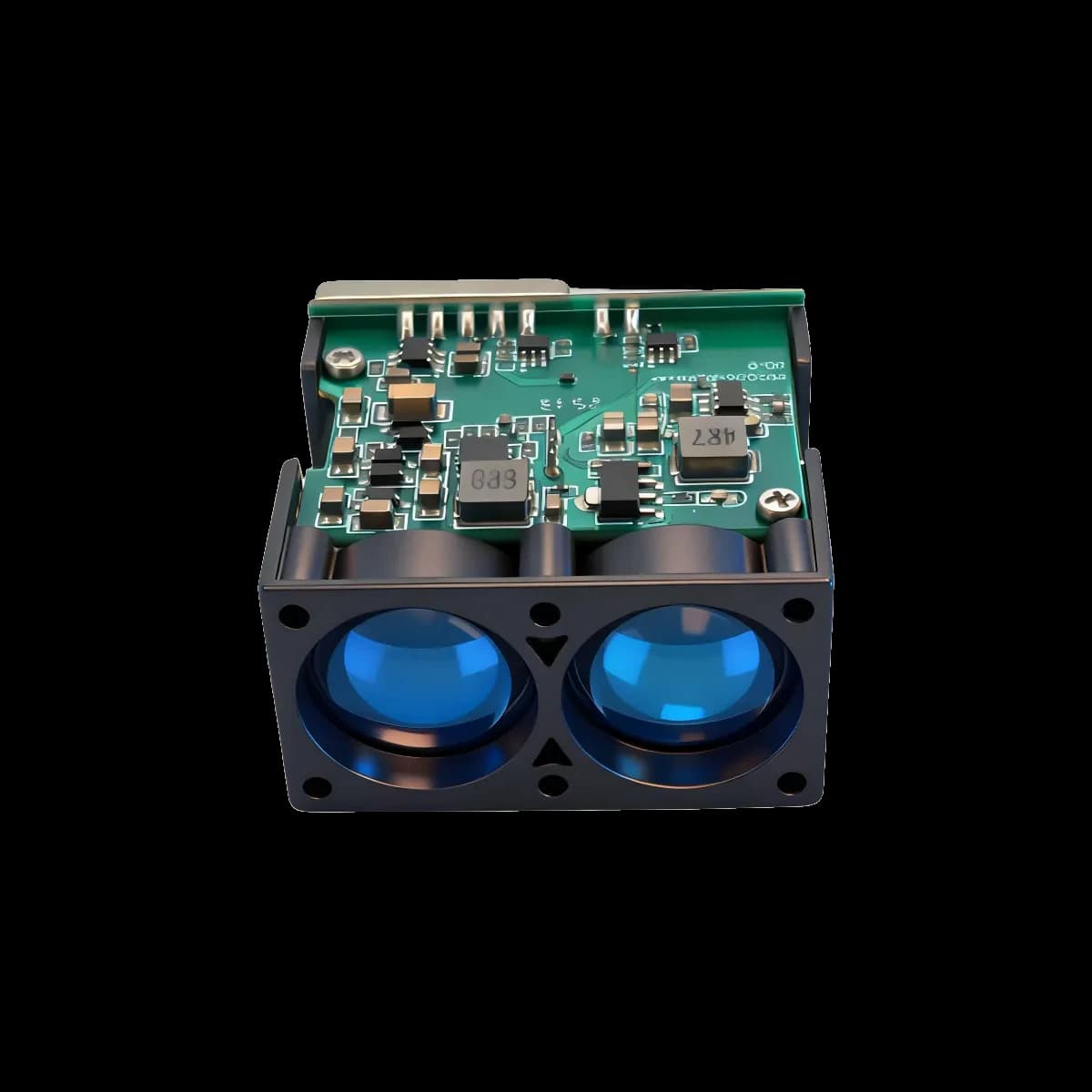

LRF200H 200 m-at-90% DToF Module for Industrial Positioning Evaluation

$250 USD / unitBase B2B price; approved quantity tiers are shown below. Shipping included.
Product modelLRF200H

LRF200H is a 905 nm DToF module with distinct 200 m and 70 m upper range values for 90% and 10% target reflectivity. Its source also describes single-shot and continuous ranging, providing a concrete basis for industrial-positioning and automation evaluations.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$250 USDPublished unit price
31–500 pieces$150 USDSave 40%
501–998 pieces$130 USDSave 48%
999+ piecesLowest unit price$100 USDLowest published price · Save 60%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a Quote / Technical Review

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

MODEL-LEVEL DATA

Detailed LRF200H Specifications

The model combines 20 Hz–10 kHz operation, a 1 kHz default, UART/IIC communication and a 9–36 V DC supply. Land-transport and overhead bridge-crane positioning are among the stated application directions. The module’s distance data must still be validated within the complete host function and operating environment.

The 33 × 34 × 18 mm package is shared with other H-series entries, so range conditions and model-specific limits are more useful distinctions than appearance alone. A 100 klx immunity entry is listed separately. It does not establish the 200 m range at that illuminance or on every industrial surface.

Basic ranging performance

ParameterValueSource condition
Measurement range0.05-200 m (90% reflectivity); 0.05-70 m (10% reflectivity)The two source values remain bound to their stated target reflectivity.
Measurement frequency20 Hz-10 kHz (default: 1 kHz)Confirm against the controlled model document
Accuracy±10 cm (<10 m); 1% (≥10 m)Confirm against the controlled model document
Repeatability±5 cm (<10 m); ±10 cm at 200 mConfirm against the controlled model document
Ambient-light immunity100 klxConfirm against the controlled model document

Optical parameters

ParameterValueSource condition
Central wavelength905 nmConfirm against the controlled model document
Photobiological safetyClass 1Confirm against the controlled model document
Field of viewAbout 4 mradConfirm against the controlled model document
Wavelength for indicationN/AConfirm against the controlled model document
Photobiological safety for indicationN/AConfirm against the controlled model document

Electrical and communication interface

ParameterValueSource condition
Supply voltage9-36 V DCConfirm against the controlled model document
Peak current100 mAConfirm against the controlled model document
Average current30 mAConfirm against the controlled model document
Average power consumption0.7 WConfirm against the controlled model document
Communication interfaceUART, IICConfirm against the controlled model document

Mechanical and environmental

ParameterValueSource condition
Protection levelN/AConfirm against the controlled model document
Dimensions33 × 34 × 18 mmConfirm against the controlled model document
Weight20 ± 2 gConfirm against the controlled model document
Operating temperature-20°C to +60°CConfirm against the controlled model document
Wire specification1.25 mm, 5P, 50 cm stranded wiresConfirm against the controlled model document
CustomizationAvailable in appearance / structure / output protocolConfirm against the controlled model document

Functional Description

The source explicitly states support for both single-shot and continuous ranging modes.

The source states integration into real-time data-acquisition systems through standard interfaces such as UART.

The optical-window guidance recommends H-K9L glass, a wedge-angle tolerance of no more than 3 arcminutes, and an 855-955 nm anti-reflection coating with source-stated transmittance of at least 99.5%.

Electrical Interface Definition

Signal names and directions are transcribed from the model source.

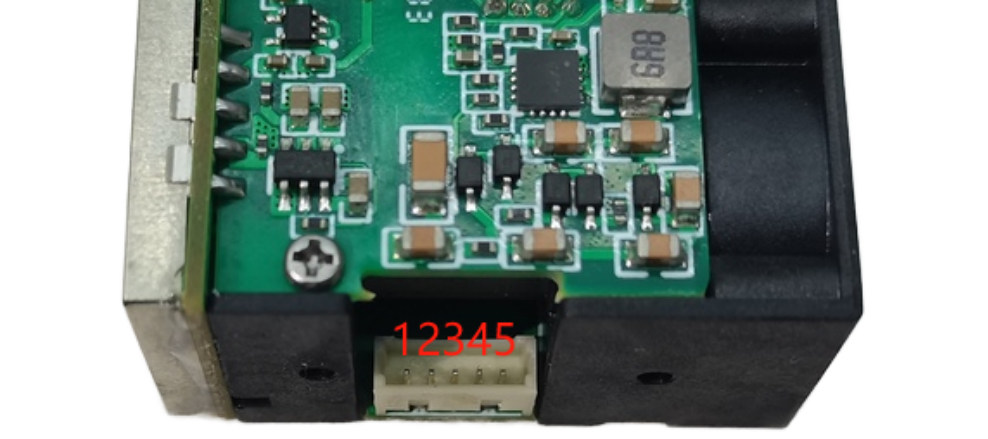

PinSignalSource-stated function
19-36V (red)External power positive
2Power GND (black)External power negative
3Port GND (yellow)GND
4TX (green)Host RX
5RX (blue)Host TX

Mechanical Dimension Drawing and Electrical Interface Diagram

These figures are extracted from the named model source without generative modification.

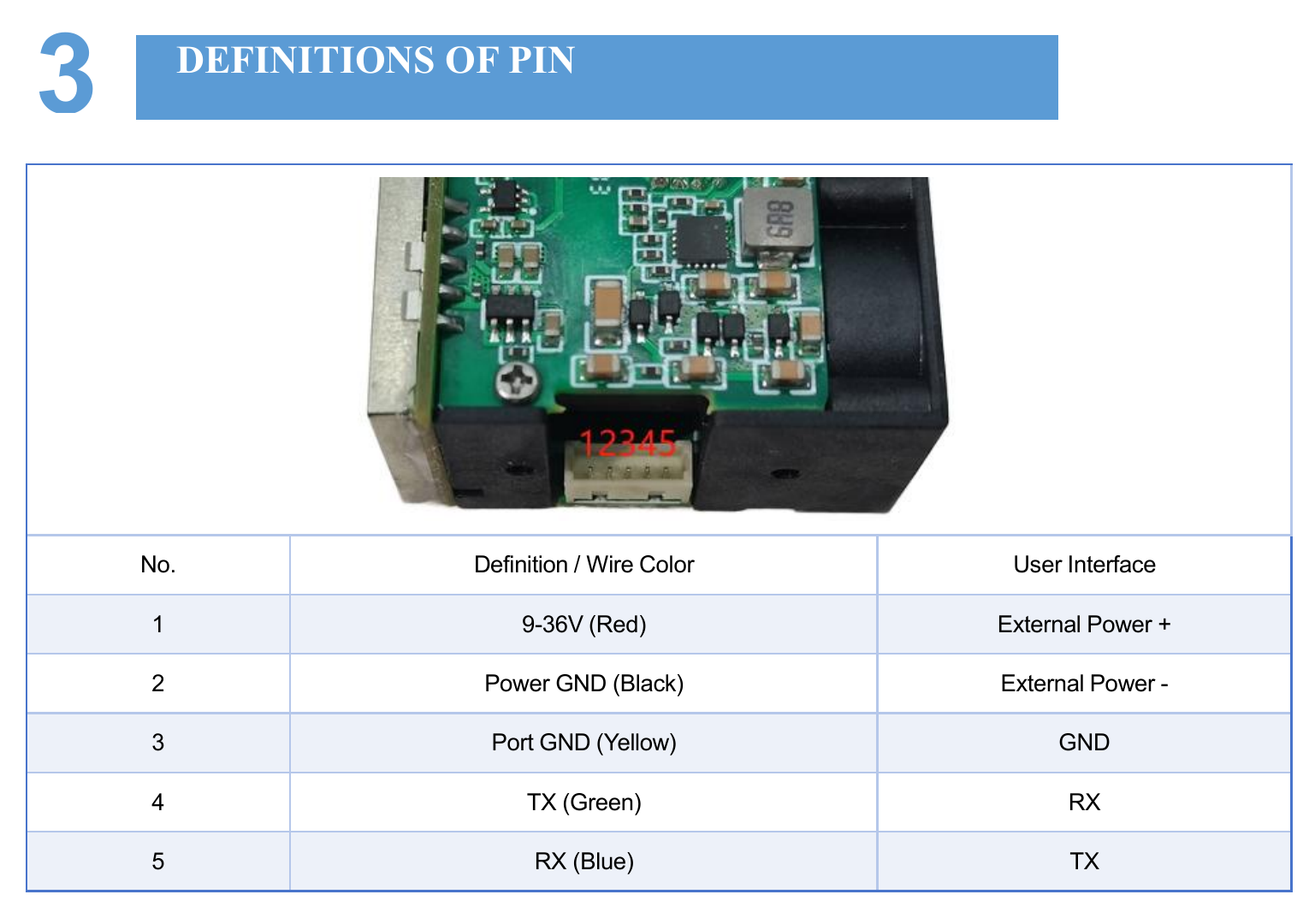

LRF200H five-pin electrical interface definition
Electrical interface definitionFive-pin power, ground and UART TX/RX definition extracted from page 2.

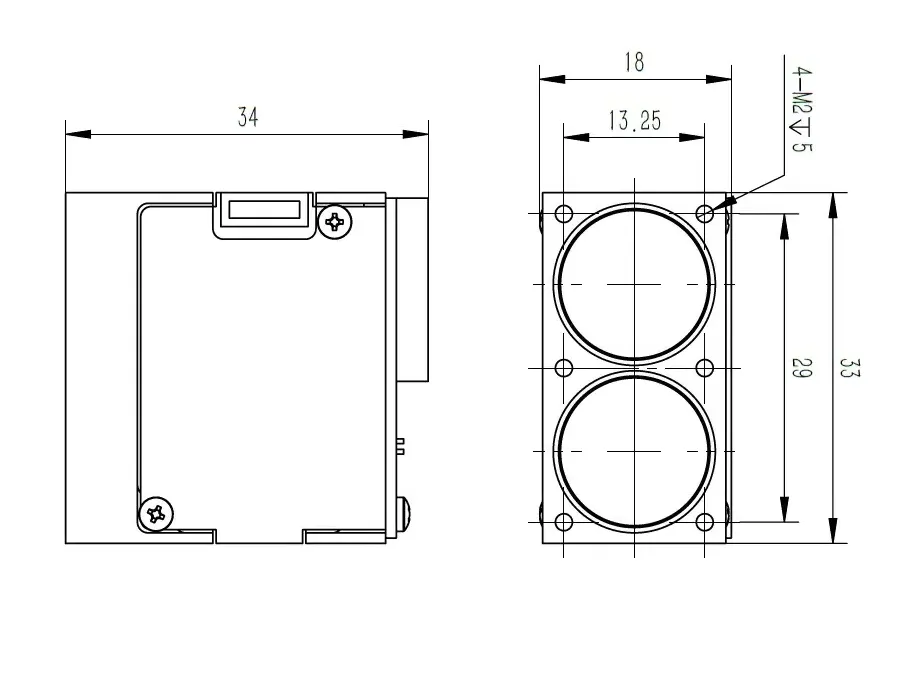

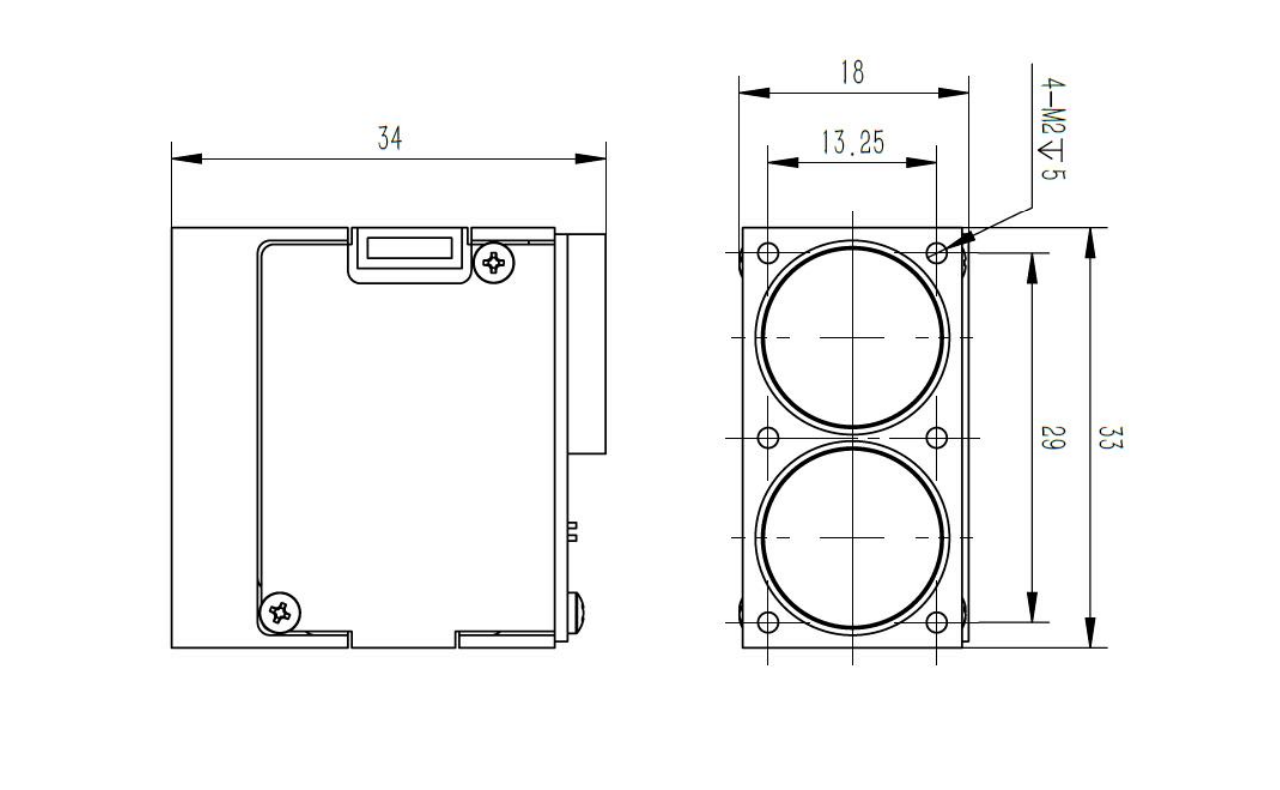

LRF200H two-dimensional mechanical drawing
Mechanical dimension drawingTwo-dimensional 33 × 34 × 18 mm source drawing extracted from page 3.

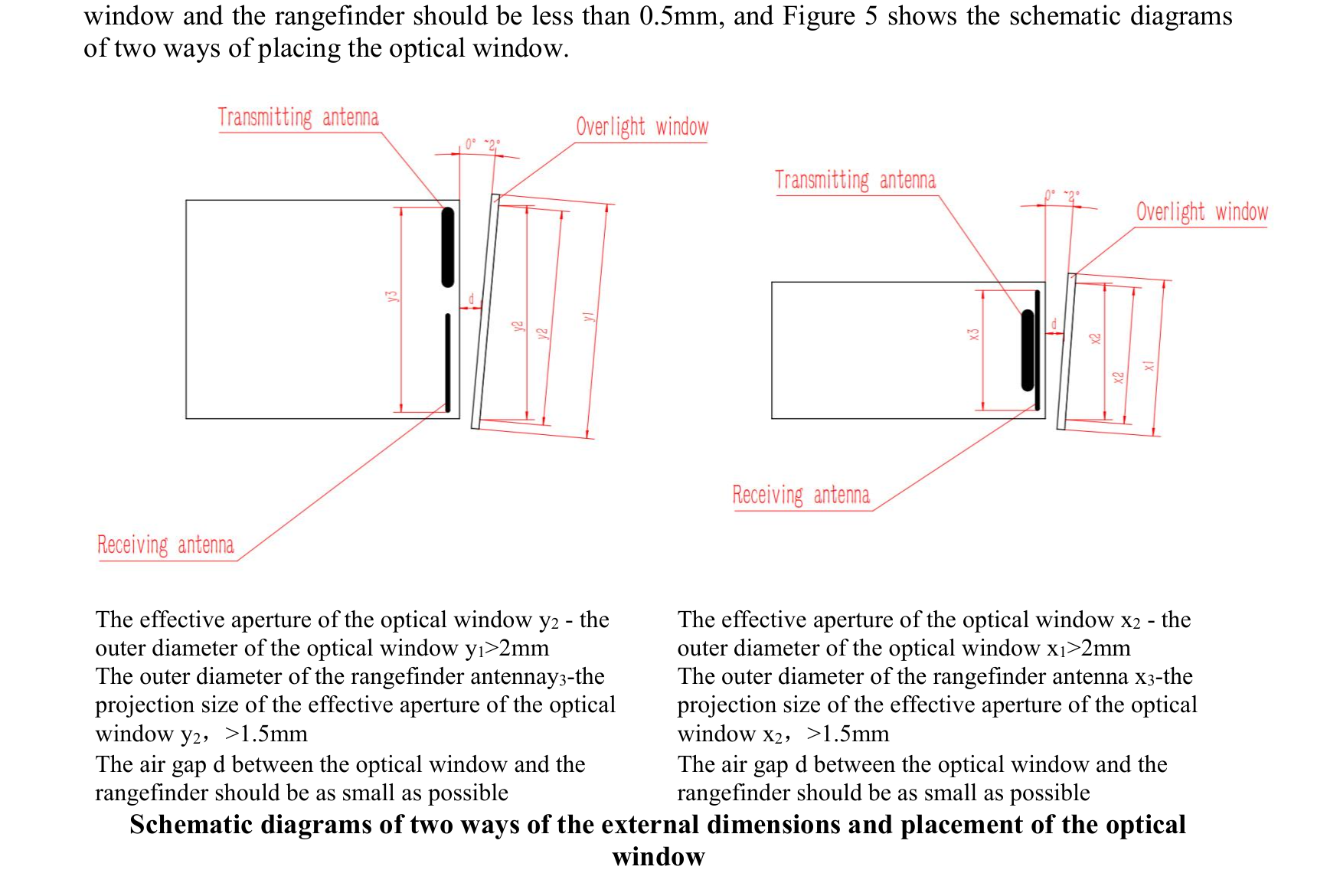

LRF200H optical-window placement arrangements
Optical-window installation referenceSource pages 3-4 recommend a 2-4 mm optical window, transmit axis parallel to the window normal and an air gap below 0.5 mm; page 4 shows two placement arrangements.
HOW TO READ THE MEASUREMENT

Direct Time-of-Flight Ranging

The LRF200H model document identifies the product as direct time of flight (DToF). It determines distance from the delay between an emitted optical pulse and the accepted return.

R = c × Δt / 2R: one-way distance · c: propagation speed · Δt: measured round-trip delay

Real performance also depends on target reflectivity and area, incidence angle, atmospheric attenuation, receiver aperture, background light, detector response, timing thresholds and contamination of the optical path.

ENGINEERING DECISIONS

What the verified data supports

These are traceable design inputs, not unsupported superlatives or guaranteed field outcomes.

01

Performance envelope

Measurement range: 0.05-200 m (90% reflectivity); 0.05-70 m (10% reflectivity) · Accuracy: ±10 cm (<10 m); 1% (≥10 m)

02

Timing and output

Measurement frequency: 20 Hz-10 kHz (default: 1 kHz) · Repeatability: ±5 cm (<10 m); ±10 cm at 200 m

03

Electrical integration

Supply voltage: 9-36 V DC · Communication interface: UART, IIC · Average power consumption: 0.7 W

04

Mechanical integration

Dimensions: 33 × 34 × 18 mm · Weight: 20 ± 2 g · Operating temperature: -20°C to +60°C

APPLICATION REVIEW

Source-stated application context

Application labels indicate where the source proposes evaluation; they do not prove fitness without system testing.

  • Land-transport vehicle positioning and collision-avoidance monitoring
  • Overhead bridge-crane positioning and collision-avoidance monitoring
  • Autonomous systems
  • Industrial automation
  • Intelligent transportation
INTEGRATION CHECK

Confirm before selection

  • Define target size, reflectivity, incidence angle and required detection probability.
  • Reproduce sunlight, visibility, weather and optical-window conditions in acceptance testing.
  • Verify voltage tolerance, peak current, grounding, interface levels, baud rate and connector revision.
  • Separate accuracy, repeatability and displayed resolution in host requirements.
  • Confirm mounting datum, boresight, field of view, enclosure sealing and thermal path.
  • Assess accessible emission and labeling again after integration into the finished equipment.
TECHNICAL FAQ

Questions to resolve before design release

Why are both 200 m and 70 m listed for LRF200H?

They refer to different target reflectivities: 200 m at 90% and 70 m at 10%. Neither number alone describes every target. Select acceptance targets and surface conditions that represent the proposed industrial positioning or automation task.

Which measurement modes are documented?

The source expressly describes single-shot and continuous ranging. Use the matching configuration and protocol documentation when evaluating those functions. The distinction concerns acquisition and reporting behavior; it is not a promise of identical reach or timing on all target surfaces.

How should LRF200H be compared with LRF100H?

Both have a 9–36 V input and a 1 kHz default in their respective source tables. Their stated bright- and dark-target range limits differ. Compare those conditions and each model’s error entries rather than choosing only by their similar external package.

What error limits are stated at the long-range end?

The source gives accuracy of 1% from 10 m upward and a separate repeatability entry of ±10 cm at 200 m. Accuracy and repeatability answer different questions. Do not replace the percentage accuracy entry with the smaller repeatability number.

Does an industrial positioning application establish collision-protection certification?

No. Positioning and collision-avoidance monitoring are stated application directions, not a functional-safety or machine-protection certificate. Confirm the entire host function, including response to invalid distance reports and environmental effects, through the applicable equipment assessment.

ENGINEERING REFERENCES

Product evidence and general technical context

The model PDF controls product claims. Public references support only the general engineering explanations and must not be used to infer a missing model value.
