Detailed ER100 Specifications
The technical material below is retained for this model only. Do not transfer a range, pulse, interface, mechanical or safety value from another 1535 nm product.
TECHNICAL SPECIFICATIONS
|
Model |
ER100 |
|
Laser Wavelength |
1.54 μm |
|
Eye safe |
Class 1 |
|
Pulse energy |
≥100 μJ |
|
Laser Pulse width |
6 ns |
|
Drive pulse width |
≤2.4 ms |
|
Pulse repetition rate |
1~10Hz |
|
Pulse stability |
10% |
|
Raw Beam Diameter |
0 .3 mm |
|
Beam divergence angle |
≤ 8 mrad |
|
Beam Mode |
TEM00 |
|
Operating temperature |
-40 ℃ ~ +65 ℃ |
|
Storage temperature |
-55 ℃ ~+ 75℃ |
|
Dimension (mm) |
21×8×6.8 mm3 |
|
Weight |
7 g |
|
Voltage |
2 V |
|
Electric current |
8 A |
|
Shock |
1500 G, 0.5 ms |
|
Vibration |
20~2000 Hz/20 G |
|
Service life |
≥1million shots |
OUTLINE DIMENSION

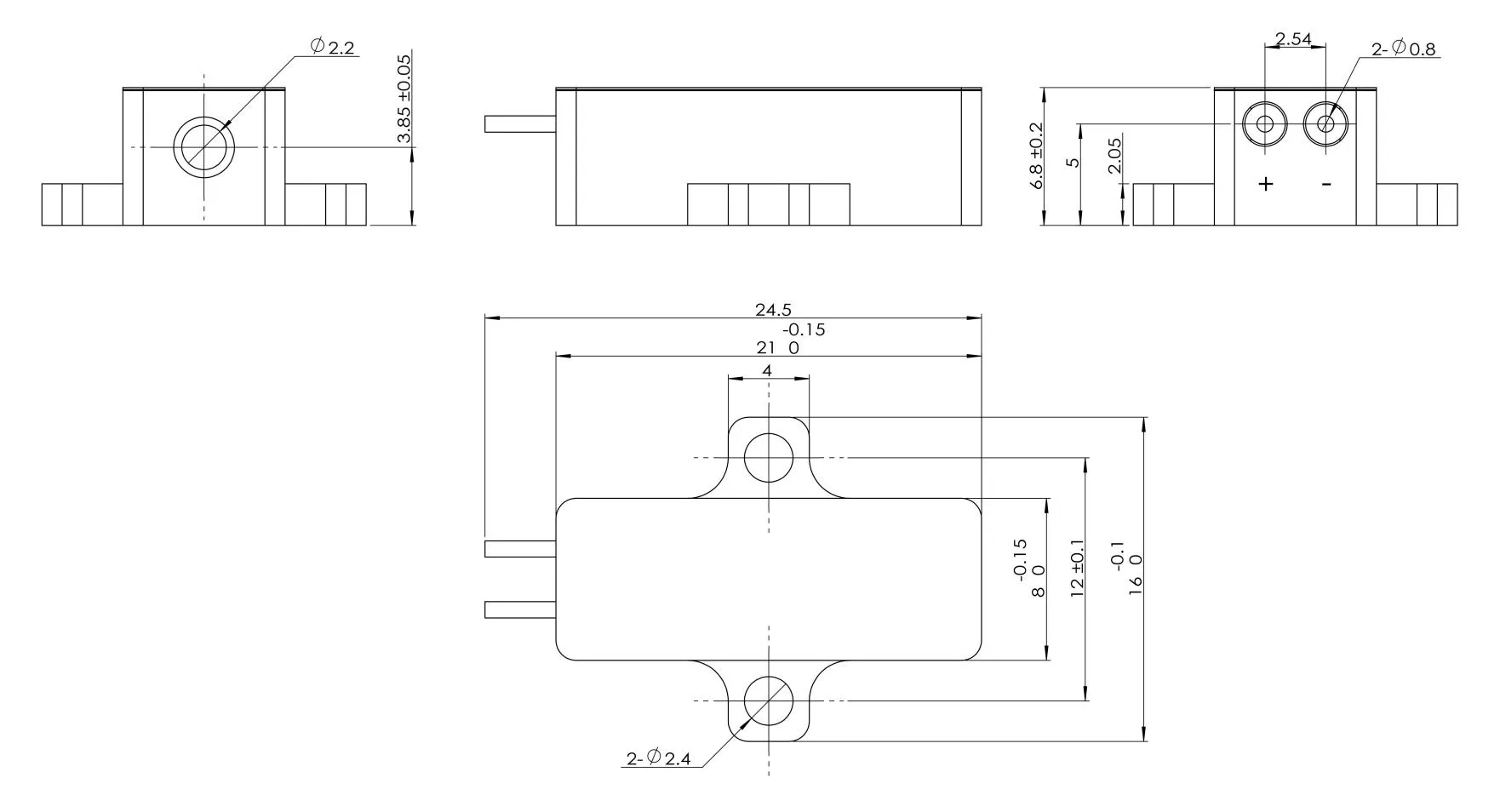

Figure 1 Outline Dimensions(mm)
Model-specific conditions and limits
Conditions are retained only when the source states them. They are not reconstructed from a nominal range or wavelength.
Operation Instructions
- Pre-Power Inspection
- Confirm that the laser and driver have been correctly wired according to the wiring diagram.
- Verify that the driver output voltage, current, pulse width, and repetition rate settings meet the limits specified for the ER100 (typical load voltage < 2 V, operating current 8 A, pulse width < 2 ms, repetition rate 10 Hz, unless otherwise stated in the factory test report).
- Make sure all connectors are firmly seated and that there are no loose wires, short circuits, or reversed polarity.
- Check that the laser output window is clean and free of dust, fingerprints, or other contamination.
- Power-On Sequence
- Ensure that the driver output is disabledbefore powering on the system.
- Switch on the main power supply of the driver and confirm that the driver powers up normally (status indicators, GUI, or monitoring interface show no alarms).
- Wait for the driver and system to complete any internal self-tests, if applicable.
- Parameter Setting
- According to the attached factory test report, set the driver parameters (output current, pulse width, repetition frequency, and any timing or trigger settings) to the recommended values.
- If the system supports external triggering, verify that the trigger source (internal / external), trigger level, and timing configuration are set correctly.
- Confirm the final parameter values on the GUI or front panel before enabling laser output.
- Laser Emission Operation
- Enable the laser output on the driver (via “Enable” button, GUI command, or hardware switch, depending on the specific driver).
- Observe the driver status indicators and any monitoring signals to confirm that laser emission is normal and no over-current, over-temperature, or fault alarms are present.
- During operation, do nottouch or obstruct the laser output window, and strictly follow the applicable laser safety regulations (wear appropriate protective eyewear, avoid direct or specular reflections into the eyes, and control the beam path).
- Shutdown Procedure
- First disablethe laser output on the driver.
- After confirming that laser emission has stopped, switch off the main power supply of the driver.
- If the system has a cooling fan or other thermal management devices, allow sufficient time for the system to cool down before disconnecting power completely or performing any maintenance.
- Post-Operation Checks
- Inspect the laser and driver for abnormal odors, discoloration, or mechanical damage.
- Check the connectors and cables to ensure there is no overheating or insulation damage.
If any abnormal condition or alarm is observed, stop using the device and contact technical support before the next operation.
1535 nm Pulsed-Source Integration Context
Pulse energy, pulse width, repetition rate, beam divergence, drive waveform, thermal path and the receiving architecture must be assessed together in the finished instrument. The model PDF controls its source values; system range is not inferred from a pulse-energy value, a neighbouring model, or wavelength alone.
Pulse energy describes emitted energy per pulse; its effect cannot be separated from pulse width, divergence, optical losses, receiver threshold and the stated target/atmosphere conditions. It is not a substitute for a model-specific near- or long-range acceptance test.
Source-stated application context
Application labels indicate evaluation context, not automatic fitness for a finished system.
Product Description

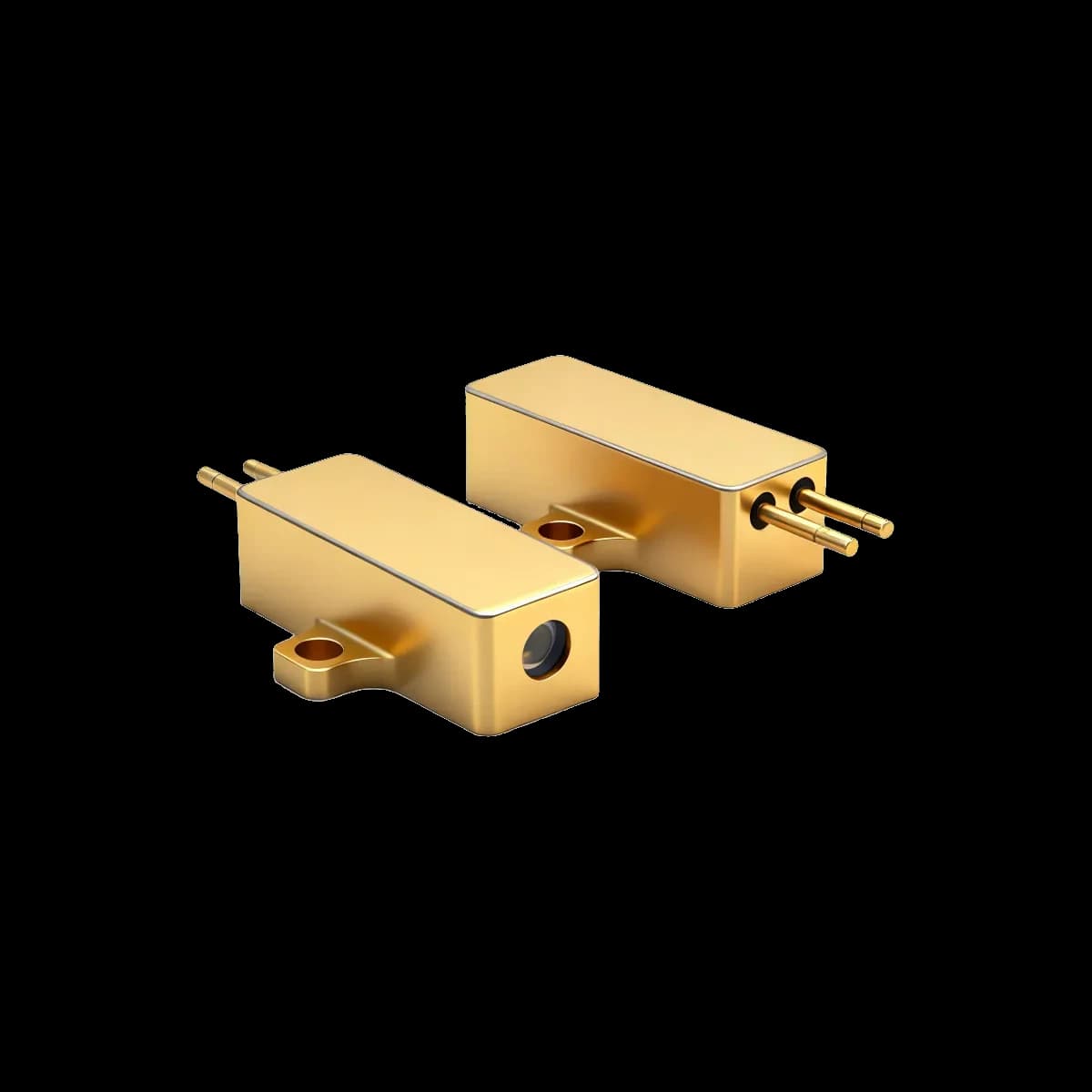

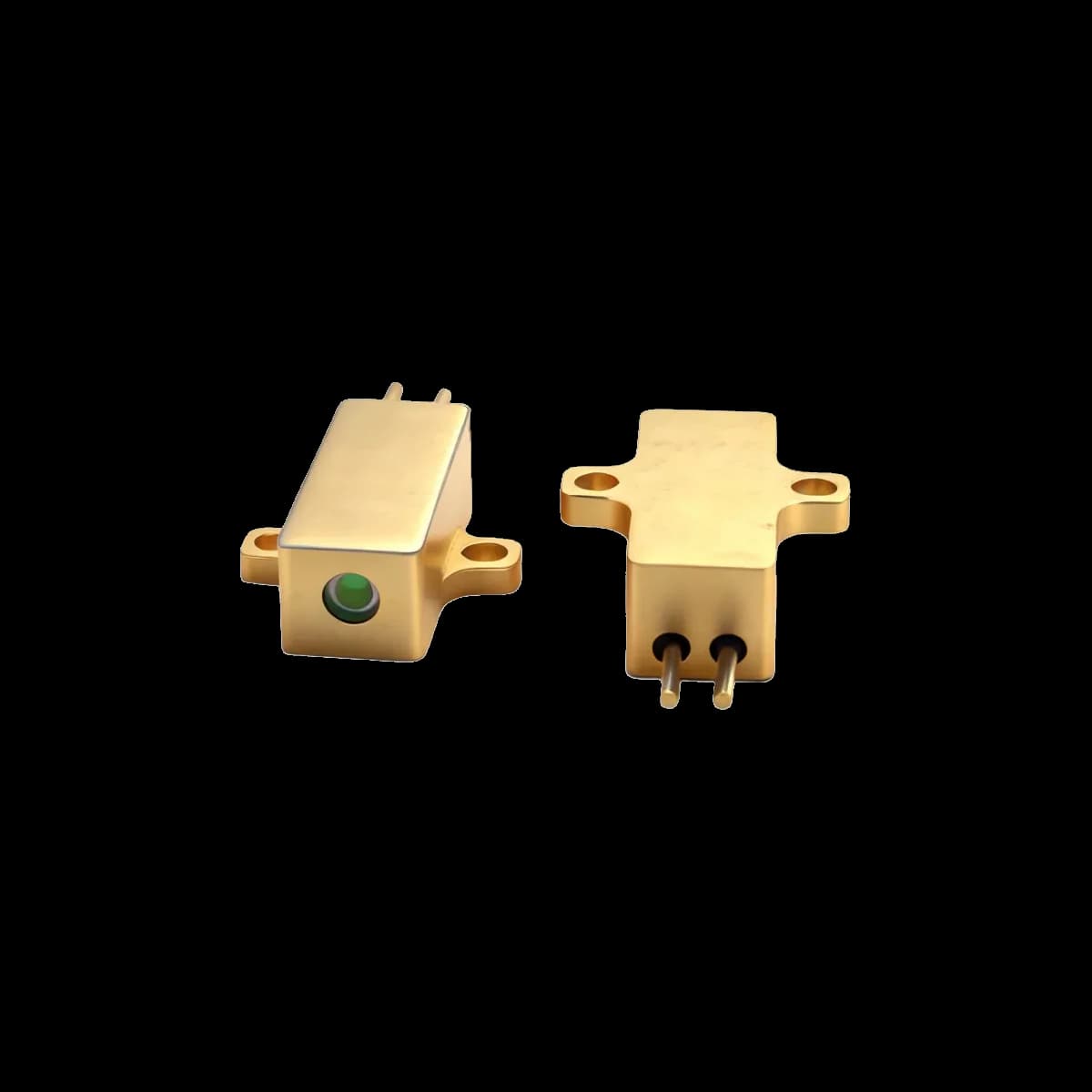

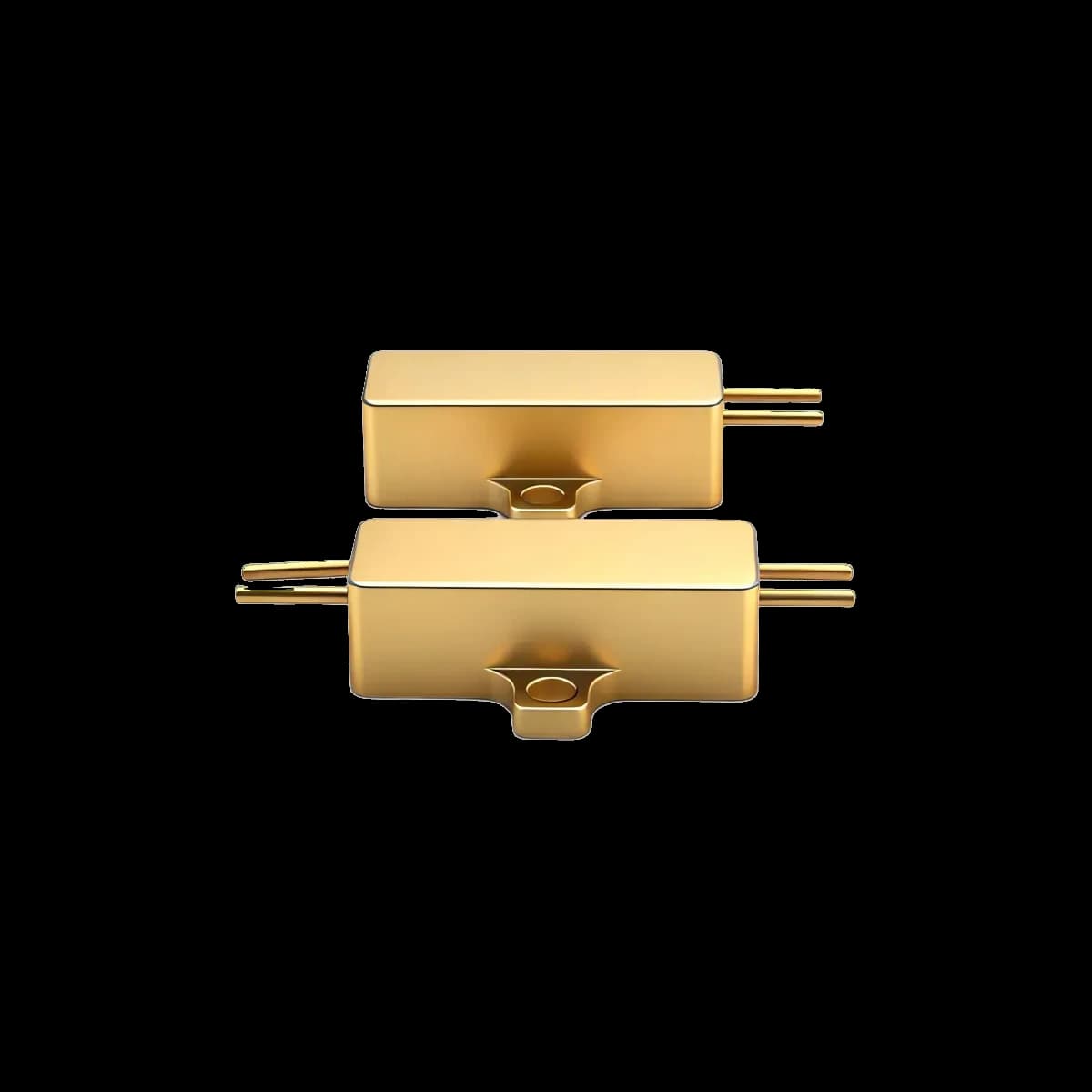

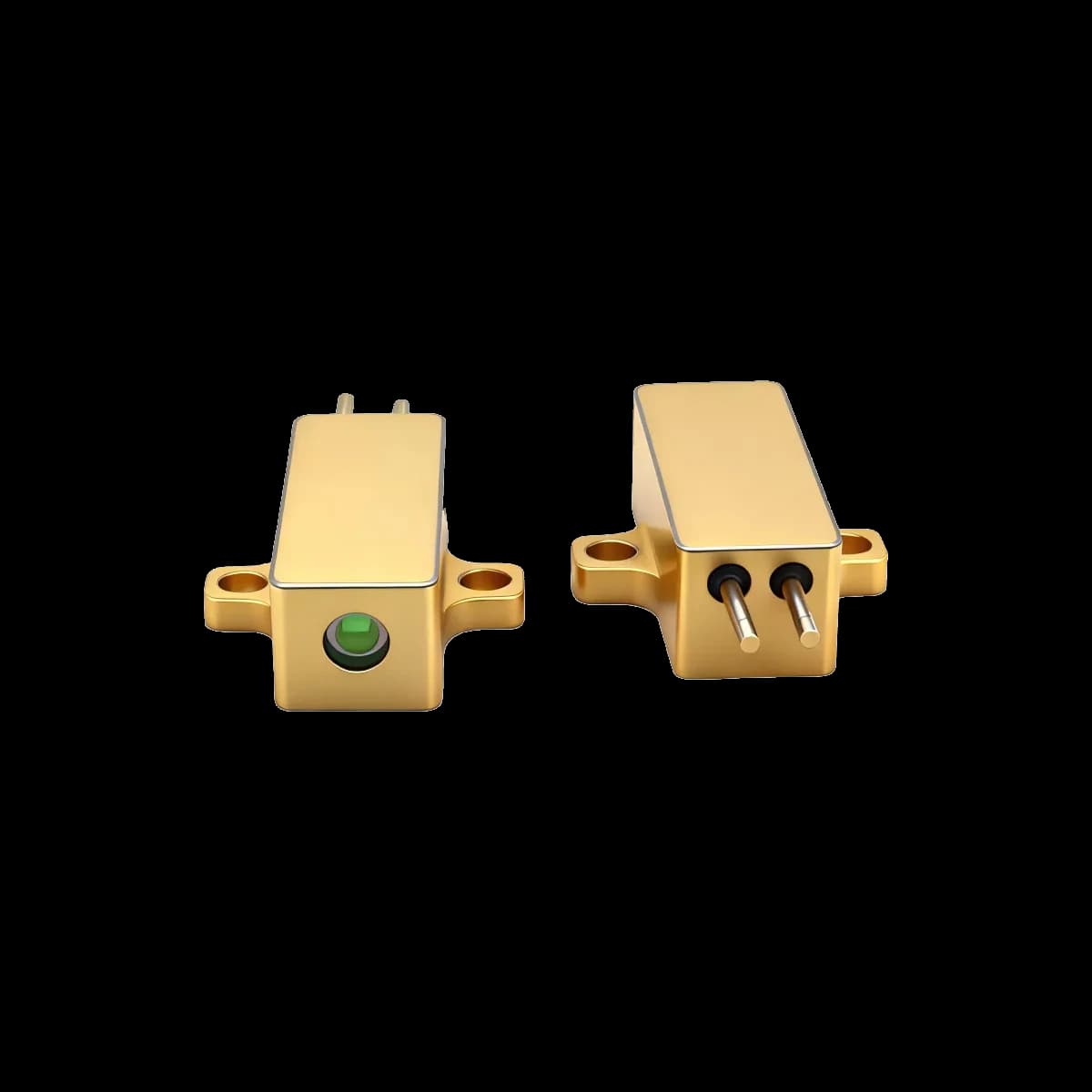

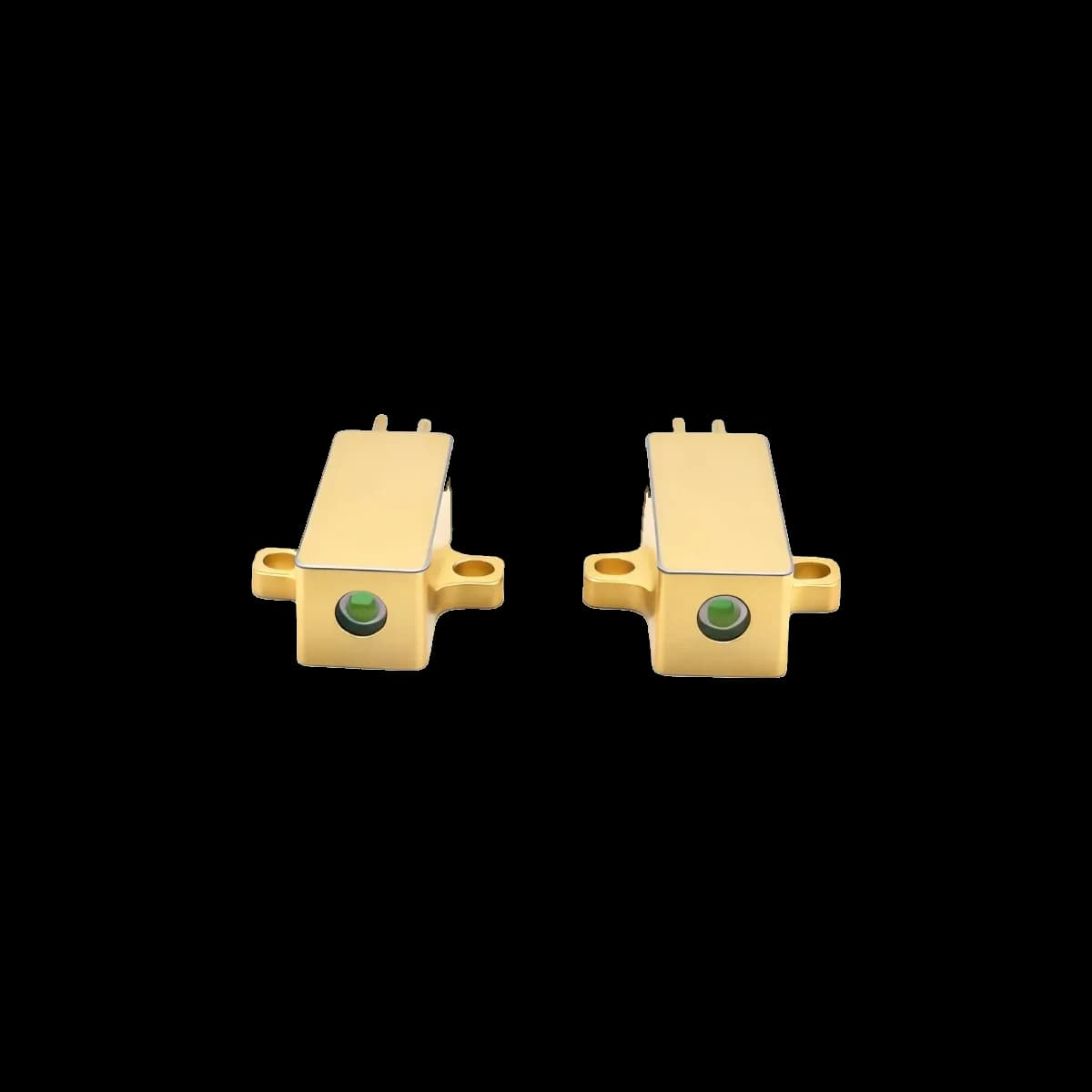

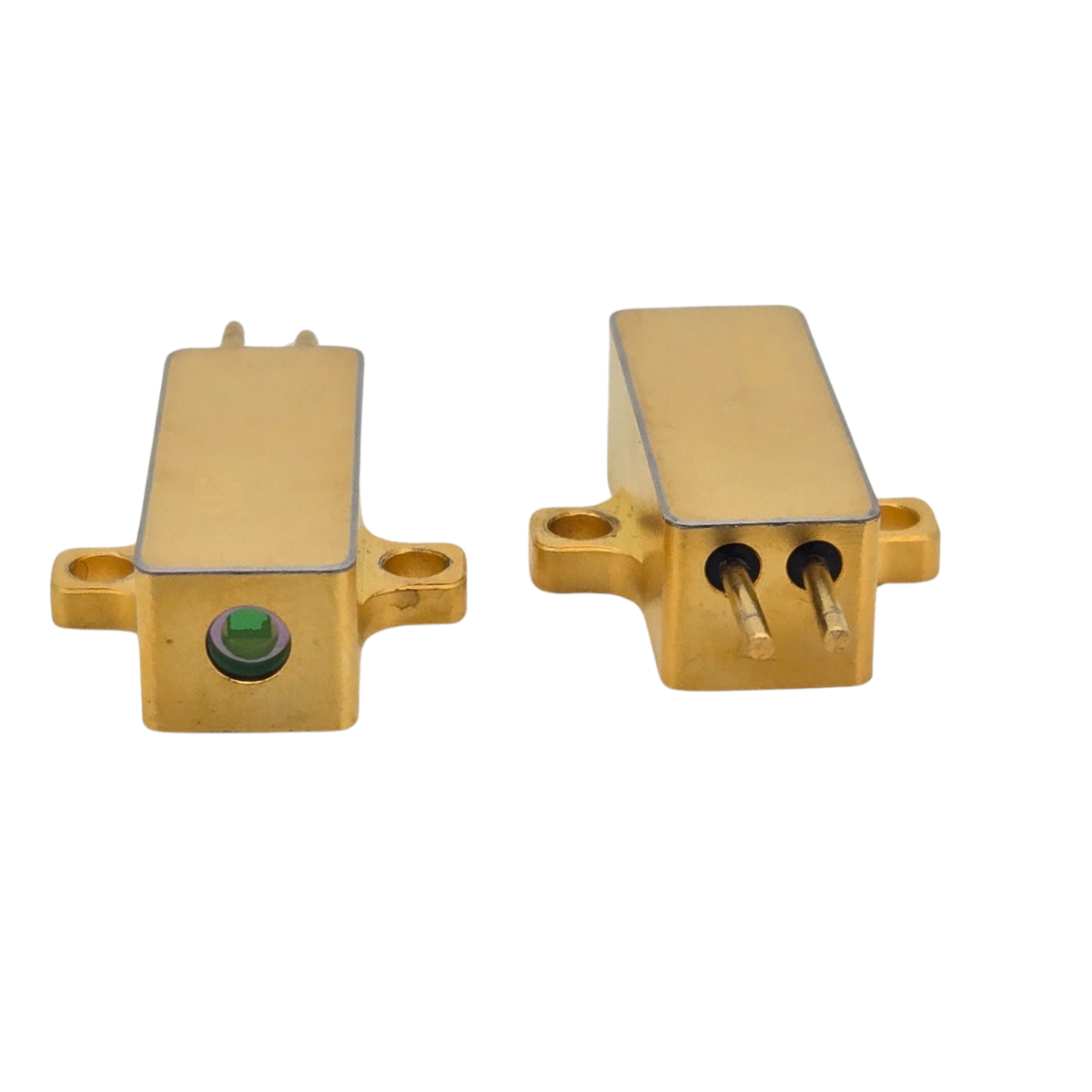

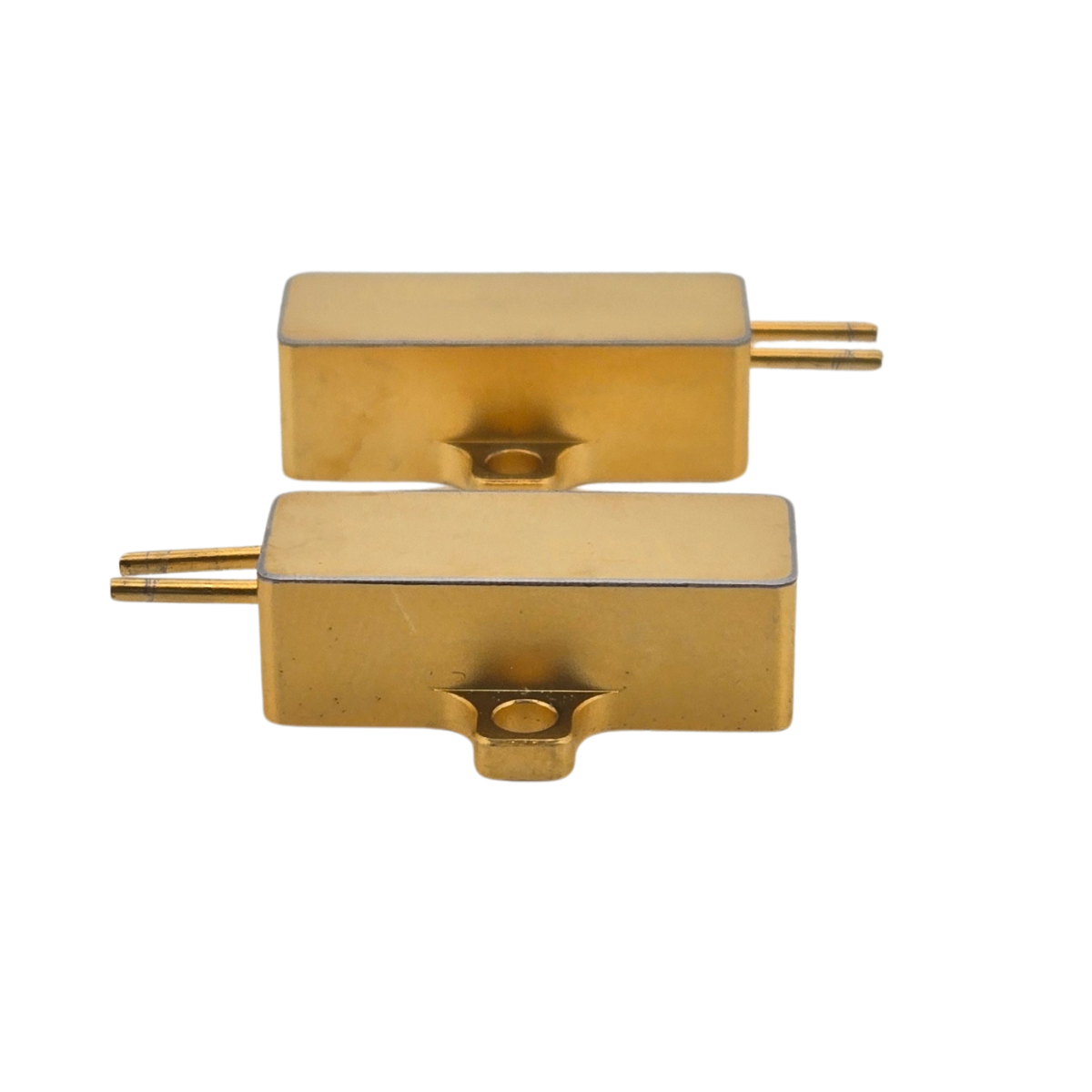

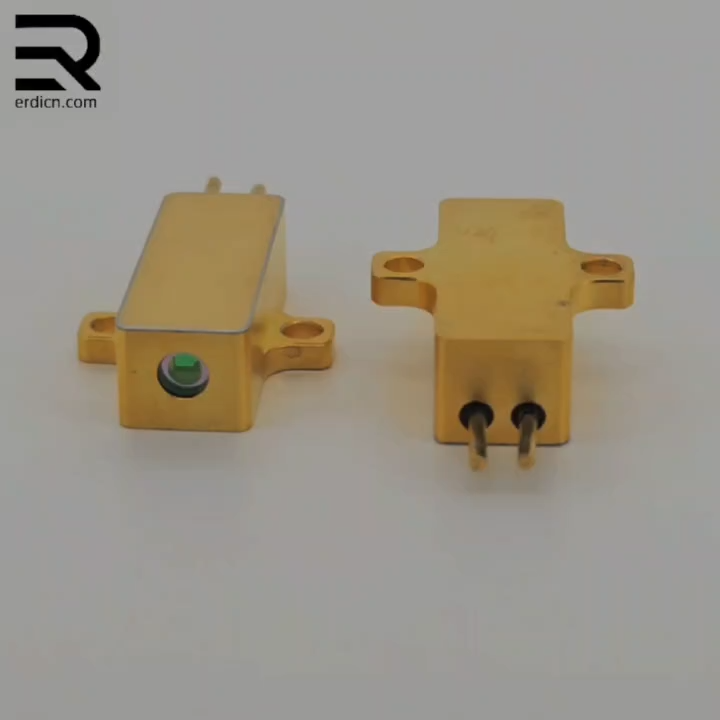

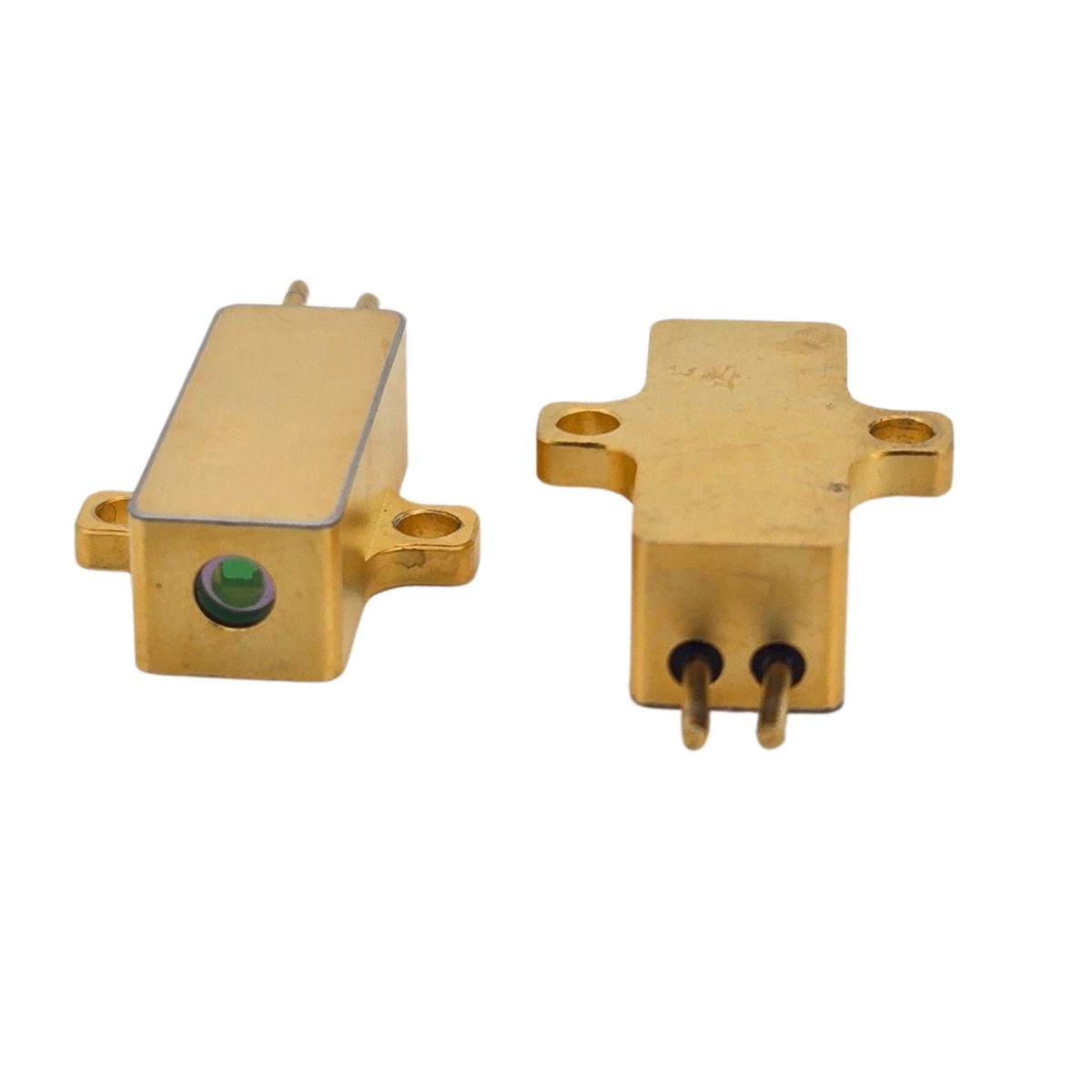

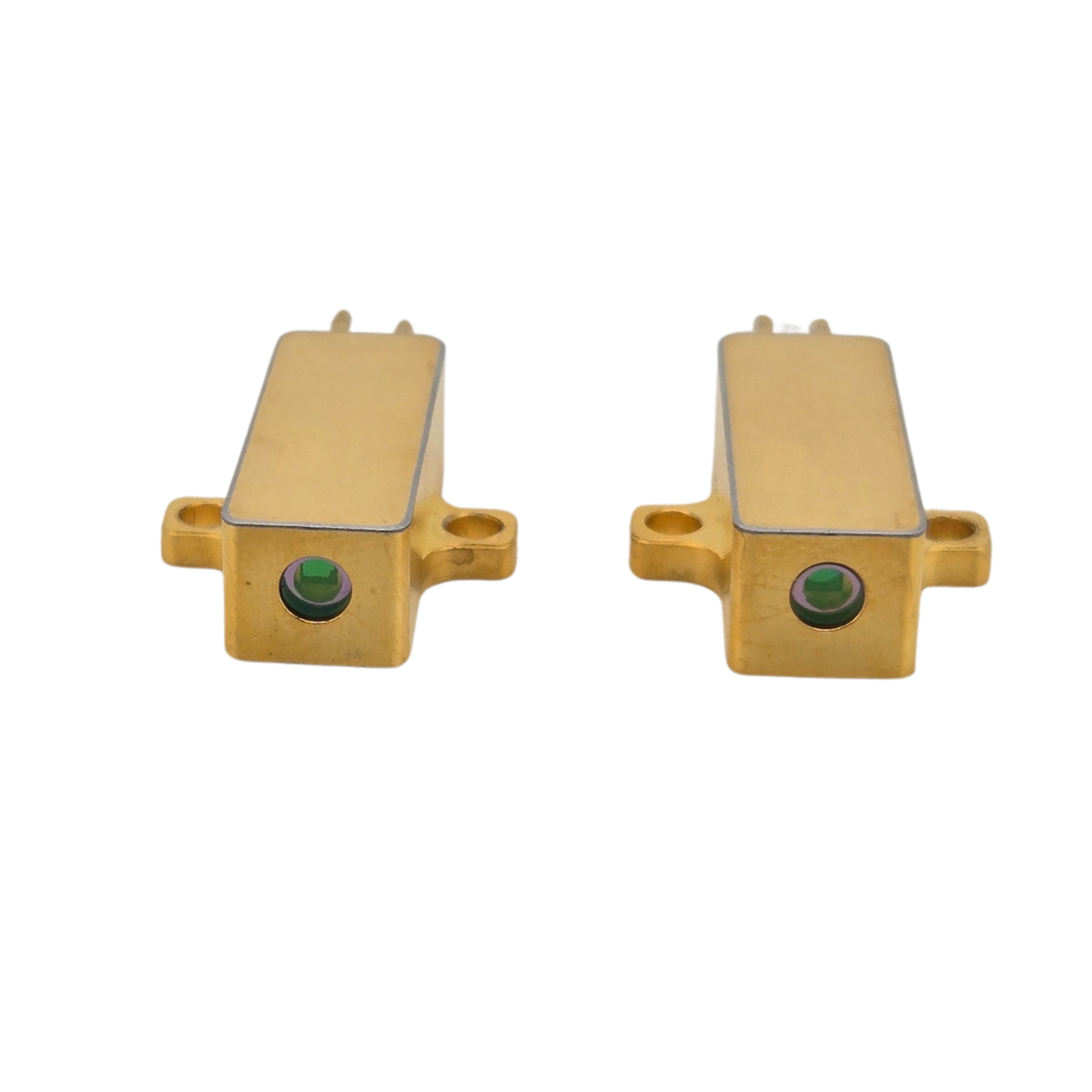

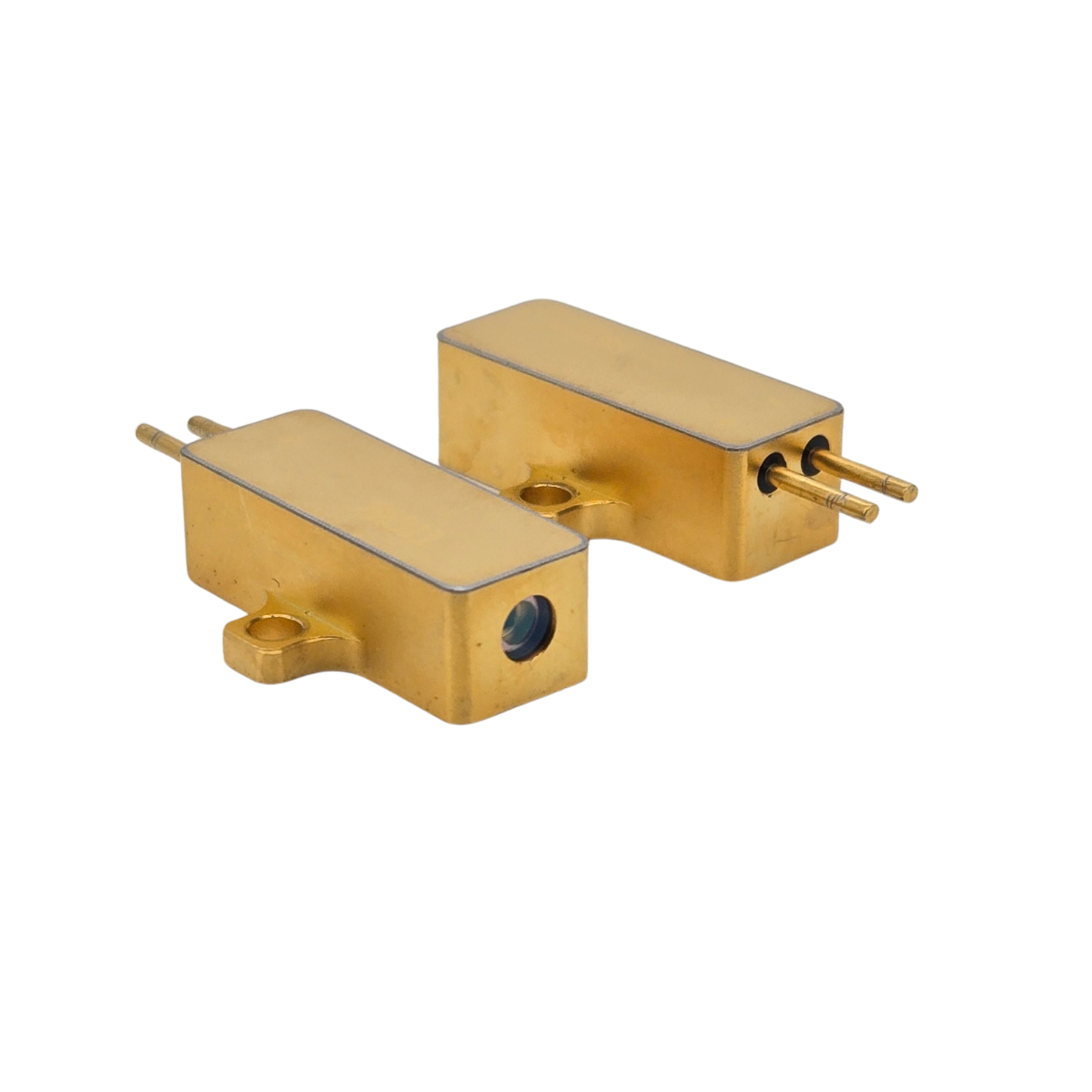

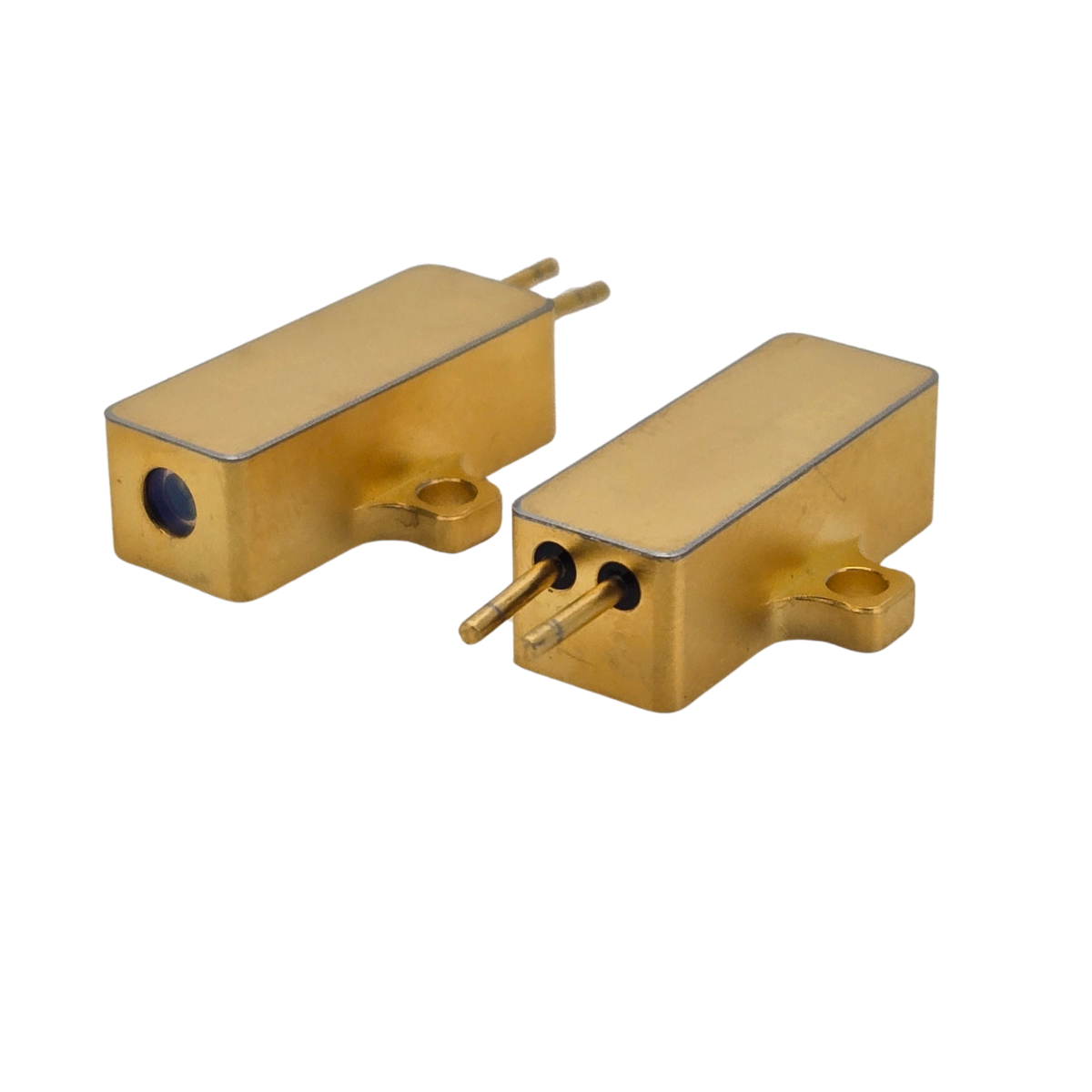

ER100 1.54 µm / 1535 nm Eye-Safe Erbium Glass Microchip DPSS Laser
The ER100 is a 1535nm eye-safe erbium glass DPSS laser designed as a compact, board-level source for modern laser rangefinders and LiDAR systems. Using co-doped Er:Yb phosphate glass pumped by a semiconductor laser diode, it emits at 1.54 µm in the Class 1 eye-safe band, combining small size, low weight and robust performance for outdoor long-distance optical transmission.
With pulse energy ≥ 100 µJ, a typical pulse width of 6 ns and a repetition rate from 1 to 10 Hz, the ER100 provides a clean, nanosecond pulse suitable for time-of-flight ranging down to centimeter-level resolution. Pulse stability is within 10%, while the raw beam diameter is about 0.3 mm and the beam divergence is ≤ 8 mrad in a TEM₀₀ mode, making it easy to collimate or couple into small-aperture transmit optics.
The module is engineered for demanding field environments. It operates from −40 °C to +65 °C and can be stored from −55 °C to +75 °C, with mechanical robustness verified against shock and vibration tests in line with MIL-STD-810G. Service life is specified as ≥ 10 million shots, supporting long-term deployment in mission-critical systems.
Physically, the ER100 fits into a 21 × 8 × 6.8 mm³ package and weighs only 7 g, making it suitable for direct integration onto rangefinder or sensor PCBs where every millimeter and gram matters. It typically operates from a 2 V drive with an 8 A current pulse and a driver pulse width ≤ 2.4 ms; identical parameters are used in the driver setup guidelines, where users are instructed to verify voltage, current, pulse width and frequency before enabling emission.
The laser is intended to be used with a dedicated pulsed driver. Recommended procedures include pre-power inspection (checking wiring, polarity, connector seating and a clean output window), a defined power-on sequence, parameter setting according to the factory test report, monitored laser emission and a controlled shutdown sequence. These steps help prevent over-current or thermal stress and ensure stable operation throughout the device lifetime.
Thanks to the 1.5 µm wavelength band, the ER100 enjoys low atmospheric attenuation and strong penetration through haze, rain and aerosol, while also being strongly absorbed by the anterior structures of the eye, greatly reducing retinal risk and enabling eye-safe operation in man-in-the-loop scenarios. Typical applications include handheld and weapon-mounted laser rangefinders, micro and small UAV EO/IR gimbals, compact LiDAR for mapping and obstacle detection, structural health monitoring in industrial sites, and embedded laser sources in microjoule-level rangefinding modules.
Confirm short- and long-distance acceptance conditions
- Define minimum distance, target material, reflectance, size and incidence angle.
- Check receiver recovery, optical-axis overlap and strong-return handling at the intended near limit.
- Verify supply tolerance, peak current, grounding, interface levels, connector and timing with the ordered revision.
- For long-distance acceptance, state target geometry, visibility, weather, background and required detection probability.
- Test with the installed window, boresight, field of view, enclosure and thermal path rather than a bare module alone.
- Evaluate accessible emission, labels and failure conditions again for the finished laser product under IEC 60825-1.
Questions to resolve before design release
Does a stated maximum range apply to every target?
No. A stated range must be read with its target and environmental conditions. Dark, small, oblique, wet or partially obscured targets and degraded visibility can reduce received signal.
Does 1535 nm itself establish the laser classification?
No. Classification concerns accessible emission from the finished laser product. The module statement and final instrument assessment are distinct.
Can a long-range claim be used as the minimum range?
No. Minimum-distance behaviour depends on the particular transmit/receive geometry, receiver timing and strong-return management documented for the model and host system.
Product evidence and general technical context
The model PDF controls model claims. Public references below explain general engineering principles only.
- ERDI ER100 model PDFModel-specific technical evidence.
- System Design of a Pulsed Laser RangefinderOptical Engineering 30(3), 1991 - link budget, background, noise, detection and range error.
- The Short-Range, High-Accuracy Compact Pulsed Laser Ranging SystemSensors 22(6), 2146, 2022 - pulsed-ToF equation, timing error, reflectivity and temperature effects.
- Laser system range calculations and the Lambert W functionApplied Optics 48(4), B1-B7, 2009 - range performance versus atmospheric transmission, target and system parameters, and threshold SNR; its 1.06 µm example is general context, not ERDI model data.
- Monostatic all-fiber rangefinder systemApplied Optics 54(25), 7687-7694, 2015 - a measured case study of shared-aperture geometry and receiver-recovery loss; it does not establish an ERDI model limit.
- Light Transmission in Fog: The Influence of Wavelength on the Extinction CoefficientApplied Sciences 9(14), 2843, 2019 - measured and modeled wavelength-dependent fog attenuation.
- IEC 60825-1:2014Laser-product classification and accessible-emission requirements; final equipment requires system-level assessment.
- Practical application of pulsed “eye-safe” microchip laser to laser rangefindersOpto-Electronics Review 21(3), 2013 - a peer-reviewed 1535 nm rangefinder implementation; use for general transmitter/receiver and atmospheric-design context, not model specifications.
