The laser rangefinder simulator mainly contains laser receiving optics, high-precision optical delay unit, laser attenuation unit, laser output optics, laser power detection components, control processing unit, power supply and other parts, accessories including debugging cables, structural tooling and so on.
01 Product Features
A laser rangefinder simulator is used to test the accuracy, power, and other important indicators of a laser rangefinder. It serves as an essential testing tool for laser rangefinder extension debugging, machine debugging, product acceptance, field testing, maintenance, and repair. The simulator primarily facilitates the measurement accuracy of the laser rangefinder, power detection, receiving sensitivity, and laser parameters, among other convenient tests. It is an effective means to achieve rapid fault localization and a comprehensive analysis of performance.
02 Product Composition

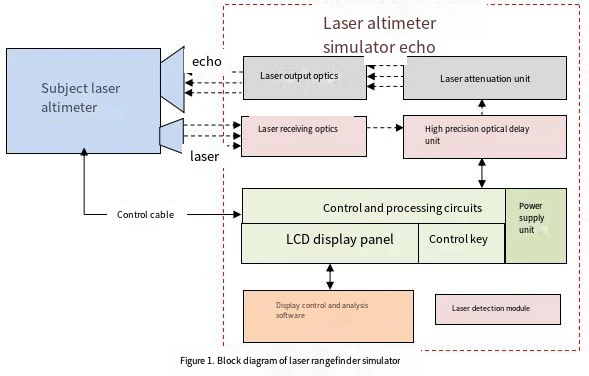

The laser rangefinder simulator receives the output laser from the test laser rangefinder, controls the precise delay and analog echo intensity, detects the test laser rangefinder receiver unit, and carries out the distance measurement. It realizes the performance test of the laser rangefinder by analyzing and comparing the measurement results of the test laser rangefinder with the control data of the laser rangefinder simulator.
The laser rangefinder simulator mainly contains laser receiving optics, a high-precision optical delay unit, a laser attenuation unit, laser output optics, laser power detection components, a control processing unit, a power supply, and other parts. Accessories include debugging cables, structural fixtures, and so on.
03 Main technical indicators
(a) Realization of simulation tests of ranging power;
b) Realize the simulation test of ranging accuracy;
c) Realization of laser energy, period, pulse width and other laser parameters measurement;
d) Realize receiving sensitivity measurement;
e) control and processor: touch screen LCD display and control, compatible with the local control and upper computer control mode, convenient for field testing and test room field test use;
f) Computer display control and analysis software: complete the control of equipment parameters, measurement and analysis results display.
g) Laser wavelength: 905nm, 1064nm, 1535nm, 1550nm, 1570nm and other bands;
h) Simulation distance setting range: minimum value is not more than 1m, maximum value is not less than 20000m;
i) Analog distance accuracy: better than 5cm;
Our company has developed various wavelengths, various distances, different step distance settings of the laser distance measurement simulator, welcome the demand for units call to communicate.
