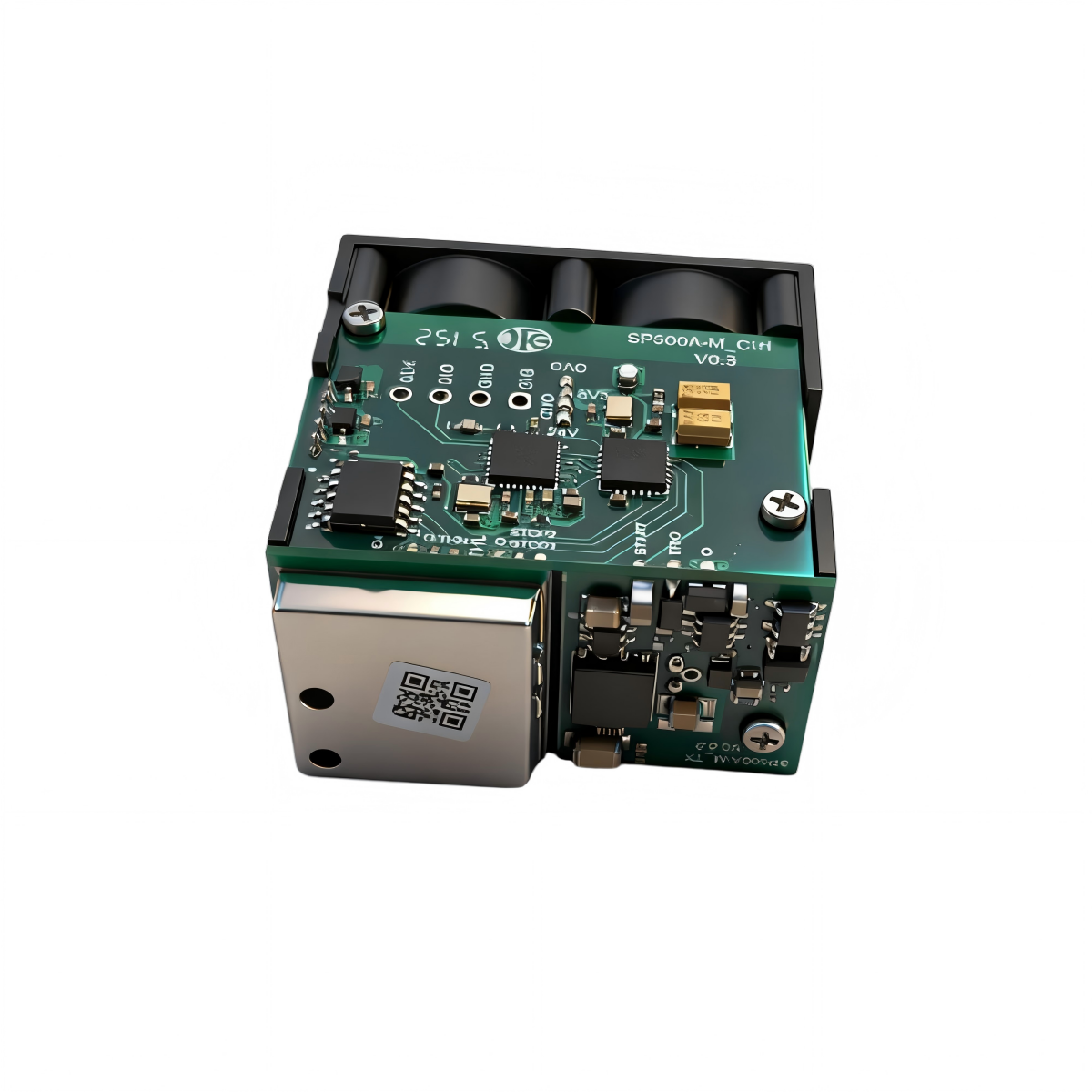

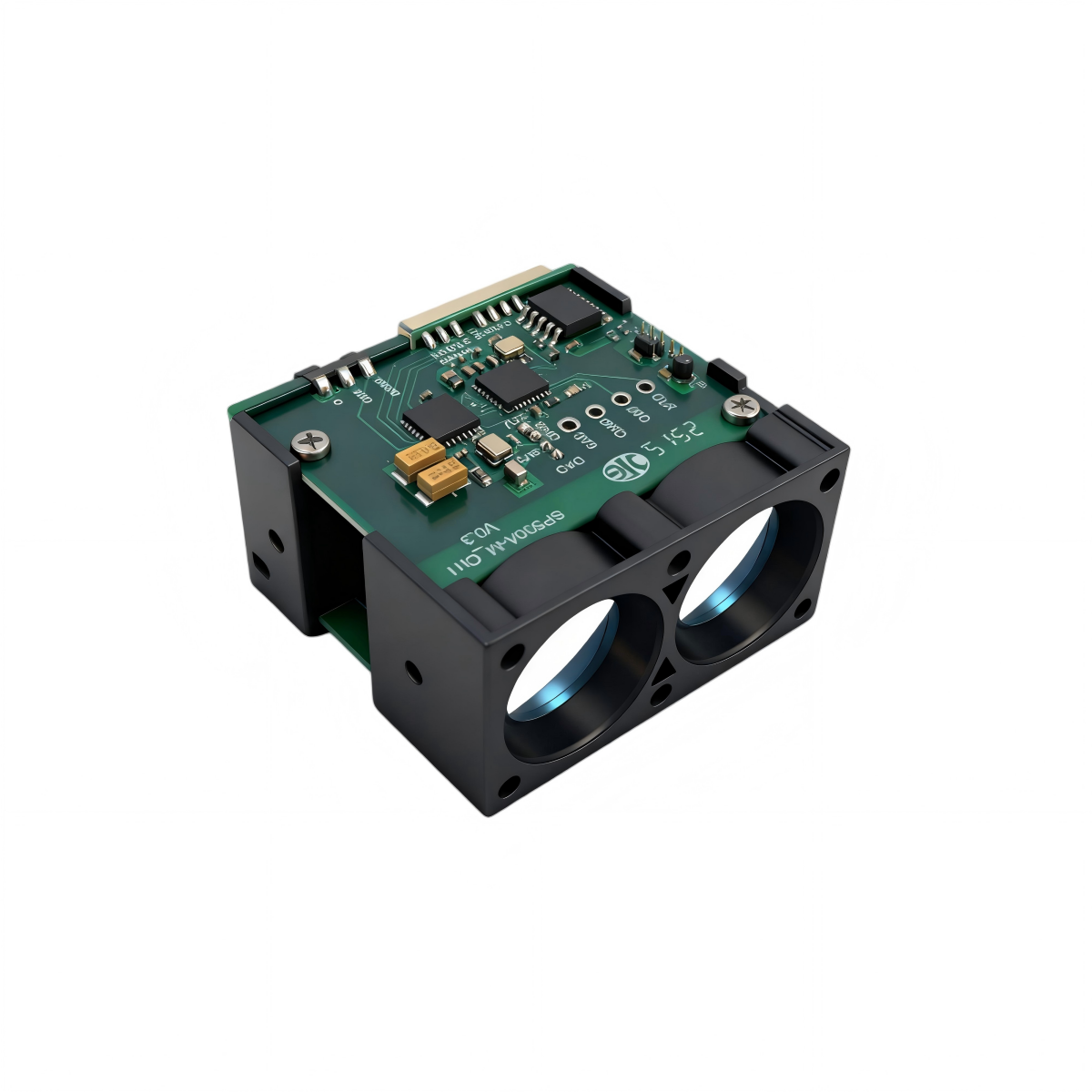

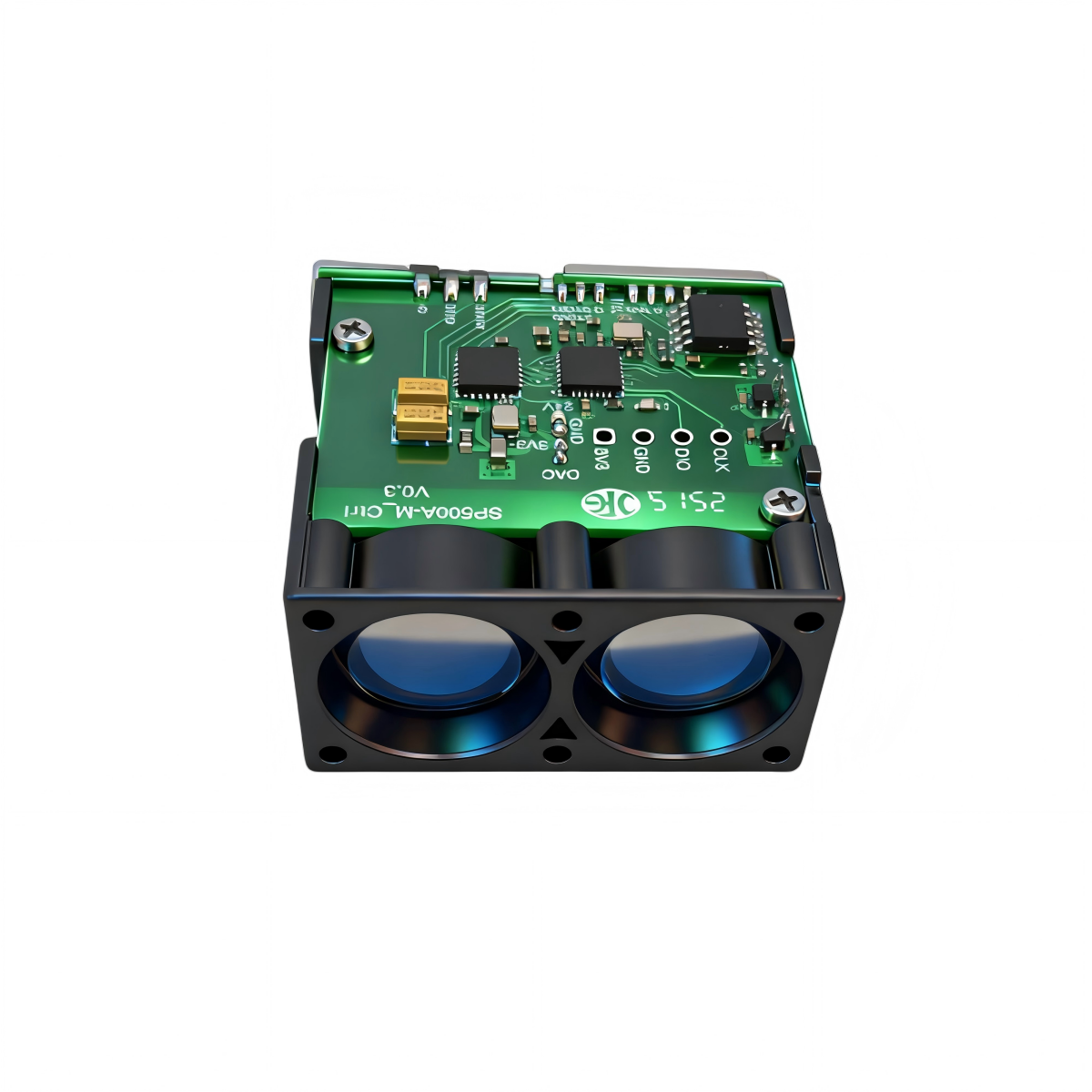

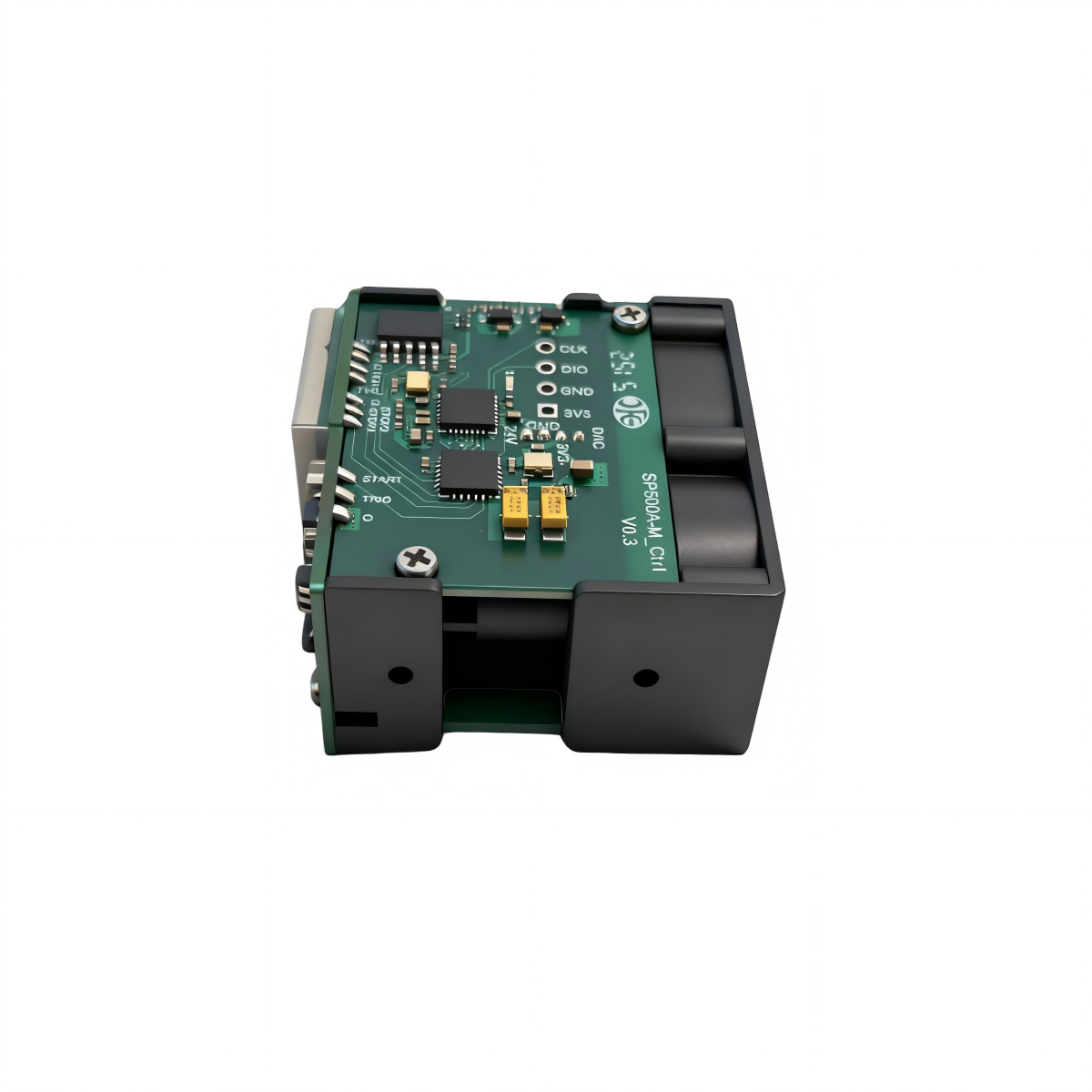

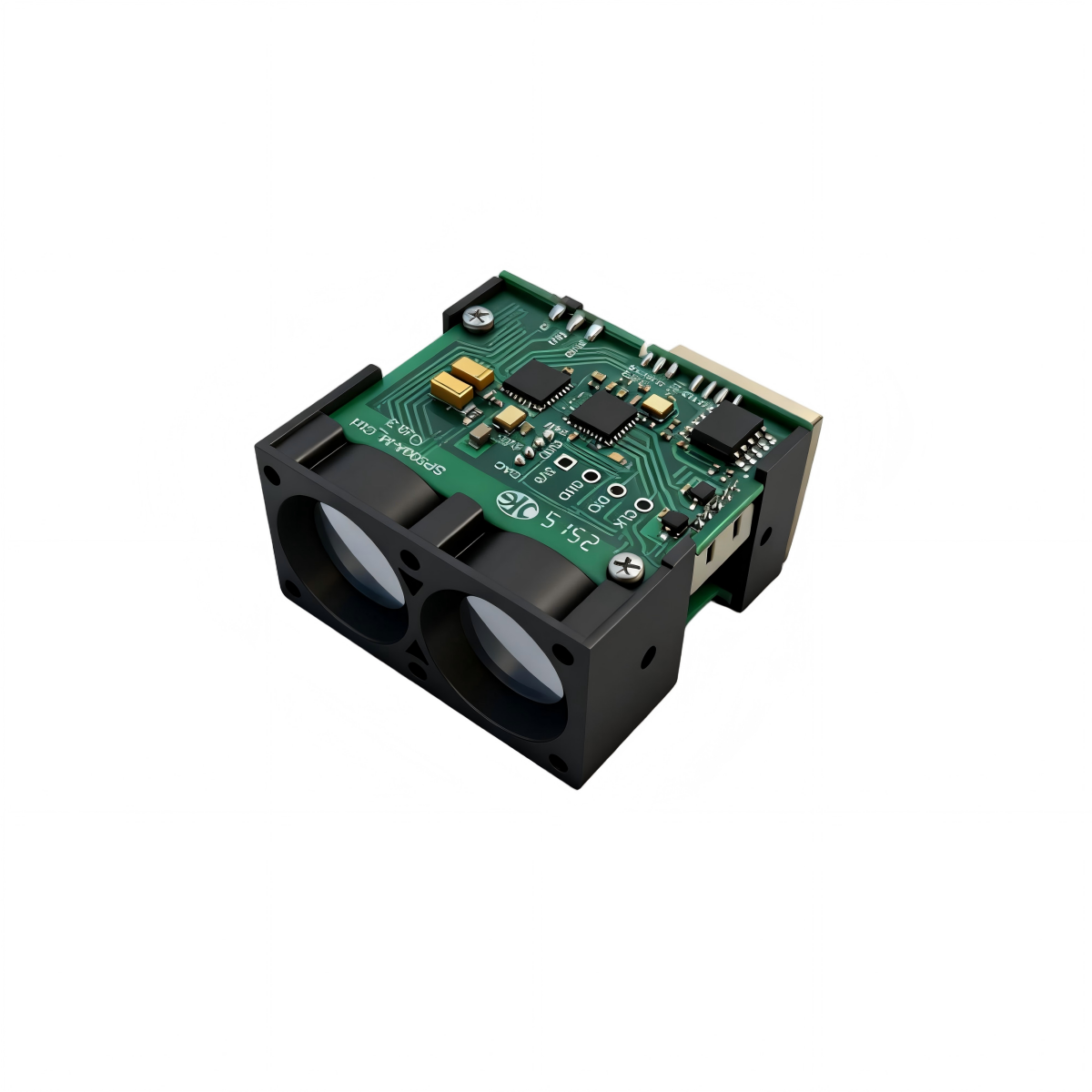

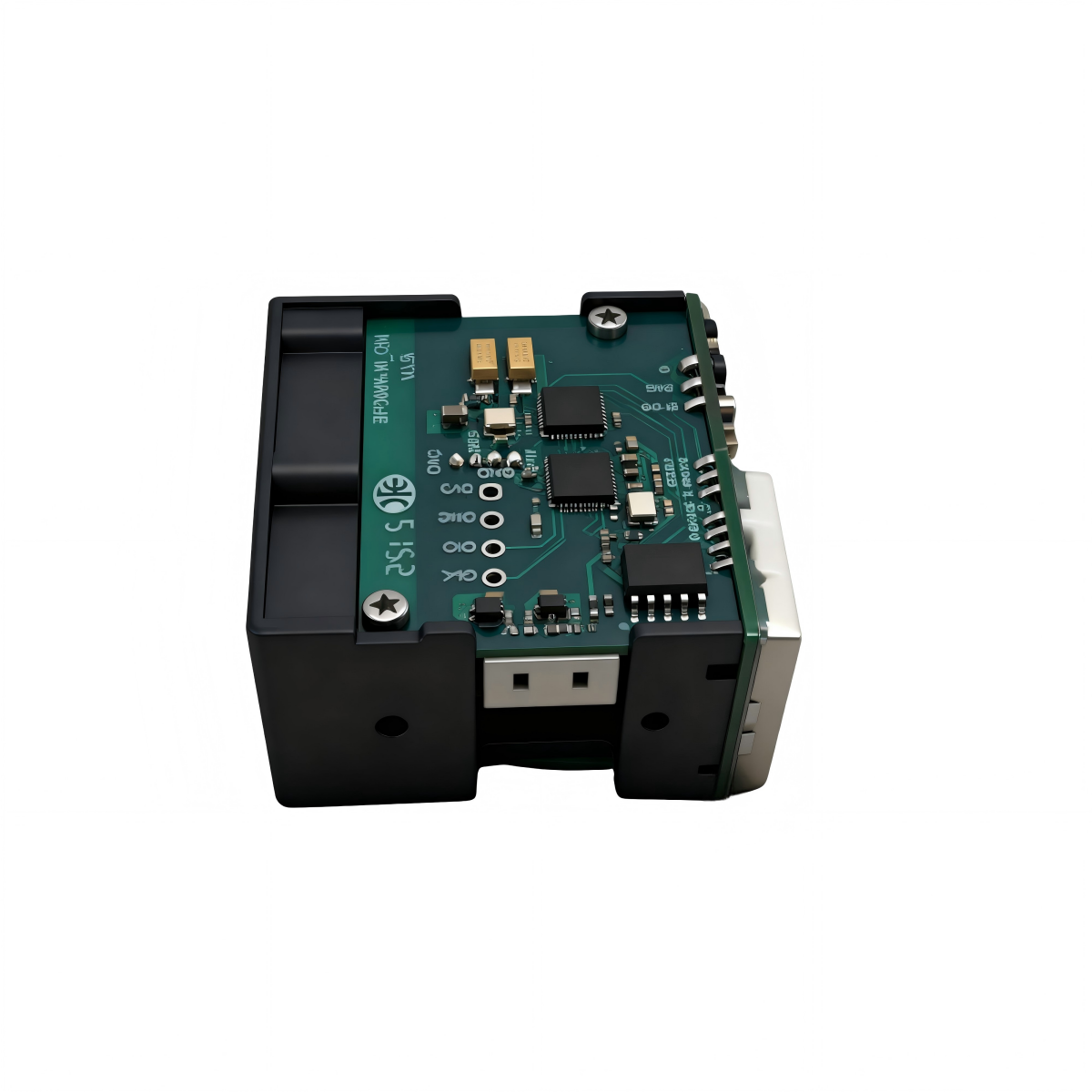

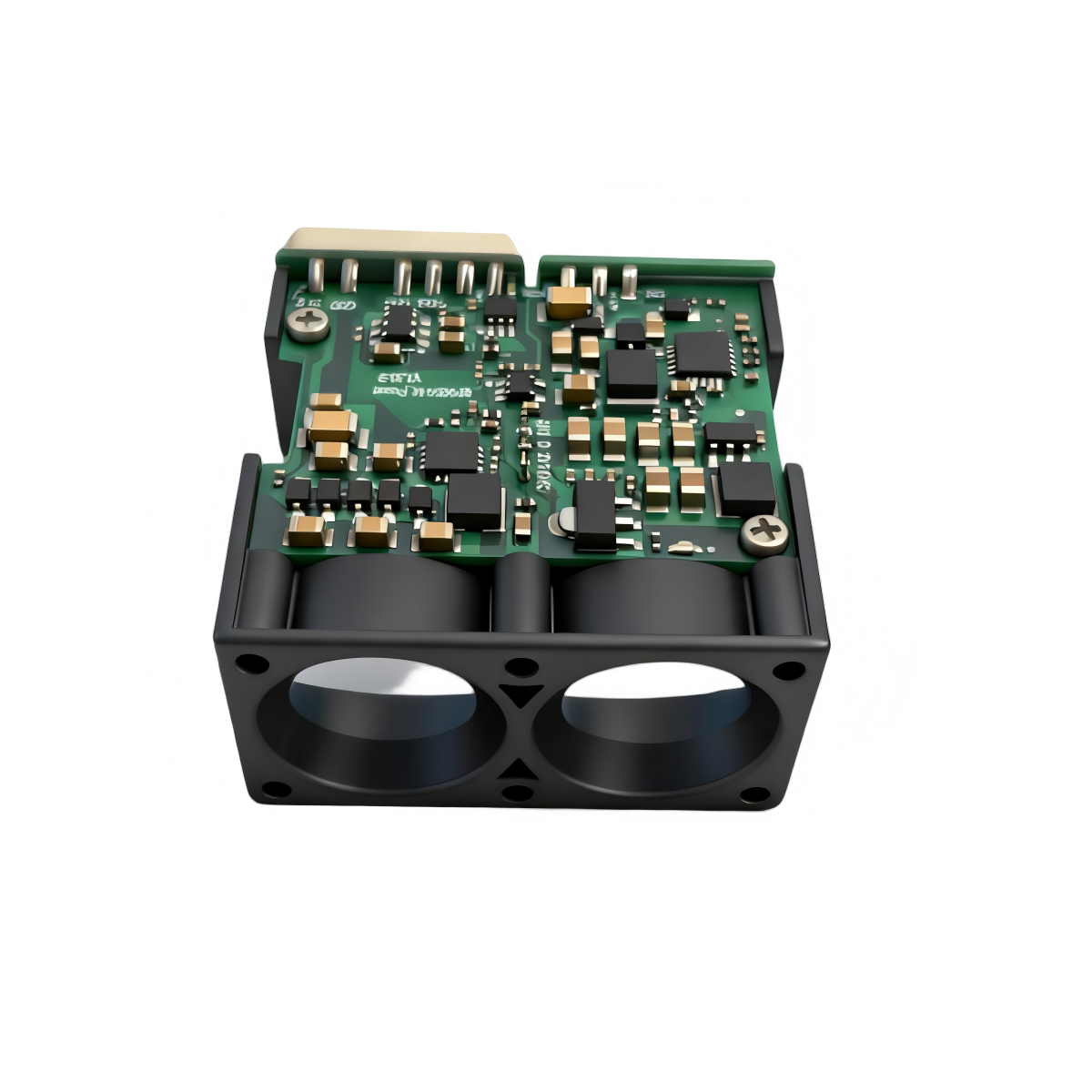

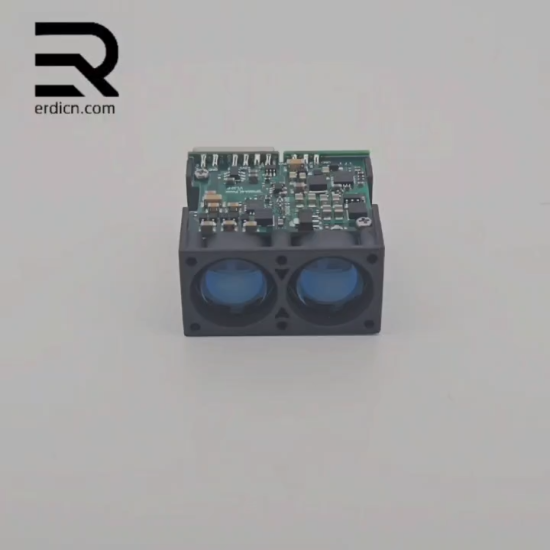

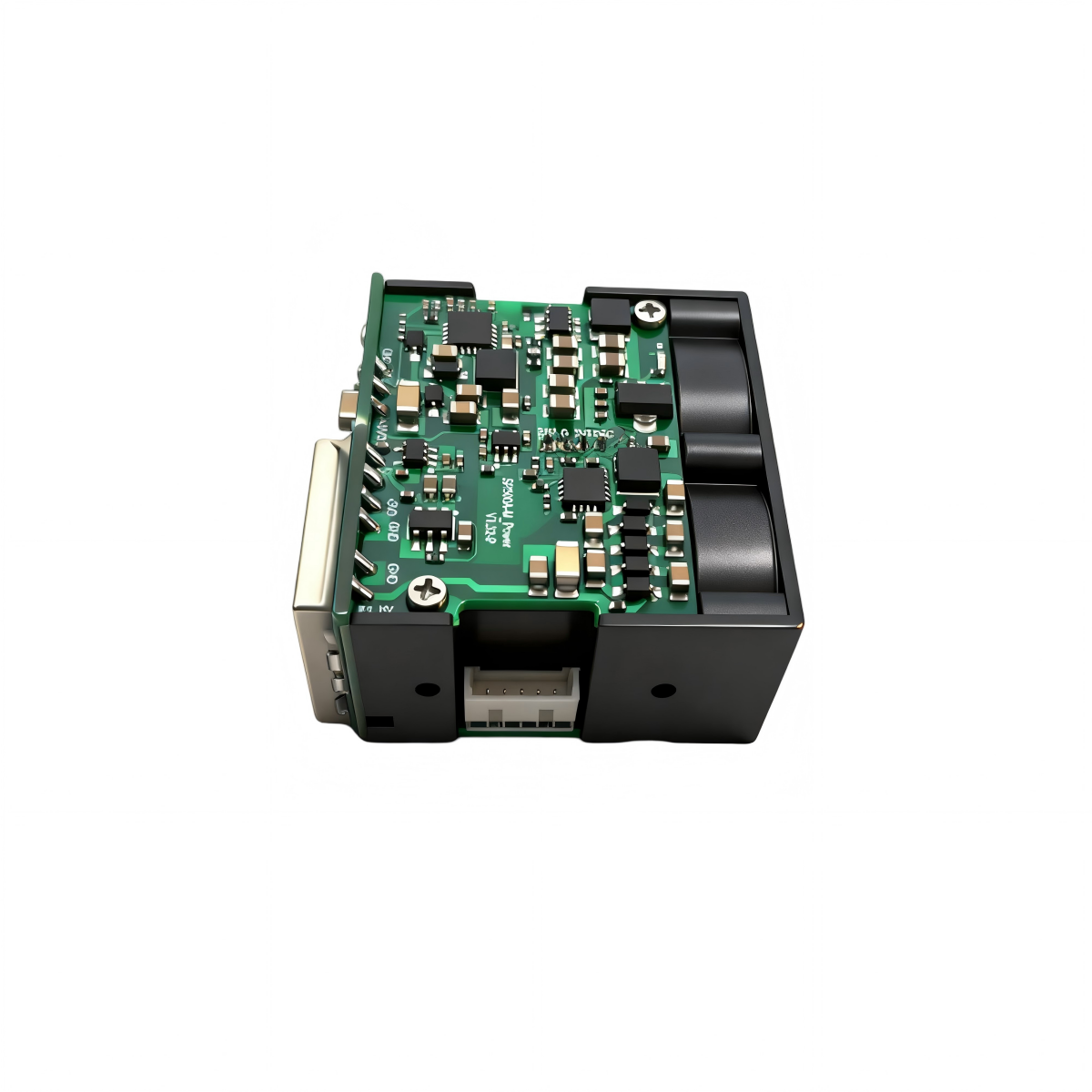

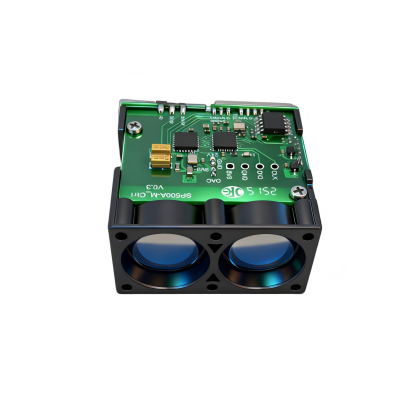

ERDI OEM LASER MODULE

LRF300H 300 m-at-90% DToF Module with Automatic 1 kHz/50 Hz Selection

$280 USD / unitBase B2B price; approved quantity tiers are shown below. Shipping included.
Product modelLRF300H

LRF300H is a 905 nm DToF distance module with source-stated automatic selection between 1 kHz and 50 Hz according to return-signal intensity. Its range entry separates 0.05–300 m at 90% reflectivity from 0.05–100 m at 10% reflectivity.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details follow the applicable order terms.

USD / unit
1–30 piecesBase tier$280 USDPublished unit price
31–300 pieces$180 USDSave 36%
301–500 pieces$160 USDSave 43%
501+ piecesLowest unit price$140 USDLowest published price · Save 50%
Delivery times by quantity

Availability confirmed at checkout

Shipping included
Quantity and working-day dispatch lead time
QuantityDispatch lead time
1–30 pcs7 working days
31–100 pcs30 working days
101+ pcs45 working days

Dispatch after payment confirmation. Shipping is included to the shipping address you enter.

Commercial terms follow the confirmed order terms.
Buy now

Availability confirmed at checkout

Shipping included

For 1 pcs7 working days

Dispatch after payment confirmation.

Checking online checkout availability… PayPal / card options at checkout, subject to eligibility.

Request a Quote / Technical Review

Shipping included. No separate PayPal surcharge. Eligible online orders need no prior quotation or PI; complete PI details after verified payment. Final quantity and total are confirmed at checkout.

MODEL-LEVEL DATA

Detailed LRF300H Specifications

This model is relevant to evaluations where reflected-signal conditions and reporting speed must be considered together. The source names drones, robots, tower-crane distance detection and traffic early warning among its application directions. The automatic frequency modes are not two simultaneous output streams or a guarantee of high-rate maximum-range reporting.

LRF300H uses UART/IIC communication and a 9–36 V DC supply in a 33 × 34 × 18 mm housing. The source’s long-distance accuracy and repeatability entries must be kept separate. Compare the actual surface and lighting against the model conditions before assigning a monitoring distance to the assembled equipment.

Basic ranging performance

ParameterValueSource condition
Measurement range0.05-300 m (90% reflectivity); 0.05-100 m (10% reflectivity)The two source values remain bound to their stated target reflectivity.
Measurement frequency1 kHz or 50 Hz (automatically switched to match reflected-signal intensity)Confirm against the controlled model document
Accuracy±10 cm (<10 m); 1% (≥10 m)Confirm against the controlled model document
Repeatability±5 cm (<10 m); ±10 cm at 300 mConfirm against the controlled model document
Ambient-light immunity100 klxConfirm against the controlled model document
Reported resolution1 cmFront-page feature statement; not an accuracy value

Optical parameters

ParameterValueSource condition
Central wavelength905 nmConfirm against the controlled model document
Photobiological safetyClass 1Confirm against the controlled model document
Field of viewAbout 4 mradConfirm against the controlled model document
Wavelength for indicationN/AConfirm against the controlled model document
Photobiological safety for indicationN/AConfirm against the controlled model document

Electrical and communication interface

ParameterValueSource condition
Supply voltage9-36 V DCConfirm against the controlled model document
Peak current100 mAConfirm against the controlled model document
Average current55 mAConfirm against the controlled model document
Average power consumption1.2 WConfirm against the controlled model document
Communication interfaceUART, IICConfirm against the controlled model document

Mechanical and environmental

ParameterValueSource condition
Protection levelN/AConfirm against the controlled model document
Dimensions33 × 34 × 18 mmConfirm against the controlled model document
Weight20 ± 2 gConfirm against the controlled model document
Operating temperature-20°C to +60°CConfirm against the controlled model document
Wire specification1.25 mm, 5P, 50 cm stranded wiresConfirm against the controlled model document
CustomizationAvailable in appearance / structure / output protocolConfirm against the controlled model document

Functional Description

The source states that 1 kHz or 50 Hz is selected automatically to match reflected-signal intensity.

The product is designed as a module for customer secondary development and integration.

Electrical Interface Definition

Signal names and directions are transcribed from the model source.

PinSignalSource-stated function
19-36V (red)External power positive
2Power GND (black)External power negative
3Port GND (yellow)GND
4TX (green)Host RX
5RX (blue)Host TX

Mechanical Dimension Drawing and Electrical Interface Diagram

These figures are extracted from the named model source without generative modification.

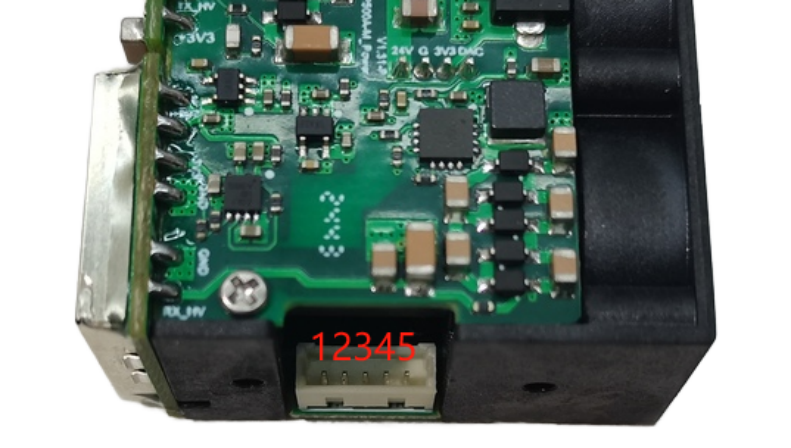

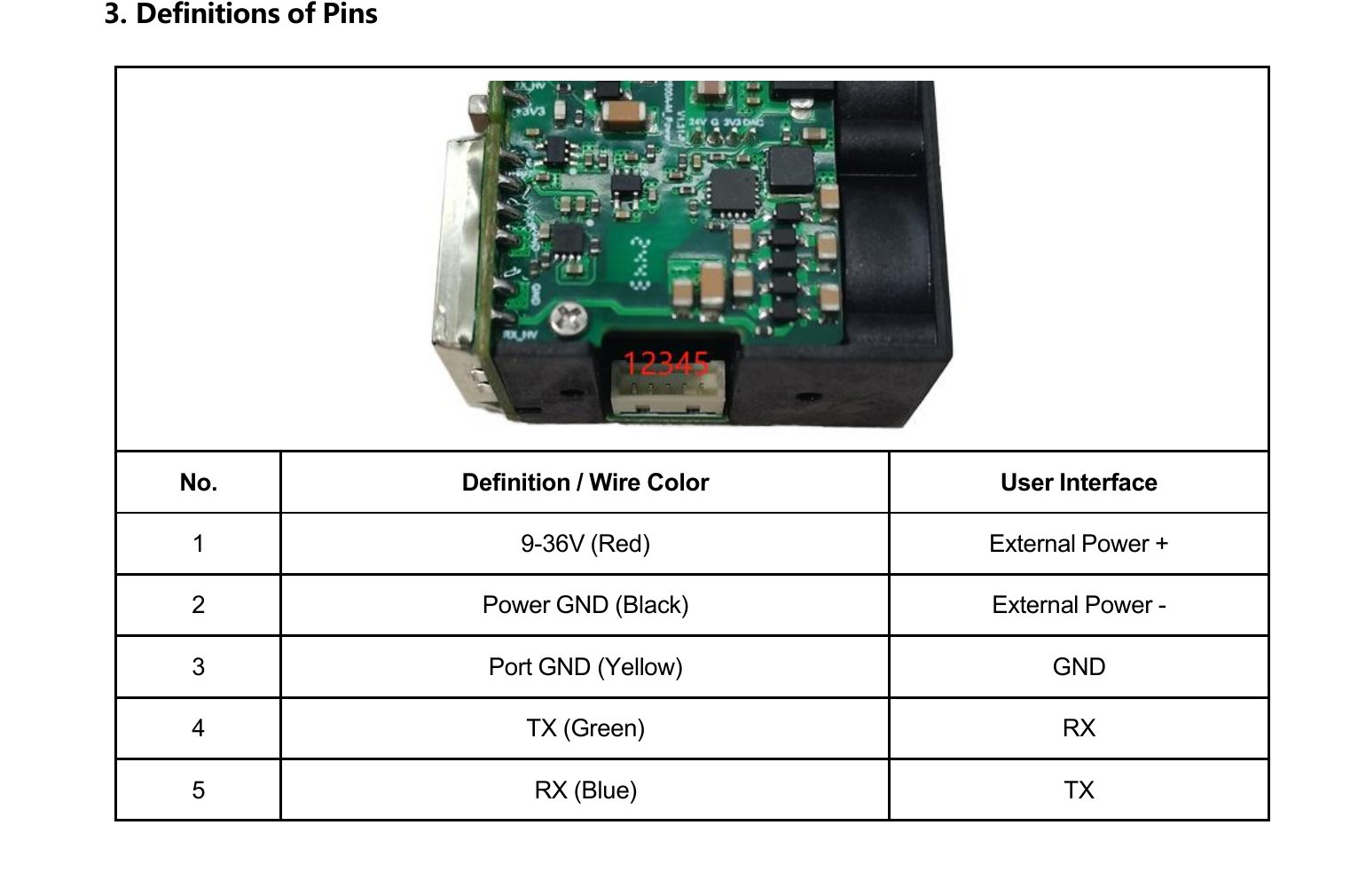

LRF300H five-pin electrical interface definition
Electrical interface definitionFive-pin power, ground and UART TX/RX definition extracted from page 3.

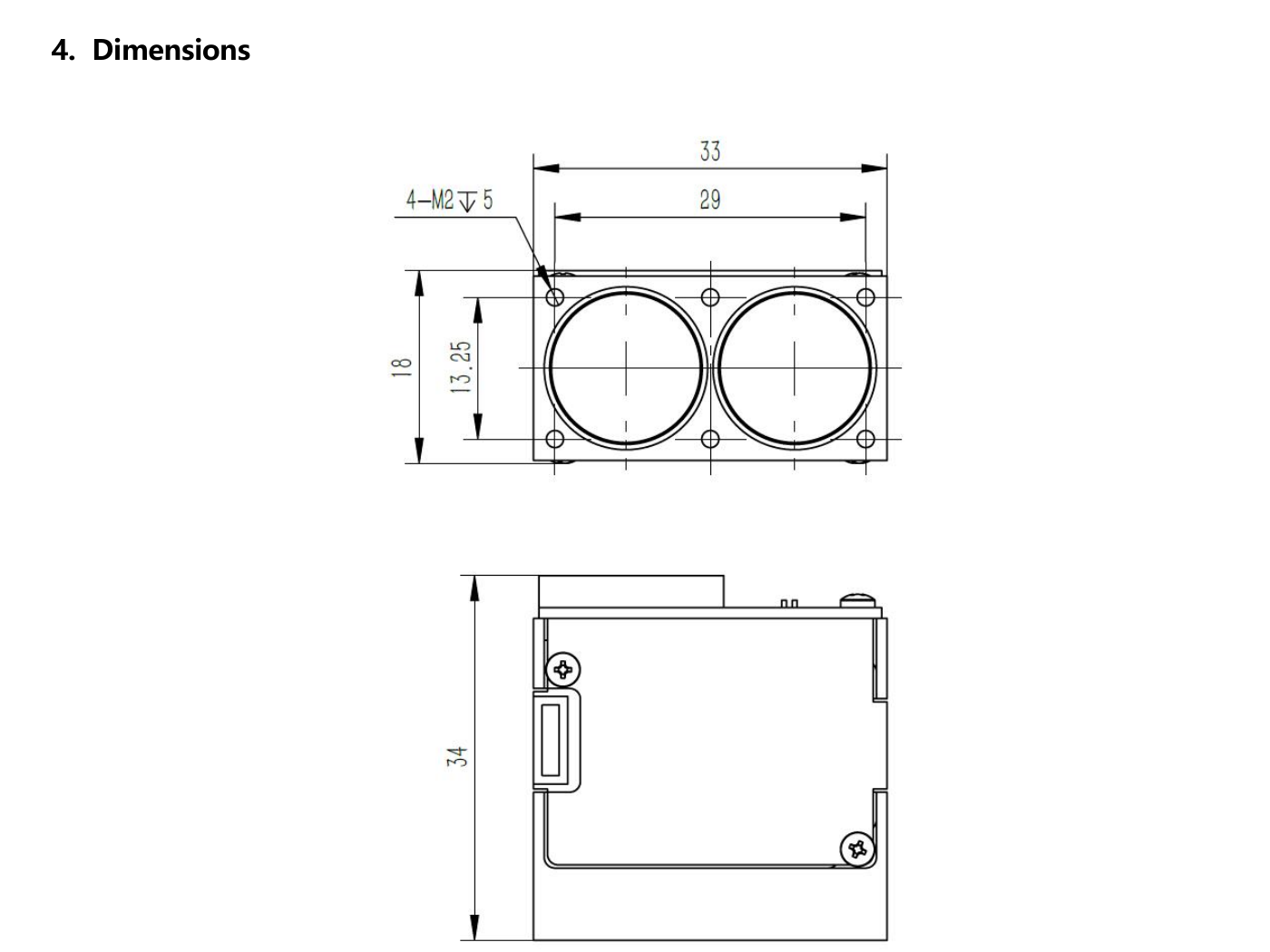

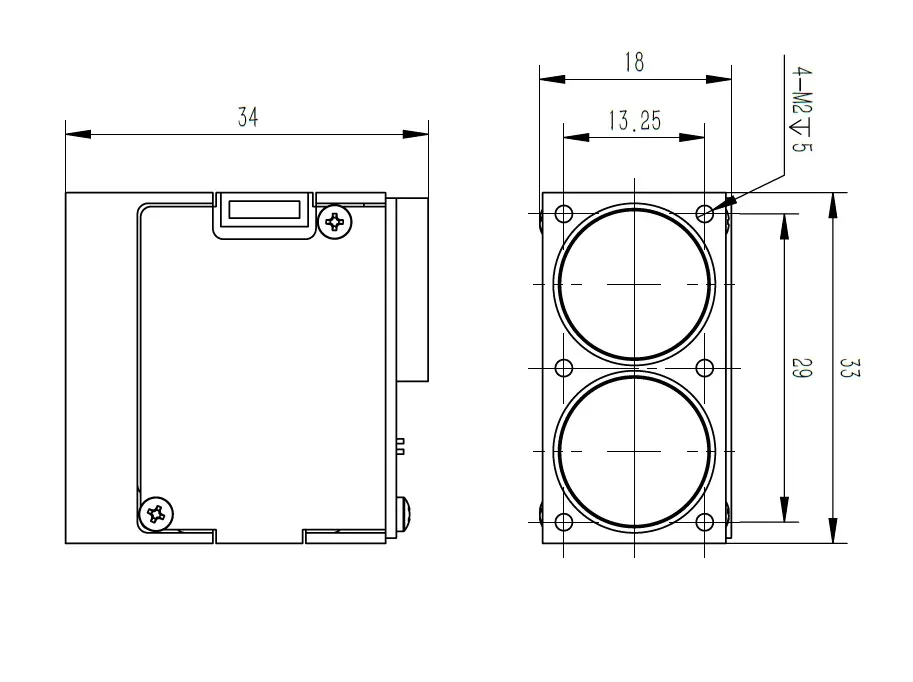

LRF300H two-dimensional mechanical drawing
Mechanical dimension drawingTwo-dimensional 33 × 34 × 18 mm source drawing extracted from page 4.
HOW TO READ THE MEASUREMENT

Direct Time-of-Flight Ranging

The LRF300H model document identifies the product as direct time of flight (DToF). It determines distance from the delay between an emitted optical pulse and the accepted return.

R = c × Δt / 2R: one-way distance · c: propagation speed · Δt: measured round-trip delay

Real performance also depends on target reflectivity and area, incidence angle, atmospheric attenuation, receiver aperture, background light, detector response, timing thresholds and contamination of the optical path.

ENGINEERING DECISIONS

What the verified data supports

These are traceable design inputs, not unsupported superlatives or guaranteed field outcomes.

01

Performance envelope

Measurement range: 0.05-300 m (90% reflectivity); 0.05-100 m (10% reflectivity) · Accuracy: ±10 cm (<10 m); 1% (≥10 m)

02

Timing and output

Measurement frequency: 1 kHz or 50 Hz (automatically switched to match reflected-signal intensity) · Reported resolution: 1 cm · Repeatability: ±5 cm (<10 m); ±10 cm at 300 m

03

Electrical integration

Supply voltage: 9-36 V DC · Communication interface: UART, IIC · Average power consumption: 1.2 W

04

Mechanical integration

Dimensions: 33 × 34 × 18 mm · Weight: 20 ± 2 g · Operating temperature: -20°C to +60°C

APPLICATION REVIEW

Source-stated application context

Application labels indicate where the source proposes evaluation; they do not prove fitness without system testing.

  • Drones
  • Robots
  • Special vehicles
  • Traffic-safety early warning
  • Camera focusing
  • Tower-crane distance detection
  • Blade-encroachment detection
INTEGRATION CHECK

Confirm before selection

  • Define target size, reflectivity, incidence angle and required detection probability.
  • Reproduce sunlight, visibility, weather and optical-window conditions in acceptance testing.
  • Verify voltage tolerance, peak current, grounding, interface levels, baud rate and connector revision.
  • Separate accuracy, repeatability and displayed resolution in host requirements.
  • Confirm mounting datum, boresight, field of view, enclosure sealing and thermal path.
  • Assess accessible emission and labeling again after integration into the finished equipment.
TECHNICAL FAQ

Questions to resolve before design release

What causes LRF300H to use 1 kHz or 50 Hz?

The source states that the module switches automatically to match reflected-signal intensity. These are alternative operating modes. Do not advertise them as simultaneous streams, or state that the 1 kHz setting necessarily applies at the maximum published distance.

What does the 300 m capability actually refer to?

It refers to the stated 90%-reflectivity range limit. For a 10%-reflectivity target, the source gives an upper limit of 100 m. The selected application needs target-specific validation rather than an unconditional 300 m detection claim.

Is LRF300H specified for tower-crane distance detection?

Tower-crane distance detection is listed among the source applications, alongside drones and traffic early warning. That supports technical evaluation of the module for such equipment. It does not certify the completed installation or establish a protective stopping distance.

How should the 1 cm resolution entry be interpreted?

The front-page feature states 1 cm resolution, while the table gives ±10 cm accuracy below 10 m and 1% from 10 m upward. These describe different properties. The resolution must not be promoted as a full-distance accuracy specification.

Which host constraints distinguish this module from small VB devices?

The published supply is 9–36 V DC, the interface is UART/IIC, and the package is 33 × 34 × 18 mm with 20 ± 2 g mass. Those values support a real packaging and power comparison with compact low-voltage sensors.
