Technical Specifications
|
Parameter |
Specification |
|
Laser Wavelength |
905nm±5nm |
|
Laser Divergence Angle |
＜6mrad |
|
Optical Material |
Resin aspherical lens |
|
Receiving Aperture |
9.0mm × 14.5mm |
|
Ranging Range |
0.2m～1200m，Max 1500m (Night) |
|
Ranging Accuracy |
±0.3m (≤400m)±0.5m + d×0.1% (400m＜d＜1200m) |
|
Ranging Frequency |
4Hz~15Hz Adaptive |
|
Measurement Accuracy Rate |
≥98% |
|
False Alarm Rate |
≤1% |
|
Communication Interface |
UART-TTL, Customizable |
|
Baud Rate |
Default: 115200bps |
|
Supply Voltage |
3.3V~5V |
|
Start-up Time |
≤200ms |
|
Instant Start Current |
≈300mA |
|
Operating Power Consumption |
Average ≈0.5W，Max 0.75W |
|
Operating Temperature |
-20℃~+60℃ |
|
Storage Temperature |
-40℃~+60℃ |
|
Protection Grade |
Lens cavity IP67 |
|
Laser Safety Class |
IEC CLASS I |
|
Dimension |
24.6mm×14.45mm×26.3mm (Square) |
|
Weight |
≤10g |
Functional Description
The system supports single measurement and continuous measurement functions.
3.1 External Circuit Enable
Enables the module for normal operation.
3.2 External Circuit Disable
Disables the external circuit to reduce power consumption.
3.3 Single Measurement
Triggers a single distance measurement to the target. For low-reflectivity targets, the system automatically repeats measurements until stable distance data is obtained. The result is then transmitted via the serial interface in the standard data format.
3.4 Continuous Measurement
In continuous measurement mode, the laser module performs repeated distance measurements on the target. The typical refresh rate can be set to 4 Hz, and the maximum refresh rate can reach 15 Hz.
Electrical Interface Definition
|
Pin |
Definition |
Description |
|
1 |
GND |
Power − |
|
2 |
VCC |
Power + |
|
3 |
I/O (Reserved) |
Reserved for expansion |
|
4 |
TXD |
Signal output port, Ranging Module → Host |
|
5 |
RXD |
Signal input port, Host → Ranging Module |
|
6 |
SW-SHOT |
Function Enable (active high) Note: Compatible with active-low control requirements |
Mechanical Interface

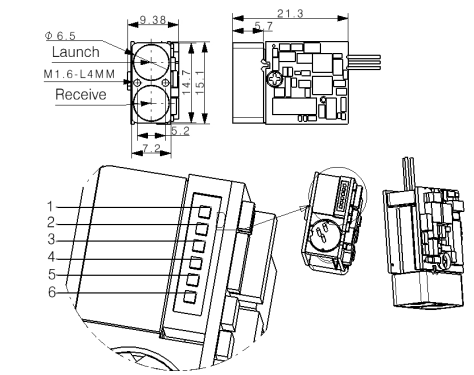

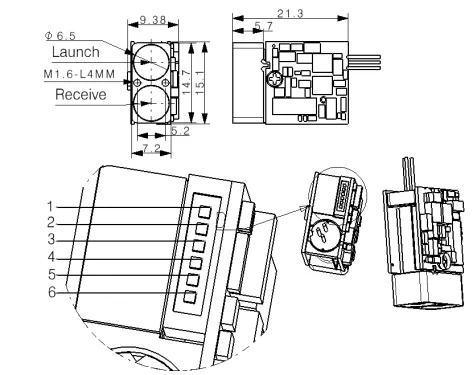

Mechanical Dimension Drawing and Electrical Interface Diagram

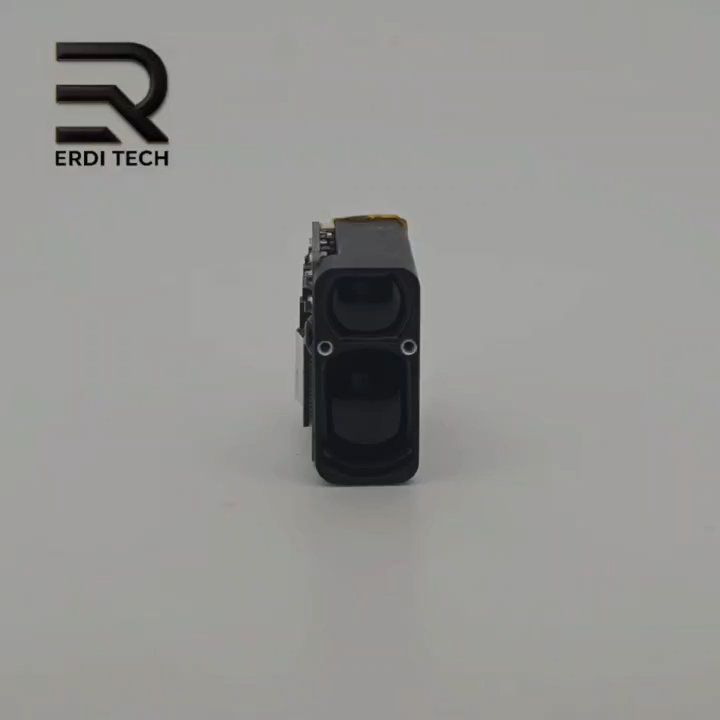

Product Description
Core Features & Key Advantages (Keyword-Integrated Naturally)
-
Full Range Detection & Multi-Level High Precision: Engineered to cover a full detection range from 0.2m to 1200m, with a maximum of 1500m at night, the SPD1200S2 adapts to both short-distance and ultra-long-range sensing needs. It features multi-level high precision across different distance ranges, maintaining a 98%+ valid measurement rate to ensure trustworthy data output, perfect for indoor positioning, outdoor detection, and large-scale industrial measurement.
-
Resin Aspherical Lens & Safe, Stable Operation: Adopting high-quality resin aspherical lens, the module enhances light transmission efficiency and measurement stability in various environments. With a safe laser classification, it supports long-term, worry-free operation in various application scenarios, ensuring safety for operators and end-users.
-

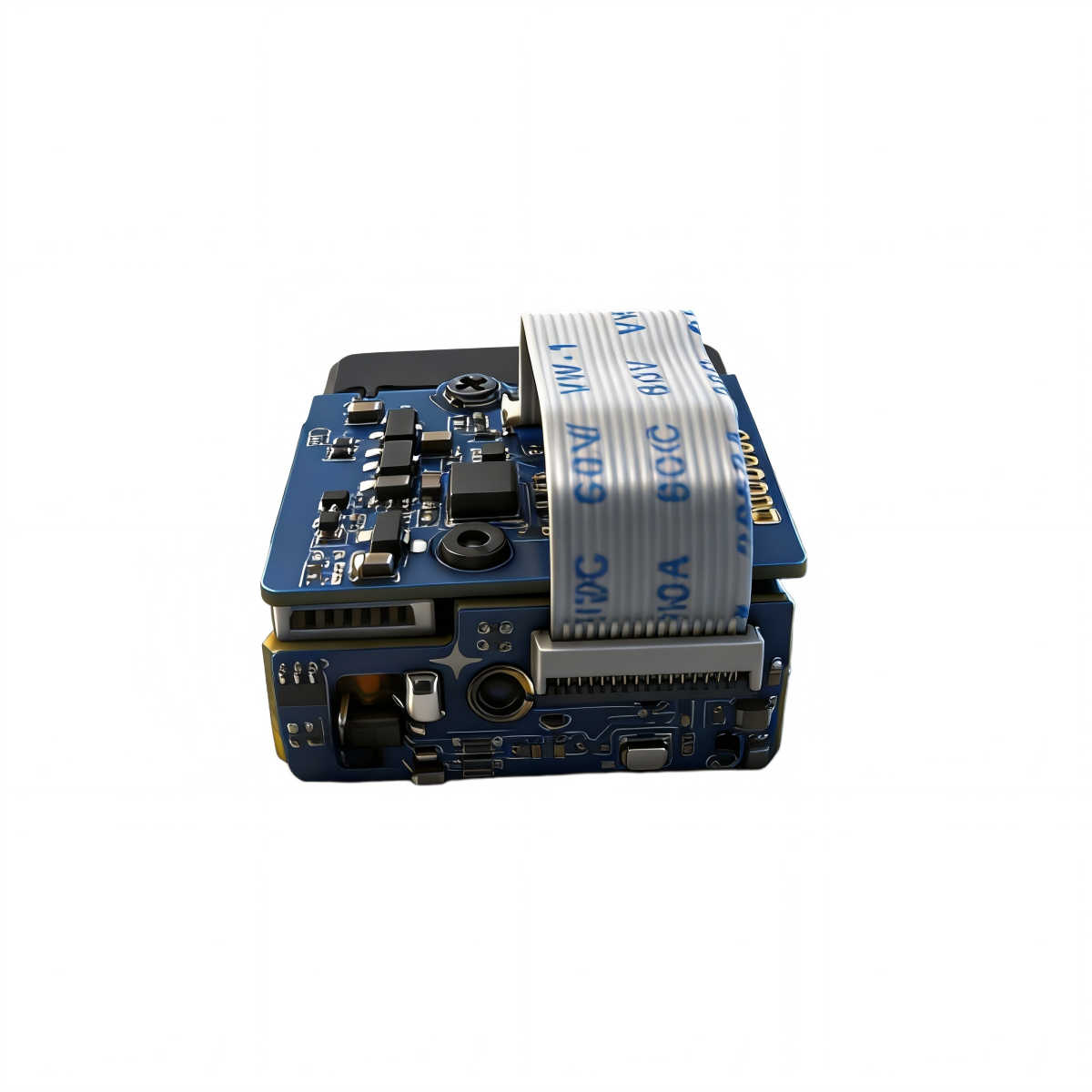

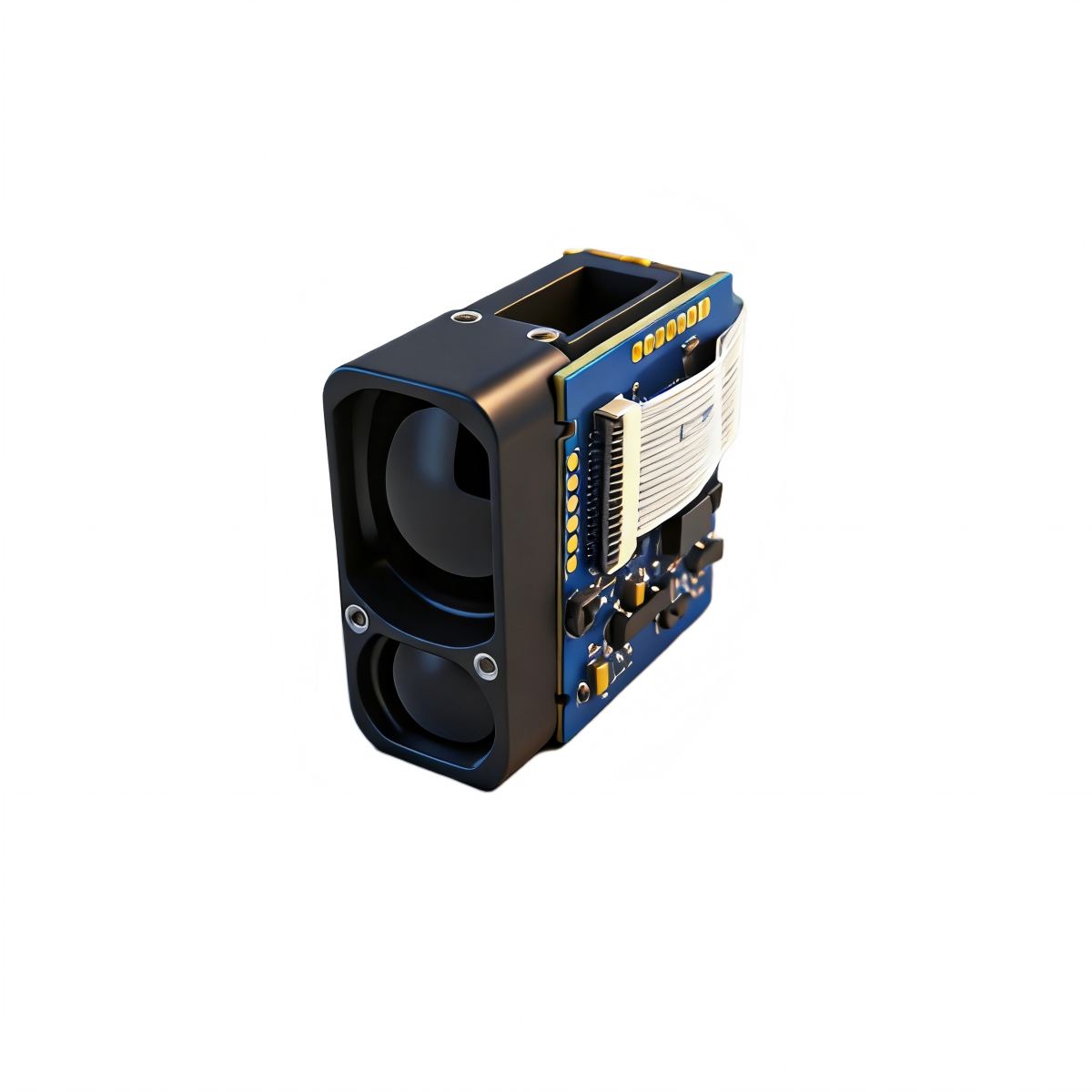

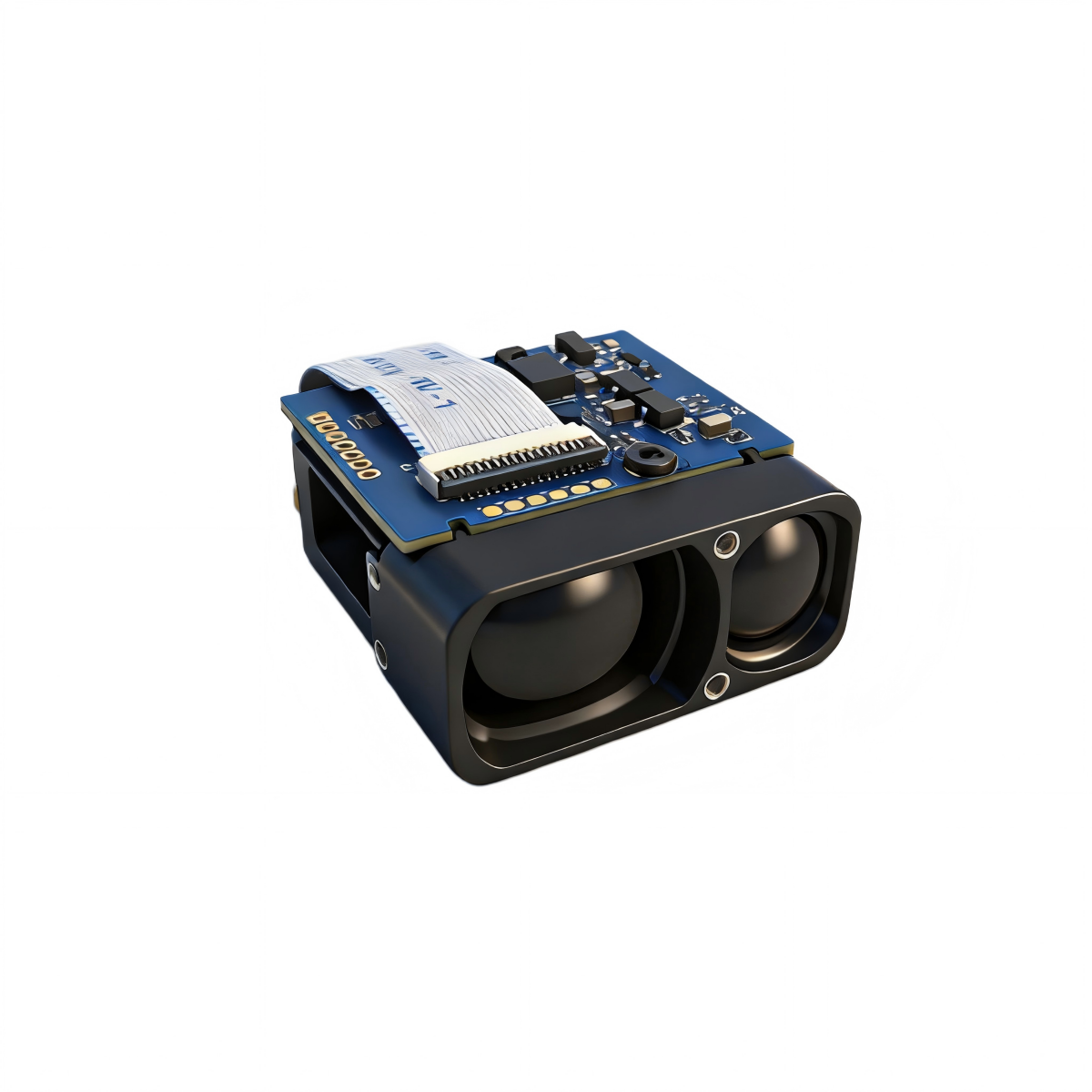

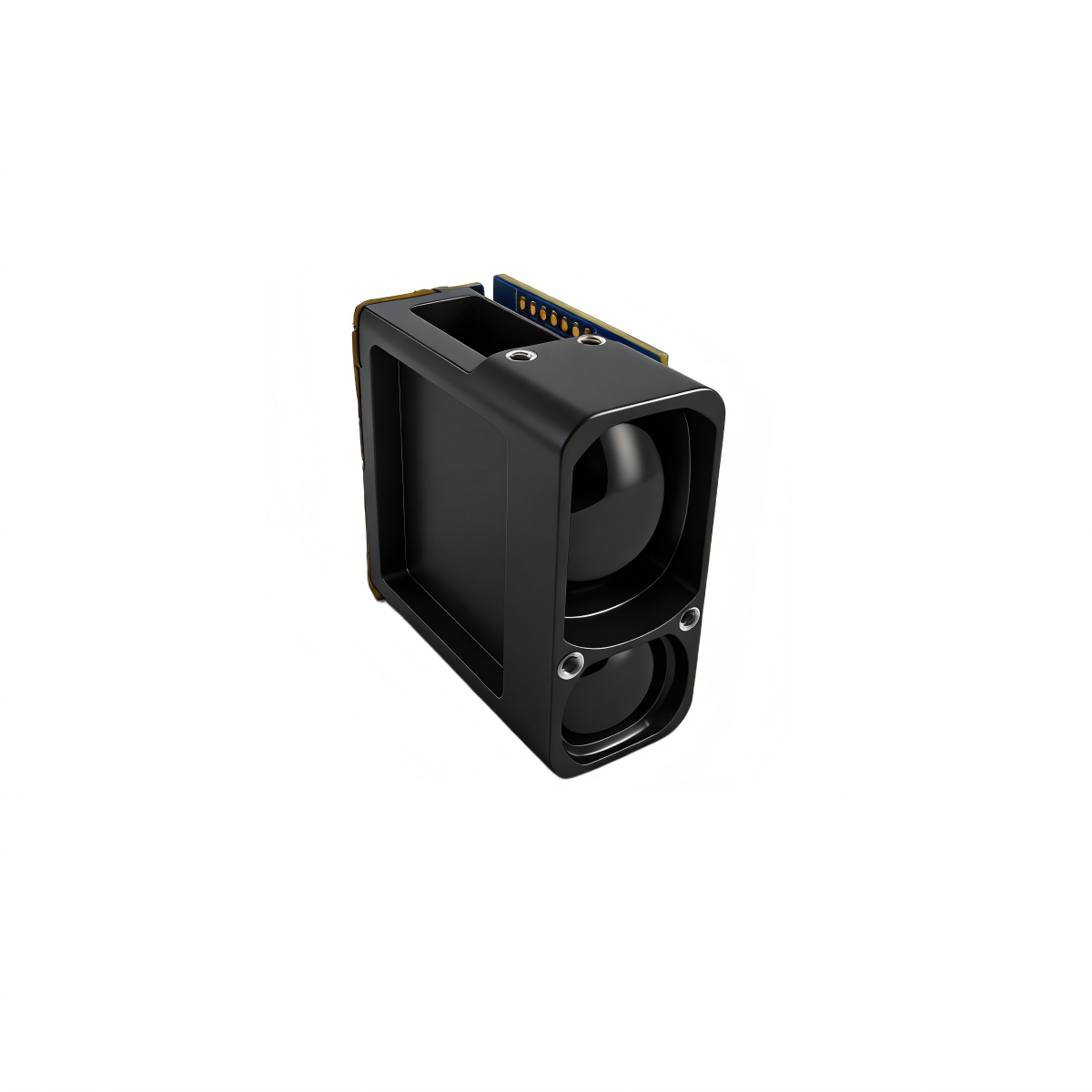

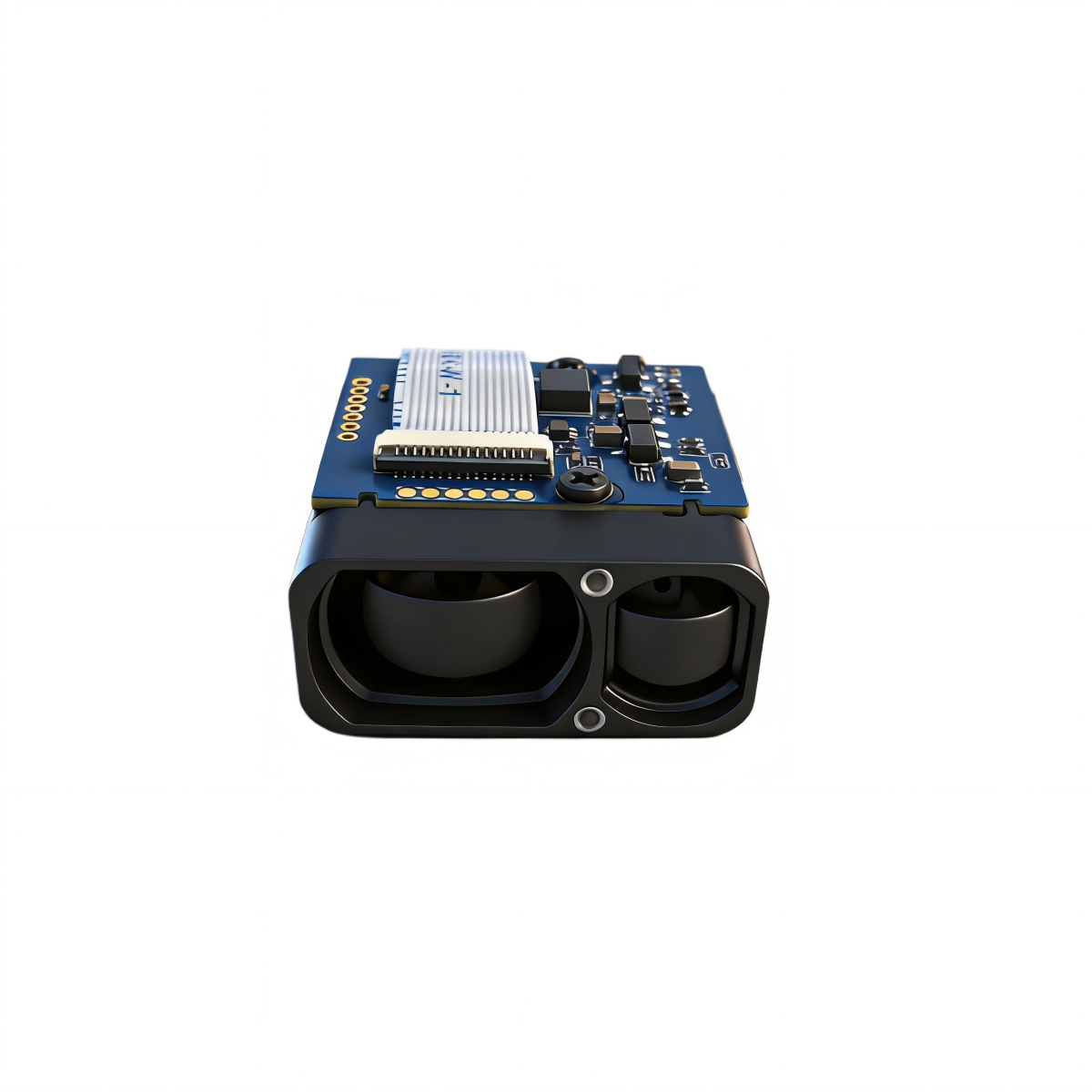

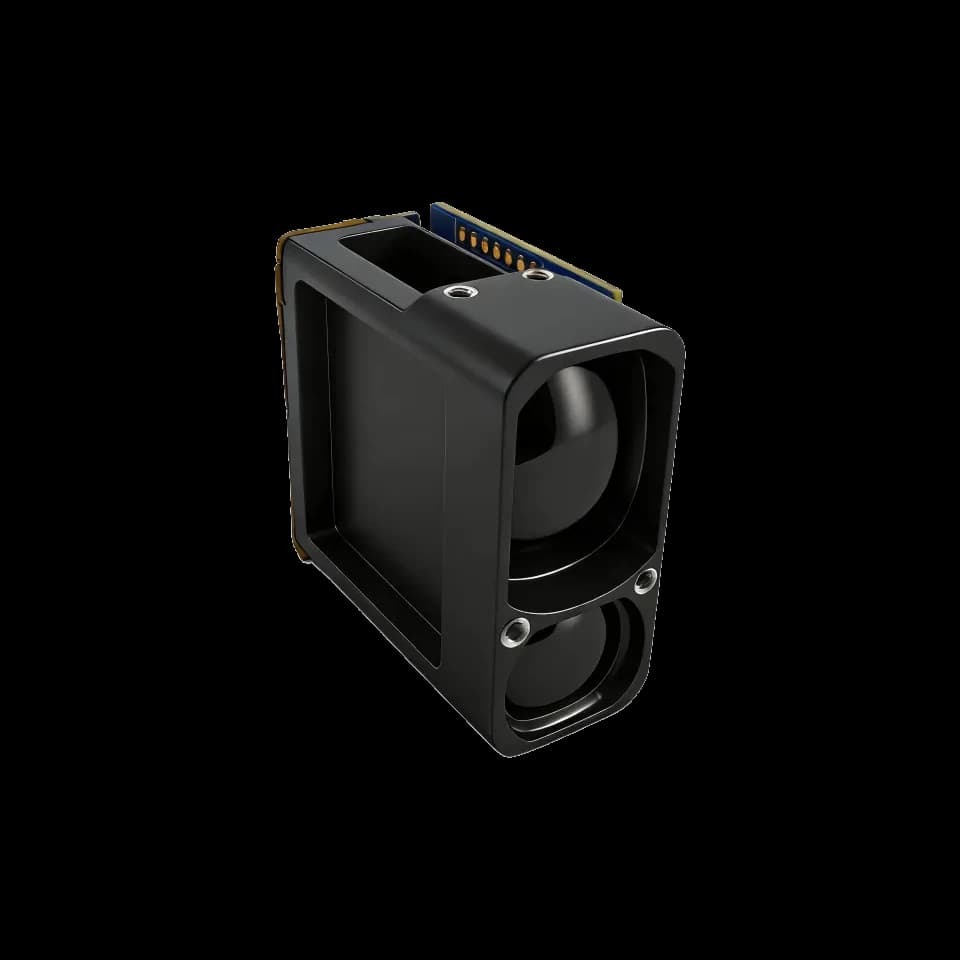

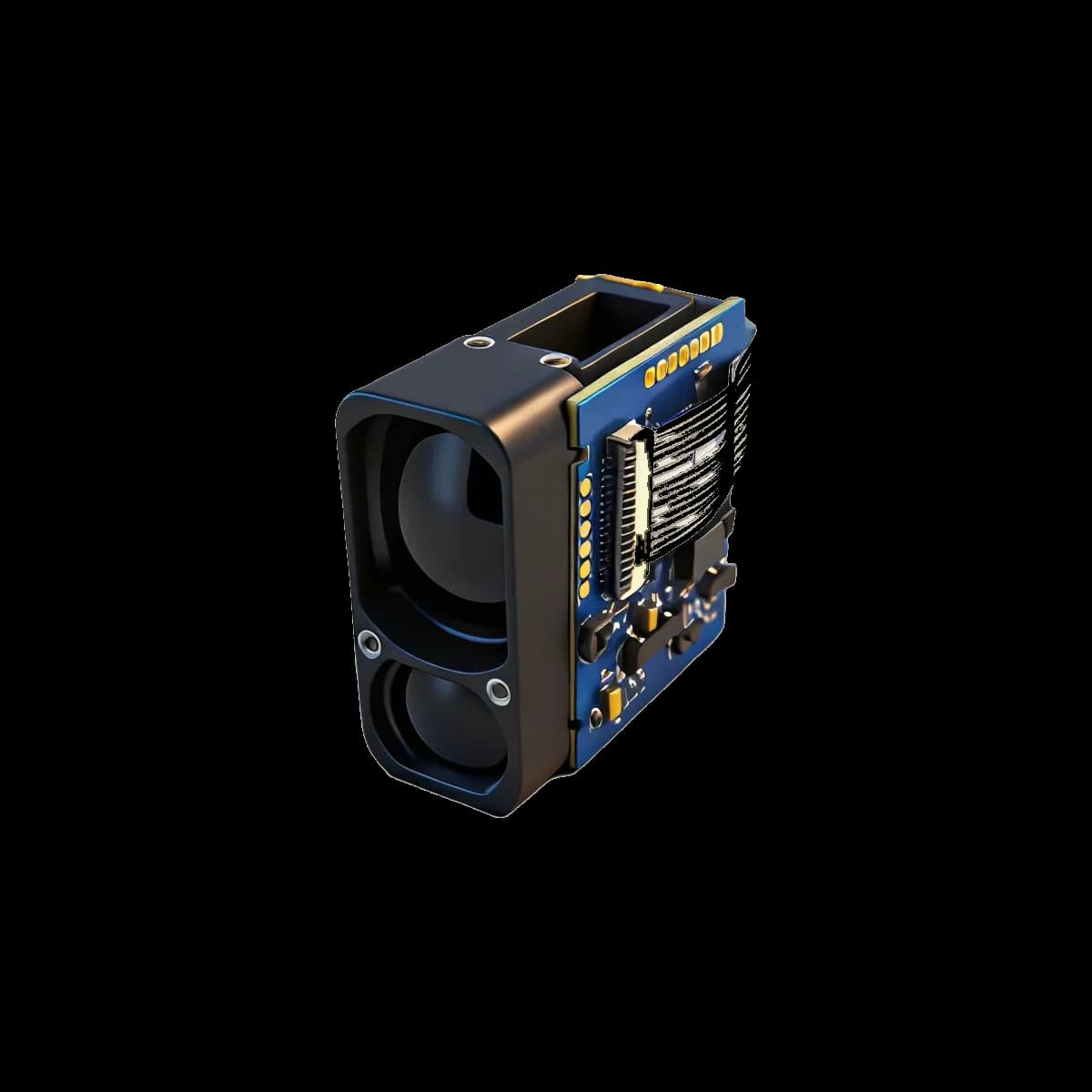

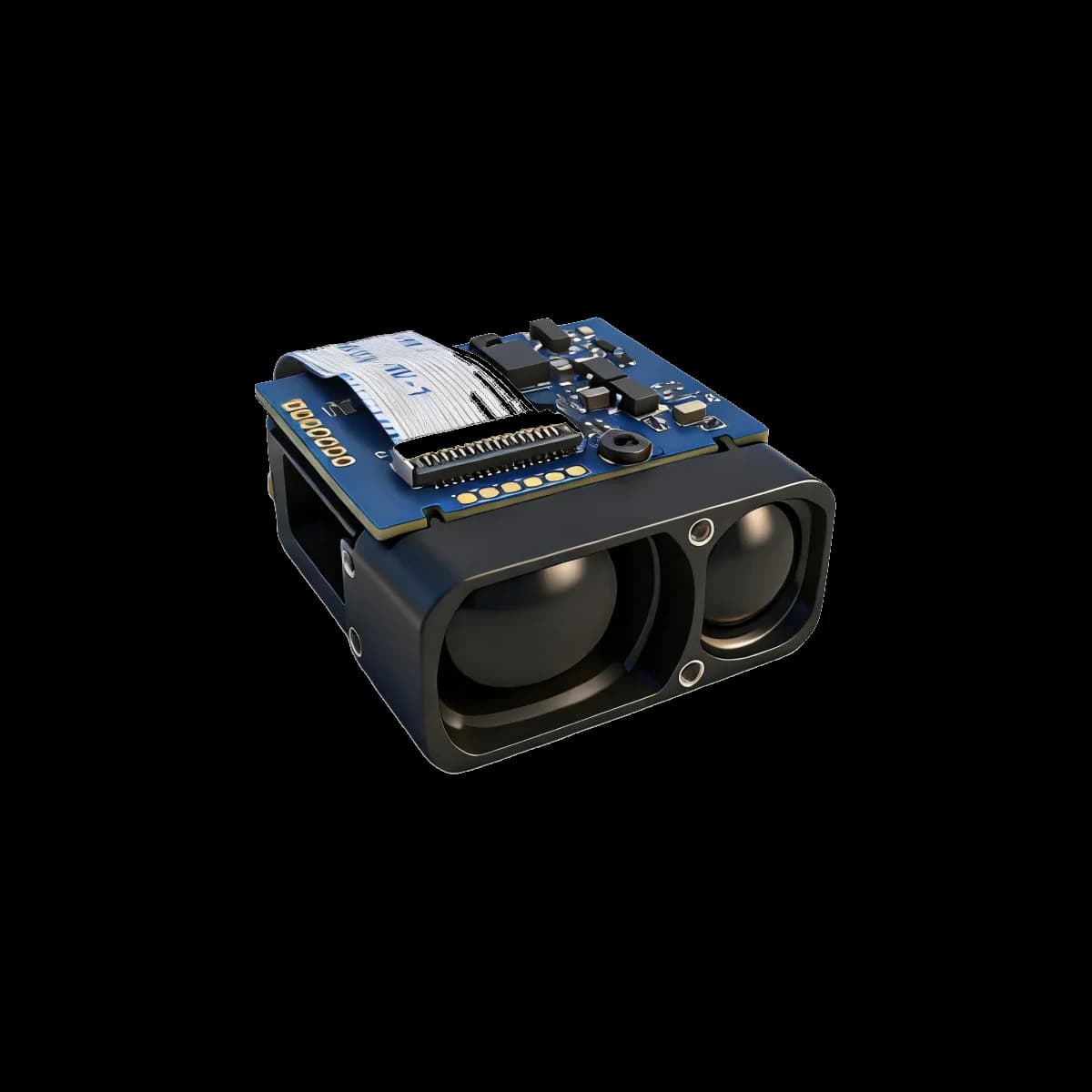

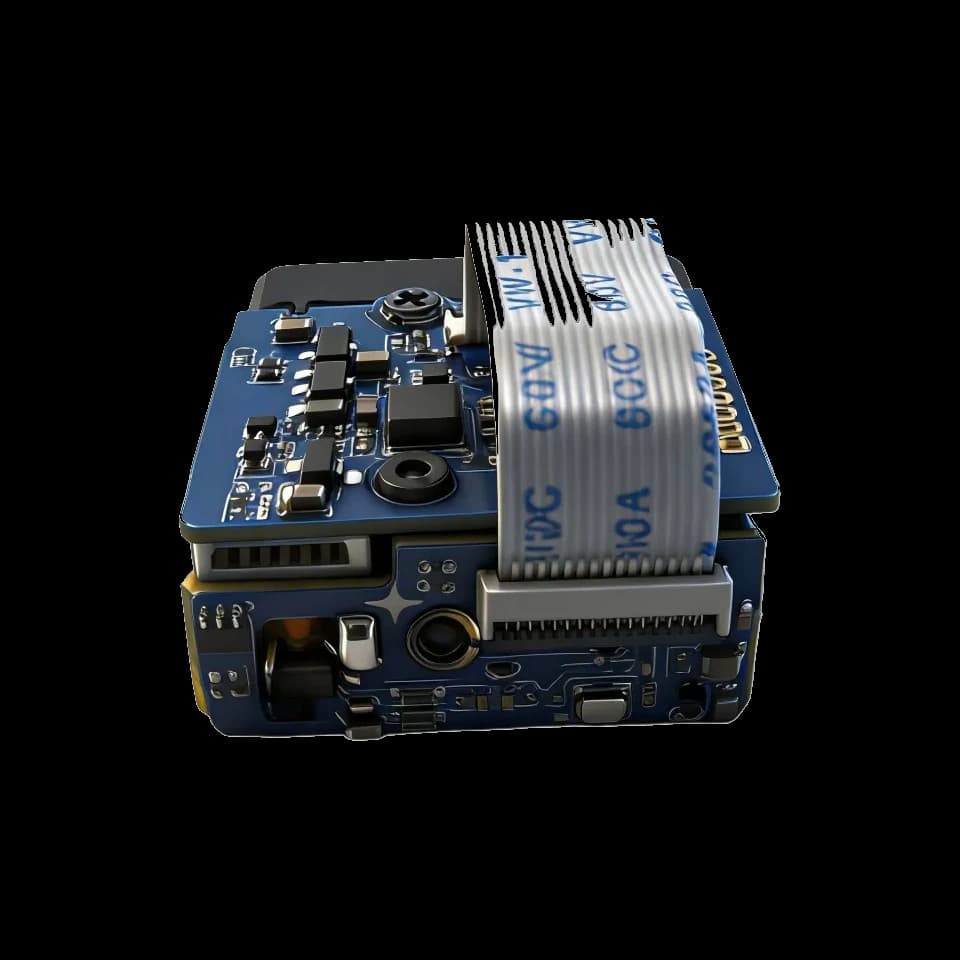

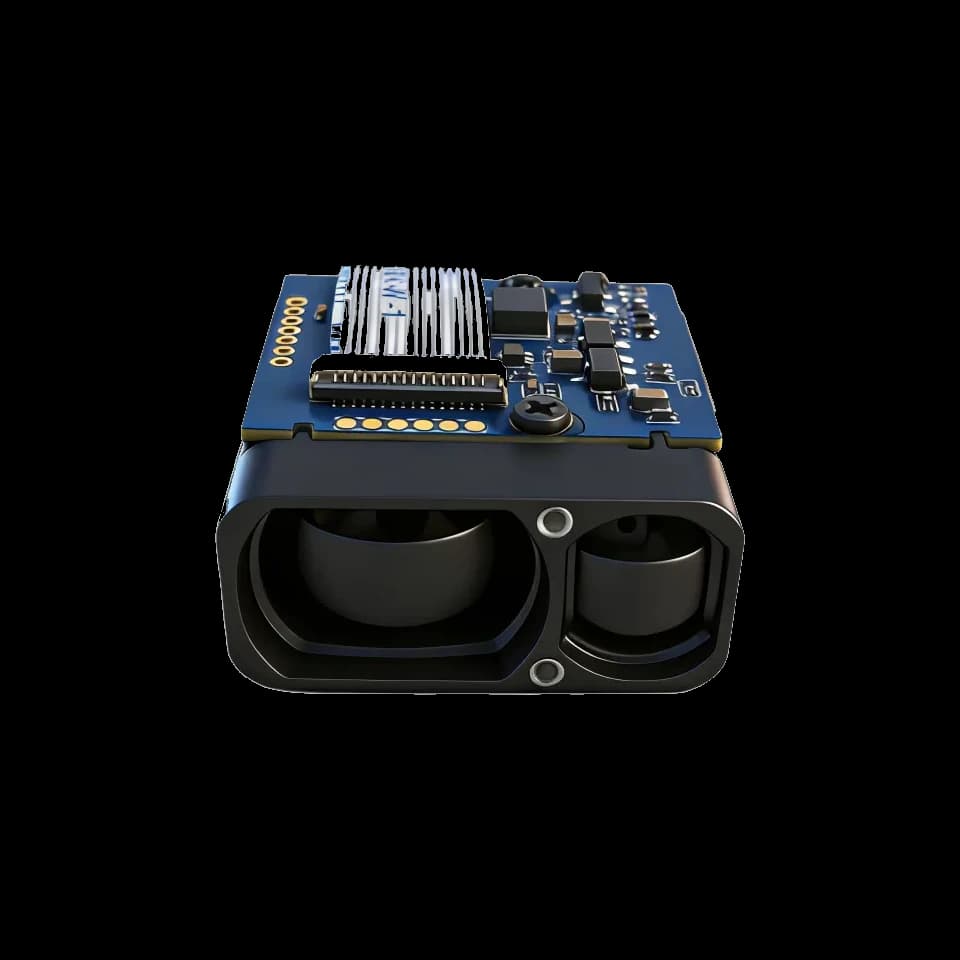

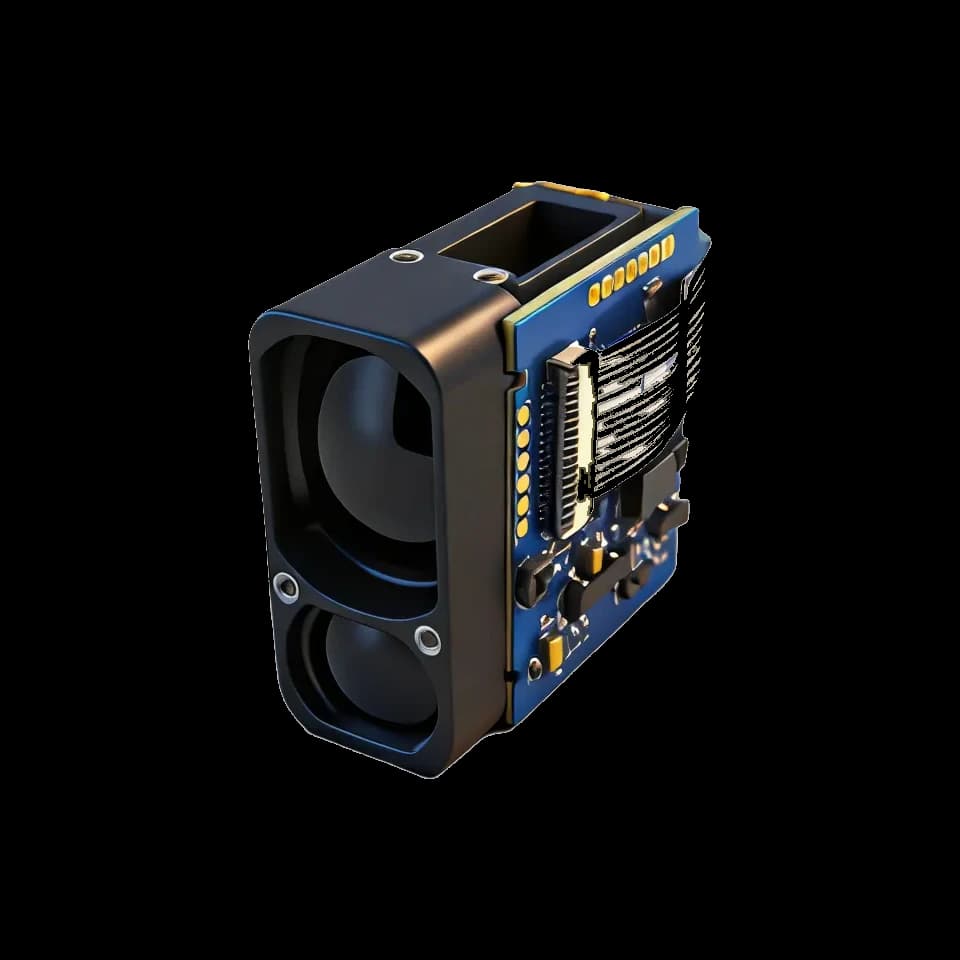

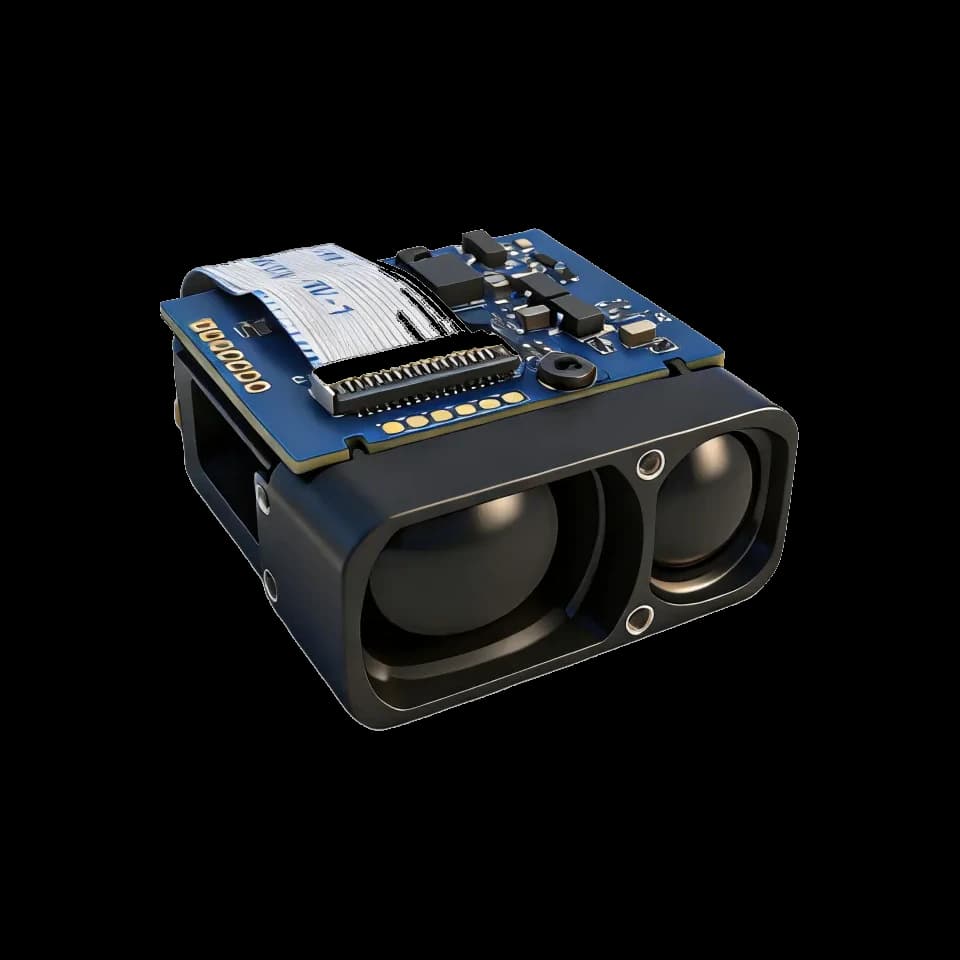

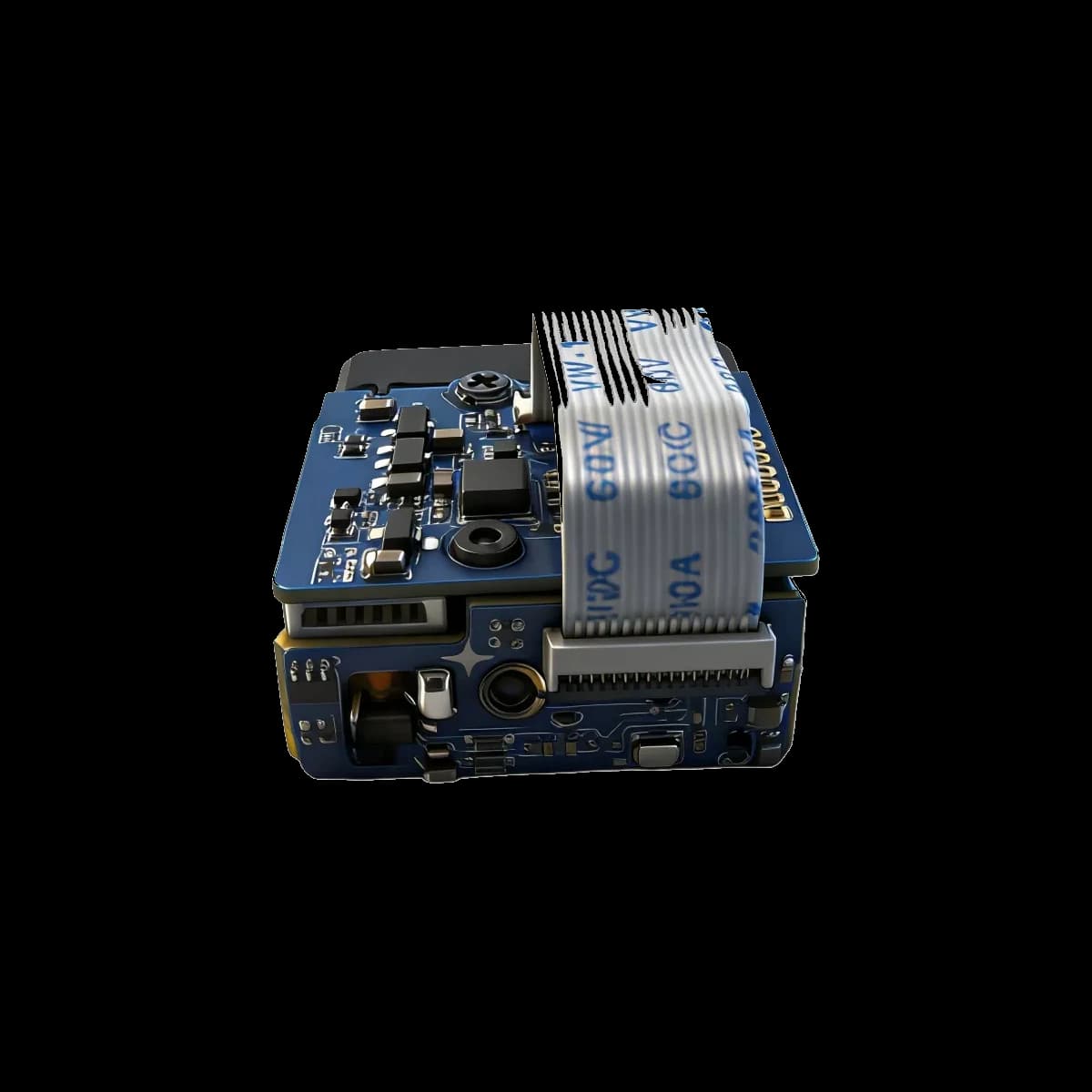

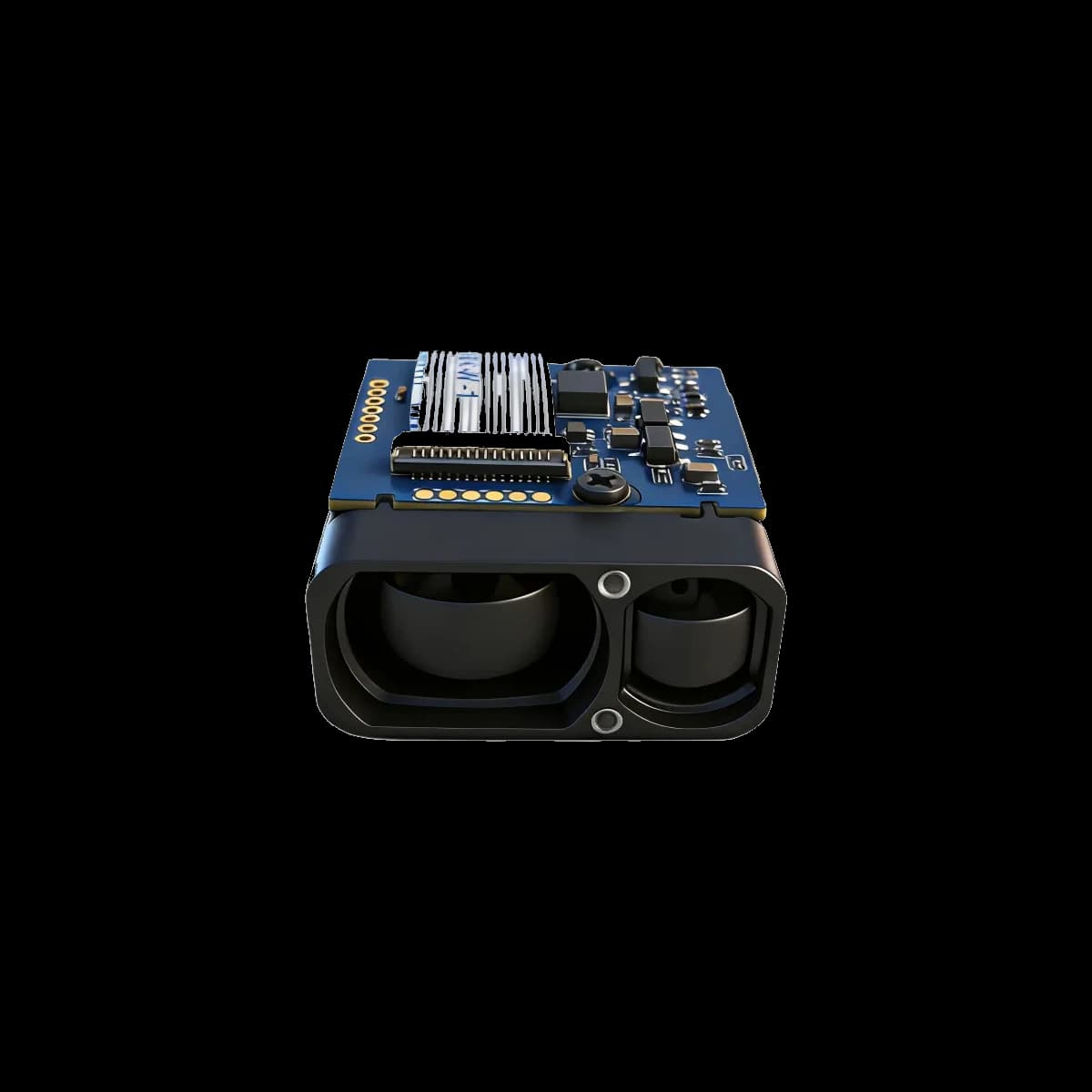

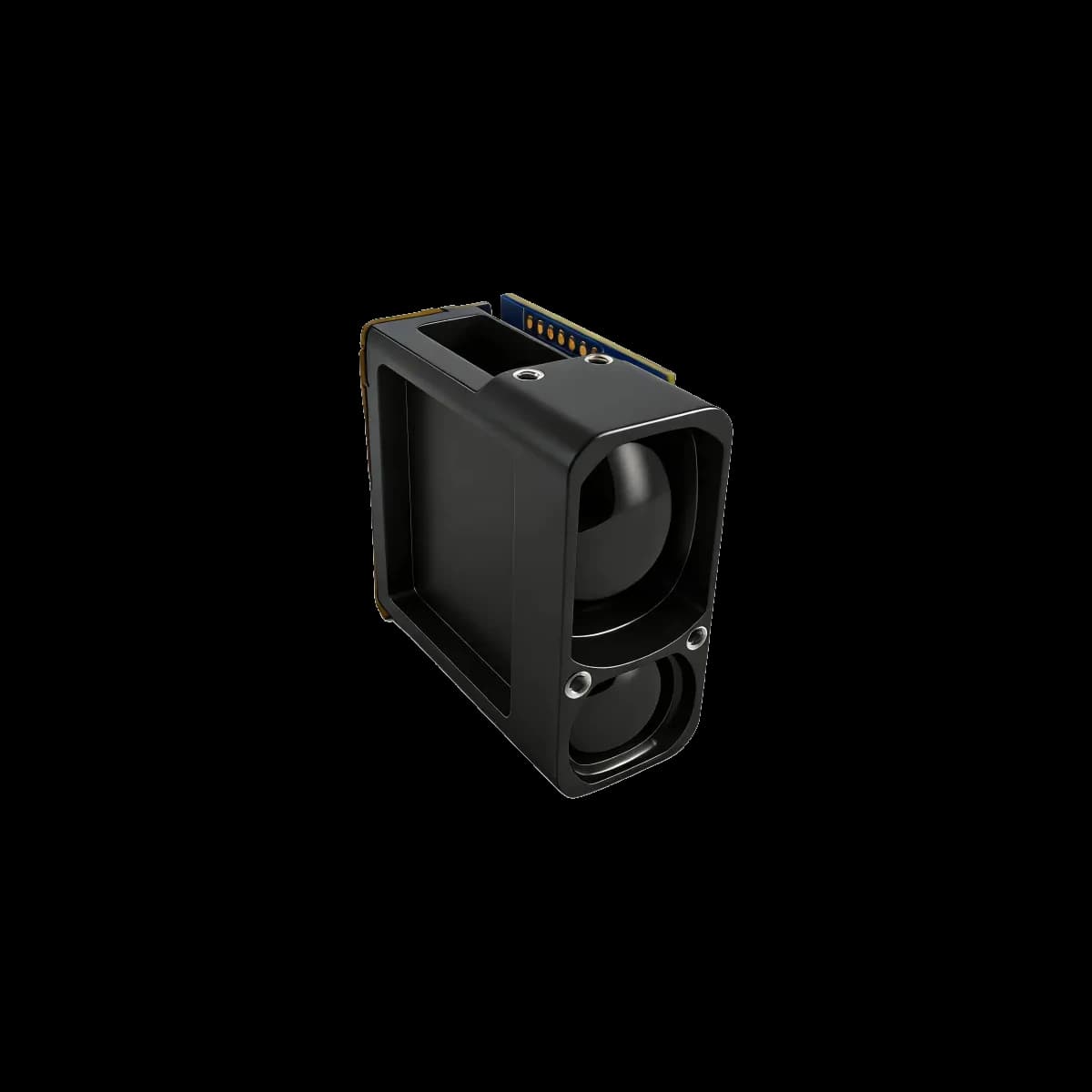

Compact Square Design & Durability: Its compact square structure (24.6mm×14.45mm×26.3mm) and lightweight design (≤10g) allows for easy integration into small devices and tight spaces. With IP67 lens cavity protection, shock and vibration resistance, it maintains excellent durability in harsh industrial and outdoor conditions, reducing maintenance costs and extending service life.
-
High Efficiency & Flexible Integration: The module features adaptive ranging frequency (4Hz~15Hz) for flexible adjustment, quick startup, and efficient power consumption (average ≈0.5W), supporting long-term energy-efficient operation. Its customizable UART-TTL communication interface and default 115200bps baud rate make it easy to integrate with controllers, robots, and other intelligent systems, adapting to diverse project needs.
-
Wide Temperature Adaptability & High Reliability: Built to operate in a wide temperature range of -20℃ to +60℃, the module maintains stable performance in diverse climates and harsh conditions. With an MTBF of ≥1500h, it ensures long-term, continuous operation, minimizing downtime and improving overall work efficiency for your projects.
