LR1000D23 Compact Laser Ranging Module (Ø23×47mm) with IEC Class 1 Safety

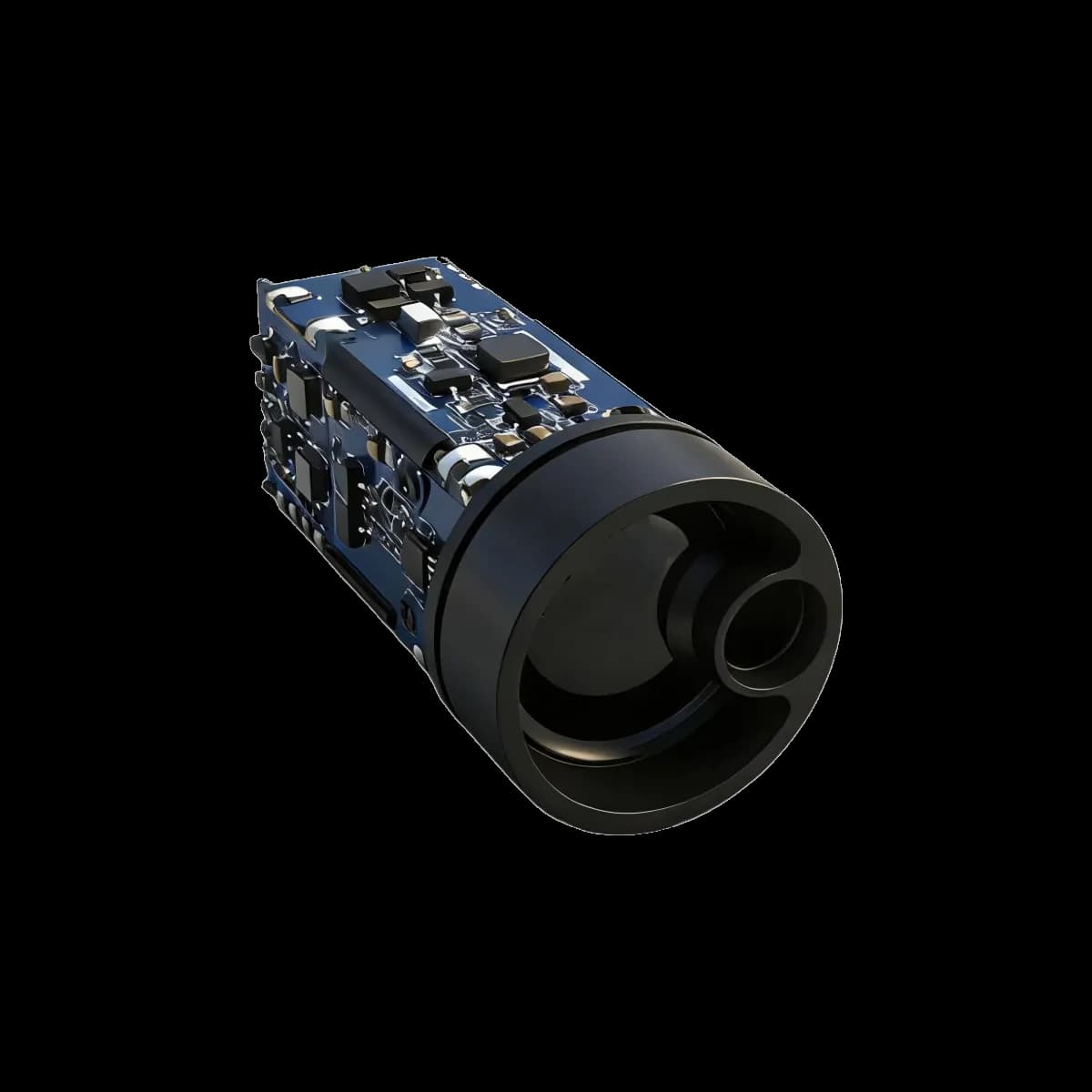

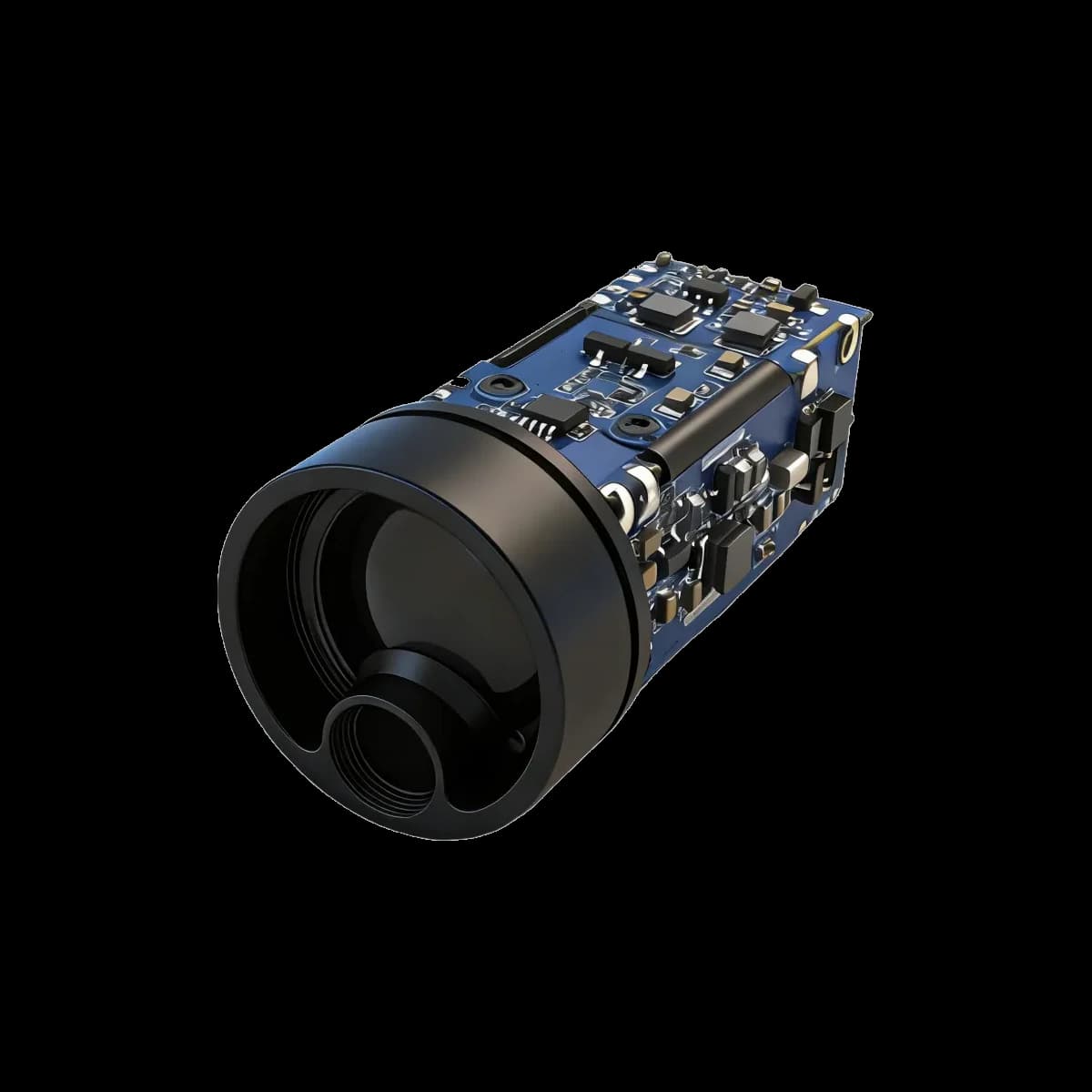

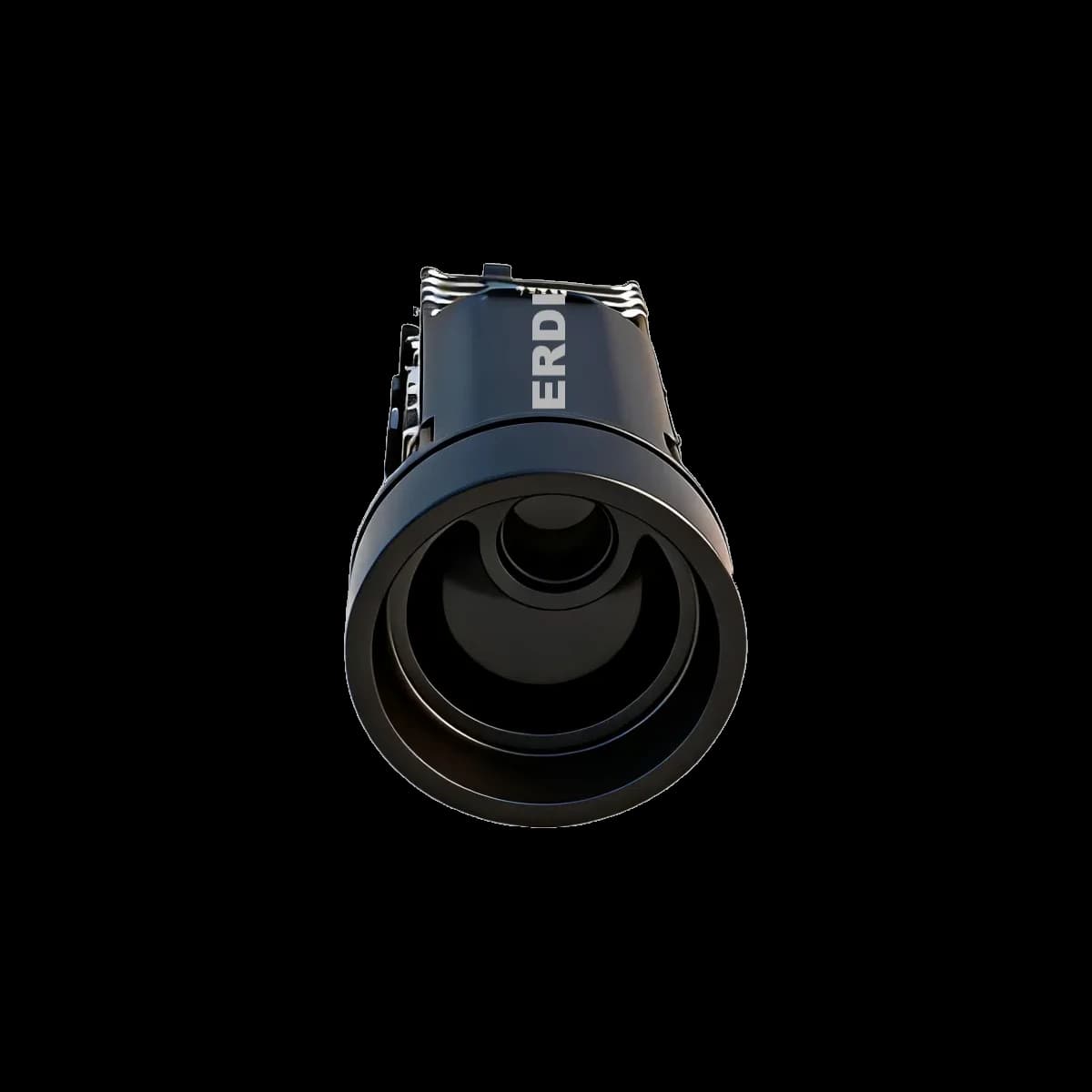

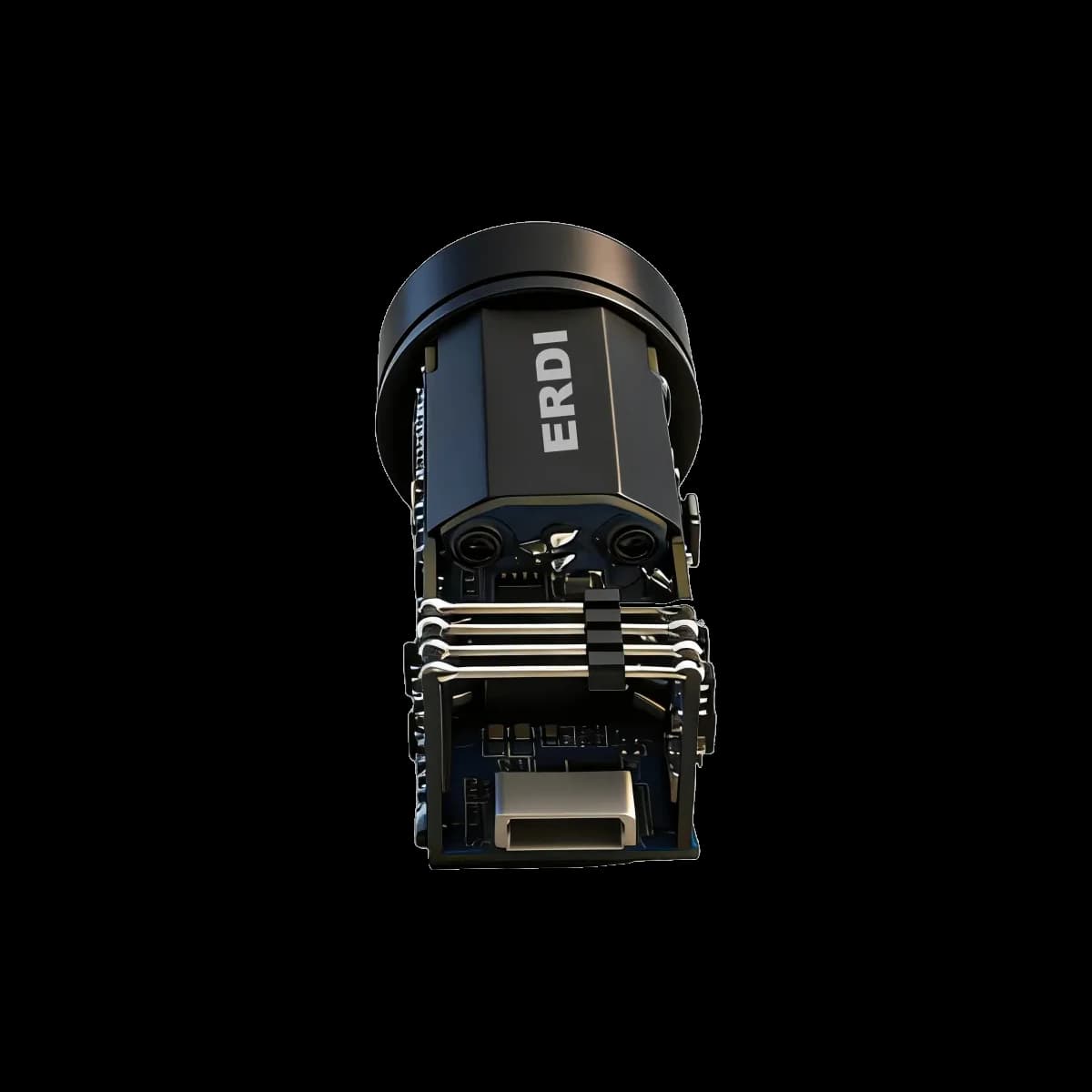

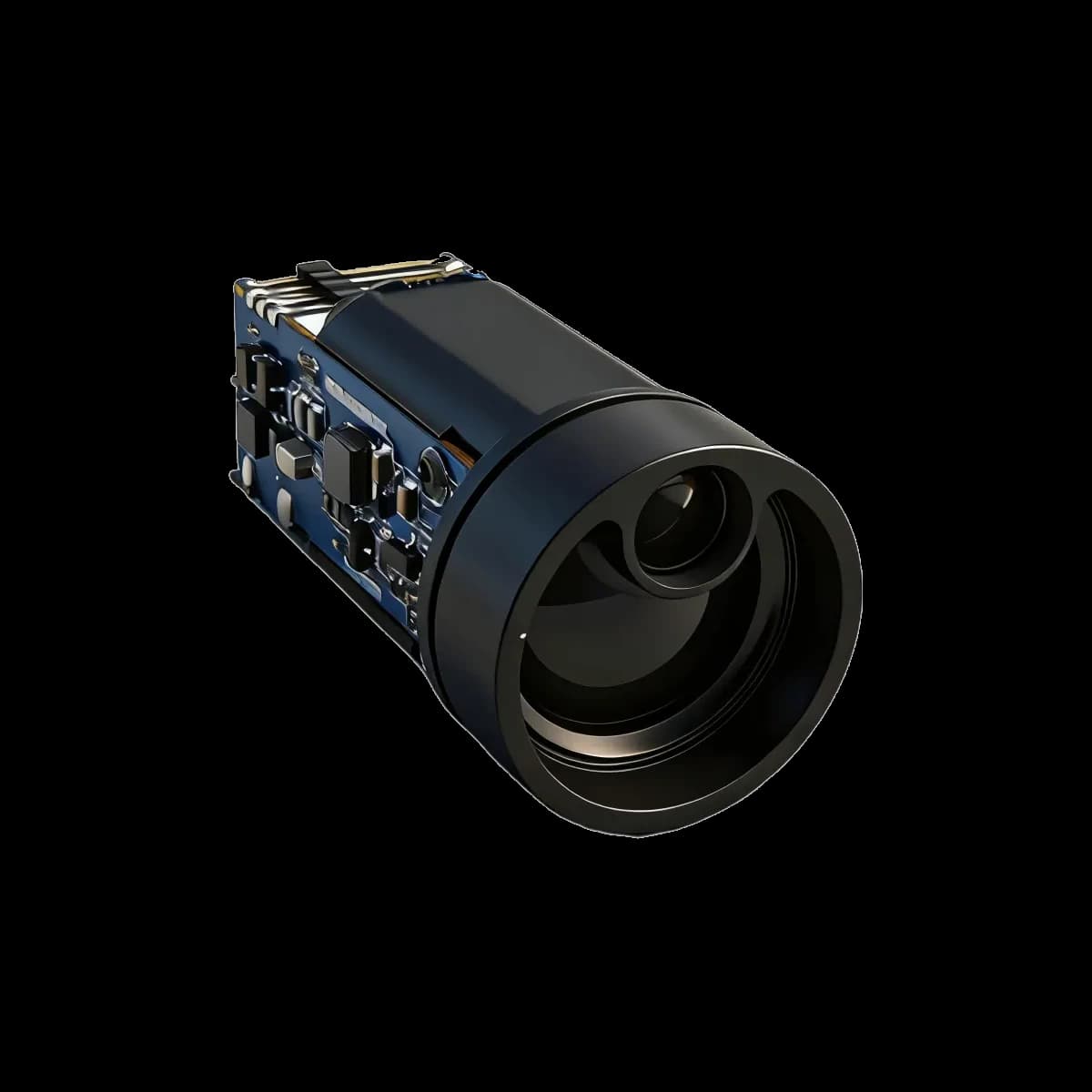

Authentic product views from the ERDI product record. Use the controlled mechanical drawing and connector definition for design release.

ERDI OEM LASER MODULE

LR1000D23 Compact Laser Ranging Module (Ø23×47mm) with IEC Class 1 Safety

$110 USD / unitPublished unit price; additional volume tiers require quotation. Shipping and Incoterm are confirmed in the quotation.
Product modelLR1000D23
ENGINEERING FILES

Technical Downloads

Use the current controlled document revision for design review and confirm the ordered connector and mechanical configuration before release.

FILERequest PDF DatasheetLR1000D23 controlled product specification3DOpen Interactive 3D ModelRotate, zoom and request the controlled STEP source

The LR1000D23 laser ranging module is a professional long-range laser distance sensor designed to deliver reliable, high-accuracy measurement performance for industrial, outdoor, and commercial applications.

B2B PURCHASING

Volume Pricing

Published unit prices apply only to the stated quantity band. Configuration, qualification, tax and Incoterm details are confirmed in the quotation.

USD / unit
1+ piecesPublished unit price$110 USDPublished unit price
Additional volume bands require an approved quotation.ERDI does not publish unverified discounts. Select a planning quantity below and the sales team will confirm configuration, Incoterm, lead time and unit pricing.
Buy nowRequest a quote

Purchase proceeds through an approved quotation or proforma invoice.

Technical Specifications

Parameter

Specification

Laser Wavelength

905 nm ± 5 nm

Laser Beam Divergence

< 6 mrad

Optical Material

Resin aspheric lens

Receiver Aperture

20 mm ± 0.05 mm

Ranging Range

White building: 4 m – 1000 m (max. 1200 m at night); vegetation ≥ 750 m

Ranging Accuracy

δ ≤ 100 cm, 5 m ≤ d < 1000 m¹) (Standard version: ±1 m)

Ranging Frequency

3 Hz – 12 Hz (customizable)

Ranging Resolution

Typical resolution: 20 cm

Valid Measurement Rate

≥ 98%

False Alarm Rate

≤ 1%

Communication Interface

UART-TTL, customizable

Baud Rate

115200 bps

Supply Voltage

3.3 V – 5 V (recommended supply voltage ≥ 3.5 V)

Operating Power Consumption

Average power consumption < 1 W

Peak Current

Typical startup inrush current ≈ 350 mA (at typical 3.3 V supply)

Operating Temperature

−20 °C to +60 °C

Storage Temperature

−40 °C to +60 °C

Protection Rating

None (lens cavity IP67)

Laser Safety Class

IEC Class 1

Shock Resistance

1000 g, 1 ms, 500 cycles

Dimensions

Ø23 mm × 47 mm

Spot Banding (Beam Striping)

3.15 cm × 3.15 cm @ 10 m

Weight

≈ 20 g

Shock

1000 g/ms (10 times/s along the optical axis)

Vibration

5–50–5 Hz, 1 octave/min, 2.5 g

Reliability

MTBF ≥ 1500 h

Functional Description

The system supports single measurement, continuous measurement, and angle measurement functions.

3.1 External Circuit Enable
Enables the module for normal operation.

3.2 External Circuit Disable
Disables the external circuit to reduce power consumption.

3.3 Single Measurement
Triggers a single distance measurement to the target. For low-reflectivity targets, the system automatically repeats measurements until stable distance data is obtained. The measured result is then transmitted via the serial interface in the standard data format.

3.4 Continuous Measurement
In continuous measurement mode, the laser module performs repeated distance measurements on the target. The typical refresh rate is set to 2 Hz or 5 Hz, and the maximum refresh rate can reach 30 Hz (customized version required). The refresh rate can be adjusted via the serial interface.

3.5 Angle Measurement
Angle measurement is available upon request. The system measures the target’s pitch angle within a detectable range of –70° to +70°, with an accuracy of ±0.3°. Internal angle data (X/Y/Z coordinates) can be provided for customer-side development and integration.

Electrical Interface Definition

Pin

Definition

Description

1

GND

Power −

2

VCC

Power +

3

I/O (Reserved)

Reserved for expansion

4

TXD

Signal output port, Ranging Module → Host

5

RXD

Signal input port, Host → Ranging Module

6

SW-SHOT

Function Enable (active high)

Note: Compatible with active-low control requirements

Mechanical Interface

LR1000D23 Compact Laser Ranging Module (Ø23×47mm) with IEC Class 1 Safety product technical image

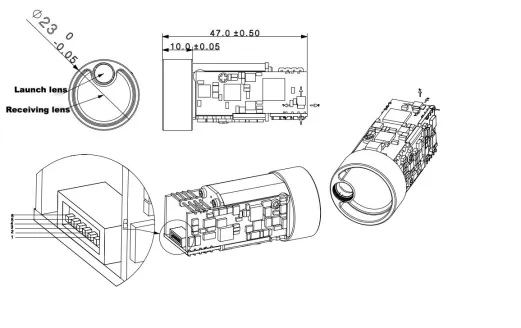

Mechanical Dimension Drawing and Electrical Interface Diagram

Product Description

LR1000D23 is an industrial-grade long-range laser ranging module designed for demanding outdoor and industrial applications. Featuring a compact circular form factor and high-performance large-aperture optical system, it delivers reliable distance detection across diverse target types and environmental conditions. With robust construction, flexible customization options, and proven long-term reliability, it seamlessly integrates into various industrial and outdoor equipment, solving complex long-distance measurement challenges efficiently.

Core Advantages

  • Multi-Target Stable Long-Range Detection: Optimized for different surface types, it provides consistent ranging performance on buildings, vegetation, and other common outdoor targets, with significantly enhanced detection capability in low-light and nighttime conditions. Its uniform laser spot ensures accurate targeting even for distant objects.
  • Flexible Customization & Easy Integration: Supports a wide range of customizable measurement frequencies to match the specific needs of different applications, from slow-paced industrial monitoring to dynamic outdoor detection. Its standard communication interface ensures seamless compatibility with most control systems, simplifying integration and reducing development time.
  • Robust Industrial-Grade Durability: Features IP67 protection for the lens cavity, along with exceptional shock and vibration resistance, allowing it to operate reliably in harsh industrial environments, extreme temperatures, and high-vibration conditions. The eye-safe laser design ensures safe long-term operation for both operators and bystanders.
  • High Reliability & Low Maintenance: Built with industrial-grade components and rigorously tested for long-term performance, it offers excellent reliability with minimal maintenance requirements, reducing downtime and total cost of ownership for your projects.

Ideal Applications

The LR1000D23 is perfectly suited for scenarios requiring reliable long-distance measurement across diverse targets, including: outdoor perimeter security and intrusion detection, forestry and vegetation monitoring, construction site surveying, drone altitude control and obstacle avoidance, industrial automation material handling, and smart city infrastructure monitoring.

We offer comprehensive customization services to tailor the module's performance and interface to your specific project requirements. Backed by proven reliability and dedicated technical support, the LR1000D23 provides a cost-effective and high-performance solution for all your long-range laser ranging needs.
