Detailed SPD1200D03 Specifications
Every value below is bound to the model source named on this page. Qualifiers and test conditions are retained; missing values are not inferred.
Basic ranging performance
| Parameter | Value | Source condition |
|---|---|---|
| Maximum range | ≥1200 m | 70% reflectivity building target; visibility ≥6 km |
| Minimum range | 0.2 m | 90% reflectivity whiteboard |
| Ranging accuracy | ±0.3 m (D ≤100 m); ±(0.4 + 0.006 × D) m (D >100 m) | D in meters; controlled source table |
| Measurement frequency | 2–15 Hz, adaptive | SPD1200D03 controlled source technical table |
Mechanical and environmental
| Parameter | Value | Source condition |
|---|---|---|
| Valid measurement rate | ≥98% | SPD1200D03 controlled source technical table |
| False alarm rate | ≤1% | SPD1200D03 controlled source technical table |
| Baud rate | 15200 bps (factory) / 9600 bps | SPD1200D03 controlled source technical table |
| Response time | ≤200 ms | SPD1200D03 controlled source technical table |
| Receive aperture | Diameter 7 mm | SPD1200D03 controlled source technical table |
| Weight | 6 ±0.5 g | SPD1200D03 controlled source technical table |
| Dimensions | 10.7 × 16.8 × 22 mm | SPD1200D03 controlled source technical table |
| Shock | 1000 g/ms (10 times/s along optical axis) | SPD1200D03 controlled source technical table; source test wording retained |
| Vibration | 5–50–5 Hz, 1 octave/min, 2.5 g | SPD1200D03 controlled source technical table |
| Operating temperature | -20°C to +60°C | SPD1200D03 controlled source technical table |
| Storage temperature | -25°C to +75°C | SPD1200D03 controlled source technical table |
| Reliability | MTBF ≥1500 h | SPD1200D03 controlled source technical table |
| Protection rating | IP67 | Source-stated classification or rating; not independently certified by this page |
Electrical and communication interface
| Parameter | Value | Source condition |
|---|---|---|
| Interface | UART, TTL 3.3 V | SPD1200D03 controlled source technical table |
| Supply voltage | 3.3–5 V | SPD1200D03 controlled source technical table |
| Operating power (+3.3 V input) | ≤0.45 W at 25°C; ≤0.56 W at 60°C; ≤0.35 W at -20°C | SPD1200D03 controlled source technical table |
| Average laser power | 1.8 mW | SPD1200D03 controlled source technical table |
Optical parameters
| Parameter | Value | Source condition |
|---|---|---|
| Laser wavelength | 905 ±5 nm | SPD1200D03 controlled source technical table |
| Laser safety class | Class 1 (IEC 60825-1) | Source-stated classification or rating; not independently certified by this page |
| Typical beam divergence | ≤5 mrad | SPD1200D03 controlled source technical table |
Functional Description
The source low-power procedure pulls EN LOW for normal measurement operation and HIGH after measurement to return to low-power mode.
The controlled source lists single and continuous ranging as supported operating functions.

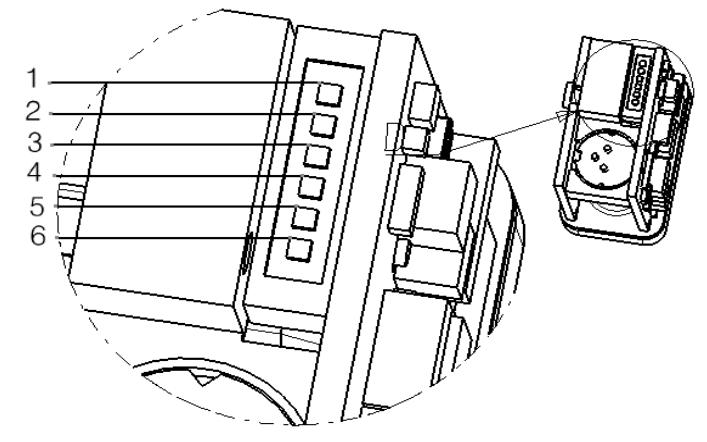

Electrical Interface Definition
Signal names and directions are transcribed from the model source.
| Pin | Signal | Source-stated function |
|---|---|---|
| 1 | GND | Power ground |
| 2 | VCC | Positive supply, 3.3–5 V |
| 3 | NC | No connection |
| 4 | TXD | Serial transmit, TTL 3.3 V level |
| 5 | RXD | Serial receive, TTL 3.3 V level |
| 6 | EN | Enable; source procedure pulls LOW for normal operation |

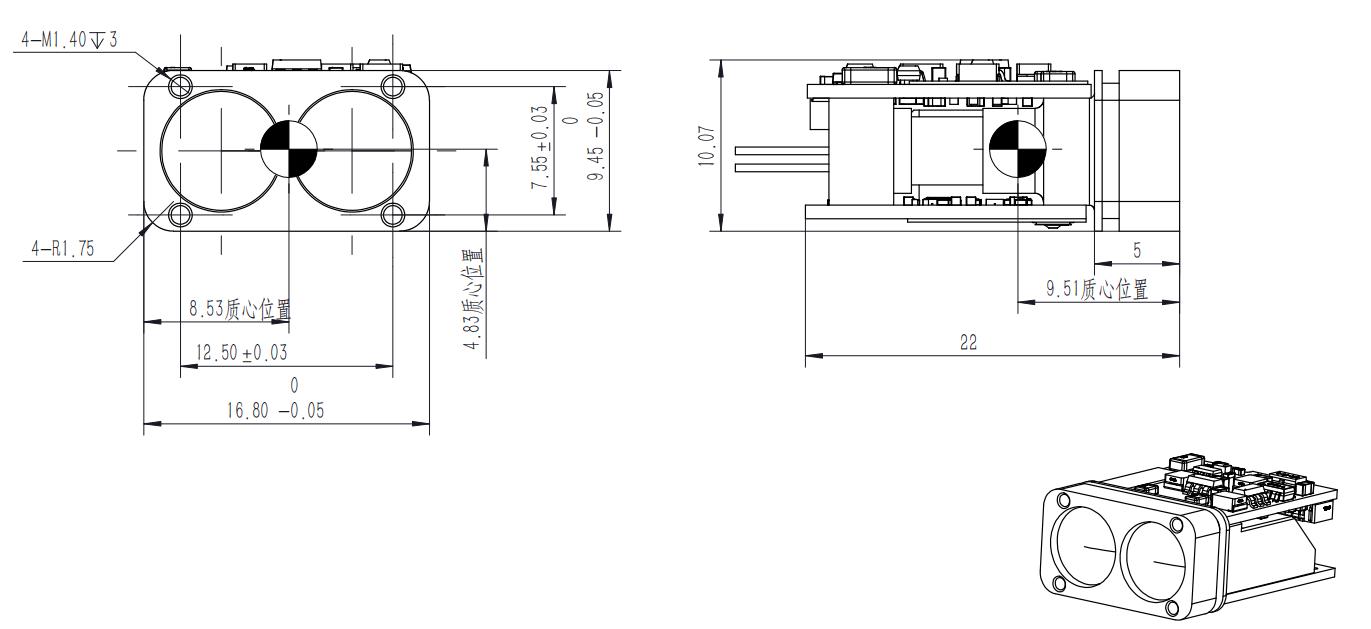

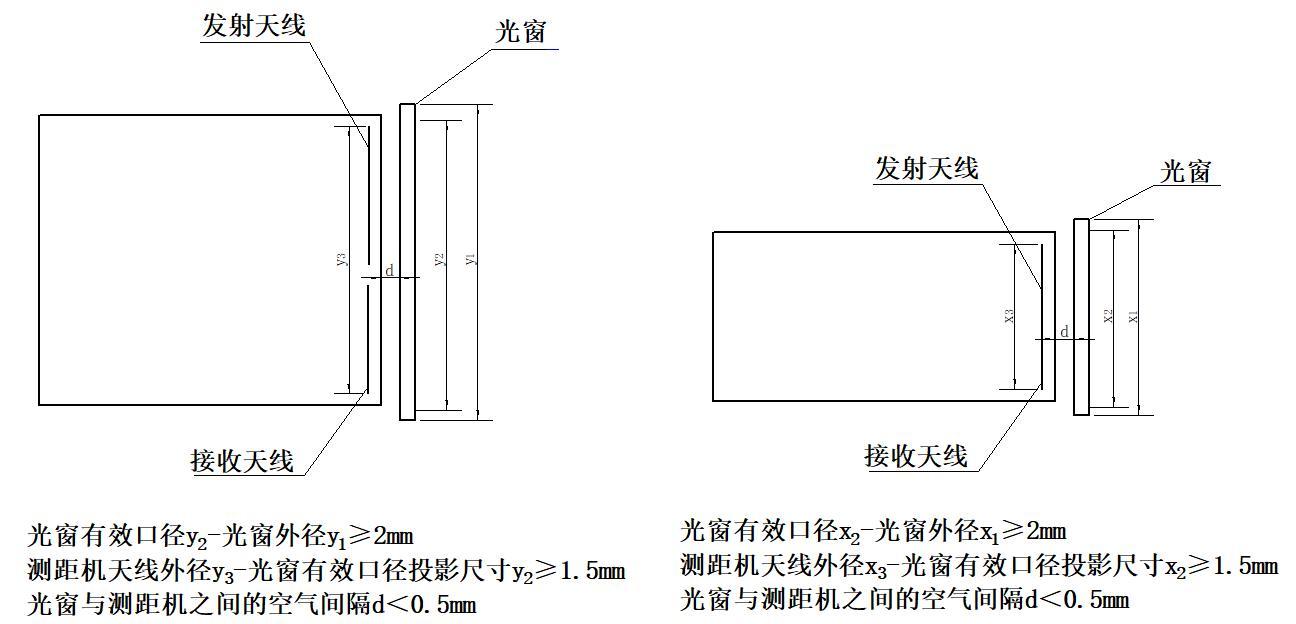

Mechanical Dimension Drawing and Electrical Interface Diagram
These figures are extracted from the named model source without generative modification.
Pulsed Time-of-Flight Engineering Context
The public SPD1200D03 source used here does not state the internal timing architecture. The equation below describes pulsed time-of-flight ranging generally and is not presented as an additional SPD1200D03 specification.
Real performance also depends on target reflectivity and area, incidence angle, atmospheric attenuation, receiver aperture, background light, detector response, timing thresholds and contamination of the optical path.
What the verified data supports
These are traceable design inputs, not unsupported superlatives or guaranteed field outcomes.
Performance envelope
Maximum range: ≥1200 m · Ranging accuracy: ±0.3 m (D ≤100 m); ±(0.4 + 0.006 × D) m (D >100 m)
Timing and output
Measurement frequency: 2–15 Hz, adaptive
Electrical integration
Supply voltage: 3.3–5 V
Mechanical integration
Dimensions: 10.7 × 16.8 × 22 mm · Weight: 6 ±0.5 g · Operating temperature: -20°C to +60°C
Source-stated application context
Application labels indicate where the source proposes evaluation; they do not prove fitness without system testing.
- Aviation and communications
- Geology, law enforcement and outdoor sports
Confirm before selection
- Define target size, reflectivity, incidence angle and required detection probability.
- Reproduce sunlight, visibility, weather and optical-window conditions in acceptance testing.
- Verify voltage tolerance, peak current, grounding, interface levels, baud rate and connector revision.
- Separate accuracy, repeatability and displayed resolution in host requirements.
- Confirm mounting datum, boresight, field of view, enclosure sealing and thermal path.
- Assess accessible emission and labeling again after integration into the finished equipment.
Questions to resolve before design release
Does the maximum stated range apply to every target?
No. Use the reflectivity and environmental conditions shown beside the range row. Smaller, darker, oblique or partially obscured targets and degraded visibility can reduce received signal.
Are resolution, repeatability and accuracy interchangeable?
No. Resolution is the reporting increment, repeatability describes variation under repeated conditions, and accuracy describes closeness to the reference distance under the stated test method.
Is the finished product automatically Class 1 (IEC 60825-1)?
No. A module-level source statement does not replace the accessible-emission and failure-condition assessment of the finished equipment, its window, controls, service access and labeling.
Which documents control wiring and interface release?
The ordered connector drawing, pin definition and approved interface document control the design.
Product evidence and general technical context
The model PDF controls product claims. Public references support only the general engineering explanations and must not be used to infer a missing model value.
- SPD1200D03 verified product specificationModel-specific product evidence; SHA-256 is shown above.
- System Design of a Pulsed Laser RangefinderOptical Engineering 30(3), 1991 - link budget, background, noise, detection and range error.
- The Short-Range, High-Accuracy Compact Pulsed Laser Ranging SystemSensors 22(6), 2146, 2022 - pulsed-ToF equation, timing error, reflectivity and temperature effects.
- Laser system range calculations and the Lambert W functionApplied Optics 48(4), B1-B7, 2009 - range performance versus atmospheric transmission, target and system parameters, and threshold SNR; its 1.06 µm example is general context, not ERDI model data.
- Monostatic all-fiber rangefinder systemApplied Optics 54(25), 7687-7694, 2015 - a measured case study of shared-aperture geometry and receiver-recovery loss; it does not establish an ERDI model limit.
- Light Transmission in Fog: The Influence of Wavelength on the Extinction CoefficientApplied Sciences 9(14), 2843, 2019 - measured and modeled wavelength-dependent fog attenuation.
- IEC 60825-1:2014Laser-product classification and accessible-emission requirements; final equipment requires system-level assessment.
