Model documentation · Informational only

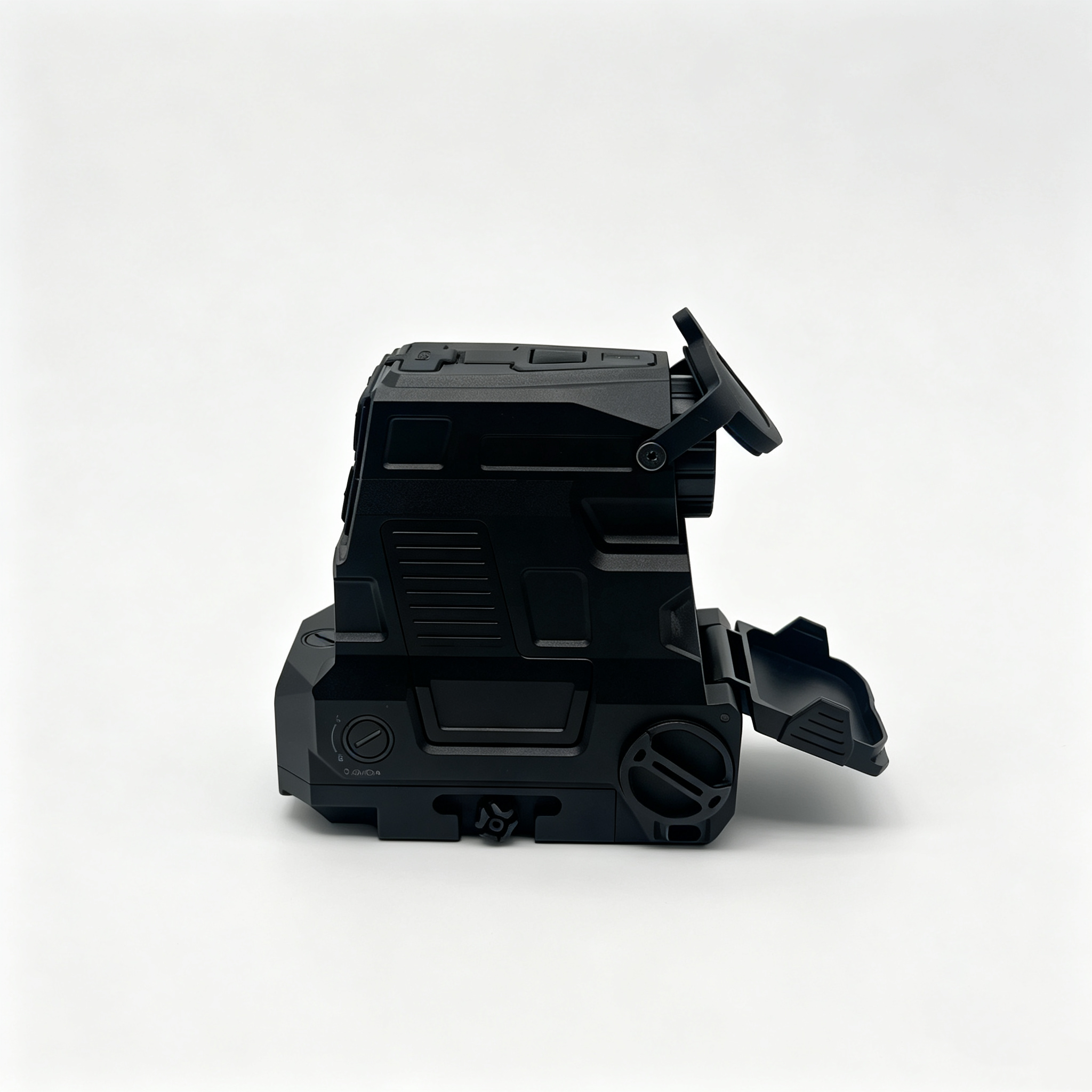

HW256
Thermal fusion sight
Basic thermal-imaging documentation, product identity and care-source notes for the HW256 series.
Checked against the identified source
Basic technical record
Values below are statements checked in the identified supplied document, not independent measurements or certifications.
| Field | Source statement |
|---|---|
| Product family | Thermal fusion sightp. 2 |
| Detector type | Uncooled vanadium oxidep. 3 · Thermal imaging |
| Detector resolution | 256 × 192 pixelsp. 3 |
| Display resolution | 1024 × 768 pixelsp. 3 |
| Operating temperature | −20 °C to +65 °Cp. 3 |
| Storage temperature | −40 °C to +70 °Cp. 3 |
Thermal/display values correspond to the supplied document and an earlier original-table audit. That lineage is not a new independent hardware test. Electrical claims remain withheld.
Not asserted as verified
Information awaiting confirmation
- Approved battery chemistry, replacement cell and charging method.
- Type-C electrical ratings and approved external supply; the later 5 V statement is not adopted.
- Independent test reports, enclosure-rating evidence, and dimension/weight measurement basis.
Non-operational information
Safety and care FAQ
May the housing be opened for routine care?
The supplied safety section says not to open the housing. Handle the unit carefully and refer visible damage or unexplained faults to qualified service personnel.
p. 7 · Safety warningsWhat should be considered after rain exposure?
The supplied safety section says to keep the unit dry and wipe the exterior dry after rain. This is not permission for immersion or high-pressure washing.
p. 7Does a Type-C connector establish charging capability?
No charging capability or electrical connection recommendation is asserted here. The source audit found inconsistent charging wording and missing electrical ratings; these remain unresolved.
Source reconciliation · unresolved electrical informationWhat does source-checked mean on this page?
The statements have been checked against the identified supplied document or explicit model-identity confirmation. This is not independent hardware testing or certification; unresolved information is listed separately.
Source noteIs the device presented as solar-viewing equipment?
No. Do not use it to observe the Sun. NASA warns of serious eye hazards when solar viewing through optics lacks purpose-designed protection.
Source noteDoes citing an IP standard certify this model?
No. IEC 60529 defines enclosure-protection classifications. A reference to the standard does not establish that a particular model has been tested or certified.
Source noteSource transparency
References and evidence limits
External references explain general science or safety. They do not test, certify or endorse these models.
- HW256_Thermal_Fusion_Sight_User_Manual_AR_v1.0.pdfOwner-supplied ERDI reference · 7 pages
Basic statements checked at pp. 2–3 and safety notices at p. 7. The supplied file's body is English despite its AR filename.
- HW256 original-source reconciliation and retained R3 auditERDI documentation review · audit dated 2026-10-18, re-read 2026-10-19
Retained audit records identify inconsistent charging wording and missing electrical ratings. This is source-control evidence, not an electrical data sheet or a new hardware test; the original source bytes were not re-read in this review.
- Infrared Waves NASA Science
General infrared-science background; not a model specification or endorsement.
- Calibration and Measurement Procedures for a High Magnification Thermal Camera NIST · Lane & Whitenton · NISTIR 8098 (2016)
Thermography calibration and uncertainty; not a test of these products.
- IEC 60529 · Degrees of protection provided by enclosures (IP Code) International Electrotechnical Commission
Official standard abstract only; no product certification is asserted.
- Eclipse Viewing Safety NASA Science
General solar-viewing hazard guidance; these devices are not presented as solar-viewing equipment.
Documentation review: 2026-10-19. This reference does not distribute a complete operating manual, imply certification, or establish a use-case capability beyond the cited information.
