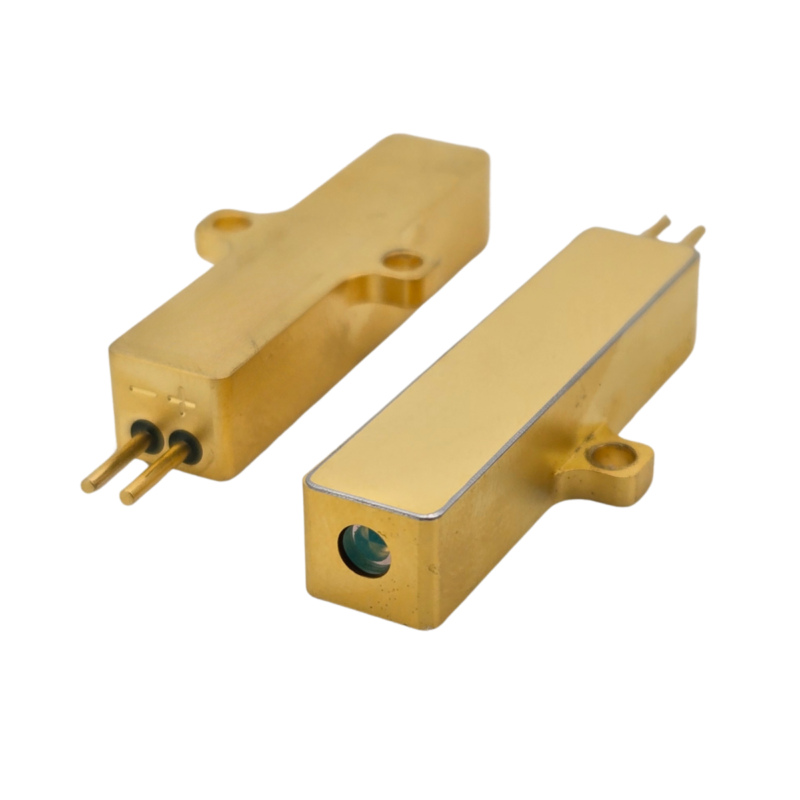

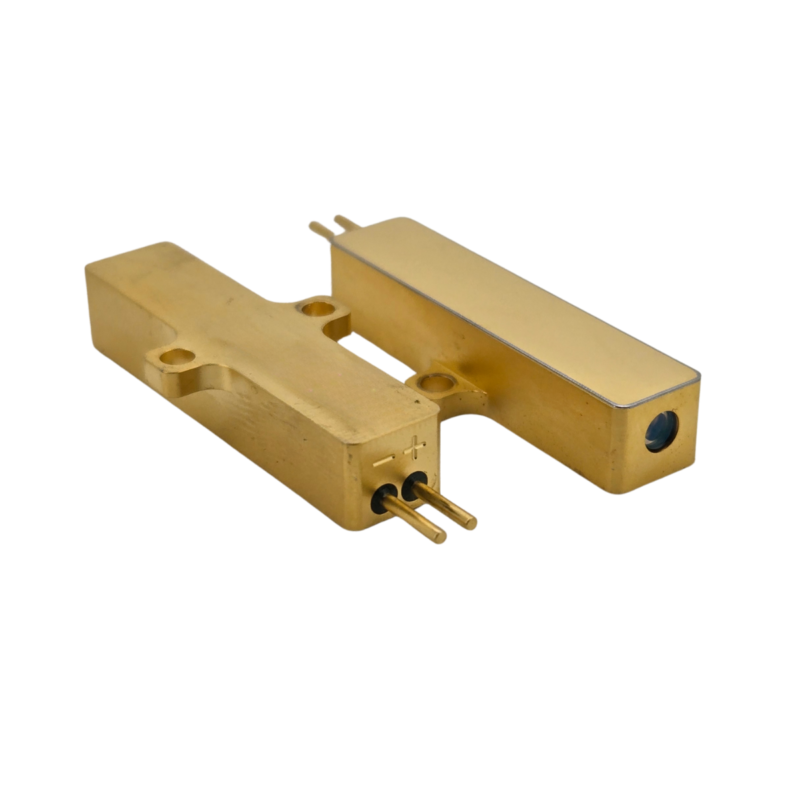

High Repetition Frequency Erbium Glass Laser 40μJ
DESCRIPTION
The 1535nm High-Frequency Erbium Glass Laser Module is a high-frequency, human-eye-safe laser developed by ERDI TECH LTD using Er passive Q-modulation technology. It features a semiconductor packaging process, which results in a compact size and stable performance. The single pulse energy is consistent, and the beam quality is excellent. We offer customization for various parameters, such as 70 μJ@500Hz, 40 μJ@1KHz, 20 μJ@2.5KHz, 10 μJ@5KHz, and 5 μJ@10KHz. This laser module is widely used in laser ranging, laser irradiation, LIDAR, target identification, as well as laser medical applications and fiber optic communication.
TECHNICAL SPECIFICATIONS
|
Wavelength |
1535 nm |
|
Eye safe |
Class 1 |
|
Pulse energy（Min./Typ.） |
≥40 μJ |
|
Pulse width, Typ.(FWHM) |
4 ns |
|
Pulse repetition rate |
1KHz |
|
Pulse stability |
10% |
|
Spots diameter |
0 .2 mm |
|
Beam divergence angle |
＜15 mrad |
|
Spots mode |
TEM00 |
|
Operating temperature |
-45 ℃~+65 ℃ |
|
Storage temperature |
-55 ℃~+85 ℃ |
|
Impact |
1500 G, 0 . 5 ms |
|
Vibration |
20~2000 Hz/20 G |
|
Life span |
＞50 million shots |
|
Dimension (mm) |
25x8x7 |
|
Weight |
8 g |
|
Voltage |
2 V |
|
Current |
5A |
|
Pulse width |
≥0 . 3 ms |
MECHANICAL DIMENSION( mm)
