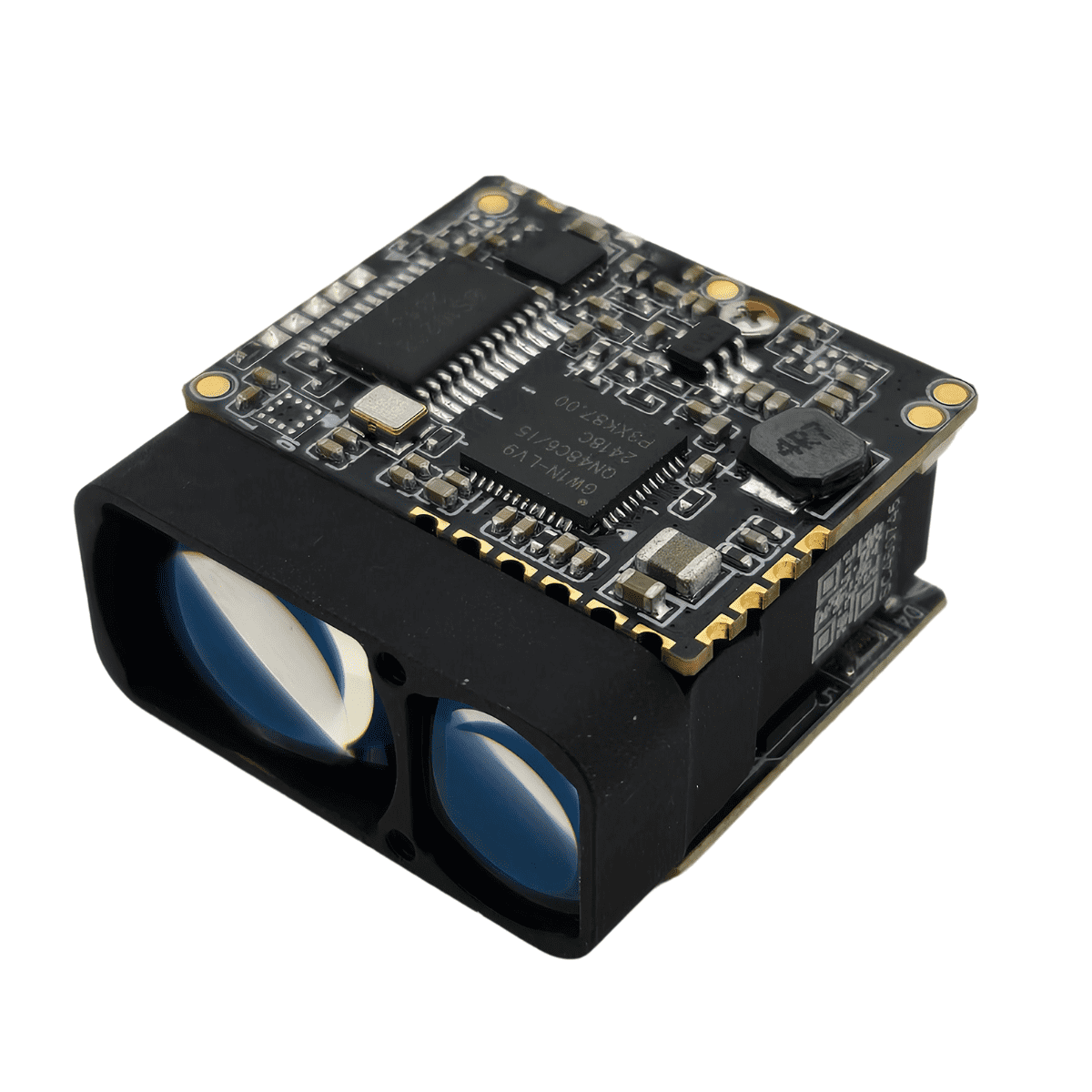

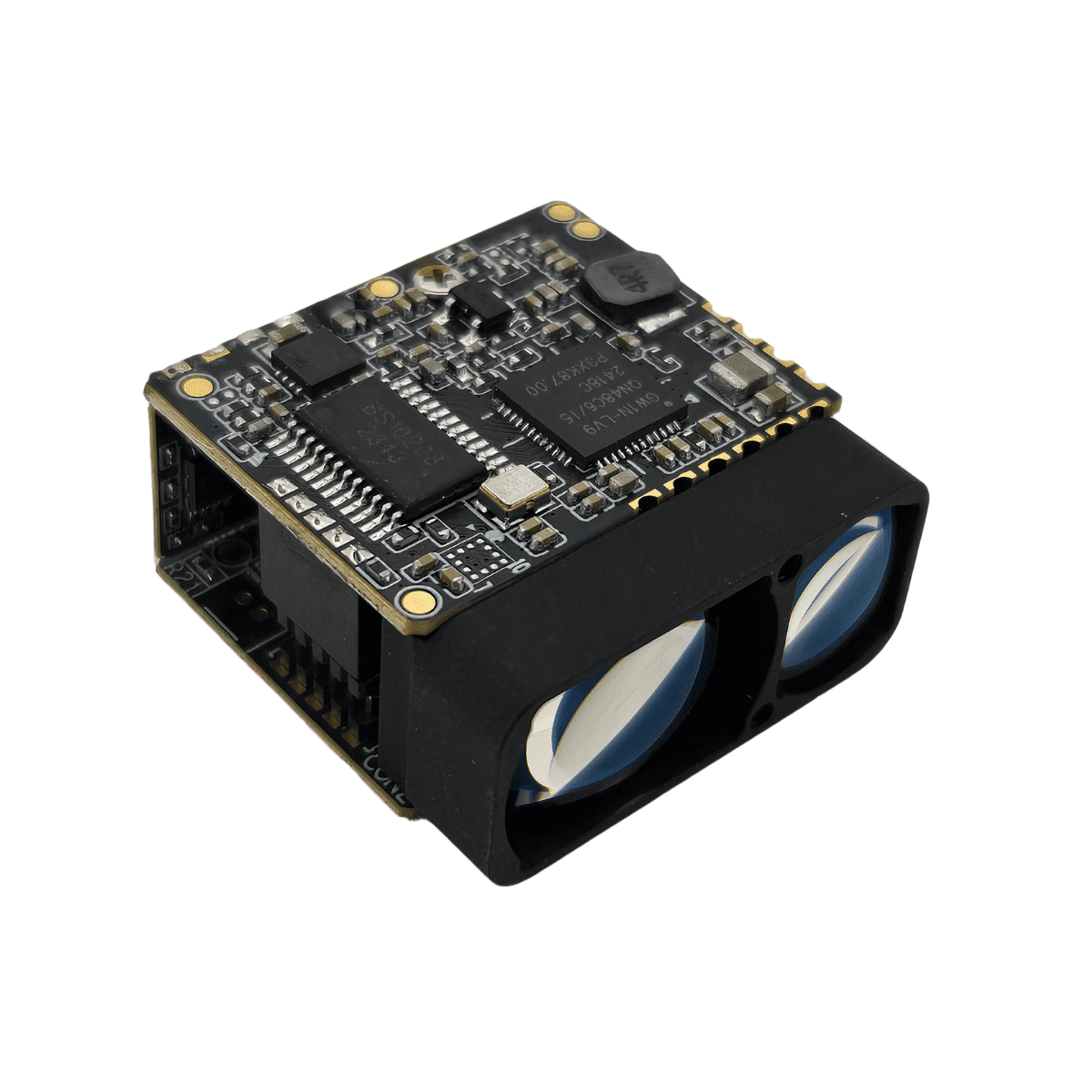

2000m 905nm Semiconductor Multi-Pulse Rangefinder Module

2000m 905nm Semiconductor Multi-Pulse Rangefinder Module

Model: LRF2000A
Request a Quote
PC Upper Computer
The 905nm pulsed laser rangefinder module has a 2000 - meter range. It's small, light, and for long - distance measurement. It suits handheld rangefinders, micro UAVs, rangefinder scopes, etc. With a UART (TTL_3.3V) data interface, upper - computer software and a communication protocol instruction set, it's easy for secondary development. Keywords: 905nm laser rangefinder module, 2000 - meter range, small and light, UART interface, secondary development, applications (handheld rangefinders, micro UAVs, rangefinder scopes)

TECHNICAL SPECIFICATIONS

Project

Technical data

Model

LRF2000A

Laser Wavelength

905nm

Eye Safety

Class 1

Divergence Angle

1×12mrad

Receiving Field of View (FOV)

~20mrad

Launch Lens Diameter

Φ10×7.5mm

Receiver Lens Diameter

Φ15×10mm

Measuring Range（3m x 3m Target)

≥5~2000m

Ranging Accuracy

±1m

Ranging Frequency

3Hz（5~45m）；0.75~3Hz（45~2000m）

Precision Rate

≥98%

False Alarm Rate

≤1%

Data Interface

UART（TTL_3.3V）

Supply Voltage

DC 3~5 V

Standby Power Consumption

≤1mW

Operating Power Consumption

≤1.5W

Weight

10±0.5g

Dimention (L×W×H)

25×26×13mm

Operation Temperature

-40~＋60℃

Storage Temperature

-55~＋65℃

Impact Resistance

1200 g，1 ms

Anti-vibration

5～50～5 Hz，1 Octave range /min，2.5 g

Dependability

MTBF≥1500 h

Activation Time

≤200ms；

Protection Class

IP67

ESD Class

(Lens position)

Contact discharge 6kV

Air discharge 8kV

Electromagnetic Compatibility (EMC)

CE/FCC Certification

Eco-friendly

RoHS2.0

ELECTRICAL INTERFACE

User Electrical interface: UART（TTL_3.3V）

The connector model of electrical interface is FWF08002-S06B13W5M（TXGA）, and the specific wiring definition is shown in the table below.

lrf

Pin

Definition

Description

1

GND

Serial ground

2

Power positive


3

UART_NC


4

UART_TX

Serial transmitter, TTL_3.3V level

5

UART_RX

Serial receiver, TTL_3.3V level

6

POWER_ON

Power switch, TTL_3.3V level (＞0.7V ON，＜0.15V OFF，Default OFF)

MECHANICAL DIMENSION(mm)

The outside dimensions of the LRF2000A rangefinder module are as follows:

905nm lrf

The center of mass of the  LRF2000A ranging module is located as follows:

905nm LRF

The recommended design of the mounting interface for the LRF2000A rangefinder module is as follows:

905nm LRF
905nm LRF
