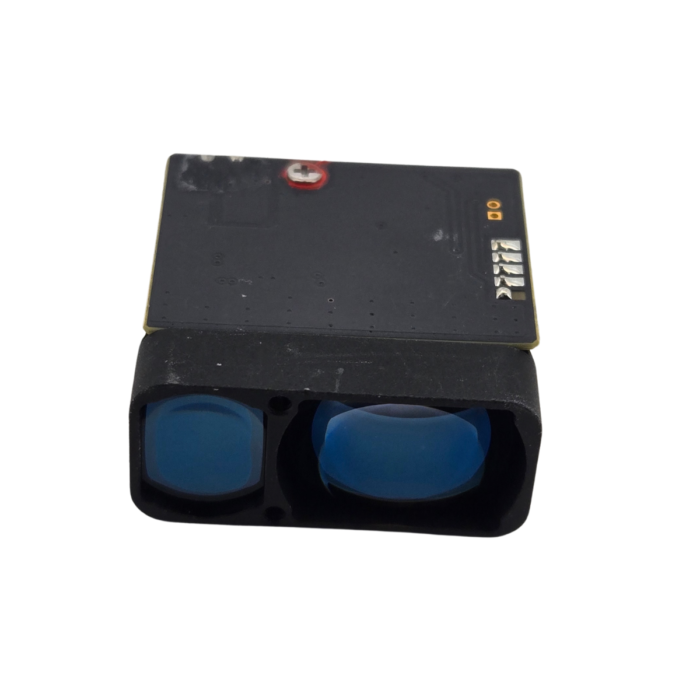

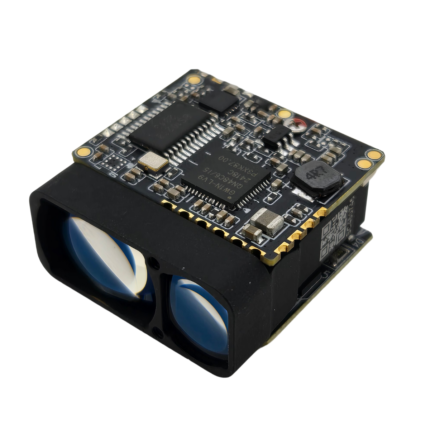

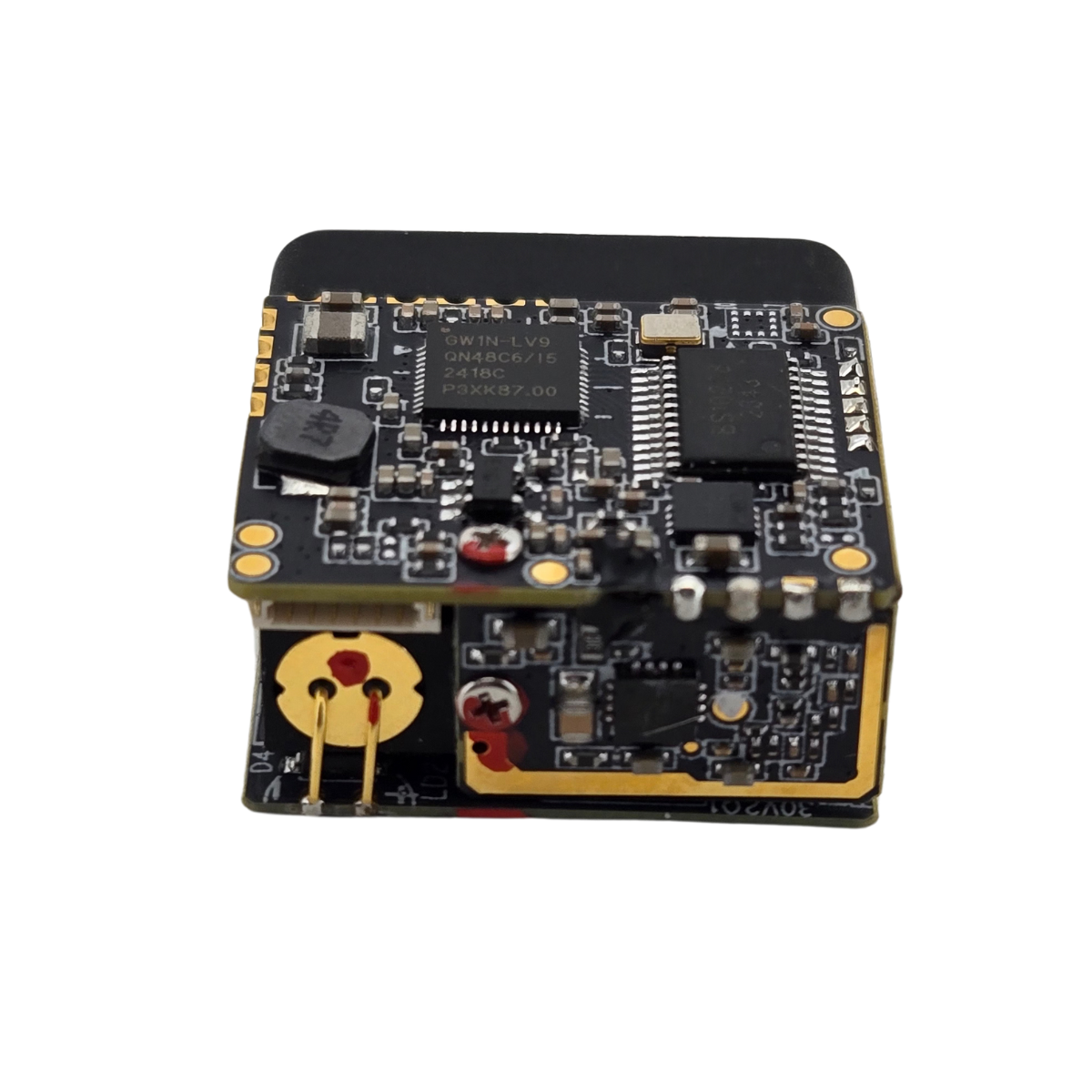

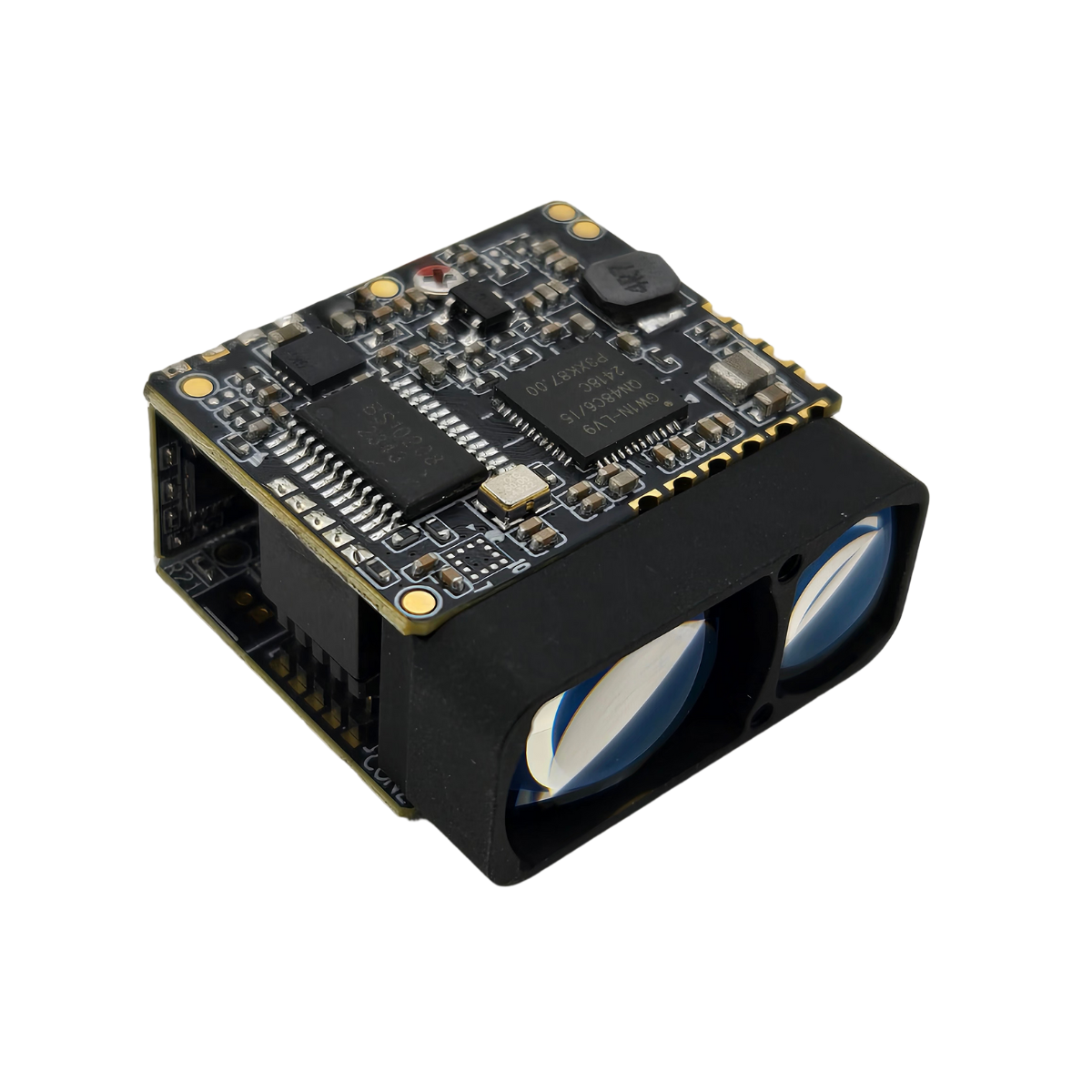

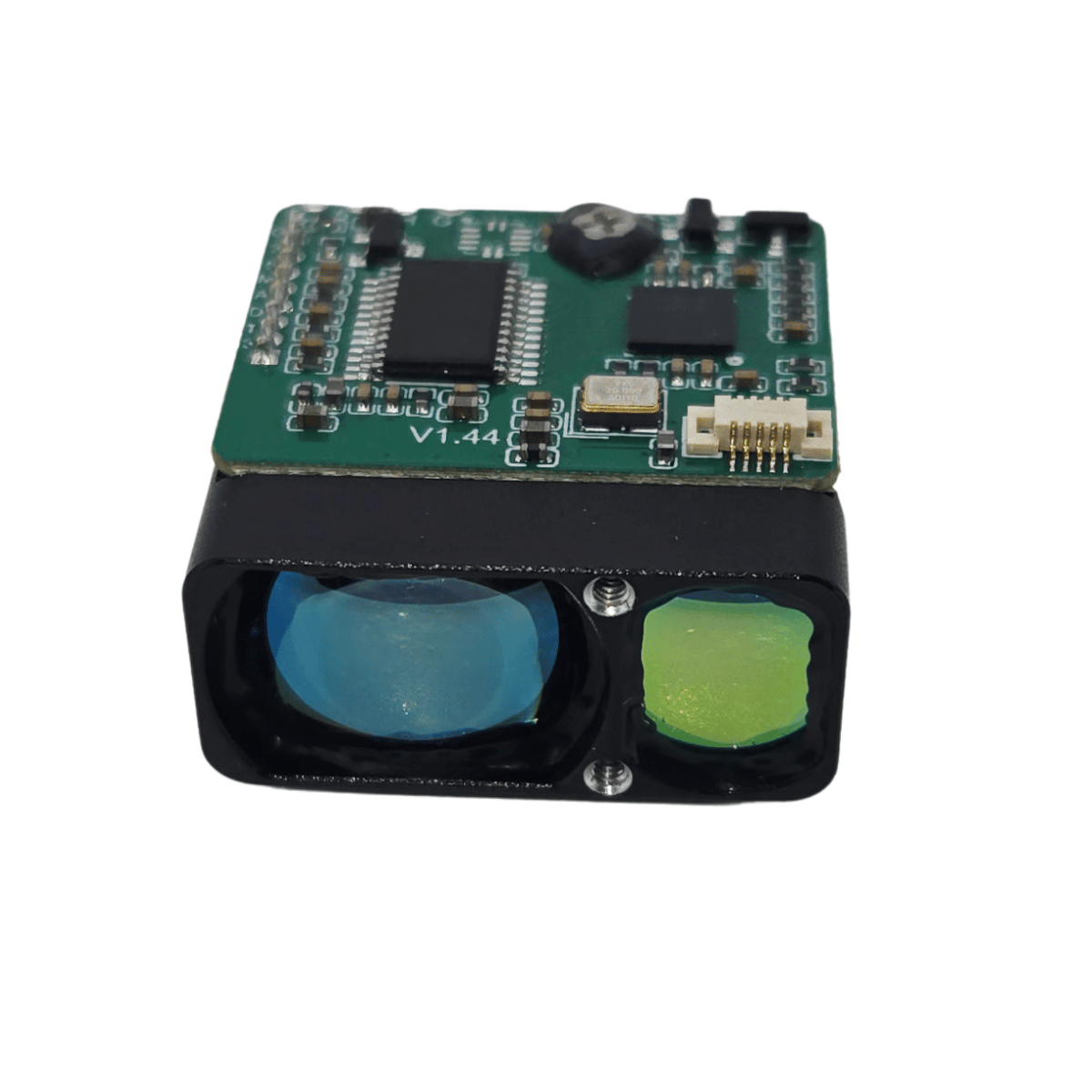

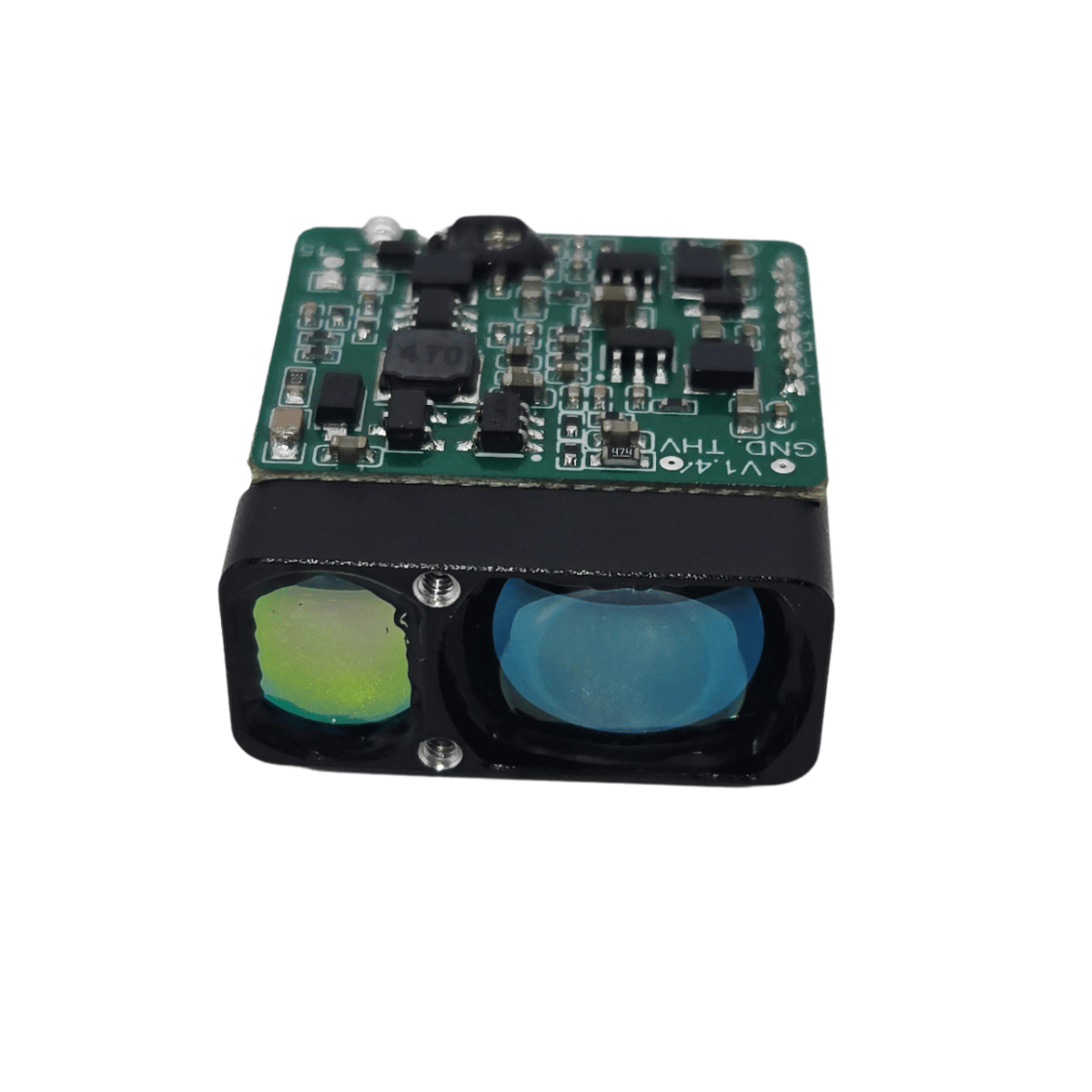

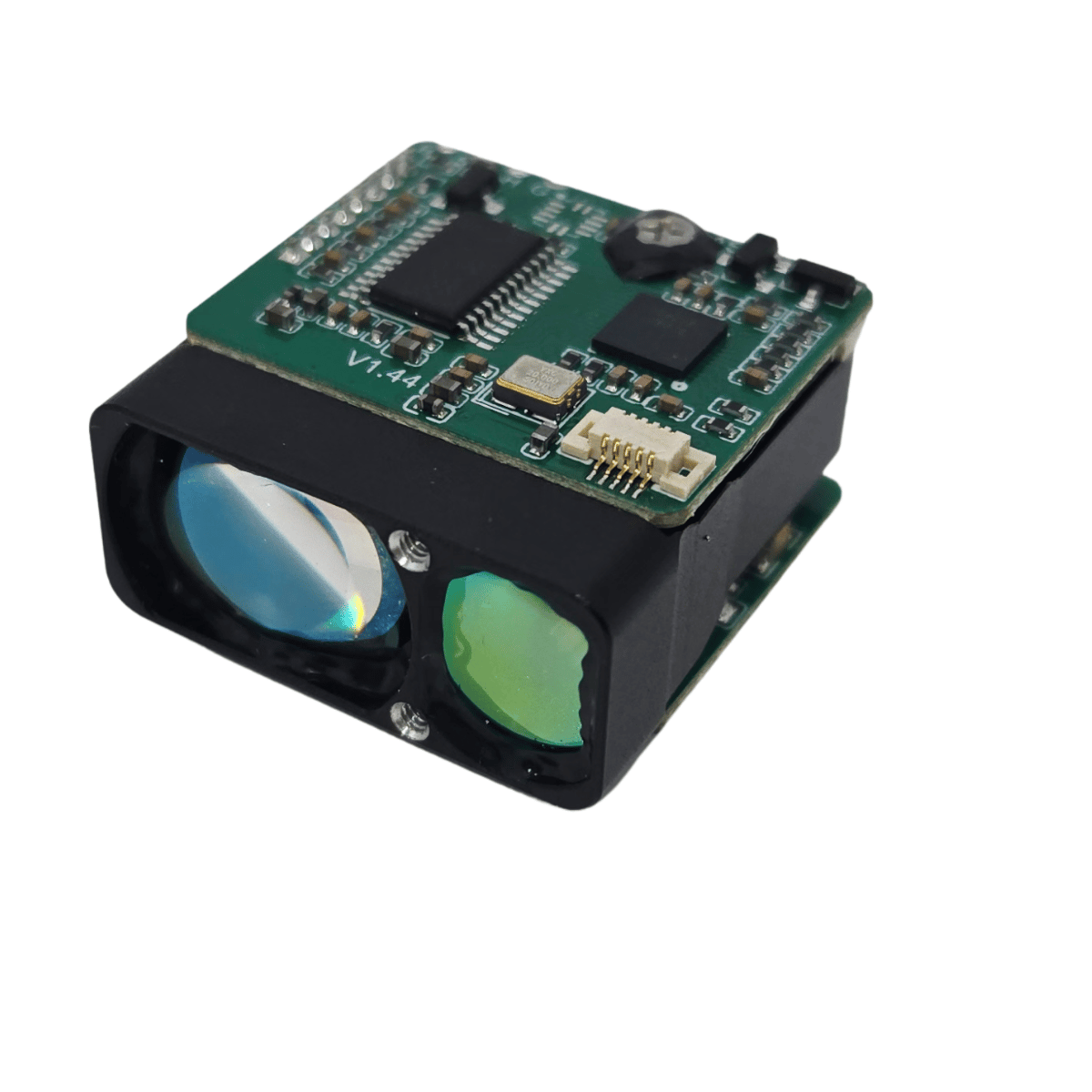

1200m Semiconductor Multi-Pulse Rangefinder Module Advanced

1200m Semiconductor Multi-Pulse Rangefinder Module Advanced

Model: LRF1200
$150.00 USD
$150.00 USD
Shipping calculated at checkout.
1200m Semiconductor Multi-Pulse Rangefinder Module Advanced

$150.00 USD

Product Description

PC Upper Computer
The ERDI LRF1200A is a high-performance semiconductor laser rangefinder module designed for a wide range of applications, including handheld rangefinders, micro UAVs, and rangefinder scopes. It utilizes a 905nm laser diode to achieve a ranging distance of 5 to 1200 meters with exceptional accuracy. It features a UART (TTL_3.3V) data transmission interface and provides upper computer software and a communication protocol command set, making it convenient for users to develop secondary applications.

TECHNICAL SPECIFICATIONS

Project

Technical data

Model

LRF1200A

Laser Wavelength

905nm

Eye Safety

Class 1

Divergence Angle

1×6mrad

Receiving Field of View (FOV)

≤20mrad

Launch Lens Diameter

Φ10×7.5mm

Receiver Lens Diameter

Φ15×10mm

Measuring Range（3m x 3m Target)

≥5~1200m

Ranging Accuracy

±1m

Ranging Frequency

3Hz（5~45m）；0.75~3Hz（45~1200m）

Precision Rate

≥98%

False Alarm Rate

≤1%

Data Interface

UART（TTL_3.3V）

Supply Voltage

DC 3~5 V

Standby Power Consumption

≤1mW

Operating Power Consumption

≤1.5W

Weight

10±0.5g

Dimention (L×W×H)

25×26×13mm

Operation Temperature

-40~＋60℃

Storage Temperature

-55~＋65℃

Impact Resistance

1200 g，1 ms

Anti-vibration

5～50～5 Hz，1 Octave range /min，2.5 g

Dependability

MTBF≥1500 h

Activation Time

≤200ms；

Protection Class

IP67

ESD Class

(Lens position)

Contact discharge 6kV

Air discharge 8kV

Electromagnetic Compatibility (EMC)

CE/FCC Certification

Eco-friendly

RoHS2.0

ELECTRICAL INTERFACE

User Electrical interface: UART（TTL_3.3V）

The connector model of electrical interface is FWF08002-S06B13W5M（TXGA）, and the specific wiring definition is shown in the table below.

905nm lrf

Pin

Definition

Description

1

GND

Serial ground

2

Power positive


3

UART_NC


4

UART_TX

Serial transmitter, TTL_3.3V level

5

UART_RX

Serial receiver, TTL_3.3V level

6

POWER_ON

Power switch, TTL_3.3V level (＞0.7V ON，＜0.15V OFF，Default OFF)

MECHANICAL DIMENSION(mm)

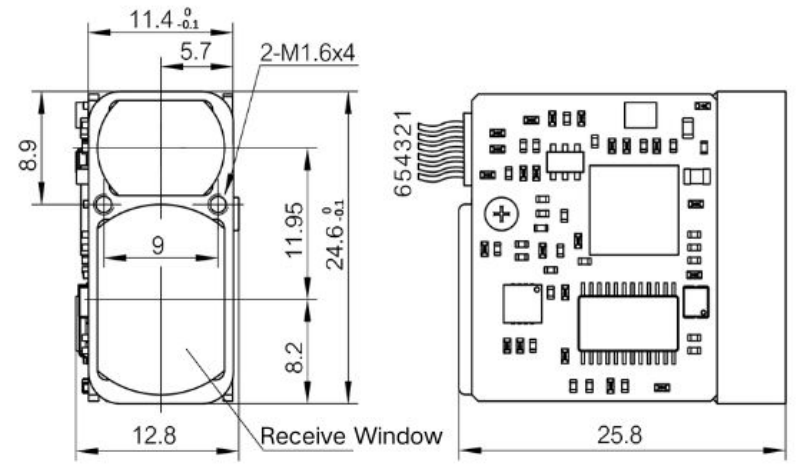

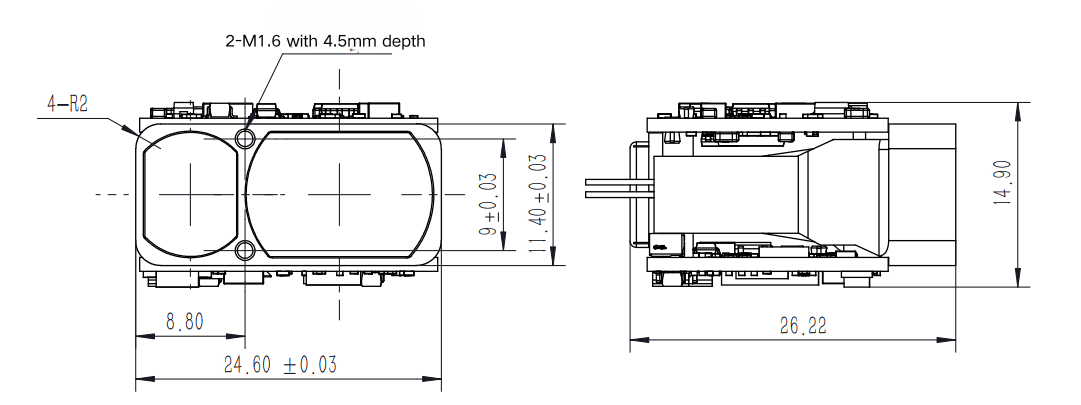

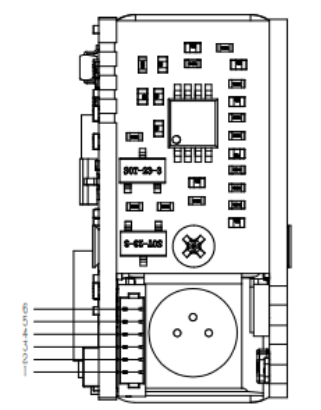

The outside dimensions of the LRF1200A rangefinder module are as follows:

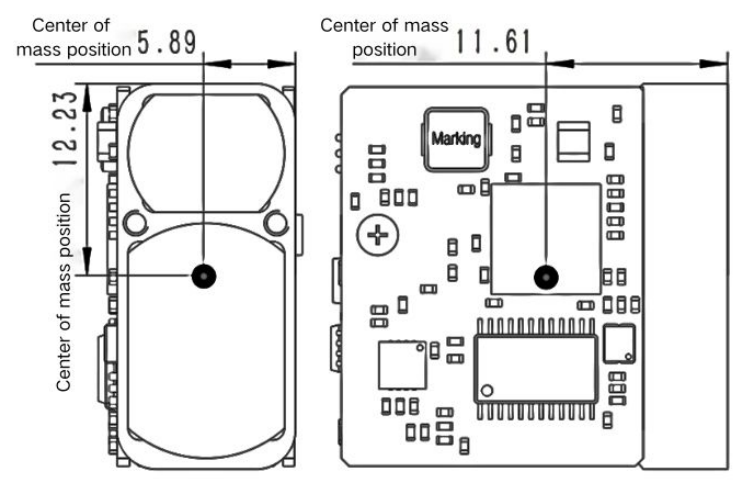

The center of mass of the  LRF1200A ranging module is located as follows:

905nm lrf

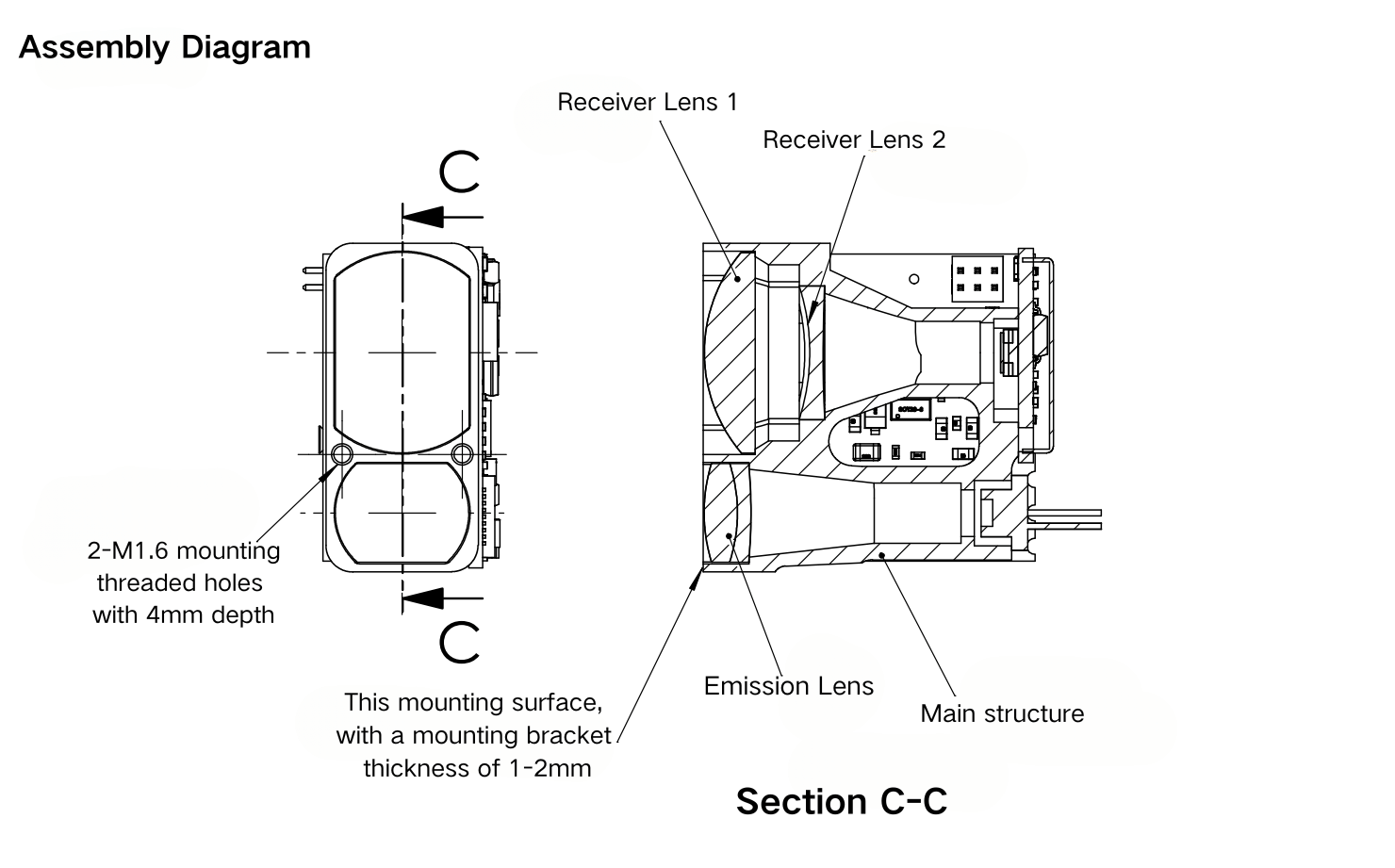

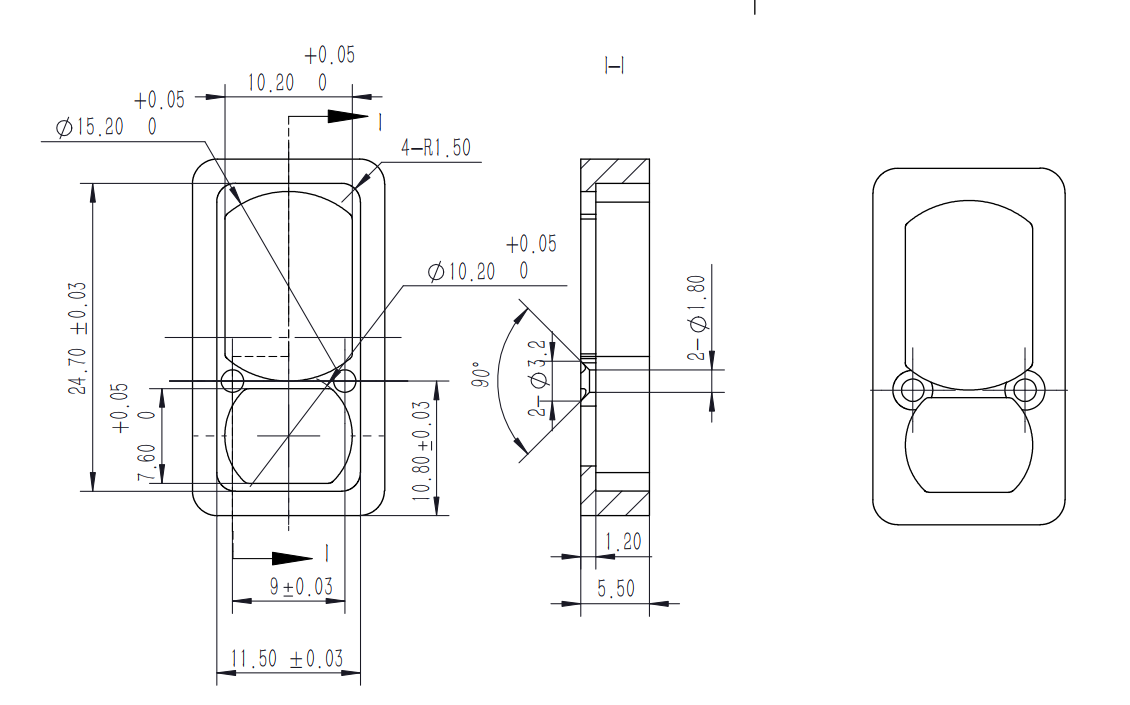

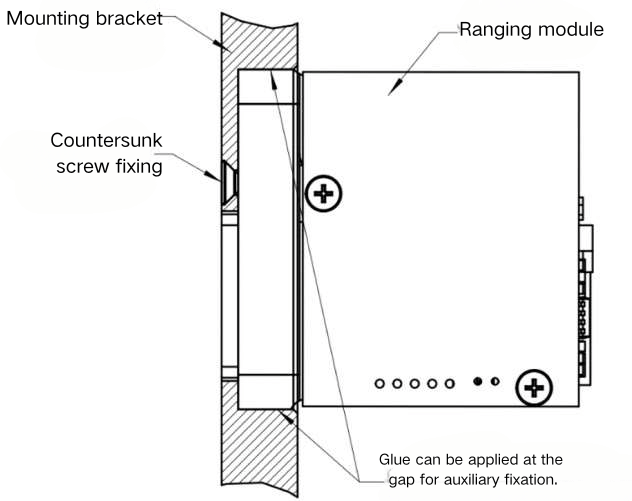

The recommended design of the mounting interface for the LRF1200A rangefinder module is as follows:

905nm LRF

Download Product Instructions
