PRODUCT DESCRIPTON

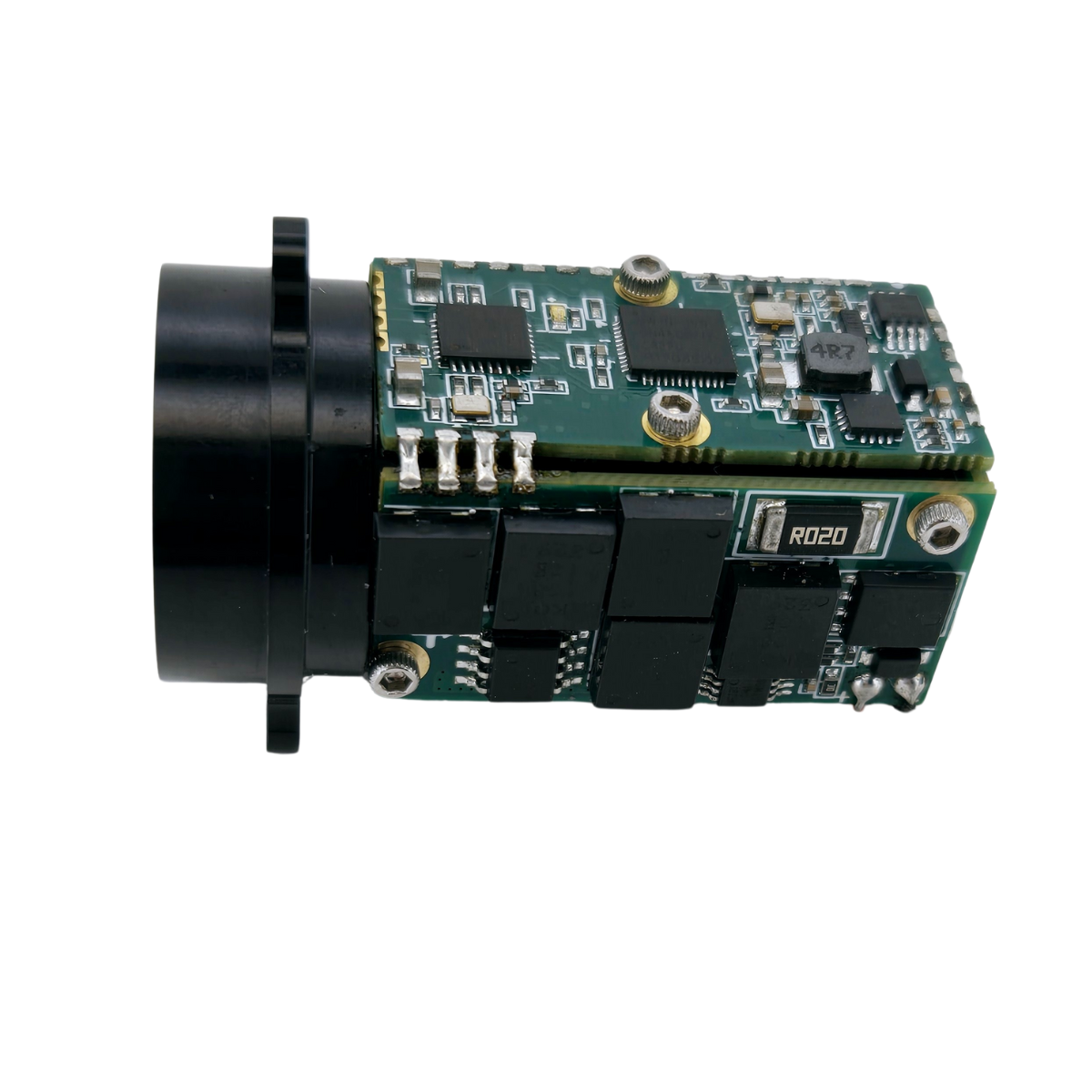

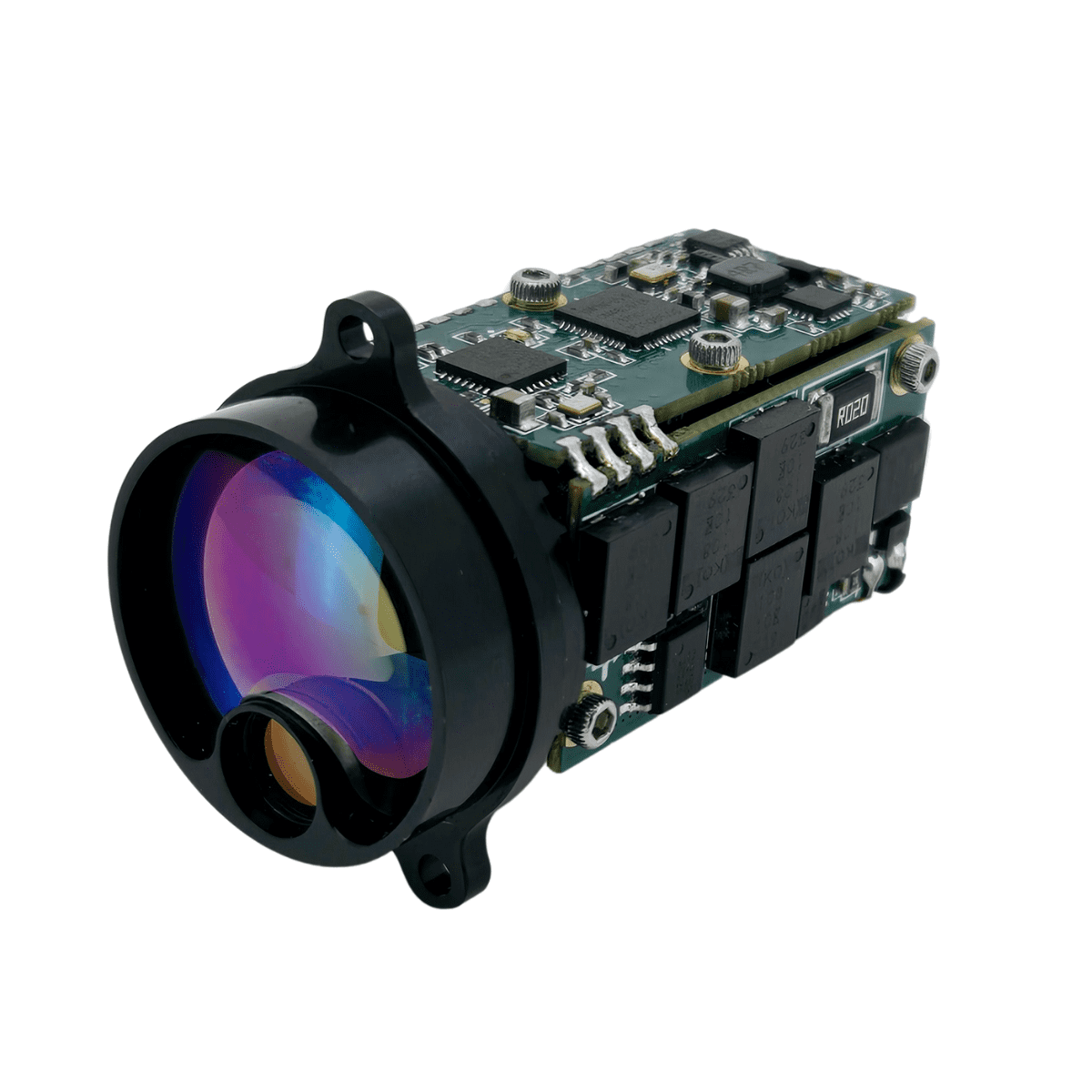

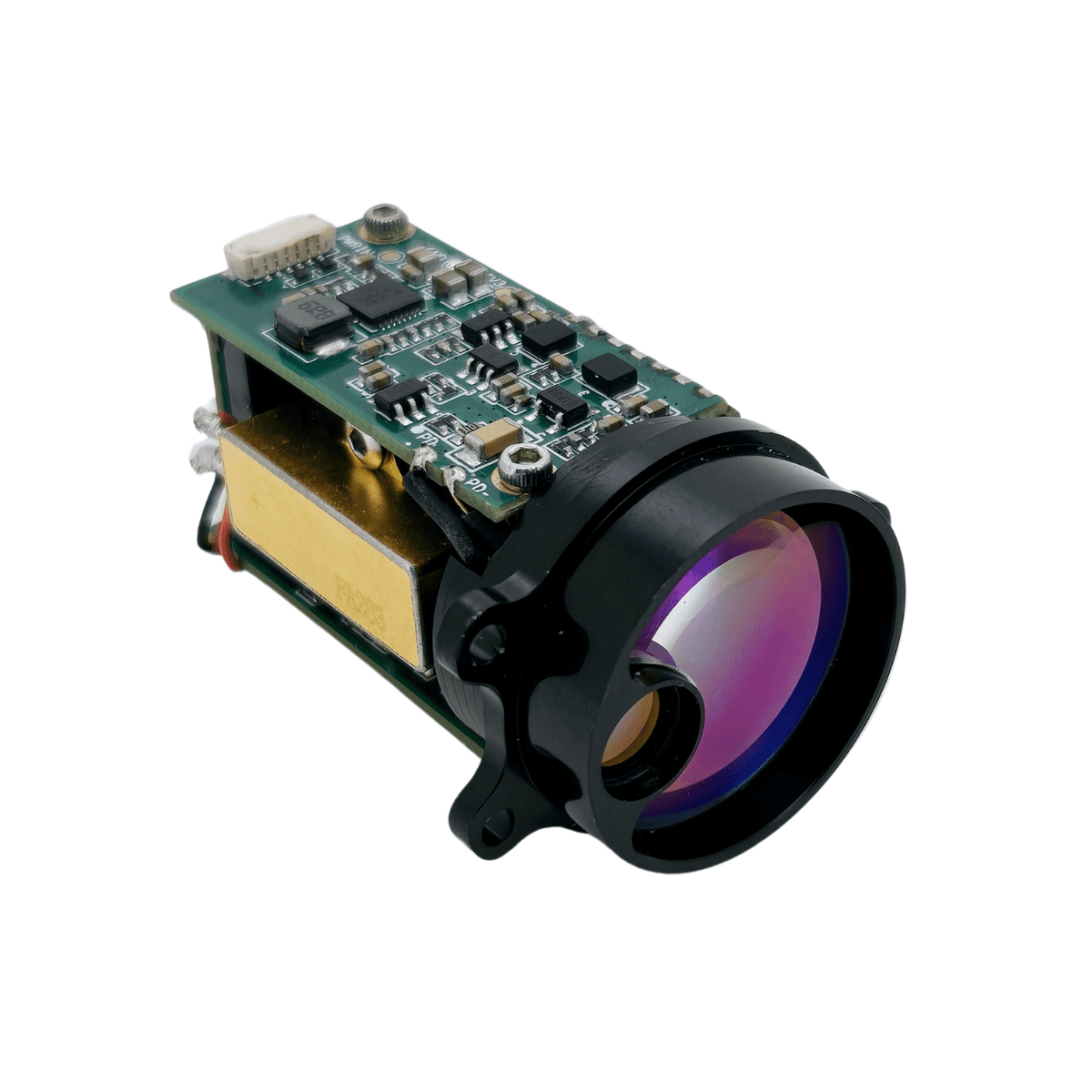

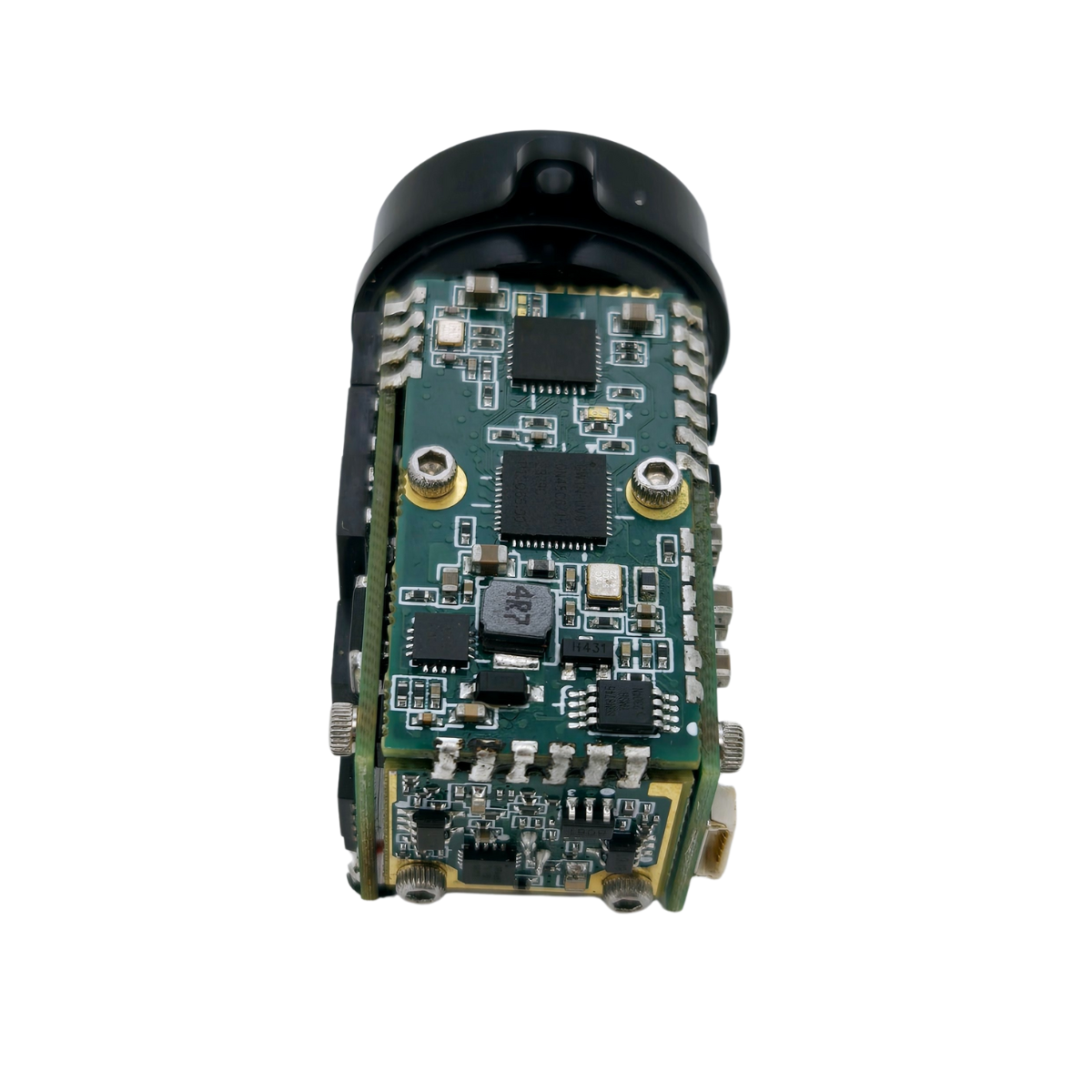

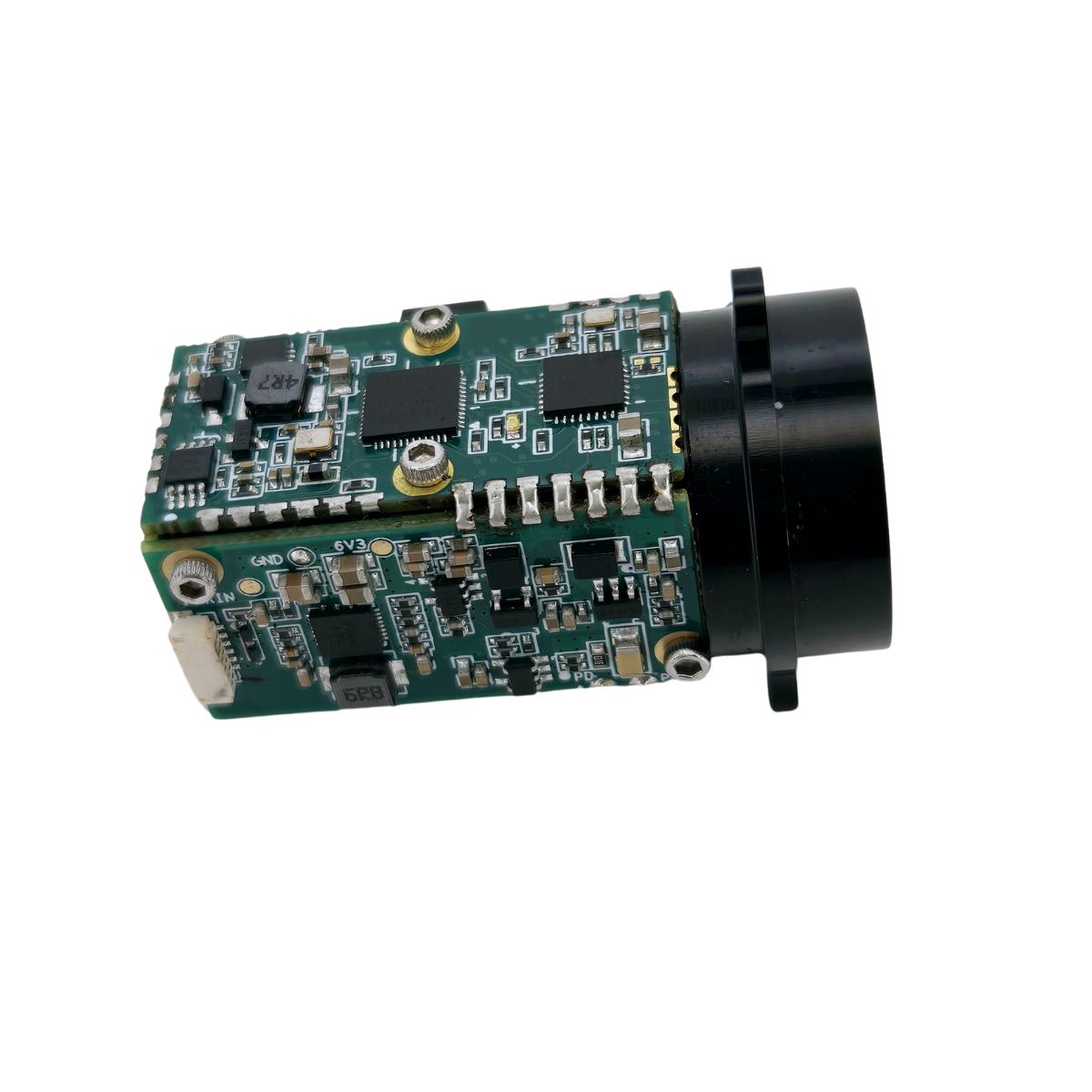

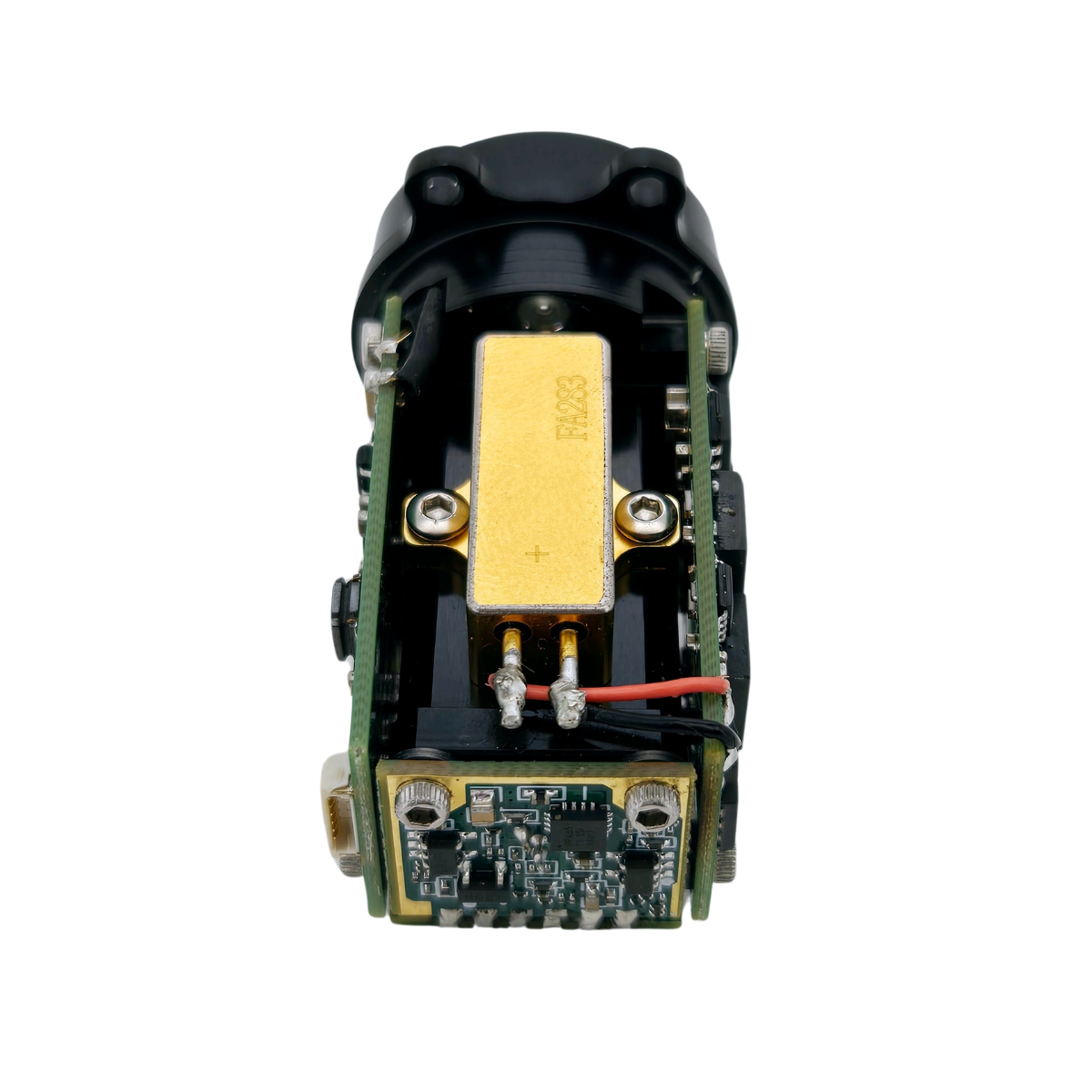

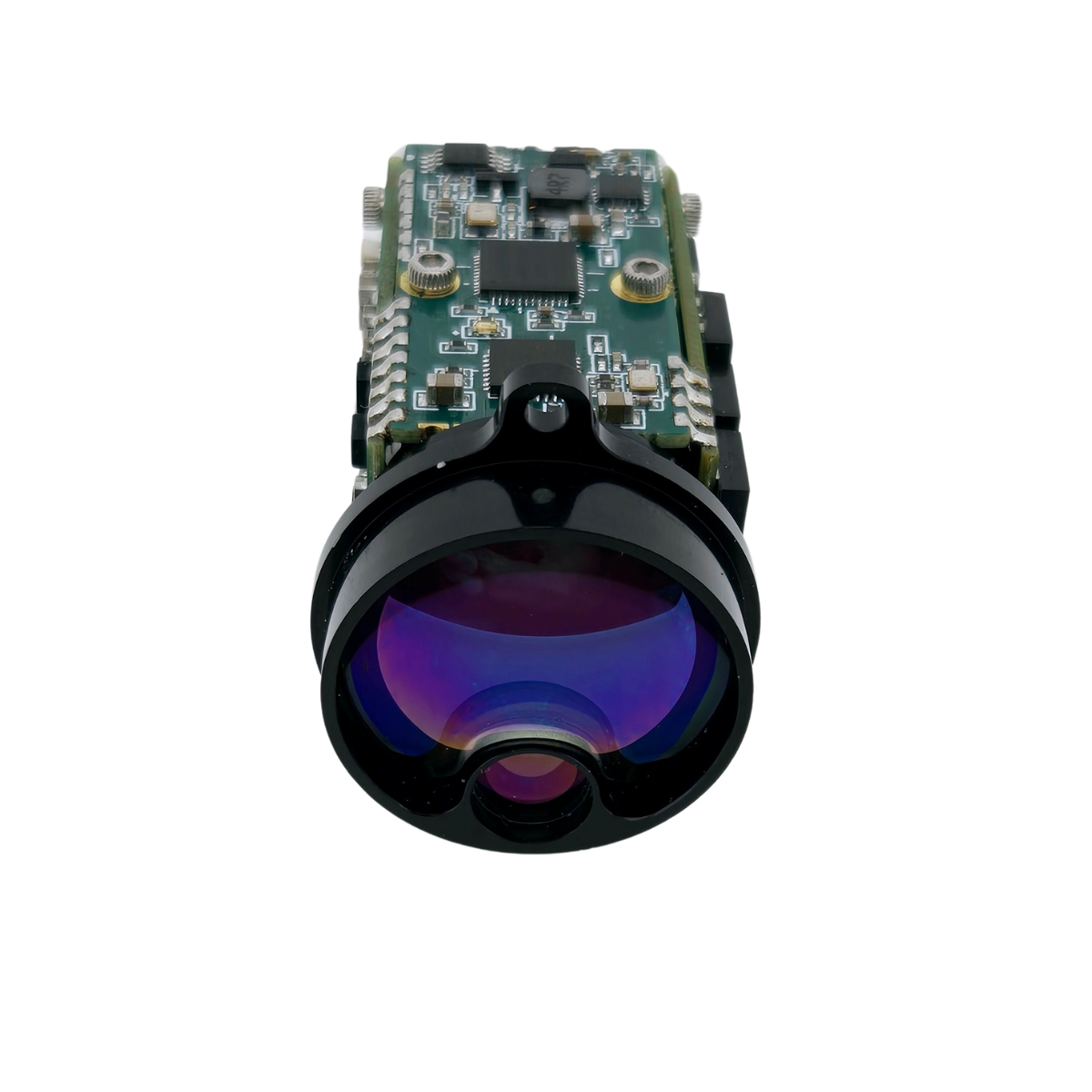

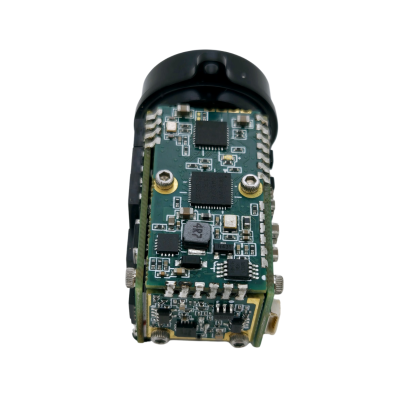

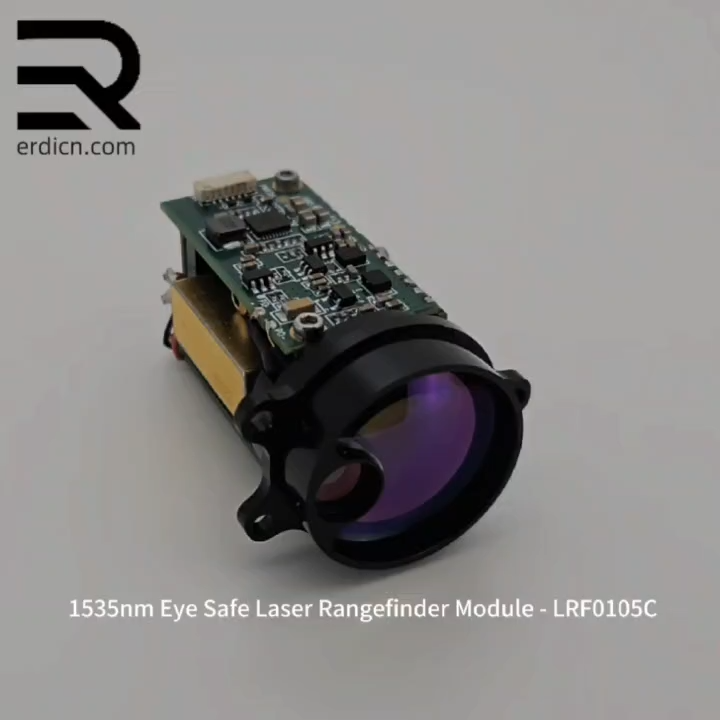

The LRF0105C small laser rangefinder module is a precision optoelectronic device that emits a laser to the target and calculates distance information based on the laser's flight time. This laser rangefinder module communicates through a UART (TTL 3.3V) interface and features outstanding performance, simple operation, compact size, lightweight construction, and low power consumption.
TECHNICAL SPECIFICATIONS
Project |
Performance Indicators |
|
Model |
LRF0105C |
|
Laser Wavelength |
1535±5nm |
|
Eye Safety |
Class Ⅰ |
|
Divergence Angle |
≤1mrad |
|
Launch Lens Diameter |
Φ8 mm |
|
Receiver Lens Diameter |
Φ20 mm |
|
Measuring Range (Reflectance 30%; visibility ≥ 8km.) |
Big Target(4m×6m) |
≥4000m |
|
NATO objective(2.3m×2.3m) |
≥3000m |
|
People(0.5m×1.7m) |
≥1500m |
|
Drones(0.2m×0.3m) |
≥1000m |
Minimum Range |
≤15 m |
|
Ranging Frequency |
Single, 1Hz, 5Hz, 10Hz |
|
Ranging Accuracy |
±2 m |
|
Range Resolution |
≤20 m |
|
Precision Rate |
≥98% |
|
False Alarm Rate |
≤1% |
|
Number of multi-target detections |
Up to 3 targets |
|
Electrical Interface |
FWF08002-S06B13W5M |
|
Supply Voltage |
DC3~5 V |
|
Standby power consumption |
≤1mW |
|
Average power consumption |
≤0.8W |
|
Peak Power Consumption |
≤1.5W |
|
Weight |
≤29±1 g |
|
Dimension (L×W×H) |
Φ34mm×47.5mm |
|
Operating Temperature |
-40~+70 ℃ |
|
Storage Temperature |
-55~+75 ℃ |
|
Impact Resistance |
1200 g/1 ms(GJB150.16A-2009) |
|
Anti-vibration |
5~50~5 Hz,1 Octave range /min,2.5 g |
|
Ranging Logic |
First and last target, multi-target ranging, distance selectivity |
|
Activation Time
|
≤950 ms |
|
Data Interface |
UART(TTL_3.3V) |
|
Electrical isolation |
Isolation of power ground, communication ground and structure ground |
|
Reliability |
MTBF ≥ 1500h |
|
Optical axis stability |
≤0.05 mrad |
|
Non-parallelism between optical axis and mounting surface |
≤0.5 mrad |
|
Electromagnetic Compatibility (EMC) |
CE/FCC Certification |
|
Eco-friendly |
RoHS2.0 |

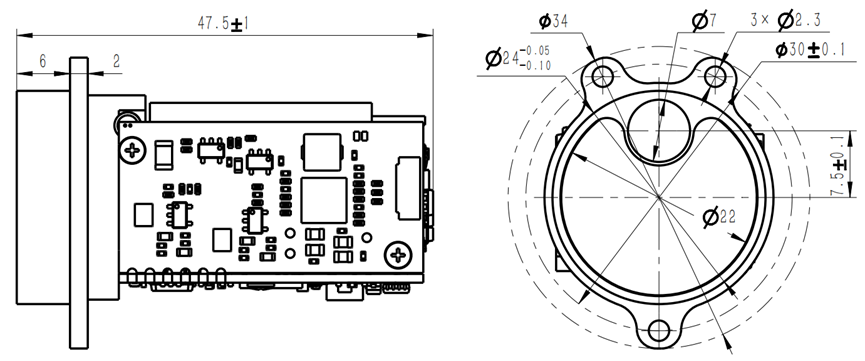

MECHANICAL DIMENSION( mm)
![1535nm](https://cdn.shopify.com/s/files/1/0625/7613/2249/files/10_2048x2048.jpg?v=1720663598)
Mechanical and optical interface diagram
ELECTRICAL INTERFDCE
a) Power supply voltage: 3~5V;
The host computer realizes cross-linking test with the rangefinder through a 6PIN connector (FWF08002-S06B13W5M (Teska connector)). The pin definition of the communication port on the rangefinder is shown in the table.
Product electrical pin definition
Pin |
Identification number |
Definition of electrical characteristics |
Cable color |
|
P-1 |
COM |
Input power negative pole |
Power supply |
|
P-2 |
VIN+ |
Input power positive pole |
||
P-3 |
- |
(empty) |
|
|
P-4 |
TTL_TXD |
Signal output port |
From rangefinder to host computer |
|
P-5 |
TTL_RXD |
Signal input port |
From host computer to rangefinder |
|
P-6 |
POWER_CTL |
Low power control port |
>0.7V to turn on, <0.15V to turn off |
![1535nm](https://cdn.shopify.com/s/files/1/0625/7613/2249/files/12_50bb71dc-79d2-47fc-815b-640472f5ef4d_2048x2048.jpg?v=1720664357)

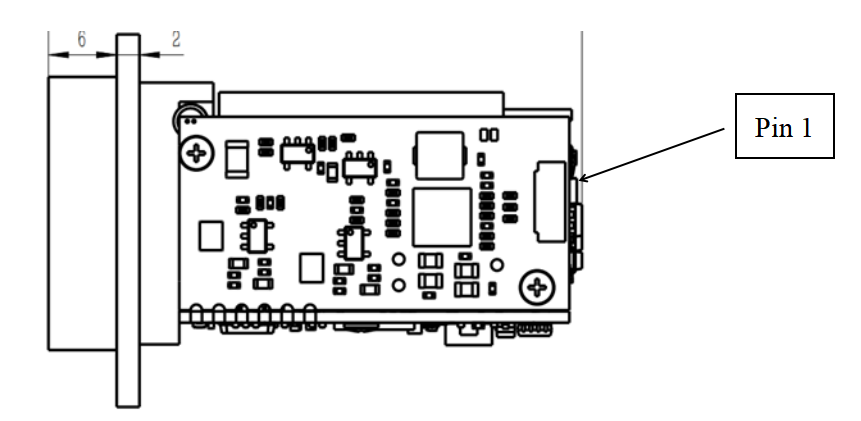

Connector connection 1 pin position
