Diode Pumped Solid State Laser vs Solid-State Laser

In the world of laser technology, two key types of lasers are often compared: Solid-State Lasers (SSL) and Diode-Pumped Solid-State Lasers (DPSSL).

While they share a similar basic structure, they differ in their pumping mechanisms and performance characteristics. Understanding these differences can help you choose the right laser for your needs. Let’s break down the features, advantages, and drawbacks of each.

What is a Solid-State Laser (SSL)?

A Solid-State Laser (SSL) is a type of laser where the gain medium is a solid material, typically a crystal or glass, that is doped with rare-earth or transition metal ions like neodymium (Nd), erbium (Er), or ytterbium (Yb). The laser is pumped by an external light source, traditionally a flashlamp or arc lamp.

Pros

• High Power: SSLs can generate high output power, making them ideal for industrial applications like cutting, welding, and materials processing.
• Reliable: Flashlamp-pumped SSLs have been used for decades, offering proven reliability in various applications.
• Versatile Wavelengths: With different doped materials, SSLs can emit in a wide range of wavelengths, from UV to IR, making them versatile across multiple industries.
• Strong Beam Quality: SSLs, especially when designed with good optics, can provide high-quality beams, which are essential for precise cutting and medical applications.

Cons

• Inefficient Pumping: The use of flashlamps leads to higher thermal losses and less efficient energy conversion, lowering overall performance.
• Large Size: SSLs are typically larger and bulkier due to the need for flashlamps, cooling systems, and power supplies.
• Shorter Operational Lifespan: Flashlamps have a limited operational lifetime (usually 200-400 hours), requiring frequent replacements.
• Higher Maintenance: The complex components, including the flashlamps and cooling systems, demand more maintenance and lead to higher operational costs.

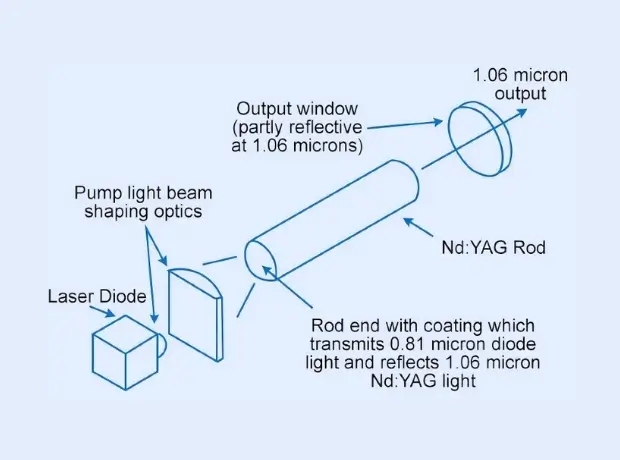

What is a Diode-Pumped Solid-State Laser (DPSSL)?

A Diode-Pumped Solid-State Laser is a technology that uses laser diodes to excite solid-state gain media (such as neodymium-doped, erbium-doped, or ytterbium-doped crystals or glasses) to generate lasers. Compared with traditional flashlamp-pumped lasers, DPSSL uses laser diodes to provide an efficient, stable, and long-term laser source. DPSS Laser generally has higher energy conversion efficiency, smaller size, and longer service life, and the output laser beam quality is generally better.

Pros

• Higher efficiency: Diode lasers convert more electrical energy into laser light while generating minimal heat, which reduces energy losses.
• Compact design: DPSSLs are smaller and lighter than traditional flashlamp-pumped SSLs.
• Longer lifetime: The lifetime of a laser diode is more than 30,000 hours, far exceeding the 200-400 hours of a typical flash lamp.
• Beam quality: DPSSLs produce high-quality, stable beams with low divergence. This makes them suitable for high-precision applications such as LiDAR, optical communications, and medical.
• Low maintenance: With fewer components (no flash lamps), DPSSLs require less maintenance, resulting in lower operating costs.

Read more: What is Pulse Radar Tracking Mode

Cons

•  Higher initial cost: DPSSLs generally cost more upfront due to advanced technology and high-quality diodes.
• Thermal sensitivity: While DPSSLs are more efficient, they are sensitive to temperature fluctuations.
• Complex setup: Setting up a DPSSL requires careful alignment of the diode and gain medium.
• Limited to specific wavelengths

Where to Buy Diode-Pumped Lasers

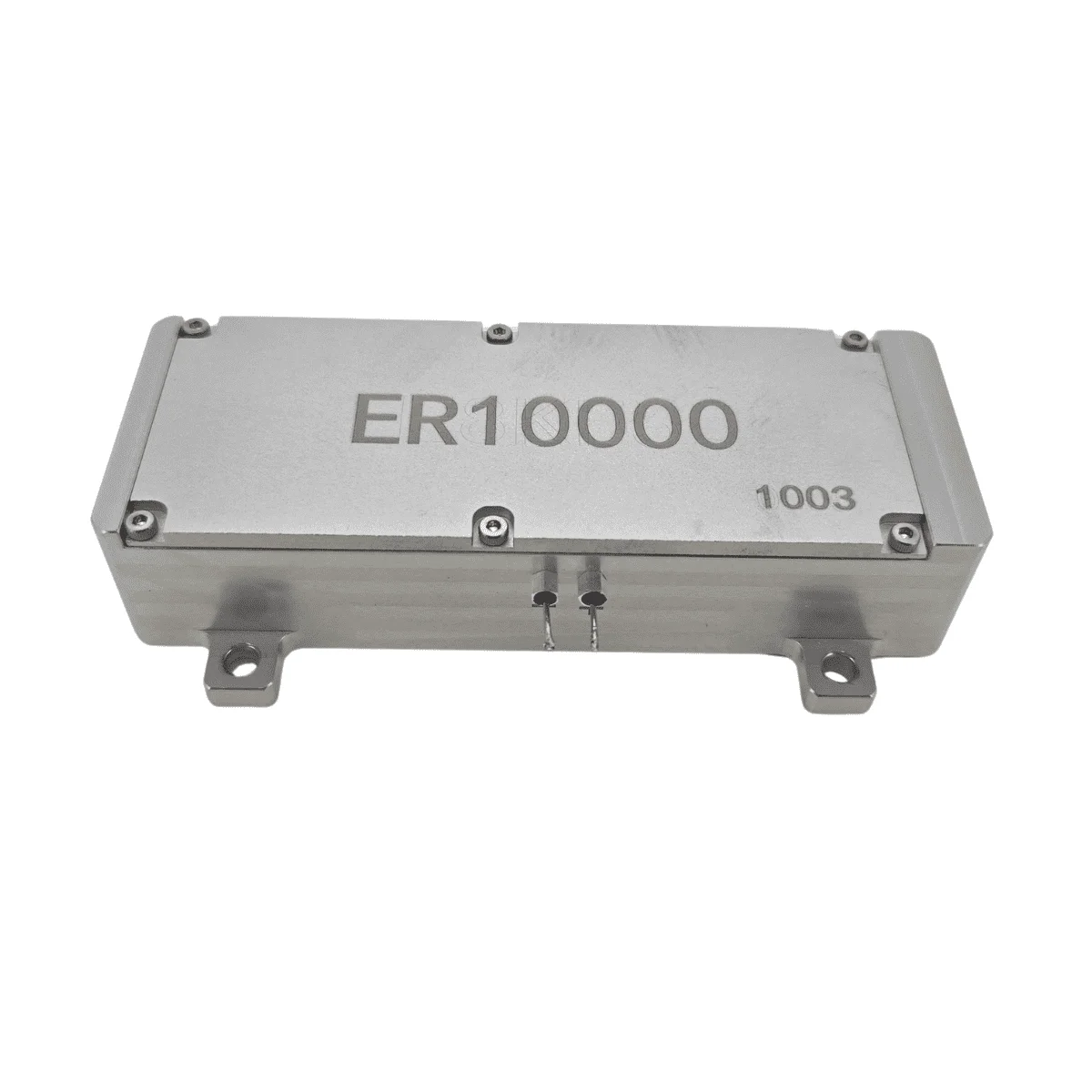

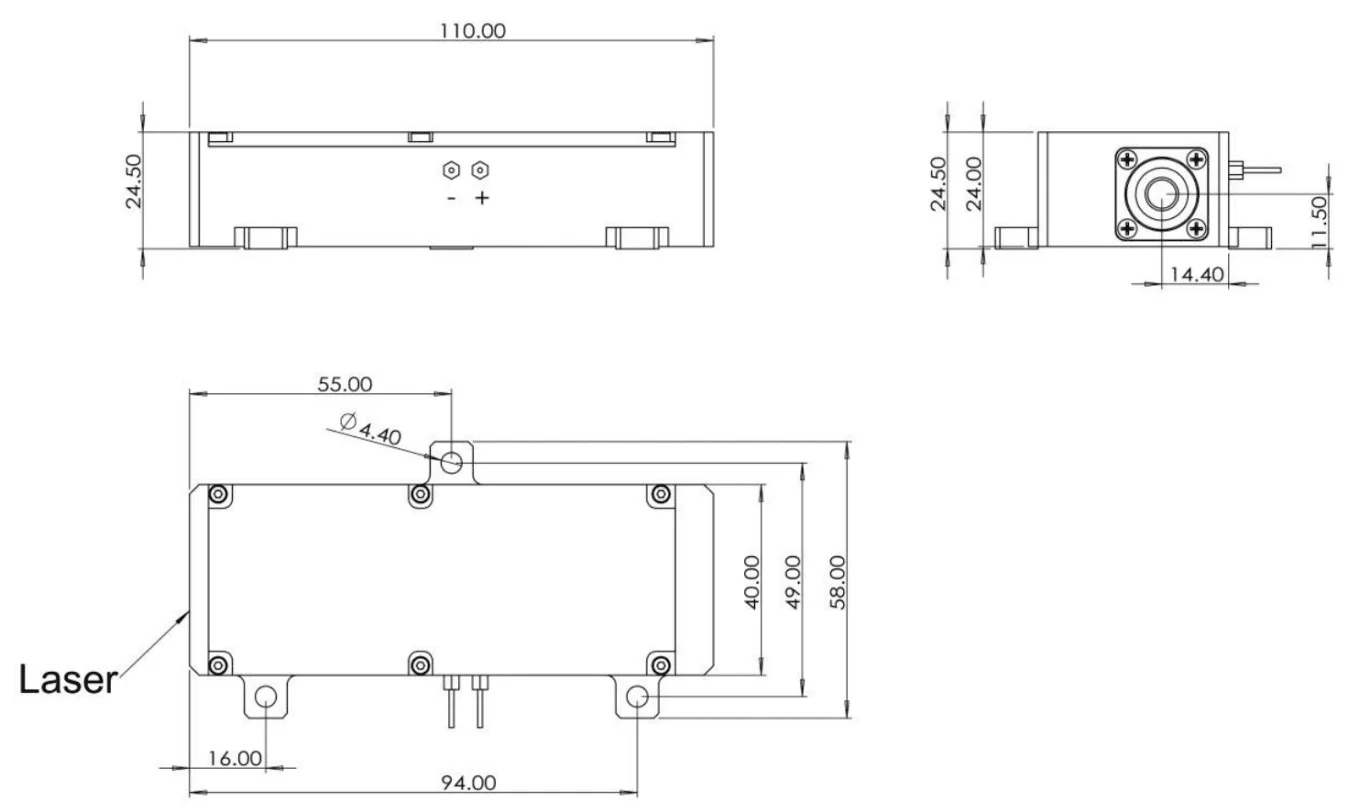

ERDI 1535nm Microchip DPSS Laser belongs to the Diode-Pumped Solid-State Laser (DPSSL) category and utilizes Erbium-doped glass as the gain medium. The laser emits at a 1535nm wavelength, which is eye-safe and commonly used in optical communications, radar, and other applications that require long exposure with safe levels for the human eye.

In addition, it is widely used in laser target designation, laser ranging, laser lighting, solid-state laser rangefinder, laser radar system, laser medical treatment, and fiber optic communication.

Contact us to get more price information and the latest news about DPSS Laser.

Key Differences Between Solid-State Laser and DPSS Laser

1. Pumping Mechanism

In a Solid-State Laser (SSL), flashlamps are used to pump the gain medium. These flashlamps emit broad-spectrum light that excites the laser material. In contrast, a Diode-Pumped Solid-State Laser (DPSSL) uses laser diodes to pump the gain medium. The laser diodes emit a specific wavelength of light, which is more efficiently absorbed by the material, leading to better energy conversion.

Read more: Diode Lasers vs. DPSS Lasers

2. Efficiency

SSLs are less efficient because the broad-spectrum light from flashlamps wastes energy as heat and much of the light is not absorbed by the gain medium. DPSS Lasers are far more efficient, as the laser diodes provide targeted energy that is absorbed more effectively, reducing energy loss and heat generation.

3. Beam Quality

SSLs typically produce lower beam quality. The light from flashlamps is less focused and tends to diverge more. In contrast, DPSSLs offer superior beam quality. The light from the laser diodes is coherent and focused, with less divergence, making it ideal for precision tasks.

4. Size and Design

SSLs are larger and bulkier because they require space for flashlamps, cooling systems, and other components. On the other hand, DPSSLs are more compact and lightweight. The use of laser diodes allows for smaller, integrated systems that require less space and are easier to manage.

5. Applications

SSL: Best for high-power applications, like cutting, welding, and material processing. Also used in medical procedures that require high power.

DPSSL: Ideal for precision applications, such as LIDAR, optical communications, and medical diagnostics. Also used for compact industrial and consumer devices.

Related read: Why does LiDAR use 905nm and 940nm bands?

Conclusion

SSLs are best suited for high-power applications such as cutting, welding, and material processing, as well as medical procedures that require significant power. DPSSLs excel in precision applications like LIDAR, optical communications, and medical diagnostics. They are also used in compact industrial systems and consumer devices where space, efficiency, and precision are critical.

FAQ

1. What Are the Types of Lasers?

There are five main types of lasers based on the gain medium:

1. Gas Lasers (e.g., CO₂ lasers)
2. Solid-State Lasers (e.g., Nd: YAG lasers)
3. Fiber Lasers (e.g., Yb-doped fiber lasers)
4. Liquid Lasers (e.g., Dye lasers)
5. Semiconductor Lasers (e.g., Diode lasers)

2. What is the Efficiency of Diode-pumped Laser?

Diode-pumped lasers are much more efficient than lamp-pumped lasers. The absorption efficiency for diode lasers is 5.3 to 5.76 times higher than for lamp-pumped lasers, making them more energy-efficient.

3. What Are the Three Most Common Laser Level Types?

The three most common types are:

• Rotary Laser Levels
• Line Laser Levels
• Dot Laser Levels
