TECHNICAL SPECIFICATIONS
System specification | |
System type | Gyro stability |
Weight | ≤240g |
System characteristics | |
Platform type | Two-axis |
Pitch | -110°~+110° |
Roll | -100°~+30° |
Max angular velocity | ≥100°/s |
Stability accuracy | 0.1mrad(1°/2Hz)(1σ) |
Motor encoder accuracy | ≤0.3° |
Visible Light Imaging (Wide Field of View, WFOV) | |
Resolution and frame rate | 1920×1080@60fps |
FOV | 42.2°×24.5° (7.2mm) |
Visible Light Imaging (Narrow Field of View, NFOV) | |
Resolution and frame rate | 1920×1080@60fps |
FOV | 12.7°×7.1° (25mm) |
Target tracking | |
Tracking speed | ≥40°/s |
System external interface | |
Control interface | RS232 |
Video output | Mipi |
Power supply | |
Supply voltage | 12V~28V |
Power consumption | Av.≤10W Max.≤20W |
Environmental condition | |
Working temp | -40℃~+60℃ |
Storage temp | -40℃~+60℃ |
Launch impact | ≥400g |

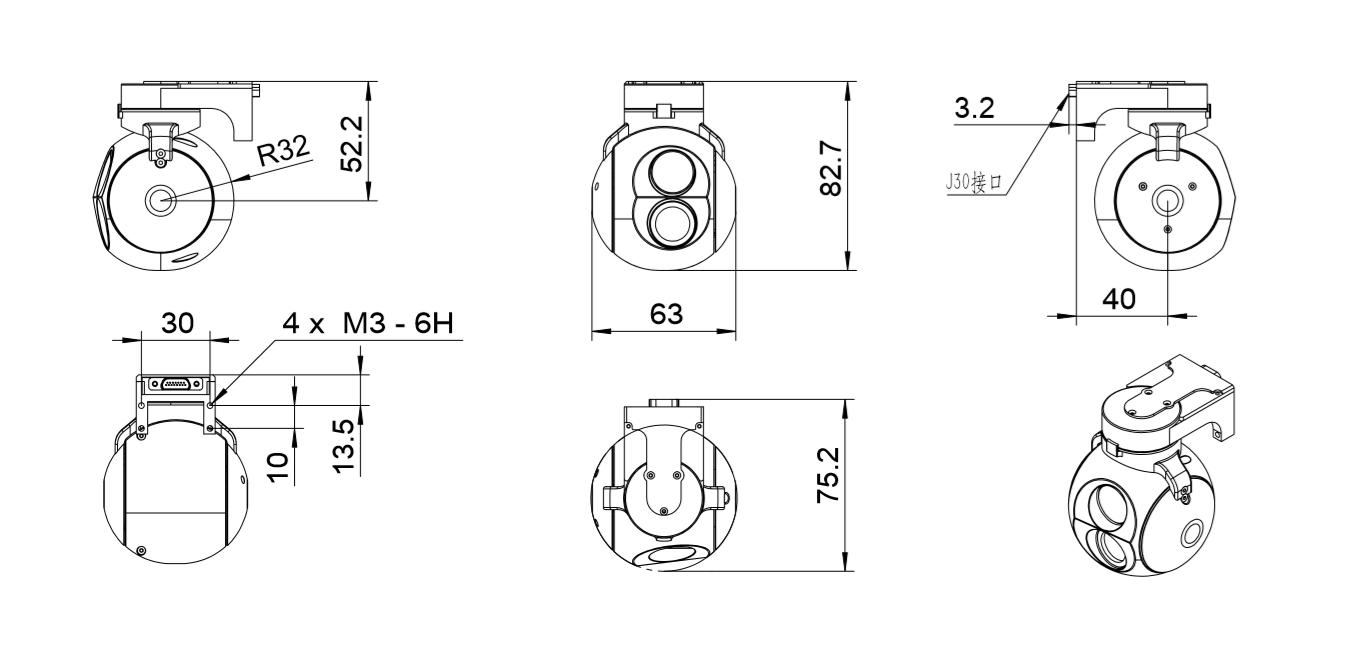

OUTLINE DIMENSION
Figure 1 Outline Dimensions
