TECHNICAL SPECIFICATIONS
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā System specification | |
System type | Gyro stability |
Weight | ā¤85g |
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā System characteristics | |
Platform type | Two-axis |
Pitch | -110Ā°ļ½+110Ā° |
Roll | -100Ā°ļ½+40Ā° |
Max angular velocity | ā„100Ā°/s |
Stability accuracy | 0.1mrad(1Ā°/2Hz)(1Ļ) |
Motor encoder accuracy | ā¤0.3Ā° |
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Visible Light Imaging (Wide Field of View) | |
Resolution and frame rate | 1920Ć1080@60fps |
FOV | 49.8Ā°Ć29.3Ā° (6mm) |
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Visible Light Imaging (Narrow Field of View) | |
Resolution and frame rate | 1920Ć1080@60fps |
FOV | 19.7Ā°Ć11Ā° (16mm) |
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Target tracking | |
Tracking speed | ā„40Ā°/s |
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā System external interface | |
Control interface | Serial port |
Video output | Network |
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Power supply | |
Supply voltage | 12V~28V |
Power consumption | Av.ā¤10W Max.ā¤20W |
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Environmental condition | |
Working temp | -20āļ½+60ā |
Storage temp | -20āļ½+60ā |
Launch impact | ā„400g |
OUTLINE DIMENSION(mm)

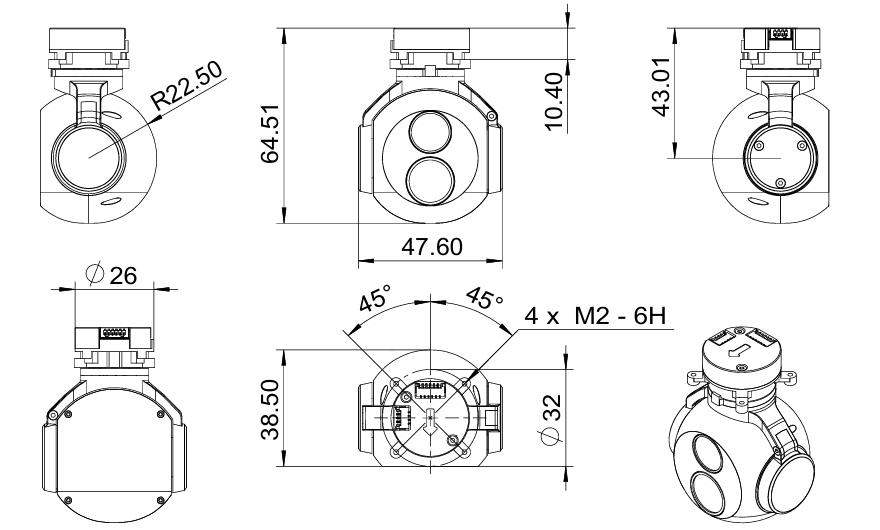

Figure 1 Outline Dimensions
Connector connection 1 pin position
