TECHNICAL SPECIFICATIONS
                                               System specification | |
System type | Gyro stability |
Weight | ≤110g |
                                                System characteristics | |
Platform type | Two-axial |
Pitch | -120°~+120° |
Roll | -90°~+30° |
Max angular velocity | ≥30°/s |
Vibration angle | 0.2mrad(1°/2Hz)(1σ) |
Encoder accuracy | ≤0.3° |
                                               Visible Light Imaging | |
Resolution and frame rate | 1920×1080@30fps |
FOV | 30°×17.1° (10.36mm) |
                                                   Infrared imaging | |
Resolution and frame rate | 640×512@30fps |
FOV | 32.9°×26.6° (13mm) |
                                                  Tracking module | |
Tracking speed | 32 pixels / frame (32×32 person) 48 pixels / frame (48×48 car) |
                                                  System external interface | |
Control interface | TTL |
Video output | Network RTSP |
                                                    Power supply | |
Supply voltage | 12V~16V |
Power consumption | Av.≤5W Max.≤8W |
                                                Environmental condition | |
Working temp | -20℃~+60℃ |
Storage temp | -20℃~+60℃ |

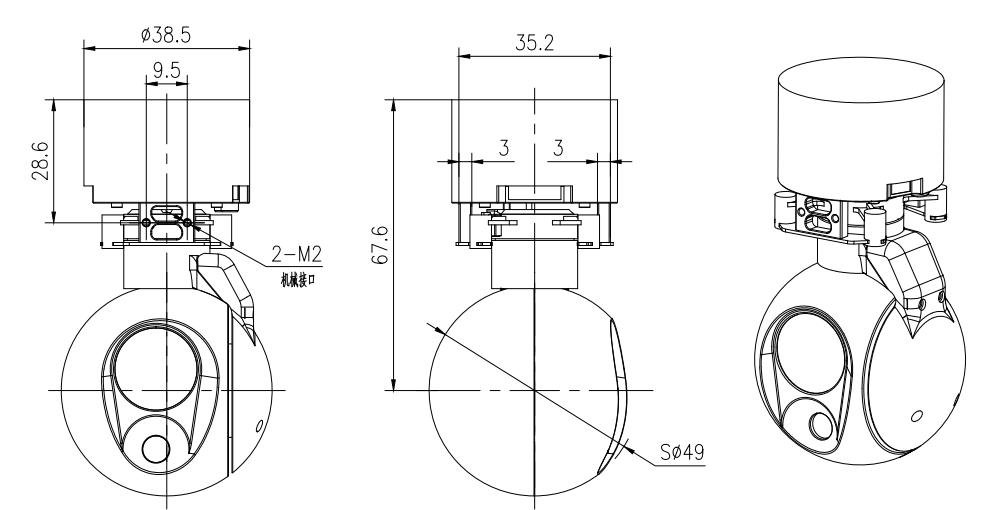

OUTLINE DIMENSION(mm)
Figure 1 Outline Dimensions
Connector connection 1 pin position
