TECHNICAL SPECIFICATIONS
System specification | |
Weight | ≤260g |
Visible Light Imaging (Wide Field of View, WFOV) | |
Resolution and frame rate | 1920×1080@60fps |
FOV | 42.2°×24.5° |
Visible Light Imaging (Narrow Field of View, NFOV) | |
Resolution and frame rate | 1920×1080@60fps |
FOV | 12.7°×7.1° (25mm) |
Target tracking | |
Tracking speed | 48 Pixel / frame |
System external interface | |
Control interface | RS232 |
Video output | Network |
Power supply | |
Supply voltage | 12V~28V |
Power consumption | Av.≤10W Max.≤20W |
Environmental condition | |
Working temp | -40℃~+60℃ |
Storage temp | -40℃~+60℃ |
Launch impact | ≥400g |
OUTLINE DIMENSION

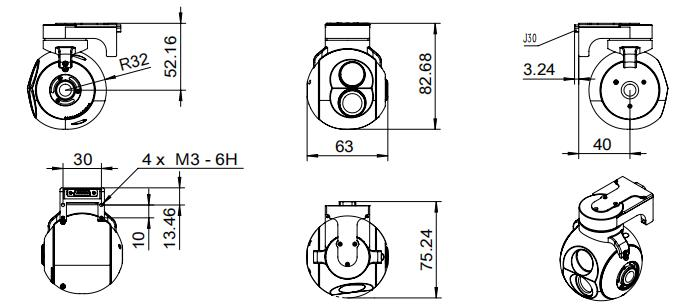

Figure 1 Outline Dimensions
