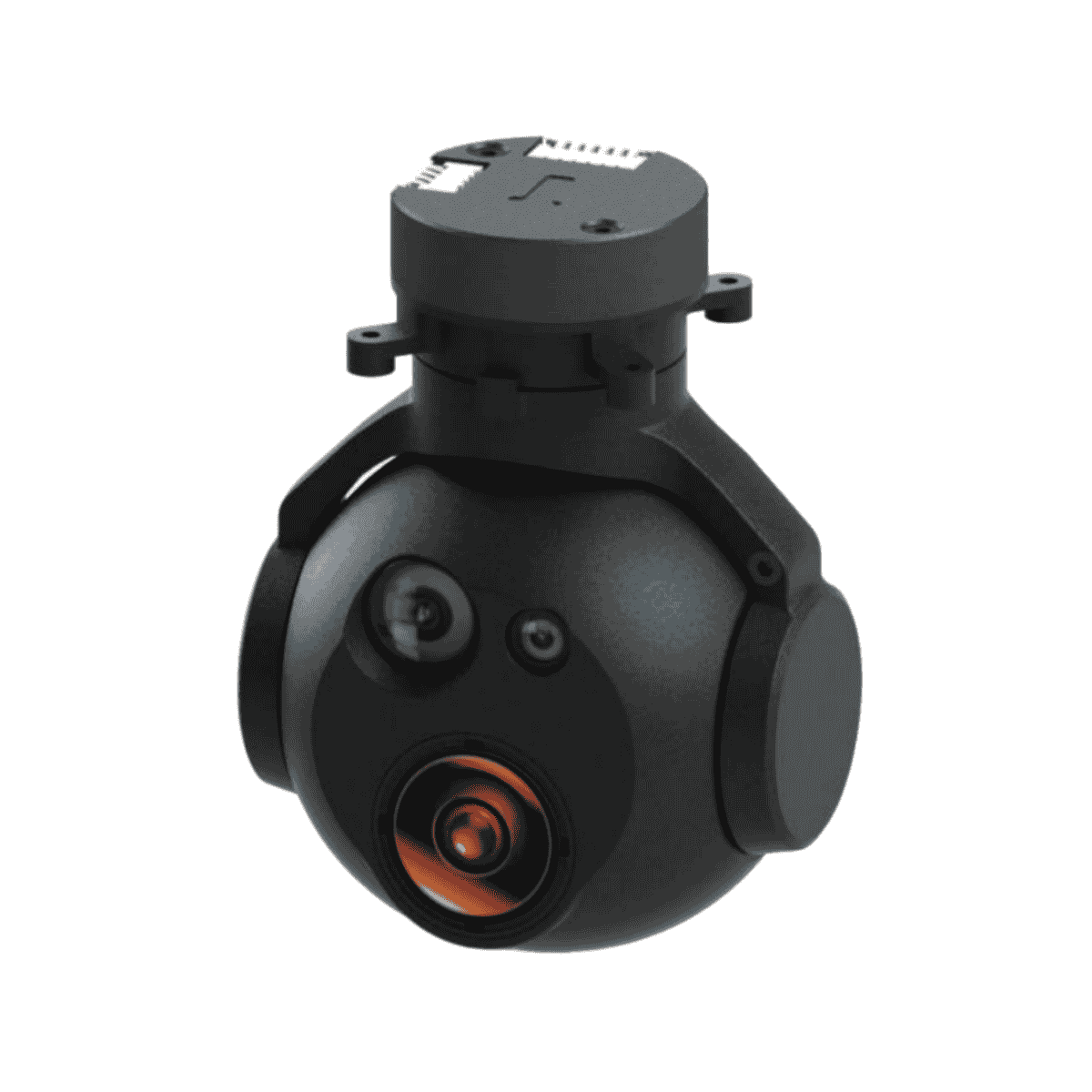

TECHNICAL SPECIFICATIONS
System specification | |
System type | Gyro stability |
Weight | ≤85g |
System characteristics | |
Platform type | Two-axis |
Pitch | -110°~+110° |
Roll | -100°~+40° |
Max angular velocity | ≥100°/s |
Stability accuracy | 0.1mrad(1°/2Hz)(1σ) |
Motor encoder accuracy | ≤0.3° |
Visible Light Imaging (Wide Field of View) | |
Resolution and frame rate | 1920×1080@60fps |
FOV | 82°×52° (3.2mm) |
Visible Light Imaging (Narrow Field of View) | |
Resolution and frame rate | 1920×1080@60fps |
FOV | 19.7°×11° (16mm) |
Thermal IR | |
Resolution and frame rate | 640×512@50fps |
FOV | 32.9°×26.6° (13mm) |
Target tracking | |
Tracking speed | ≥40°/s |
System external interface | |
Control interface | TTL/232/SBUS |
Video output | Network (Rtsp) |
Power supply | |
Supply voltage | 12V~28V |
Power consumption | Av.≤6W Max.≤15W |
Environmental condition | |
Working temp | -20℃~+55℃ |
Storage temp | -20℃~+60℃ |
Launch impact | ≥400g |
OUTLINE DIMENSION(mm)
Figure 1 Outline Dimensions
Connector connection 1 pin position
