Difference Between Thermal and Infrared
Infrared and thermal imaging are often used in nighttime surveillance, wildlife observation, and search and rescue operations. Although the terms "infrared" and "thermal" are often used interchangeably, they represent fundamentally different technologies. Infrared cameras and thermal cameras both capture invisible infrared radiation to create images, but they work differently and have different applications.
This article will explore the differences between infrared vision and thermal imaging, as well as their specific uses in hunting.
What Is Thermal Vision
Thermal imaging refers to the process of using infrared cameras and sensors to detect and visualize heat. All objects emit infrared radiation based on their temperature. This radiation is invisible to the naked eye but becomes visible when captured by thermal devices. The result is a thermal image or "thermal map," where temperature variations are displayed using colors—warmer areas are often represented in red or orange, while cooler areas appear in blue or purple.
This technology highlights temperature differences, converting thermal energy into visible light, and enabling users to see and interpret heat patterns. In hunting, thermal imaging is widely used for nighttime hunting or in low-visibility environments. It helps hunters detect the heat signature of animals, distinguishing them from the surrounding environment. Thermal imaging does not rely on external light sources, meaning it can work effectively in total darkness, clearly revealing the position and outline of the target. Additionally, thermal systems can penetrate obstacles like smoke and fog, providing a clearer view.
How Thermal Imaging Works
Thermal imaging works devices use infrared sensors to detect and measure heat emitted by an object. The process includes:
- Infrared Detection: All objects above absolute zero emit infrared radiation, which increases with temperature.
- Conversion: The camera's sensor captures this radiation and converts it into an electrical signal.
- Image Creation: This signal is then processed into a thermal image, with different temperatures represented by distinct colors.
To visualize it better, imagine a flashlight detecting heat rather than light. It doesn’t require any illumination or visibility, making it effective in total darkness or dense smoke, where standard cameras fail.
Applications of Thermal Imaging
Thermal imaging has paved the way for innovative solutions across numerous industries. Some of its common real-world applications include:
- Building Inspections: Detects insulation leaks, moisture issues, and structural damage by identifying temperature anomalies in walls or rooftops.
- Firefighting: Assists firefighters in locating individuals or fire sources inside smoke-filled environments, saving lives in emergencies.
- Surveillance and Security: Aids night surveillance by detecting intruders or suspicious activity without relying on visible light.
- Medical Diagnosis: Helps identify inflammation, blood flow issues, or other physiological conditions through non-invasive thermal scans.
- Wildlife Monitoring: Tracks animals in the wild by spotting body heat, even in dark or dense habitats.
These are just a few of its varied uses, reflecting its importance in making informed decisions and enhancing safety.
Related read: Thermal Imaging Pod Technology Details
What Is Infrared Vision
Infrared imaging uses specialized cameras to capture and visualize infrared light, allowing us to see beyond the visible spectrum. It detects energy in the form of heat or reflected light, which is typically invisible to the naked eye. Infrared cameras convert this radiation into visual images, often using color to represent temperature or energy intensity—warmer objects appear in red or orange, and cooler areas are shown in blue or green.
While infrared imaging overlaps with thermal imaging in detecting radiation, it focuses on specific energy wavelengths rather than just heat. Infrared systems can be either passive or active. Active infrared systems emit infrared light to illuminate the target area, with the reflected light used to generate an image. Passive systems detect heat emitted by objects to form an image.
In hunting, infrared cameras are primarily used in low-light conditions, helping hunters identify hidden targets, especially when there is some ambient light.
How Infrared Imaging Works

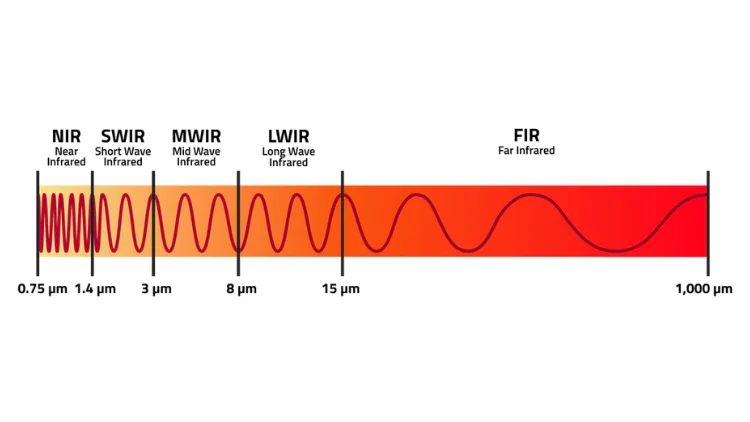

Infrared imaging relies on detecting infrared radiation, a type of electromagnetic energy that spans three distinct bands: near-infrared (NIR), mid-infrared (MIR), and far infrared (FIR). Each band provides different information:
- Near Infrared (NIR): Just beyond the visible spectrum, it measures reflected light.
- Mid Infrared (MIR): Detects emitted energy, though it's generally less intense than far infrared.
- Far Infrared (FIR): Strongly associated with thermal emissions, this band identifies heat patterns.
Infrared cameras are equipped with sensors that capture this radiation. These sensors convert the detected infrared energy into measurable electrical signals. Algorithms then process these signals into visual images, where energy levels are represented by contrasting colors. Similar to how night vision goggles convert dark environments into visible scenes, infrared imaging reveals the invisible by turning infrared radiation into visible imagery.
Applications of Infrared Imaging
Infrared imaging has a wide range of practical applications across various fields, including:
- Night Vision: It aids in low-light environments like surveillance, hunting, or tactical operations by converting invisible light into a visible format.
- Automotive Systems: Infrared detection improves vehicle safety, especially through advanced driver-assistance systems (ADAS) that detect pedestrians or animals in darkness or fog.
- Medical Diagnostics: Non-invasive infrared scans help detect circulatory issues, inflammation, or fever patterns, particularly useful in oncology and cardiovascular studies.

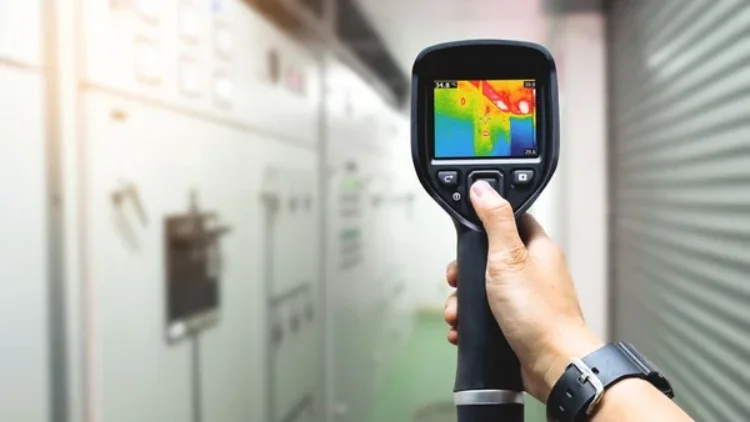

- Industrial Monitoring: Infrared imaging assists in predictive maintenance by identifying overheating machinery or electrical faults before failures occur.
- Environmental Analysis: It tracks temperature variations in ecosystems or monitors large-scale climate factors, such as glacier melting.
From ensuring safer driving to diagnosing medical conditions, infrared imaging's versatility enhances our ability to observe and analyze the unseen world.
Thermal vs Infrared: Key Differences
Thermal and infrared imaging, while related, serve distinct purposes. Both technologies operate within the infrared spectrum but differ in how they detect and process radiation, leading to varying applications and results.
Wavelengths and Detection
Thermal imaging works in the mid-wave and long-wave infrared ranges (3-14 microns) and detects heat emitted by objects. This allows it to function in total darkness, making it ideal for detecting heat sources in search-and-rescue or firefighting operations. Infrared imaging, however, spans a broader spectrum, from near-infrared to parts of far-infrared (0.7-14 microns), detecting reflected or emitted radiation. Infrared imaging relies partially on external light or energy, making it better suited for low-light environments and detailed visual capture. In essence, thermal imaging is optimized for heat detection, while infrared imaging captures fine details in low-light conditions.
Image Formation and Quality
Thermal imaging generates a heat map, showing warmer areas in red or orange and cooler ones in blue or purple. Although it has a lower resolution, it excels at identifying subtle temperature differences, even in obscured environments like smoke or fog. Infrared imaging, in contrast, produces high-definition images, revealing textures, shapes, and fine details. It can capture visuals similar to visible light but in the extended infrared spectrum, offering clarity where thermal imaging falls short. For detailed imagery, infrared imaging is superior, but for heat pattern detection in challenging conditions, thermal imaging is the preferred choice.
Use Cases and Limitations
Thermal imaging is ideal for detecting heat in dark or obscured conditions, such as in firefighting, wildlife monitoring, and search-and-rescue missions. However, it struggles with fine surface details and distinguishing objects with similar temperatures. Infrared imaging excels in low-light settings, making it perfect for applications like automotive safety systems (ADAS), environmental research, and detailed inspections. However, it requires some external light to function effectively and isn’t suitable for heat detection in total darkness.
Cost Considerations
Thermal imaging tends to be more expensive due to its specialized sensors and capability to detect heat without external light. Infrared imaging is more budget-friendly, especially for consumer applications.
Read more: Multispectral imaging techniques and camera selection
Thermal Imaging and Infrared by ERDI TECH LTD
If you're looking for high-performance infrared scopes, these two models offer exceptional features to meet your needs in any environment, day or night.

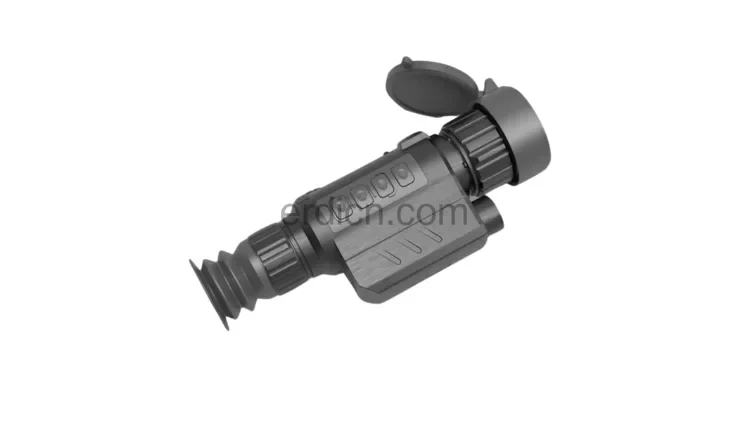

35mm Lens 384x288 Resolution Infrared Scope (Model: IR384K35)
The IR384K35 is an excellent choice for those who need a reliable infrared scope with excellent performance at an affordable price. Its 35mm lens and 384x288 resolution allow you to see in total darkness, while its ergonomic design and IP67 waterproof rating ensure it performs well in even the harshest environments. With up to 350m observation distance for human targets and easy integration with various equipment, it's perfect for both hunting and tactical use, giving you the advantage of early detection of potential hazards.

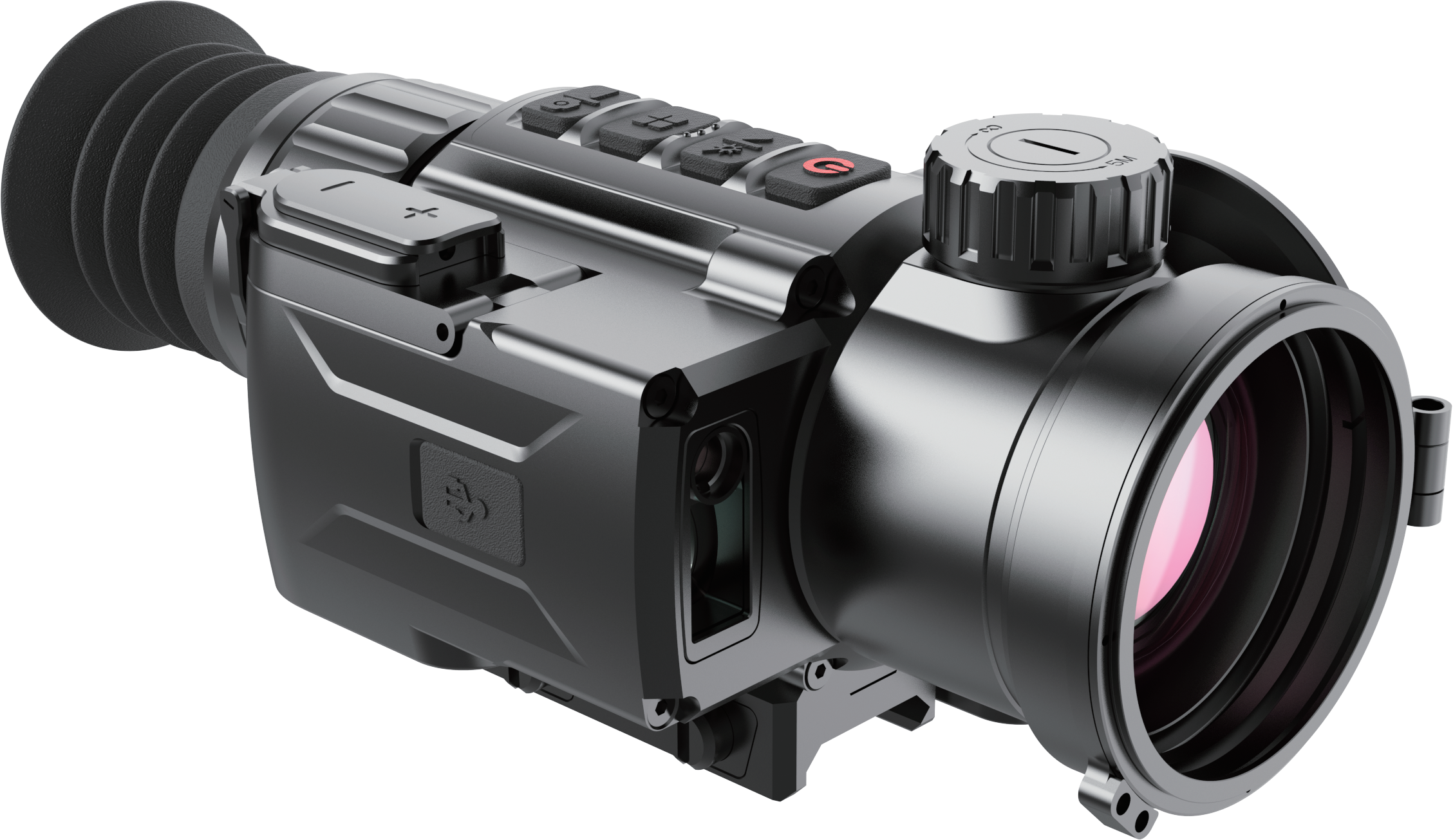

Elite Marksman 35mm 640x512 IR Thermal Imaging Sight (Model: IR640K35)
With a 35mm lens and 640x512 resolution, this thermal scope provides precise, high-definition images in complete darkness. Its compact design integrates observation, ranging, and magnification into a single unit, making it easy to detect targets and identify threats at a distance. Whether you’re on a night hunt or in a tactical situation, the IR640K35 ensures you're always one step ahead. With its waterproof IP67 rating, it’s built to last through all weather conditions, keeping you prepared for anything.
Conclusion
Thermal and infrared imaging serve distinct purposes, even though they share a connection to infrared radiation. Thermal imaging focuses on heat detection, while infrared imaging captures light-based information. Each has strengths suited to specific environments. Choosing the right technology depends on your exact needs, whether clarity or heat detection is the priority.
