TECHNICAL SPECIFICATIONS
System specification | |
System type | Gyro stability |
Weight | ≤280g |
System characteristics | |
Platform type | Two-axis |
Pitch | -110°~+110° |
Roll | -100°~+30° |
Max angular velocity | ≥100°/s |
Stability accuracy | 0.1mrad(1°/2Hz)(1σ) |
Motor encoder accuracy | ≤0.3° |
Visible Light Imaging(8mm) | |
Resolution and frame rate | 1920×1080@60fps |
FOV | 38.3°×22.1° |
Thermal IR (18mm) | |
Resolution and frame rate | 640×512@60fps |
FOV | 24°×18.1° |
Target tracking | |
Tracking speed | ≥40°/s |
System external interface | |
Control interface | RS232 |
Video output | Network |
Power supply | |
Supply voltage | 12V~28V |
Power consumption | Av.≤10W Max.≤20W |
Environmental condition | |
Working temp | -40℃~+60℃ |
Storage temp | -40℃~+60℃ |
Launch impact | ≥400g |

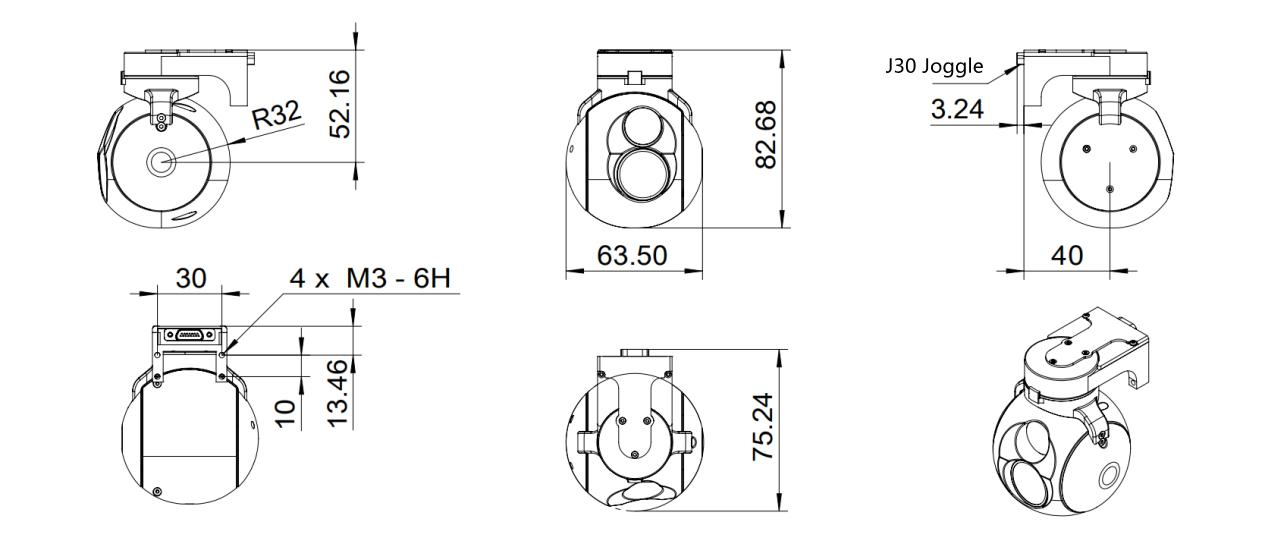

OUTLINE DIMENSION
Figure 1 Outline Dimensions
