905nm Pulsed Laser Rangefinder Module

This semiconductor pulse laser rangefinder sensor has a laser wavelength of 905nm and a ranging capability of over 1200 meters.It utilizes MCU+ADC+FPGA technology,features a UART-TTL interface,and comes with accompanying testing software for easy further development by users.With a small size and a weight of only 20g,it offers high precision and stable performance,and is widely used in aviation,communication,geology,police services,and outdoor sports.

Contact Us

Senior Engineer, Yilin

  • Tel : +86 28 81076698
  • WhatsApp : +86 18000520222

Customer Reviews

FAQ

We are a national high-tech enterprise in China. For each product, we cover the entire industrial chain, ranging from research and development to manufacturing, and then to technical service solutions.

We provide samples and will try our best to keep the fees as low as possible. If you are our regular customer, we will offer some free samples.

You can contact sales online to get latest price; Or you can leave message to us. Our sales will contact you as soon as possible. And the price we provide is normally FOB price.

We accept payments via T/T, PayPal and LC.

Our minimum order quantity is 1 pc.

Please contact sales to confirm if we still have goods in stock. If yes, we will ship goods to you in one week time after we receive your payment. If not, please confirm with sales.

Usually we ship goods to customer via express, such as DHL, FedEx, UPS, TNT or airway transportation. You can also ask us to send goods to your forwarder in China. And we will pay domestic freight.

Yes, we provide OEM/ODM service. Lead time of customized products need to be confirmed with sales. Usually we will ship products after 2 months time after we receive customer’s payment.

Our skilled and friendly salesmen are ready to answer your questions about our products and services at any time, from product selection to application. Free technical consultation services are offered by request. Our experienced engineers are here to cooperate with you on your special requirements or OEM designs.

The specifications of our products are subject to change without notice. Please ask necessary questions before you order.

Laser products are warranted to conform to ERDI’ s published specifications and to be free from defects in materials and workman-ship for a period of twelve months starting on the shipping date. ERDI will repair or replace (at our decision) ASAP without charge, any part(s) found to be defective during the warranty period.

Our warranties do not cover damages due to misuse, negligence or accidents or due to installations, repairs or adjustments not authorized by ERD.

If a problem occurs and can’t be solved by phone, fax, or email, you may return products to ERDI. Please contact us for a Return Material Authorization (RMA) number prior to shipping the laser. We’ll provide you details on shipping and customs information with the RMA number. All lasers and components should be carefully packed to avoid damage during shipment.

TECHNICAL SPECIFICATIONS

Model

LRF1200A1

Laser Wavelength

905nm

Eye Safety

Class 1

Launch Lens Diameter

Φ6.6mm

Receiver Lens Diameter

Φ18mm

Measuring Range(building)

≥5~1200m

Ranging Accuracy

±1m

Display Accuracy

0.1m

Ranging Frequency

1~3Hz

Precision Rate

≥98%

False Alarm Rate

≤1%

Data Interface

UART(TTL_3.3V)

Supply Voltage

DC 3~5 V

Standby Power Consumption

≤300mW

Operating Power Consumption

≤800mW

Weight

18g

Dimention (L×W×H)

Ф23mmÍ48mm

Operation Temperature

-40~+60℃

Storage Temperature

-55~+65℃

Impact Resistance

1200 g,1 ms

Anti-vibration

5~50~5 Hz,1 Octave range /min,2.5 g

Dependability

MTBF≥1500 h

Activation Time

≤500ms;

Waterproof rating

 Lens IP67

ESD Class

(Lens position)

Contact discharge 6kV

Air discharge 8kV

Electromagnetic Compatibility (EMC)

CE/FCC Certification

Eco-friendly

RoHS2.0

1. In this mode, the device consumes minimal power. The MCU is in an off state and does not respond to any commands.

2. When a measurement is needed, pull the enable pin low to switch the device into normal working mode and automatically perform one measurement.

3. After the measurement is complete, pull the enable pin high to return the device to low-power mode, with power consumption below 3mW.

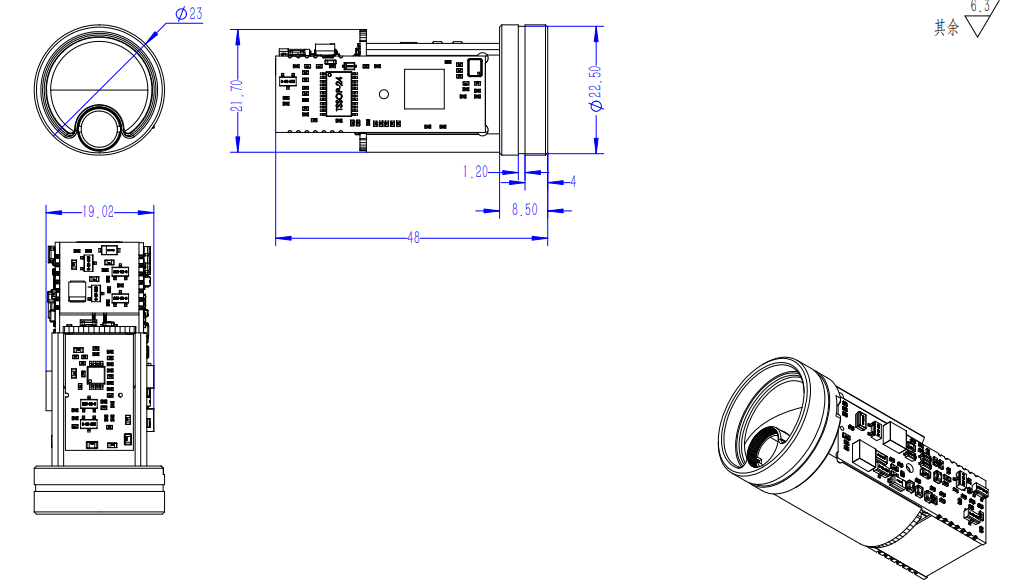

OUTLINE DIMENSION(mm)

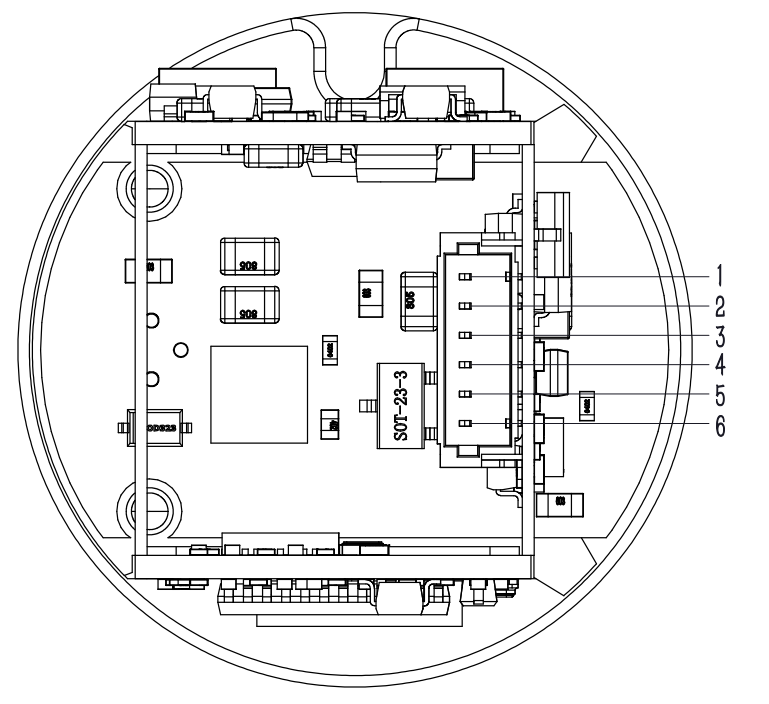

PIN interface

User Electrical Interface: UART (TTL_3.3V)

Connector Model No.: FWF08002-S06B13W5M, wire sequence and specific definitions are shown below:

Pin

Definition

Illustrate

1

GND

Earth (wire)

2

Power supply

3.3V DC power supply

3

NC

Empty pin

4

TTL_TXD

Serial transmitter, TTL level 3.3V

5

TTL_RXD

Serial Receiver, TTL Level 3.3V

6

Enable Pin

low level power on
